USER MANUAL Freespace Evo TFV2017 011 HOOVER

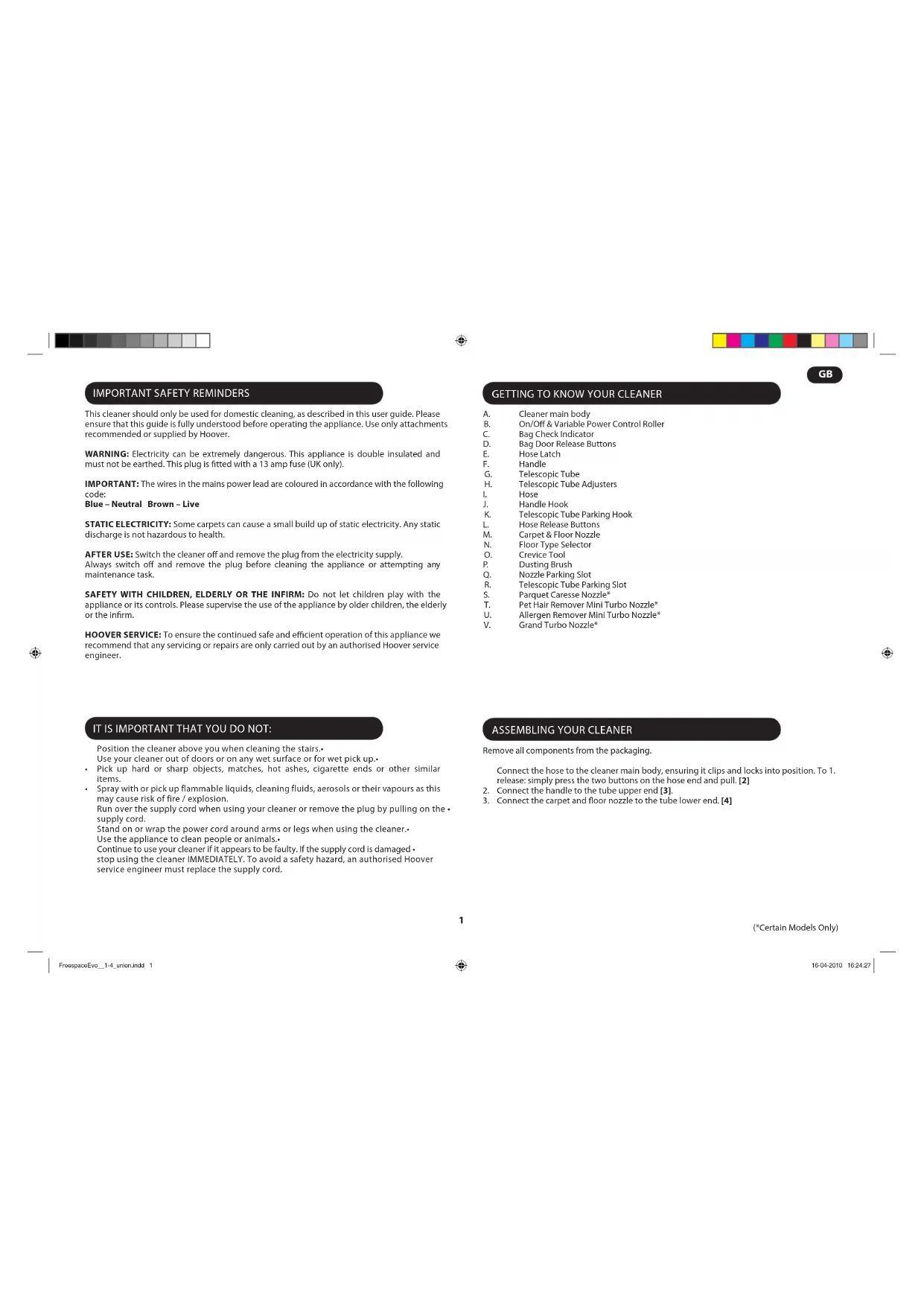

This cleaner should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Use only attachments recommended or supplied by Hoover.

WARNING: Electricity can be extremely dangerous. This appliance is double insulated and

must not be earthed. This plug is tted with a 13 amp fuse (UK only). IMPORTANT: The wires in the mains power lead are coloured in accordance with the following code: Blue – Neutral Brown – Live STATIC ELECTRICITY: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health. AFTER USE: Switch the cleaner o and remove the plug from the electricity supply. Always switch o and remove the plug before cleaning the appliance or attempting any maintenance task. SAFETY WITH CHILDREN, ELDERLY OR THE INFIRM: Do not let children play with the appliance or its controls. Please supervise the use of the appliance by older children, the elderly or the inrm. HOOVER SERVICE: To ensure the continued safe and ecient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer. (*Certain Models Only)

IMPORTANT SAFETY REMINDERS

Position the cleaner above you when cleaning the stairs.•  Use your cleaner out of doors or on any wet surface or for wet pick up.•  Pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar •  items. Spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours as this •  may cause risk of fire / explosion. Run over the supply cord when using your cleaner or remove the plug by pulling on the •  supply cord. Stand on or wrap the power cord around arms or legs when using the cleaner.•  Use the appliance to clean people or animals.•  Continue to use your cleaner if it appears to be faulty. If the supply cord is damaged •  stop using the cleaner IMMEDIATELY. To avoid a safety hazard, an authorised Hoover service engineer must replace the supply cord. IT IS IMPORTANT THAT YOU DO NOT:

Remove all components from the packaging. Connect the hose to the cleaner main body, ensuring it clips and locks into position. To 1. release: simply press the two buttons on the hose end and pull. [2] Connect the handle to the tube upper end 2. [3]. Connect the carpet and oor nozzle to the tube lower end. 3. [4] FreespaceEvo__1-4_union.indd 1 16-04-2010 16:24:272

Extract power cord and plug it into the power supply. 1. [5] Do not pull the cord beyond the red marker. Adjust the telescopic tube to the desired height by moving the telescopic tube adjuster up 2. and raise or lower the handle to the most comfortable cleaning position. [6] Carpet & Floor Nozzle. Press the oor type selector on the nozzle 3. [7] to select the ideal cleaning mode for the oor type. Hard Floor – Brushes are lowered to protect the oor. Carpet – Brushes are raised for the deepest clean. Switch the cleaner on by rotating the On/O Variable Power Control Roller clockwise on the 4. rear of the cleaner main body. [8] Adjust the power level by rotating the On/O Variable Power Control Roller to the desired 5. level. [8] Switch o at the end of use by rotating the On/O Variable Power Control Roller anti-6. clockwise to the end. [8] Unplug and gently pull the power cord out of the cleaner and the cord will begin to automatically retract back into the cleaner. [9] Parking and Storage - The exible hose and tube can be parked for temporary storage while 7. in use [10] or in the Nanopack storage position when not in use: Retract the telescopic tube to its storage length [6]. Remove the nozzle from the end of the telescopic tube [11] and remove the hose handle from the telescopic tube [12]. Lift the hose latch at the rear of the cleaner [13] and wrap the exible hose around the product [14]. Park the hose handle on the product [15]. Assemble the nozzle into the parking slot underneath the product [16]. Assemble the telescopic tube into the remaining parking slot underneath the product [17]. CLEANER MAINTENANCE Replacing The Dust Bag If the bag check indicator [1C] is red please check and, if necessary, replace the bag.

1. Remove the hose from the cleaner [2].

2. Press the Bag Door Release buttons and remove bag door [18].

3. Pull the bag collar to remove the dust bag [19] and carefully dispose the bag into a bin.

4. Fit a new bag into the cleaner by inserting the bag collar into the bag holder [19].

IMPORTANT: The hose must be removed before removing or replacing the dust bag. Remember: The bag check indicator may be red if an obstruction has occurred. In this case refer to ‘Removing A Blockage From the System’. Cleaning the Filters To maintain optimum performance of your cleaner, please wash the pre-motor lter and exhaust lter after each 5 bag changes. To remove the pre-motor lter:

1. Open the bag door and remove the dust bag from the cleaner (see “Replacing The Dust

2. Press the latch at the top of the pre-motor lter frame to unlock it from the cleaner. Tilt and

remove the lter from the cleaner [20]. To remove the exhaust lter:

1. Unlock the door by rotating the door along arrows indicated [21].

2. Remove the lter pack from the recess [22].

Gently tap and wash the lter packs using hand warm water [23]. Remove excess water from the lters with a dry cloth and leave to dry fully before re-using. Reassemble lter packs once fully dry and ret to the cleaner. Remember: Do not use hot water or detergents. In the unlikely event of the lters becoming damaged, t a Genuine Hoover consumable. Do not try and use the product without a dust bag or lter tted. Cleaning the permanent dust bag (depending on model) To maintain optimum performance we recommend that you wash the permanent bag after every 5 full bags. Empty the contents of the Bag into a bin, wash the Bag under handwarm water, remove excess water with a dry cloth and leave to dry fully before replacing. Removing a Blockage From The System If the bag check indicator is red:

1. Check if the bag is full. If so refer to ‘Replacing The Dust Bag’.

2. If it is not full, then;

A Do the lters need cleaning? If so refer to ‘Cleaning the Filter’. B. Check if there is any other blockage in the system - Use a rod or a pole to remove any blockage from the telescopic tube or exible hose. C. Check for and clear any blockage in the Nozzle. Warning - The bag check indicator will turn red if the cleaner is used when full, if there is a blockage or if the lters are dirty. If the cleaner is used for a signicant period of time with the bag check indicator is red, a thermal cut out will switch the cleaner o to prevent overheating. The bag check indicator turn green once the cleaner has switched o to signal that the thermal cut out has been activated. If this should happen, switch the cleaner o, unplug and correct the fault. It will take about 45 minutes for the cut out to automatically reset. FreespaceEvo__1-4_union.indd 2 16-04-2010 16:24:283

(*Certain Models Only) ACCESSORIES Please see the model specication on the packaging label for inclusion of accessories to individual models. All accessories can be tted to the hose handle or the end of the telescopic tube. Crevice Tool – For corners and hard to reach areas. Remove the Crevice tool from the accessories holder [24] and t to the hose handle [25] or telescopic tube. Dusting Brush – For bookshelves, frames, keyboards and other delicate areas. Remove the dusting brush from the accessories holder [24] and t to the crevice tool then t to the hose handle [25] or telescopic tube. Parquet Caresse Nozzle* – For parquet oors and other delicate oors.[1S] Pet Hair Remover Mini Turbo Nozzle* - Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for pet hairs removal. [1T] Allergen Remover Mini Turbo Nozzle* – Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for allergen removal. [1U] Grand Turbo Nozzle* – Use the Grand Turbo Nozzle for deep cleaning on carpets. [1V] IMPORTANT: Do not use the Grand Turbo Nozzle or Mini Turbo Nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15mm. Do not keep the nozzle stationary while the brush is rotating. USER CHECKLIST Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service. Is there a working electricity supply to the cleaner? Please check with another electrical •  appliance. Is the Bag over-filled? Please refer to ‘Cleaner Maintenance’.•  Is the filter blocked? Please refer to ‘Cleaner Maintenance’.•  Is the hose or nozzle blocked? Please refer to ‘Removing a blockage from the system’.•  Has the cleaner overheated? If so, it will take approximately 45 minutes to automatically •  reset. IMPORTANT INFORMATION Hoover Spares and Consumables Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number. Consumables Paper Bag: H69 - 35601053•  Micro Fibre Bag: H71 - 35601069 (If Available)•  Exhaust Micro Filter: T102 - 35601056•  Hepa Pre-Motor Filter: S107 - 35601057•  Spares Carpet & Floor Nozzle - G72 - 4845090•  Fabric Hose: - D118 - 35601054•  Flexible Hose - D122 - 35601055•  Parquet Caresse Nozzle: G90PCB - 35600934•  Allergen Remover Mini Turbo Nozzle: J32 - 35600817•  Grand Turbo Nozzle: J31 - 35600816•  Hoover Service Should you require service at any time, please contact your local Hoover Service Oce. FreespaceEvo__1-4_union.indd 3 16-04-2010 16:24:284

Quality and the Environment Quality Hoover’s factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001. The Environment: This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as houshold waste. Instead it shall be handed over to the appliance collection point for recycling of electrical and electronic equipment. Disposal must be carried out in accordance with the local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. Your Guarantee The guarantee conditions for this appliance are as dened by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Subject to change without notice. FreespaceEvo__1-4_union.indd 4 16-04-2010 16:24:285
