USER MANUAL Air force Flex 560 RH9474WO ROWENTA

Read the safety instructions first before using your product and keep them in a safe place for future reference. For your safety, this appliance complies with all existing standards and regulations.

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Your vacuum cleaner is an electrical appliance: it should be used in normal operating conditions. Do not place the nozzle near the eyes or ears.
• Do not use the appliance if it has been dropped and there is visible damage to it, or if it fails to function normally. In this case do not open the appliance, but take it to the nearest Service Centre to your home as special tools are required to carry out any repairs safely.
• Repairs must only be carried out by specialists using original spare parts: it may be dangerous for users to try to repair appliances

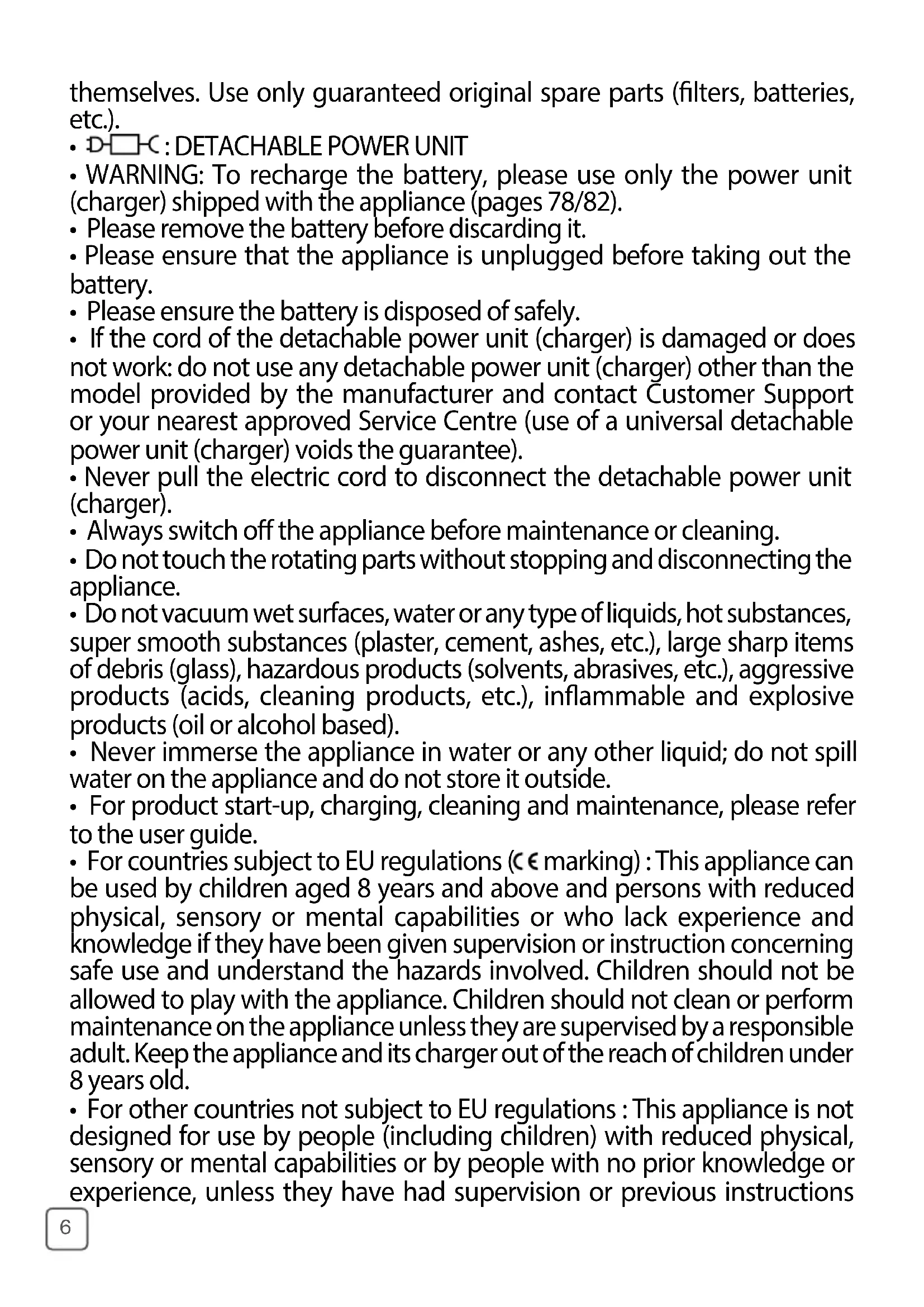

themselves. Use only guaranteed original spare parts (filters, batteries, etc.).

• D□C: DETACHABLE POWER UNIT

• WARNING: To recharge the battery, please use only the power unit (charger) shipped with the appliance (pages 78/82).

• Please remove the battery before discarding it.

• Please ensure that the appliance is unplugged before taking out the battery.

• Please ensure the battery is disposed of safely.

• If the cord of the detachable power unit (charger) is damaged or does not work: do not use any detachable power unit (charger) other than the model provided by the manufacturer and contact Customer Support or your nearest approved Service Centre (use of a universal detachable power unit (charger) voids the guarantee).

• Never pull the electric cord to disconnect the detachable power unit (charger).

• Always switch off the appliance before maintenance or cleaning.

• Do not touch the rotating parts without stopping and disconnecting the appliance.

• Do not vacuum wet surfaces, water or any type of liquids, hot substances, super smooth substances (plaster, cement, ashes, etc.), large sharp items of debris (glass), hazardous products (solvents, abrasives, etc.), aggressive products (acids, cleaning products, etc.), inflammable and explosive products (oil or alcohol based).

• Never immerse the appliance in water or any other liquid; do not spill water on the appliance and do not store it outside.

• For product start-up, charging, cleaning and maintenance, please refer to the user guide.

• For countries subject to EU regulations (€ marking): This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or who lack experience and knowledge if they have been given supervision or instruction concerning safe use and understand the hazards involved. Children should not be allowed to play with the appliance. Children should not clean or perform maintenance on the appliance unless they are supervised by a responsible adult. Keep the appliance and its charger out of the reach of children under 8 years old.

• For other countries not subject to EU regulations : This appliance is not designed for use by people (including children) with reduced physical, sensory or mental capabilities or by people with no prior knowledge or experience, unless they have had supervision or previous instructions

relating to the use of the appliance, from a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

PLEASE READ BEFORE USE

• Ensure that the voltage indicated on the rating plate of your vacuum cleaner's charger is the same as your power supply voltage. Any connection error could cause irreversible damage to the product and invalidate the guarantee.
• The vacuum cleaner should always be put back on charge after use to ensure that it is always available with a fully charged battery and with optimal dust pick up performances.
• However, it is best to unplug it in the event of prolonged absence (holidays, etc), in which case, there may be a decrease in autonomy because of self-discharging.
• Do not vacuum large items that may clog and damage the air inlet.

Depending on model :

• Do not use the power-brush on deep pile carpet, animal hair or fringes.
• Switch to „Min“ to vacuum thick or delicate carpets and rugs and fragile surfaces. Note: check regularly that the nozzle wheels are clean.
• Switch to "TURBO/BOOST" for optimum dust removal performance on all types of very dirty floors. Note: If the appliance sticks to the surface too much, switch back to "Min".
• Do not use your vacuum without a motor protection filter.
• Do not wash the dust collector components or the motor protection filter in a dishwasher.

BATTERY SAFETY INSTRUCTIONS

• This unit contains batteries (Nickel Metal Hydride or Lithium Ion) which for safety reasons are only accessible by a professional repairer. When the battery is no longer able to hold the charge, the battery pack (Nickel Metal Hydride or Lithium Ion) should be removed. To replace the batteries, contact your nearest Approved Service Centre. Do not replace a block of rechargeable batteries with non-rechargeable batteries. To change the batteries, please contact an Approved Services Centre.
• The batteries are designed for indoor use only. Never immerse them in water. The batteries must be handled with care. Do not put batteries in your mouth. Do not let batteries touch other metal objects (rings, nails, screws, etc). You must take care not to create short circuits in the batteries by inserting metal objects at their ends. If a short circuit occurs, the battery temperature may rise dangerously and can cause serious burns or even catch fire. If the batteries leak, do not rub your eyes or any mucous membranes. Wash your hands and rinse your eyes with clean water. If the discomfort persists, consult your doctor.

ENVIRONMENT

In accordance with existing regulation, any end-of-life appliances must be taken to an approved Service Centre which will take responsibility for managing their disposal.

Think of the environment!

① Your appliance contains many materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

PROBLEMS WITH YOUR APPLIANCE?

Depending on model :

The charger becomes hot.

This is perfectly normal. The vacuum cleaner can remain permanently connected to the charger without any risk.

The charger is connected but your appliance is not charging.

• The charger is not properly connected to the appliance or is faulty.

Check that the charger is properly connected or contact an Approved Services Centre to change the charger.

• Your appliance stops during operation and the light/s flash very quickly.

• Your appliance may be overheating.

• Stop the appliance and leave cool for at least 1 hour.

• The appliance has stopped after the charge light flashed.

• The appliance has lost its charge.

Recharge the vacuum cleaner.

• The power-brush is not working properly or makes a noise.

• The rotating brush or hose are obstructed.

• Stop the vacuum and clean the parts.

• The brush is worn.

Contact an Approved Service Centre to change the brush.

• The belt is worn.

Contact an Approved Service Centre to change the belt.

• The power-brush stops during use of the vacuum cleaner.

• The heat safety device has come on.

• Stop the vacuum cleaner. Check that nothing is obstructing the rotation of the brush; if there is an obstruction, remove it and clean the power-brush, then turn on the vacuum cleaner.

• Your vacuum cleaner suction is not working properly or is making a whistling noise.

• The tube or hose is partially blocked.

Unblock them the tube/hose.

• The dust collector is full.

Empty it and clean it.

• The dust collector is not properly fitted.

Re-position it correctly.

• The suction head is dirty.

Remove the power-brush and clean it.

• The foam motor protection filter is full.

Clean it.

• When charging the vacuum cleaner, the light(s) flash very quickly.

• The correct charger is not being used or the charger is faulty.

Talk to an Approved Service Centre to change the charger.

The appliance is not working

The appliance has lost its charge

• Check that the appliance is fitted correctly onto its docking station.

• Check that the cord of the docking station or the charger is plugged in, and that the socket is operating correctly.

The batteries may be discharged

Recharge the appliance

• The appliance loses suction power

• The accessory may be blocked

Stop the appliance and empty it

• The appliance makes an abnormal noise

The dust or dust/water container may be full.

Empty it and clean it

In case of abnormal operation

• The motor may be overheating.
  Turn off the appliance to correct the problem (e.g. blockages in the vacuum inlet or accessory)
• If dust or debris that have been vacuumed falls out onto the floor or if liquid runs out
• check that the dust or dust/water container may be full.
  Empty it and clean it

Please keep this user manual.

SICHERHEITSHINWEISE

;PROBLEMAS CON SU ELECTRODOMÉSTICO?

PROBLEMOS SU JUSU PRIETAISU?

-Tpb6ata nnMapkyuT ca yactnH0 3anyweHn.

OTnywete rn.

• Pe3epBoapbT 3a npax e nblenH.

13npa3HeTe ro n ro nouchTeTe.

-Top6ata 3a npax He e do6pe noctabeHa.

IocTaBeTe ydo6pe.

• BcmykaTeHnT HaKpaHnke 3aIanaH.

CbaTe eNeKtpnueckaTa ueTka n nouNCTe.

-Ппеситгфнлтbp3a3aunTaHaMOTopaeNBJIeH.

IouncTeTe ro.

• Пи зарекдане на прахосмукakka тиндikatopb(t(nte) 3a за佩ждане мига(r) m Horo 6bp30.

• ToBa He e npaBnHTo 3apAHO uN To e DeΦeKTHO.

O6bPheTe ce KbM Odo6peh cepBn3eH ueHTbp 3a CmHa Ha 3apAHOTo.

• Upeda He pa6oTu

YpeJa He ce 3apeKda

PpOBepeTe daHn yPeDa e nocTaBEn npaBnHnHa 3apA HTO yCTPOCTBO

PpOBepTe daHn Ka6ena Ha DOKINr CTaHcNra IIN 3apAHOTo yCTpoiCTBO e BKNIOueH n daHn KOHTaTe e N3npaBeH

• Batepnte Morat da 6bdaTn3TOUeHN

3apeTe ypea
- Ypega rbyb BcMykaTeJHa MoUHOCT
- PpncTaBkaTa e 6IokupaHa
Cnpete ypea n ro n3npa3HeTe
- Ypega e npkekanelo wymen

KoHTeHepa moKe da e npenbJIHeN

13npa3HeTe ro n ro n3uCTeTe
- Ypea He pa6oTu npaBnHNo

-Motopamozke dae npperpnn

Изклочеурда,здотстарнite проблесma(Hanp.6нокираиН OTBOPN 3a 3acMyKBaHe nIи akcecoapn)

• Ako npax iu nn necbunHkn, kOnTo ca 6u nn 3acmykaHn naaT Bbpxy Noa iu nn aKO n3TuHa TeUHOCT
• KonTeuHepa MoKe Da e npEnbJIHeH
  13npa3HeTe ro n ro n3uCTeTe

3ana3eTe nHctpyKunTe 3a ynoTpe6a.

INSTRUCTIONS DE SIGURANTA

SIGURNOSNE UPUTE KOJE SE ODNOSE NA BATERIJU

• Ovaj urežaj sadrži baterije (nikal-metal-hidrid ili litij-ionske) koje su iz sigurnosnih razloga dostupne samo profesionalnom serviseru. Kada baterija visne ne moze odžavati naboj, potrebno je zamijeniti bloc baterija (nikalmetal-hidridnih ili litij-ionskih). Za zamjenu baterija obratite se najblizem servisnom centru.
• Pažljivo rukujte baterijama. Ne stavljajte baterije u usta. Nemojte umetati metalne predmete na krajeve baterija kako ne bisteprouzroci kratki spoj. U slucaju nastanka kratkog spoja, postoji opasnost od pretjerane temperature baterije i ozbiljnih opekotina, pa i pozara. U slucaju curenja baterija, nemojte dodirivati oci ili sluznice. Operite ruke i isperite oci cistom vodom. Ako poteskoce ne nestanu, obratite se svom lijecniku.

OKOLIS

Sukladno važecim propisima, svi uredaji koji se više ne koriste moraju se donijeti u ovlasteni servisni centar, kojiće se pobrinuti za njihovo odlaganje.

BEZBEDNOSNA UPUTSTVA

BATTERIES
Commercial reference	Voltage	Reference
RH654x / MS654x / TY654x / CA654x	14,4V Li-Ion RS-RH5864
MS657x 21,6V Li-ion R	S-9100028994
Charger
Commercial reference	Country	Charger reference
RH6751WO Europe YLJX	KA-E260055
TY6751WO Russia YLJXA	-E260055
TY67XX South Korea YLJXA	K240050

Battery
Commercial reference	Voltage	Battery reference
RH6751WO/TY6751WO/TY67XX 2	.6V ZL-8260S06

CHARGERS
Commercial reference	Country	Reference
AC2xxx / MX2xxx / TX2xxx AC44xx / MX44xx / TX44xx	Europe RS-AC3449
	Korea RS-AC3615
AC46xx / MX46xx / TX46xx AC47xx / MX47xx / TX 47xx	Europe RS-AC3479
AC91xx / MX91xx / TX91xx	Europe RS-AC3595
	UK / Hong Kong / UAE / Singapore	RS-AC3596
	Korea RS-AC3614
AC92xx / MX92xx / TX92xx	Europe RS-AC3521
	UK / Hong Kong / UAE / Singapore	RS-AC3610
	US / Canada RS-AC3609
BATTERIES
Commercial reference	Voltage	Reference
AC22xx / MX22xx / TX22xx 2.4V	Ni-Mh RS-AC3427
AC23xx / MX23xx / TX23xx 3.6V	Ni-Mh RS-AC3244
AC44xx / MX44xx / TX44xx 4.8V	Ni-Mh RS-AC3429
AC46xx / MX46xx / TX46xx 6V	Ni-Mh RS-AC3568
AC47xx / MX47xx / TX47xx 7.2V	Ni-Mh RS-AC3477
AC912x / TX912x 7.2V Ni-Mh	RS-AC3583
AC913x / TX913x 12V Ni-Mh	RS-AC3598
AC922x / TX922x 7.2V Li-Ion	RS-AC3498
AC923x / TX923x 10.8V Li-Ion	RS-AC3499
AC925x / TX925x	18V Li-Ion	RS-AC3501
AC925xU1 / TX925xU1 RS-AC3604
