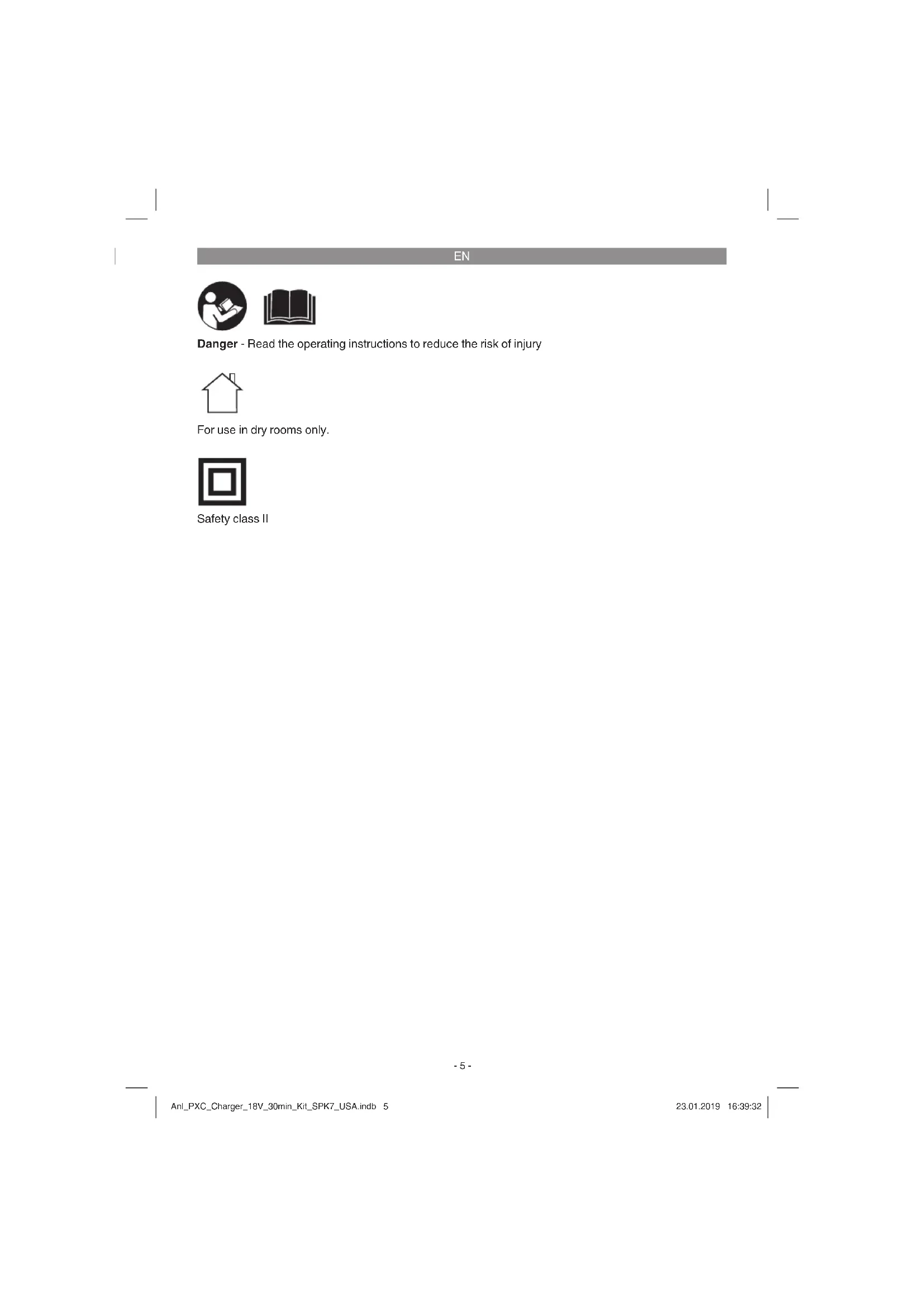

Danger - Read the operating instructions to reduce the risk of injury For use in dry rooms only. Safety class II Anl_PXC_Charger_18V_30min_Kit_SPK7_USA.indb 5Anl_PXC_Charger_18V_30min_Kit_SPK7_USA.indb 5 23.01.2019 16:39:3223.01.2019 16:39:32EN

DANGER! When using the equipment, a number of safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety information with due care. Keep these operating instructions in a safe place so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and the safety information as well. We cannot accept any liability for damage or accidents which arise due to failure to follow these instructions and the safety information.

1. Safety information

DANGER! Read all the safety information and instructions. Failure to adhere to the safety information and instructions set out below may result in electric shock, fi re and/or serious injury. Keep all the safety information and instructions in a safe place for future use. This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment or carry out user-level maintenance work. Replacing the power cable If the power cable for this equipment is damaged, it must be replaced by the manufacturer or OEM after- sales service or by similarly trained personnel to prevent hazards. a) The charging unit is not allowed to be used for non-rechargeable, normal batteries. b) Suffi cient ventilation is required. c) The current and voltage information on the battery pack must be the same as that on the charging unit. d) Do not expose the charging unit to splash water or rain. e) The charging unit must be disconnected from the socket outlet before the cordless screwdriver is inserted into or removed from the charging station. f) Do not throw old or damaged batteries into water or fi re. Follow the environmental protection directives. g) A defective or no longer chargeable battery must be treated as special waste. Dispose of it at a special collection point. Do not dispose of it with your normal household waste or throw it into water or fi re. h) Place the charging unit away from all sources of heat.

i) To reduce the risk of electric shock, pull the

power plug out of the socket outlet by the plug itself and not by the cable when you want to disconnect the charging unit from the power supply. j) Do not take the charging unit apart. Take it to an authorized repair center if servicing or repairs are needed. Incorrect assembly can result in an electric shock and even death or fi re. k) Children must always be supervised in order to ensure that they do not play with the equipment. Keep this safety information in a safe place. Anl_PXC_Charger_18V_30min_Kit_SPK7_USA.indb 6Anl_PXC_Charger_18V_30min_Kit_SPK7_USA.indb 6 23.01.2019 16:39:3223.01.2019 16:39:32EN

2. Layout and items supplied

18V 1.5Ah P-X-C lithium-ion battery

18V 2.0Ah P-X-C lithium-ion battery

18V 2.6Ah P-X-C Plus lithium-ion battery

18V 3.0Ah P-X-C lithium-ion battery

18V 4.0Ah P-X-C lithium-ion battery

1. Pull the battery pack (a) out of the handle,

pressing the push lock button (b) as you do so.

2. Check that your mains voltage is the same as

that marked on the rating plate of the battery charger. Insert the power plug of the charger (1) into the socket outlet. The green LED will then begin to fl ash.

3. Insert the battery pack (a) into the battery

table with an explanation of the LED indicator on the charger. If the battery fails to charge, please check

whether there is voltage at the power socket.

whether there is good contact at the charging contacts of the charging unit is in place If the battery still fails to charge, send

and the rechargeable battery to our customer service center. Customer service: Contact the Einhell USA

customer service center at 1-866-EINHELL (1-800-346-4355) for assistance. Timely recharging of the battery will help it serve you well for a long time. You must recharge the battery when you notice that the power of the cordless screwdriver drops. Mounting the charging unit on a wall (Fig. 4) The charging unit can also be mounted on a wall. The correct dimensions for drilling holes in the wall can be found on the back of the charging unit. Spacing distances ≥ 4” (10 cm) from the wall (right + left) ≥ 39⅜” (100 cm) from the ceiling Important! When mounting on a wall you must use suitable screws, e.g. pan-head screws, in order to prevent damage to the housing and risk of falling.

5. Cleaning, maintenance and

ordering spare parts Always pull out the power plug before starting any cleaning work. The equipment is not allowed to be stored in a damp location or where there are caustic gases. Keep it in a dry place out of the reach of children.

Keep the surface of the equipment clean and wipe it only with a dry cloth.

5.2 Ordering replacement parts:

1. If your power tool requires service, con-

tact an authorized Einhell USA dealer or call the Einhell USA customer service center at 1-866-EINHELL (1-866-346-4355). Only identical replace- ment parts should be utilized for repairs. This will ensure that the safety of the power tool is maintained.

2. If the battery charger cable is damaged, it

must be immediately replaced to avoid a hazard. Contact the Einhell USA

6. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

Store the equipment and its accessories out of children‘s reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 41°F and 86°F (5°C and 30°C). Keep the electric tool in its original packaging. Federal Communications Commission (FCC) WARNING! Any changes or modifi cations to this unit not expressly approved by the part responsible for compliance could void the user‘s authority to operate the equipment. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/ TV technician for help. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying the products is strictly subject to the express consent of iSC GmbH. Subject to technical changes Anl_PXC_Charger_18V_30min_Kit_SPK7_USA.indb 8Anl_PXC_Charger_18V_30min_Kit_SPK7_USA.indb 8 23.01.2019 16:39:3223.01.2019 16:39:32EN

Indicator status Explanations and actions Red LED Green LED Off Flashing Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger On Off Charging The charger is charging the battery pack in quick charge mode. The charging times are shown directly on the charger. Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge. Off On The battery is charged and ready for use. The unit then changes over to gentle charging mode until the battery is fully charged. To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer. Action: Take the battery pack out of the charger. Disconnect the charger from the mains supply. Flashing Off Adapted charging The charger is in gentle charging mode. For safety reasons the charging is performed less quickly and takes more time. The reasons can be: - The rechargeable battery has not been charged for a very long time. - The battery pack temperature is outside the ideal range (between 50°F and 113°F (10° C and 45° C)). Action: Wait for the charging to be completed; you can still continue to charge the battery pack. Flashing Flashing Fault Charging is no longer possible. The battery pack is defective. Action: Never charge a defective battery pack. Take the battery pack out of the charger. On On Temperature fault The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 32°F (0° C)). Action: Remove the battery pack and keep it at room temperature (approx. 68°F (20° C)) for one day. Anl_PXC_Charger_18V_30min_Kit_SPK7_USA.indb 9Anl_PXC_Charger_18V_30min_Kit_SPK7_USA.indb 9 23.01.2019 16:39:3223.01.2019 16:39:32EN

PRODUCT REGISTRATION: Einhell strongly encourages you to register your purchase. You can register online at EinhellUSA.com Failure to register your product purchase will not diminish your warranty rights. However, registering your purchase will allow Einhell to better serve you with any of your customer service needs. WHAT IS COVERED? Einhell warrants to the owner that if this Machine fails within 2 years from the date of purchase due to a defect in material or workmanship or as a result of normal wear and tear from ordinary household use, Einhell will send a replacement part or product, as needed, free of charge and with free shipping to the original purchaser. If, in Einhell’s sole discretion, the failed Machine cannot be repaired with a part, Einhell will elect to either (A) send a new Machine at no charge and with free shipping or (B) refund the full purchase price to the owner. WHO CAN SEEK WARRANTY COVERAGE? This Warranty is extended by Einhell to the owner of this Machine (a “Machine” consists of a product powered by a motor) for residential and personal household use only. This warranty is limited to thirty (30) days from the start of original purchase of any EINHELL brand product that is used for commercial purposes, or any other income-producing purpose. Should ownership of this machine change during the coverage period, please update the Machine’s owner information at EinhellUSA.com WHAT IS NOT COVERED? This warranty does not cover any product that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specifi ed in the operator’s manual. This Warranty does not cover cosmetic changes that do not aff ect performance. This Warranty is only valid if the Machine is used and maintained in accordance with the instructions, warnings and safeguards contained in the owner’s manual. Einhell will not be responsible for the cost of any unauthorized warranty repairs. This warranty does not cover any cost or expense incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this product while waiting for a replacement part or unit under this warranty. Wearing parts like belts, augers, chains and tines are not covered under this warranty, and can be purchased at EinhellUSA.com or by calling 1-866-EINHELL (1-866-346-4355). Batteries are covered in full for 90-days from the date of purchase. Repair, replacement or refund of the purchase price are the exclusive remedies of purchaser and the sole liability of Einhell under this warranty. No employee or representative of Einhell is authorized to make any additional warranty or any modifi cation to this warranty which may be binding upon Einhell. Accordingly, purchaser should not rely upon any additional statements made by any employee or representative of Einhell. In no event, whether based on contract, indemnity, warranty, tort (including negligence), strict liability or otherwise, shall Einhell be liable for any special, indirect, incidental, or consequential damages, including, without limitation, loss of profi t or revenue. Some states do not allow limits on warranties. In such states, the above limitations may not apply to you. Outside the USA and Canada, other warranties may apply. QUALITY COMES FIRST. The Einhell name is synonymous with high-performance tools and high-quality European craftsmanship. From cordless screwdrivers to electric lawn mowers, Einhell USA designs and develops state-of-the-art handheld power and garden tools for DIY enthusiasts, hobby gardeners, and handymen. Einhell USA’s quality assurance and engineering teams ensure products are subjected to stringent quality and performance tests. We know that sometimes tough tools go through tough times. In the event that you should experience any issue with your product, you have our commitment that we’ll do everything we can to get you back a tool that’s ready to work as hard as you do. Anl_PXC_Charger_18V_30min_Kit_SPK7_USA.indb 10Anl_PXC_Charger_18V_30min_Kit_SPK7_USA.indb 10 23.01.2019 16:39:3223.01.2019 16:39:32SP
