USER MANUAL CALSS18209 Sogo

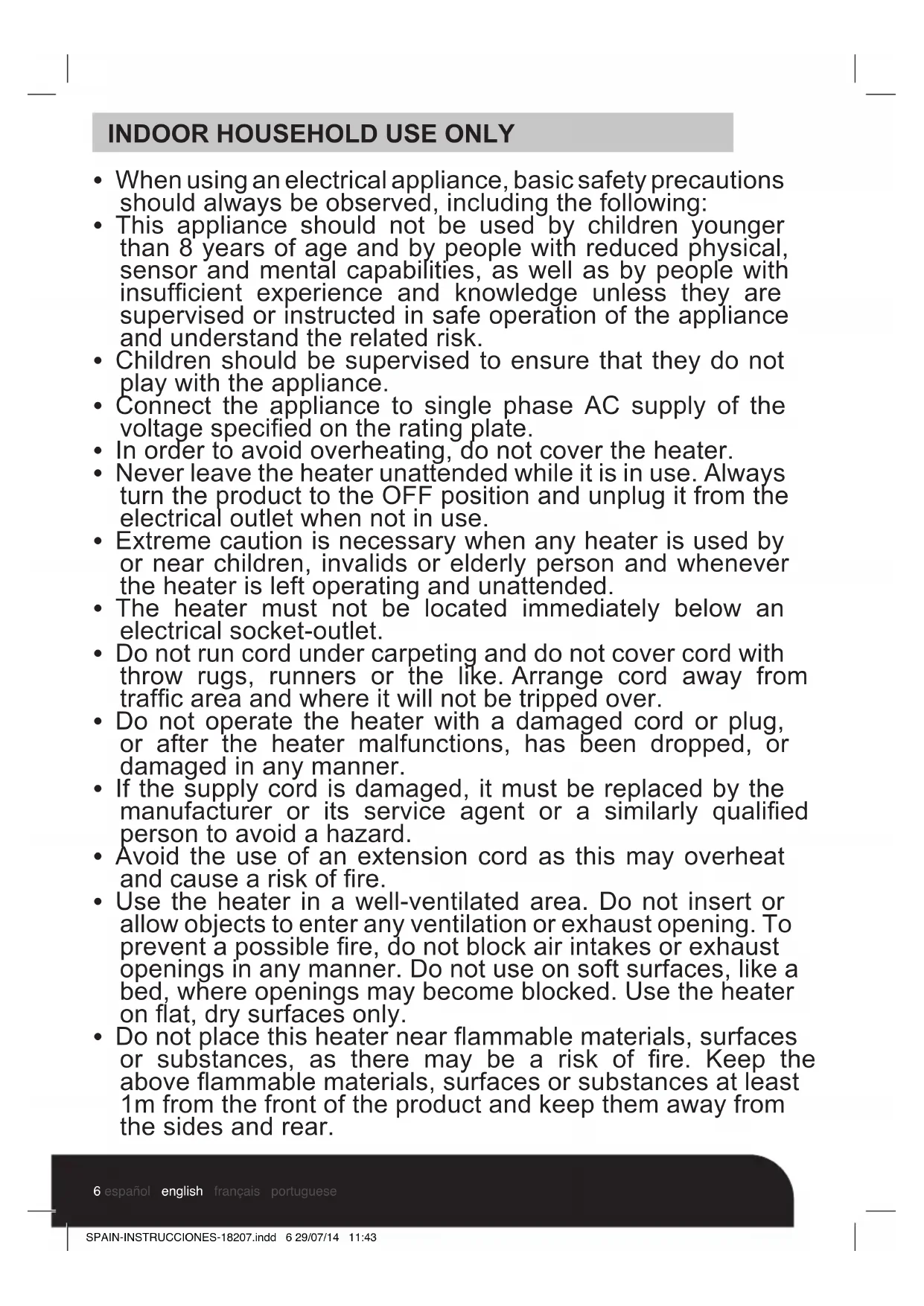

• When using an electrical appliance, basic safety precautions should always be observed, including the following:

• This appliance should not be used by children younger than 8 years of age and by people with reduced physical, sensor and mental capabilities, as well as by people with insufcient experience and knowledge unless they are supervised or instructed in safe operation of the appliance and understand the related risk.

• Children should be supervised to ensure that they do not play with the appliance.

• Connect the appliance to single phase AC supply of the voltage specied on the rating plate.

• In order to avoid overheating, do not cover the heater.

• Never leave the heater unattended while it is in use. Always turn the product to the OFF position and unplug it from the electrical outlet when not in use.

• Extreme caution is necessary when any heater is used by or near children, invalids or elderly person and whenever the heater is left operating and unattended.

• The heater must not be located immediately below an electrical socket-outlet.

• Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like. Arrange cord away from trafc area and where it will not be tripped over.

• Do not operate the heater with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in any manner.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person to avoid a hazard.

• Avoid the use of an extension cord as this may overheat and cause a risk of re.

• Use the heater in a well-ventilated area. Do not insert or allow objects to enter any ventilation or exhaust opening. To prevent a possible re, do not block air intakes or exhaust openings in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked. Use the heater on at, dry surfaces only.

• Do not place this heater near ammable materials, surfaces or substances, as there may be a risk of re. Keep the above ammable materials, surfaces or substances at least 1m from the front of the product and keep them away from the sides and rear. SPAIN-INSTRUCCIONES-18207.indd 6 29/07/14 11:437 español english français portuguese

• Do not use the heater in any areas where petrol, paint or other ammable liquids are stored e.g. Garages or workshops as there are hot, arcing or sparking parts inside the heater.

• Don’t use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Never locate the heater where it may fall into bathtub or other water container.

• This heater is hot when in use. To avoid burns and personal injury, do not let bare skin touch hot surfaces. If provided, use handles when moving the product.

• Be sure that no other appliances are in use on the same electrical circuit as your product as an overload can occur.

• This heater is lled with a precise quantity of special oil.

• Repair requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leakage.

• Regulations concerning the disposal of oil when scrapping the appliance have to be followed.

• The heater should not be used in a room, of which the oor area is less than 5 M2.

• The cord shouldn’t be placed nearby the hot surface of the appliance.

• NOTE: It is normal when the heaters are turned on for the rst time or when they are turned on after having not been used for a long period of time the heaters may have noise inside. This will disappear when the heater has been switched on for a short while.

• Children under 3 year of age should be kept away from the appliance unless they are under constant supervision.

• Children from 3 to 8 years of age are allowed to operate the on/off button ONLY, provide that the appliance is installed and ready for operation and such children have been supervised and instructed in safe operation of the appliance and they understand all related risks.

• Children from 3 to 8 years of age MUST NOT: connect the plug to power sockets, make adjustment, clean it or carry out user maintenance operations.

• You must never move the appliance by pulling it by its electric cord. You must never use the electric cord for moving of other objects.

• Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of re.

hamper the movement of people and not to be stepped on! You must use approved connection blocks, which are suitable for the appliance, i.e. there is a sign of compliance.

• The electric cord must not be in touch with the hot parts of the appliance.

• Do not use the heater for laundry drying.

Warning: DO NOT COVER

SPAIN-INSTRUCCIONES-18207.indd 8 29/07/14 11:439 español english français portuguese ASSEMBLY INSTRUCTIONS The heater is packaged with the feet unatta- ched. You must attach them before operating the heater.

WARNING: Do not operate without feet

attached. Do operate the heater only in upright position (feet on the bottom, con- trols on the top), any other position could create a hazardous situation.

• Place the radiator body upside-down on a scratch-free location, make sure it is stable and will not fall.

• Screw off the wing nuts from the U-shaped bolt provided, attach the U-shaped bolt to the U-facing ange between rst and second ns (near the front cover).

• To attach the castor mounting plate to the radiator body, you should insert the threaded ends of the U bolt in the holes on the castor mounting plate.

• Screw the wing nuts back to the U bolt and fasten the wing nut properly.

• Note: do not over tighten, which may cause the damage of radiator ange.

• Screw off spherical nut from the castor, align the shaft to the hole of the castor mounting plate, insert in, and screw on the spherical nut.

• Repeat 2, 3, 4 and 5 on the rear of radiator for mounting of the rear castors.

• Note: the rear castors must be mounted between the last two ns.

INSTRUCTIONS FOR USE

• Before using the heater, make sure that it is on a at and stable surface. Damage may occur if it is placed on an incline or decline.

• Set all the controls to OFF position and insert the plug into a socket-outlet with well grounded. Be sure that plug ts rmly.

• Rotate the thermostat knob clockwise to MAX position and switch the heater on as follow: the switch I for low heat, the switch II for medium heat and both switches on for high heat.

• When your room reaches the desired temperature, now slowly rotate the thermostat knob counter clockwise until the pilot light goes out. The thermostat can now be left at this setting. As soon as the room temperature has dropped below the set temperature, the unit will switch it self on automatically until the set temperature has been reached again. In this way the room temperature remains constant with the most economical use of electricity.

• If you want to change the room temperature setting, rotate the thermostat knob clockwise to raise the temperature, or counter clockwise to lower it.

• This heater includes an overheat protection system that shuts off the heater when parts of the heater are getting excessively hot.

• To completely shut the heater off, turn all the controls to OFF, and remove plug from the socket-outlet. MAINTENANCE

• Always remove the plug from the socket- outlet and allow the radiator to cool down before clean the heater.

• Wipe radiator with a soft damp (not wet) cloth.

• Do not immerse the heater in water.

• Do not use any cleaning chemicals such as detergents and abrasives.

• Do not allow the interior to get wet as this could create a hazard.

• To store away the heater, wind the cable round bobbin and store the heater in a clean dry place.
