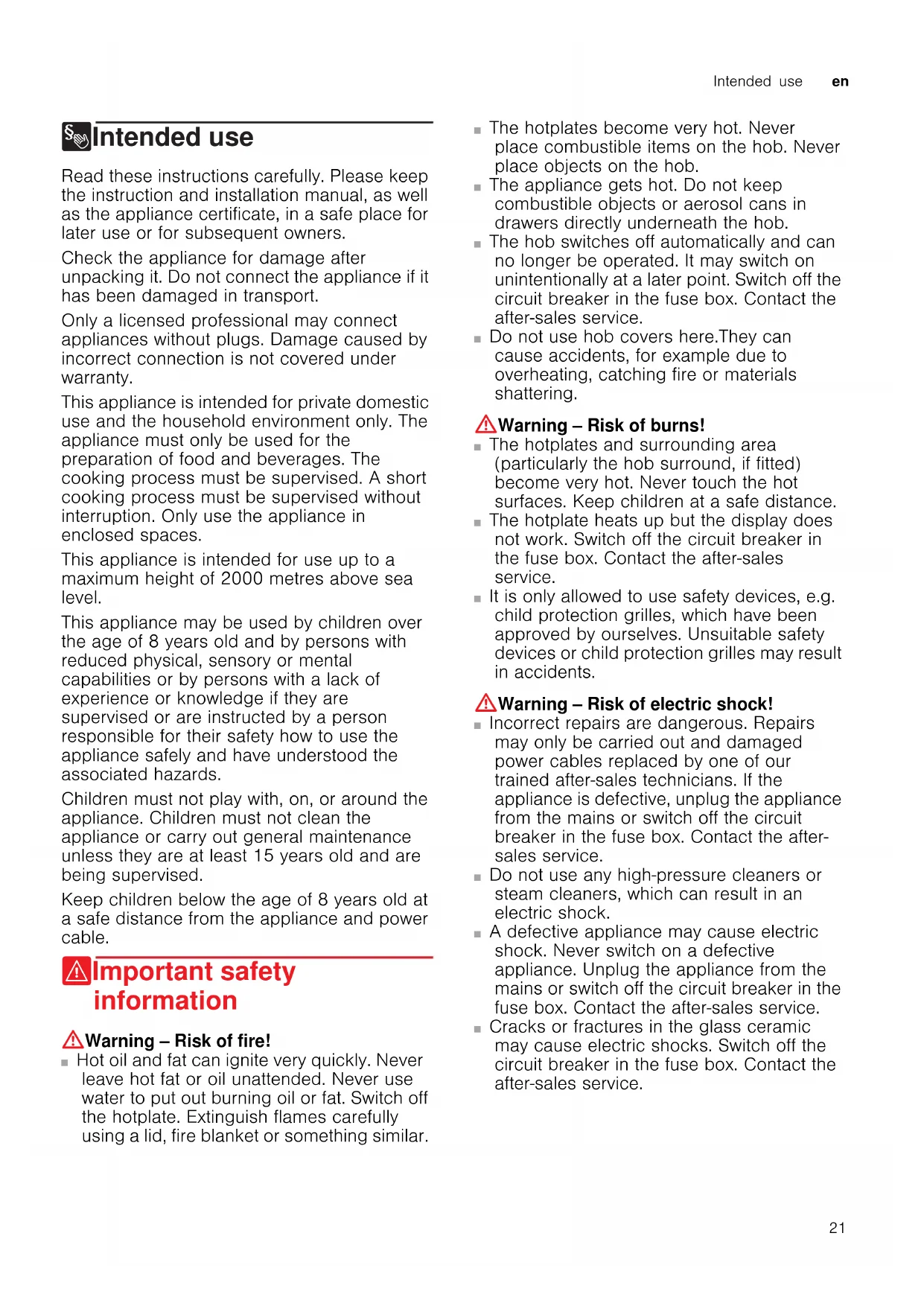

Intended use

Read these instructions carefully. Please keep the instruction and installation manual, as well as the appliance certificate, in a safe place for later use or for subsequent owners.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Important safety information

Warning - Risk of fire!

Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.

The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.
The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob.
- The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
- Do not use hob covers here. They can cause accidents, for example due to overheating, catching fire or materials shattering.

Warning - Risk of burns!

The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance.
The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact the after-sales service.
It is only allowed to use safety devices, e.g. child protection grilles, which have been approved by ourselves. Unsuitable safety devices or child protection grilles may result in accidents.

Warning - Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
- Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
- Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.

Warning - Risk of injury!

Saucepans may suddenly jump due to liquid between the pan base and the hotplate.

Always keep the hotplate and saucepan bases dry.

Causes of damage

Caution!

• Rough pot and pan bases scratch the ceramic.
• Avoid boiling pots dry. This may cause damage.
• Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage.
• Damage can occur if hard or pointed objects fall on the hob.
  Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob.

Overview

You will find the most frequently caused damage in the following table.

Damage Cause Measure
Stains Boiled over food Remove boiled over food immedi-dately with a glass scraper.
Unsuitable clean-ing agents	Only use cleaning agents that are suitable for glass ceramic.
Scratches Salt, sugar and sand	Do not use the hob as a work surface or storage space.
Rough pot and pan bases scratch the ceramic.	Check your cookware.
Discolouration Unsuitable cleaning agents	Only use cleaning agents that are suitable for glass ceramic.
Pan abrasion (e.g. aluminium)	Lift pots and pans when moving them.
Blisters Sugar, food with a high sugar con- tent	Remove boiled over food immedi-dately with a glass scraper.

Environmental protection

In this section, you can find information about saving energy and disposing of the appliance.

Energy-saving tips

Always place suitable lids on saucepans. When cooking without a lid, considerably more energy is required. A glass lid means that you can see inside without having to lift the lid.
Use pots and pans with even bases. Uneven bases increase energy consumption.
The diameter of pot and pan bases should be the same size as the hotplate. In particular, small saucepans on the hotplate cause energy losses. Please note: cookware manufacturers often indicate the upper diameter of the saucepan. This is usually bigger than the diameter of the base of the pan.
Use a small saucepan for small quantities. A larger, less full saucepan requires a lot of energy.
Cook with only a little water. This will save energy. Vitamins and minerals in vegetables are preserved.
Always cover as large an area of the hotplate as possible with your saucepan.
Switch to a lower heat setting in good time.
- Select a suitable ongoing cooking setting. You will waste energy by using an ongoing cooking setting which is too high.
Use the residual heat of the hob. For longer cooking times, you can switch the hotplate off 5-10 minutes before the end of the cooking time.

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Getting to know your appliance

The instruction manual is the same for various different hobs. You can find the hob dimensions in the overview of models. Page 2

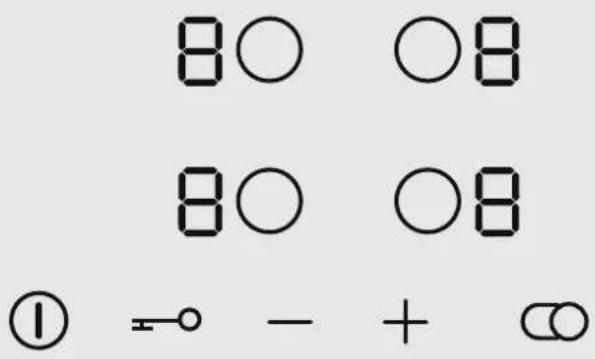

The control panel

Displays

1-3 Heat settings

H/h Residual heat

Touch controls

① Main switch
Child safety lock
Hotplate selection
- + Adjustment fields
Automatic zone control

Notes

• When you touch a symbol, the respective function is activated.
  Always keep the controls dry. Moisture reduces their effectiveness.
• Do not pull pans close to the displays and sensors. The electronics could overheat.

The hotplates

Hotplate Activating and deactivating
○ Single-circuit hot-plate
◎ Dual-circuit hot-plate	Select the hotplate and touch the CO sym-bol
CO Extended cook-ing zone	Select the hotplate and touch the CO sym-bol
When the hotplate is activated: The corresponding display lights up.

Notes

Any dark areas in the glow pattern of the hotplate are due to technical reasons. The function of the hotplate is not affected.
Hotplate temperature is regulated by the heat switching on and off. The heat may also switch on and off at the highest setting.
- With multi-circuit hotplates the heater elements of the inner filament circuits and the heater element of the activations may switch on and off at different times.

Residual heat indicator

The hob has a two-stage residual heat indicator for each hotplate.

If appears in the display the hob is still hot. It may be used, for example, to keep a small meal warm or to melt cooking chocolate. As the hotplate cools down further, the display changes to . The display remains lit until the hotplate has cooled sufficiently.

Operating the appliance

In this section, you can find out how to set the hotplates. The table shows heat settings and cooking times for various meals.

Switching the hob on and off

The main switch is used to switch the hob on and off.

Switching on

Touch the symbol ①. An audible signal sounds. The indicator light above the main switch and the ② indicators light up. The cooktop is ready to use.

Switching off

Touch the symbol ① until the indicator light above the main switch and the indicators go out. All hotplates are switched off. The residual heat indicator remains on until the hotplates have cooled down sufficiently.

Notes

The cooktop switches off automatically if all hotplates have been switched off for more than 20 seconds.
The settings remain stored for 4 seconds after the cooktop has been switched off. If you switch it on again during this time, the cooktop will operate using the previously stored settings.

Setting a hotplate

Use the ^+ and - symbols to set the desired heat setting.

Heat setting 1 = lowest setting

Heat setting 9 = highest setting

There is an intermediate setting between each heat setting. This is identified by a dot.

Setting the heat setting

The hob must be switched on.

1. Touch the symbol to select the hotplate.
2. Touch the + or - symbol within the next 10 seconds. The basic setting appears.
3. symbol: Heat setting 9
   symbol: Heat setting 4

1. To change the heat setting: Touch the + or - symbol until the desired heat setting appears.

Switching off the hotplate

There are 2 ways to switch off the hotplate:

• Briefly touch the symbol for the hotplate 2x one after the other. appears in the heat setting display. After about 10 seconds, the residual heat indicator appears.
  Use the symbol to select the hotplate. Touch + or - until 0 appears. After about 10 seconds, the residual heat indicator appears.

Note: The last selected hotplate remains activated. You can set the hotplate without selecting it again.

Table of cooking times

The following table provides some examples.

Cooking times and heat settings may vary depending on the type of food, its weight and quality. Deviations are therefore possible.

For bringing liquids to the boil, use heat setting 9.

Stir thick liquids occasionally.

Food that needs to be seared quickly or food which loses a lot of liquid during initial frying is best seared in several small portions.

Tips for energy-saving cooking can be found in the Environmental protection section. Page 22

	Ongoing cooking setting	Ongoing cooking time in minutes
Melting
Chocolate coating 1-1.-
Butter, honey, gelatine 1-2.-
Heating and keeping warm
Stew (e.g. lentil stew) 1-2.-
Milk** 1.-2.-
Heating sausages in water**	3-4.-
Defrosting and heating
Frozen spinach	2.-3. 10-20 min
Frozen goulash	2.-3. 20-30 min
Poaching, simmering
Dumplings	4.-5.*	20-30 min
Fish	4-5* 10-15 min
White sauces, e.g. béchamel sauce	1-2 3-6 min
Whisked sauces, e.g. sauce Béarnaise, hollandise	3-4 8-12 min
Boiling, steaming, braising
Rice (with double the quantity of water)	2-3 15-30 min
* Ongoing cooking without a lid** Without lid*** Turn frequently
Rice pudding 1.-2. 35-45 min
Unpeeled boiled potatoes 4-5 25-30 min
Boiled potatoes 4-5 15-25 min
Pasta, noodles 6-7* 6-10 min
Stew, soups 3-4. 15-60 min
Vegetables 2.-3. 10-20 min
Frozen vegetables 3.-4. 10-20 min
Cooking in a pressure cooker 4-5 -
Braising
Roulades 4-5 50-60 min
Pot roast	4-5 60-100 min
Goulash	2.-3. 50-60 min
Frying with little oil**
Escalope, plain or breaded	6-7 6-10 min
Escalope, frozen	6-7 8-12 min
Chop, plain or breaded***	6-7 8-12 min
Steak (3 cm thick) 7-8 8-12 min
Hamburger, rissoles (3 cm thick)***	4.-5. 30-40 min
Poultry breast (2 cm thick)***	5-6 10-20 min
Poultry breast, frozen***	5-6 10-30 min
Fish and fish fillet, plain	5-6 8-20 min
Fish and fish fillet, breaded	6-7 8-20 min
Fish and fish fillet, breaded and frozen, e.g. fish fingers	6-7 8-12 min
Scampi and prawns	7-8 4-10 min
Sautéing vegetables, fresh mushrooms	7-8 10-20 min
Vegetables, meat in Asian-style strips	7.-8. 15-20 min
Stir fry, frozen	6-7 6-10 min
Pancakes	6-7 consecutively
Omelette	3.-4. consecutively
Fried eggs	5-6 3-6 min
Deep-fat frying (150-200 g per portion continuously in 1-2 litres oil**)
Frozen products, e.g. chips, chicken nuggets	8-9 -
Croquettes, frozen	7-8 -
Meat, e.g. chicken portions	6-7 -
Fish, breaded or battered	5-6 -
* Ongoing cooking without a lid
** Without lid
*** Turn frequently

	Ongoing cooking setting	Ongoing cooking time in minutes
Vegetables, mushrooms, breaded or battered, tempura	5-6 -
Small baked items, e.g. ring doughnuts/jam-filled doughnuts, fruit in batter	4-5 -
* Ongoing cooking without a lid** Without lid*** Turn frequently

Childproof lock

You can use the childproof lock to prevent children from switching on the hob.

Switching the childproof lock on and off

The hob must be switched off.

To switch on: Touch the symbol for approx. 4 seconds. The indicator light above the symbol lights up for 10 seconds. The hob is locked.

To switch off: Touch the symbol for approx. 4 seconds. The hob is unlocked.

Automatic childproof lock

This function automatically activates the childproof lock every time you switch the hob off.

Switching on and off

Find out how to switch the automatic childproof lock on and off in the Basic settings section. Page 26

Automatic safety cut-out

If a hotplate has been switched on for a long time without the setting being changed, the automatic time limit is activated.

The hotplate stops heating. FB and the H / h residual heat indicator flash alternately on the hotplate display.

The display goes out when you touch any control. You can make new settings.

When the time limit is activated depends on the heat setting selected (1 to 10 hours).

Basic settings

Your appliance has various basic settings. You can adjust these settings to meet your own needs.

Display Function
c1	Automatic child safety lock
0	Switched off.*
1	Switched on.
2	Manual and automatic child safety lock switched off.
c2	Beeping sound
0	Confirmation signal and operation error signal are switched off (primary switch signal always remains).
1	Only the operation error signal is switched on.
2	Only the confirmation signal is switched on.
3	Confirmation signal and operation error signal switched on.*
c7	Activating the heating elements
0	Switched off.
1	Switched on.
2	Last setting before the hotplate was switched off.*
c9	Time for selecting the hotplate
0	Unlimited: the last selected hotplate can always be adjusted without having to select it again.*
1	Once you select a hotplate, you have 10 seconds to adjust it, after which you will have to select it again in order to be able to adjust it.
c0	Reset the basic settings
0	Switched off.*
1	Switched on.
*Basic setting

Changing the basic settings

The hob must be switched off.

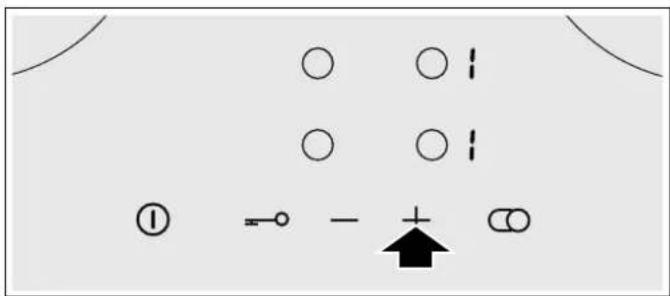

1. Switch on the hob.
2. Within the next 10 seconds, touch the symbol for 4 seconds

○○○

○○1

①-+∞

c and f flash alternately in the lower display and 0 lights up in the upper display.

1. Touch the symbol repeatedly until the desired setting appears in the lower display.
2. Touch the + or - symbol repeatedly until the desired setting appears in the upper display.

1. Touch the symbol for 4 seconds. The setting is activated.

Switching off

To exit the basic setting, switch off the hob with the main switch and make new settings.

Cleaning

Suitable maintenance and cleaning products can be purchased from the after-sales service or in our e-Shop.

Ceramic

Clean the hob after each use. This will prevent spills from burning onto the ceramic.

Only clean the hob when it has cooled down sufficiently. Use only cleaning agents which are suitable for glass ceramic. Follow the cleaning instructions on the packaging.

Never use:

Undiluted washing-up liquid
Detergent intended for dishwashers
Scouring agents
Harsh cleaning agents such as oven spray or stain remover
Abrasive sponges
High-pressure cleaners or steam jet cleaners

Ground-in dirt can be best removed with a glass scraper, available from retailers. Please note the manufacturer's instructions.

You can also obtain a suitable glass scraper from our after-sales service or from the e-Shop.

Using special sponges to clean glass ceramic achieves great cleaning results.

Hob surround

To prevent damage to the hob surround, observe the following instructions:

Use only hot soapy water.
- Wash new sponge cloths thoroughly before use.
Do not use any sharp or abrasive agents.
Do not use the glass scraper.

?Trouble shooting

Faults often have simple explanations. Please read the notes in the table before calling the after-sales service. The electronics of your hob are underneath the control panel. For various reasons, the temperature in this area may rise sharply.

In order that the electronics do not overheat, the hotplates are switched off as and when necessary. The F2, F4, or F5 display appears alternately with the H or h residual heat indicator.

Display Fault Measure
None The power supply has been disconnected. Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances.
All displays flash The touch control is wet or an object is resting on it.	Dry the control or remove the object.
F2	Several hotplates have been used over a pro-longed period at high power settings. To protect the electronics, the hotplate has been switched off.	Wait a while. Touch any touch control. When F2 goes out, the electronics have cooled down sufficiently. You can continue cooking.
F4	Despite the switch-off by F2, the electronics have become hot again. All hotplates have therefore been switched off.	Wait a while. Touch any touch control. When F4 goes out, you can continue cooking.
FS and the heat setting flash alternately. An audible signal can be heard	Warning: There is a hot pan in the area of the control panel. There is a risk that the electronics will overheat.	Remove the pan. The fault display goes out shortly afterwards. You can continue cooking.
FS and audible signal	There is a hot pan in the area of the control panel. To protect the electronics, the hotplate has been switched off.	Remove the pan. Wait a while. Touch any control. When FS goes out, you can continue cooking.
F8	The hotplate was in operation for too long and has switched itself off.	You can switch the hotplate back on again immediately.
dE The hotplates do not heat up	Demo mode is switched on Switching off the demo mode: Disconnect the appliance for 30 seconds from the power supply (switch off the household fuse or the circuit breaker in the fuse box). Touch any touch control after 3 minutes. The demo mode is switched off.

E-report in the displays

When an error message with "E" appears in the display, e.g. E0111, switch the appliance off and on again.

If it was a one-off error, the display goes out. If the error message appears again, call the after-sales service and quote the exact error message.

- flashes in the hotplate indicators

If - flashes in the hotplate indicators when the appliance is connected to the mains or following a power cut, the electronics are malfunctioning. To acknowledge the fault, briefly cover the controls with your hand.

Customer service

Our after-sales service is there for you if your appliance needs to be repaired. We will always find an appropriate solution, also in order to avoid after-sales personnel having to make unnecessary visits.

E number and FD number

Please quote the E-number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate.

Please note that a visit from an after-sales service engineer is not free of charge in the event of misuse of the appliance, even during the warranty period.

Inhoudsopgave
