USER MANUAL WD 142IXL WHIRLPOOL

Instructions for use

Mode d'emploi

Gebruiksaanwijzing

Close-up of three wooden clothespins with metal clips, no text or symbols visible

Brugsanvisning

Bruksanvisning

Käyttöohje

Black and white photo of multiple glass bottles with black caps, arranged in a row (no visible text or symbols)

Black and white close-up of multiple glasses with blurred background (no text or symbols visible)

Οδηγίες χρήσης

Close-up of a metallic kitchen appliance with perforated ventilation slots and a handle (no visible text or symbols)

Návod k použití

Návod na použitie

PRODUKT-DATENBLATT 4

PRODUCT DATA SHEET 8

FICHE PRODUIT 12

PRODUCTINFORMATIEBLAD 16

FICHA DEL PRODUCTO 20

FICHA TÉCNICA DO PRODUTO 24

SCHEDA PRODOTTO 28

PRODUKTDATABLAD 32

PRODUKTDATAARK 36

VAREOPLYSNINGER 40

TUOTETIEDOT 44

INFORMACE K PRODUKTU 48

KARTA ÚDAJOV O VÝROBKU 52

TERMÉK ADATLAPJA 56

Exterior view of a black metal cabinet or enclosure with open doors (no text or symbols visible)

Abb. 1

Exterior view of a black metal enclosure with a screwdriver inserted (no text or symbols visible)

Abb. 2
Abb. 3

Black metal cabinet with open door and white fabric being inserted (no text or symbols visible)

Close-up of two black metal structural components with mounting holes, shown from different angles (no text or symbols visible)

Abb. 5

PRODUCT DATA SHEET

Page

CONTROL PANEL 9

WARMING DRAWER 9

OPERATION 9

TEMPERATURE SELECTION 10

WARMING TIMES 10

LOAD CAPACITY 10

DRAWER REMOVAL 11

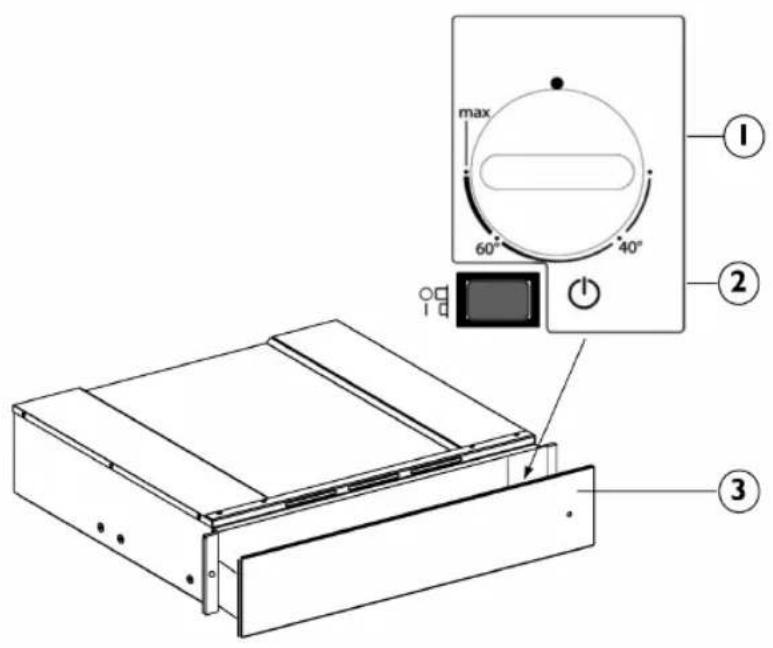

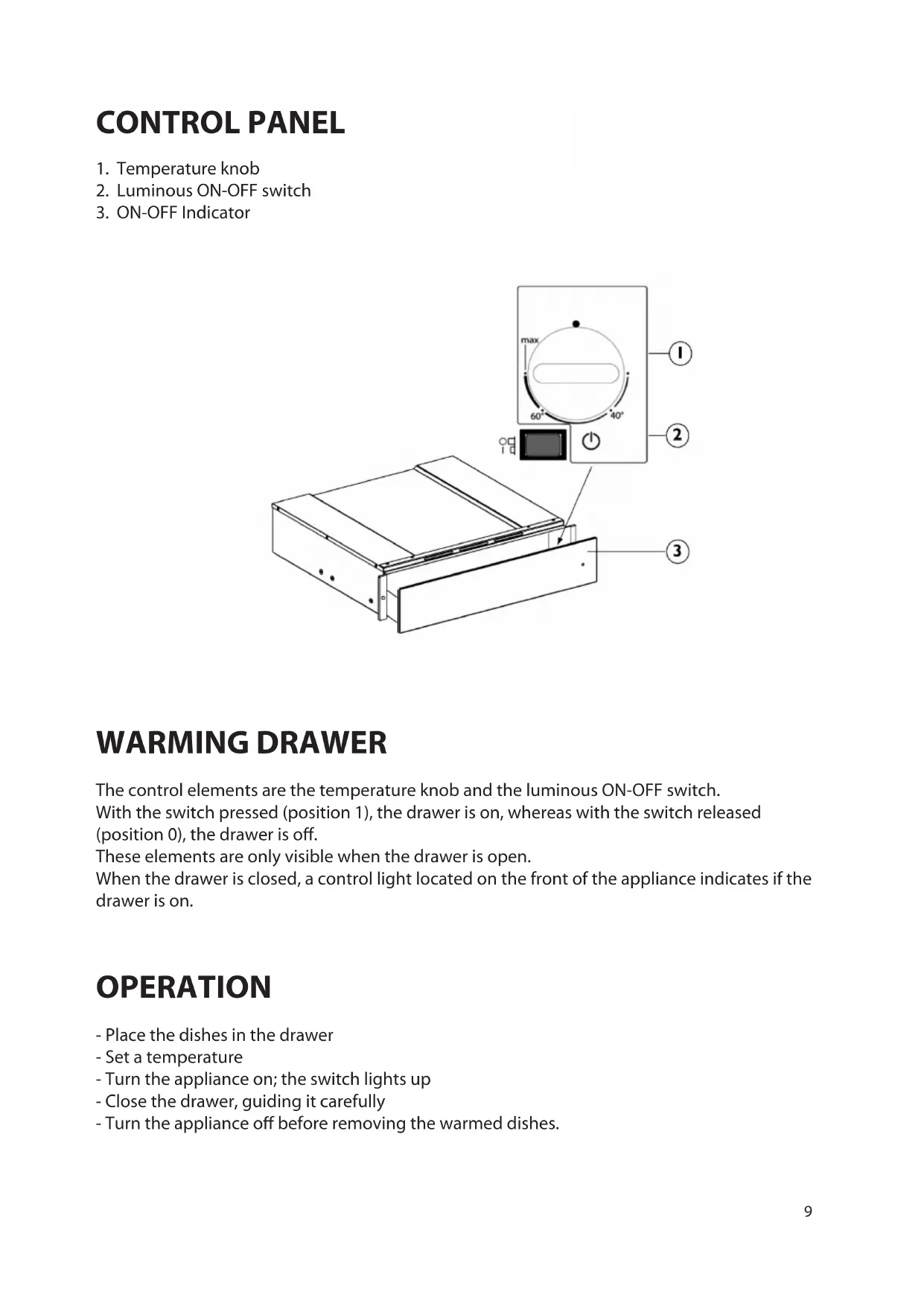

CONTROL PANEL

1. Temperature knob
2. Luminous ON-OFF switch
3. ON-OFF Indicator

max 60° 40° ① ② ③

WARMING DRAWER

The control elements are the temperature knob and the luminous ON-OFF switch.

With the switch pressed (position 1), the drawer is on, whereas with the switch released (position 0), the drawer is off.

These elements are only visible when the drawer is open.

When the drawer is closed, a control light located on the front of the appliance indicates if the drawer is on.

OPERATION

• Place the dishes in the drawer
• Set a temperature
• Turn the appliance on; the switch lights up
• Close the drawer, guiding it carefully
• Turn the appliance off before removing the warmed dishes.

TEMPERATURE SELECTION

The temperature control knob allows adjustments up to approx. 75^ C (max). Turn the temperature knob clockwise until the stop which indicates maximum, and then anticlockwise. Do not force it beyond the stop, otherwise the thermostat will become damaged.

Temperature adjustment Instructions for use
40°C cups, glasses		Cups and glasses warmed at this temperature help delay the cooling time of the beverage subsequently added. The container can still be touched without any problems.
60°C plates		Plates warmed at this temperature help delay the cooling time of food subsequently placed on them. Depending on the individual sensitivity, the containers can be touched without any risk, otherwise use gloves or potholders.
MAX approx. 75°C	crockery	The thermostat is set to the maximum temperature. The containers can be touched ONLY with suitable gloves or potholders.

WARMING TIMES

The time required to warm dishes, glasses, etc. depends on various factors:

• Material and thickness of the dishes
- Load
- Arrangement of load
- Temperature setting

Therefore absolute indications cannot be given.

It is advisable to establish the optimum settings required, based on practical experience

LOAD CAPACITY

The load capacity depends on the height of the appliance and the size of the dishes.

Remember that the drawer can take a maximum weight of 25 kg.

DRAWER REMOVAL

WARNING

• Use protective gloves.
• Disconnect the appliance from the power supply.

The drawer can be removed to clean it internally.

Open the drawer completely (figure 1).

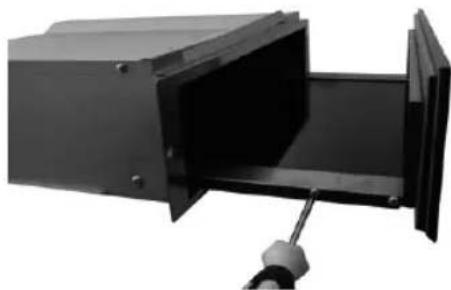

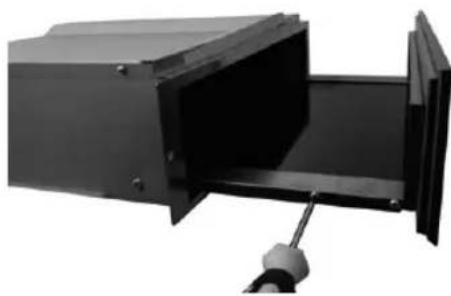

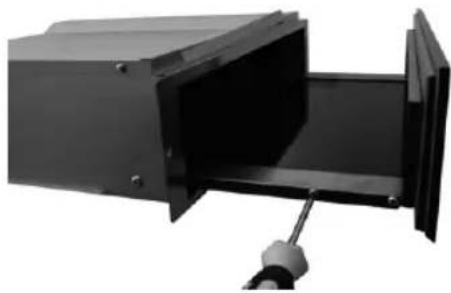

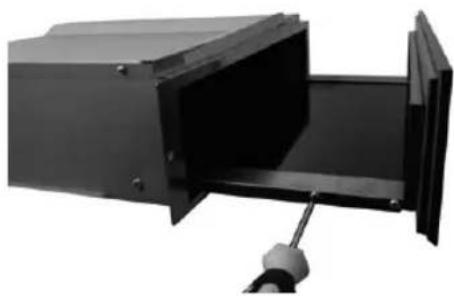

Undo the four side screws (two on each side) (figure 2).

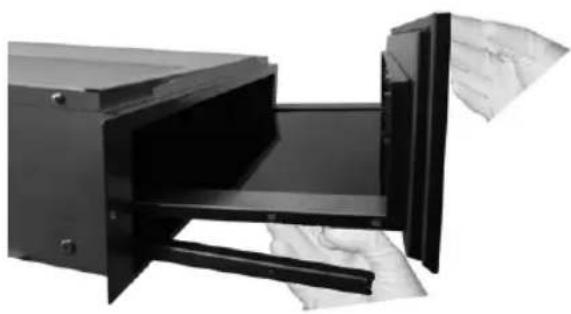

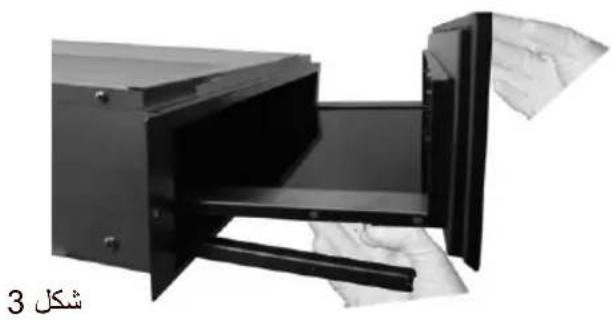

Pull out the sliding part of the drawer carefully, holding it at the front and side with both hands.

The appliance can now be cleaned internally, using detergent and water. Do not place the drawer in water once removed.

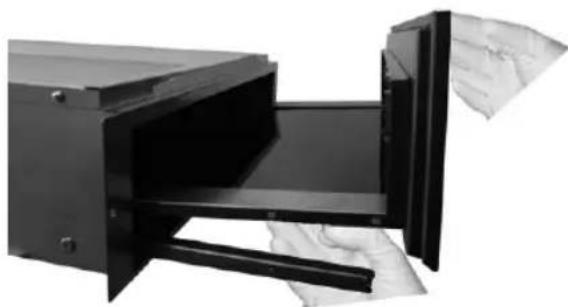

Refitting the drawer

To refit the drawer, carry out the removal procedure in reverse order.

To do this, place the drawer on the runners.

Make sure to:

Insert the drawer with the runners completely out.

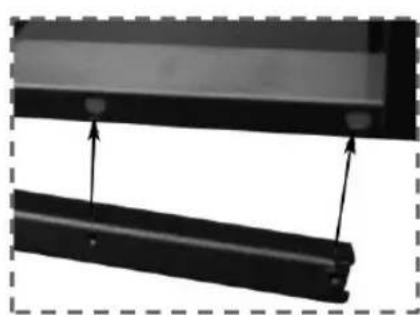

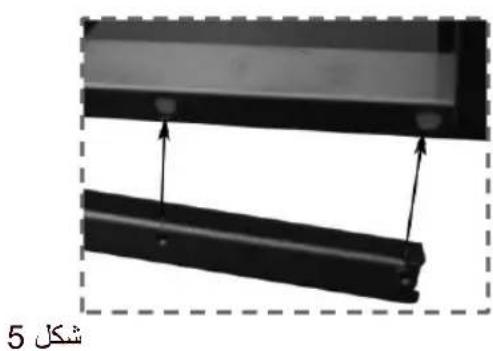

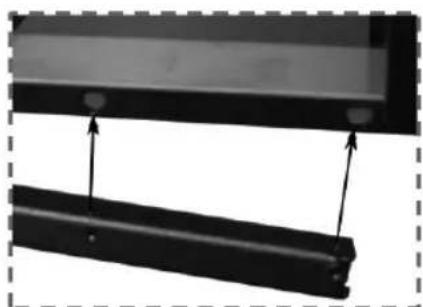

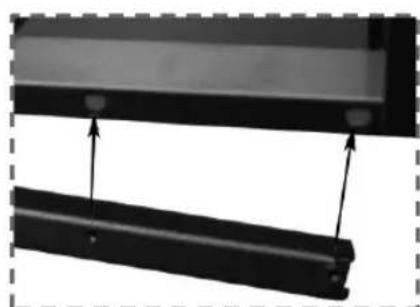

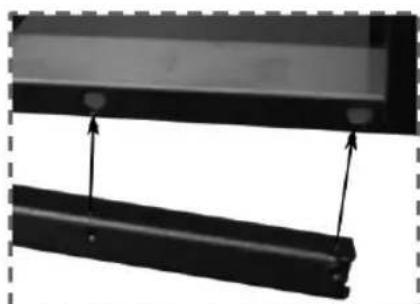

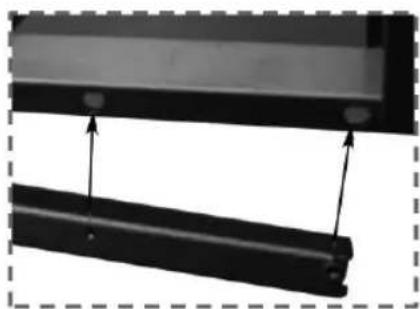

Hold the runners with one hand and push the drawer until alignment of the 4 side holes (fig. 4/5).

Exterior view of a black metal cabinet or enclosure with two open doors (no text or symbols visible)

fig. 1

Close-up of a black metal enclosure with a screwdriver inserted, showing internal structure (no text or symbols visible)

fig. 2
fig. 3

Black metal cabinet with open door and handle, partially covered by a white fabric swatch (no text or symbols visible)

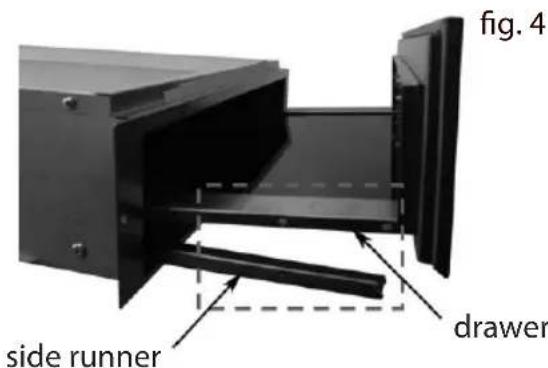

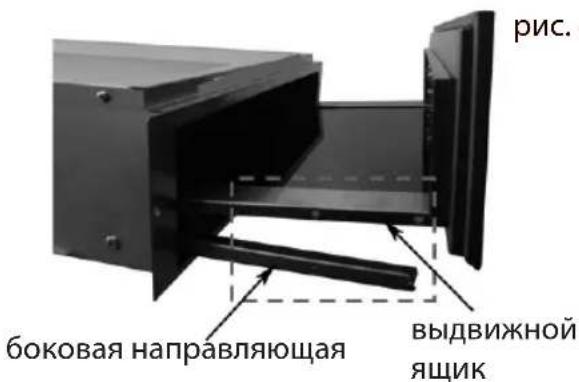

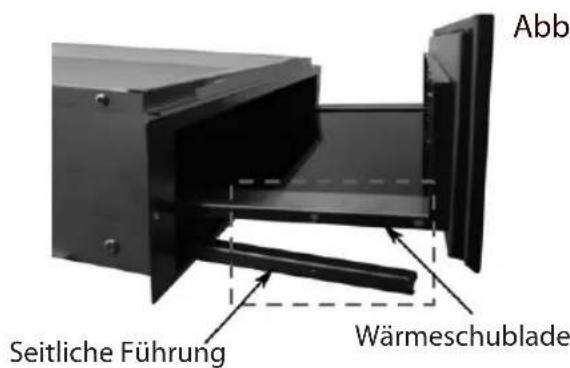

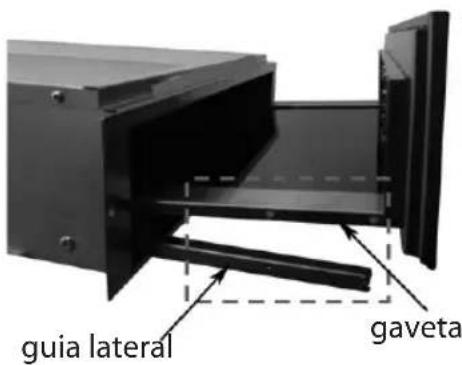

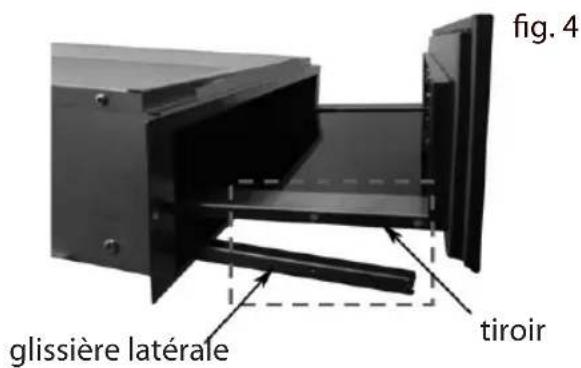

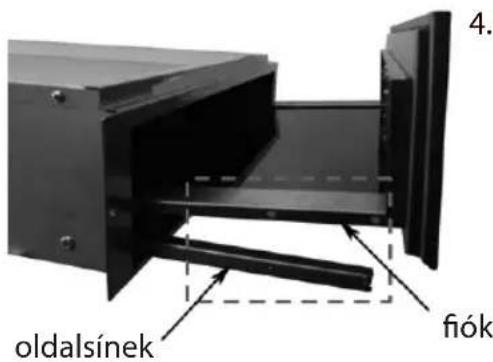

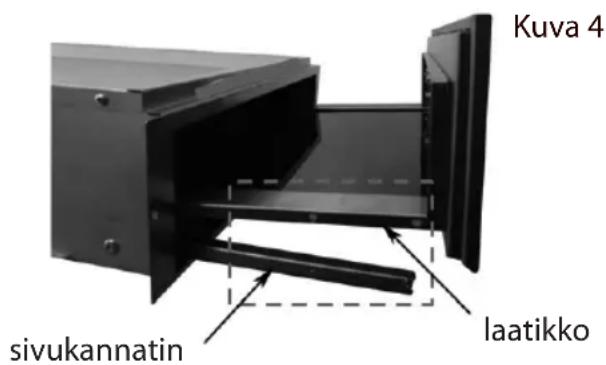

fig. 4 side runner drawer

Two black metal beams with arrows pointing to them, no text or symbols present

fig. 5

FICHE PRODUIT

Page

BANDEAU DE COMMANDE 13

TIROIR CHAUFFANT 13

FONCTIONNEMENT 13

RÉGLAGE DE LA TEMPÉRATURE 14

TEMPS DE PRÉCHAUFFAGE 14

CAPACITÉ DE CHARGE 14

RETRAIT DU TIROIR 15

BANDEAU DE COMMANDE

Exterior view of a black metal cabinet or enclosure with open doors (no text or symbols visible)

fig. 1

Exterior view of a black metal enclosure with a cable inserted, showing internal components and mounting brackets (no text or symbols visible)

fig. 2
fig. 3

Black metal cabinet with open door and white cushioned bag, no visible text or symbols

Close-up of two black metal components with mounting holes, no visible text or symbols

Fig. 5

PRODUCTINFORMATIEBLAD

pagina

BEDIENINGSPANEEEL 17

VERWARMINGSLADE 17

WERKING 17

TEMPERATUURKEUZE 18

VERWARMINGSTIJDEN 18

LAADCAPACITEIT 18

Exterior view of a black metal enclosure with open doors (no text or symbols visible)

fig. 1

Exterior view of a black industrial enclosure with a pipe inserted (no text or symbols visible)

fig. 2
fig. 3

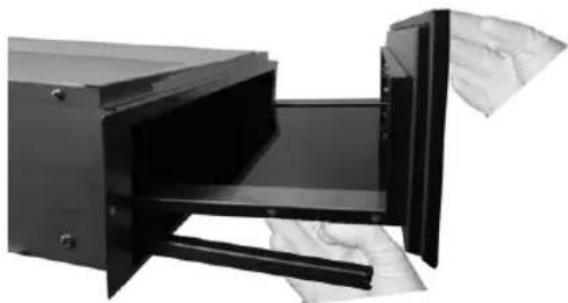

Black metal cabinet with open door and hand inserting a pillow (no text or symbols visible)

fig. 4

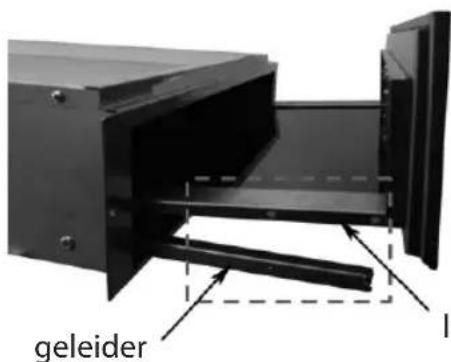

geleider

lade

Close-up of two metal brackets with mounting holes and arrows indicating features (no text or symbols)

fig. 5.

FICHA DEL PRODUCTO

página

PANEL DE MANDOS 21

CAJÓN CALENTADOR 21

UTILIZACIÓN 21

Exterior view of a black metal cabinet with two open doors (no text or symbols visible)

fig. 1

Exterior view of a black metal enclosure with a screwdriver inserted (no text or symbols visible)

fig. 2
fig. 3

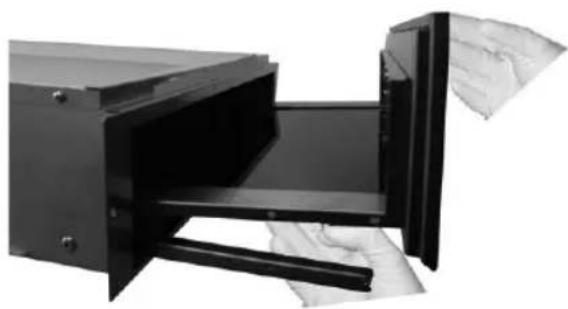

Black metal cabinet with open door and paper towel being inserted (no text or symbols visible)

fig. 4

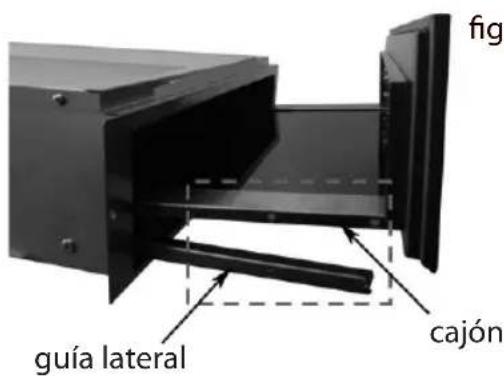

fig guía lateral cajón

Two black metal beams with mounting holes, one above and one below, shown without any text or symbols.

fig. 5

FICHA TÉCNICA DO PRODUTO

Página

PAINEL DE CONTROLO 25

REMOÇÃO DA GAVETA 27

PAINEL DE CONTROLO

Exterior view of a black metal cabinet or enclosure with open doors (no text or symbols visible)

fig. 1

Exterior view of a black metal enclosure with a cable inserted, showing internal components and mounting brackets (no text or symbols visible)

fig. 2

fig. 3

Black metal cabinet with open door and white cushioned bag, no visible text or symbols

fig. 4

guia lateral gaveta

fig. 5

Two black metal components with mounting holes, shown from different angles (no text or symbols visible)

SCHEDA PRODOTTO

Pagina

PANNELLO COMANDI 29

CASSETTO RISCALDANTE 29

FUNZIONAMENTO 29

SCELTA DELLA TEMPERATURA 30

TEMPI DI RISCALDAMENTO 30

CAPACITÀ DI CARICO 30

Exterior view of a black metal cabinet or enclosure with two open doors (no text or symbols visible)

Figur 1

Exterior view of a black industrial cabinet with a screwdriver inserted (no text or symbols visible)

Figur 2
Figur 3

Black metal cabinet with open door and internal shelves, showing a folded paper sheet (no text or symbols visible)

Figur 4

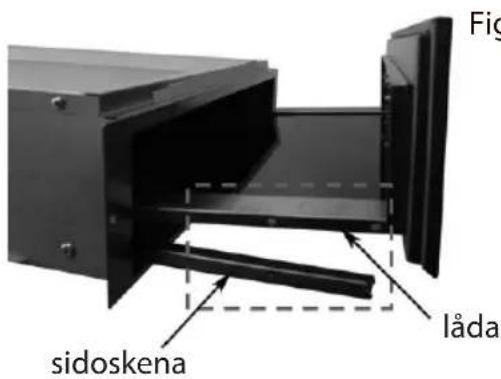

Fig sidoskena låda

Two black metal beams with mounting holes, shown from different angles (no text or symbols)

Figur 5

PRODUKTDATAARK

Side

BETJENINGSPANEL 37

VARMESKUFF 37

BRUK 37

TEMPERATURVALG 38

OPPVARMINGSTIDER 38

KAPASITET 38

TA UT SKUFFEN 39

BETJENINGSPANEL

1. Temperaturknapp
2. Lysende AV/PÅ-bryter
3. AV/PÅ-indikator

max 60° 40° ① ② ③

VARMESKUFF

Exterior view of a black metal cabinet or enclosure with open doors (no text or symbols visible)

fig. 1

Exterior view of a black metal enclosure with a cable inserted, showing internal structure and mounting bracket (no text or symbols)

fig. 2

fig. 3

Black metal cabinet with open door and white fabric being inserted (no text or symbols visible)

fig. 4

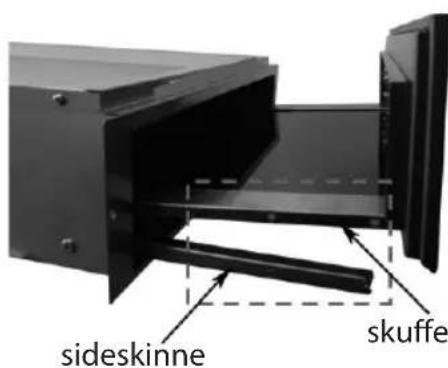

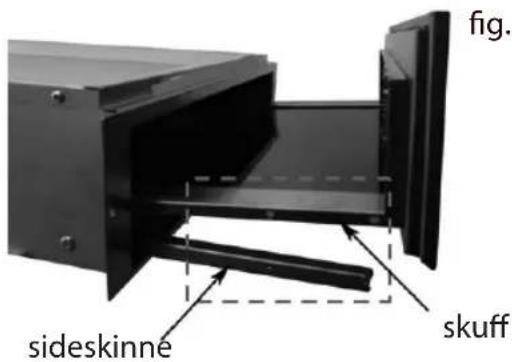

fig. sideskinne skuff

Two black metal beams with mounting holes, one upward and one downward, shown without any text or symbols.

fig. 5

VAREOPLYSNINGER

Side

BETJENINGSPANEL 41

VARMESKUFFE 41

BETJENING 41

TEMPERATURVALG 42

VARMETIDER 42

FYLDNINGSKAPACITET 42

FJERNELSE AF SKUFFE 43

BETJENINGSPANEL

Exterior view of a black metal cabinet with two open doors (no text or symbols visible)

fig. 1

Exterior view of a black metal enclosure with a cable inserted, showing internal structure and mounting bracket (no text or symbols)

fig. 2
fig. 3

Black metal cabinet with open door and hand inserting a bag (no text or symbols visible)

fig. 4

sideskinne skuffe

fig. 5

Two black metal components with arrows pointing to features, no visible text or symbols

TUOTETIEDOT

Sivu

KÄYTTÖPANEELI 45

LÄMMITYSLAATIKKO 45

KÄYTTÖ 45

LÄMPÖTILAN VALINTA 46

LÄMMITYSAJAT 46

TÄYTTÖMÄÄRÄ 46

LAATIKON IRROTTAMINEN 47

KÄYTTÖPANEELI

Exterior view of a black metal enclosure with open doors (no text or symbols visible)

Kuva 1

Exterior view of a black metal enclosure with a cable inserted, showing internal structure and mounting bracket (no text or symbols)

Kuva 2
Kuva 3

Black metal cabinet with open door and paper towel being inserted (no text or symbols visible)

Close-up of two black metal plates with mounting holes and arrows indicating features (no text or symbols)

Kuva 5

INFORMACE K PRODUKTU

Strana

OVLÁDACÍ PANEL 49

OHŘÍVACÍ OZÁSUVKA 49

POUŽITÍ 49

VOLBA TEPLOTY 50

DOBY OHŘEVU 50

KAPACITA 50

ODSTRANĚNÍ ZÁSUVKY 51

OVLÁDACÍ PANEL

Exterior view of a black metal cabinet or enclosure with open doors (no text or symbols visible)

obr. 1

Exterior view of a black metal enclosure with a screwdriver inserted (no text or symbols visible)

obr. 2
obr. 3

Black metal cabinet with open door and white fabric being inserted (no text or symbols visible)

obr. 4

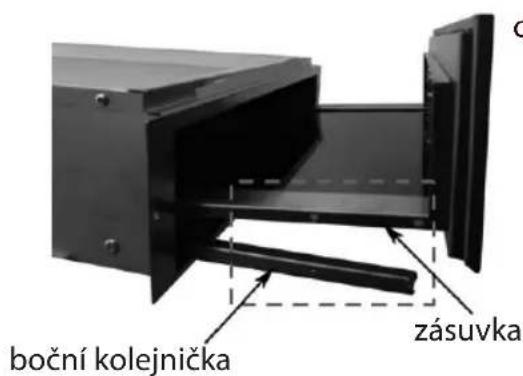

Two black metal beams with mounting holes, one upward and one downward, shown without any text or symbols.

obr. 5

KARTA ÚDAJOV O VÝROBKU

Strana

OVLÁDACÍ PANEL 53

OHREVNÁ ZÁSUVKA 53

OBSLUHA 53

VOL'BA TEPLOTY 54

DOBY OHREVU 54

KAPACITA NÁPLNE 54

VYBRATIE ZÁSUVKY 55

OVLÁDACÍ PANEL

Exterior view of a black metal cabinet with open door (no text or symbols visible)

obr. 1

Exterior view of a black metal enclosure with a cable inserted, showing internal structure (no text or symbols)

obr. 2
obr. 3

Black metal cabinet with open door and hand inserting a piece of paper (no text or symbols visible)

obr. 4

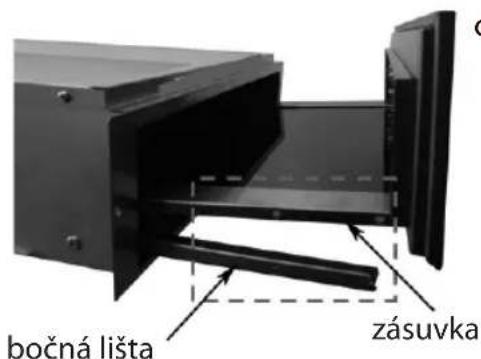

Two black metal components with arrows pointing to their ends, no visible text or symbols.

obr. 5

TERMÉK ADATLAPJA

Oldal

KEZELÓLAP 57

MELEGÍTŐ FIÓK 57

ÜZEMELÉS 57

Exterior view of a black metal enclosure with open doors (no text or symbols visible)

1. ábra

Exterior view of a black industrial enclosure with a pipe inserted (no text or symbols visible)

1. ábra

Black metal cabinet with open door and hand inserting a bag, labeled '3. ábra' (no other text or symbols)

Close-up of two metal beams with mounting holes, one highlighted by arrows (no text or symbols)

1. ábra

Exterior view of a black metal cabinet with open door (no text or symbols visible)

рис. 1

Exterior view of a black metal enclosure with a cable inserted, showing internal structure and mounting bracket (no text or symbols)

рис. 2
рис. 3

Black metal cabinet with open door and hand inserting a bag (no text or symbols visible)

Two black metal beams with mounting holes, one above and one below, shown without any text or symbols.

рис. 5

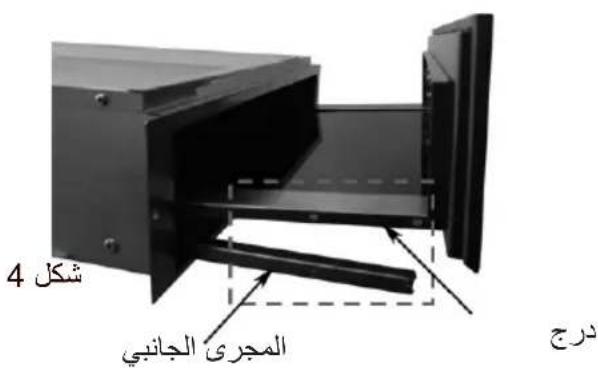

Exterior view of a black metal cabinet with open doors, labeled 'شکل 1' (no other text or symbols)

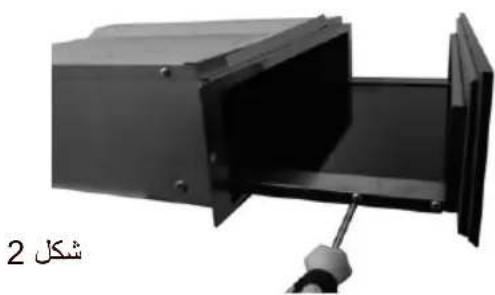

Exterior view of a black metal enclosure with a screwdriver inserted, no visible text or symbols

Black metal cabinet with open doors and a hand inserting a piece of paper, no visible text or symbols

العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية العربية

5 شکل
