USER MANUAL 2.36 E Wolf Garten

CongratulationTechnical dataSafety instructionsAssemblyOperationMaintenanceFaults and how to remedySpare partsGuarantee termsDeclaration of Conformity F - Sommaire

LP 75 dB (A) LP 75 dB (A)

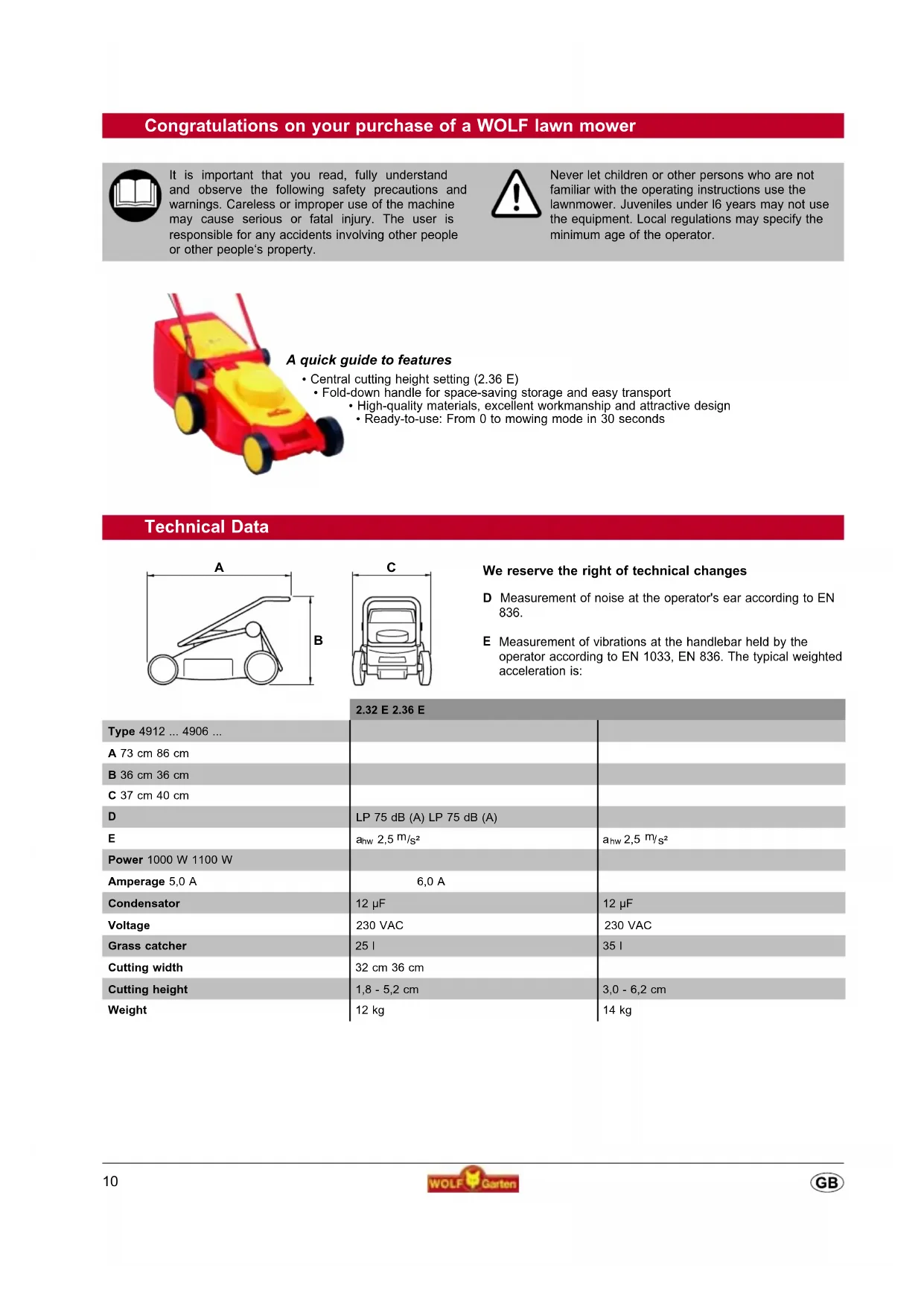

Measurement of vibrations at the handlebar held by the operator according to EN 1033, EN 836. The typical weighted acceleration is: We reserve the right of technical changes Congratulations on your purchase of a WOLF lawn mower It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the machine may cause serious or fatal injury. The user is responsible for any accidents involving other people or other people‘s property. Never let children or other persons who are not familiar with the operating instructions use the lawnmower. Juveniles under l6 years may not use the equipment. Local regulations may specify the minimum age of the operator.

LP 75 dB (A) LP 75 dB (A)

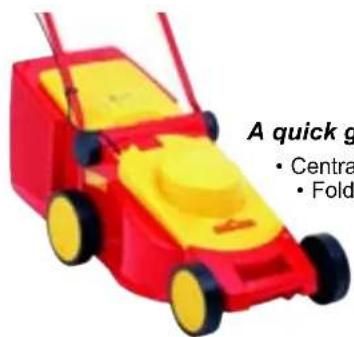

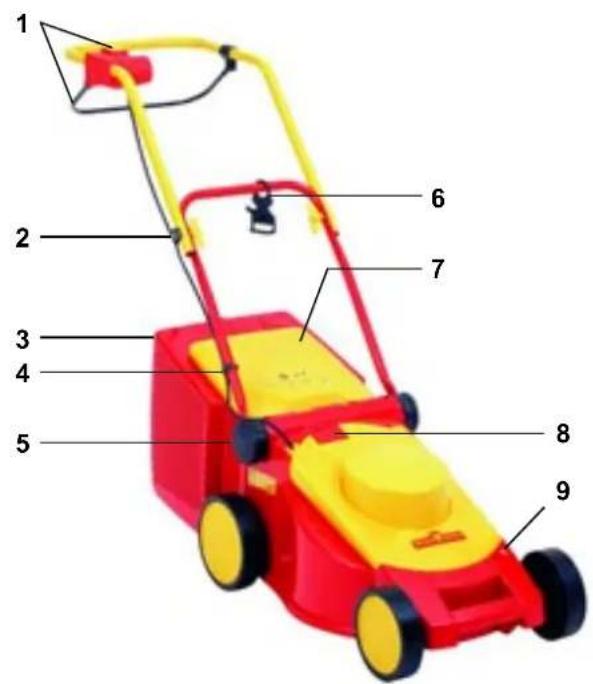

• Central cutting height setting (2.36 E)

• Fold-down handle for space-saving storage and easy transport

• High-quality materials, excellent workmanship and attractive design

• Ready-to-use: From 0 to mowing mode in 30 seconds11 Safety instructions Meaning of the symbols Keep the supply flexible cord away from the cutting blade! Attention ! - Sharp knives - before performing a maintenance work or if the cable is damaged pull out the plug. Attention! Read Instruction manual before use! Keep bystanders away! General information

• This lawnmower is designed for domestic grass and lawn surfaces. Because of the physical risk to the user or to oth- ers, the lawnmower must not be used for other purposes.

• Never mow the lawn if others – in particular children and ani- mals – are in the vicinity.

• Only mow the lawn during daylight or with the aid of appro- priate artificial light. Before mowing

• Always wear sturdy shoes and long trousers when mowing. Never mow while barefoot or wearing flimsy sandals.

• Check the site on which the machine is to be used, and remove all items which could be caught and ejected

• Check the line and connection cable fitted to the outside of the lawnmower for damage and ageing (brittleness). Only use if in perfect condition.

• Only have the cable repaired by a qualified person.

• Check the grass catchment device regularly for wear-and-tear and deformation.

• Before use, carry out a visual inspection to check whether the cutting gear and its mounts are blunt or damaged. In order to avoid generating an imbalance, replace blunt or damaged cutting gear as an entire set. Cables

• Please use safety cables. Cables used as connecting lines must not be lighter than HO7 RN-F rubber-sheathed cables with a minimum cross-section of 3 x 1.5 mm

• Plugs and couplings must be protected from splashes.

• Use a residual current protection device (RCD) with a residu- al current not exceeding 30 mA.

• Fit the connection cable to the mains lead cleat. Do not allow to rub against edges or against sharp or pointed objects. Do not squeeze cables through tight door or window openings. Switch devices must not be removed or circumvented (e.g. connecting the switch lever to the handle bars) When mowing

• Do not tilt the lawnmower when switching on the motor, unless the lawnmower has to be tilted when starting. If that is the case, do not tip the lawnmower more than absolutely necessary, and only lift the part furthest removed from the user. Always ensure that both hands are in the operating position before replacing the lawnmower on the ground.

• Caution, danger! Cutting gear will continue running!

• Maintain the safety distance prescribed by the handle bars.

• Only switch on the motor if your feet are at a safe distance from the cutting gear.

• Take care to ensure a safe and stable position, especially on slopes. Never run; always walk calmly forward.

• Always mow slopes at right angles to the incline; never mow up and down.

• When mowing slopes, be especially careful when changing direction.

• Never mow steep slopes.

• Be especially careful when mowing backwards and pulling the lawnmower towards you.

• Switch the lawnmower off when tilting it, running on empty or transporting the lawnmower, e.g. to/from a lawn or along paths.

• Never use the lawnmower if safety devices are faulty or miss- ing, such as deflector and/or grass catchment devices.

• Caution: do not touch running cutters.

• Always keep hands and feet away from rotating parts. Do not stand in front of the grass ejector opening.

• Never lift or carry a lawnmower while the motor is running.

• Never open the guard flap while the motor is still running.

• Before removing the grass catchment device, turn off the motor and wait until the cutting gear has stopped running. After emptying the grass catchment device, reattach carefully.

• Never drive across gravel while the motor is running – impacting stones!

• Avoid mowing wet grass where possible.

• Switch off the lawnmower, pull the mains plug and wait for the lawnmower to stop running if, for example: a) leaving the lawnmower b) unblocking a blade c) intending to check, clean or work on the lawnmower d) you have encountered a foreign object, in which case you should check the lawnmower for damage and carry out any necessary repairs. e) the lawnmower is vibrating heavily (switch off immediately and ascertain the cause). f) you wish to change the settings or carry out cleaning work. g) you wish to check whether the connection cables have become tangled or damaged.

• If the lawnmower has a wheel actuation device, this must not be started simultaneously with the motor.

• If the connection cable is damaged during use, it must be immediately disconnected from the mains power supply. Do not touch the cable before it has been disconnected from the mains power supply. Maintenance

• Always switch off the motor and pull the mains plug before carrying out maintenance and cleaning work.

• Never spray down the lawnmower using water, especially not at high pressure.

• Regularly check and tighten all visible fastening screws and nuts, especially those relating to the cutting bar, to ensure a firm fit.

• Caution! Always have blades changed or re-sharpened by a specialist workshop, since a balance test must be carried out as specified in the safety regulations following any removal of parts.

• Only use original WOLF spare parts. Otherwise we cannot guarantee that your lawnmower conforms to the safety regu- lations.

• Never park your lawnmower in damp rooms.

• For safety reasons, replace worn or damaged parts.Operation Operating times Please check noise abatement regulations prevailing in your country. Connecting to the mains (230 Volts, A.C., 50 Hz) The mower operates from any normal household mains supply, provided with a 16 Amps. fuse. Note: Use a residual current device (RCD) rated for a residual current not greater than 30 mA. Starting and Stoping

• Switch on motor with mowerplaced on level and firm ground

• not in high grass - alternatively tilt slightly

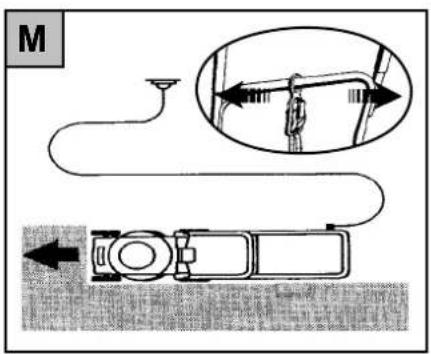

Always let cable trail on the cut side of the lawn

• Cable guidance: Place the cable firmly off the lawn or on the already cur side of the lawn when starting to mow.

• To prevent strips of grass from being left unmowed, the cutting paths must always overlap a few centimeters

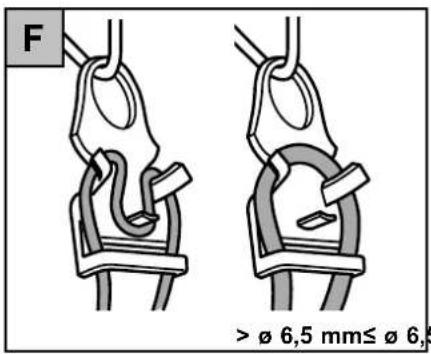

Inserting power cable into cable holder

Insert the power cord into the strain relief as shown in the illustration. Hanging the grass bag

Only when the motor is not running and the cutting blade is not moving.

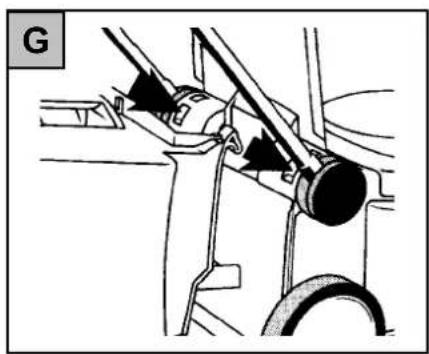

1. Lift the protective ap.

2. Hang the grass bag in the chassis with the hooks in the

recesses (see arrow).

3. Replace the protective ap.

Emptying of Grassbox The grassbox is full and should be emptied as soon as grass clippings remain uncollected on the ground behind your mower. Note: Disconnect electricity by unplugging cable at the socket-before proceeding. Maintenance Cleaning Note: Disconnect electricity by unplugging cable at the socket before proceeding. Attention: Keep hands clear of moving blade. Clean mower thoroughly after each mowing with cloth or brush. Do not spray with water. Winter Storage

• Clean mower thoroughly before storing away.

• Have your mower thoroughly checked once a year by an approved Service Centre.

• Do not store it in a wet or humid place. Change of cutter blade

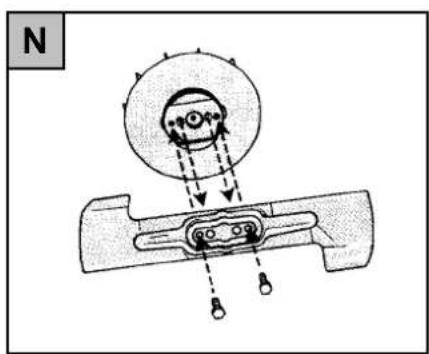

Note: always disconnect mains supply and wear protective gloves before undertaking any work at the cutter blades, cutter bar and blade coupling. Change cutter blade using 10 mm spanner as illustraded. Torque wrench setting for screws 8-10 Nm. Take care to carry out this work thoroughly. Use original spare parts only. Note: Sharpining of blades should be done by an approved service centre as the correct balance of the blade after sharpening is very important and ought to be checked by an expert. Assembly Fixing of handle and adjustment of height

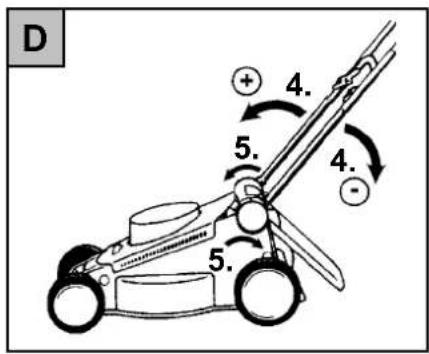

ATTENTION! Take care that the switch cable does not become caught and crushed when folding the handle frame. Fold upper handle section forward. Tighten hand wheels firmly.

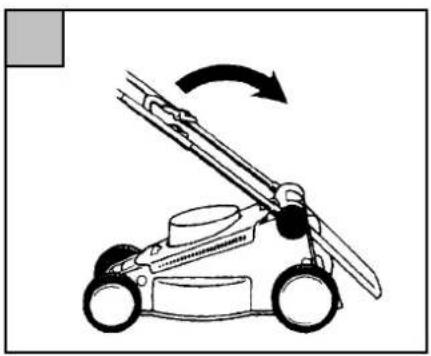

Fold complete handle backwards and tighten firmly. Folding of handle frame

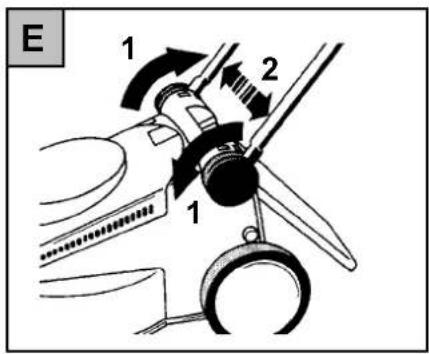

ATTENTION! Take care that the switch cable does not become caught and crushed when folding the handle frame. Note! Unscrew the lower hand wheels (1) for about 2 cm/ .1” either side, pull handle frame (2) either side, pull handle frame clear of recesses until it can be folded forward easily.

Fold complete handle backwards, position at the correct height and tighten firmly.

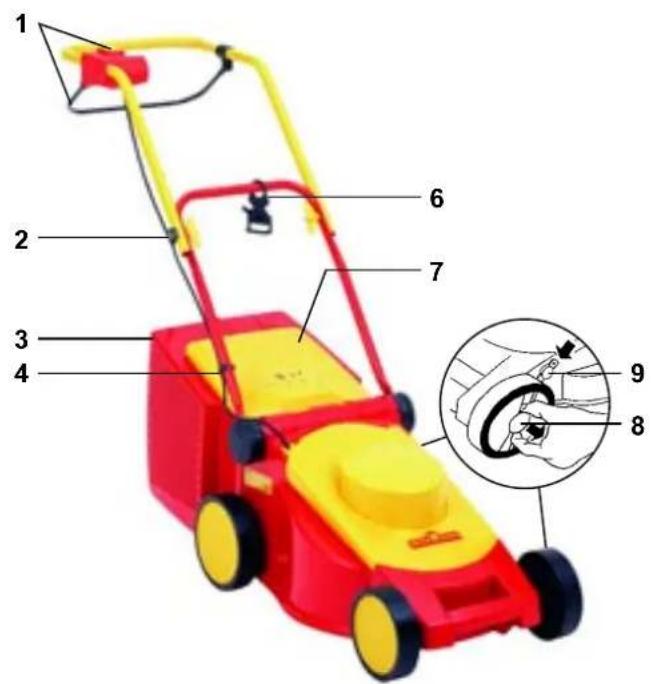

Selection of Cutting height If possible, mow when grass is dry in order to protect turf. Do not se cutting position too low when mowing very hight or wet grass. We recommend an average cutting height of 4,0 cm. Setting the cutting height Only when the motor is not running and the cutting blade is not moving.

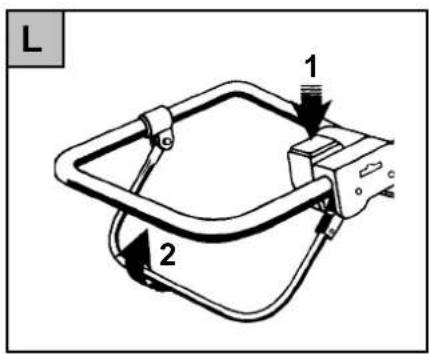

1. Press the knob (1) downward.

2. Press the unit downward slightly or raise it, as necessary.

Note: In order to scarify, press the unit downward somewhat forcefully until a gray field appears in the display.

3. Release the knob when the desired cutting height is

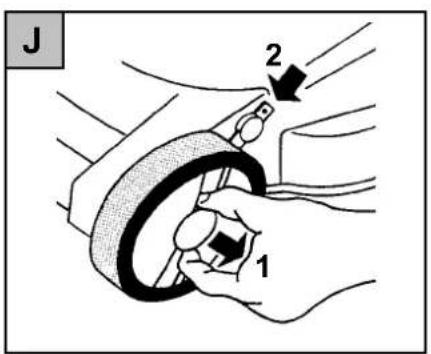

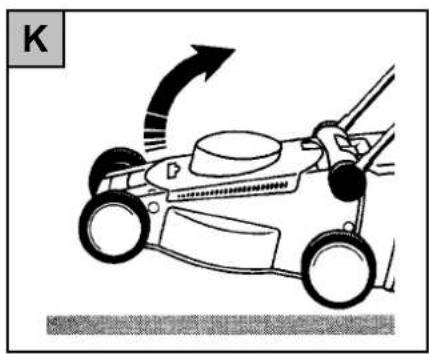

1. Lift the mower in the front or back, as necessary.

2. Pull the knob (1) out.

3. Allow the knob to lock into place when the desired cutting

height is reached (2). Important! The front and back wheels must be set to the same height.Faults and how to remedy Remedy (X) by: Problem Possible cause WOLF service-workshop Yourself Uneven running, heavy vibrations in the mower

• Blades loose in the fastening parts

• Cable damaged Important! If you inadvertently cut through the cable, the fuse (16 Amp.) will not always blow. In the interest of safety, never touch damaged or servered cables before disconnecting the mains plug. Repairing the cable with insulating tape is prohibited.

When in doubt, always consult a WOLF service workshop. Important: switch off the mower and disconnect the mains plug before inspecting, cleaning or working on the blades. Spare parts Item number Order description Product information 4932 902 Grass catcher (2.32 E) 4936 902 Grass catcher (2.36 E) 4932 090 Vi 32 N Replacement blade 32 cm (2.32 E) 4936 090 Vi 36 N Replacement blade 36 cm (2.36 E) Supplied by your dealer The guarantee services will be performed by our authorized repair shops or: Guarantee terms Please carefully retain the guarantee card completed by the seller, or the proof of purchase. The company WOLF-Garten provides a guarantee for 24 months from the date of purchase. This guarantee is in accordance with the relevant state of technology and the utilisation purpose / area of application. The consumer‘s statutory rights are not affected by the following guarantee guidelines. Pre-conditions for the 24-month guarantee entitlement: - Deployment of the device solely for private use. The guarantee is reduced to 12 months in the commercial sector or leasing business. - Proper handling and observance of all information given in the operating manual, which forms part of our guarantee terms. - Observance of the prescribed maintenance intervals. - No unauthorised alteration of the design. - Installation of original WOLF replacement parts / accessories. - Presentation of the completed guarantee card and/or proof of purchase. This guarantee does not extend to normal wear-and-tear on blades, blade mounting components or friction disks, V-belts/toothed belts, running wheels/tyres, air filters, spark plugs and spark plug connectors. Any guarantee claim shall be immediately void in the event of unauthorised repairs. Faults and defects which can be traced to material or manufacturing faults will be rectified exclusively by our contracted workshops (the seller has the right to remedy a defect) in your vicinity, or by the manufacturer if the latter is closer. Any claims going beyond the provision of a guarantee are ruled out. There is no entitlement to a replacement. Any transport damage should be reported not to us but to the shipper in question since, otherwise, any compensation claims vis-à-vis the shipper would be voided. WOLFGarden Ltd. Crown BusinessPark Tredegar Gwent, NP22 4EF Tel.: ++ 44 / 14 95 30 66 00 Fax: ++ 44 / 14 95 30 33 44 E-mail: info@uk.WOLF-Garten.com www.WOLF-Garten.com 13Donnés Techniques D Mesurage du bruit au niveau de l'oreille de l'opérateur selon EN 836.
