USER MANUAL ZKK8412K ZANKER

Illustration of a hand cleaning or filtering a shelf with a tool (no text or symbols visible)

Diagram of a multi-panel storage or rack mechanism with directional arrows indicating movement (no text or symbols)

Illustration of a hand holding a tool inside a container, with no visible text or symbols

Illustration of a hand holding a tool near a window with a ruler, no text or symbols present

Diagram showing a tool interacting with a panel, with arrows indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with bolts and a dashed arrow indicating motion (no text or symbols)

Diagram showing two views of a mechanical assembly with bolted components, no text or symbols present

Technical diagram illustrating mechanical assembly with magnified views and dimension labels

Technical diagram showing a door mechanism with labeled parts and directional arrows, including zoomed-in detail views.

Technical diagram showing two views of a structural component with no visible text or symbols

Simple line drawing of a 3D rectangular block with a dashed top and internal lines, no text or symbols present.

Diagram showing labeled mechanical components or fixtures with circular insets D, C, E, and B indicating different parts of a device or assembly.

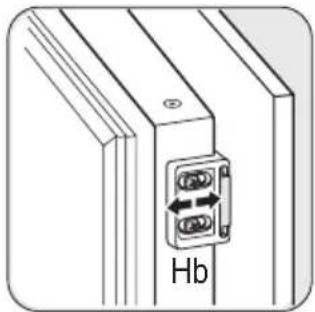

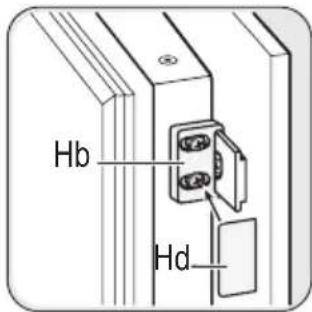

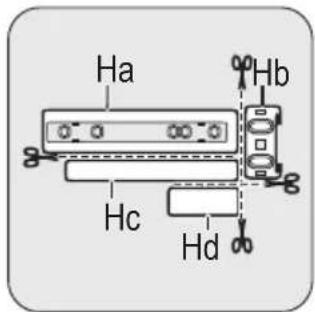

Ha Hb Hc Hd

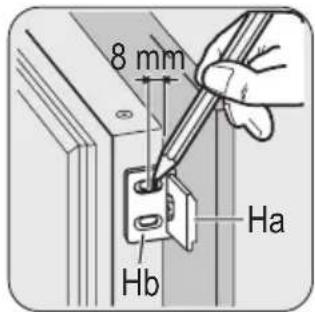

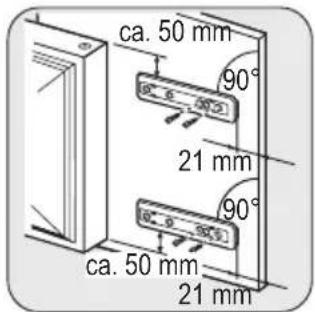

8 mm Ha Hb

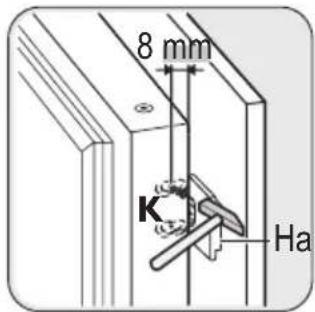

8 mm K Ha

Technical line drawing of a mechanical component with two connectors labeled Hb (no text or symbols beyond label)

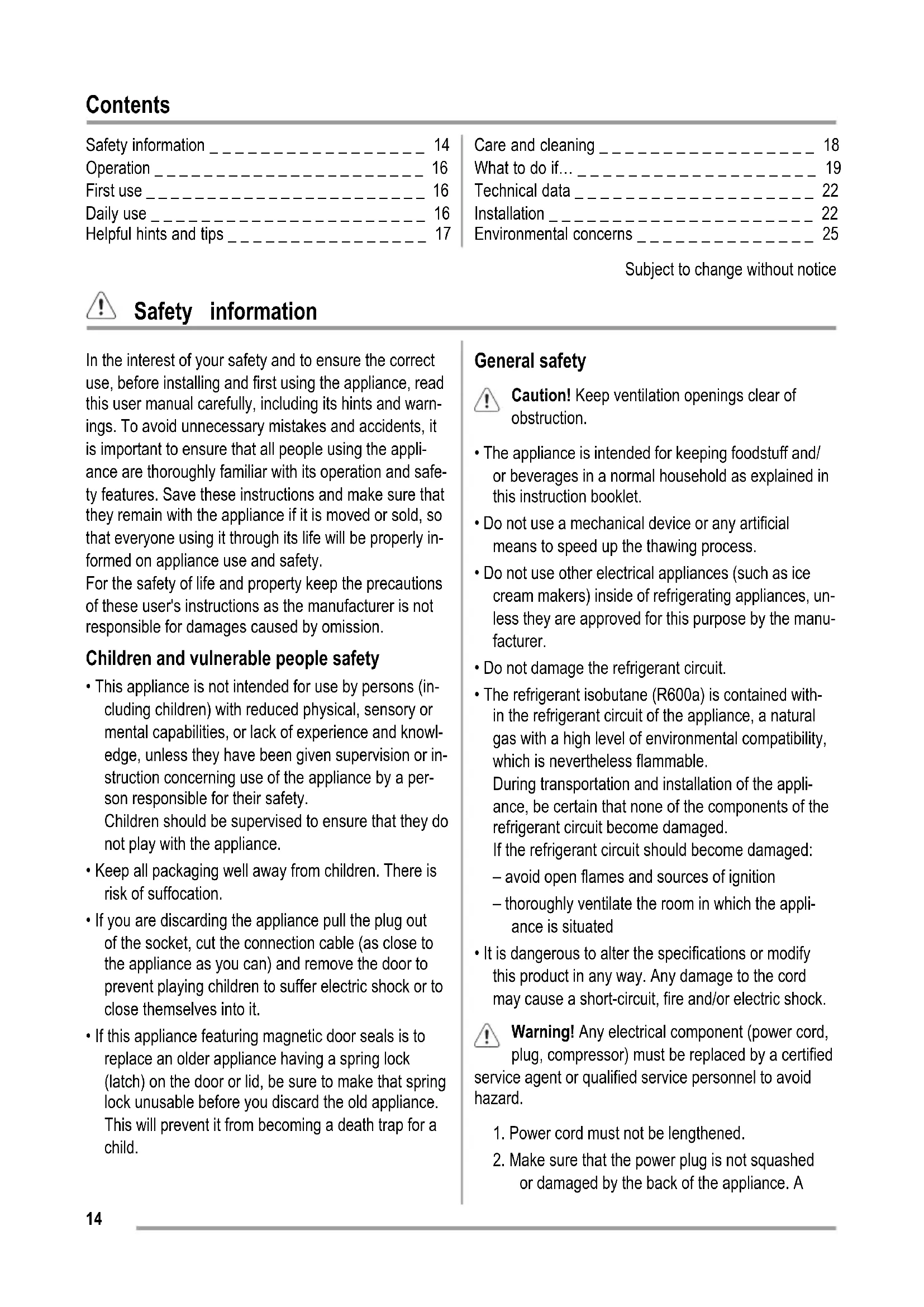

Safety information	14
Operation	16
First use	16
Daily use	16
Helpful hints and tips	17

Care and cleaning	18
What to do if...	19
Technical data	22
Installation	22
Environmental concerns	25

Subject to change without notice

Safety information

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

Caution! Keep ventilation openings clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
  During transportation and installation of the appli- ance, be certain that none of the components of the refrigerant circuit become damaged.
  If the refrigerant circuit should become damaged:
  – avoid open flames and sources of ignition
  – thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified

service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A

squashed or damaged power plug may overheat and cause a fire.

1. Make sure that you can come to the mains plug of the appliance.
2. Do not pull the mains cable.
3. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

4. You must not operate the appliance without the lamp cover ^6) of interior lighting.

5. This appliance is heavy. Care should be taken when moving it.

6. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
7. Avoid prolonged exposure of the appliance to direct sunlight.
8. Bulb lamps ^7) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

Daily Use

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Do not place food products directly against the air outlet on the rear wall. ^8)
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

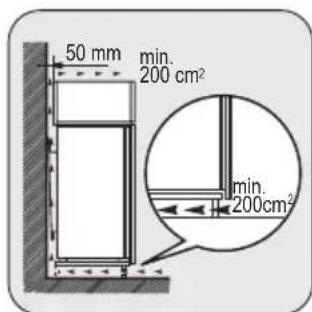

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only. ^9)

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrig-circuit or insulation materials. The appliance shall be discarded together with the urban refuse and

rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

Operation

Switching on

Insert the plug into the wall socket.

Turn the Temperature regulator clockwise to a medium setting.

Switching off

To turn off the appliance, turn the Temperature regulator to the "O" position.

Temperature regulation

The temperature is automatically regulated.

To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to obtain the minimum coldness.
• turn the Temperature regulator toward higher settings to obtain the maximum coldness.

A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature
  • how often the door is opened
  • the quantity of food stored
• the location of the appliance.

Important! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh foods it is not necessary to change the medium setting.

However, for a faster freezing operation, turn the temperature regulator toward higher settings to obtain the maximum coldness.

Important! In this condition, the refrigerator compartment temperature might drop below 0^ C. If this

occurs reset the temperature regulator to a warmer setting.

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

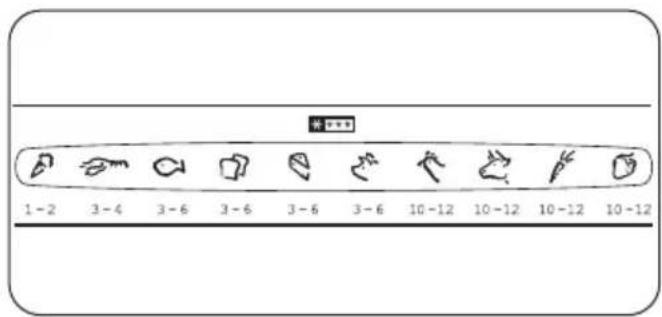

Frozen Food Calendar

1-2 3-4 3-6 3-6 3-6 3-6 10-12 10-12 10-12 10-12

The symbols show different types of frozen goods. The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and treating before freezing.

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment.

Helpful hints and tips

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour

Important! Do not use metallic instruments to remove the trays from the freezer.

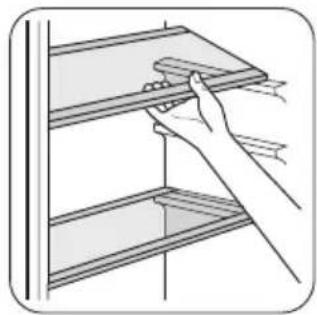

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Illustration of a hand using a tool to clean or store shelves (no text or symbols visible)

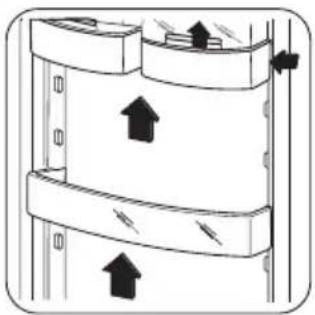

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights. To make these adjustments proceed as follows: gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

Diagram of a multi-layered storage or filtration device with directional arrows indicating flow or movement (no text or symbols)

- position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided. Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
- not open the door frequently or leave it open longer than absolutely necessary.
- Once defrosted, food deteriorates rapidly and cannot be refrozen.
- Do not exceed the storage period indicated by the food manufacturer.

Care and cleaning

Caution! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must there only be carried out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum

cleaner. This operation will improve the performance of the appliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping

onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

Illustration of a hand holding a small object through a circular inset, with no visible text or symbols

Defrosting the freezer

A certain amount of frost will always form on the freezer shelves and around the top compartment.

Important! Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.

To remove the frost, do these steps:

1. Switch off the appliance.
2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.
3. Leave the door open.
4. When defrosting is completed, dry the interior thoroughly and refit the plug.
5. Switch on the appliance.

What to do if...

During operation of the appliance some smaller but annoying trouble can often occur, which does not require calling a technician out. In the following chart information is given about them to avoid unnecessary charges on service.

Important! The operation of the appliance goes with certain sounds (compressor and circulating sound).

This not means a trouble, but a normal operation.

1. Set the temperature regulator to obtain the maximum coldness and run the appliance for two or three hours using this setting.
2. Reload the previously removed food into the compartment.

Important! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food
• defrost ^10 and clean the appliance and all accessories
• leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

Important! The appliance operates discontinuously, so the stopping of compressor does not mean being no current. That is why you must not touch the electrical parts of the appliance before breaking the circuit.

Problem Possible cause Solution
The compressor operates continually	The Temperature Regulator may be set incorrectly	Set a warmer temperature
The door does not close tightly or it is not shut properly		Check if the doors close well and the gaskets are undamaged and clean
The door has been opened too frequently		Do not leave the door open longer than necessary

10) If foreseen.

Problem Possible cause Solution
Food placed in the appliance was too warm		Allow food to cool to room temperature before storing
The temperature of the room that contains the appliance is too high for efficient operation		Try to reduce the temperature in the room where the appliance stands
Water flows at the back plate of the refrigerator	During automatic defrosting, frost melts on the back plate	It is normal
Water flows into the refrigerator compartment	The outlet can be clogged up Clean the outlet
Products placed in can prevent water from flowing into the collector		Replace the products so that they can not touch the back plate directly
Water flows onto the floor The melting water outlet flows not in- to the evaporative tray above the compressor		Put the melting water outlet to the evaporative tray
The lamp does not work.	The lamp is in stand-by.	Close and open the door.
	The lamp is defective.	Refer to "Replacing the lamp".
It is too warm in the refrigerator	The Temperature Regulator may be set incorrectly	Set a lower temperature
The door does not close tightly or it is not shut properly		Check if the door closes well and the gasket is undamaged and clean
Food placed in the appliance was too warm		Allow food to cool to room temperature before storing
Large quantities of food to be cooled were put in at the same time		Insert smaller quantities of food to be cooled at any one time
	There is no inside cool air circulation	Provide inside cool air circulation
It is too cold in the refrigerator	The Temperature Regulator may be set incorrectly	Set a higher temperature
There is too much frost and ice	Products are not wrapped properly Wrap the products better
Doors are not shut properly or do not close tightly		Check if the doors close well and the gaskets are undamaged and clean
The Temperature Regulator may be set incorrectly		Set a warmer temperature
It is too warm in the freezer Temperature Regulator may be set incorrectly		Set a lower temperature
The door does not close tightly or it is not shut properly		Check if the door closes well and the gasket is undamaged and clean
Large quantities of food to be frozen were put in at the same time		Insert smaller quantities of food to be frozen at any one time.
Problem Possible cause Solution
Food placed in the appliance was too warm		Allow food to cool to room temperature before storing.
Products to be frozen are placed too closely to each other		Place the products in a way so that cold air could circulate among them
It is too cold inside the freezer	Temperature Regulator may be set incorrectly	Set a warmer temperature
The appliance does not work at all. The appliance does not cool at all. Neither cooling nor lighting works	The appliance may be switched off Switch on the appliance
Plug is not connected to the mains socket properly		Connect the mains plug properly
	Power does not reach the appliance	Try connecting another electrical device to the power outlet
There is no voltage in the mains socket (try to connect another appliance into it)		Call an electrician

Replacing the lamp

Caution! Disconnect the plug from the mains socket.

1. Remove the screw from the lamp cover.
2. Remove the lamp cover (refer to the illustration).
3. Replace the used lamp with a new lamp of the same

Line drawing of a hand holding a tool near a window (no text or symbols)

power and specifically designed for household appliances (the maximum power is shown on the lamp cover).

1. Install the lamp cover.
2. Tighten the screw to the lamp cover.
3. Connect the plug to the mains socket.
4. Open the door. Make sure that the light comes on.

Technical data

Dimension of the recess
Height 1225 mm
Width 560 mm
Depth 550 mm
Rising Time 20 h
Voltage 230-240 V
Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

Installation

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

Door reversibility

The door of the appliance opens to the right. If you want to open the door to the left, do these steps before you install the appliance:

Diagram showing a tool inserted into a component with an arrow indicating direction (no text or symbols present)

• Loosen the upper pin and remove the spacer.
• Remove the upper pin and the upper door.

Mechanical assembly diagram showing a bracket with screws and a dashed line indicating motion (no text or symbols)

- Loosen the middle hinge.

Diagram showing two views of a mechanical assembly with bolt holes and mounting brackets (no text or symbols)

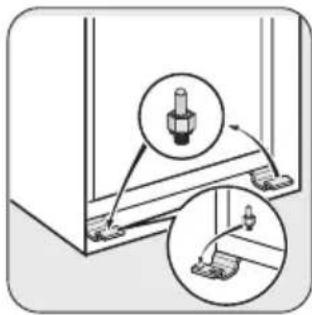

• Remove the lower door.
• Loosen the lower pin.

On the opposite side:

• Install the lower pin.
  • Install the lower door.
• Tighten the middle hinge.
  • Install the upper door.
• Tighten the spacer and tighten the upper pin.

Ventilation requirements

50 mm min. 200 cm² min. 200cm²

The airflow behind the appliance must be sufficient.

540 50 3 2 1

Make sure that the clearance behind the appliance is:

Depth 50 mm

Width 540 mm

Important! The lower hinge cover (in the accessories bag) makes sure that the distance between the kitchen furniture and the appliance is correct.

Caution! Make sure that the mains cord does not become jammed.

Do these steps.

Technical diagram illustrating mechanical assembly with labeled components and motion indicators

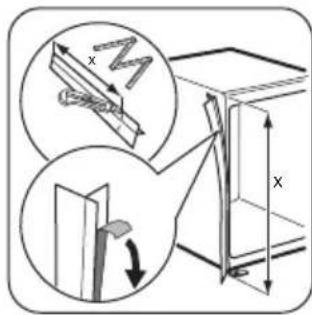

If necessary cut the adhesive sealing strip and then apply it to the appliance as shown in figure.

Diagram illustrating door door installation with labeled components and directional arrows

The distance between the lower part of the kitchen furniture and the appliance must be 44 mm. Install the appliance in the niche.

Technical diagram showing two views of a structural joint or bracket assembly (no text or symbols present)

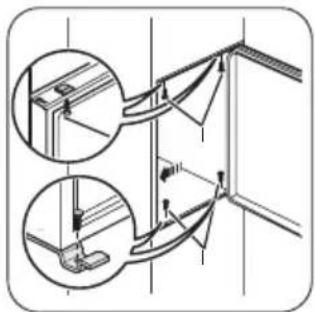

Attach the appliance to the niche with 4 screws.

Simple line drawing of a 3D block with a dashed top surface and a black arrow pointing downward (no text or symbols)

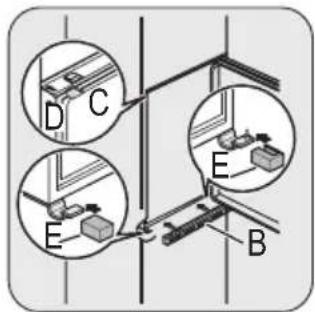

Remove the correct part from the hinge cover (E).

Diagram showing labeled mechanical components or assembly with annotations A through E, likely from an engineering or physics context.

Attach the covers (C, D) to the lugs and the hinge holes. Install the vent grille (B). Attach the hinge covers (E) to the hinge.

Ha Hb Hc Hd

Disconnect the parts Ha, Hb, Hc and Hd

ca. 50 mm 90° 21 mm 90° ca. 50 mm 21 mm

Install the part Ha on the inner side of the kitchen furniture.

Ha 50.5 80.5 Hc

Push the part Hc on the part Ha.

8 mm Ha Hb

Open the appliance door and the kitchen furniture door at an angle of 90^ . Insert the small square (Hb) into guide (Ha). Put together the appliance door and the furniture door and mark the holes.

8 mm K Ha

Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K).

Technical diagram of a mechanical or electrical component with two connectors and a labeled section 'Hb' (no text or symbols beyond label)

Place the small square on the guide again and fix it with the screws supplied. Align the kitchen furniture door and the kitchen furniture door with the clearance of the slots in the part Hb.

Hb Hd

Press the part Hd on the part Hb.

Do a final check to make sure that:

• All screws are tightened.

- The magnetic sealing strip is attached tightly to the cabinet.

Important! If the ambient temperature is low (for example, in the Winter), the size of the gasket

Environmental concerns

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential

decreases. The size of the gasket increases when the ambient temperature increases.

negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Sommaire

Illustration of a hand cleaning or filtering a shelf with a tool (no text or symbols visible)

Diagram of a multi-level storage or lifting device with upward arrows indicating motion (no text or symbols)

Illustration of a hand holding a tool near a vertical panel, with no visible text or symbols

Line drawing of a hand holding a tool near a window (no text or symbols)

Diagram showing a screwdriver inserted into a component with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a bracket with screws and a dashed line indicating a movement or force (no text or symbols)

Diagram showing mechanical assembly with two views of a bracket and a bolt, no text or symbols present

Technical diagram illustrating mechanical assembly with magnified views and dimension labels

Diagram illustrating door door installation with labeled components and directional arrows

Technical diagram showing two views of a structural joint or bracket assembly (no text or symbols present)

Simple line drawing of a rectangular block with a dashed top and internal lines, no text or symbols present.

Diagram showing labeled mechanical components or assembly with circular insets D, C, E, and B.

Ha Hb Hc Hd

8 mm Ha Hb

8 mm K Ha

Technical line drawing of a mechanical component with two connectors labeled Hb (no text or symbols beyond label)

Illustration of a hand using a tool to clean or store shelves (no text or symbols visible)

Diagram of a multi-layered storage or filtration device with upward arrows indicating flow direction (no text or symbols)

Illustration of a hand holding a small object inside a container, with no visible text or symbols

Line drawing of a hand holding a tool near a window (no text or symbols)

Diagram showing a tool inserted into a component with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a bracket with screws and a dashed arrow indicating direction (no text or symbols)

Diagram showing mechanical assembly with two views of a bolt and bracket (no text or symbols)

Technical diagram illustrating mechanical assembly with labeled dimensions and motion indicators

Diagram illustrating a door mechanism with labeled parts and directional arrows, including numbered annotations 1 and 2.

Technical diagram showing two views of a structural assembly with no visible text or symbols

Simple line drawing of a 3D block with a dashed top surface and a black arrow pointing downward (no text or symbols)

Diagram showing labeled mechanical components or assembly with circular insets D, C, E, and B.

Ha Hb Hc Hd

8 mm Ha Hb

8 mm K Ha

Technical diagram of a mechanical or electrical component with two connectors labeled Hb, no text or symbols present
