USER MANUAL ZKK8414K ZANKER

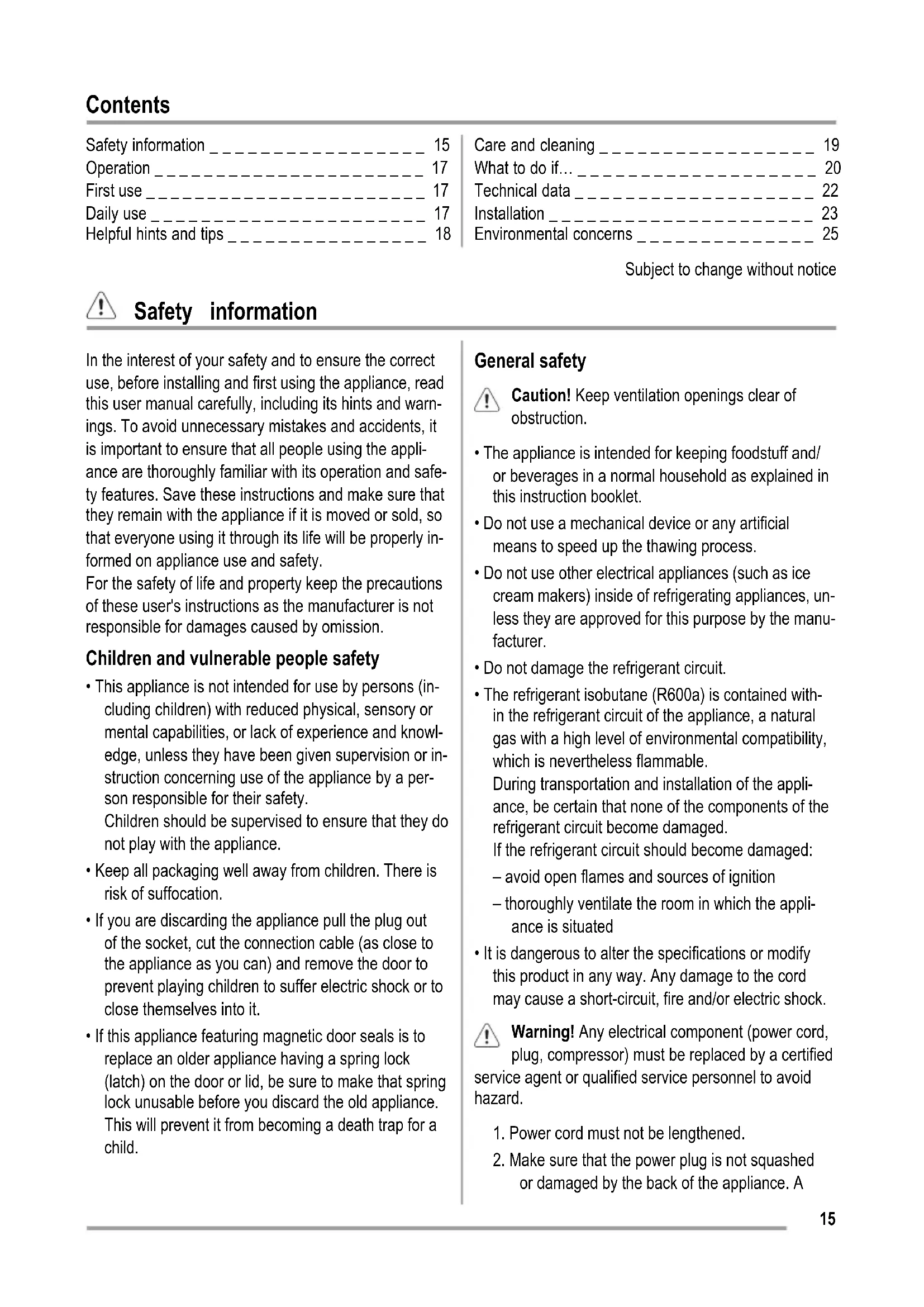

• This appliance is not intended for use by persons (in- cluding children) with reduced physical, sensory or mental capabilities, or lack of experience and knowl- edge, unless they have been given supervision or in- struction concerning use of the appliance by a per- son responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety Caution! Keep ventilation openings clear of obstruction.

• The appliance is intended for keeping foodstuff and/ or beverages in a normal household as explained in this instruction booklet.

• Do not use a mechanical device or any artificial means to speed up the thawing process.

• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, un- less they are approved for this purpose by the manu- facturer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is contained with- in the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appli- ance, be certain that none of the components of the refrigerant circuit become damaged. If the refrigerant circuit should become damaged: – avoid open flames and sources of ignition – thoroughly ventilate the room in which the appli- ance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock. Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed

or damaged by the back of the appliance. A 15squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug

the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the

of interior lighting.

• This appliance is heavy. Care should be taken when moving it.

• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

• Avoid prolonged exposure of the appliance to direct sunlight.

used in this appliance are special pur- pose lamps selected for household appliances use only. They are not suitable for household room illu- mination. Daily Use

• Do not put hot pot on the plastic parts in the appli- ance.

• Do not store flammable gas and liquid in the appli- ance, because they may explode.

• Do not place food products directly against the air outlet on the rear wall.

• Frozen food must not be re-frozen once it has been thawed out.

• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

• Appliance's manufacturers storage recommenda- tions should be strictly adhered to. Refer to relevant instructions.

• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

• Ice lollies can cause frost burns if consumed straight from the appliance. Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

• Do not clean the appliance with metal objects.

• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. Installation Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are dam- ages on it. Do not connect the appliance if it is dam- aged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before con- necting the appliance to allow the oil to flow back in the compressor.

• Adequate air circulation should be around the appli- ance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.

• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.

Connect to potable water supply only.

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electri- cian or competent person.

• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

6) If the lamp cover is foreseen.

7) If the lamp is foreseen.

8) If the appliance is Frost Free.

9) If a water connection is foreseen.

16Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrig- erant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appli- cable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol are recyclable. Operation Switching on Insert the plug into the wall socket. Turn the Temperature regulator clockwise to a medium setting. Switching off To turn off the appliance, turn the Temperature regula- tor to the "O" position. Temperature regulation The temperature is automatically regulated. To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to obtain the minimum coldness.

• turn the Temperature regulator toward higher set- tings to obtain the maximum coldness. A medium setting is generally the most suitable. However, the exact setting should be chosen keeping in mind that the temperature inside the appliance de- pends on:

• how often the door is opened

• the quantity of food stored

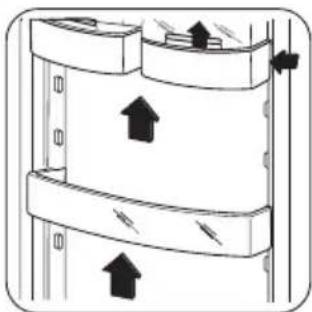

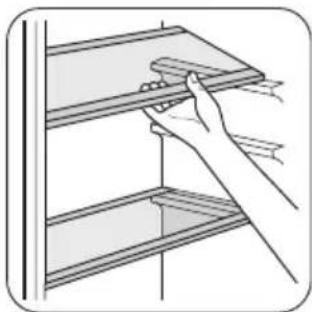

• the location of the appliance. Important! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption. First use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish. Daily use Freezing fresh food The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. To freeze fresh foods it is not necessary to change the medium setting. However, for a faster freezing operation, turn the tem- perature regulator toward higher settings to obtain the maximum coldness. Important! In this condition, the refrigerator compartment temperature might drop below 0°C. If this occurs reset the temperature regulator to a warmer setting. Storage of frozen food When first starting-up or after a period out of use, be- fore putting the products in the compartment let the ap- pliance run at least 2 hours on the higher settings. Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling). 17Frozen Food Calendar The symbols show different types of frozen goods. The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid de- pends on the quality of the foods and treating before freezing. Thawing Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room tem- perature, depending on the time available for this oper- ation. Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer. Ice-cube production This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment. Important! Do not use metallic instruments to remove the trays from the freezer. Movable shelves The walls of the refrigera- tor are equipped with a series of runners so that the shelves can be posi- tioned as desired. Positioning the door shelves To permit storage of food packages of various sizes, the door shelves can be placed at different heights. To make these adjustments proceed as follows: gradually pull the shelf in the direction of the arrows un- til it comes free, then reposition as required. Helpful hints and tips Hints for energy saving

• Do not open the door frequently or leave it open lon- ger than absolutely necessary.

• If the ambient temperature is high and the Tempera- ture Regulator is set to low temperature and the ap- pliance is fully loaded, the compressor may run con- tinuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption. Hints for fresh food refrigeration To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator

• do cover or wrap the food, particularly if it has a strong flavour

• position food so that air can circulate freely around it Hints for refrigeration Useful hints: Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer. For safety, store in this way only one or two days at the most. Cooked foods, cold dishes, etc..: these should be cov- ered and may be placed on any shelf. Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided. Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or poly- thene bags to exclude as much air as possible. Milk bottles: these should have a cap and should be stored in the bottle rack on the door. 18Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator. Hints for freezing To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further food to be frozen should be added during this period;

• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;

• prepare food in small portions to enable it to be rap- idly and completely frozen and to make it possible subsequently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

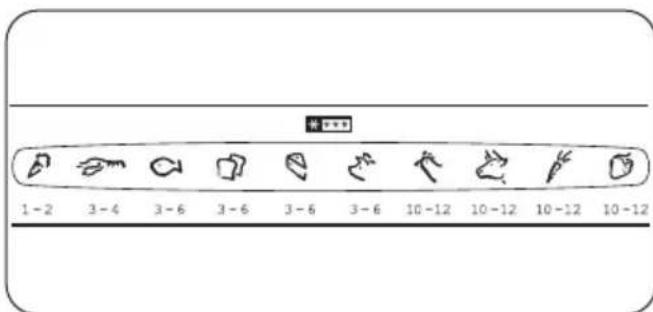

• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the stor- age time. Hints for storage of frozen food To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;

• not open the door frequently or leave it open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly and cannot be refrozen.

• Do not exceed the storage period indicated by the food manufacturer. Care and cleaning Caution! Unplug the appliance before carrying out any maintenance operation. This appliance contains hydrocarbons in its cool- ing unit; maintenance and recharging must there- fore only be carried out by authorized technicians. Periodic cleaning The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm wa- ter and some neutral soap.

• regularly check the door seals and wipe clean to en- sure they are clean and free from debris.

• rinse and dry thoroughly. Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour. Clean the condenser (black grill) and the compressor at the back of the appliance with a brush or a vacuum cleaner. This operation will improve the performance of the appliance and save electricity consumption. Important! Take care of not to damage the cooling system. Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added. After cleaning, reconnect the equipment to the mains supply. Defrosting of the refrigerator Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor com- pressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping 19onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole. Defrosting the freezer A certain amount of frost will always form on the freezer shelves and around the top compartment. Important! Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm. To remove the frost, do these steps:

1. Switch off the appliance.

2. Remove any stored food, wrap it in several layers

of newspaper and put it in a cool place.

3. Leave the door open.

4. When defrosting is completed, dry the interior thor-

oughly and refit the plug.

5. Switch on the appliance.

6. Set the temperature regulator to obtain the maxi-

mum coldness and run the appliance for two or three hours using this setting.

7. Reload the previously removed food into the com-

partment. Important! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life. Periods of non-operation When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply

defrost 10) and clean the appliance and all accesso- ries

• leave the door/doors ajar to prevent unpleasant smells. If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure. What to do if… During operation of the appliance some smaller but an- noying trouble can often occur, which does not require calling a technician out. In the following chart informa- tion is given about them to avoid unnecessary charges on service. Important! The operation of the appliance goes with certain sounds (compressor and circulating sound). This not means a trouble, but a normal operation. Important! The appliance operates discontinuously, so the stopping of compressor does not mean being no current. That is why you must not touch the electrical parts of the appliance before breaking the circuit. Problem Possible cause Solution The compressor operates continually The Temperature Regulator may be set incorrectly Set a warmer temperature The door does not close tightly or it is not shut properly Check if the doors close well and the gaskets are undamaged and clean The door has been opened too fre- quently Do not leave the door open longer than necessary

20Problem Possible cause Solution Food placed in the appliance was too warm Allow food to cool to room temperature before storing The temperature of the room that contains the appliance is too high for efficient operation Try to reduce the temperature in the room where the appliance stands Water flows at the back plate of the refrigerator During automatic defrosting, frost melts on the back plate It is normal Water flows into the refrigera- tor compartment The outlet can be clogged up Clean the outlet Products placed in can prevent water from flowing into the collector Replace the products so that they can not touch the back plate directly Water flows onto the floor The melting water outlet flows not in- to the evaporative tray above the compressor Put the melting water outlet to the evaporative tray The lamp does not work. The lamp is in stand-by. Close and open the door. The lamp is defective. Refer to "Replacing the lamp". It is too warm in the refrigera- tor The Temperature Regulator may be set incorrectly Set a lower temperature The door does not close tightly or it is not shut properly Check if the door closes well and the gasket is undamaged and clean Food placed in the appliance was too warm Allow food to cool to room temperature before storing Large quantities of food to be cooled were put in at the same time Insert smaller quantities of food to be cooled at any one time There is no inside cool air circulation Provide inside cool air circulation It is too cold in the refrigera- tor The Temperature Regulator may be set incorrectly Set a higher temperature There is too much frost and ice Products are not wrapped properly Wrap the products better Doors are not shut properly or do not close tightly Check if the doors close well and the gaskets are undamaged and clean The Temperature Regulator may be set incorrectly Set a warmer temperature It is too warm in the freezer Temperature Regulator may be set incorrectly Set a lower temperature The door does not close tightly or it is not shut properly Check if the door closes well and the gasket is undamaged and clean Large quantities of food to be frozen were put in at the same time Insert smaller quantities of food to be frozen at any one time. 21Problem Possible cause Solution Food placed in the appliance was too warm Allow food to cool to room temperature before storing. Products to be frozen are placed too closely to each other Place the products in a way so that cold air could circulate among them It is too cold inside the freez-

Temperature Regulator may be set incorrectly Set a warmer temperature The appliance does not work at all. The appliance does not cool at all. Neither cooling nor lighting works The appliance may be switched off Switch on the appliance Plug is not connected to the mains socket properly Connect the mains plug properly Power does not reach the appliance Try connecting another electrical de- vice to the power outlet There is no voltage in the mains socket (try to connect another appli- ance into it) Call an electrician Replacing the bulb If you want to replace the bulb, do these steps:

1. Break the circuit of the appliance.

2. Unscrew the lamp cover securing screw.

3. Unhook the moving part by pressing it as shown in

4. Replace the bulb with one of the same power and

specifically designed for household appliances (the maximum power is shown on the light bulb cover).

5. Fix the lamp cover in place.

6. Screw the lamp cover securing screw.

7. Reconnect the appliance.

8. Open the door and check if the light comes on.

Technical data Dimension of the recess Height 1446 mm Width 560 mm Depth 550 mm Rising Time 20 h Voltage 230-240 V Frequency 50 Hz 22The technical information are situated in the rating plate on the internal left side of the appliance and in the ener- gy label. Installation Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: Climate class Ambient temperature SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C Electrical connection Before plugging in, ensure that the voltage and fre- quency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply ca- ble plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, con- nect the appliance to a separate earth in compliance with current regulations, consulting a qualified electri- cian. The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives. Door reversibility The door of the appliance opens to the right. If you want to open the door to the left, do these steps before you install the appliance:

• Loosen the upper pin and remove the spacer.

• Remove the upper pin and the upper door.

• Loosen the middle hinge.

• Remove the lower door.

• Loosen the lower pin. On the opposite side:

• Install the lower pin.

• Install the lower door.

• Tighten the middle hinge.

• Install the upper door.

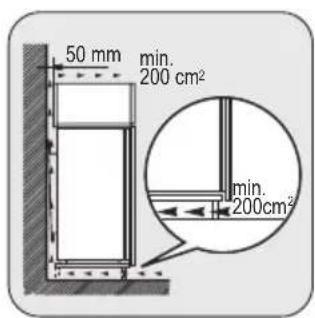

The airflow behind the appliance must be sufficient.

Make sure that the clearance behind the appliance is: Depth 50 mm Width 540 mm Important! The lower hinge cover (in the accessories bag) makes sure that the distance between the kitchen furniture and the appliance is correct. Caution! Make sure that the mains cord does not become jammed. Do these steps.

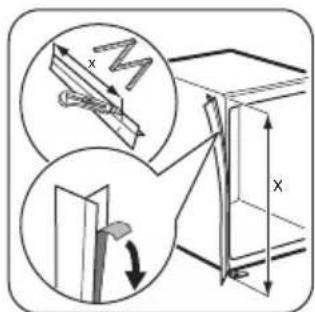

If necessary cut the adhe- sive sealing strip and then apply it to the appliance as shown in figure.

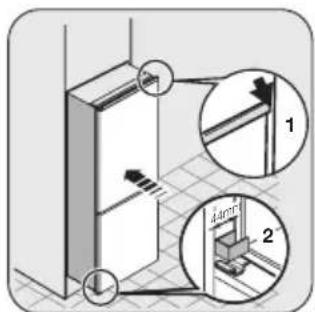

44mm The distance between the lower part of the kitchen furniture and the appli- ance must be 44 mm. Install the appliance in the niche.

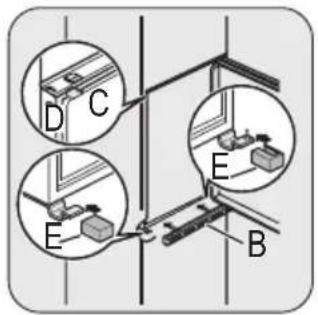

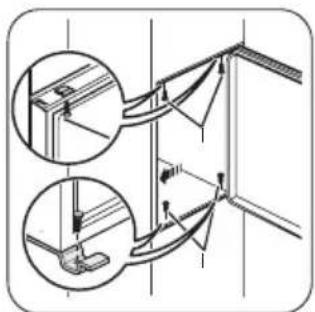

Attach the appliance to the niche with 4 screws. Remove the correct part from the hinge cover (E). 24B

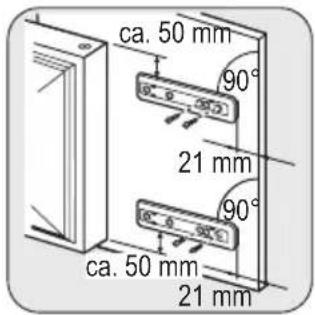

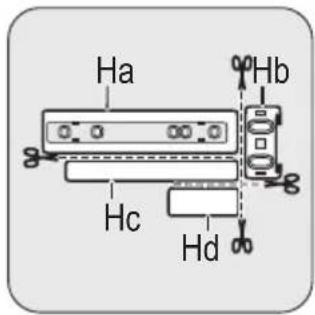

Disconnect the parts Ha,Hb, Hc and Hdca. 50 mmca. 50 mm21 mm 90° 21 mm 90° Install the part Ha on theinner side of the kitchenfurniture.

Push the part Hc on thepart Ha.

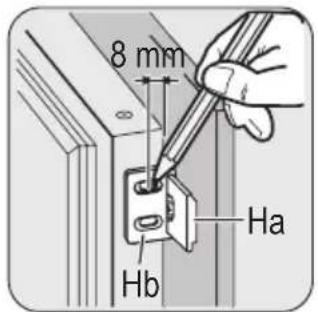

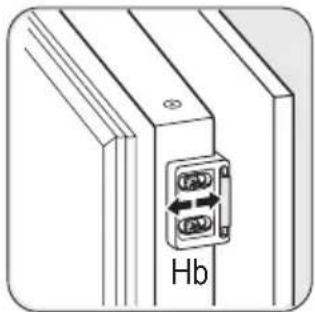

8 mm Open the appliance doorand the kitchen furnituredoor at an angle of 90°.Insert the small square(Hb) into guide (Ha).Put together the appliancedoor and the furnituredoor and mark the holes.

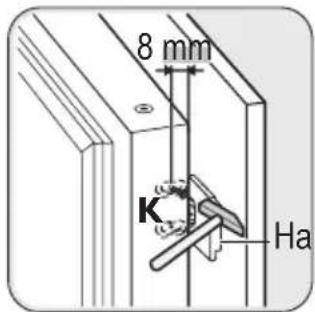

8 mm Remove the brackets andmark a distance of 8 mmfrom the outer edge of thedoor where the nail mustbe fitted (K). Place the small square onthe guide again and fix itwith the screws supplied.Align the kitchen furnituredoor and the kitchen furni-ture door with the clear-ance of the slots in thepart Hb.
