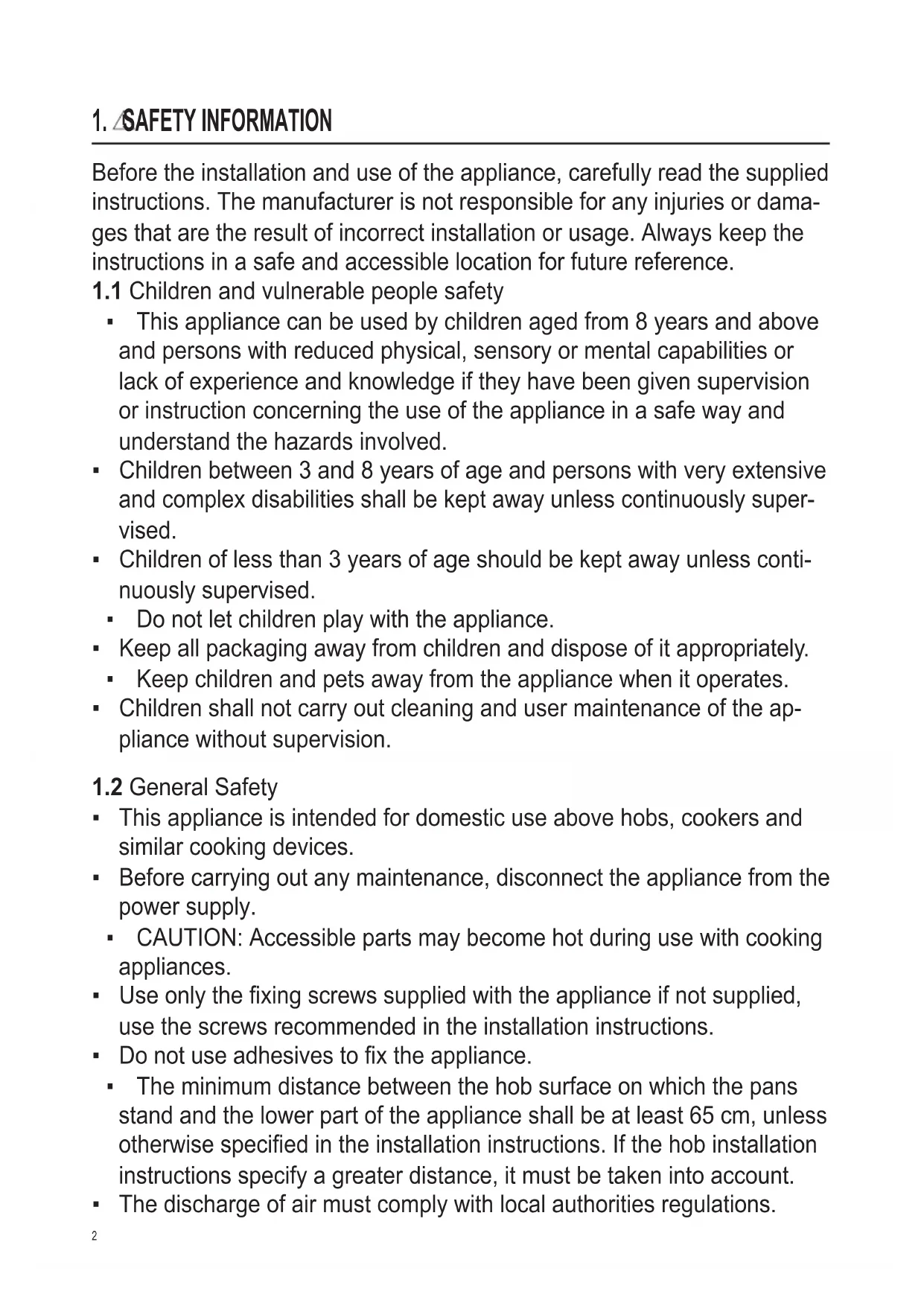

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions. If the hob installation instructions specify a greater distance, it must be taken into account.

• The discharge of air must comply with local authorities regulations.

• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.

• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

- When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.

- Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.

• If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Do not flambé under the appliance.

- Do not use to exhaust hazardous or explosive materials and vapours.

• Clean the appliance regularly to prevent the deterioration of the surface material.
• Clean the appliance with a soft cloth regularly.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth or brush to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING! Risk of injury, electric shock, fire,

burns or damage to the appliance.

Only a qualified person must install this appliance.
- Do not install or use a damaged appliance.
- Follow the installation instructions supplied with the appliance.
- Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
- Before installing the appliance remove all the packaging, the labelling and the protective fi Im.
- Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING! Risk of fire and electric shock.

All electrical connections should be made by a qual-ified electrician.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol (☐) is not printed on the rating plate, the appliance must be earthed.
• Always use a correctly installed hockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING! Risk of injury, burns and electric

shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purpose.
• Do not change the specification of this appliance.

• Do not operate the appliance with wet hands or when it has contact with water.

• Use only the accessories supplied with the appliance.

• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grates.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.

2.4 Service

• To repair the appliance contact an
• Authorised Service Centre.
• Use original spare parts only.

2.5 Disposal

WARNING! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. MAINTENANCE

Clean grease filters in relation to use, at least every 2 months to prevent the risk of fire.

Hand wash or clean in a dishwasher using a neutral detergent. If washing in the dishwasher, possible discoloration of the filters does not in any way compromise their functioning.

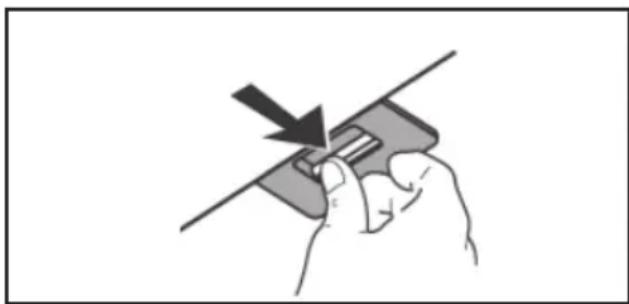

Hand holding a tool with a downward arrow indicating compression or disassembly (no text or symbols)

The activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

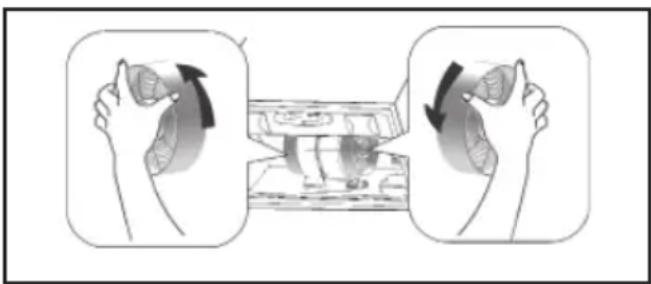

Illustration of two hands performing a manual press operation with directional arrows indicating motion (no text or symbols)

4. CONTROLS

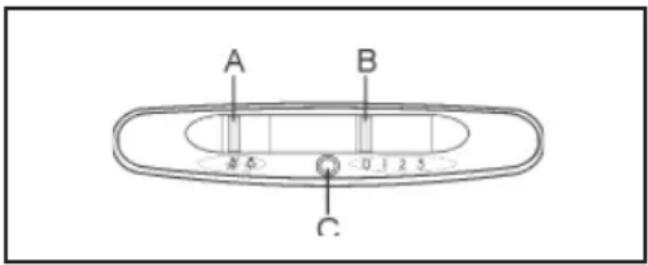

Switch A: LIGHT;

position : right off;

position : light on.

Switch B: MOTOR SPEED: makes it possible to select the motor operating speed; position 0: motor off.

C: Motor on light.

A B C

5. INSTALLATION METHODS

FILTERING OR DUCTING VERSION ?

The hood may be in fi Itering or in ducting version. Decide from the outset which type is to be installed. For better effi ciency, we recommend installing the hood in the ducting version (if possible).

Ducting version

The hood purifi es the air and evacuates it to the outside through an exhaust duct.

Filtering version

The hood purifi es the air and recycles the clean air back into the room.

6. LIGHTING

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs are they are cooled down.

Replace it with lamps of the same type

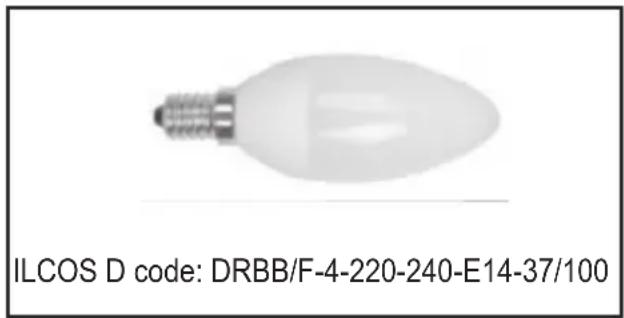

(CANDLE LED 4W, 220-240V, E14, ø37mm).

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol

Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste.

Return the product to your local recycling facility or contact your municipal office.

Hand holding a card with a downward arrow, no text or symbols visible

Illustration of hands performing a manual task with a device, showing two hand positions and motion arrows (no text or symbols)

4. BEDIENELEMENTE

Hand holding a small electronic device with a black arrow indicating compression or disassembly (no text or symbols)

Illustration of hands holding a device with rotating buttons, showing mechanical components (no text or symbols)

4. COMMANDES

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands performing a mechanical or electrical operation with rotating blades and a device (no text or symbols)

4. BEDIENINGEN

AFVOER OF RECIRCULATIE?

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands performing a manual press or lifting operation with rotating buttons (no text or symbols)

4. MANDOS

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or lifting operation with a device (no text or symbols present)

4. COMANDOS

Hand holding a card with a downward arrow indicating compression or dislocation (no text or symbols)

Illustration of hands performing a mechanical press or lifting operation with rotating parts (no text or symbols)

4. COMANDI

Hand holding a small electronic component with a black arrow indicating direction (no text or symbols)

Illustration of hands performing a manual press or lifting operation with a device (no text or symbols present)

4. KOMMANDON

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Illustration of hands performing a medical or therapeutic procedure on a device, showing two views of the device with arrows indicating motion (no text or symbols present)

4. KONTROLLER

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. MILJ∅KONSERNER

Resirkuler materialer med symbolet

Hand holding a tool with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a mechanical press or lifting operation with directional arrows indicating motion (no text or symbols)

4. OHJAIMET

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. YMPÄRISTÖKYSYMYKSET

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or lifting operation on a mechanical device (no text or symbols present)

4. BETJENING

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. MILJ∅ BEKYMRINGER

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a mechanical or ergonomic maneuver with directional arrows indicating motion (no text or symbols)

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or massage technique with directional arrows indicating motion (no text or symbols)

4. JUHIKUD

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. KESKKONNA EEST HOOLITSEMINE

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or lifting operation with a device (no text or symbols present)

4. VADIBAS ELEMENTI

FILTRĒJOŠAIS VAI UZSŪCOŠAIS VEIDS?

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. RÜPËJOTIES PAR VIDI

Hand holding a small electronic device with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration showing two hands holding a fan with directional arrows, illustrating a mechanical or electrical process (no text or symbols present)

4. VALDYMAS

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. Aplinkos apsauga

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or lifting operation on a device, showing two views with curved arrows indicating motion (no text or symbols present)

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or lifting operation on a device, showing two views of the handle (no text or symbols present)

4. KEZELŐSZERVEK

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Illustration of hands performing a manual press or lifting operation with a device, showing two views of the process (no text or symbols present)

4. PŘÍKAZY

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. PÉČE O ŽIVOTNÍ PROSTŘEDÍ

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration showing two hands holding a pair of eyeglasses with rotating arrows, connected to a mechanical device (no text or symbols)

4. OVLÁDAČE

Prepínač A: SVETLO; poloha švetlo vypnuté;; poloha švetlo zapnuté.

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual task with a device, showing two hand gestures and a close-up of the motion (no text or symbols)

4. COMENZI

Hand holding a smartphone with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or lifting operation with a device (no text or symbols present)

4. STEROWANIE

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. DBAŁOŚĆ O ŚRODOWISKO NATURALNE

Hand holding a small electronic component with a downward arrow indicating compression (no text or symbols)

Illustration of hands performing a manual press or lifting operation with a device (no text or symbols present)

4. NAREDBI

Sklopka A: SVJETLO; položaj 7 svjetlo ugašeno; položaj 1 svjetlo upaljeno.

Sklopka B: BRZINA RADA MOTORA: omogućuje izbor brzine rada motora; položaj 0: motor isključen. C: motor uključen.

A B C

5. METODE INSTALACIJE

ODVODNA ILI FILTARSKA VERZIJA?

Napa može biti u fi ltarskoj ili odvodnoj verziji. Potrebno je odlučiti o verziji koja će se postaviti. S obzirom na bolju efikasnost preporučujemo ugradnju nape u odvodnoj verziji (ako je to moguće).

Odvodna verzija

Napa pročišćava zrak i odvodi ga van preko odvodnog kanala.

Filtarska verzija

Hand holding a small object with an arrow indicating direction, no text or symbols present

Illustration of hands performing a manual press operation with a device and fan (no text or symbols)

4. UPRAVLJALNI GUMBI

Stikalo A: LUČ; položaj 🚙️ : luč izklopljena;

Hand holding a small electronic device with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or lifting operation with a device (no text or symbols present)

4. XEIPISTHPIA

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual task with curved arrows indicating motion (no text or symbols)

4. KONTROLLER

Close-up of a single white incandescent light bulb with metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7. ÇEVRE KORUMASI

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands holding a device with rotating buttons, showing mechanical components (no text or symbols)

4. УПРАВЛЕНИЯ

Hand holding a card with a diagonal line and arrow indicating direction (no text or symbols)

Illustration of hands performing a manual press or lifting operation with rotating buttons (no text or symbols)

Close-up of a single white incandescent light bulb with metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or lifting operation with a device (no text or symbols present)

4. КОНТРОЛИ

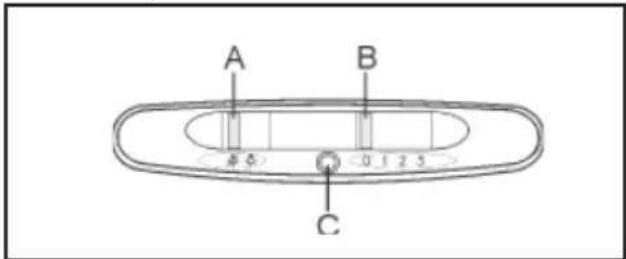

Прекинувач А: СВЕТЛО; позиција 🚙️ : исключено светло; позиција 🚙️: включено свело. Прекинувач В: БРЗИНА НА МОТОРОТ: овозможува избор на брзината на моторот; позиција 0: моторот е ислучен. С: Моторот свети.

A B C

5. МЕТОДИ НА ИНСТАЛАЦИЈА

Close-up of a white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

7.ГРИЖА ЗА ЖИВОТНАТА СРЕДИНА

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or lifting operation with a device (no text or symbols present)

4. KOMANDIMET

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of hands performing a manual press or lifting operation with a device (no text or symbols present)

4. КОМАНДЕ

Sklopka A: SVETLO; položaj švetlo ugašeno; položaj švetlo upaljeno.

Sklopka B: BRZINA RADA MOTORA: omogućuje izbor brzine rada motora; položaj 0: motor isključen. C: motor uključen.

A B C

5. METODE INSTALACIJE

ODVODNA ILI FILTARSKA VERZIJA?

(LED CANDLE W4, V240-220, 14E, mm37ø)

Close-up of a single white incandescent light bulb with a metallic screw base (no text or symbols visible)

ILCOS D code: DRBB/F-4-220-240-E14-37/100

4. التحكم

3. الصيانة

Hand holding a small electronic component with a downward arrow indicating compression or disassembly (no text or symbols)

Illustration of a hand holding a curved object with directional arrows, connected to a device (no text or symbols present)

استعمال 3.2

2. تعليمات السلام

ترکیب 1.2
