ZHT621W - Basket ZANUSSI - Free user manual and instructions

Product type	Wall-mounted cooker hood
Brand	Zanussi
Model	ZHT621W
Dimensions (H x W x D)	12 x 60 x 50 cm
Weight	12 kg
Power supply	220-240 V ~ 50 Hz
Motor power	150 W
Lighting	1 bulb (not supplied)
Number of speeds	3
Control type	Push buttons
Minimum safety distance (hob)	650 mm
Air outlet diameter	120 mm minimum
Grease filter	Metallic, non-washable (replace every 2 months)
Activated carbon filter	Non-washable, non-regenerable (replace every 4 months)
Insulation class	Class I (requires earthing)
Maintenance	Clean with damp cloth and neutral detergent
Usage	Domestic, kitchen odor elimination

Frequently Asked Questions - ZHT621W ZANUSSI

What is the minimum distance between the hood and the hob?

The minimum safety distance is 650 mm. Also check the hob instructions if a greater distance is required.

How to replace the grease filter?

The grease filter must be replaced every 2 months. It is not washable. Disconnect the appliance before any intervention.

How often should the charcoal filter be changed?

The activated carbon filter should be replaced approximately every 4 months, or more often with heavy use. It is neither washable nor regenerable.

Can I use the hood with a gas stove?

Yes, but ensure the room is sufficiently ventilated and that negative pressure does not exceed 0.04 mbar. Do not connect the hood to a chimney flue.

How to clean the hood?

Use a damp cloth and neutral liquid detergent. Do not use abrasive products. Disconnect the hood before cleaning.

What to do if the hood does not work?

First check that the appliance is plugged in and that the circuit breaker has not tripped. Make sure the mains voltage matches that on the rating plate.

Can I install the hood myself?

Installation must be carried out by a qualified professional. Follow safety distances and air extraction standards.

The hood makes noise, is this normal?

Noise is normal depending on the selected speed. At speed 1, the sound level is minimal. If abnormal noise occurs, check that the filters are properly in place and clean.

How to adjust the suction speed?

Use the push buttons: position 0 for off, 1 for low, 2 for medium, 3 for maximum.

Where to find spare parts?

Spare parts are available from Zanussi after-sales service or on approved websites. Use only suitable parts.

USER MANUAL ZHT621W ZANUSSI

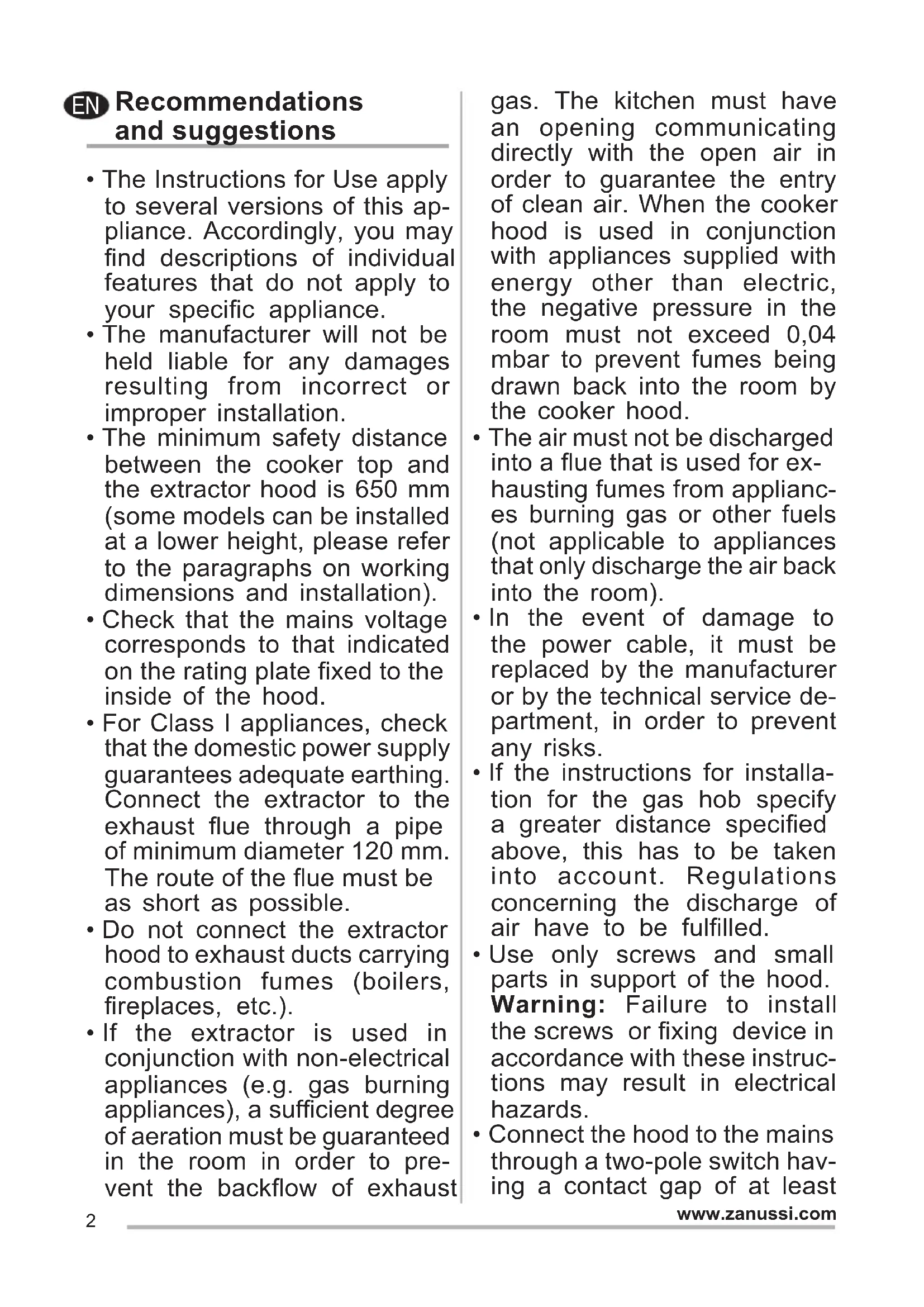

Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

- If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

- Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Connect the hood to the mains through a two-pole switch having a contact gap of at least

3 mm.

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capa-

bilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- "CAUTION: Accessible parts may become hot when used with cooking appliances."

Maintenance

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

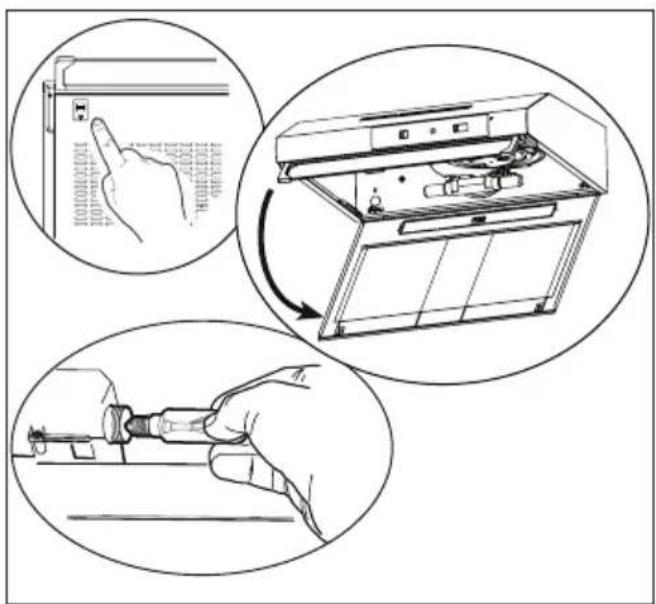

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

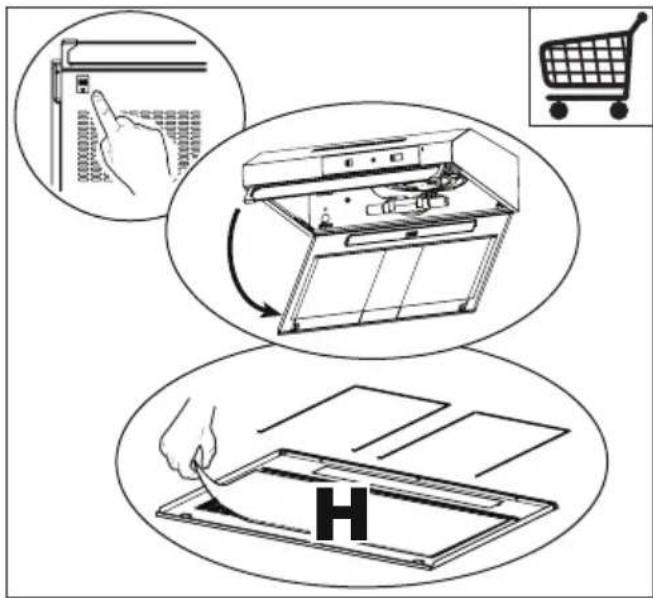

- This filter cannot be washed

and should be replaced every 2 months (H).

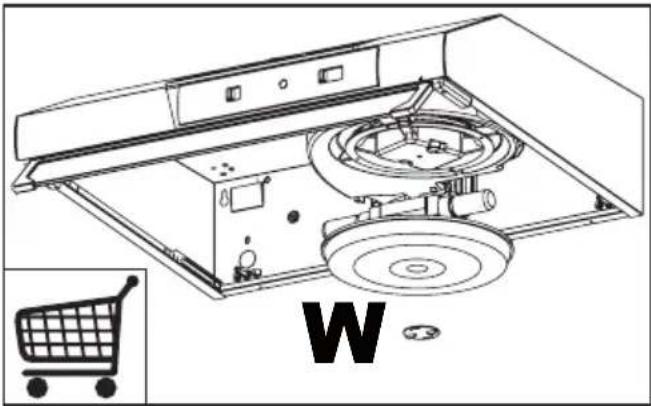

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

Technical line drawing of a refrigerator interior with visible fan and wheels, no text or symbols present

- Clean the hood using a damp cloth and a neutral liquid detergent.

Controls

L	Light Switches	the lighting system on and off
V	Speed Sets the operating speed of the extractor:0. Motor Off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

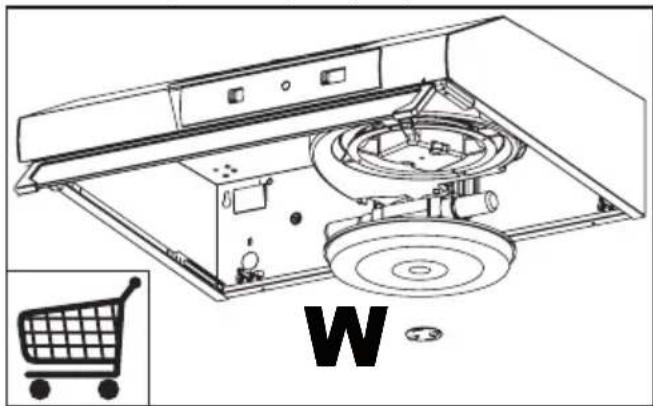

Lighting

Lamp Power (W) Socket	Voltage (V)	Dimension (mm) ILCOS Code
[245W]	4 E14 220 – 240 107	x 37 DRBB/F-4-220-240-E14-35/100
