USER MANUAL KM8007 Krüger&Matz

Thank you for purchasing this system. Please read these operating instructions before operating the unit. The operating instructions should be retained for future reference.

For your safety

Before operating this system, check the voltage of this system to see if it is identical with the voltage of your local power supply.

Don't obstruct the ventilation openings of the equipment with items such as newspaper, table-cloths,curtains,etc..Overheating will cause damage and shorten the life of the equipment.

When you disconnect the power cord, always pull the plug, never the cable.

NEVER let anyone especially children push anything into holes, slots or any other opening in the case - this could result in a fatal electrical shock;

Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device.

Never hitting the product use the sharp objects.

Never place the product and accessories near naked flames or other heat sources, including direct sunlight.

To avoid electric shock, do not open the cabinet. Refer all servicing to qualified service personnel.

Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product.

Z

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHING.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THIS RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Hearing safety

Listen at a moderate volume.

• Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So after prolonged listening, what sounds "normal" can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.

To establish a safe volume level:

• Set your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.

Listen for reasonable periods of time:

• Prolonged exposure to sound, even at normally "safe" levels, can also cause hearing lose.

• Be sure to use your equipment reasonably and take appropriate breaks.

PRODUCT DESCRIPTION

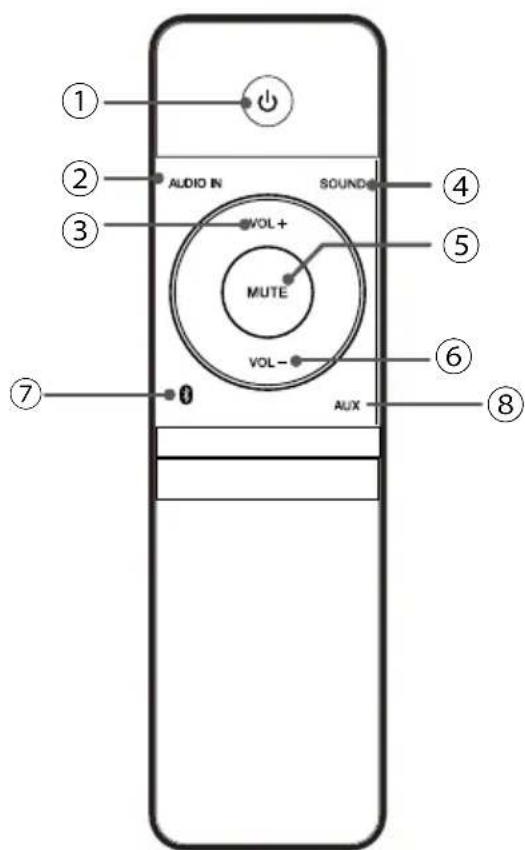

REMOTE CONTROL

① Standby button
② Audio-in button
③ Volume+
④ Sound button
Mute button
Volume-
⑦ Bluetooth button
AUX button

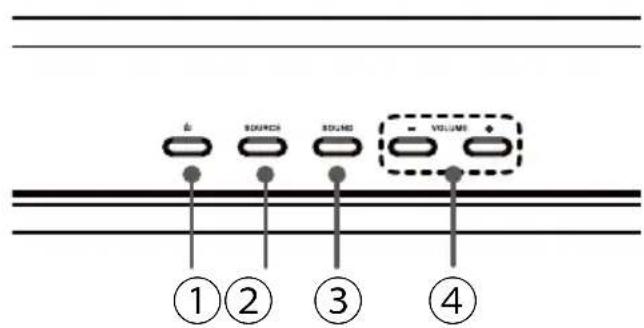

(1) Standby
② Source
③ Sound
Volume+/Volume-

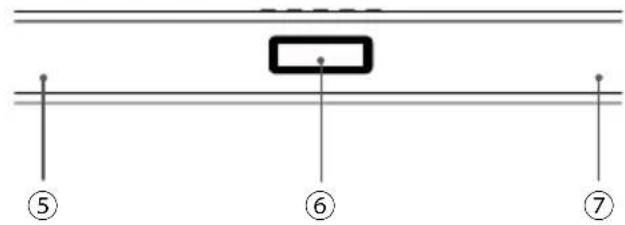

(5) Left speaker
⑥ LCD Display/IR sensor
Right speaker

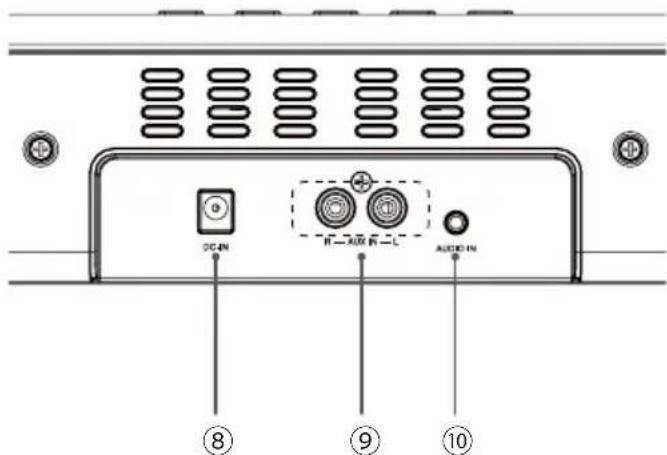

⑧ DC-IN Jack
AUX-IN L/R (RCA) Jack
10 Audio-in Jack (3,5 mm)

Z

BATTERY INSTALLATION

To insert the remote control battery: 1. Open the battery compartment.
2. Insert CR2032 battery with correct polarity (+/-) as indicated.
3. Close the battery compartment.

Note:

• If you are not going to use the remote control for a long time, remove the batteries.
• Batteries contain chemical substances, so they should be disposed of properly.

Caution:

• Risk of explosion! Keep batteries away from heat, sunshine, or fire. Never discard batteries in fire.

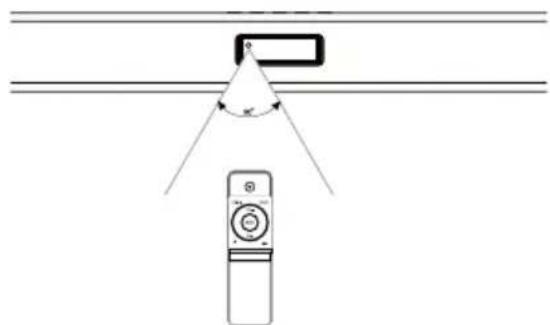

• The remote control sensor on the front unit is sensitive to the remote control's commands up to a maximum of 5 meters away and within a maximum of a 60^ angle.
• Please note that the operating distance may vary depending on the brightness of the room.
• Any obstacles between remote control and the device may reduce operation range.

WALL MOUNTING

Note: Wall mounting must be carried out by qualified personnel only. Incorrect assembly may result in severe personal injury and property damage The supplied wall brackets are only for use on vertical walls suitable from such mounting. It is the installer's responsibility to verify that the wall will safely support the total load of the Soundbar and wall brackets. Additional tools required for the installation are not included. Do not overtighten screws.

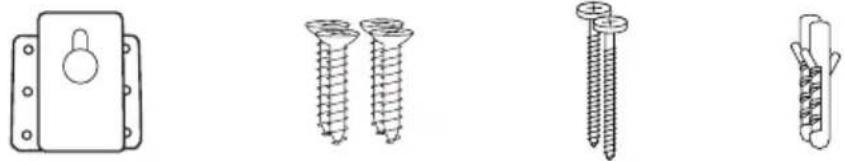

1. Parts:

Bracket x 2 Screws A x 4 Screws B x 2 Dowels B x 2

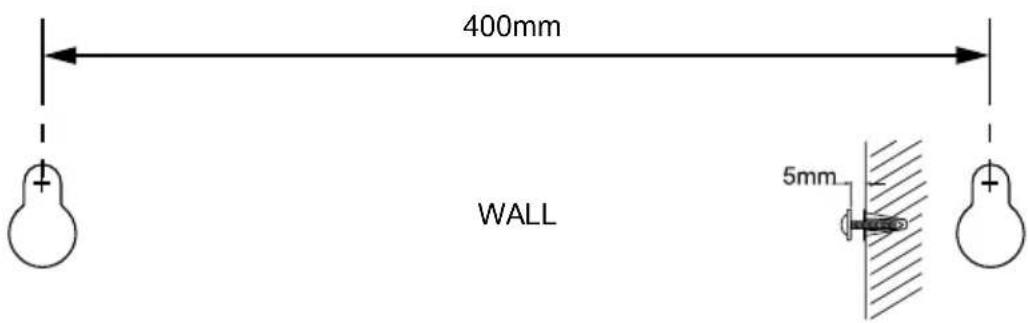

1. Drill holes, install dowels B x 2, screws B x 2.

Z

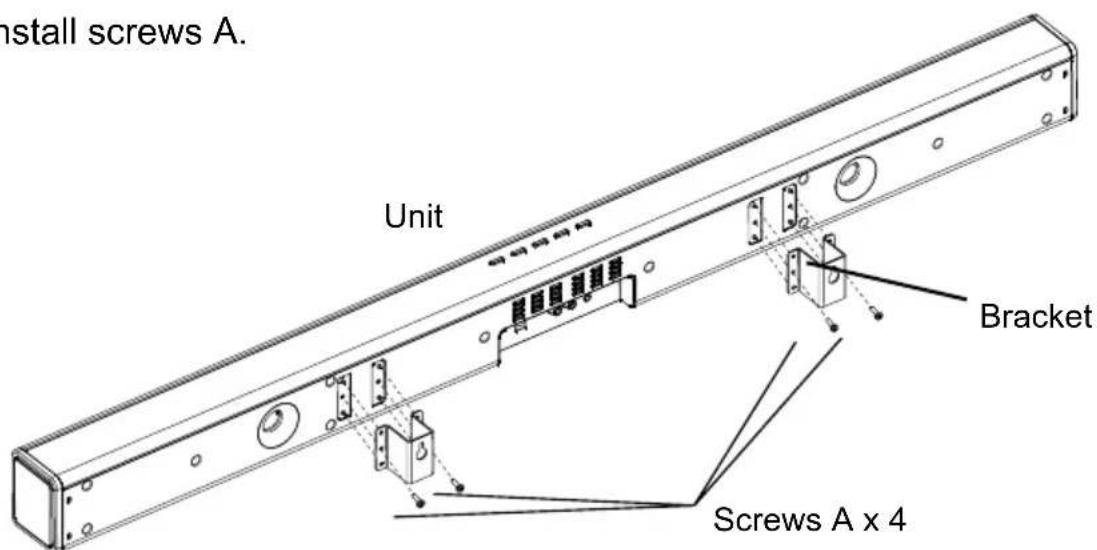

1. Install screws A.

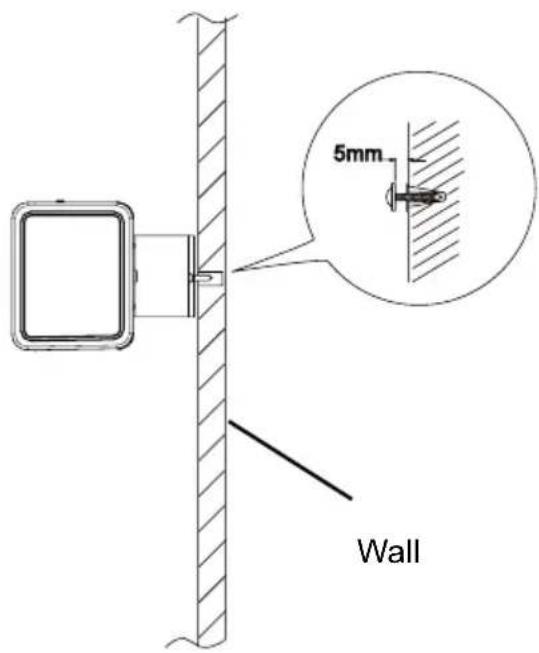

1. Hang the unit

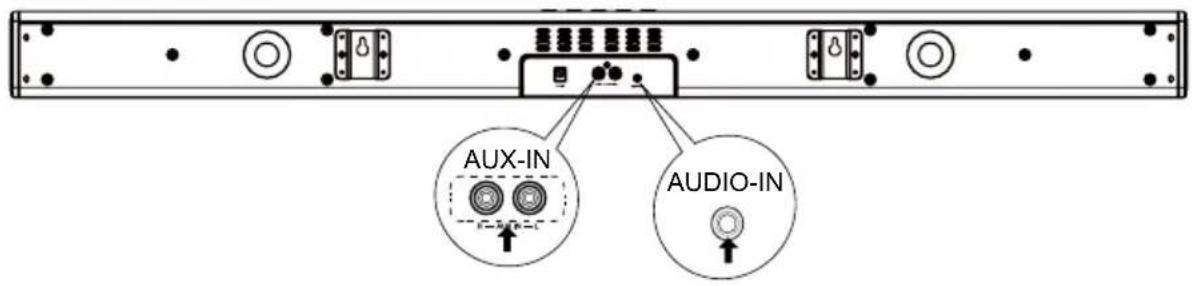

CONNECTING THE EXTERNAL DEVICES

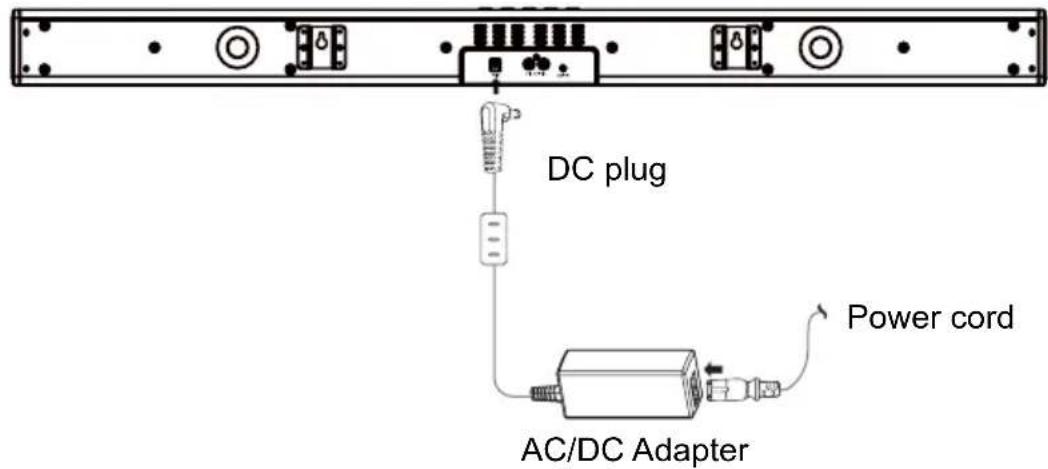

CONNECTING THE AC/DC ADAPTER

The unit

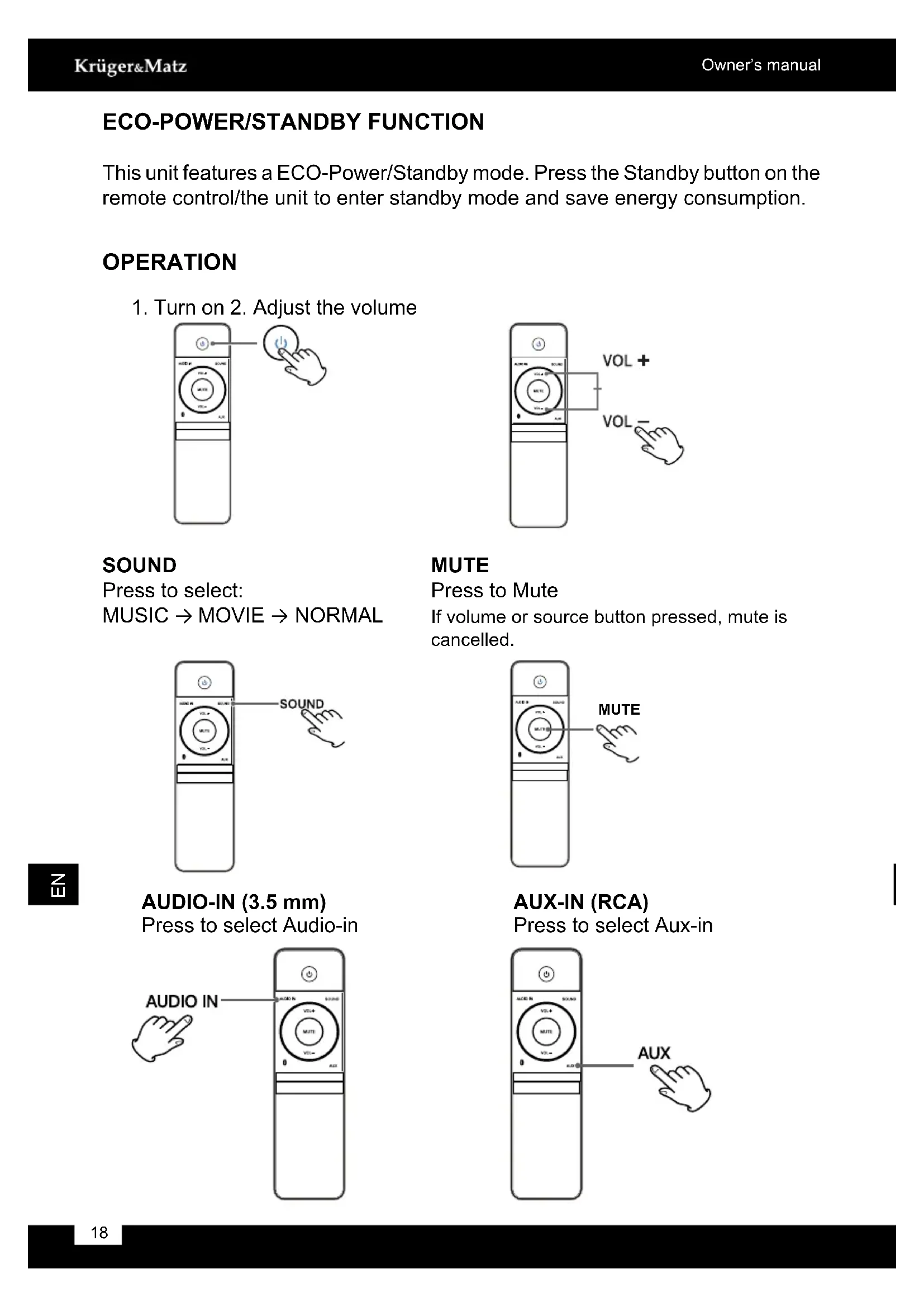

ECO-POWER/STANDBY FUNCTION

This unit features a ECO-Power/Standby mode. Press the Standby button on the remote control/the unit to enter standby mode and save energy consumption.

OPERATION

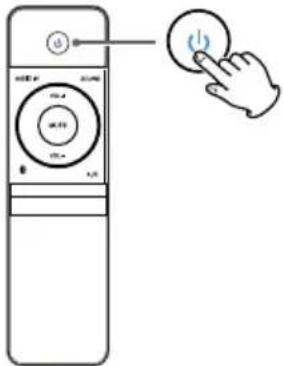

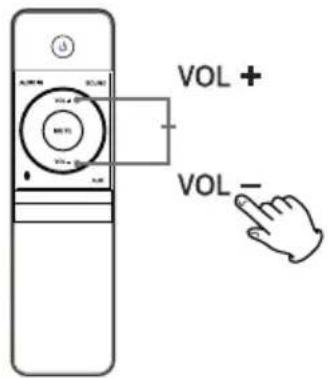

1. Turn on 2. Adjust the volume

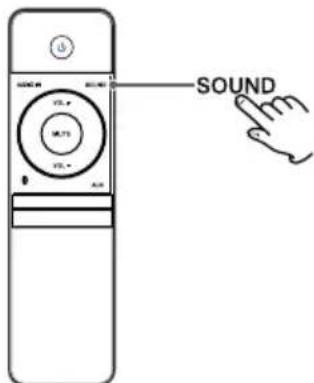

SOUND

Press to select:

MUSIC MOVIE NORMAL

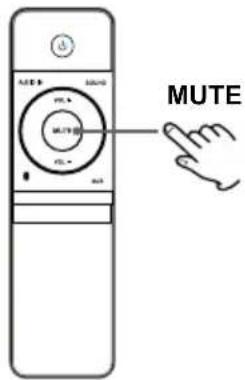

MUTE

Press to Mute

If volume or source button pressed, mute is cancelled.

AUDIO-IN (3.5 mm)

Press to select Audio-in

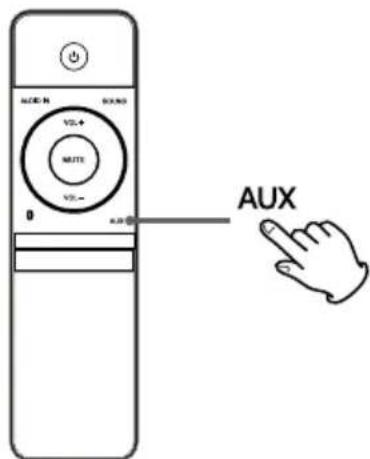

AUX-IN (RCA)

Press to select Aux-in

Z

BLUETOOTH

Pairing bluetooth-enabled devices

Note:

• Pairing needs only to be done once. The operational range is approximately 8 meters.

• Compatibility with all Bluetooth devices is not guaranteed.

• Any obstacle can reduce the operational range.

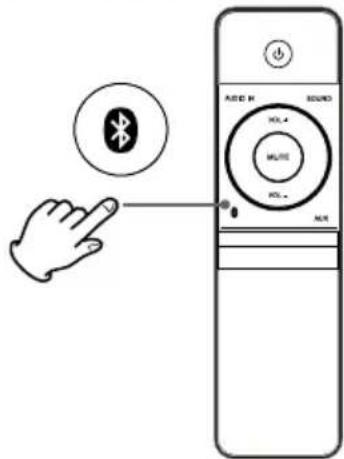

• Press the Bluetooth button on the remote control.

• Search for other Bluetooth device with your device.
• Select "KM8007" in the pairing list.
• Press and hold the Bluetooth button more than 2 seconds to clear pairing mode.

Note:

• The devices will disconnect when moved beyond the operation range.
• If you want to reconnect the device to the unit, place it within the operational range.
• The unit support A2DP function.

CLEANING

• Before cleaning the unit, make sure it's fully unplugged from the mains supply.
• To clean the unit, wipe the case with a slightly moist, soft cloth.
• Do not use any cleaning fluids containing alcohol, ammonia or abrasives.

TROUBLESHOOTING

If you are having a problem with your system, check this list for a possible solution before calling for service.

If you can not solve the problem from the hints give here, or the system has been physically damaged, call a qualified person, such as your dealer, for service.

No power

• Ensure the mains cable is connected securely at both ends.
• Make sure that the ON mode is selected.

Loud hum or noise is heard.

• The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with an appropriate non-abrasive cleaning solution.

I cannot find Soundbar on my Bluetooth device

• Ensure the bluetooth function is activated on your bluetooth device.

Remote control does not work

• Use the remote control near the unit.
• Point the remote control at the remote sensor on the unit.
• Replace the battery in the remote control with a new one.
• Remove any obstacles between the remote control and the unit.

SPECIFICATIONS

Amplifier

Rated Output Power: 2 X 20 W RMS

Frequency Response: 100 Hz ~ 20 KHz

Signal to Noise Ratio: >70 dB

AUX Input: 1000 mV

Dimensions : 995 x 73 x 60 mm

General information

Unit DC Input: 18V, 2.5A

Power Supply: 100 - 240V; 50/60Hz

Operation Power Consumption: 12 W

Eco Standby Power: < 0.5 W

Bluetooth Specification

Communication system:Bluetooth 2.1 + EDR

Maximum communication range: up to 8 m

Compatible Bluetooth profil............Advanced Audio Distribution Profile (A2DP)

Supported Multi devices pairing: up to 8 devices

Specifications are subject to change without prior notice.

Z

"The Lechpol company declares that product KM8007 is consistent with the essential requirements and other relevant provisions of directive 1999/5/EC. The proper declaration for download from www.lechpol.eu"

English Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL Zbigniew Leszek, Mietne, 1 Garwolinska Street, 08-400 Garwolin.
