USER MANUAL HVER IOGEAR
Welcome to Kaliber Gaming
Congratulations! You are now officially a new owner of Kaliber Gaming's HVER™ Aluminum Gaming Keyboard with 3-color Backlight. Designed for gamers, HVER™ offers an array of functions that will increase your gaming skills. The tactile feedback from the POM plunger keys and the double injected keycaps are just two of the features that instantly provide you a better overall HVER™ experience. Customize your HVER™ by adjusting the LED backlight, locking the Windows key and many more! Please take your time following through the operation guidelines and enjoy your new HVER™.
Package Contents
1 x HVER™ Aluminum Gaming Keyboard
1 x Quick Start Guide
1 x Warranty Card
Requirements
Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10
- USB port
Hardware Installation
Simply connect the USB plug of HVER™ to an available USB port on your computer. Your operating system will automatically install the device – no additional software needed.

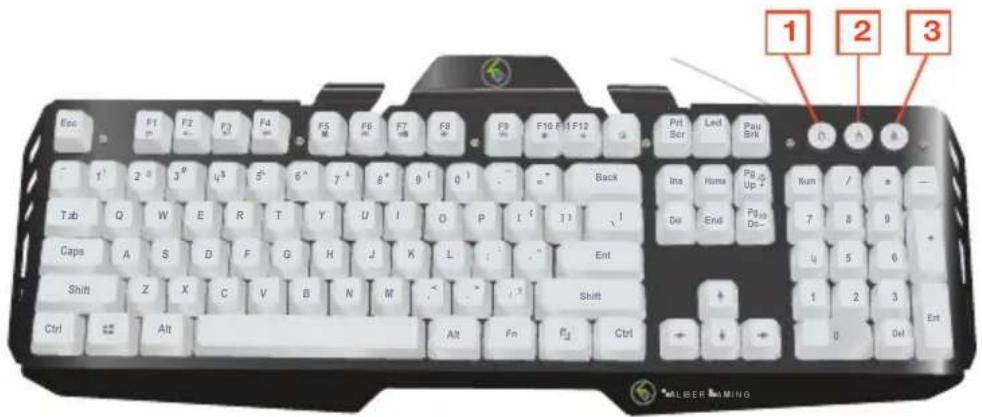

Keyboard - Front View
- Num Lock LED - turns on when Num Lock key is pressed
- Caps Lock LED - turns on when Caps Lock key is pressed
- Windows Lock LED - turns on when Fn + is pressed
Windows Key Lockout
The Windows key lockout prevents the Windows menu from popping up and interfering with your game if accidentally pressed while gaming.
Press Fn + key to lockout the Windows menu function. The Windows Lock LED will light up to confirm the Windows key is locked out.
Press Fn + again to unlock the Windows key.
Hotkeys
There a 12 hotkeys offering quick access to the most commonly used functions. Press Fn + F1 through F12 to activate the desired function.
Windows Hotkeys Function
| Fn + F1 | Media Player | |
| Fn + F2 | Volume Down | |
| Fn + F3 | Volume up | |
| Fn + F4 | Mute x | |
| Fn + F5 | Stop | |
| Fn + F6 | Previous Track | |
| Fn + F7 | Play/Pause | |
| Fn + F8 | Next Track | |
| Fn + F9 | Emd | |
| Fn + F10 | Web/Home | |
| Fn + F12 | Calculator |
Anti-Ghosting Keys
Your HVER™ features 26 full anti-ghosting keys to ensure all your keystrokes are registered, especially during intense gaming sessions.

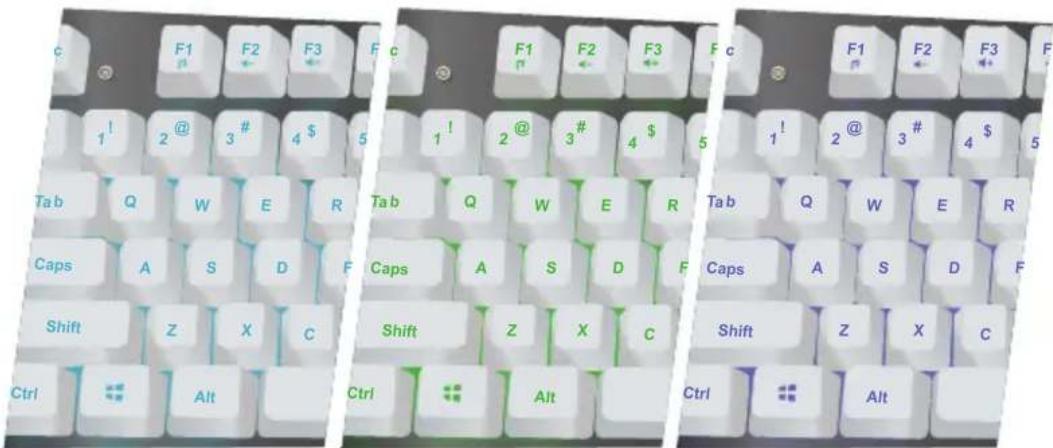

LED Backlight Functions
Backlight color can be set to either Aqua, Green, Blue or off to suit your mood. To change backlighting press the button to rotate to the next color or press Fn + to toggle backlight on or off.
Backlight brightness can be changed by pressing Fn + Page Up to increase or Fn + Page Down to decrease.
Relax mode can be turned on or off by pressing Fn + While in Relax mode, your HVER™ will begin a "breathing" effect that alternately dims and brightens the backlighting, while also shifting between the three LED colors. The "breathing" cycle provides a calming and relaxing effect to help you wind down during breaks from high-intensity gaming.

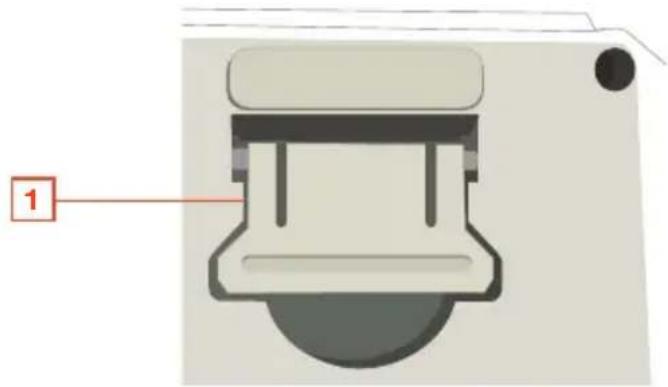

Keyboard - Rear View
- Foldout leg (see Foldout Legs)
Foldout Legs
For greater comfort during long gaming sessions, you can adjust the typing angle of your HVER™ by folding the legs in or out on the back of the keyboard.
Compliance Information
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential setting. This product generates, uses, and can radiate radio frequency energy and, if not installed and used as directed, it may cause harmful interference to radio communications.
CE Compliance
This device has been tested and found to comply with the following European Union directives: Electromagnetic Capability (2004/108/EC), Low Voltage (2006/95/EC) and R&TTED (1999/5/EC).
Limited Warranty
Warranty Information
This product carries a 3 Year Limited Warranty. For the terms and conditions of this warranty, please go to http://www.iogear.com/support/warranty
Register online at http://www.iogear.com/register
Important Product Information Product Model Serial Number
Contact
WE'RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT?
Make sure you:
- Visit www.iogear.com for more product information
- Visit www.iogear.com/support for live help and product support
iogear.custhelp.com
support@iogear.com
www.iogear.com
19641 Da Vinci, Foothill Ranch, CA 92610
