USER MANUAL Perfomance 220 B CHAR-BROIL

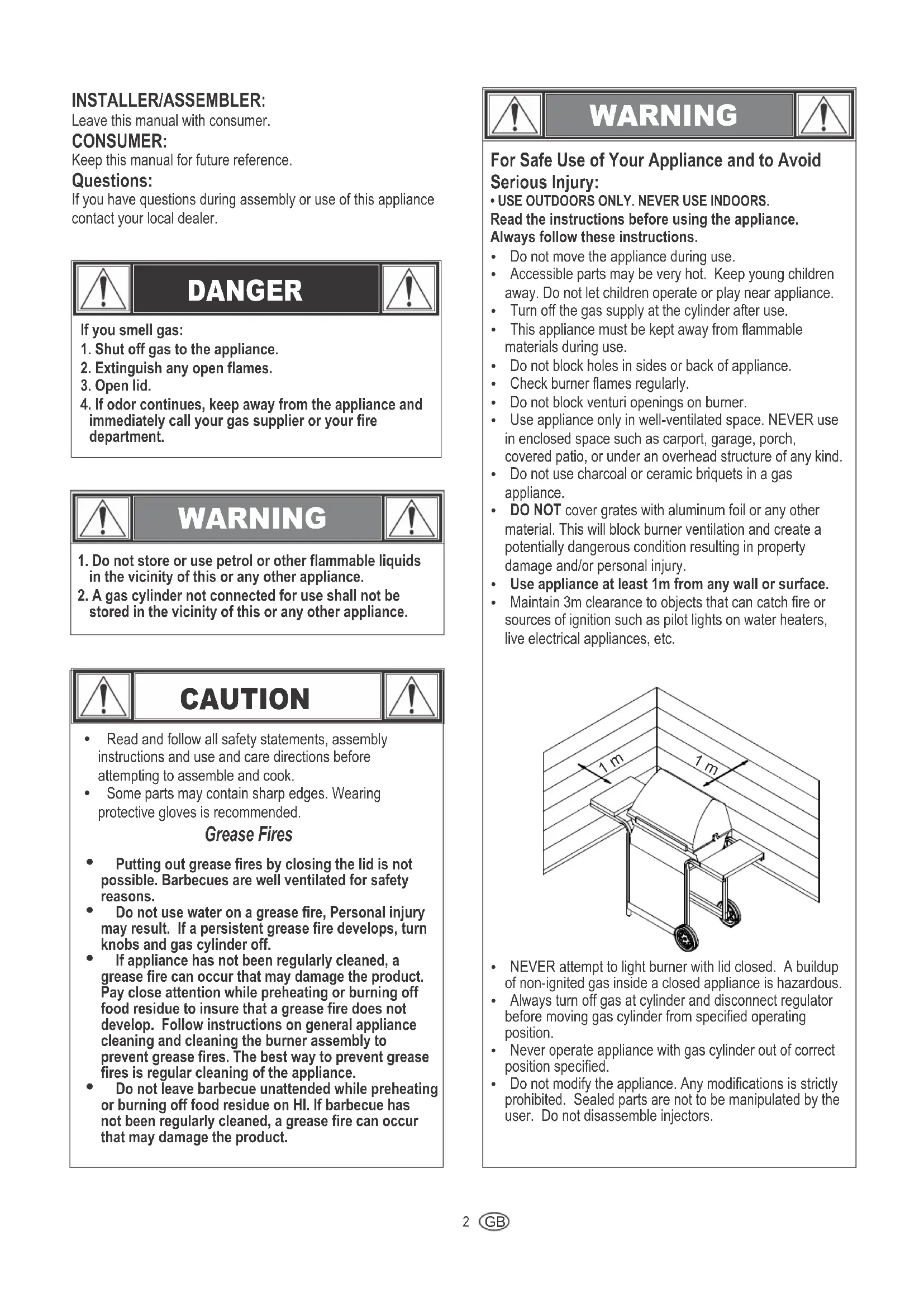

Mode d’emploi, 8-13 Betriebsanweisungen, 14-19 Istruzioni per l’uso, 20-25 Gebruiksinstructies, 26-31 Användning, 32-37 Käyttöohjeet, 38-43 Instrucciones de funcionamiento, 44-49 Instuções para Operação, 50-55 Brugsanvisning, 56-61 Instruksjoner for bruk, 62-67 Notkunarle∂beiningar, 74-79 Návod k obsluze, 80-85 Operating Instructions, 2-7 Návod na používanie,68-73 הלעפה תוארוה, 86-912 INSTALLER/ASSEMBLER: Leave this manual with consumer. CONSUMER: Keep this manual for future reference. Questions: If you have questions during assembly or use of this appliance contact your local dealer. DANGER WARNING If you smell gas:1. Shut off gas to the appliance.2. Extinguish any open flames.3. Open lid.4. If odor continues, keep away from the appliance andimmediately call your gas supplier or your firedepartment.1. Do not store or use petrol or other flammable liquidsin the vicinity of this or any other appliance.2. A gas cylinder not connected for use shall not bestored in the vicinity of this or any other appliance. CAUTION Ÿ Read and follow all safety statements, assemblyinstructions and use and care directions beforeattempting to assemble and cook.Ÿ Some parts may contain sharp edges. Wearingprotective gloves is recommended. Grease Fires Ÿ Putting out grease fires by closing the lid is not possible. Barbecues are well ventilated for safetyreasons. Ÿ Do not use water on a grease fire, Personal injury may result. If a persistent grease fire develops, turnknobs and gas cylinder off. Ÿ If appliance has not been regularly cleaned, a grease fire can occur that may damage the product.Pay close attention while preheating or burning offfood residue to insure that a grease fire does notdevelop. Follow instructions on general appliancecleaning and cleaning the burner assembly toprevent grease fires. The best way to prevent greasefires is regular cleaning of the appliance. Ÿ Do not leave barbecue unattended while preheating or burning off food residue on HI. If barbecue hasnot been regularly cleaned, a grease fire can occurthat may damage the product. WARNING For Safe Use of Your Appliance and to Avoid Serious Injury:

• USE OUTDOORS ONLY. NEVER USE INDOORS.Read the instructions before using the appliance.Always follow these instructions.Ÿ Do not move the appliance during use.Ÿ Accessible parts may be very hot. Keep young childrenaway. Do not let children operate or play near appliance.Ÿ Turn off the gas supply at the cylinder after use.Ÿ This appliance must be kept away from flammablematerials during use.Ÿ Do not block holes in sides or back of appliance.Ÿ Check burner flames regularly.Ÿ Do not block venturi openings on burner.Ÿ Use appliance only in well-ventilated space. NEVER usein enclosed space such as carport, garage, porch,covered patio, or under an overhead structure of any kind.Ÿ Do not use charcoal or ceramic briquets in a gasappliance.Ÿ DO NOT cover grates with aluminum foil or any othermaterial. This will block burner ventilation and create apotentially dangerous condition resulting in propertydamage and/or personal injury.Ÿ Use appliance at least 1m from any wall or surface.Ÿ Maintain 3m clearance to objects that can catch fire orsources of ignition such as pilot lights on water heaters,live electrical appliances, etc.Ÿ NEVER attempt to light burner with lid closed. A buildupof non-ignited gas inside a closed appliance is hazardous.Ÿ Always turn off gas at cylinder and disconnect regulatorbefore moving gas cylinder from specified operatingposition.Ÿ Never operate appliance with gas cylinder out of correctposition specified.Ÿ Do not modify the appliance. Any modifications is strictlyprohibited. Sealed parts are not to be manipulated by theuser. Do not disassemble injectors.

1 m 1 m3 Cylinder Placement Cylinder of 6 kg or less may be placed on the ground under the side shelf or inside the appliance in place provided. Larger cylinders are to be placed under side shelf or behind the barbecue only. Cylinders placed in the appliance shall have a maximum diameter of 345mm and maximum height of 370mm. Cylinders placed on the ground shall not be placed under the hot plate. Regulator Requirements A regulator must be used with this appliance. Use only gas regulator supplied with your barbeque. If a regulator is not supplied then use only regulator certified according to EN16129 (Flow rate max. 1.5 kg/h) and approved for your country and gas specified in Technical Data. Hose Requirements Use only approved hose which is certified to appropriate EN standard and does not exceed 1.5m length. For Finland, the hose length shall not exceed 1.2m. Before each use, check to see if hoses are cut or worn. Make sure hose is not kinked. Make sure that when connected hose does not touch any warm surfaces. Replace damaged hoses before using appliance. Replace hose as required by national requirements. Safety Tips Ÿ Before opening gas cylinder valve, check the regulator for tightness. Ÿ When appliance is not in use, turn off all control knobs and gas. Ÿ Use long-handled barbecue utensils and oven mitts to avoid burns and splatters. Use protective gloves when handling hot components. Ÿ Maximum load for hot plate, if equipped, and side shelf is 4.5 Kg. Cooking vessel minimum dia 200mm and maximum dia. 260 mm. NOTE: Your barbecue may NOT be equipped with a Hot plate! Ÿ The grease cup (if equipped) must be inserted into appliance and emptied after each use. Do not remove grease cup until appliance has completely cooled. Ÿ Be very careful when you open the lid, since hot steam may escape. Ÿ Be very careful when children, the elderly, or pets are nearby. Ÿ If you notice grease or other hot material dripping from appliance onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose, and regulator before continuing. Perform a leak test. Ÿ Do not store objects or materials inside the appliance cart enclosure that would block the flow of combustion air to the underside of either the control panel or the firebox bowl. Ÿ DO NOT disconnect or change gas container within 3m of an open flame or other ignition source. WARNING Turn controls and gas cylinder off when not in use.

If ignition does NOT occur in 5 seconds, turn the burner controls off, wait 5 minutes and repeat the lighting procedure. If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidently ignite with risk of injury. CAUTION Ignitor Lighting

• Do not lean over barbecue while lighting.

1. Turn gas burner control valves to (off).

2. Open lid during lighting or re-lighting.

3. Turn ON gas at LP cylinder.

4. To ignite, push and turn burner knob to HIGH.

Immediately, push and hold ELECTRONIC IGNITOR button until the burner lights.

5. If ignition does NOT occur in 5 seconds, turn the burner

controls off , wait 5 minutes and repeat the lighting procedure.

6. Repeat steps 4 and 5 to light other main burners.

• Do not lean over barbecue while lighting.

1. Turn gas burner control valves to (off).

2. Open lid during lighting or re-lighting.

3. Turn ON gas at LP cylinder.

4. Place match into match holder (hanging from side panel of

barbecue). Light match; then light burner by placing match through the match light hole on side of barbecue. Immediately push in and turn burner knob to the HIGH position. Be sure burner lights and stays lit.

5. Light adjacent burners in sequence by pushing knobs in and

turning to the HIGH position.4 CAUTION SPIDER ALERT! If your barbeque is getting hard to light or the flame is weak, check and clean the venturis and burners. Spiders or small insects are known to create “flashback” problems by building nests and laying eggs in the barbeque’s venturi or burner obstructing the flow of gas. The backed-up gas can ignite behind the control panel. This flashback can damage your barbeque and cause injury. To prevent flashbacks and ensure good performance, the burner and venturi tube assembly should be removed and cleaned whenever the barbeque has been idle for an extended period of time.

IF APPLIANCE FAILS TO LIGHT

Ÿ Make sure gas is turned on at cylinder.Ÿ Make sure there is gas in the cylinder.Ÿ Does the ignitor make a sparking noise? If yes check for spark at burner. If no spark check for damaged or loose wires. Ÿ If wires are OK check for cracked or broken electrode, replace if needed. Ÿ If wire or electrodes are covered by cooking residue, clean electrode tip with alcohol wipe if needed. Ÿ If needed replace wires.Ÿ If no sound check battery.Ÿ Make sure battery is installed correctly.Ÿ Check for loose wire connection at module and switch.Ÿ If ignitor continues to not work then use match. Leak Testing Valves, Hose and Regulator Leak test before first use, at least once a year, and every time the cylinder is changed or disconnected.

1. Turn all appliance control knobs to .

2. Be sure regulator is tightly connected to gas cylinder.

3. Turn on Gas. If you hear a rushing sound, turn gas off

immediately. There is a major leak at the connection. Correct before proceeding.

4. Brush soapy solution (mixture of half soap and half water)

onto hose connections.

5. If growing bubbles appear, there is a leak. Turn off gas at

cylinder immediately and check tightness of connections. If leak cannot be stopped do not try to repair. Call for replacement parts.

6. Always turn off gas at cylinder after performing leak test.

GB5 Storing Your Appliance General Appliance Cleaning Høyre skinne

• Clean appliance often, preferably after each cookout. If a bristle brush is used to clean any of the appliance cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to barbecueing. It is not recommended to clean cooking surface while appliance is hot. Appliance should be cleaned at least once a year.

• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas barbecues are not painted at the factory (and should never be painted). Apply a strong solution of detergent and water or use a appliance cleaner with scrub brush on insides of appliance lid and bottom. Rinse and allow to completely air dry. Do not apply caustic appliance/oven cleaner to painted surfaces.

• Plastic parts: Wash with warm soapy water and wipe dry.

• Do not use citrisol, abrasive cleaners, degreasers or a concentrated appliance cleaner on plastic parts. Damage to and failure of parts can result.

• Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or specially formulated cleaner. Use nonabrasive scouring powder for stubborn stains.

• Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm soapy water. Wipe dry with a soft nonabrasive cloth.

• Stainless steel surfaces: To maintain your appliance’s high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.

• Cooking surfaces: If a bristle brush is used to clean any of the appliance cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to barbecueing. It is not recommended to clean cooking surfaces while appliance is hot.

• Clean cooking grates.

• Store in dry location.

• When gas cylinder is connected to appliance, store outdoors in a well-ventilated space and out of reach of children.

• Cover appliance if stored outdoors.

• Store appliance indoors ONLY if gas cylinder is turned off and disconnected, removed from appliance and stored outdoors.

• When removing appliance from storage check for burner obstructions.

Cleaning the Burner Assembly VERY IMPORTANT: Burner tubes must reengage valve openings. See illustrations at right. Correct burner-to- valve engagement Pry off electrode with a flate blade screwdriverElectrodeElectrodeRemove screws Carryover tube Firebox Firebox Burner Support Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting barbecue.

1. Turn gas off at control knobs and LP cylinder.

2. Remove cooking grates and heat tents.

3. Remove carryover tubes and hardware securing burners.

4. Detach electrode from burner.

NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below.

5. Carefully lift each burner up and away from valve openings.

We suggest three ways to clean the burner tubes. Use the one easiest for you. A. Bend a stiff wire (a light weight coat hanger works well) into a small hook. Run the hook through each burner tube several times. B. Use a narrow bottle brush with a flexible handle (do not use a brass wire brush). Run the brush through each burner tube several times. C. Wear eye protection: Use an air hose to force air into the burner tube and out the burner ports. Check each port to make sure air comes out each hole.

6. Wire brush entire outer surface of burner to remove food

7. Clean any blocked ports with a stiff wire such as an open

8. Check burner for damage due to normal wear and corrosion,

some holes may become enlarged. If any large cracks or holes are found, replace burner.

9. Attach electrode to burner.

10. Carefully replace burners.

11. Attach burners to brackets on firebox.

12. Reposition carryover tubes and attach to burners. Replace

heat tents and cooking grates.

13. Before cooking again on barbecue, perform a “Leak Test”

• Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or specially formulated cleaner. Use nonabrasive scouring powder for stubborn stains.

TEKNISET TIEDOT CHAR-BROIL, LLC

kW (448 g/h) 6,15 kW ( 448 g/h)92 HARDWARE LIST Hardware is shown actual size. You may have spare hardware after assembly is complete. Key Description Picture Qty

#18 #18 Pin94 NOTE: Some barbecue parts shown in the assembly steps may differ slightly in appearance from those on your particular barbecue model. However, the method of assembly remains the same. Key Qty Description 1 1 TOP LID

23 2 SHELF MOUNT, RB/LF

24 2 SHELF MOUNT, LB/RF

… 1 PRODUCT GUIDE, EUROPE

23 2 SHELF MOUNT, RB/LF

24 2 SHELF MOUNT, LB/RF

… 1 PRODUCT GUIDE, EUROPE

#27 #29 #28 #10 #11 #19 #20 #26 #21 #15 #14 #16 #17 #22

#27 #29 #28 #10 #11 #19 #20 #26 #21 #15 #14 #16 #17 #22

Right Left 3RD #22 #21 #24 #24 #23 #23 #22

Right Left #22 #22 #22 #24 #23 #24 #23 #47 #21 #47 #18 #18108

#27 #27 #27 #28 #18 #18109

#14 #15 #14 #18 #18110

#42 #41 #41 #18 #18111

#18 #18Warranty Statement Char-Broil Europe GmbH of Gasstraße 6 - Haus L 4 Obergeschoß, D-22761 Hamburg, (Char-Broil) warrants to the PURCHASER of this Char-Broil product that it will be free of defects in material and workmanship from the date of purchase as follows: Gas Grills Burners 5 years Cooking Grates/Emitters 2years All Other Parts (EURO minimum) 2 years Char-Broil or the seller of the product may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES RECEIPT OR INVOICE. [France only: All products sold by the Seller are covered by the legal warranties provided in Articles 1641 and followings of the Civil Code (warranty against hidden defects) and Articles L. 217-1 to L. 217-14 and L. 411-1 to L. 411-2 of the Consumer Code (warranty of conformity.] This Warranty includes t he right of repair or replacement of the product or parts of the product that prove defective under normal use and service. Before returning any parts, you should promptly contact Char-Broil using the contact information on our website. In case of a defect, Char-Broil will elect to replace or repair the product or such parts without charge. . Char-Broil will return the product or parts of the product to the purchaser, freight or postage prepaid. If Char-Broil elects to repair the product or such defective parts of the product and this repair fails, you are entitled, pursuant to your statutory legal rights, to reduce the purchase price or to withdraw from the contract and receive a refund. This Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual. Exceptions may apply, so please contact Char-Broil or your seller in case you have any questions on whether this Warranty applies to your specific case or not. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Warranty, and are not normally covered by your statutory legal rights. Char-Broil is not liable for any unforeseeable losses (i.e. loss or damage that neither you nor Char-Broil or the seller contemplated at the time of purchase), or any damage caused by you, save for that Char-Broil’s liability for fraud or death or personal injury caused by its negligence is not limited. Char-Broil does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Char- Broil. This Warranty applies only to products sold at retail to individuals (as opposed to businesses) within the European Union. This Warranty does not affect any of your statutory legal rights under the applicable consumer laws of your resident country. For warranty service, contact Char-Broil at info-eu@charbroil.com.
