USER MANUAL ACV2001 BESTRON

Illustration of a portable electric heater with cooling fins and a curved heating element (no text or symbols)

• Dieses Produkt ist nur für gut isolierte Räume oder für den gelegentlichen Gebrauch geeignet
• Ce produit ne peut être utilisé que dans des locaux bien isolés ou de manière occasionnelle
• Dit product is uitsluitend geschikt voor goed geïsoleerde plaatsen of voor incidenteel gebruik
  • This product is only suitable for well insulated spaces or occasional use
• Il presente prodotto è adatto solo a ambienti correttamente isolati o ad un uso occasionale
• Este producto está indicado únicamente en lugares abrigados o para una utilización puntual

Instruction manual convector heater

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

Handwritten signature or scribble on a line, possibly a signature or autograph

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

UTILISATION - Emplacement

CONDITIONS DE GARANTIE

DÉCLARATION DE CONFORMITÉ CE

Handwritten signature or scribble on a line, possibly a signature or autograph

R. Neyman

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

WERKING - Plaatsing

R. Neyman Quality control

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for future reference.
  • Use this appliance solely in accordance with these instructions.
• This device needs to be kept out of reach of children younger than 3 years, unless they are under constant supervision. Children between the ages of 3 and 8 years may only switch this appliances on and off, provided that the appliance has been placed correctly and installed in a normal position, and that the children are under supervision or have received instructions regarding the use and safety of the appliance and aware of any potential risks that may arise. Children between the ages of 3 and 8 years may not connect, operate, clean or carry out maintenance on the appliance.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance
• Cleaning and maintenance must not be done by children, except if they are older than 8 years and supervised.
• Keep the appliance and the cable out of reach of children under 8 years.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

Certain parts of the appliance may get hot. Not touch these parts to prevent burning yourself.

• Make sure that the mains voltage is the same as that indicated on the type plate on the appliance before use.
• Make sure that the appliance, the power cord and plug do not come into contact with water.
• Always remove the plug from the wall socket when the appliance is not in use.
• Always remove the plug from the wall socket by pulling on the plug, not on the power cord.
- Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. If the power cable is damaged, it must be replaced by the manufacturer, the after-sales service or a person with a similar qualification, in order to avoid any hazards.

• Certain parts of the appliance can become hot; do not touch them, as you could burn yourself.
• The appliance needs space to allow heat to escape, thereby avoiding the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable materials.
  The appliance may not be covered.
• Make sure that the appliance, the power cord and the plug do not come in contact with sources of heat, such as a hot hob or naked flame.

SAFETY INSTRUCTIONS - Use

• Never use the appliance outdoors.
• Never use the appliance in humid rooms.
• Make sure that your hands are dry when you touch the appliance, the power cord or the plug.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance or storing it after use.
• Never immerse the appliance, the cord or the plug in water or any other fluid.
• Take care that inflammable objects do not get in touch with warm air of the fan heater.
• Do not insert objects through the grille.
• Use the appliance only in a vertical position.
• Do not place the fan heater directly beneath the wall socket or on deep ply carpet.
• Keep a free space of 50cm besides and above the appliance and 120cm in front of the appliance.
• This appliance may not be used through an external timer or by means of a remote control.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.

In order to avoid overheating, do not cover the device.

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

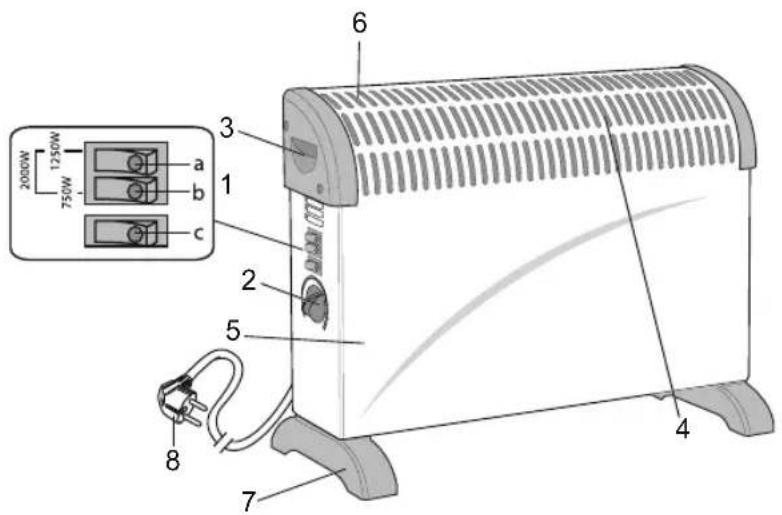

2000W 1250W 750W a b c 3 6 1 2 5 4 8 7

1. a. Button 1250Watt with indicator light
   b Button 750Watt with indicator light
   c. Turbo button
2. Thermostat dial

3. Handle

4. (Hot) air outlet

5. Body

6. Warm air fan outlet

7. Foot support

8. Plug

OPERATION - Before first use

Remove the device from the packaging and remove all the packaging materials.

• In order to avoid overheating, do not cover the device.

The device must not be located immediately below a socket-outlet.

- Do not use this device in the immediate surroundings of a bath, shower or swimming pool.

USE - Assembly of the foot support

The two support feet must be fitted by using the screws, before you use the convector heater. Please see figure 2.

Technical line drawing of a mechanical component with arrows indicating assembly or movement (no text or symbols)

USE - Location

Place the convector heater on a stable surface in the room to be heated. The heater heats the air flowing past the appliance. For this reason, the best place for the convector heater is 20 to 25 cm in front of a window. An air flow is generated by the cooling of air passing the window and the heating of air passing the convector heater.

Make sure that air can pass through the heater easily. For this reason the top and bottom of the convector heater must always remain unobstructed. Never hang clothing, etc., over the convector heater to dry. The heat produced by the heater could readily result in a fire.

USE

1. Rotate the thermostat dial to "O".
2. Make sure the function dial is set to "0".
3. Insert the plug into the plug socket.

4. Use the function dial to select the desired setting.
   Button a = 1250Watt
   Button b = 750Watt
   Button a+b = 2000Watt

5. Rotate the thermostat dial towards the "MAX" setting. The appliance will turn itself on, a click will be heard and the On/Off indicator light will be lit. The temperature is increased by turning the thermostat dial further.

6. Switch on the turbo fan if you wish to distribute the heat through the room quickly. You can also use the turbo fan to distribute cold air. By only switching on the turbo button.
7. Switch the appliance off after use by turning the function dial to the "0" position and remove the plug from the wall socket. Set the thermostat dial to the "O" setting again.

To find the ideal thermostat setting, rotate the thermostat dial clockwise as far as possible. Once the room has reached the desired temperature, slowly rotate the dial anticlockwise until a click is heard. The appliance will then turn itself off. The temperature control will ensure that the room remains at the set temperature.

• Never cover the air inlet or the air outlet.

The thermostat switches off the heating element and the turbo fan once the desired temperature has been reached.

- The convector heater is fitted with an overheating safeguard. The convector heater will be switched off automatically if the appliance's internal temperature becomes too high. The overheating safeguard will be disabled once the appliance has cooled down sufficiently and the convector heater can then be used again.

CLEANING AND MAINTENANCE

• Remove the plug from the plug socket and allow the convector heater to cool down.
• Clean the convector heater with a damp cloth. If necessary, use a little washing-up liquid to clean the convector heater. Make sure no moisture enters the convector heater.
  • Dry the appliance thoroughly after cleaning.
• Never immerse the appliance in water.

Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

THE ENVIRONMENT

• Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.
When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.
- The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
- Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.
b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.
c. Connection to a mains voltage other than the voltage specified on the type plate.
d. Unauthorized modifications.
e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:
   a. Losses incurred during transport.
   b. The removal or changing of the appliance's serial number.
2. The guarantee does not cover power cords, lamps or glass parts.
3. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.
4. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
5. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department: www.bestron.com/service

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• RoHS – Directive 2011/65/EU

Handwritten signature or scribble on a line, likely a personal autograph or document

R. Neyman
Quality control
