Brand	Bestron
Model	AHH1200
Product type	Halogen heater (radiant heater)
Use	Household only
Power supply	220-240 V, 50-60 Hz (standard estimate)
Power	Not specified (estimated 1200-2000 W depending on model)
Main functions	Oscillation, upper and lower heating element, on/off switch
Installation	Flat and stable surface, clearance of 50 cm on sides and above, 120 cm in front
Safety	Anti-tip device, overheating protection (do not cover)
Cleaning and maintenance	Unplug and cool down, clean exterior with damp cloth, do not immerse
Warranty	60 months (manufacturing defects), excluding improper use
After-sales service	Contact the seller or Bestron service (www.bestron.com/service)
Spare parts	Not mentioned, contact service
Environment	Recycling at end of life, do not dispose of with household waste

Frequently Asked Questions - AHH1200 BESTRON

What type of heater is the Bestron AHH1200?

The Bestron AHH1200 is an oscillating halogen heater designed for domestic use.

How to turn on the heater and adjust the heat?

Use the on/off switch to turn on the appliance. Press the 'Upper heating element' and 'Lower heating element' buttons to activate heating levels. The oscillation function button activates oscillation.

Does the heater have a tip-over safety device?

Yes, an anti-tip safety device is located under the base. If the appliance is not level, it shuts off automatically.

Can I use the heater in a bathroom?

No, the appliance should not be used in damp rooms. Avoid any contact with water.

How to clean the Bestron AHH1200?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth, then wipe with a soft cloth. Never immerse the appliance, cord, or plug.

What is the warranty period?

The warranty is 60 months (5 years) from the date of purchase, covering manufacturing defects. It does not apply in case of improper use.

What to do if the heater does not work?

First check the power supply. If the problem persists, do not repair it yourself. Contact Bestron after-sales service via www.bestron.com/service.

Can the heater be used outdoors?

Be cautious if used outdoors, but avoid damp rooms. The appliance is designed for indoor use.

How to recycle the heater at end of life?

Do not dispose of it with household waste. Take it to a collection center for electrical and electronic equipment. Consult your local council.

What clearances are needed around the heater?

Leave a clearance of 50 cm on the sides and above, and 120 cm in front of the appliance to avoid overheating.

USER MANUAL AHH1200 BESTRON

Exterior view of a black and white portable solar heating tower with mesh grille and control knobs (no visible text or symbols)

• Dieses Produkt ist nur für gut isolierte Räume oder für den gelegentlichen Gebrauch geeignet
• Ce produit ne peut être utilisé que dans des locaux bien isolés ou de manière occasionnelle
• Dit product is uitsluitend geschikt voor goed geïsoleerde plaatsen of voor Incidenteel gebruik
  • This product is only suitable for well insulated spaces or occasional use
• Il presente prodotto è adatto solo a ambienti correttamente isolati o ad un uso occasionale
• Este producto está indicado únicamente en lugares abrigados o para una utilización puntual

AHH1200 INSTRUCTION MANUAL

R. Neyman Quality control

FUNKTION - Allgemein

Mechanical assembly diagram showing a component with arrows indicating motion or force direction (no text or symbols present)

DÉCLARATION DE CONFORMITÉ CE

R. Neyman

Contrôle qualité

Mechanical assembly diagram showing a component with arrows indicating motion or force direction (no text or symbols present)

FONCTIONNEMENT - Utilisation

WAT U MOET WETEN OVER DIT APPARAAT

R. Neyman

Quality control

WERKING - Algemeen

Mechanical assembly diagram showing a component with arrows indicating motion or force direction (no text or symbols present)

WERKING - Gebruik

Congratulations with the purchase of this Bestron product. These instructions tell you how the product works and how to use it. Read the instructions carefully before you start using the appliance. Only use the appliance in the manner described in the instructions. Keep these instructions in a safe place for future reference.

Defects:

If the appliance is defective, do not try to repair it yourself. Always have a qualified mechanic carry out any repairs.

Children:

• This appliance must be kept out of reach of children under the age of three, unless they are constantly supervised.
• Children between the ages of 3 and 8 are only allowed to switch this device on and off, provided that it is firmly secured and installed in a normal position, and that the children are supervised or have received instructions on how the appliance works and its safety and that they are aware of the potential dangers that may occur.
• Children between the ages of 3 and 8 are not allowed to connect or adjust the appliance.
  • Children are not allowed to clean and maintain the appliance.
• Keep an eye on children to ensure that they do not play with the appliance.

WHAT YOU SHOULD KNOW ABOUT ELECTRICAL APPLIANCES

• Check that the mains voltage corresponds with that shown on the rating plate of an electrical appliance before you use it.
• Check that the socket to which you connect the electrical appliance is earthed.
  • Always install electrical appliances on a stable and level surface where it cannot fall over.
• Certain parts of an electrical appliance may become warm or sometimes hot. Do not touch them as you may burn yourself. Particular attention has to be given where children and vulnerable people are present.
  • Make sure your hands are dry when you touch an electrical appliance, a cord or a plug.
• Electrical appliances must be able to lose their heat to avoid fire hazards. Therefore, make sure that the appliance has sufficient clearance around it and that it does not come into contact with flammable materials. Electrical appliances must never be covered.

• Make sure that electrical appliances, cords or plugs do not come into contact with water.
- Never immerse electrical appliances, cords or plugs in water or any other liquid.
- Do not touch electrical appliances if they have fallen in the water. Immediately pull the plug out of the socket. Stop using the appliance.
• Make sure that electrical appliances, cords and plugs do not come into contact with heat sources, such as a hot hob or open fire.
- Never let cords hang over the edge of the sink, a worktop or a table.
• Always remove plug from the socket when you are not using the electrical appliance.
- Remove the plug from the socket by pulling the plug itself and not the cord.
- Regularly check if the cord of the electrical appliance is not damaged. Do not use the electrical appliance if the cord shows signs of damage. If the cord is damaged, it should be replaced by the manufacturer, a technical service provider or a person with an equivalent qualification, to avoid any danger.
- The appliance may not be switched on with the aid of an external time switch, or by a separate system with remote control.

WHAT YOU SHOULD KNOW ABOUT THIS APPLIANCE

• Be careful when using the appliance outdoors.
• Never use the appliance in damp or wet locations.
• Thoroughly clean the appliance after use (see Cleaning and Maintenance).
  • Take care that inflammable objects do not get in touch with warm air of the fan heater.
• Do not insert objects through the grille.
• Use the appliance only in a vertical position.
• Do not place the fan heater directly beneath the wall socket or on deep ply carpet.
• Keep a free space of 50 cm besides and above the appliance and 120 cm in front of the appliance.

In order to avoid overheating, do not cover the device!

ENVIRONMENT

- Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

- Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

• The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.

- Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

CE DECLARATION OF CONFORMITY

This product meets the requirements of European guidelines.

R. Neyman

Quality control

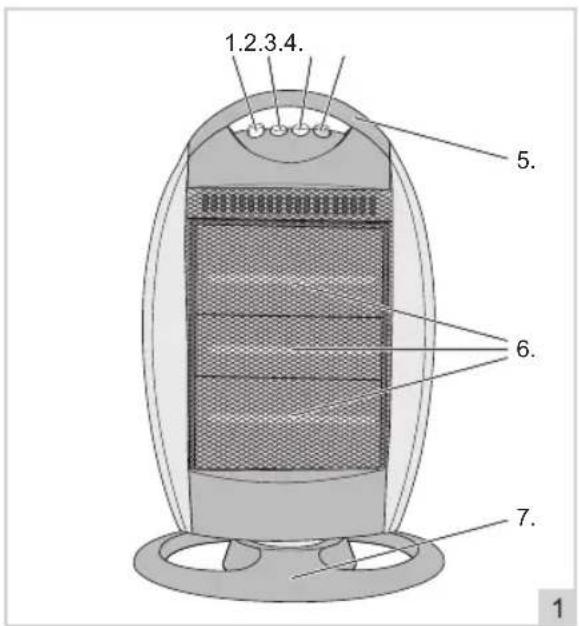

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

1. Swing function button
2. Button heater below
3. Button heater above
4. On / off switch
5. Handle
6. Heating elements
7. Foot

OPERATION - Before first use

Remove the device from the packaging and remove all the packaging materials.

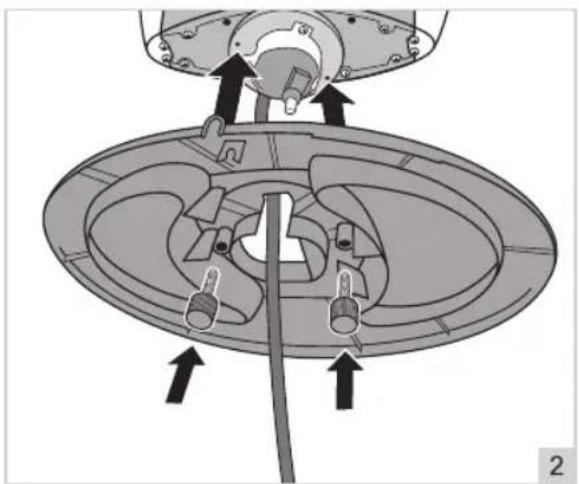

OPERATION - Assembly

1. Make sure that the heater's power cord runs through the opening, with the plug at the bottom side of the foot (See figure 2).
2. Use the two screws to mount the foot to the bottom of the heater (See figure 2).
3. Place the power cord in the notch under the foot.

Mechanical assembly diagram showing a component with arrows indicating motion or force direction (no text or symbols present)

OPERATION - Use

1. Place the halogen heater on a stable surface and ensure that the grilles for the supply and removal of the air are unobstructed.
2. Insert the plug into the plug socket.
3. Select one or more of the following functions:

off switch and middle heating element

Top heating element
Bloom heating element

1. Press the swing function button if you want the (warm) air to be distributed throughout the room. The heater will then swing back and forth.

WARNING:

• The anti-tipping safety device is located under the heater's foot. If the foot of the heater is not placed on the surface correctly, then the safety device will turn off the heater.
• Please do not cover the appliance.

CLEANING AND MAINTENANCE

1. Unplug the appliance and let the appliance cool down.
2. Clean the outside of the housing with a damp cloth.
3. Wipe the housing dry with a soft cloth.

WARNING:

• Never immerse the appliance, plug or power cord in water.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

WARRANTY CONDITIONS

Bestron offers a 60-month warranty on this equipment against defects resulting from manufacturing and/or material errors, subject to the following conditions.

1. No labour or material costs will be charged during this warranty period.
2. Any repairs carried out under the warranty will not extend the warranty period.
3. Faulty parts, or in the event of exchange, the faulty equipment itself, will automatically become the property of Bestron.
4. The warranty is valid for the first buyer only and is non-transferable.
5. The warranty is not valid for damage caused by:

- Accidents

• Improper use
• Wear and tear
• Neglect
• Faulty installation
• Connection to a different mains voltage than indicated on the type plate
• Unauthorised changes
  • Repairs carried out by unqualified third parties
• Use in violation with the applicable statutory, technical or safety standards

• Careless transport without suitable packaging or other protection

• Warranty cannot be claimed:

• For damage during transport
- If the serial number of the appliance is removed or changed

1. Items excluded from warranty are:

2. Cords

3. Lamps

- Glass parts

- Filters

1. The warranty does not entitle the purchaser to compensation for any damage other than replacement or repair of the faulty parts. Bestron cannot in any event be held liable for any indirect or consequential losses caused by or in relation to the equipment it has provided.

2. Claims under a warranty may only be submitted to your (online) retailer or directly to the Bestron Service Department. Never send items without being asked to. We may refuse the parcel and you will be liable for the costs. Contact us first and we tell you how the appliance should be packaged and sent. Each claim under a warranty must be accompanied by the relevant receipt.

SERVICE

If an unexpected problem occurs, please contact the BESTRON service department:

www.bestron.com/service
