STANDBY/ON Button STANDBY: When placed into the standby mode, the main power flow is cut and the unit is no longer fully operational.

STANDBY/ON Indicator: The indicator is lit red when the unit is in the standby mode and is lit blue when it is in the power-on mode.

CAUTION The  switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2-2a_A_En

Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit are the same. Illustrations shown in this manual are for the PDP-LX508D/PDP-LX5080D unless otherwise specified.

Important user information In order to obtain maximum enjoyment from this Pioneer PDP-LX608D/PDP-LX6080D/PDP-LX508D/PDP-LX5080D plasma television, please first read this information carefully. With the Pioneer PDP-LX608D/PDP-LX6080D/PDP-LX508D/PDPLX5080D, you can be assured of a high quality plasma television with long-life and high reliability. To achieve images of exceptional quality, this Pioneer plasma television incorporates state-of-the-art design and construction, as well as very precise and highly advanced technology. The Pioneer PDP-LX608D/PDP-LX6080D/PDP-LX508D/PDPLX5080D plasma television incorporates the latest in colour filter technology: Direct Colour Filter. This improves the colour /picture reproduction of these models as compared to previous models. It also eliminates the need for a physical glass panel to be placed in front of the plasma display, which furthers Pioneer’s continued goal of reducing environmental waste in consumer electronics, now during the manufacturing process and in the future during the recycling process. Over the course of its lifetime, the luminosity of the Pioneer PDP-LX608D/PDP-LX6080D/PDP-LX508D/PDP-LX5080D plasma television will diminish very slowly, such as with all phosphor-based screens (for example, a traditional tube-type television). To enjoy beautiful and bright images on your Pioneer plasma television for a long time, please carefully read and follow the usage guidelines below:

Usage guidelines All phosphor-based screens (including conventional tube-type televisions) can be affected by displaying static images for a prolonged period. Plasma televisions are no exception to this rule. After-image and permanent effects on the screen can be avoided by taking some basic precautions. By following the recommendations listed below, you can ensure longer and satisfactory results from your plasma television: • Whenever possible, avoid frequently displaying the same image or virtually still moving pictures (e.g. closed-captioned images or video game images which have static portions). • Do not display Teletext for a prolonged period of time. • Avoid viewing the on-screen display for extended periods, from a decoder, DVD player, VCR and all other components. • Do not leave the same picture freeze-framed or paused continuously over a long period of time, when using the still picture mode from a TV, VCR, DVD player or any other component. • Images which have both very bright areas and very dark areas side by side should not be displayed for a prolonged period of time. • When playing a video game, the “GAME” mode setting within “AV Selection” is strongly recommended. However, please do not use this mode for long periods of time. • After playing a game or displaying any still image, it is best to view a normal moving picture in the “WIDE” or “FULL” screen setting for more than three times the length of the previous still/ moving image. • After using the plasma television, always switch the display to “STANDBY” mode.

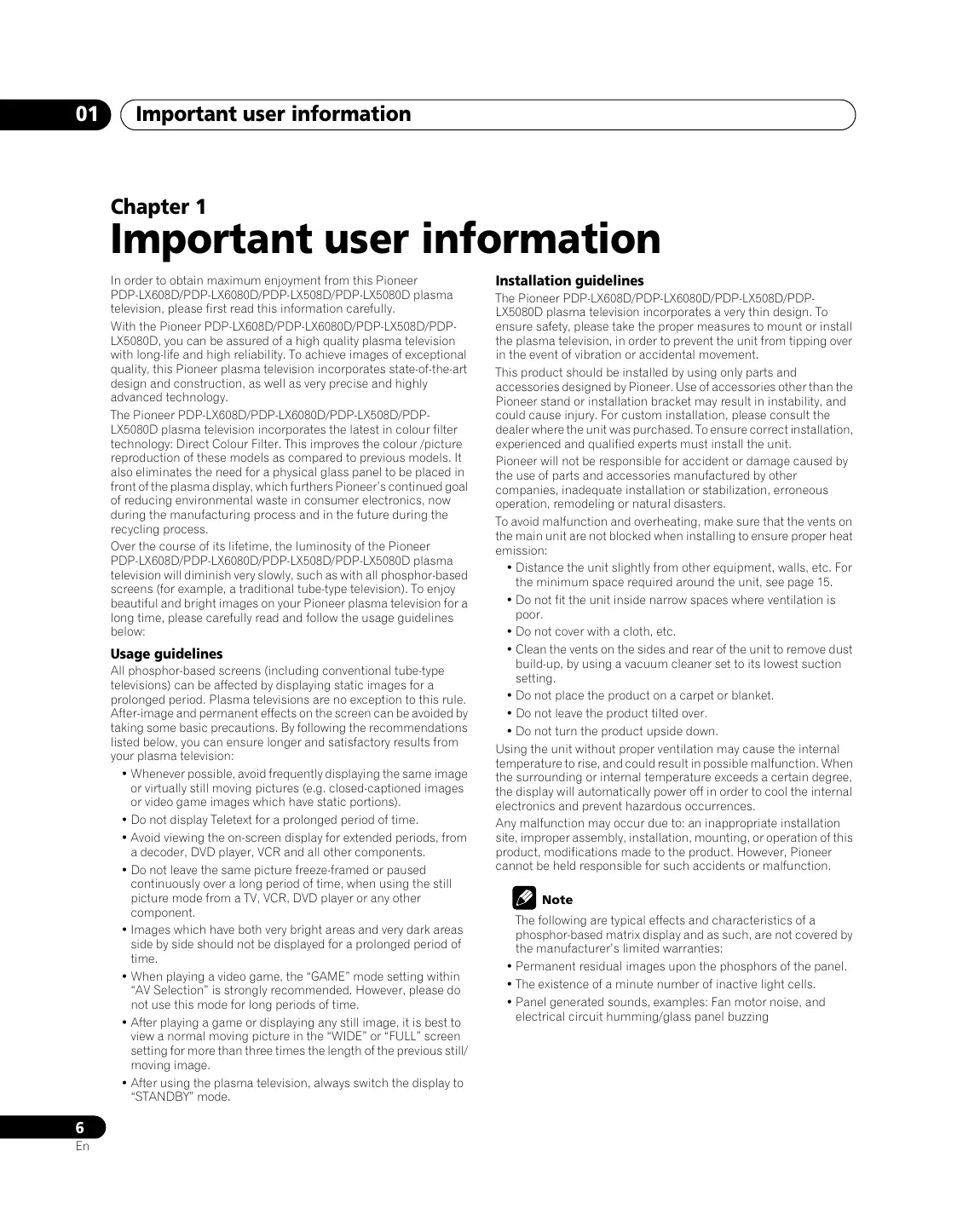

Installation guidelines The Pioneer PDP-LX608D/PDP-LX6080D/PDP-LX508D/PDPLX5080D plasma television incorporates a very thin design. To ensure safety, please take the proper measures to mount or install the plasma television, in order to prevent the unit from tipping over in the event of vibration or accidental movement. This product should be installed by using only parts and accessories designed by Pioneer. Use of accessories other than the Pioneer stand or installation bracket may result in instability, and could cause injury. For custom installation, please consult the dealer where the unit was purchased. To ensure correct installation, experienced and qualified experts must install the unit. Pioneer will not be responsible for accident or damage caused by the use of parts and accessories manufactured by other companies, inadequate installation or stabilization, erroneous operation, remodeling or natural disasters. To avoid malfunction and overheating, make sure that the vents on the main unit are not blocked when installing to ensure proper heat emission: • Distance the unit slightly from other equipment, walls, etc. For the minimum space required around the unit, see page 15. • Do not fit the unit inside narrow spaces where ventilation is poor. • Do not cover with a cloth, etc. • Clean the vents on the sides and rear of the unit to remove dust build-up, by using a vacuum cleaner set to its lowest suction setting. • Do not place the product on a carpet or blanket. • Do not leave the product tilted over. • Do not turn the product upside down. Using the unit without proper ventilation may cause the internal temperature to rise, and could result in possible malfunction. When the surrounding or internal temperature exceeds a certain degree, the display will automatically power off in order to cool the internal electronics and prevent hazardous occurrences. Any malfunction may occur due to: an inappropriate installation site, improper assembly, installation, mounting, or operation of this product, modifications made to the product. However, Pioneer cannot be held responsible for such accidents or malfunction. Note The following are typical effects and characteristics of a phosphor-based matrix display and as such, are not covered by the manufacturer’s limited warranties: • Permanent residual images upon the phosphors of the panel. • The existence of a minute number of inactive light cells. • Panel generated sounds, examples: Fan motor noise, and electrical circuit humming/glass panel buzzing

Important user information

• Pioneer bears no responsibility for any damage arising from incorrect use of the product by you or other people, malfunctions when in use, other product related problems, and use of the product except in cases where the company must be liable.

Plasma television protection function When still images (such as photos and computer images) stay on the screen for an extended period of time, the screen will be slightly dimmed. This is because the protection function of the plasma television automatically adjusts the brightness to protect the screen when detecting still images; so this does not designate malfunction. The screen is dimmed when a still image is detected for about three minutes.

Information of pixel defect Plasma television displays information using pixels. Pioneer plasma television panels contain a very large number of pixels. (Depending on the panel size; over 3.1 million pixels for a 50 inch/60 inch display). All Pioneer display panels are manufactured using a very high level of ultra-precision technology and undergo individual quality control. In rare cases, some pixels can be permanently switched off, or on, resulting in either a black or coloured pixel permanently fixed on the screen. This effect is common to all plasma televisions because it is a consequence of the technology. If the defective pixels are visible at a normal viewing distance of between 2.5 meters and 3.5 meters whilst viewing a normal broadcast (i.e. not a test card, still image or single colour display) please contact the supplying dealer. If, however, they can only be seen close up or during single colour displays then this is considered normal for this technology.

Infrared rays The plasma television releases infrared rays because of its characteristics. Depending on how the plasma television is used, the remote controls of nearby equipment may be adversely affected or wireless headphones using infrared rays are interfered by noise. If this is the case, place that equipment at a location where its remote control sensor is not affected.

Radio interference While this product meets the required specifications, it emits a small amount of noise. If you place such equipment as an AM radio, personal computer, and VCR close to this product, that equipment may be interfered. If this happens, place that equipment far enough from this product.

Plasma television driving sound The screen of the plasma television is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may make you hear buzz sound or electrical circuit humming from the plasma television.

Do not attach such items as labels and tape to the product This may result in the discolouration or scratch of the cabinet.

When not using the product for a long period of time If you do not use the product for a long period of time, the functions of the product may be adversely affected. Switch on and run the product occasionally.

Condensation Condensation may take place on the surface or inside of the product when the product is rapidly moved from a cold place to a warm place or just after a heater is switched on in winter morning, for example. When condensation takes place, do not switch on the product and wait until condensation disappears. Using the product with condensation may result in malfunction.

Cleaning the surface of the screen and the glossy surface of the front cabinet When cleaning the surface of the screen or the glossy surface of the front cabinet, gently wipe it with a dry soft cloth; the supplied cleaning cloth or other similar cloths (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the screen hard, the surface of the product will be scratched. If you clean the surface of the screen with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Cleaning the cabinet When cleaning the cabinet of this product, gently wipe it with a clean soft cloth (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the cabinet hard, the surface of the cabinet will be scratched. The cabinet of this product is mostly composed of plastic. Do not use chemicals such as benzene or thinner to clean the cabinet. Using these chemicals may result in quality deterioration or coating removal. Do not expose the product to volatile gas or fluid such as pesticide. Do not make the product contact with rubber or vinyl products for a long period of time. The effect of plasticizer in the plastic may result in quality deterioration or coating removal. If you clean the surface of the cabinet with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Handles at the rear of the plasma television Do not remove the handles from the rear of the plasma television. When moving the plasma television, ask another person for help and use the handles attached to the rear of the plasma television. Do not move the plasma television by holding only a single handle. Do not use the handles to hang the product when installing or carrying the product, for example. Do not use the handles for the purpose of preventing the product from tilting over.

Fan motor noise The rotation speed of the cooling fan motor increases when the ambient temperature of the plasma television becomes high. You may hear the sound of the fan motor at that time.

To use this product for a long period of time The Energy Save function can maintain efficiency of the screen for a long period of time. Setting the Energy Save function to “Mode 1” is recommended in order to maintain the efficiency of the screen for a long period of time.

Panel sticking and after-image lag Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

After-image lagging due to remaining electrical load When image patterns with very high peak luminance are displayed for more than one minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

After-image (lag image) due to burning Avoid displaying the same image on the plasma television continuously over a long period of time. If the same image is displayed continuously for a long period, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely. Note • When a still image, such as a programme menu, is displayed for 5 minutes to 10 minutes, the system automatically turns the image off to prevent damage from screen burning. • To prevent screen burning, the display position is automatically changed imperceptibly when watching plasma television (see Orbiter on page 55).

Preventing damage from screen burning • We recommend that you enjoy watching images displayed in full screen, except when doing so may result in copyright infringement (see page 53). • Set the Side Mask detection function to “On”, the High Definition 16:9 aspect ratio images containing side masks will be detected and the side masks will be added automatically or the image displayed in full screen, leading to more effective countermeasures taken for the screen burning (see Detecting side masks on page 54).

Safety precautions Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your product, please read the following precautions carefully before using the product. 1. Read instructions - All operating instructions must be read and understood before the product is operated. 2. Keep this manual in a safe place - These safety and operating instructions must be kept in a safe place for future reference. 3. Observe warnings - All warnings on the product and in the instructions must be observed closely. 4. Follow instructions - All operating instructions must be followed. 5. Cleaning - Unplug the power cord from the AC outlet before cleaning the product. To clean the product, use the supplied cleaning cloth or other soft clothes (e.g., cotton, flannel). Do not use liquid cleaners or aerosol cleaners. 6. Attachments - Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents. 7. Water and moisture - Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement. 8. Stand - Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer. 9. When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

10. Ventilation - The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed. 11. Power source - This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

12. Power cord protection - The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product. 13. The plasma television used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the plasma television breaks. 14. Overloading - Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock. 15. Entering of objects and liquids - Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/ or short internal parts. For the same reason, do not spill water or liquid on the product. 16. Servicing - Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing. 17. Repair - If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs. a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing. 18. Replacement parts - In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger. 19. Safety checks - Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition. 20. Wall or ceiling mounting - When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. 21. Heat sources - Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers). 22. Unplug the power cord from the AC outlet before installing the speakers. 23. Never expose the screen of the plasma television to a strong impact, for example, by hitting it. The screen may be broken, resulting in fire or personal injury. 24. Do not expose the plasma television to direct sunlight for a long period of time. The optical characteristics of the front protection panel changes, resulting in discoloration or warp. 25. The plasma television weighs about 55.5 kg (122.4 lbs.) for the PDP-LX608D/PDP-LX6080D and about 38.3 kg (84.4 lbs.) for the PDP-LX508D/PDP-LX5080D. Because it has small depth and is unstable, unpack, carry, and install the product with one more person at least and use the handles.

Observe the following precautions when installing with any items such as the optional stand.

When using the optional stand, brackets, or equivalent items • Ask your dealer to perform the installation. • Be sure to use the supplied bolts. • For details, see the instruction manual that comes with the optional stand (or equivalent items).

When using other items • Consult your dealer. • The following mounting holes can be used for the installation:

Rear view (PDP-LX608D/PDP-LX6080D)

Note • It is strongly recommended to use the optional Pioneer mounting products. • Pioneer shall not be liable for any personal injury or product damage that results from the use of mounting items other than the optional Pioneer products. Mounting holes

• Be sure to use four or more mounting holes symmetrical to the vertical and horizontal median lines. • Use M8 screws, which go 12 mm to 18 mm in depth from the mounting surface of the plasma television. See the side view shown below. • Be careful not to block the ventilation opening at the rear of the plasma television. • Be sure to install the plasma television on a flat surface because it contains glass. • The screw holes other than the illustrations on the left are to be used only for the specified products. Never use them for mounting non-specified products. • Do not mount or remove the plasma television to or from the stand, with speakers attached.

Side view Mounting surface

Mounting bracket (or equivalent) Plasma television

Supplied accessories

Supplied accessories Check that all of the following accessories are supplied in the box.

Terminal position sheet (for use when mounting the plasma television on the wall) (PDP-LX608D/PDP-LX6080D only) Remote control unit Warranty card

AA size battery x 2 (for remote control unit) Operating instructions x 2 Ferrite core

Cable tie (for ferrite core) Power cable

Only the power cable appropriate for your country or region is supplied:

For Europe, except UK and Republic of Ireland

Cleaning cloth For UK and Republic of Ireland

Part names Plasma television (Front) Side

Viewed from the underside of the display Viewed from the front of the display The terminals on side panels are common to the PDP-LX608D/PDPLX6080D and PDP-LX508D/PDP-LX5080D. 1

 button (This button is located on the bottom of the side panel of the plasma television for the PDP-LX608D/PDPLX6080D and at the bottom on the rear panel for the PDPLX508D/PDP-LX5080D. (See 1 on page 13.) If the button is off, the power will not turn on even when , 0 to 9 on the remote control unit or STANDBY/ON on the plasma television is pressed. To turn on the power, press . (You can aslo slide  up for PDP-LX608D/PDP-LX6080D)). POWER ON indicator STANDBY indicator TIMER indicator • The TIMER indicator lights up when one or more DTV programmes are preset for watching or recording (see pages 47 to 49).

Plasma television (Rear) PDP-LX608D/PDP-LX6080D

* For exact terminal positions, refer to the terminal position sheet located near the terminal compartment.

The terminals on the rear panel are common to the PDP-LX608D/PDP-LX6080D and PDP-LX508D/PDP-LX5080D.

 button AC IN terminal RS-232C terminal (used for factory setup) CONTROL OUT terminal (supports SR+) INPUT 1 terminal (HDMI) INPUT 3 terminal (HDMI) INPUT 4 terminal (HDMI) PC INPUT terminal (Analogue RGB) COMMON INTERFACE slot • For a CA Module with a smart card 10 ANT (Antenna) input terminal • Power can be supplied through this terminal 1 2 3 4 5 6 7 8 9

11 12 13 14 15 16 17 18 19 20

INPUT 1 terminal (SCART) INPUT 2 terminal (SCART) INPUT 3 terminal (SCART) INPUT 2 terminals (Audio) INPUT 2 terminals (COMPONENT VIDEO: Y, PB, PR) AUDIO OUT terminals SUBWOOFER output terminal PC INPUT terminal (Audio) DIGITAL OUT terminal (OPTICAL) SPEAKERS terminals (right/left)

Remote control unit This section describes the functions of the buttons available when the TV mode has been selected by using the SELECT button. For the buttons controlling other equipment, see Controlling other equipment using the supplied remote control unit starting from page 69.

c: Switches the screen mode among 2-screen, picture-inpicture, and single-screen.

P+/P–: TV/External input mode: Selects a channel.

TV/DTV: Switches between the TV and DTV input modes. SELECT: Switches the selection among TV, STB, DVD/DVR,

w/x: Teletext mode: Selects a page.

and VCR, so that you can control other connected equipment, using the supplied remote control unit.

10 TV, STB, DVD/DVR, VCR: These indicators show the 1

current selection and status when you control other connected equipment, using the supplied remote control unit.

TV/DTV P SELECT TV DVD/ SOURCE STB DVR VCR

15 [: Jumps to Teletext subtitle page. Turns subtitle on and off in DTV input mode depending on the broadcast.

: Moves the location of the small screen when in the picture-in-picture mode.

: Switches between the two screens when in the 2-screen or picture-in-picture mode.

: Turns on the power to the plasma television or places it

INPUT: Selects an input source of the plasma television.

image. Press again to cancel the function.

(“INPUT 1”, “INPUT 2”, “INPUT 3”, “INPUT 4”)

: Teletext mode: Stops updating Teletext pages. Press again to release the hold mode.

into the standby mode.

0 to 9: TV/External input mode: Selects a channel. Teletext mode: Selects a page. Turns the power on when the STANDBY indicator lights red.

PC: Selects the PC terminal as an input source. INPUT 5: Selects INPUT 5 as the input source of the plasma television.

28 f: Selects the screen size. 29 d: TV/External input mode: Freezes a frame from a moving

Note • When using the remote control unit, point it at the plasma television.

Preparation Installing the plasma television

Moving the plasma television When installing on a rack, etc., hold the plasma television as shown below. Because the plasma television is heavy, be sure to have someone help you when moving it.

(for PDP-LX608D/PDP-LX6080D)

Over 50 cm Over 10 cm

Location • Avoid direct sunlight. Maintain adequate ventilation.

(for PDP-LX508D/PDP-LX5080D)

Caution • If you do not leave sufficient space above the plasma television, it will not receive enough ventilation and will not operate properly. • Pioneer will not be responsible for accident or damage caused by inadequate installation or stabilization, erroneous operation, remodeling or natural disasters. Note • Allow enough space around the upper and back parts when installing to ensure adequate ventilation of the rear of the unit. • Be sure to install the plasma television in a flat, stable location.

Using the optional Pioneer stand For details on installation, refer to the instruction manual supplied with the stand.

Using the optional Pioneer speakers For details on installation, refer to the instruction manual supplied with the speakers.

Note • Do not use the speaker to support the weight of the plasma television. • Do not hold the plasma television by the speaker mounting fittings.

Preventing the plasma television from falling over After installing the stand, be sure to take special care to ensure that the plasma television will not fall over and is stabilized to both the wall and rack.

Stabilizing on a table or rack Stabilize the plasma television as shown in the diagram using the plastic bands and screws supplied with the optional stand. Note

• To stabilize the plasma television on a table or rack, also use commercially available wood screws that have a nominal diameter of 4 mm and that are at least 20 mm long.

Drill a hole in the middle at the rear of the tabletop panel before using a wood screw. Perform this work the same way on the left and right sides.

Using a wall for stabilization 1 Attach falling prevention bolts (hooks) to the plasma television.

2 Use strong cords to stabilize it appropriately and firmly to a wall, pillar, or other sturdy element. Perform this work in the same way on the left and right sides. Use hooks, cords and fittings that are available on the market. Recommended hook: Nominal diameter 8 mm, length 12 mm to 18 mm

12 mm to 18 mm 20 mm min.

Drill a hole in the middle at the rear of the tabletop panel before using a wood screw. Perform this work the same way on the left and right sides.

• A table or rack with adequate strength should always be used to support the plasma television. Failure to do so could result in personal injury and physical damage. • When installing the plasma television, please take the necessary safety measures to prevent it from falling or overturning in case of emergencies, such as earthquakes, or of accidents. • If you do not take these precautions, the plasma television could fall down and cause injury. • The screws, hooks, cords and other fittings that you use to secure the plasma television to prevent it from overturning will vary according to the composition and thickness of the surface to which it will be attached. • Select the appropriate screws, hooks, cords, and other fittings after first inspecting the surface carefully to determine its thickness and composition and after consulting a professional installer if necessary.

Basic connections Connecting the antenna To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable.

• Connect a 75-ohm coaxial cable (commercially available) to the ANT terminal. • If “Aerial Power” setting is enabled, use an indoor antenna with signal amplifier, 5 V 30 mA.

Antenna cable (commercially available)

If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC169-2), plug it into the antenna terminal at the rear of the plasma television. Note • If the antenna is not connected correctly, the quality of reception may be impaired. If images are not displaying correctly, check whether the antenna connection is correct or not.

Routing cables When the speaker is installed under the plasma television panel (PDP-LX508D/PDP-LX5080D): Speaker cable

Caution • When the “Aerial Power” setting is on, directly connect the aerial to the ANT input terminal at the rear of the plasma television. Connecting any device between the aerial and plasma television may cause damage to the device.

Note • Use the supplied bead bands as necessary. • When tidying up your speaker cables, make sure to bundle them so that they are not subjected to any pressure.

Attaching speed clamps to the main unit

Attaching the ferrite core

Use the speed clamps as necessary to route the connecting cables. The diagrams below show the location of the holes on the rear of the plasma television.

Attach the accessory ferrite core to the end of the power cord as shown in the accompanying illustration. Use the provided cable tie to prevent the ferrite core from slipping on the table. If you do not do this, the plasma television will not conform to mandatory CE standards.

(PDP-LX608D/PDP-LX6080D)

Attaching and removing speed clamps Insert [1] into an appropriate hole on the rear of the plasma television and snap [2] into the back of [1] to lock the clamp.

AC power cord As close as possible

Connecting the power cord • Speed clamps are designed to be difficult to undo once in place. Please attach them carefully. • Use pliers to twist the clamp 90º, pulling outward. The clamp may deteriorate over time and become damaged if removed. • Be careful not to subject any connecting cables to strain.

Europe, except UK and Republic of Ireland

Note • Use the speed clamps as necessary.

UK and Republic of Ireland

Note • Disconnect the power cord from the power outlet when the plasma television is not going to be used for a long period of time. • Insert the power plug in the AC outlet, after all other components are connected.

Inserting batteries 1

Open the battery cover.

Operating range of the remote control unit

Preparing the remote control unit

Operate the remote control unit while pointing it toward the remote control sensor located at the bottom right of the front panel of the plasma television. The distance from the remote control sensor must be within 7 m and the angle relative to the sensor must be within 30 degrees in the right, left, upward, or downward direction.

2 Load the supplied two AA size batteries while inserting their respective negative polarity (–) ends first.

Remote control sensor

Place batteries with their terminals corresponding to the (+) and (–) indicators in the battery compartment. 3

Close the battery cover. Note • For remote control sensor locations, see Part names on page 12. Caution

Caution Improper use of batteries can result in chemical leakage or an explosion. Be sure to follow the instructions below. • When you replace the batteries, use manganese or alkaline ones. • Place the batteries with their terminals corresponding to the (+) and (–) indicators. • Do not mix batteries of different types. Different types of batteries have different characteristics. • Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries. • Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth. • The batteries supplied with this product may have a shorter life expectancy due to storage conditions. • If you will not use the remote control unit for an extended period of time, remove the batteries from it. • WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY WITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PUBLIC INSTITUTION’S RULES THAT APPLY IN YOUR COUNTRY/AREA.

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity. • Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit. • The remote control unit may not work properly if the remote control sensor of the plasma television is under direct sunlight or strong lighting. In such case, change the angle of the lighting or plasma television, or operate the remote control unit closer to the remote control sensor. • When any obstacle exists between the remote control unit and the remote control sensor, the remote control unit may not function. • As the batteries become empty, the remote control unit can function within a shorter distance from the remote control sensor. Replace the batteries with new ones early enough. • The plasma television emits very weak infrared rays from its screen. If you place such equipment operated through infrared remote control as a VCR nearby, that equipment may not receive commands from its remote control unit properly or entirely. If this is the case, place that equipment at a location far enough from the plasma television. • Depending on the installation environment, infrared rays from the plasma television may not allow this system to properly receive commands from the remote control unit or may shorten allowable distances between the remote control unit and the remote control sensor. The strength of infrared rays emitted from the screen differs, depending on images displayed on the screen.

Watching TV Chapter 6

Watching TV Important • Before watching broadcast channels, the built-in TV tuner must be set up. See Setting up TV channels on page 27 for how to do this.

Turning the power on •

Turn a on on the plasma television when the POWER ON and STANDBY indicators are off (see Part names on pages 12 and 13). • The system is on. • The POWER ON indicator lights up blue.

Press a or 0 to 9 on the remote control unit or STANDBY/ON on the plasma television if the STANDBY indicator lights red. • The POWER ON indicator lights up blue. • If you press 0 on the remote control unit, images from INPUT 1 will be displayed. • If you press 1 to 9, TV images will be displayed.

• It is recommended not to unplug the plasma television from a power outlet when it is not in use. When in the standby mode, the plasma television automatically receives Electronic Programme Guide and DTV Auto Update signals. • When the system is placed into standby mode, the main power flow is cut and the system is no longer fully operational. A minute flow of power feeds the system to maintain operational readiness. • If you are not going to use the plasma television for a long period of time, be sure to remove the power cord from the power outlet. • If you unplug the plasma television from a power outlet, the clock inside the plasma television will reset with certain functions, such as timer recording, are disabled. After plugging in the plasma television again, clock information is automatically obtained as you tune in a DTV programme. If you unplug the plasma television from a power outlet when a timer recording programme(s) has been registered, the plasma television may automatically tune in to the DTV programme in order to obtain clock information when you turn the power on the next time. It may take a short while until the clock information is obtained. An alert will appear when you try to tune in an analogue programme before obtaining the clock information.

Plasma television status indicators 1

The table below shows the operational status of the plasma television. You can check the current status of the system with the indicators on the plasma television.

POWER ON INFO PC System status

STANDBY The power cord of the plasma television has been disconnected. Or, the power cord of the plasma television has been connected but the a button of the plasma television is off.

TV/DTV P Power to the system is on.

Placing the system into standby Press a on the remote control unit or STANDBY/ON on the plasma television. • The STANDBY indicator lights up red. • The system enters the standby mode and the image on the screen disappears.

The system is in the standby mode.

For other than the above, see Troubleshooting on page 82. Note

Note • When a on the plasma television is off, you cannot turn the power on by pressing a or 0 to 9 on the remote control unit or STANDBY/ON on the plasma television.

• You can select “Auto”, “High”, “Mid” or “Low” for the brightness of the POWER ON indicator. When “Auto” is selected, the brightness of the indicator changes to “High”, “Mid” or “Low” to match the brightness level of the viewing area. For details, see Blue LED Dimmer on page 55.

Using 0 to 9 on the remote control unit

Use the remote control or the control panel on the right-hand side of the plasma television to change channels. • Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See Controlling other equipment using the supplied remote control unit on page 69.

• Select channels directly by pressing buttons 0 to 9. For example: Press 2 to select channel 2 (one-digit channel). Press 1 then 2 to select channel 12 (two-digit channel). While in DTV mode, press 1, 2 and 3 to select channel 123 (threedigit channel).

Switching between the TV and DTV modes • Press INPUT on the plasma television or TV/DTV on the remote control unit to select the DTV or TV input mode. 1

Note • In standby, when you press 0, the power turns on and images come from the INPUT 1 source. Or, when you press any button from 1 to 9, TV images display.

Tuning to your favourite (analogue) channels If you have registered your favourite (analogue) channels, selecting from the registered list may be the easiest way to tune to those channels. 1 While watching analogue broadcasts, press ENTER to call up the Favourite Channel List.

SOURCE STB DVR VCR Favourites

Channel display 8 AAA STEREO 10:00

STANDARD FULL Using P+/P– on the remote control unit • Press P+ to increase the channel number. • Press P– to decrease the channel number. Note • CHANNEL +/– on the plasma television operates the same as P+/P–. • P+/P– cannot pick up channels that are set to skip. For Channel Skip, see steps 13 and 14 under Setting up analogue TV channels manually on page 27. • When in DTV mode, P+/P– cannot pick up digital channels that are set to skip or not registered as favourites (with the Favourite function set to “On”). See Customizing channel related settings on pages 41 and 42.

2 Select a favourite channel to tune in (/, / then ENTER). • Press RETURN to exit the Favourite Channel List. Note • You can register up to 16 analogue channels as your favourite channels. For the registration, see steps 13 and 14 under Setting up analogue TV channels manually on page 27. Make sure to select “Yes (Listed)” in step 14.

Watching TV Changing the volume and sound

The table below shows the available audio channels by broadcast audio type.

Use the remote control or the control panel on the right-hand side of the plasma television to adjust the volume. 7

INFO NICAM Broadcasts

SOURCE STB DVR VCR Using i +/i – on the remote control unit A2 Broadcasts

• VOLUME +/– on the plasma television operates the same as i +/i –.

Using e on the remote control unit 1 Press e to mute the sound. e appears on the screen.

Press e again or i + to restore the sound.

Switching the broadcast audio channel Depending on the broadcast, you can switch the audio channel.

HDMI CONTROL DISC NAVI

DVD HDD Press - to change the audio channel. mode

• In each of the sound multiplex mode selected using the - button, the display changes depending on broadcasting signals being received. • Once the MONO mode is selected, the sound remains mono even if the system receives a stereo broadcast. You must switch the mode back to  or  mode if you want to hear stereo sound again. • Selecting a sound multiplex mode while the input source is “INPUT 1” to “INPUT 5” does not change the type of sound. In this case, sound is determined by the video source.

• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See Controlling other equipment using the supplied remote control unit on page 69.

1 Press c to select the display mode. Each time you press c, the display mode is switched among 2screen, picture-in-picture, and single-screen.

Use the multiscreen functions

• In 2-screen or picture-in-picture mode, press to switch the position of the two screens shown. The left screen (in the 2-screen mode) or the larger screen (in the picture-in-picture mode) is the active screen which will be indicated by “z”. The user is allowed to operate picture and sound.

Splitting the screen Use the following procedure to select 2-screen or picture-in-picture mode. Note • Displaying a split screen for a long period of time, or for shorter periods of time everyday, may result in image retention.

• In picture-in-picture mode, press small screen anti-clockwise.

Main screen Picture-in-picture

to move the position of the

Watching TV Note • The multiscreen function cannot display images from the same input source at the same time. If you make such an attempt, a warning message appears. • The multiscreen function cannot display images from combinations of two external input sources (INPUT 1 to INPUT 5, PC). It can display images from the following combinations of input sources. - Analogue TV (or digital TV) and external source (INPUT 1 to INPUT 5, PC) • When you press HOME MENU, the single-screen mode is restored and the corresponding menu is displayed. • When in the 2-screen mode, images displayed on the right screen may look less fine, depending on the images. • While in the 2-screen or picture-in-picture mode, the analogue favourite channel list is not available. While in the 2-screen or picture-in-picture mode, the digital channel list is not available. • With headphones connected, you can listen to audio coming from the sub screen when in the 2-screen or picture-in-picture mode. For more information, see page 37.

Freezing images Use the following procedure to capture and freeze one frame from a moving image that you are watching. • Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See Controlling other equipment using the supplied remote control unit on page 69. Important • Displaying a static image for a long period of time, or for shorter periods of time everyday, may result in image retention.

HDMI CONTROL DISC NAVI DVD HDD

1 Press d. A still image appears on the right screen while a moving image is shown on the left screen.

Press d again to cancel the function. Note • You cannot freeze the picture when using the 2-screen or picture-in-picture mode. • When this function is not available, a warning message appears.

Same as the AV source

The HOME MENU Using the HOME MENU The following describes the typical procedure for setting up the menus. For the actual procedures, see the appropriate pages that describe individual functions.

Press / to select a menu item, and then press ENTER.

3 Repeat step 2 until you access the desired submenu item. The number of menu layers differs depending on the menu items. 4 Press / to select an option (or parameter), and then press ENTER. For some menu items, press / instead of /. 5

Press HOME MENU to exit the menu. Note • You can return to the upper menu levels by pressing RETURN. • Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See Controlling other equipment using the supplied remote control unit on page 69.

Setting up Setting up TV channels

Note • You can start Auto Installation from the HOME MENU after moving to another country, for example. Perform the following steps before starting Auto Installation: Press HOME MENU, select “Setup” (/ then ENTER), then “Auto Installation” (/  then ENTER). The password entry screen appears. Enter your four-digit password using buttons 0 to 9. • If no channel is found, check the antenna connections, and then retry Auto Installation.

This section describes how to automatically search for and set up TV channels.

Using Auto Installation When the plasma television is switched on for the first time after purchase, the initial auto installation is initiated. You can automatically set language, country and channels in successive operations. 1

Select “Language” (/).

Select a language (/).

Setting up analogue TV channels manually

Auto Installation Language

Use the Manual Adjust function to set up analogue TV channels manually.

3 Select “Analogue TV Setup” (/ then ENTER). The password entry screen appears. Enter your four-digit password using buttons 0 to 9. For the password, see Using a password on page 56.

You can select from among 17 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, Turkish, Norwegian, Danish, Czech, Polish and Ukrainian.

6 Select a programme number (/). You can select 1 through 99. Manual Adjust

Select a tuner type (/). • You can select among three options; “All”, “Digital”, and “Analogue”. Select “Aerial Power” (/). • Only selectable when “Digital” or “All” is selected for “Tuner Type” in step 5. If not go to step 9.

Caution • When the “Aerial Power” setting is on, directly connect the aerial to the ANT input terminal at the rear of the plasma television. Connecting any device between the aerial and plasma television may cause damage to the device. 8

Select “Search” (/).

8 Enter a frequency using buttons 0 to 9, then ENTER. You can also press / to enter a frequency. 9

Select “System” (/).

10 Select a sound system (/). You can select from among “B/G”, “D/K”, “I”, “L”, and “ L’ ”.

11 Select “Colour System” (/). 12 Select a colour system (/). You can select from among “Auto”, “PAL”, “SECAM”, and “4.43NTSC”. 13 Select “Store” (/). 14 Select “Yes”, “Yes (Listed)”, or “No” (/). Item

You can select the channel using P+/P–

Setting Child Lock Child Lock inhibits selected TV channels from being tuned and watched. 1 Repeat steps 1 to 6 provided for Reducing video noise. After selecting a channel (using Programme Entry), perform the following steps: 2 3

Select this option to register the channel as your favourite channel. You can select the channel using the Favourite Channel list and P+/P–. You cannot select the channel using P+/P–

15 Press HOME MENU to exit the menu. • Alternatively, to set up for another channel, repeat steps 6 to 14. Note • The above procedure transfers and sets the selected channel information to the connected recording equipment such as a VCR or DVD/HDD recorder (DVR). • Manual Adjust also allows you to make selections for “Tuner NR”, “Child Lock”, and “Decoder”. See Reducing video noise, Setting Child Lock, and Selecting a decoder input terminal.

Select “Child Lock” (/). Select “Block” (/). • The selection is switched between “View” (factory default) and “Block”. Press HOME MENU to exit the menu.

Selecting a decoder input terminal If you have connected a decoder, select a decoder input terminal (INPUT 1). 1 Repeat steps 1 to 6 provided for Reducing video noise. After selecting a channel (using Programme Entry), perform the following steps: 2

Select “Decoder” (/).

Reducing video noise For the individual channels, you can specify whether the plasma television should reduce video noise depending on the levels of broadcasting signals. 1

3 Select “Analogue TV Setup” (/ then ENTER). The password entry screen appears. Enter your four-digit password using buttons 0 to 9. For the password, see Using a password on page 56. 4

Select “Programme Entry” (/).

6 Select a programme number (/). You can select 1 through 99. 7

Select “Tuner NR” (/).

Press HOME MENU to exit the menu. Note • This function may not achieve a satisfactory result, depending on the conditions of broadcasting signals. • When using a decoder with a decoder terminal selected, this function may fail to achieve a good result. • The factory default is “On”.

• With “Off” (factory default) selected, you cannot watch any images from the decoder. • While watching DTV, no image is output to the decoder.

Sorting preset TV channels

You can name TV channels that you have set up, using up to five characters. This may help you easily identify the channels during selections.

Use the following procedure to change the sequence of the preset TV programmes.

3 Select “Analogue TV Setup” (/ then ENTER). The password entry screen appears. Enter your four-digit password using 0 to 9. 4

Select “Setup” (/ then ENTER).

3 Select “Analogue TV Setup” (/ then ENTER). The password entry screen appears. Enter your four-digit password using 0 to 9. 4 Select “Sort” (/ then ENTER). The sort screen appears. Sort

6 Select a programme number (/). You can select 1 through 99. Label Programme Entry

7 Select “Label” (/ then ENTER). The name entry screen appears. 8

Labeling TV channels

QQQQQ Select the first character (/// then ENTER). 5

Select a channel to be shifted (/// then ENTER).

6 Select a new location (/// then ENTER). Sorting is executed. 7

A B C D E F G H I J Delete

K L M N O P Q R S T Space

OK Press HOME MENU to exit the menu. Note • To change a page on the Sort screen in step 4, select / on the screen with / to select a page, and then press ENTER. • The above procedure transfers and sets only the shifted channel information to recording equipment such as a VCR or DVD/ HDD recorder (DVR).

• The cursor moves to the second character. 9

Repeat step 8 to enter up to five characters. • To correct entered characters, select [] or [] on the screen, and then press ENTER. The cursor moves to the preceding or subsequent character. • To delete the current character, select [Delete] on the screen, and then press ENTER. • To put a space for the current character, select [Space] on the screen, and then press ENTER.

10 To complete the name entry, press / or / to select [OK] on the screen, and then press ENTER. 11 Press HOME MENU to exit the menu. Note • The above procedure transfers and sets the selected channel information to the connected recording equipment such as a VCR or DVD/HDD recorder (DVR).

OPTIMUM Automatically adjusts the brightness of the image to the optimum level in accordance with the brightness level of the viewing area. This setting is shared by both the external inputs and TV input sources.

STANDARD Well defined image in a normally lit room. This setting is shared by both the external inputs and TV input sources.

DYNAMIC Sharp imaging with the maximum contrast. Note that this mode does not allow manual image quality adjustment. This setting is shared by both the external inputs and TV input sources.

MOVIE Optimized for movies. This setting is shared by both the external inputs and TV input sources.

SPORT Optimized for sports programmes. This setting is shared by both the external inputs and TV input sources.

GAME Lowers image brightness for easier viewing. This setting is shared by both the external inputs and TV input sources.

USER Allows the user to customize settings as desired. You can set the mode for each input source.

Select from the seven viewing options, depending on the current environment (e.g., room brightness), the type of the current TV programme, or the type of images input from external equipment.

You can select the language to be used for on-screen display such as menus and instructions, from among 17 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, Turkish, Norwegian, Danish, Czech, Polish and Ukrainian. For the language to be used in the Teletext mode, you can select from among West Europe, East Europe, Greece/Turkey, Cyrillic, and Arabia. 1

Select “Teletext” (/).

STANDARD For a highly defined image in a normally bright room

USER Allows the user to customize setting as desired. You can set the mode for each input source.

Note • If you have selected “DYNAMIC”, you cannot select “Contrast”, “Brightness”, “Colour”, “Tint”, “Sharpness”, “Pro Adjust”, and “Reset”; these menu items are dimmed. • If you have selected “OPTIMUM”, you cannot select “Pro Adjust”; menu items in “Pro Adjust” are dimmed. • As “OPTIMUM” automatically optimizes image quality, the process in which image settings such as brightness and tint gradually change may be seen on the screen. This is not a malfunction.

Adjust the picture to your preference for the chosen AV Selection option (except DYNAMIC). 1

For less colour intensity For more colour intensity

Skin tones become purplish

Skin tones become greenish

For PC source or when the Home Gallery function is on, the following screen appears; Picture AV Selection Contrast Brightness

• To perform advanced picture adjustments, select “Pro Adjust” in step 3 and then press ENTER. For the subsequent procedures see Advanced picture adjustments on page 32. • To restore the factory defaults for all items, press / to select “Reset” in step 3, and then press ENTER. A confirmation screen appears. Press / to select “Yes”, and then press ENTER. • You may experience a sudden change in the image position and screen brightness when you open the “Picture” menu.

Basic picture adjustments

When an adjustment screen is in display, you can also change the item to be adjusted, by pressing /. 5

Advanced picture adjustments

Using Intelligent Mode 1

Repeat steps 1 to 3 provided for Using PureCinema.

The plasma television provides various advanced functions for optimizing the picture quality. For details on these functions, see the tables.

Performs such compensation that results in the optimum colour tones and brightness for images Selections

Press HOME MENU to exit the menu.

• As this function automatically optimizes image quality, the process in which image settings such as brightness and tint gradually change may be seen on the screen. This is not a malfunction.

Automatically detects a film-based source (originally encoded at 24 frames/second), analyses it, then recreates each still film frame for high-definition picture quality

Produces smooth and vivid moving images (film specific) by automatically detecting recorded image information when displaying DVD or high-definition images (e.g., movies) having 24 frames per second

Produces smoother and more vivid moving images

Produces smooth and quality moving images (as shown on theatre screens) by converting to 72 Hz when displaying DVD images (e.g., movies) having 24 frames per second

Repeat steps 1 to 3 provided for Using PureCinema.

DRE Picture Emphasizes the contrast on images so that the difference between brightness and darkness becomes more distinct Selections

Deactivates DRE Picture

Enhanced DRE Picture

Press HOME MENU to exit the menu. Black Level Note • “Standard” is not selectable for the following input signals: 480p, 576p, 720p@50 Hz, 720p@60 Hz, 1080p@50 Hz, 1080p@60 Hz. • “Advance” is not selectable for the following input signals: PAL, SECAM, 576i, 576p, 720p@50 Hz, 1080i@50 Hz, 1080p@50 Hz/ 60 Hz. • “Smooth” is not selectable for the following input signals: 1080p@50 Hz, 1080p@60 Hz. • When you select “On” for “Game Control Pref” on the “Option” menu, the “PureCinema” setting is disabled.

Emphasizes dark portion on images so that the difference between brightness and darkness becomes more distinct Selections

Performs such compensation that results in the optimum contrast characteristics for images Selections Off On

Selects processing of the image’s high frequency (detailed) areas

R High Fine adjustment For weaker red For stronger red for bright portions G High For weaker green For stronger green

Selects Hard (SHARPNESS) image

Selects Natural (SHARPNESS) image

Selects Soft (SHARPNESS) image

Gamma Adjusts the gamma characteristics (image gradation characteristics) Selections 1

Selects gamma characteristics 1

Selects gamma characteristics 2

Selects gamma characteristics 3

For weaker green For stronger green

• To perform adjustment for another item, press RETURN, and then repeat steps 7 and 8. • You may press / to immediately change an item to be adjusted. 9

Press HOME MENU to exit the menu.

Using CTI and Colour Space Repeat steps 1 to 4 provided for Using Colour Temp.

Select the desired parameter (/ then ENTER).

CTI Provides images with clearer colour contours. The CTI stands for Colour Transient Improvement. Selections

Adjusts the colour temperature, resulting in a better white balance Selections High

Fine adjustment for dark portions

• You may rather want to perform fine adjustment. To do this, select “Manual” first and then press and hold ENTER for more than three seconds. The manual adjustment screen appears. Then go to step 7.

Activates CTI White with bluish tone Colour Space

Intermediate tone between High and Mid

Intermediate tone between Mid and Low

White with reddish tone

Colour temperature adjusted to your preference

Optimized for vivid, vibrant colour reproduction

Using Colour Management

Eliminating noise from images

Select “Colour Management” (/ then ENTER).

Select an item to be adjusted (/ then ENTER).

5 Select an item to be adjusted (/ then ENTER). You can select “3DNR”, “Field NR”, “Block NR” or “Mosquito NR”. 6

Eliminates video noise for clean crisp images. 3DNR stands for 3dimensional Noise Reduction.

Select the desired level (/).

Block NR M Closer to blue

Helps reduce noise appearing in high-definition images

Deactivates Field NR High

Enhanced Field NR Mid

Standard Field NR Low

Moderate Field NR Off

Deactivates Block NR On

Activates Block NR Mosquito NR Reduces mosquito noise in DVD and high-definition images, resulting in noise-free images Selections

• To perform adjustment for another item, press RETURN, and then repeat steps 6 and 7. • You may press / to immediately change an item to be adjusted.

Comparing picture adjustments on the screen

Select “Others” (/ then ENTER).

During picture adjustments, you can quickly refer to the image previously set in the same parameter, allowing you to easily compare and select the preferred image quality.

3DYC Optimizes characteristics for separating brightness signals and colour signals. This works for both video and still images. Selections

5 Press the button again to return to the newly adjusted image. Each press of the button toggles between “Before” and “After”.

Repeat steps 1 and 5 for other parameters.

Press HOME MENU to exit the menu. Caution

Perform optimum conversion from interlace signals to progressive signals. This works for both video and still images. Selections

4 While performing adjustment, press BLUE on the remote control unit. “Before” displays and the image adjusted last time appears for comparison.

Deactivates 3DYC I-P Mode

Using the 3DYC and I-P Mode

Optimum for still images

• If you exit the menu by pressing HOME MENU or no operation is performed for 60 seconds, all the parameter settings displayed last are stored in memory. • If you want to exit the menu without performing the adjustments (or leaving the settings disabled) on the “After” screen, switch to “Before” and then exit. Note

Press HOME MENU to exit the menu. Note • For the 3DYC, the individual parameters are selectable only when: – You have selected “INPUT 1”, “INPUT 2” or “INPUT 3” as the input source and “Video” as the input signal type (see Selecting an input signal type on page 52); or – You have selected “INPUT 5” as the input source and have not connected an S-Video cable; or you have selected the analogue tuner. • The 3DYC setting is ineffective when SECAM, PAL60, or 4.43NTSC signals are input. • The I-P Mode setting is disabled if you use an external input source and select “On” for “Game Control Pref” on the “Option” menu. • For the I-P Mode, the individual parameters are not selectable for the following input signals: 480p, 576p, 720p, 1080p.

• You cannot adjust any item while on the “Before” screen. A warning message appears. • When you switch to another parameter, make sure to change the display from “Before” to “After” first, otherwise you cannot select “Before”. A warning message appears if you don’t. • If you exit the selection from the “Before” screen, the previous entry is stored in the memory and the button no longer works. • If you exit the selection from the “After” screen, the new entry is stored in the memory and the button no longer works. • If you move and change the “AV Selection” parameter, the new entry in the current parameter is stored in the memory and the button continues to work. • You cannot compare images between different parameters on the “AV Selection” menu (“STANDARD” and “MOVIE”, for example). • When you select this function, “Intelligent Mode” for “Pro Adjust” on the “Picture” menu, “OPTIMUM” on the “AV Selection” menu and “Room Light Sensor” on the “Option” menu are set to off and image quality returns to default settings. • This function is not selectable: - when you select “AV Selection”, - when you select “Yes” or “No” on the confirmation screen for “Reset” from the “Picture” menu or - when you select a menu from the PC source

Sound Effect You can select from SRS FOCUS, SRS or SRS TruBass.

You can adjust the sound quality to your preference with the following settings. Adjust the sound to your preference for the chosen AV Selection option. See AV Selection on page 30. 1

Select an item to be adjusted (/).

Select the desired level (/).

SRS FOCUS Selections

Activates SRS FOCUS® Shifts the apparent direction of the sound upward for more clearly defined sound

Activates SRS® Reproduces highly effective threedimensional sound

Deactivates SRS TruBass®

Activates SRS TruBass® Provides deep, rich bass using a new technology

SRS Sound Effect Main

Headphone Output Sub Volume

Shifts the audio balance Shifts the audio balance to the left to the right

SRS TruBass Selections

Press HOME MENU to exit the menu.

Note • You cannot adjust the sound for listening with headphones. • If you perform sound adjustments with headphones connected, the new settings will become effective as soon as you disconnect the headphones. • To restore the factory defaults for all items, press / to select “Reset” in step 3, and then press ENTER. A confirmation screen appears. Press / to select “Yes”, and then press ENTER.

(WOW) denotes a status where SRS FOCUS®,

SRS® and SRS TruBass® are on. • You cannot adjust the sound effect for listening with headphones. • If you change the sound effect with headphones connected, the new setting will become effective as soon as you disconnect the headphones. • The effect of this function differs depending on signals.

With headphones connected, you can listen to audio coming from the sub screen when in the 2-screen or picture-in-picture mode; audio coming from the main screen is output from the speakers. To use this function, follow the procedure below.

Power Control Power Control provides convenient functions for power saving.

Energy Save You may use one of the three Energy Save modes to save power consumption.

Select “Headphone Output” (/).

Listening to audio from the sub screen using headphones

Sound Effect Headphone Output

Energy Save Selections

Audio coming from the main screen is output from the PHONES output terminal

When in the 2-screen or picture-in-picture mode, audio coming from the sub screen is output from the PHONES output terminal

Press HOME MENU to exit the menu. Note • To adjust the volume for headphones after selecting “Sub”, always use the menu item (shown in the procedure) no matter whether the screen is in the single, 2-screen, or picture-inpicture mode. When the screen is in the single mode with “Sub” selected, audio coming from the screen is output from speakers even with headphones connected.

Does not decrease the picture brightness

Slightly lowers power consumption while slightly suppressing the brightness drop level

Decreases the picture brightness and lowers power consumption

Deactivates the screen to save power. To restore the screen display, press any button other than i +/i – and e. This setting is not memorized by the system.

Press HOME MENU to exit the menu. Note • When you change the Energy Save mode, you may notice a change in the panel sound. This is normal. • The Energy Save function can maintain efficiency of the screen for a long period of time. Setting the Energy Save function to “Mode 1” is recommended in order to maintain the efficiency of the screen for a long period of time.

No Signal off (AV source only)

Power Management (PC source only)

The system will be automatically placed into the standby mode if no signal is received for 15 minutes.

The system will be automatically placed into the standby mode when no signal is received from the personal computer.

No Signal off Selections

Does not place the system into the standby mode

Places the system into the standby mode if no signal is received for 15 minutes

Off (default) No power management Mode 1

• Places the system into the standby mode when no signal is received from the personal computer for eight minutes. • Even when you start using the computer and a signal is received again, the system stays off. • The system is switched on again by pressing STANDBY/ON on the plasma television or a on the remote control unit.

• Places the system into the standby mode when no signal is received from the personal computer for eight seconds. • When you start using the computer and a signal is input again, the system is switched on. • The system is switched on again by pressing STANDBY/ON on the plasma television or a on the remote control unit.

Press HOME MENU to exit the menu. Note • Five minutes before the system is placed into the standby mode, a message appears every minute. • The system may not be placed into the standby mode when noise signals are present at the plasma television after a TV programme finishes.

No Operation off (AV source only) The system will be automatically placed into the standby mode when no operation is performed for three hours. 1

Select “No Operation off” (/ then ENTER).

Select “Enable” (/ then ENTER).

No Operation off Selections

Does not place the system into the standby mode

Places the system into the standby mode if no operation is performed for three hours

Press HOME MENU to exit the menu. Note • Five minutes before the system is placed into the standby mode, a message appears every minute.

Press HOME MENU to exit the menu. Note • This function is not selectable when the PC is connected to the HDMI terminal.

Enjoying DTV broadcasts

Enjoying DTV broadcasts Watching DTV programmes Digital TV (DTV) not only replaces the conventional analogue TV channels, but also provides more channels, clearer picture quality, and various types of useful information. It also provides various features, including subtitling and multiple audio tracks. Caution • The compatibility of this product with digital terrestrial services has been fixed - details described in the product specifications - at the time of its introduction. Note • When executing Auto Installation (page 27), make sure to select “Digital” or “All” as the tuner type. • Selecting the DTV mode when no channels yet searched will only display “DTV Setup” screen with only the item “Installation” selectable. • While in the DTV mode, press m to display the Teletext screen (except in UK).

Press TV/DTV to select the DTV mode.

Press ENTER to call up the Channel List screen.

• While receiving DTV radio channels, the screen saver automatically starts when no operation is done for three minutes.

Viewing a channel banner A channel banner shows programme names, start/end time of programmes and other channel information. 1 2

Press TV/DTV to select the DTV mode. Press p. • A channel banner appears. 001 Now Next

************ ******************** *************

Wed.30.Apr 12:46 11:30 - 12:00 12:00 - 12:30

• To display information about other channels, press /. • To tune into the channel selected on the banner, press ENTER. • The channel banner also displays icons for Favourites ( ), Subtitles ([) and Teletext (m) if they apply to the selected channel. • To quit banner display, press EXIT. 3 To view more detailed programme information, press p again. Now

Select a channel (/ then ENTER). • You can also select channels by pressing buttons 0 to 9 or P+/ P– on the remote control unit.

• To switch between Now and Next programme information, press /. • To display detailed information about other channels, press / . • To tune into the channel selected on the banner, press ENTER. • To quit display of detailed information, press RETURN. • To quit display of all the banners, press EXIT. • If the banner contains further information, “More” is displayed. Press the BLUE button to view the entire information.

Note • While in DTV mode, press 001 to access channel 1 (one-digit channel) quickly. You can, however, select the channel 1 by pressing 01 or 1 but have to wait for two seconds since the last digit input. The same applies for two-digit channels. • P+/P– cannot pick up channels that are set to skip or not registered as favourites (with the Favourite function set to “On”. For favourite channels, see page 42.). • If the channel is locked, you must enter the correct password each time (see page 57).

Note • Banner information is updated every minute. • Some programmes may not provide detailed programme information. • Due to inaccurate information provided by the broadcaster, some icons may appear or be absent in error.

Enjoying DTV broadcasts

Replacing the existing channels

When in the DTV mode, press [ to turn subtitles on and off.

The following procedure discards the current DTV channel setups and searches for receivable channels to redo the channel setups. 1

2 Note • When a programme is recorded with this function on, subtitles are also recorded.

Repeat steps 1 to 4 provided for Reselecting a country. Select “Replace Existing Channels” (/ then ENTER). • The system first erases all channel information and then starts channel search. • To quit a channel search in progress, press HOME MENU. Replace Existing Channels

Reconfiguring the DTV channel settings

This section describes how to reconfigure the DTV channel settings after setting up DTV channels using Auto Installation (page 27). You can select “DTV Setup” only when watching DTV channels.

Reselecting a country 1

Note • To complete “Replace Existing Channels”, there must be more than one hour at least left to the next preset recording or preset Auto Update time. • The password entry screen does not appear if you have disabled the password function. For details, see Using a password on page 56. • You can select “DTV Setup” only when watching DTV channels.

Select “Installation” (/ then ENTER). • The password entry screen appears. Enter your four-digit password using buttons 0 to 9.

Add New Channels Replace Existing Channels Signal Check Restore System Defaults

Adding new channels Use the following procedure to search and register new channels with the current DTV channel setups saved. 1 2

Repeat steps 1 to 4 provided for Reselecting a country. Select “Add New Channels” (/ then ENTER). • Channel search automatically starts. If any new channel is found, it is automatically registered on the plasma television. Add New Channels Search Information

Note • The password entry screen does not appear if you have disabled the password function. For details, see Using a password on page 56. • You can select “DTV Setup” only when watching DTV channels.

• To quit a channel search in progress, press HOME MENU. Note • The password entry screen does not appear if you have disabled the password function. For details, see Using a password on page 56. • You can select “DTV Setup” only when watching DTV channels.

Enjoying DTV broadcasts

You can check the signal strength and signal quality of each TV channel. 1

3 With “OK” pressed, the system restores the factory defaults. Then Auto Installation is initiated automatically.

Checking signal strength

Note • The password entry screen does not appear if you have disabled the password function. For details, see Using a password on page 56. • You can select “DTV Setup” only when watching DTV channels.

Select “Installation” (/ then ENTER). • The password entry screen appears. Enter your four-digit password using buttons 0 to 9. Select “Signal Check” (/ then ENTER).

Select “RF Channel” (/ then ENTER).

Select the channel to be checked (/).

Customizing channel related settings This section describes how to customize various channel related settings. These settings include favourite channel registration, Channel Skip, and Channel Lock.

Signal Check RF Channel

Setting Channel Options

Use the following procedure to select individual channels and switch on the Favourite, Channel Skip, or Channel Lock for the channels. 1

Select “Channel Management” (/ then ENTER). • The password entry screen appears. Enter your four-digit password using buttons 0 to 9.

Select “Channel Options” (/ then ENTER). • The Channel Options screen with a list of registered channels appears.

• Use “Add New Channels” function here to add channels within the selected RF channel (receiving frequency). Note

Select “DTV Setup” (/ then ENTER).

• You can select “DTV Setup” only when watching DTV channels. Channel Options

Switching on/off the power to the antenna Use the following procedure to switch on or off the power to the antenna connected with the DTV antenna terminal. 1

Repeat steps 1 to 4 provided for Checking signal strength.

Channel Skip 001 ∗∗∗ ∗∗∗ 002 ∗∗∗ ∗∗∗ 007 ∗∗∗ ∗∗∗∗∗ 030 ∗∗∗∗ ∗∗∗∗∗∗∗ 040 ∗∗∗ ∗∗∗∗ ∗∗ 051 ∗∗∗ ∗

Caution • When the “Aerial Power” setting is on, directly connect the aerial to the ANT input terminal at the rear of the plasma television. Connecting any device between the aerial and plasma television may cause damage to the device. Note • You can select “DTV Setup” only when watching DTV channels.

Restoring the system defaults Use this function only when you wish to reset all the DTV settings to the factory defaults. 1

6 Select an individual channel (/// then ENTER to select on/off). • Select “On” for Favourites if you want the channel to be registered as your favourite (digital) channels. Selecting from the registered list may be the easiest way to tune to those channels. • Select “On” for Channel Skip if you want the channel to be skipped when operating P+/P– on the remote control unit or CHANNEL +/– on the plasma television. • Select “On” for Channel Lock if you want the channel not to be tuned without password entry.

Repeat steps 1 to 4 provided for Checking signal strength.

Enjoying DTV broadcasts

7 After the setting is complete, make sure to complete the following steps. • If you have registered any channel as your favourite one, see Activating the Favourites function and activate the Favourites function. • If you have selected any channel for Channel Lock, set Using a password on page 56 and set an appropriate four-digit password.

Note • “Auto Skip” function lets you skip “group” of services such as radio and text data. On the other hand, individual channel settings set to skip in “Channel Options” screen will not be affected by this setting. • You can select “DTV Setup” only when watching DTV channels.

Setting the Child Lock Note • The password entry screen does not appear if you have disabled the password function. For details, see Using a password on page 56. • You can select “DTV Setup” only when watching DTV channels.

Activating the Favourites function

With this function, parents can prevent their children from watching age-restricted TV programmes. This function becomes effective depending on the country selected for channel setup. You can specify an age limit in the range from 4 and 18, so that the password has to be entered to watch TV programmes that match the specified age limit. 1 Repeat steps 1 to 4 provided for Activating the Favourites function.

Make sure to activate this function after favourite channels are registered.

Select “DTV Setup” (/ then ENTER). Select “Channel Management” (/ then ENTER). • The password entry screen appears. Enter your four-digit password using buttons 0 to 9. Channel Management

Select “Child Lock” (/). Select an age limit (/). • You can select 4 to 18, and “Off”. • With “Off” selected, password entry is not required no matter which age-restricted TV programme is selected.

Sorting preset DTV channels Use the following procedure to change the sequence of the preset DTV channels.

1 Repeat steps 1 to 4 provided for Activating the Favourites function.

Select “Channel Sort” (/ then ENTER). • The Sort screen appears. Select a channel to be shifted (/// then ENTER).

1/3 007 ************

Select “Favourites” (/). Select “On” (/). • With favourite channels registered, you can select them using P+/P– on the remote control unit or CHANNEL +/– on the plasma television. Note • You can select “DTV Setup” only when watching DTV channels.

Select a new location (/// then ENTER). • Sorting is executed. Press HOME MENU to exit the menu.

Activating the Auto Skip • This function lets you skip group of services, such as radio and text data services. 1 Repeat steps 1 to 4 provided for Activating the Favourites function. 2 3

Select “Auto Skip” (/). Select a channel to skip (/). • You can select from among “Off”, “Radio”, “Data” or “Both”.

Note • To change a page on the Sort screen in step 4, select ▲/▼ on the screen with /// to select a page, and then press ENTER. • You can select “DTV Setup” only when watching DTV channels.

Enjoying DTV broadcasts

Using Software Update

Use the following procedure to switch between the PCM and Dolby digital audio format.

This function downloads and updates the system’s software at the specified timing.

With this function on, the plasma television checks if updated software is available and then downloads it (as necessary). After this, the system executes Add New Channels operation (page 40). This series of operations are automatically executed at the specified time. 1

Select “On” (/). Software Update Auto Update

Set Update Time Start Manual Update Technical Information

Note • You can select “DTV Setup” only when watching DTV channels.

Selecting languages for audio, subtitles, and teletext You may manually configure language settings for audio, subtitles, and teletext. 1 Repeat steps 1 to 4 provided for Selecting a digital audio format. 2

Select “Language Settings” (/ then ENTER).

3 Select “Primary Audio”, “Secondary Audio”, “Primary Subtitle”, “Secondary Subtitle” or “Teletext” (/). 4

Select a language (/). Note

Note • We recommend that you normally select “On”. • For Auto Update to start, there must be more than one hour left to the start of the next preset recording/watching. • 60 seconds before the scheduled update, a message prompt appears asking if you want to carry out Auto Update or not. Auto Update automatically starts if “OK” is selected or no selection is made after 50 seconds. • While an update is in progress, no TV image is output to the external output terminal. • To quit an update in progress, press HOME MENU. • You can select “DTV Setup” only when watching DTV channels.

• The plasma television automatically selects the language based on the “Country” setting (page 27) when the selected language for audio, subtitle, or teletext is not available. • You can select “DTV Setup” only when watching DTV channels.

Enjoying DTV broadcasts

Using MHEG application (UK only)

You can set the time your plasma television performs Auto Update each day. To use this function, set “Auto Update” to “On” first.

Some stations bring you programmes with the MHEG (Multimedia and Hypermedia Expert Group) application encoded, letting you experience DTV interactively. When provided, the MHEG application will start when you press any of the colour buttons or m.

Set a time for Auto Update (/// or 0 to 9). Set Update Time Time 11 : 32

Note • This function may not work properly when subtitle is activated (see page 40).

Screen Saver The screen saver automatically starts when no operation is performed for three minutes while receiving DTV radio channels. Note

Starting Manual Update This function allows you to manually execute Software Update. If less than one hour is left to the next scheduled Auto Update or programmed recording/watching, Manual Update cannot be executed. 1

Repeat steps 1 to 4 provided for Setting Update Time.

Select “Start Manual Update” (/ then ENTER). Note • For Manual Update to start, there must be more than one hour left to the start of the next preset recording/watching. • For Manual Update to start, there must be more than one hour left to the start of Auto Update. • You can select “DTV Setup” only when watching DTV channels.

Displaying technical information Use this function to check the hardware/software version number. 1

Repeat steps 1 to 4 provided for Setting Update Time.

Select “Technical Information” (/ then ENTER). Note • You can select “DTV Setup” only when watching DTV channels.

• While the screen saver is active, you can perform the following operations: • Press TV/DTV to switch to analogue TV. • Press any other button to switch to the normal radio channel screen. • Programme Timer is active while the screen saver is displayed.

Enjoying DTV broadcasts

2 Insert the specified CA module containing a smart card into the Common Interface slot as far as it will go.

To receive scrambled DTV signals you will need a CA module and a smart card provided by the service provider. Although CA module types may vary depending on the manufacturer, each one of the CA modules supports a certain kind of encryption system. Your plasma television supports CA modules which are made to work with the DVB standard. Contact a service provider for the right type of CA module. Please note that a smart card may only be valid for a single service provider and due to this, a specific range of channels.

Note • CA modules and smart cards are neither supplied nor optional accessories from Pioneer. After inserting a card, leave it in the slot permanently. Do not remove it from the terminal unless asked to do so. For instance, your card has to be in the slot when your service provider wants to download new information to the smart card.

Displaying information about the installed CA module If you have installed a CA module in the Common Interface slot, you can display information about the CA module.

Installing a CA module and smart card

Common Interface slot is located at the rear of the plasma television.

Press “Setup” (/ then ENTER).

1 Hold and push the tab of the slot cover on the rear of the plasma television leftward (a), and remove the cover while pulling the tab’s latch downward (b).

Select “DTV Setup” (/ then ENTER).

Select “DVB-CI Information” (/ then ENTER). (If there is no CA module installed, the “DVB-CI Information” option is greyed out.)

Using the Electronic Programme Guide (EPG)(for DTV only)

Using the Electronic Programme Guide (EPG)(for DTV only) EPG display format The Electronic Programme Guide (EPG) shows the table of scheduled digital TV programmes and detailed information about individual programmes. It also allows you to easily select and tune to a desired programme. The EPG Screen consists of the Programme Information, Channel List, and General Programme List. This section describes information to be displayed on the schedule and information windows. Note • For digital TV programmes that do not provide EPG information, you cannot view the corresponding EPG information. • If the current time has not been correctly set, there may be TV programmes whose EPG information is not displayed.

General programme list

Programme information

Appear when other programmes have been scheduled for the same period.

Programme genre Note • The general programme list may show sections whose bottom right corners have been folded. This indicates that other programmes have been scheduled for that period. To view the title of such a programme and related information, highlight a folded section, and then press /.

Appears when the schedule table can be scrolled forward or backward.

Highlights the currently selected channel.

Indicates the programme set for recording/watching.

Appears when other programmes (often short ones) have been scheduled for the same period.

Indicates the programme set for recording/watching (but another programme is set for recording in the same period).

Using the Electronic Programme Guide (EPG)(for DTV only)

Use the following procedure to check the schedule of digital TV programmes, view information about desired programmes, and/or select programmes.

Press EPG. • The EPG screen appears. • The EPG screen updates automatically if the EPG data is acquired successfully. If not, the EPG screen shows a blank image.

To quit the Programme Guide, press EPG again. Note • The general programme list does not show finished programmes. • Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See Controlling other equipment using the supplied remote control unit on page 69.

Select a desired TV programme (/, /).

Presetting TV programmes using the EPG

• Press P+/P– to skip to the next or previous channel list page. • Information about the selected programme appears in the information window. • To watch a programme currently on air, select the programme (then ENTER). • You can check information about programmes scheduled up to one week ahead, depending on conditions. • Depending on conditions, it may take some time to acquire EPG data. 3 To view more information (not currently displayed) about the selected programme, press p. • Detailed information appears in the schedule window. • If the screen contains further information, “More ” is displayed. Press the BLUE button to view the entire information.

Using the EPG, you can easily preset digital TV programmes for watching (auto channel select) and recording later. You must also adjust your recording equipment settings to record the programme. Refer to the operation manual provided with your recording equipment.

Using auto channel select and standby recording With the power to the system left on, this function automatically selects a preset TV programme when its on-air time comes. That way you will not miss the start of an important TV programme because you were enjoying another TV programme. Even if the system is in the standby mode when the preset TV programme’s on-air time comes, the plasma television wakes up and outputs AV signals for recording. 1

Press EPG. • The EPG screen appears.

Select a programme to be preset (/, / then ENTER). • Select a programme not yet started. • A setup menu appears. • Select a programme currently on-air (then ENTER): The EPG screen closes and a channel is tuned in. • Select a programme currently on-air (then GREEN): The programme can be set for recording/watching the next time (or week) it is shown.

Using the Electronic Programme Guide (EPG)(for DTV only)

• Select a programme not yet started (then ENTER or GREEN): The programme can be set for recording/watching.

• Recording may fail because of watching restrictions imposed by the CA module.

Setting the timer manually Using the menu, you can also preset digital TV programmes by specifying their scheduled date and time. 1

3 Select “Yes” in a confirmation dialogue box (/ then ENTER). • The Programme Timer screen with a list of other preset programmes information appears. Programme Timer

5 Press EPG to exit the EPG screen. With the system switched on, a channel switch alarm message appears approximately 60 seconds before execution and the channel is switched a short time before the start of the programme.

Specify a date (/ or 0 to 9, then ).

7 Specify the start hour/minute and end hour/minute (/ or 0 to 9, then ).

Press RETURN to return to the EPG screen. • The EPG screen updates with the new presettings. • A red clock icon appears for the preset programme. • A yellow triangle icon appears for overlapped presettings.

• Auto channel select is not executed when the system is in the standby mode. • Even in the standby mode, preset programmes can be recorded as only the plasma television alone wakes up and outputs AV signals when the preset time comes. • Finish presetting operations three minutes before the start of the programme. • For priorities about overlapped presettings, see Priority rules for overlapped presettings on page 49. • The TIMER indicator on the front of the plasma television lights up in orange when a programme is preset for recording/ watching.

Select a programme number (/ then ). • You can select any desired programme number.

Register the preset settings after all items are set (ENTER). • If a preset time is in the past or the channel is locked, an alert message appears. • A yellow triangle icon indicates that the recording/watching may fail due to overlapped presettings. • If presetting another programme, repeat steps 5 to 9. • You can preset up to 10 programmes.

10 Press HOME MENU to exit the menu.

Using the Electronic Programme Guide (EPG)(for DTV only)

• Preset recording/watching begins immediately when presetting operations are performed within three minutes of the start of the programme. • Presettings made using the EPG are automatically shown in the scheduled table. • Recording may fail because of watching restrictions imposed by the CA module.

Using the menu Use the following procedure to change or cancel programme presettings using the menu. 1

Priority rules for overlapped presettings

When preset TV programmes are overlapped, the following two rules are used to determine higher priority. If more than one of the two rules are met, the rules are applied in the order 1 then 2. Rule 1: If two presettings are overlapped, the presetting with the earlier start time is given a higher priority. If two presettings are sequential, the last portion of the first programme or the first portion of the second may not be recorded. Rule 2: If presettings with the same start time are overlapped, the presetting with the bigger list number is given a higher priority.

Changing/cancelling TV programme presettings

Using the EPG Press EPG. • The EPG screen appears.

2 Select the desired preset programme (/, / then ENTER or GREEN). • A dialogue box appears. • If you select “Yes”, go to step 3. • To quit the operation, select “No”. 3 4

Select the preset programme ( or ENTER). Select a programme number to edit (/). • You can delete the preset programme by pressing the RED button.

5 Edit the selected preset programme and update the setting (ENTER). • The screen alerts you if the preset programme being edited has already started or finished. 6 When the setting is complete, press EPG to exit the EPG screen. Note • When you want to stop recording/watching in progress that was started by a programme presetting, for example, to change the channel, an alert message appears indicating that the presetting will be cancelled. In this case, you cannot cancel the programme presetting using the EPG.

Use the following procedure to change or cancel programme presettings using the EPG. 1

Select a programme number to be edited (/). • Delete the programme presetting (RED). • Start editing (ENTER). Adjust the desired item (/, /). Press ENTER to complete the setting. • The screen alerts you if the preset programme being edited has already started or finished. Press HOME MENU to exit the menu.

Changing priorities for overlapped presettings You can change the priority order for overlapped preset programmes to suit your preference. 1

6 Select the position to move the selected programme (/). 7 Now move the programme to the selected position by pressing BLUE or ENTER.

Using the Electronic Programme Guide (EPG)(for DTV only)

Using other useful EPG functions Below are some useful functions that guide you through the EPG screen and save your time.

EPG Search 1 Press YELLOW when the EPG screen (Programme List, Detailed information and Search Result) is displayed. 2

Select “Date” (/).

EPG Jump 1 Press RED when the EPG screen (Programme List, Detailed information and Search Result) is displayed. 2

Select “Time” (/).

Select the time of the day (0:00 to 23:00) to jump to (/).

Select “Jump” (/, / then ENTER). • The Programme List of the specified day and time displays.

Select the day (within one week) to jump to (/).

Select the day (within one week) to search (/).

Select “Time” (/).

Select the time of the day (0:00 to 23:00) to search (/).

Select “Channel” (/).

Select whether to search “All” or “Favourites” (/).

Select “Genre” (/ then ENTER).

9 Select the genre(s) to search (/, / then ENTER). Pressing ENTER again will delete the selected genre from the search list. 10 Select “OK” (/, / then ENTER). 11 Select “Search” (/, / then ENTER). • An EPG search with your customized settings starts.

Useful adjustment settings

Useful adjustment settings About “Option” menus The “Option” menu consists of two screens. To select the desired menu, press repeatedly / to switch between Screen 1 and Screen 2. The current screen number appears at the top right corner on the screen. Option

Switching the vertical drive mode (AV source only) You can select the desired drive mode according to the programme you watch. 1

Select “1”, “2” or “3” (/ then ENTER).

• This setting can be made for each input source separately. • This setting cannot be made when 480i, 480p, 1080i@60 Hz, 720p@60 Hz, 1080p@24 Hz or 1080p@60 Hz signals are input. • The Drive Mode does not operate when “On” is selected in “Game Control Pref”.

Adjusting image positions (AV source only)

Input Select Game Control Pref

This setting adjusts the horizontal and vertical positions of images on the plasma television.

Press HOME MENU to exit the menu. Note • To restore the factory defaults for all items, press / to select “Reset” in step 4, and then press ENTER. A confirmation screen appears. Press / to select “Yes”, and then press ENTER. • Adjustments are stored separately according to input source. • Depending on the displayed video, the image position may not change even after adjustment. • When “Dot by Dot” is selected for the screen mode, the “Position” menu is dimmed.

Useful adjustment settings

Adjusting image positions and clock automatically (PC source only) Use Auto Setup to automatically adjust the positions and clock of images coming from a personal computer. 1

Press HOME MENU to exit the menu.

• When Auto Setup is finished, “Auto Setup completed.” appears. • Even when “Auto Setup completed.” appears, Auto Setup may have failed, depending on conditions. • Auto Setup may fail with a PC image composed of similar patterns or monochrome. If not successful, change the PC image and try again. • Be sure to connect the computer to the plasma television and switch it on before starting Auto Setup. • This function is not selectable when the PC is connected to the HDMI terminal. • Depending on the displayed video, the image position may not change even after adjustment.

Adjusting image positions and clock manually (PC source only) Usually you can easily adjust the positions and clock of images using Auto Setup. Use Manual Setup to optimize the position and clock of images when necessary. 1

Select the item to be adjusted (/ then ENTER).

5 Perform adjustment (/ and /). With “Clock” or “Phase” selected, you can perform adjustment in the parameter using /. 6

Press HOME MENU to exit the menu. Note • To restore the factory defaults for all the items, press / to select “Reset” in step 4, and then press ENTER. A confirmation screen appears. Press / to select “Yes”, and then press ENTER. • This function is not selectable when the PC is connected to the HDMI terminal. • Depending on the displayed video, the image position may not change even after adjustment.

After connecting to the INPUT 1, INPUT 2, or INPUT 3 terminal, specify the type of video signals to be received from the connected equipment. For the type of the signals, see the operation manual that came with the connected equipment. Before starting the menu, press INPUT 1, INPUT 2, or INPUT 3 on the remote control unit or press INPUT on the plasma television to select an input source.

3 Select “Auto Setup” (/ then ENTER). A message screen appears and Auto Setup starts.

Selecting an input signal type

Select a signal type (/ then ENTER). You can select the video input terminal for “Input”: • For “INPUT 1”, you can select “Video” or “RGB”. • For “INPUT 2”, you can select “Video”, “S-Video” or “COMPONENT”. • For “INPUT 3”, you can select “Video”, “S-Video”, or “RGB”. You can select the audio input terminal for “Audio Select”: • Select “SCART” or “RCA”.

Press HOME MENU to exit the menu. Note • “INPUT 1” or “INPUT 3” is selectable only when “Disable” is selected in the “Setting” for “HDMI Input”. • You can select the signal in each input terminal. • The “Audio Select” is only available when “COMPONENT” is selected in “Input” for “Input Select”. • If no image appears or images appear in inappropriate colours, specify another video signal type. • For the signal types to be specified, check the operation manual that came with the connected equipment.

Useful adjustment settings

Selecting a screen size manually

If an image does not appear clearly, select another colour system (e.g., PAL, NTSC).

Press f to switch among the screen size options selectable for the type of video signals currently received. Each time you press f, the selection is switched. The selectable screen sizes differ depending on the types of input signals.

Select “Colour System“ (/ then ENTER). Select a video signal system (/ then ENTER). • You can select “Auto”, “PAL”, “SECAM”, “NTSC”, or “4.43NTSC”. • With “Auto” selected, input signals are automatically identified. Press HOME MENU to exit the menu. Note • The factory default is “Auto”. • You do not need to enter any setting if “HDMI Input” has been selected. • You need to perform colour system setting for each of “INPUT 1”, “INPUT 2”, “INPUT 3” and “INPUT 5”. • For the colour system setting, see steps 11 and 12 under Setting up analogue TV channels manually on page 27.

Important • If images with black bands on both sides or top and bottom of the screen – when using the “4:3”, “FULL 14:9” or “CINEMA 14:9” modes, for example – are displayed continuously for long periods or for shorter periods of time over several days, image retention may result. It is recommended that you enjoy watching images displayed in full screen, except when doing so may result in copyright infringement.

For standard 4:3 pictures. A side mask appears on each side.

Selecting a game mode

For 14:9 squeeze pictures. A thin side mask appears on each side.

When playing a game, you can use this function to establish a preference for image quality or operability.

CINEMA 14:9 For 14:9 letterbox pictures. A thin side mask appears on each side, and you may also see bars on the top and bottom with some programmes.

Establishes a preference for operability

Establishes a preference for image quality

Colour system setting

WIDE In this mode the picture is progressively stretched toward each side of the screen

FULL For 16:9 squeeze pictures

Matches input signal to the same number of screen pixels (selectable for 1080i or 1080p signals only)

ZOOM For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.

CINEMA For 14:9 letterbox pictures. Bars may appear on the top and bottom on some programmes.

Press HOME MENU to exit the menu. Note • The “Game Control Pref” is only available when using an external input (except a PC source) and “GAME” is selected in “AV Selection”. • The “Game Control Pref” options are not effective when PC signals are received (when a PC source menu is displayed on the screen). • The “On” setting is not effective when freezing images or in the multiscreen mode.

Fills the screen without altering the input signal aspect ratio

Useful adjustment settings

• Manually select an appropriate screen size if an image does not automatically switch to a correct screen format. • When the video signal contains no aspect ratio information, the function will not work even with “Natural” or “Wide-Zoom” selected.

FULL Detecting side masks

WIDE FULL Some HD broadcasts may display 4:3 content with side masks. The plasma television automatically detects these side masks to provide grey side masks when “Natural” has been selected for “Auto Size”, or display the image full screen with the side masks removed when “Wide-Zoom” has been selected. This function does not operate when “Off” is selected for “Auto Size”. 1

Note • While receiving High Definition video signals, pressing f switches among “FULL”, “Dot by Dot”, “ZOOM”, “WIDE” and “4:3”. • Some HD broadcasts may display 4:3 content with side masks, which may cause uneven wear. After viewing it is recommended to view full-screen motion video (see Detecting side masks).

The plasma television automatically selects an appropriate screen size when the received video signals contain WSS (wide screen signaling) information or when video signals are received from a connected HDMI equipment (see page 62). To activate this function, use the following procedure.

• The “On” setting prevents uneven wear on 4:3 content and side masks and can reduce the possibility of image retention.

• You cannot set the Side Mask detection to “On” or “Off” when “Off” is selected in “Auto Size”. • The Side Mask detection does not operate on 4:3 content displayed in SD signals. • “Auto” will appear on the channel display when this function is on. • Set the Side Mask detection function to “On”, the High Definition 16:9 aspect ratio images containing side masks will be detected and the side masks will be added automatically or the image displayed in full screen, leading to more effective countermeasures taken for the screen burning. • Detection errors may occur depending on the HD contents. In case a detection error occurs, manually change the screen size to the desired size.

Naturally adjusts the image to the screen

Enlarges and displays only the 4:3 aspect ratio portion in full and wide screen

Useful adjustment settings

Note • This function is disabled when “OPTIMUM” is selected on the “AV Selection” menu. • This function is not available when PC signals are received. • As this function automatically optimizes image quality, the process in which image settings such as brightness and tint gradually change may be seen on the screen. This is not a malfunction.

With the 4:3, FULL 14:9, or CINEMA 14:9 screen size, you can change the brightness of the grey side masks that appear at both sides of the screen. 1

Select “Brightness Sync.” (/).

Always sets the same brightness for the grey side masks

Adjusts the brightness of the grey side masks according to the brightness of images

Important • The “Auto” setting adjusts the brightness of the side masks according to the brightness of the screen and can reduce the possibility of image retention. 6

Press HOME MENU to exit the menu.

Blue LED Dimmer You can adjust the brightness of the POWER ON indicator depending on the brightness level of the viewing area. When “Auto” is selected, the brightness of the indicator changes to “High”, “Mid” or “Low” to match the brightness level of the viewing area. 1

Select “Auto”, “High”, “Mid” or “Low” (/ then ENTER).

Press HOME MENU to exit the menu.

Orbiter This function automatically shifts the image little by little to reduce the occurrence of the burning. 1

This function automatically adjusts the brightness of the display panel in accordance with the brightness level of the viewing area. For details, use the following procedure.

Enables the display protection function for any screen mode other than “Dot by Dot”

Changing the brightness at both sides of the screen (Side Mask)

5 Press HOME MENU to exit the menu. • To cancel this function, select “Off” in step 4. Note • For the Dot by Dot mode, see Selecting a screen size manually on page 53. • This function does not operate when PC signals are received.

Useful adjustment settings

You can display the Video Pattern screen that also helps eliminate after-image when it occurs.

The plasma television provides the Child Lock function for preventing children from watching inappropriate programmes. You need to enter a password when watching programmes with “Block” specified. Before the system is shipped, “1234” is preset as the factory-default password. You can however, change the password as you want. You will need to enter the password before using the “Auto Installation”, “Analogue TV Setup” or “Password” functions from the HOME MENU. This is to prevent unauthorized changes to the settings.

3 Select “Video Pattern” (/ then ENTER). A confirmation screen appears. 4 Select “Start” (ENTER). The Video Pattern screen displays. Note • The system is automatically placed into standby one hour after the Video Pattern screen has started. • While the Video Pattern screen is on, no buttons operate except a on the remote control unit, STANDBY/ON and a on the plasma television. • To cancel the Video Pattern screen, press a on the remote control unit, press STANDBY/ON or turn a off on the plasma television. • The Video Pattern timer has priority over the sleep timer. When the Video Pattern timer is on, the sleep timer becomes ineffective.

Press HOME MENU to exit the menu. Note • Five minutes before the selected time elapses, the remaining time appears every minute. • To check the remaining time, perform steps 1 and 2. After checking the time, press HOME MENU to restore the previous display.

Entering a password You will need to enter the password after selecting a channel blocked with the Child Lock function, and before you can use some of the menu functions. • Enter your four-digit password using buttons 0 to 9. Please Input Your Password.

Note • If you fail to enter the correct password three times, “Invalid password.” appears, and the menu is closed. In order to display the password entry screen again to unlock the password, select the blocked channel or open the menu again. • If the password entry screen disappears before entry, you may recall it by pressing ENTER.

Useful adjustment settings

Use the following procedure to change the password. 1

3 Select “Password“ (/ then ENTER). The password entry screen appears. Enter the current four-digit password using buttons 0 to 9. 4

Select “Change Password“ (/ then ENTER).

5 Enter a four-digit password to be newly set, using buttons 0 to 9.

Changing the password

3 Select “Password“ (/ then ENTER). The password entry screen appears. Enter the current four-digit password using buttons 0 to 9. 4

Please Input New Password.

Disabling the password function Reconfirm New Password.

Use the following procedure if you want to deactivate the protection function that prompts password entry. The factory default is “Enable”. 1 Repeat steps 1 to 3 provided for Resetting the password function.

Enter the same password that you have entered in step 5. • If a different password is entered, the operation goes back to step 5 for reentry from the beginning. • You can try up to three times to reconfirm the new password before the Change Password screen is automatically exited. Press HOME MENU to exit the menu. Note • Take a note of the newly set password and keep it handy.

Press HOME MENU to exit the menu. Note • The above procedure will reset the password to the factory default (1 2 3 4). • After disabling the password function, you cannot change the Child Lock settings. See Setting Child Lock on page 28. • After disabling the password function, you cannot change or reset the password. • When you enable the password function again after disabling it, the factory default password (1 2 3 4) is restored.

We suggest you write down your password so you don’t forget it.

PDP-LX608D/PDP-LX6080D/ PDP-LX508D/PDP-LX5080D Your password No.:

If you forget the password When the message “Please Input Your Password.” is displayed, press the ENTER button on the remote control unit and hold it down for three seconds or longer. The password reverts to “1234”.

Using with other equipment

Using with other equipment You can connect many types of external equipment to your plasma television, like a decoder, VCR, DVD player, game console, personal computer and camcorder. To view images coming from external equipment, select the input source using the INPUT 1 to INPUT 5 buttons on the remote control (page 14) or INPUT on the plasma television. Caution • To protect all equipment, always unplug the plasma television from the power outlet before connecting to a decoder, VCR, DVD player, game console, personal computer, camcorder or other external equipment.

DVD playback To watch a DVD, press INPUT 2 on the remote control unit or press INPUT on the plasma television to select “INPUT 2”. Note • If DVD images do not come in clearly, you may need to change the input signal type setting using the menu. See page 52. • Refer to your DVD player operation manual for the signal type.

Connecting a decoder Use the INPUT 1 terminal when connecting a decoder and other audiovisual equipment.

Note • Refer to the relevant operation manual (DVD player, etc.) carefully before making connections. • Unless stated otherwise, the connecting cables shown in the illustrations are readily available commercially, but are not supplied with this product.

Connecting a DVD player Use the INPUT 2 terminal when connecting to a DVD player and other audiovisual equipment. When using a component video cable, select “COMPONENT” in the “Input Select” menu and “SCART” in the “Audio Select” menu (see Selecting an input signal type on page 52). In this case, the SCART cable will carry the audio signal. If you want the audio cable to carry the audio signal, connect the audio cable to the INPUT 2 terminal (Audio) and select “RCA” in the “Audio Select” menu.

Displaying a decoder image Press buttons 0 to 9 or P+/P– to select a programme specified for decoder setting (page 28). Press INPUT 1 on the remote control unit or press INPUT on the plasma television to select “INPUT 1”.

Note • Be sure to use “INPUT 1” to connect a decoder. • If decoder images do not come in clearly, you may need to change the input signal type setting using the menu. See page 52. • Refer to your decoder operation manual for the signal type.

Using with other equipment

Use the INPUT 2 terminals when connecting a VCR and other audiovisual equipment. If your VCR supports TV-VCR advanced “AV link” systems, you can connect the VCR to the INPUT 2 or INPUT 3 terminal on the plasma television using the fully-wired 21-pin SCART cable.

AV link advanced system • Download tuning information directly from TV to VCR (Preset download). • While watching TV, you can record a programme with a onetouch press of the VCR recording button. (WYSIWYR*) * Refer to your VCR operation manual as some VCRs have an exclusive key for WYSIWYR. • When you press the play button on the VCR, the system automatically turns on from standby and displays a VCR image.

• If VCR images do not come in clearly, you may need to change the input signal type setting using the menu. See page 52. • Connect external equipment to only terminals that are to be actually used. • Refer to your VCR operation manual for the signal type.

Using the SCART output function This function allows you to record DTV programmes with a connected VCR or other recording equipment while enjoying watching the plasma television as usual. With this function, you can also easily enjoy timeshift playback when a DVD/HDD recorder (DVR) is connected. The following diagram assumes that you connect a Pioneer DVR940HX-S to the plasma television so that you can enjoy timeshift playback with the recorder.

Note • TV-VCR advanced “AV link” systems may not be compatible with some external sources.

AV 1 (RGB) – TV R AUDIO L VIDEO DVR-940HX-S VCR Caution • If you connect a device such as a VCR between the aerial and plasma television, signal reception quality may deteriorate. In this case, we recommend using a distributor and making sure to switch the “Aerial Power” setting off in order to prevent the device from being damaged.

VCR playback To watch a VCR image, press INPUT 2 on the remote control unit or press INPUT on the plasma television to select “INPUT 2”.

In addition to the above connections, you need to perform the following: • See Switching the SCART output (page 60) and select “Fixed on DTV” for “SCART Output” in the Setup menu. • On the DVD/HDD recorder (DVR), select the video/audio input source matching the external input terminal to which the plasma television has been connected. For this method, see the operation manual that came with the recorder. • Select the input source on the plasma television depending on the terminal to which the output of the DVD/HDD recorder (DVR) has been connected; for the above connection example, select INPUT 2.

Using with other equipment

• When you complete the connections and setups, you can then enjoy timeshift playback with the DVD/HDD recorder (DVR). You can also select the 2-screen or picture-in-picture mode to watch images coming from the DTV input source and an external input source (INPUT 2 for the above connection example) to which the output of the recorder has been connected.

Connecting a game console or camcorder Use the INPUT 5 terminals to connect a game console, camcorder and other audiovisual equipment.

Note • Some DVD/HDD recorders (DVRs) may not allow timeshift playback. Check the operation manual that came with your recorder. • For details about connection and setting procedures, see the operation manual that came with your DVD/HDD recorder (DVR).

Switching the SCART output Video and audio signals output from INPUT 2 and INPUT 3 sources are the same as those used for the current image display. You can however change the setting so that DTV signals are always output regardless of the current image display. 1

S-Video cable Audio/Video cable

Game console/camcorder

Fixed on DTV Displaying an image from the game console or camcorder Item

Outputs video and audio signals coming from the selected input source

To watch an image coming from the game console or camcorder, press INPUT 5 on the remote control unit or press INPUT on the plasma television to select “INPUT 5”. Note

Fixed on DTV Always output DTV signals 5

Press HOME MENU to exit the menu. Note • The following operations are given higher priority over the above setting: •Presetting a DTV programme for recording •Execution of WYSIWYR (page 59) • While in analogue TV mode, no signal is output even if “Fixed on DTV” is selected for “SCART Output”. • When the Home Gallery screen is displayed, no signal is output even if “Fixed on DTV” is selected for “SCART Output”.

• The INPUT 5 terminals are checked for cable connections in the order where; 1) S-Video, 2) Video. • Connect external equipment to only terminals that are to be actually used.

Using with other equipment

Use the PC terminals to connect a personal computer. Note • The PC input terminals are DDC2B-compatible.

Connecting a personal computer

Computer compatibility chart Resolution

Connecting an amplifier/AV receiver You can enjoy more powerful sound by connecting such audio equipment as an amplifier/AV receiver or subwoofer to the plasma television.

RGB cable Stereo mini jack cable Rear view Stereo audio cable Optical digital cable Personal computer

Displaying an image from a personal computer To watch an image coming from the personal computer, press PC on the remote control unit or press INPUT on the plasma television to select “PC”. When connecting to a personal computer, the correct input signal type is automatically detected. If the personal computer image does not come in clearly, you may need to use Auto Setup menu. See page 52.

This connection is not required when connecting an AV amp equipped with the surround function to a subwoofer. AV receiver Subwoofer

Note • The PC terminals cannot be used for audiovisual equipment.

Note • For details, refer to the operation manual for the audio equipment to be connected. • Audio signals synchronizing with currently displayed images are always output to the AUDIO OUT terminals. • The audio accompanying images shown on the display is always output to the SUBWOOFER output terminal. • When signals are input from the HDMI terminals, no signals are output from the DIGITAL OUT terminal. • While in DTV mode, no signals are output if they are copy guarded.

Using with other equipment

Using the HDMI Input The INPUT 1, INPUT 3 and INPUT 4 terminals are HDMI terminals to which digital video and audio signals can be input. To use the HDMI terminal, activate the terminal and specify the types of video and audio signals to be received from the connected equipment. For the types of these signals, see the operation manual that came with the connected equipment. Before starting the menu, press INPUT 1, INPUT 3 or INPUT 4 on the remote control unit or press INPUT on the plasma television to select “INPUT 1”, “INPUT 3” or “INPUT 4”. Video signals supported 720 (1440) x 576i@50 Hz 720 x 576p@50 Hz 1280 x 720p@50 Hz 1920 x 1080i@50 Hz 720 (1440) x 480i@59.94 Hz/60 Hz 720 x 480p@59.94 Hz/60 Hz 1280 x 720p@59.94 Hz/60 Hz

Deep Colour supported Deep Colour means the colour depth that describes the number of bits used to represent the colour of a single pixel in a bitmapped image. Besides the conventional RGB/YCbCr16 bit/20 bit/24 bit signals, the plasma television also supports RGB/YCbCr30 bit/36 bit signals. This enables finer, minute colour reproduction when a device that supports Deep Colour signals (HDMI1.3) is connected to the plasma television. When Deep Colour signals are received, the colour depth appears on the channel display. Note • It may take a short while until the image is displayed, depending on the equipment connected. • When connecting a PC to the HDMI terminal, use the HDMI compliant PC or video card. • When connecting a PC to the HDMI terminal using a DVI output terminal, the plasma television may not display properly. If that is the case, consult with your PC manufacturer. • PC picture and/or sound may not be displayed or heard properly depending on the PC used.

Connecting HDMI equipment When using the INPUT 1 HDMI terminal:

PC signals supported 640 x 480 (VGA) 60 Hz 800 x 600 (SVGA) 60 Hz 1024 x 768 (XGA) 60 Hz 1360 x 768 (Wide - XGA) 60 Hz 1280 x 1024 (SXGA) 60 Hz

For audio, the system supports the following: • Linear PCM (STEREO 2ch) • Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

HDMI Control supported The plasma television supports the HDMI Control functions. By connecting devices that support the HDMI Control functions to the plasma television, you can control the connected device(s) from the plasma television or remote control unit of the plasma television. See Using the HDMI Control on Chapter 13.

Using with other equipment

Select this option except when a PC is connected

PC Select this option when a PC is connected to the HDMI input terminal

Press HOME MENU to exit the menu. Caution • Make sure to select “PC” when a PC is connected to the HDMI input terminal. Note

HDMI compliant cable (HDMI cable having the HDMI mark)

• In the “Video” mode, the image is “over-scanned” (enlarged), and the mode is automatically switched to “PC” when PC signals are received. • In the “PC” mode, the image is displayed in full size for optimum image quality.

Activating the HDMI terminal When you use the INPUT 1 or INPUT 3 HDMI terminal, select the terminal for the desired input source, then perform the following procedure to activate the terminal. 1

when “Video” is selected (“overscan” size screen)

Press HOME MENU to exit the menu.

when “PC” is selected (“underscan” size screen)

Repeat steps 1 to 3 provided for Activating the HDMI terminal. Select “Video“ (/ then ENTER). Select the type of digital video signals (/ then ENTER). • If you select “Auto”, an attempt will be made to identify the type of digital video signals when digital video signals are received.

Digital Component Video signals (4:2:2) locked

Repeat steps 1 to 3 provided for Activating the HDMI terminal.

Digital Component Video signals (4:4:4) locked

Digital RGB signals (16 to 235) locked

Digital RGB signals (0 to 255) locked

Using with other equipment

Connecting control cords

Note • If you select a parameter other than “Auto”, make such a setting that results in natural colour. • If no image appears, specify another digital video signal type. • For the digital video signal types to be specified, check the operation manual that came with the connected equipment.

Specifying the type of audio signals When you use the INPUT 1 or INPUT 3 HDMI terminal, select the terminal for the desired input source, then perform the following procedure to specify the type of audio signals. 1

Select the type of audio signals (/ then ENTER). • If you select “Auto”, an attempt will be made to identify the type of audio signals when audio signals are received.

Accepts digital audio signals

Accepts analogue audio signals

Press HOME MENU to exit the menu. Note • If no sound is output, specify another audio signal type. • For the audio signal types to be specified, check the operation manual that came with the connected equipment. • Depending on the equipment to be connected, you also need to connect analogue audio cables.

Connect control cords between the plasma television and other Pioneer equipment having the t logo. You can then operate the connected equipment by sending commands from its remote control unit to the remote control sensor on the plasma television. After the CONTROL IN terminals have been connected, the remote control sensors on the connected equipment do not accept commands from the remote control units. Face the remote control units to the remote control sensors on the plasma television when operating the connected equipment. Note • Make sure that the power cord is removed from the power outlet when making connections. • Complete all component connections before making control cord connections.

About SR+ The CONTROL OUT terminal on the rear of the plasma television supports SR+ that allows linked operations with a Pioneer AV receiver. SR+ presents functions such as the input switch linkage operation function and the DSP surround mode display function. For more information, see the instruction manual that came with the Pioneer AV receiver supporting SR+. Note • While in connection through SR+, the volume on this system is temporarily minimized. • When making control cord connections, use the SR+ cable. • When making control cord connections with one or more pieces of Pioneer equipment, directly connect the plasma television and the Pioneer amplifier that supports SR+. Do not connect other equipment between them.

Using with other equipment

The plasma television incorporates three typical i/o link.A functions for smooth connections between plasma television and other audiovisual equipment.

Using i/o link.A One Touch Play While the plasma television is in standby mode, it automatically turns on and plays back images from the audiovisual source (e.g. VCR, DVD).

WYSIWYR (What You See Is What You Record)

CONTROL IN When the remote control unit of the connected VCR has the WYSIWYR button, you can automatically start recording by pressing the WYSIWYR button.

CONTROL IN Automatically transfers channel preset information from the tuner on the plasma television to the one on the connected audiovisual equipment (e.g. VCR) via the INPUT 2 or INPUT 3 terminal.

OUT Selecting the SCART terminal for use with i/o link.A

CONTROL IN The INPUT 2 and INPUT 3 terminals on the plasma television are available for use with i/o link.A. Select which is to be used.

OUT When SR+ is not used (a, b and c): The control cables (commercially available) are mono sound cables with mini plugs (no resistance). When SR+ is used (a): Use the SR+ cable (available as option).

INPUT 3 is available for i/o link.A Press HOME MENU to exit the menu. Note • The i/o link.A functions work only when the audiovisual equipment is connected to the INPUT 2 or INPUT 3 terminal on the plasma television with i/o link.A via a fully wired 21-pin SCART. • Refer to operation manuals of each external equipment for the details. • If a SCART cable has been connected to the INPUT 3 terminal with the i/o link.A activated, input signals (other than Component) are automatically identified and displayed. If the i/o link.A has been deactivated, Video is always selected for signals other than RGB because the system cannot identify among RGB, Y/C (S-Video), and CVBS (Video) signals; for example, receiving Y/C (S-Video) signals results in monochrome display.

Using with other equipment

Enjoying through USB interface (Home Gallery function) On this system, you can watch JPEG images that have been captured and stored in memory cards using a digital still camera. You can also connect your digital camera directly to the plasma television using a USB connector cable.

Connecting a USB device Hold the USB device’s connector with its top side facing the front panel, and then insert it into the USB port on the side of the plasma television. • Insert the USB device’s connector as far as it goes. • When using the USB connector of your device, connect it directly to the USB port.

Side of the plasma television Digital still camera

USB flash drive or multi-card reader

Note • A single USB device can only be connected at a time. No USB hub can be connected. • Such devices as a printer or keyboard cannot be connected and used.

Readable memory cards This system can read memory cards whose formats are FAT16, FAT32, or VFAT.

Removing a USB device To remove a USB device’s connector, quit the Home Gallery screen and then remove it.

Readable data files This system can read only JPEG files that meet the following conditions: • Extensions are JPG or JPEG. • JPEG 4:2:2 and 4:2:0 format • The image resolution must be less than 3264 pixels in the horizontal direction and 2448 pixels in the vertical direction. • The image resolution must be higher than 160 pixels in the horizontal direction and 120 pixels in the vertical direction. Note • This system may not be able to display images, depending on the type of your memory card, or camera. • This system may not be able to display images modified or edited using a personal computer or other equipment. • This system complies with the USB Mass Storage Class, SIC (Still Image Capture) Class + PTP and Multiple LUN (Logical Unit Number) Class. Note • Be sure to quit the Home Gallery screen before removing the USB device. If you remove the USB device while the Home Gallery screen is displayed, data inside the memory may be damaged.

Using with other equipment

Starting a thumbnail screen When a folder is selected on the initial Home Gallery screen, images in the folder are displayed in thumbnail format.

Starting the initial Home Gallery screen

• Do not insert or remove the USB device immediately after the system is switched on or off. This may cause data inside the memory to be damaged. • Do not turn the digital camera off while the Home Gallery screen is displayed.

When you connect a USB device while the system is on, the initial screen appears automatically. If the screen does not appear, use the steps 1 and 2.

Selecting a folder The initial Home Gallery screen shows folders saved in the memory card. Different types of icons appear depending on the contents of folders.

Designates a folder that contains another folder.

Designates a folder that contains no image file.

Designates a folder that contains one or more image files.

Picture size Saved date File name Rotation angle Image selection cursor Appears for unreadable images and images that could not be displayed on a single screen. ➆ Number of the selected file/total number of images in the folder ➇ Appears when the folder contains more than 16 images. ➈ Indicates that the picture has been rotated. Press / to scroll the screen. To highlight a desired image, press / and / to move the cursor. Information about the highlighted image appears at the top left of the screen. Press HOME MENU to quit the Home Gallery function.

Starting a standard single-image screen When the thumbnail screen is displayed, press / and / to highlight a desired image, and then press ENTER. The thumbnail screen disappears and only the selected image is displayed. Home Gallery Picture Information File Neme Winter. j Picture Size 800*600 Date

Designates one or more image files saved under the root directory.

To select a desired folder, press / and then ENTER. Images in the selected folder are displayed in thumbnail format.

With the above screen displayed, you can use the following buttons to perform various operations:

Using with other equipment

P–: Displays the previous image in the normal or full screen.

P+: Displays the next image in the normal or full screen.

RED: Displays the image using the full screen. To quit the full-screen display, press RETURN.

10 To start the Slide Show screen, press RETURN to display the thumbnail screen and then press RED. • To quit the Home Gallery function, press HOME MENU.

Starting the Slide Show screen

After setting up for Slide Show, you can start Slide Show to sequentially change images.

Quits the Home Gallery function. Note • Be careful not to display the same image for an extended period of time. This may cause screen burning/image retention. • Images smaller than 1024 x 768 pixels are displayed with blank surrounding.

Starting the Slide Show Setup screen When the thumbnail screen is displayed, press GREEN to start the screen for setting up for Slide Show that sequentially changes images. 1 2

Select “Display Mode” (/). Select “Normal” or “Full” (/). • With “Full” selected, images are displayed using the full screen.

Select “Repeat Mode” (/). Select “Single Time” or “Loop” (/). • With “Loop” selected, Slide Show is repeated until RETURN is pressed. Select “Playback Mode” (/). Select “Auto” or “Manual” (/). • With “Auto” selected, images automatically change at the specified intervals. • With “Manual” selected, images change each time you press P+/P–. Home Gallery

9 If you have selected “Auto” in step 8, press / to select “Interval(sec.)”, and then press / to select the desired display duration for individual images. • You can select from among 3 seconds, 5 seconds, 10 seconds, 20 seconds, 30 seconds, 60 seconds, and 90 seconds.

1 To start the Slide Show screen, press RED when a thumbnail screen is displayed. • With “Auto” selected for “Playback Mode”, images are automatically changed at the specified intervals. • With “Manual” selected for “Playback Mode”, press P+/P– to change images. • While images are automatically changing, you can stop and hold automatic image change for approximately 90 seconds by pressing RED. To resume, press RED again. 2 When quitting the Slide Show screen, press RETURN to restore the thumbnail screen or HOME MENU to quit the Home Gallery function. Note • When paused during a slideshow is played, the screen is automatically changed to the next image in five minutes. • If no operation is continued for five minutes, the Home Gallery function automatically finishes except when the slideshow is played with “Loop” selected for the “Repeat Mode”.

Adjusting the picture quality When a thumbnail screen is displayed, press YELLOW. The same picture adjustment screen as the PC source is displayed. For the subsequent procedure, see page 31.

Using with other equipment

Using the supplied remote control unit, you can control other equipment in connection: a set-top box (STB), DVD player, DVD/ HDD recorder (DVR), BD player or VCR. Before using this function, you need to preset the supplied remote control unit with the manufacture code of the equipment to be controlled. When you then want to control the equipment, press SELECT on the remote control unit to select an appropriate mode depending on the equipment; the selection is switched among TV, STB, DVD/DVR, and VCR. The corresponding mode indicators on the remote control unit show the currently selected mode.

Note • If you perform no operation for approximately one minute while a mode indicator is flashing, the code presetting procedure is quitted. • If you enter a code not listed in the table, a mode indicator flashes quickly for approximately one second and then flashes as before. • To quit the code presetting procedure halfway while a mode indicator is flashing, you may press SELECT on the remote control unit. • The factory default manufacture codes for the STB, DVD/DVR, and VCR modes are “000”, “100”, and “500” respectively.

Controlling other equipment using the supplied remote control unit

• You may not be able to control some equipment in the tables partially or entirely with the supplied remote control unit.

1 Press SELECT on the remote control unit to select the STB, DVD/DVR, or VCR mode depending on the equipment.

2 After confirming that the indicator of the previously selected mode goes off, press and hold SELECT, and then press 1 on the remote control unit. • The corresponding mode indicator flashes. 3

Press 0 to 9 to enter a three-digit manufacture code. • See the manufacture code list to identify an appropriate code. • The mode indicator lights up for approximately one second and then goes off; presetting the manufacture code is completed. 1

TV/DTV P SELECT TV DVD/ SOURCE STB DVR VCR

Using with other equipment

Using with other equipment

When in the STB mode, the buttons on the remote control unit function as below. 1

0 to 9 Function as the numeric buttons.

P+/P– Press to tune in a higher or lower channel.

RETURN When the broadcasting menu screen is in display, press to restore the immediately previous screen.

ENTER Press to activate the selected function. /// Press to select items on the broadcasting menu screen or the broadcasting guide screen.

EXIT Press to exit the broadcasting menu screen or the broadcasting guide screen.

INFO Press to display information on the current broadcasting.

SOURCE a Turns the set-top box on and off.

MENU Press to display the broadcasting menu screen.

GUIDE Press to display the broadcasting guide screen.

Using with other equipment

DVD/DVR control buttons When in the DVD/DVR mode, the buttons on the remote control unit function as below. 1

0 to 9 Function as the numeric buttons.

P+/P– (DVD/HDD recorder (DVR) only) Press to change the channel of the tuner built in the DVD/ HDD recorder (DVR).

RETURN When the DVD menu is in display, press to restore the immediately previous screen.

ENTER Press to activate the selected function. /// Press to select items on the DVD MENU screen.

F (PAUSE/STILL) Sets pauses and still pictures.

● (REC) (DVD/HDD recorder (DVR) only) Starts recording.

T (CHAPTER SEARCH) Each time you press, you move back to the start of the previous chapter.

U (CHAPTER SEARCH) Each time you press, you move ahead to the start of the next chapter.

DISC NAVI (DVD/HDD recorder (DVR) only) Press to display the Disc Navigator screen for browsing the contents of a disc.

SOURCE a Turns on and off the power of the DVD player or DVD/HDD recorder (DVR).

MENU Press to display the DVD menu.

DVD TOP MENU When this button is pressed, the DVD top menu will appear.

■ (STOP) Press to stop playback or recording. With some DVD players or DVD/HDD recorders (DVRs), pressing the button twice may open the disc tray.

I (PLAY) Starts playback.

V (SCAN) Press for fast forward.

S (SCAN) Press to go backward.

HDD (DVD/HDD recorder (DVR) only) Press to select the hard disk (HDD) for playback or recording.

DVD (DVD/HDD recorder (DVR) only) Press to select the DVD for playback or recording.

12 13 14 15 16 17 18

6, 13 REC STOP (DVD/HDD recorder (DVR) only)

Press ● and ■ at the same time to stop recording. This operation is available for only Pioneer and Sony DVD/HDD recorders (DVRs). Note

• You can control a BD player in the DVD/DVR mode. • The DVD player, DVD/HDD recorder (DVR) or BD player cannot be selected at the same time.

Using with other equipment

When in the VCR mode, the buttons on the remote control unit function as below. 1

0 to 9 Function as the numeric buttons.

P+/P– Press to select channels of the TV tuner on the VCR.

F (PAUSE/STILL) Sets pauses and still pictures.

● (REC) Starts recording.

SOURCE a Turns the power of the VCR on and off.

■ (STOP) Stops tape transport.

I (PLAY) Starts playback.

V (FF) Rapidly advances the tape and allows picture search.

S (REW) Rewinds the tape and allows picture search.

SOURCE STB DVR VCR English

Using the HDMI Control Using the HDMI Control functions You can operate such Pioneer devices as a recorder, player, AV system or HD AV Converter that support the HDMI Control functions using the remote control of the plasma television. The HDMI Control functions include playback of content using onscreen control panel on the plasma television, recording of a TV programme while watching, timer recording using a programme list on the connected recorder, and confirmation of timer recording registered in the recorder. For details, see the table below.

Display Language Setup

Information on the display menu Recorder/ language is transferred to the player recorder or player connected to the plasma television. For details, see the operation manual that came with the recorder or player.

Receiver/amplifier operation can AV system also be controlled with the remote control unit of the plasma television (volume, surround mode and input selection of the HDMI terminal)

The connected recorder can be turned On when the plasma television is turned On. The plasma television can be turned On when the connected recorder(s) or player(s) is turned On and images are input to the plasma television.

The connected device(s) can be turned Off when the plasma television is turned Off

Recorder/ player/AV system

HD AV Converter control

An HD AV Converter can also be connected and controlled (For details, see page 77)

Note • Maximum number of devices that can be connected and controlled using the remote control unit of the plasma television is as follows: recorder x 2, player x 2, AV system or HD AV Converter x 1. • Not all device operations may be available for HDMI Control functions.

The proper input source is automatically selected and the content is played back on the plasma television as you press PLAY on the connected device

Recorder/player operation can be Recorder/ controlled on-screen or with the player remote control unit of the plasma television (play, stop, fast forward/ reverse, etc.)

TV/DTV P Recording of The programme now watching can Recorder TV be recorded using the remote programme control unit of the plasma television Timer recording

Timer recording using a programme list on the recorder connected

Confirmation Recording schedule registered in the Recorder of recording recorder can be displayed and schedule confirmed on the screen using the remote control unit of the plasma television

EXIT EPG Recorder/ player

• Press i+/– or e to adjust volume for the AV system. • Press , , , , ENTER, RETURN ( ) or colour (BLUE, RED, YELLOW, GREEN) buttons to use such functions as the disc navigator and electronic programme guide (EPG) on the connected recorder or player.

DVD TOP MENU / GUIDE Note • When using the HDMI Control functions, operate the remote control unit while pointing it toward the remote control sensor (t) located at the bottom right of the front panel of the plasma television. • You cannot use two or more HDMI terminals at the rear of the plasma television at the same time except “Power Off” and “Display Language Setup” functions.

Using the HDMI Control

Switches the surround mode in order Switches the input source in reverse order Switches the surround mode in reverse order Closes the screen to return to the HDMI Control menu Displays the model number of the connected device Void Switches the input source in order

Press  or  on the remote control unit of the plasma television to switch the surround mode in order or in reverse order,  or  to switch the input source in order or in reverse order. Pressing HDMI CONTROL turns the control panel screen off to return to the HDMI Control menu.

When you make changes in connections between the plasma television and the device(s) that supports the HDMI Control functions or settings for the “HDMI Control Setting”, perform the following procedure: 1 Turn on the plasma television and all the connected devices. 2 Confirm that the setting in “Input Setting” for “HDMI Control Setting” is properly entered according to the connected devices. Also confirm the HDMI Control related settings in the connected devices. 3 Switch to the HDMI input terminals to which the devices are connected to check if audio and video images are properly output and displayed. 4 Try turning off the plasma television, then turn the power back on to the plasma television.

On-screen control panel

Connecting an AV amp/DVD recorder/BD player

Note • You cannot operate the recorder/player when you press  or  to switch the input source during operation. To resume the operation, return to the HDMI Control menu and select the desired function again.

Skips commercials Fast reverse Stops playback Closes the screen to return to the HDMI Control menu Displays the model number of the connected device Starts playback Fast forward

Press  or  on the remote control unit of the plasma television to select fast reverse or fast forward mode,  to skip commercials or  to stop playback. Pressing ENTER starts playback and HDMI CONTROL turns the control panel screen off to return to the HDMI Control menu.

For a player HDMI Control

Displays the DVD disc menu or Blu-ray disc's pop-up menu on the player Fast reverse Stops playback Closes the screen to return to the HDMI Control menu Displays the model number of the connected device Starts playback Fast forward

Press  or  on the remote control unit of the plasma television to select fast reverse or fast forward mode,  to display the DVD disc menu or Blu-ray disc's pop-up menu on the player or  to stop playback. Pressing ENTER starts playback and HDMI CONTROL turns the control panel screen off to return to the HDMI Control menu.

Connecting a DVD recorder

HDMI compliant cable (HDMI cable having the HDMI mark)

Note • Maximum number of devices that can be connected and controlled using the remote control unit of the plasma television is as follows: recorder x 2, player x 2, AV system or HD AV Converter x 1. • When connecting an AV system or HD AV Converter, be sure to place and connect it between the plasma television and recorder or player. • Do not connect an AV system that does not support the HDMI Control functions between the plasma television and a recorder/ player, otherwise the HDMI Control functions may not operate properly. • When connecting an AV system that does not support the HDMI Control functions and a player/recorder that supports the HDMI Control functions to the plasma television, connect the AV system to the DIGITAL OUT terminal and the AUDIO OUT terminal on the plasma television using an optical digital cable and a stereo audio cable, and the recorder/player to the HDMI terminal using an HDMI compliant cable (see the illustration). Please note that signals input from the HDMI terminals will not be output from the DIGITAL OUT terminal.

• After making connections, enter the setting in “Input Setting” for “HDMI Control Setting”. Be sure that the setting is entered in each HDMI input terminal to which the device is connected. • You cannot connect and use an AV system and HD AV Converter at a time. • Settings in the connected device(s) are also required to use the HDMI Control functions. For details, see the operation manual that came with the connected device(s). • When a recorder is connected, its power is automatically switched on as the plasma television is turned On to help make the recording smoother. • For more information on the devices that support the HDMI Control functions, check the Pioneer Web site (see back cover).

Using the HDMI Control

Note • The “Power Off Control” function is valid for the devices connected to any of HDMI terminals at the rear of the plasma television.

Selecting the input terminal Select the HDMI terminal to which the external device is connected in order to use the HDMI Control functions.

Selecting the Power-On Ready

Repeat steps 1 to 3 in Selecting the input terminal.

Select “Input Setting” (/ then ENTER).

5 Select “INPUT 1” , “INPUT 3” or “INPUT 4” (/ then ENTER). Only the device that supports the HDMI Control and is connected through the selected INPUT terminal is available for the HDMI Control functions. 6

You can select whether or not the plasma television is turned On when the connected Pioneer recorder or player is turned On and images are input to the plasma television. (factory default is “On”)

Setting the HDMI Control

Press HOME MENU to exit the menu. Note • If you have selected “Enable” for “HD AV Converter”, you do not need to enter settings in “Input Setting”. • “INPUT 1” or “INPUT 3” can only be selected when “Enable” has been selected for the “HDMI Input” menu (see Activating the HDMI terminal on page 63). • If you have selected “Off” in step 5, a message “Operations cannot be carried out. Confirm the HDMI control settings.” appears when HDMI CONTROL is pressed on the remote control unit. • If you operate an HDMI supported device(s) using an HDMI terminal other than the terminal selected in “Input Setting”, a malfunction may occur. When connecting to any HDMI terminals other than the terminal selected in “Input Setting”, make sure to enter the settings of the external device(s) so that the HDMI Control function does not operate.

Selecting the Power Off Control You can select whether or not the connected device is turned Off when the plasma television is turned Off. (factory default is “On”) 1

Repeat steps 1 to 3 in Selecting the input terminal.

Press HOME MENU to exit the menu.

Selecting the Hold Sound Status You can select whether or not the function is held for the connected Pioneer AV system even if the system is placed into standby during HDMI Control operations. (factory default is “Off”) 1

Repeat steps 1 to 3 in Selecting the input terminal.

Press HOME MENU to exit the menu.

Selecting the HD AV Converter The HD AV Converter is an HDMI input selector that will be launched on the market by Pioneer. It has both HDMI and analogue input terminals that support the HDMI Control functions. When the HD AV Converter mode is selected, you can switch the HD AV Converter input terminals using the remote control unit of the plasma television. Picture and sound quality can also be adjusted for each input terminal on the HD AV Converter. For details on selecting the HD AV Converter mode, see the following: (factory default is “Disable”) 1

Repeat steps 1 to 3 in Selecting the input terminal.

HD AV Converter mode In the HD AV Converter mode, functions and menus unique to the HD AV Converter are available as follows: Channel display In the HD AV Converter mode, a channel display appears as one of the input terminals (INPUT 1 to INPUT 5) selected. The input terminal displayed at the top of the screen is for the HD AV Converter connected, followed by “HD AV Converter”.

Input selection for the HD AV Converter In the HD AV Converter mode, you can select the INPUT 1 to INPUT 5 on the HD AV Converter using “INPUT 1” to “INPUT 5” on the remote control unit or INPUT on the right side of the plasma television.

Menu setting download In the HD AV Converter mode, settings in the following menus for the plasma television’s “INPUT 1” to “INPUT 5” are transferred to “INPUT 1” to “INPUT 5” on the HD AV Converter connected: • Picture quality settings in “Picture” • Sound settings in “Sound” • HDMI-related settings in “HDMI Input” for “Option” Like the plasma television, these settings can be changed in each of INPUT 1, INPUT 2, INPUT 3, INPUT 4 or INPUT 5 on the HD AV Converter. If you exit the HD AV Converter mode after having changed the settings, the changed settings are transferred to each INPUT on the plasma television.

• A Pioneer HD AV Converter is required to use the HD AV Converter mode. Check the Pioneer Web site (see back cover) for updated information on the HD AV Converter. • When using an HD AV Converter, you also need to enter the setting on the HD AV Converter. For details, refer to the operation manual that came with the HD AV Converter. • Do not select “Enable” in the “HD AV Converter” menu if you do not use an HD AV Converter. • When selecting “Enable” for the “HD AV Converter” menu, be sure to connect the HD AV Converter to INPUT 4 on the plasma television. • In the HD AV Converter mode, only video and audio signals that are input from “INPUT 1” to “INPUT 5” on the HD AV Converter connected to INPUT 4 on the plasma television will be displayed and output. Do not connect other devices than a decoder to INPUT 1 to INPUT 3 or INPUT 5. When connecting a decoder, make sure to use INPUT 1 on the plasma television. (see Selecting a decoder input terminal on page 28 and Connecting a decoder on page 58). • You cannot connect and use an AV system and HD AV Converter at the same time. • When using the HD AV Converter and a connected recorder/ player, always select the input using the HDMI Control menu. Selecting the input using INPUT 1 to INPUT 5 on the remote control unit or INPUT on the right side of the plasma television will cause the recorder/player to fail to operate.

Power On/Off Test You can confirm if the Power On/Off control function is effective between the plasma television and the connected device. 1

4 Select “Power On Test” or “Power Off Test” (/ then ENTER). A list containing devices appears when multiple HDMI devices are connected to the HDMI terminals. 5

Select the desired device (/ then ENTER).

Press HOME MENU to exit the menu. Note • Devices that can be checked for Power On/Off Test are those connected to HDMI terminals as set in “Input Setting”. • If the Power On/Off Test fails, check for the connection and setting. • The Power On/Off Test cannot be carried out on HD AV Converters.

Using the HDMI Control

You can enjoy various functions with the connected Pioneer recorder, player or AV system that supports the HDMI Control functions by selecting and using the corresponding HDMI Control menus. 1

2 Select “HDMI Control” (/ then ENTER). The HDMI Control menu is displayed. HDMI Control Disc Navigator Timer REC(DVR) Timer REC List(DVR)

Note • To use the HDMI Control functions, a Pioneer recorder, player or AV system that supports the HDMI Control functions is required. • Not all operations may be controlled for the connected devices. • The HDMI Control menu is not selectable when “Off” is selected in “Input Setting” for the “HDMI Control Setting” menu. • Even when the programme being recorded is over, recording is not automatically stopped on the Pause Live TV menu. • The CTRL Panel (AV-SYS) menu is only available when the sound is output from the AV system. • The Playback CTRL Panel menu is selectable when the connected recorder or player is ready to operate. • You can also display the HDMI Control menu by pressing HDMI CONTROL on the remote control unit of the plasma television.

DVD HDD Switch to AV Sound

Displays a title list of the connected recorder or player

Displays an electronic programme guide (EPG) of the connected recorder

Timer REC List (DVR)

Displays a timer recording list of the connected recorder

Pause Live TV Starts recording of the current TV channel when a recorder is connected, but with playback paused, effectively pausing the broadcast

Stops recording for the connected recorder

Displays the control panel for the connected AV system on the plasma television

Displays the control panel for the connected recorder or player on the plasma television

Switch to AV Sound (Switch to PDP Sound)

Switches between the plasma television and the connected AV system to which sound is output

Using Teletext Using the Teletext Functions What is Teletext? Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your plasma television receives Teletext signals broadcast by TV networks, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among many services available.

Important • Displaying Teletext pages for a long period of time, or for shorter periods of time everyday, may result in image retention. 1

Operating the Teletext basics

PC Turning on and off Teletext

SOURCE STB DVR VCR HOME MENU RETURN MENU ENTER EXIT EPG DVD TOP MENU / GUIDE Press m to display the Teletext (full screen).

3 Press m again to display the Teletext on the right screen and normal image on the left screen. • Each time you press m, the screen mode switches as shown in the above diagram. • If you select a programme with no Teletext signal, “Cannot display Teletext.” appears.

Selecting and operating Teletext pages Use the following remote control buttons to select and operate Teletext pages.

Colour (RED/GREEN/YELLOW/BLUE):

HDMI CONTROL DISC NAVI DVD HDD You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding colour (RED/GREEN/YELLOW/BLUE) on the remote control unit.

0 to 9: Directly select any page from 100 to 899 by using 0 to 9.

w / x: Press w to increase the page number. Press x to decrease the page number.

Displaying TOP Over View

To display hidden information such as an answer to a quiz, press k. Press k again to hide the information.

When receiving TOP Teletext, you can read a TOP text overview.

again to release the hold mode.

FOOT BALL BASKETBALL TENNIS SKI JUDO SWIM GROUP 1 GROUP 2 GROUP 3 GROUP 4

Displaying subpages You can display several subpages as they are transmitted. 203

Press m to display Teletext.

2 While receiving TOP Teletext, press l to display TOP Over View.

3 Press / and / to select the desired block or group pages, and then press ENTER.

Displaying subtitle pages You can display several subtitles as they are transmitted. 1 Press [ to display the subtitle. Subtitle is updated by the information sent by the broadcasting station. 2 P-

Press [ again to access next available subtitle screen.

To quit automatic subpage change, press /. • You can then manually change subpages by pressing /. Note • Pressing w / x causes the page to be changed and the subpage screen to disappear. • Pressing stops automatic subpage change and performs its respective button function.

Additional information

Additional information Troubleshooting Problem

GENERAL • No power. • The system cannot be switched on.

• Power is suddenly turned off.

• The system’s internal temperature has increased. Remove any objects blocking vent or clean. (See page 15.) • Check the power control setting. (See page 37.) • Check the sleep timer setting. (See page 56.)

• System cannot be operated.

• External influences such as voltage malfunction, static electricity, etc., may cause improper operation. In this case, operate the system after unplugging the power cord and re-plugging it in after one to two minutes.

• Remote control unit does not operate.

• Is the TV indicator on the remote control unit lighted? Press SELECT on the remote control unit to select the TV mode. • Operate the remote control unit while pointing it toward the remote control sensor on the plasma television. (See page 19.) • Are the batteries inserted with polarity (+, –) aligned? (See page 19.) • Are the batteries worn out? Replace with new batteries. (See page 19.) • Are you using it under strong or fluorescent lighting? • Is a fluorescent light illuminated to remote control sensor? • Check if any obstacles exist between the remote control unit and the remote control sensor.

• Panel sounds/noises.

• Panel generated sounds—for example, fan motor noise, electrical circuit humming, glass panel buzzing—are normal operation of a phosphor-based matrix display. • When you change the Energy Save mode, you may notice a change in the panel sound. This is normal.

Is the power cord disconnected? (See page 18.) Has a on the plasma television been turned on? (See page 20.) Check if you pressed buttons 0 to 9 or a on the remote control unit. (See page 20.) If the indicator on the system lights up red, press 0 to 9 or a on the remote control unit or STANDBY/ON on the plasma television.

• Screen appears dark.

• Check if any obstacles exist in front of the Room Light Sensor. (See pages 12 and 55.)

• No image and audio is presented.

• Check if the input source for video or PC has been unintentionally selected although you want to watch a TV channel. (See page 21.) • Check if you have selected a channel blocked with Child Lock. (See page 28.) • Enter a password to temporarily cancel Child Lock. (See page 56.) • Check if you have selected “Enable” in “HD AV Converter” for “HDMI Control Setting” even though no HD AV Converter is connected. Select “Disable” if that is the case. (See page 77.) • Check the cable connection with the antenna. (See page 17.) • Check the cable connection with the other equipment. (See pages 58 to 65.)

• Is connection to other components correct? (See pages 58 to 65.) • Is the Input Select setting correct? (See page 52.) • Is a non-compatible PC signal being input? (See page 61.)

• Sound is reversed between the right and left. • Sound is output from only a single speaker.

• Check if the speaker cable connections have been reversed between the right and left or if the speaker cable from either speaker has been disconnected. (See page 13.) • Has the balance been correctly adjusted? (See page 36.)

Additional information

• Audio is output but no image is • Check if you have selected “Picture Off” for “Energy Save”. With this option selected, the screen presented. is deactivated: only sound is output. To restore the screen display, press any button other than i + /i – or e. (See page 37.) • Images are presented but no audio is output.

• Picture is cut off.

• Is the image position correct? (See pages 51 and 52.) • Has the correct screen size been selected? (See page 53.)

Check if you have selected the minimum volume. (See page 22.) Check that no headphones are connected. Check that the sound is not muted. (See page 22.) When using “INPUT 5” as the input source, check that the audio terminal is also properly connected. (See page 60.) • When using PC as the input source, check that the audio terminal is also properly connected. (See page 61.) • When using “COMPONENT” for “INPUT 2”, check to see if the settings are properly entered. (See pages 52 and 58.)

• Strange colour, light colour, dark • Adjust the picture tone. (See pages 31 to 35.) or colour misalignment. • Is the room too bright? The picture may look dark in a room that is too bright. • Check the colour system setting. (See page 53.) • After-image lag.

• After displaying a still image or a very bright image for a certain period of time, if the screen is then switched to a darker scene, the previous image may appear as an after-image. • This can be rectified by playing a rather bright moving image for several minutes. However, displaying a still image for excessively long periods of time may cause permanent display deterioration. • You can display the “Video Pattern” screen that helps eliminate after-image when it occurs. (See page 56.)

• Brightness and colour tone on • If images in 4:3 mode or letterbox images are displayed for long periods or for shorter periods over both sides differ from those in the several days, an after-image may remain due to burning. This is a characteristic of plasma displays. centre in 4:3 mode. • We recommend that you enjoy watching images in a full screen mode as much as possible. (See page 53.) • We recommend you select “Auto” for “Brightness Sync.” in the Side Mask setting. This adjusts the brightness of the grey side masks according to the brightness of the main image. (See page 55.) HDMI Control • HDMI Control functions do not operate.

• Check if the connections are properly made between the plasma television and the device that supports the HDMI Control functions. (See page 75.) • Check if you have entered the settings properly for “HDMI Control Setting”. (See page 77.) • Check if the settings for the HDMI Control functions are effective on the connected device(s). For details, refer to the operation manual that came with the device.

• No image and audio is presented.

• Check if the connections are properly made between the plasma television and the device that supports the HDMI Control functions. (See page 75.) • Check if you have entered the settings properly for the HDMI Control Setting. (See page 77.) • Check if you have selected “Enable” in “HD AV Converter” for “HDMI Control Setting” even though no HD AV Converter is connected. Select “Disable” if that is the case. (See page 77.) • Check that the HD AV Converter is connected to INPUT 4 if you have selected “Enable” in “HD AV Converter” for “HDMI Control Setting”. (See page 77.)

• Check if the connections are properly made between the plasma television and the device that supports the HDMI Control functions. (See page 75.) • Check if you have entered the settings properly for “HDMI Control Setting”. (See page 77.)

• Check if the connections are properly made between the plasma television and the device that supports the HDMI Control functions. (See page 75.) • Check if you have entered the settings properly for “HDMI Control Setting”. (See page 77.) • Check if you have an HDMI controlled AV system connected to one HDMI terminal and the recorder or player connected to another HDMI terminal on the plasma television. When connected this way, audio out from the recorder/player does not go through the plasma television SPDIF terminal resulting in no sound to the AV system. When using an AV system and recorder or player, be sure to connect the recorder or player to the AV system input terminal.

•An error message “The device cannot be operated. Please check the connection.” appears.

• Check if the connections are properly made between the plasma television and the device that supports the HDMI Control functions. (See page 75.) • Check if you have entered the settings properly for “HDMI Control Setting”. (See page 77.)

Additional information

OTHER • POWER ON indicator or STANDBY indicator is quickly flashing.

• Internal protective circuits may have been activated. First turn a off on the plasma television, wait one minute or more, then switch the power on again by turning a on. If the indicator is still flashing, unplug the plasma television’s power cord from the power outlet. Wait one to two minutes then plug in the plasma television again. If this does not solve the problem, contact a Pioneer Service Center. These are listed on your warranty card for each country. Alternatively, check the Pioneer Web site (see back cover) for contact details.

• An external device connected to • Check if the device is connectable to the display. (See page 66.) • Re-insert the USB cable. (See page 66.) the USB terminal does not • For connection, use a USB cable shorter than 5 m. (See page 66.) operate. • Check if the USB cable is properly connected. (See page 66.) • First turn off a on the plasma television and then turn it on again in order to check if the external device works correctly. • Check if the external device works correctly after the USB device was restarted. • Check if the digital still camera is in the viewing mode. • Refer to the instruction manual for the digital still camera. • Photo data stored in digital still cameras cannot be read through the USB interface.

• Check if the device is connectable to the display. (See page 66.) • Check if the digital still camera turns on.

If the following error codes appear on the screen, check the corresponding items in the table. Code

Powering off. Internal temperature too high. Check temperature around PDP.

Check if the ambient temperature of the plasma television is high.

Internal protection circuit turns the system off. Is there a short in speaker cable?

Check the speaker cable connections between the plasma television and the speakers.

Signal names for 15-pin mini D-sub connecter

Additional information

SCART pin assignments Various audio and video devices may be connected via the SCART terminals.

Common earth for audio

14 Earth for Red/Green/Blue control

16 Red/Green/Blue control

Common earth for audio

Common earth for audio

14 Earth for Red/Green/Blue control

15 Chroma S-Video input

16 Red/Green/Blue control

Additional information

55.5 kg (122.4 lbs.)

PAL/SECAM Receiving System TV Function Tuner VHF/UHF (Analogue)

VHF Band III (170 MHz to 230 MHz) and UHF Band IV, V (470 MHz to 862 MHz)

SCART (AV in, RGB in, TV out), HDMI in *1

75 Ω Din Type for VHF/UHF in

PC INPUT Analogue RGB in, Audio in

AUDIO OUT AUDIO out (Fixed)

16 Ω to 32 Ω recommended

This conforms to HDMI1.3 and HDCP1.1. HDMI (High Definition Multimedia Interface) is a digital interface that handles both video and audio using a single cable. HDCP (High-bandwidth Digital Content Protection) is a technology used to protect copyrighted digital contents that use the Digital Visual Interface (DVI). *2 Switchable from menu. *3 This conforms to USB 1.1 and 2.0 specifications. Design and specifications are subject to change without notice.

Additional information

is a trademark of SRS Labs, Inc.

• WOW technology is incorporated under license from SRS Labs, Inc. • This product includes FontAvenue® fonts licensed by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation. • DDC is a registered trademark of Video Electronics Standards Association. • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. • The names of companies or institutions are trademarks or registered trademarks of the respective companies or institutions. Published by Pioneer Corporation. Copyright © 2007 Pioneer Corporation. All rights reserved.

TV/DTV P SELECT TV DVD/ SOURCE STB DVR VCR

A B C D E F G H I J Delete

K L M N O P Q R S T Space

Désactive Image DRE Haut

folder 1 folder 2 folder 3 folder 4

TV/DTV P SELECT TV DVD/ SOURCE STB DVR VCR

12 mm mm to bis1818mm mm

A B C D E F G H I J Delete

6 Wählen Sie die gewünschte neue Position (///, dann ENTER). Der Sortiervorgang wird ausgeführt.

K L M N O P Q R S T Space

AV-Receivers Subwoofer

TV/DTV P SELECT TV DVD/ SOURCE STB DVR VCR

PIONEER Videorecorder
