USER MANUAL Arctis 1 STEELSERIES

PRODUCT INFORMATION GUIDE

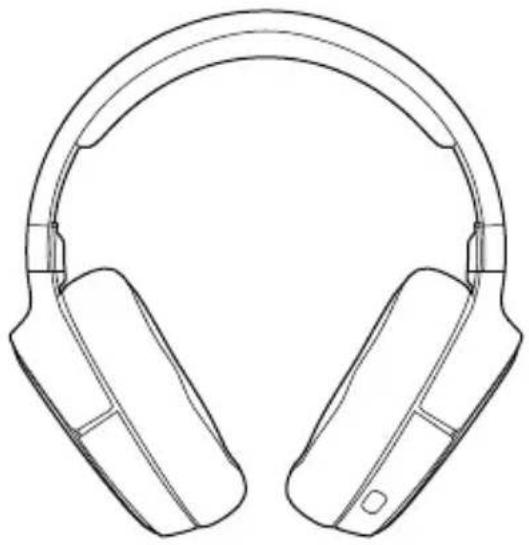

Line drawing of a pair of hardcover headsets (no text or symbols)

CONTENTS

Welcome 2

SteelSeries Engine 3

Product overview 5

Setup

Wireless Setup 7

Wired Setup 8

Charging 9

Power On/Off 10

Pairing 11

Microphone 12

Multimedia Control 13

Translations

Español 15

简体中文 17

繁體中文 19

日本語 21

한국어 23

Deutsch 25

Русский 27

Français 29

Italiano 31

Português 33

Regulatory 35

WELCOME TO ARCTIS

Your new headset is the result of our unyielding pursuit of perfection for over 15 years. We poured our hearts into creating the best possible gaming headset by pushing the boundaries of sound quality, mic clarity, comfort, and style. Arctis is our glory; now go chase yours.

STEELSERIES ENGINE

STEELSERIES ENGINE

Download SteelSeries Engine to customize your audio settings and to integrate with Engine Apps (like Discord):

steelseries.com/engine

find help at support.steelseries.com

PACKAGE CONTENTS

Arctis 1 Wireless Headset

USB-C Wireless Dongle

USB Charging Cable

USB-C to USB-A Adapter Cable

ClearCast Microphone

SYSTEM REQUIREMENTS // COMPATIBILITY

PC

Playstation 4

Nintendo Switch

Android (with USB-C)

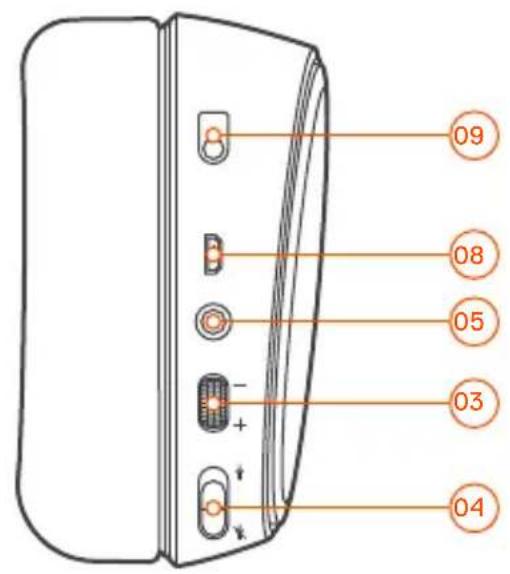

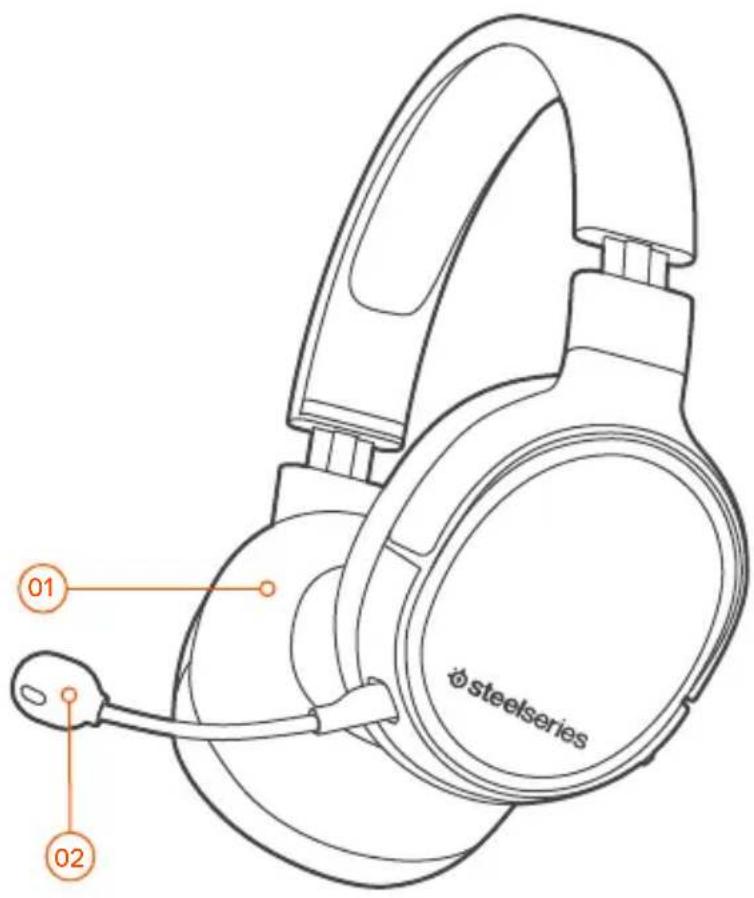

PRODUCT OVERVIEW

steelseries 01 02

01 Airweave Ear Cushions*
02 ClearCast Microphone
03 Volume Wheel
04 Microphone Mute Switch
05 3.5 mm Audio Jack

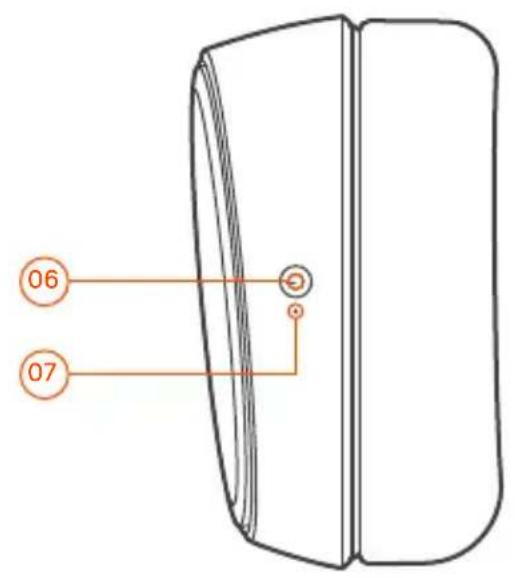

06 Power Button
07 Power LED
08 Micro-USB Jack for charging and firmware updates
09 Microphone Jack
10 USB-C wireless Dongle
11 Micro-USB charging Cable
12 USB-C to USB-A Adapter Cable
13 3.5 mm Audio Cable

* Find accessories and replacement parts at steelseries.com/gaming-accessories

12 10 13

06 07

09 08 05 03 04

SETUP

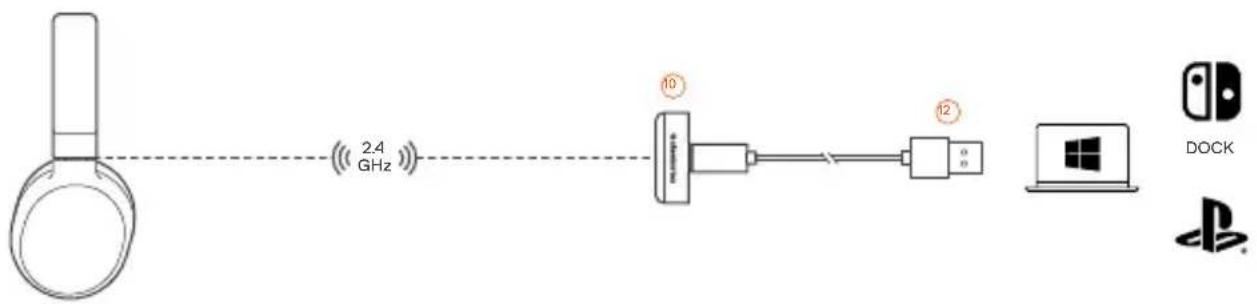

WIRELESS SETUP

Connection to USB-A

PS4 SETTING > DEVICES > AUDIO DEVICES

Output to Headphones All Audio

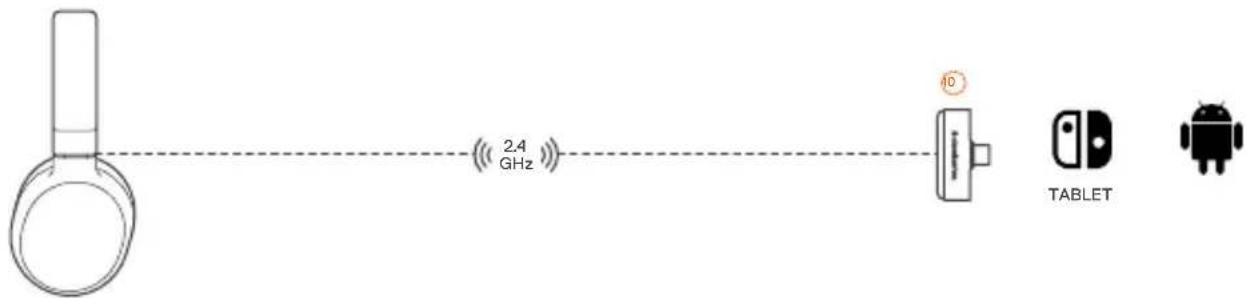

Connection to USB-C

2.4 GHz ID TABLET Android

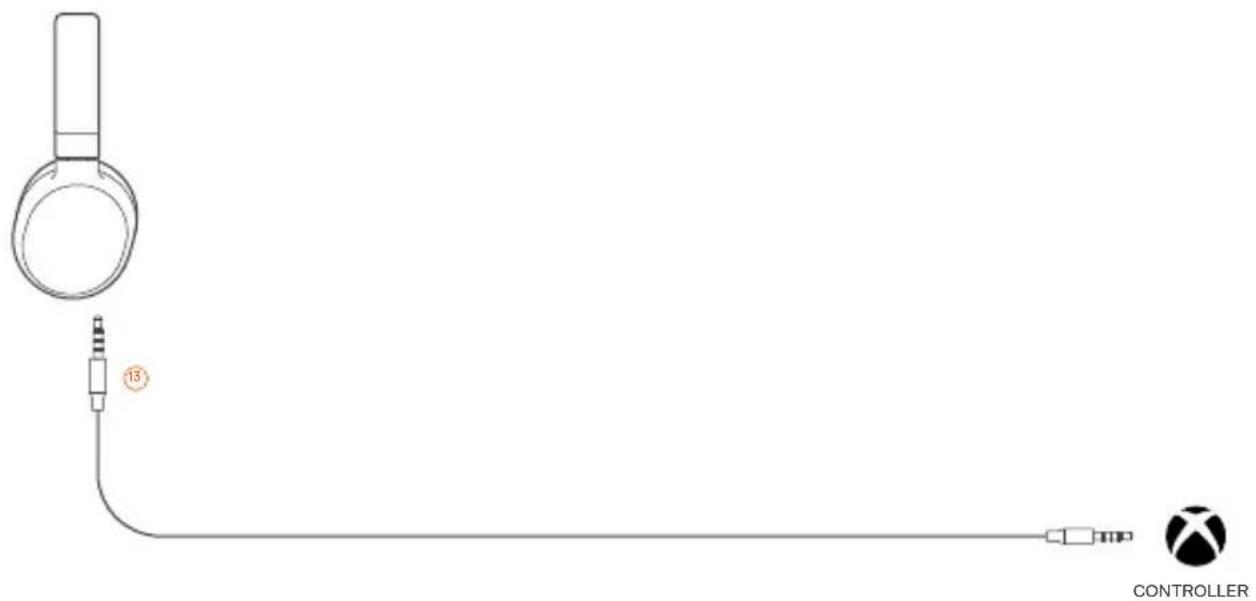

WIRED SETUP

13 CONTROLLER

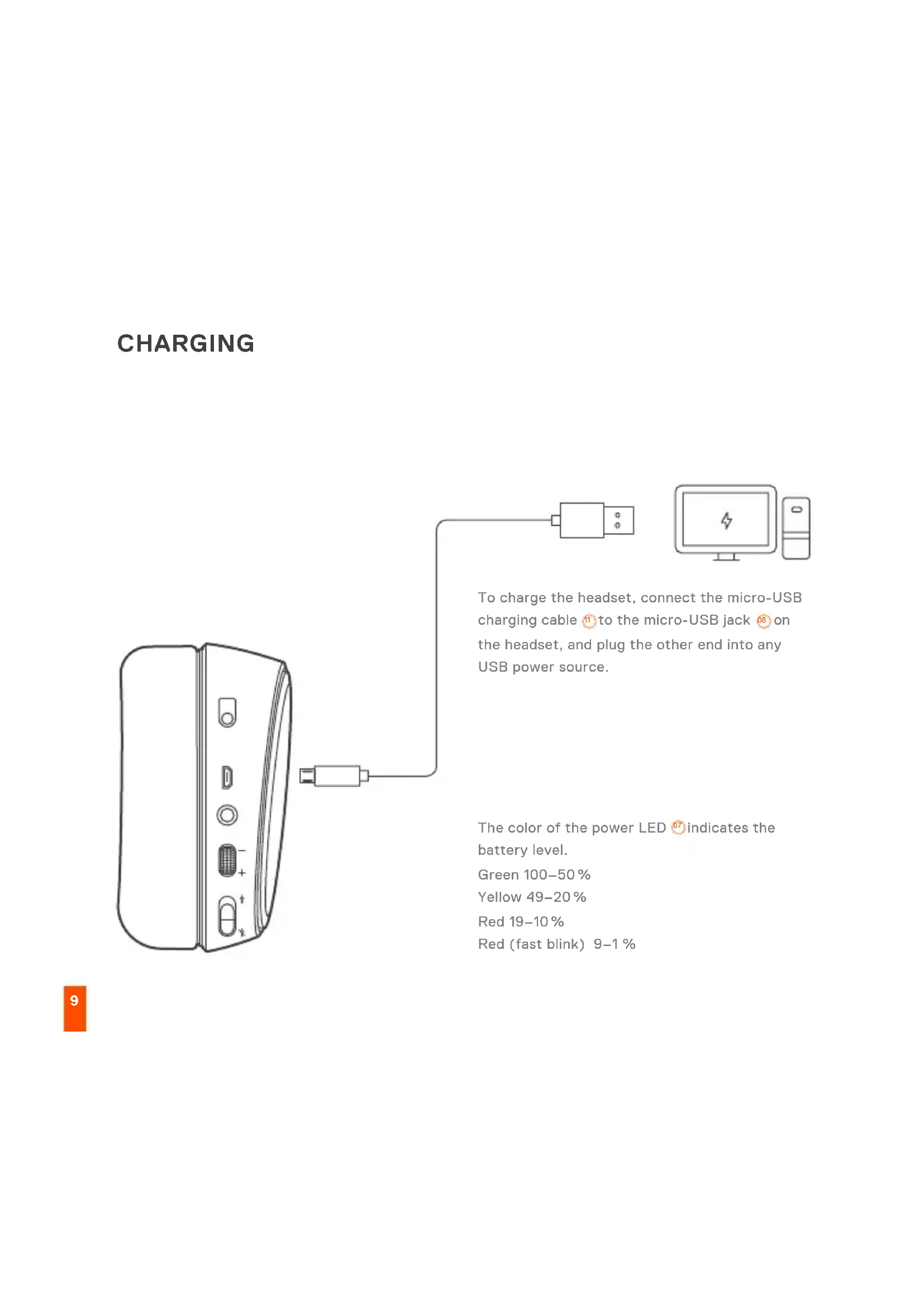

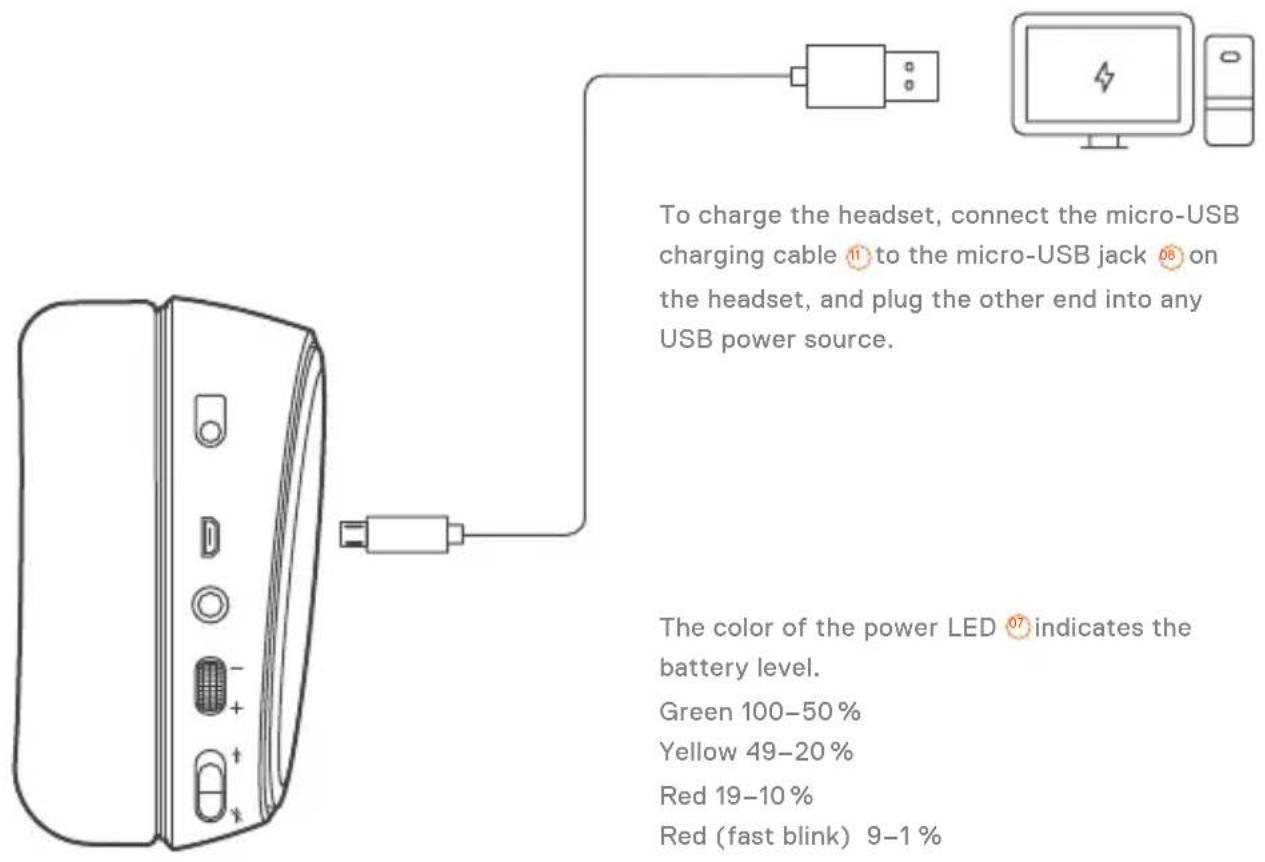

CHARGING

To charge the headset, connect the micro-USB charging cable ⑪ to the micro-USB jack ⑬ on the headset, and plug the other end into any USB power source. The color of the power LED ⑦ indicates the battery level. Green 100–50 % Yellow 49–20 % Red 19–10 % Red (fast blink) 9–1 %

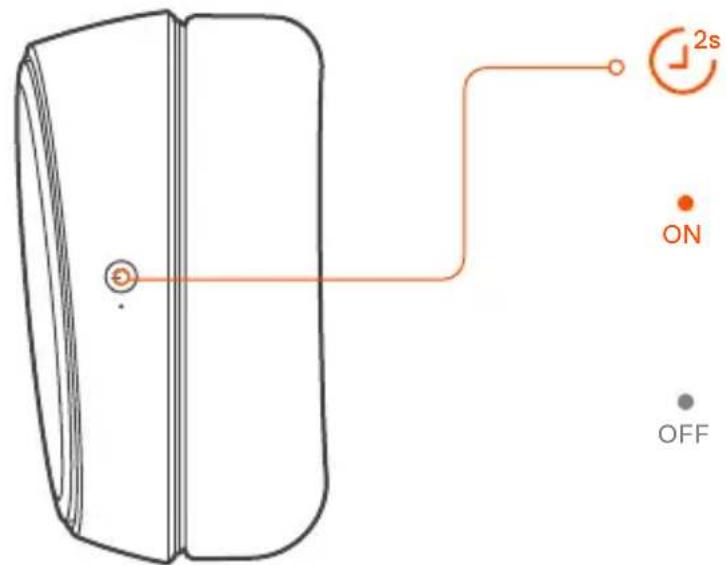

POWER ON/OFF

2s ON OFF

To power on the headset press and hold the power button 06 for at least 2 seconds. You will hear a tone, and the power LED 07 will illuminate.

To power off the headset press and hold the power 06 button for at least 3 seconds

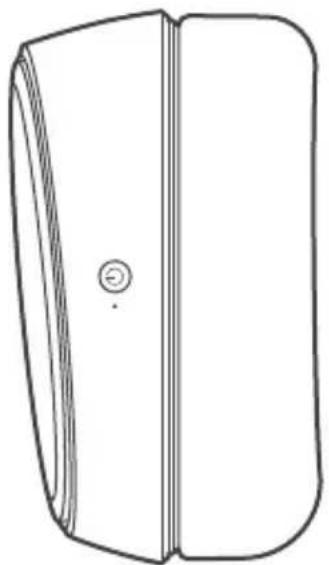

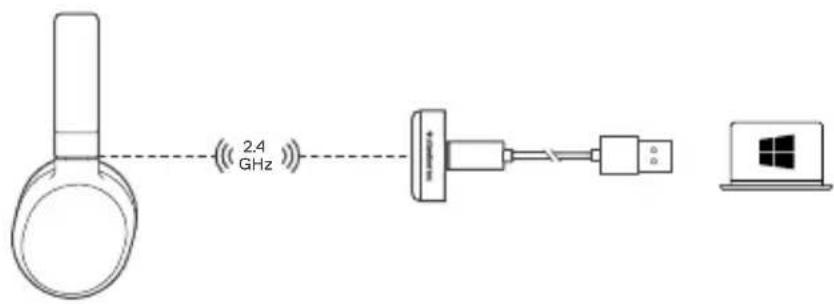

PAIRING

2.4 GHz

Simple line drawing of a rectangular cabinet or enclosure with a circular button on the front face (no text or symbols)

Note: The headset is already paired with the transmitter out of the box

01 Connect the USB-C wireless dongle ⑩ to a Windows PC with SteelSeries Engine installed
02 Initiate wireless dongle pairing from Engine
03 With the headset off, press and hold the power button 06 for 6 seconds
04 You will hear a tone when the pairing is completed

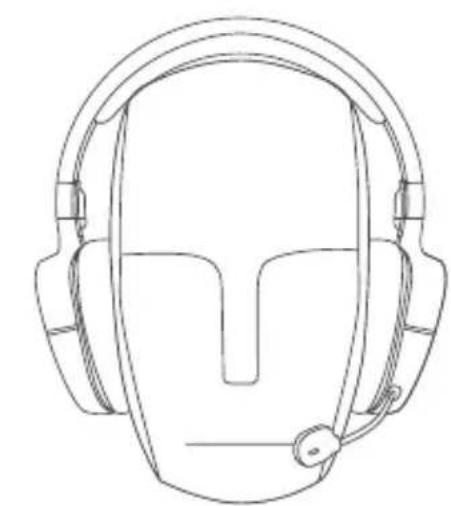

MICROPHONE

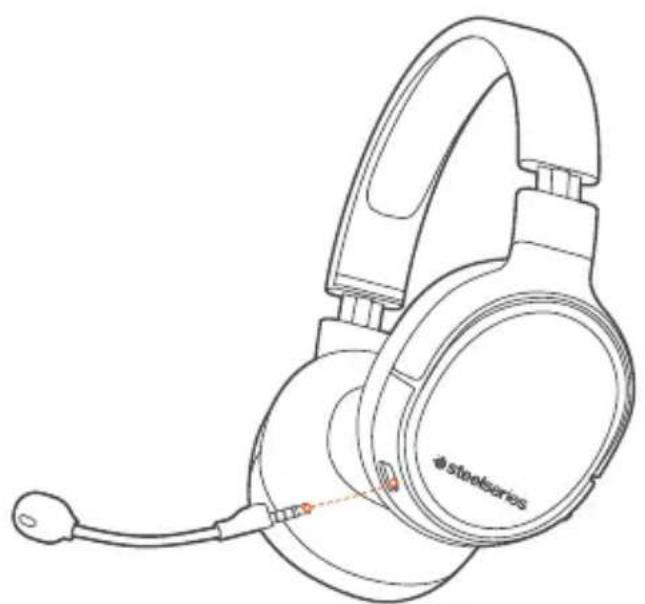

Microphone attachment

Line drawing of a steel series headset with attached microphone (no text or symbols on body)

Position the microphone close to the corner of your mouth with the flat surface facing you

Line drawing of a helmet with front and side views (no text or symbols)

top view

front view

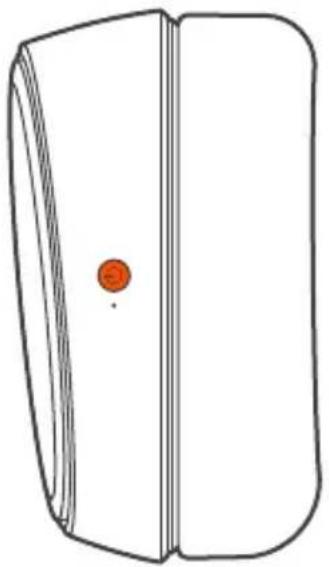

MULTIMEDIA CONTROL

Simple line drawing of a book or folder with a small orange dot on the left side (no text or symbols)

Answer/end voice call single · press Power Button 06

Play/pause music single · press Power Button 06

Next track double · press Power Button 06

Previous track triple ... press Power Button 06

ESPAÑOL

steelseries.com/gaming-accessories

設定

無線設定

連接到 USB-A

PS4 設定 > 裝置 > 音訊裝置

輸出至耳機 所有音訊

連接到 USB-C

有線設定

充電

Headset Arctis 1 Wireless

Drahtloser USB-C-Dongle

USB-Ladekabel

VUE D'ENSEMBLE DU PRODUIT

Dongle wireless USB-C

Europe – EU Declaration of Conformity

Hereby, SteelSeries ApS. declares that the equipment which is compliance with directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU) which are issued by the Commission of the European Community.

The full text of the EU declaration of conformity is available at the following internet address: https://steelseries.com/Operating Temperature: 0 to +40 °C

SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.

Frequency bands and Powers (Headset and Transceiver)

a. Frequency band(s) in which the radio equipment operates: 2.400 - 2.4835 GHz
b. Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:
·EIRP: /4 -DQPSK: 4 dBm (Headset ANT 1)
·EIRP:π/4-DQPSK: 2.91dBm (Headset ANT2)
·EIRP:π/4-DQPSK: 7.72 dBm (Transceiver)
c. Software Version: V1.05

WEEE

This product must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Safety Guideline for Lithium Battery

This battery must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

"CAUTION!" Risk of explosion if battery pack is not replace by same type as specified by the manufacturer.

Please keep follow all listed important warnings and cautions below while using this battery pack to avoid any damage or hazard.

1. The battery polarity (+) and (-) shall not be connected and charged reversely. Risk of explosion if the battery polarity (+) and (-) is reversed.
2. Please keep this battery pack away from fire and high heat sources due to explosion might happen. Do not place your

battery pack close to any heater or hot location.

1. This battery pack shall not be hit or impacted. This battery pack shall not be dealt with any sharp or keen objects either.
2. This battery pack shall not be exposed to moisture, dripping or splashing.
3. If any electrolyte flow out of this battery pack when touch the user's eyes and skin, please seek medical advice immediately.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement, the device can be used in portable exposure condition without restriction.

FCC Caution:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Headset FCC ID: ZHK-HS00021

Transceiver FCC ID: ZHK-HS00021TX

Regions Contact Information
USA	SteelSeries ApS.656 W Randolph St., Suite 3EChicago, IL 60661, USA	[phone]

More information and support at steelseries.com

Industry Canada Statement:

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1) this device may not cause interference, and
2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

This Class B digital apparatus complies with Canadian ICES-003.

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.

The County Code Selection feature is disabled for products marketed in the US/ Canada.

Radiation Exposure Statement:

The device has been evaluated to meet general RF exposure requirement, The device can be used in portable exposure condition without restriction.

Transceiver IC: 9638A-HS00021TX

SteelSeries ApS./China

The RoHS test method is based on the standards JIS C 0950 and CNS 15663

ACMA Compliance (Australia/ New-Zealand)

Malaysia Approval (SIRIM)

Custom Union Compliance. (Russia / Belarus / Kazakhstan)

*報廢電池請按照廢棄物管理辦法回收處理

Direct Current

Complies with IDMA Standards DA105282

Singapore approval (IMDA)

Regions Contact Information
亞洲	丹麥商賽睿有限公司台灣分公司23511 新北市中和區建一路150號16樓	[phone]
Asia	SteelSeries ApS. Taiwan Branch16F, No.150, Jian-Yi Rd., Chung Ho Dist., New Taipei City, Taiwan (R.O.C)	[phone]
USA 656 W	Randolph St, Suite 3E, Chicago, IL 60661, USA [phone]
Europe Dirch	Passers Allé 27, 5.Sal., 2000 Frederiksberg, Denmark [phone]

More information and support from https://steelseries.com/

Product Name (產品名稱/產品名称): Wireless Headset (無線耳機/无线耳机)

Model No. (型號/型号): HS-00021

Rated (規格/规格): 5V = -600mA

Accessories information (配件資訊/配件信息)

Product Name (產品名稱/產品名称): Transceiver (收發器/收发器)

Model No. (型號/型号): HS-00021TX

Rated (規格/规格): 5V = -100mA
