USER MANUAL PhotoSmart R847 HP

HP Photosmart R830/R840 series Digital Camera

Legal and notice information

© Copyright 2007 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Windows® is a U.S. registered trademark of Microsoft Corporation.

SD Logo is a trademark of its proprietor.

Disposal of waste equipment by users in private households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.

Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

For future reference, enter the following information:

• Model number: ____
- Serial number:
• Purchase date:

Contents

1 Getting started

Accessing the electronic User Guide......4

Camera top, side, and back 6

Camera front and bottom....7

Camera dock insert....8

2 Setting up your camera

Install the battery....9

Charge the battery....9

Turn on the camera....10

Choose the language....10

Set the region....11

Set the date and time....11

Install and format an optional memory card.....12

Install the software....13

Windows....13

Macintosh....13

3 Taking pictures and recording video clips

Take a still picture....15

Record a video clip....15

4 Reviewing and deleting images and video clips

Review images and video clips....17

Delete an image....17

5 Transferring and printing images

Transfer images....18

Print images from the camera....18

6 Camera quick reference....20

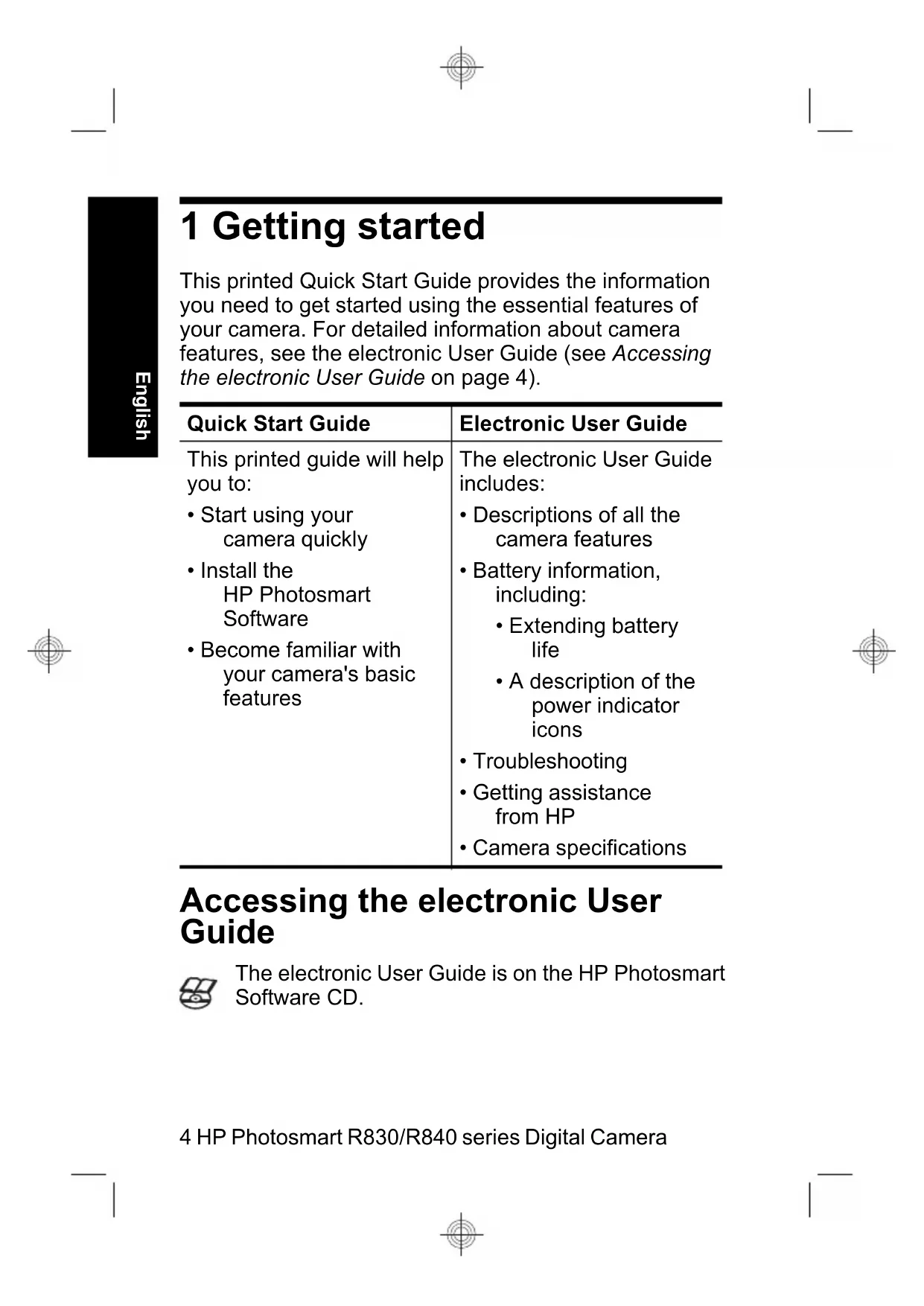

1 Getting started

This printed Quick Start Guide provides the information you need to get started using the essential features of your camera. For detailed information about camera features, see the electronic User Guide (see Accessing the electronic User Guide on page 4).

Quick Start Guide	Electronic User Guide
This printed guide will help you to:Start using your camera quicklyInstall the HP Photosmart SoftwareBecome familiar with your camera's basic features	The electronic User Guide includes:Descriptions of all the camera featuresBattery information, including:Extending battery lifeA description of the power indicator iconsTroubleshootingGetting assistance from HPCamera specifications

Accessing the electronic User Guide

The electronic User Guide is on the HP Photosmart Software CD.

4 HP Photosmart R830/R840 series Digital Camera

To view the User Guide:

1. Insert the HP Photosmart Software CD into the CD drive of your computer.
2. Click View User Guide on the main page of the installation screen.

The electronic User Guide is also copied to your computer when you install the HP Photosmart Software. To view the User Guide after it has been installed on your computer:

• On Windows: Open the HP Solution Center and click help.
• On Macintosh: Open the HP Device Manager and select Camera User Guide from the Information and Settings pop-up menu.

Getting assistance

• For tips and tools to help you use your camera more effectively, visit www.hp.com. From here, click on Learn About: Digital Photography (English Only).
• For product support, including firmware, software, and driver updates, visit www.hp.com/support.
• For help with the HP Photosmart Software, see the software's online help.

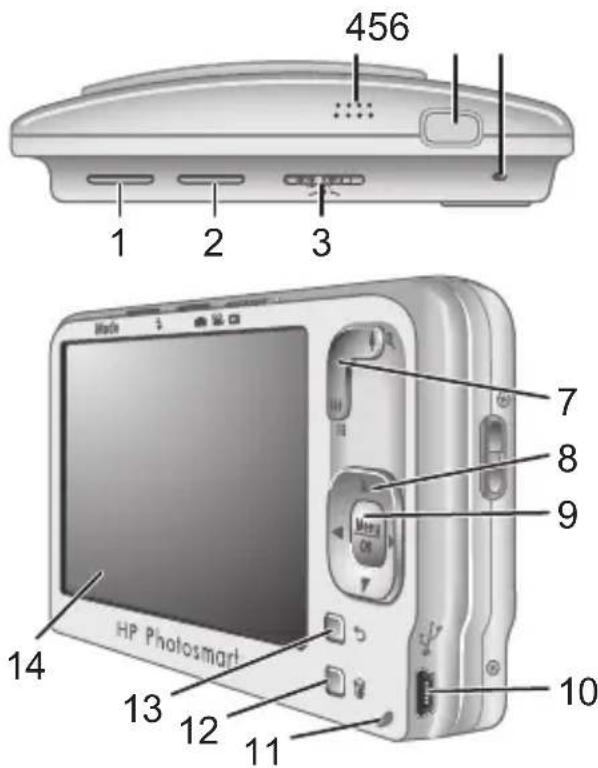

Camera top, side, and back

456 1 2 3 7 8 9 10 HP Photosmart 11 12 13 14

1	Mode button—Accesses the Shooting Mode menu while in Picture Capture. Shooting Mode options are Auto Mode, Close-up, Steady Photo (R830 series), Theatre, Panorama Right, Panorama Left, Landscape, Portrait, Action, Night Portrait, Beach, Snow, Sunset.
2	Flash button—Accesses the flash settings while in Picture Capture. Settings are Auto, Flash On, Flash Off.
3
4 Speaker.

6 HP Photosmart R830/R840 series Digital Camera

5	Shutter button.
6	Power light.
7	Zoom lever (Digital and Optical)—Accesses Zoom while in Picture Capture or Video Record; accesses Thumbnails and Magnify while in Playback.
8	▲▼ and buttons—Scroll through menus and images.
9	Menu button—Displays camera menus, selects options, and confirms actions.
10	USB connector.
11	Battery Charging light.
12	Delete button—Accesses the Delete function while in Playback.
13	Back button—Returns you to a previous menu or view.
14	Image Display.

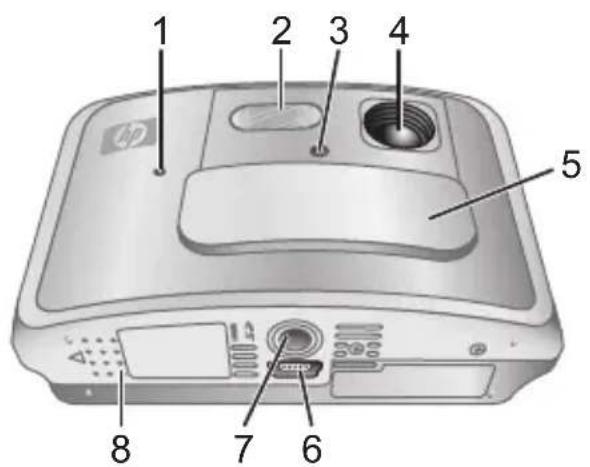

Camera front and bottom

1 2 3 4 5 6 7 8

Getting started 7

1 Microphone.

2 Flash.

3 Self-Timer/Focus Assist light.

4 Lens.

5 Lens cover/Power switch—Turns the camera on and off and protects the lens while the camera is off.

6 Dock connector.

7 Tripod mount.

8 Battery/Memory Card door.

Camera dock insert

If you purchase an optional HP Photosmart dock, it will come with multiple plastic inserts. When setting up the dock for use with this camera, use the dock insert with the black triangle tag. For instructions, see the documentation that came with your dock.

2 Setting up your camera Install the battery

1. Open the Battery/Memory Card door by sliding the door latch as indicated on the Battery/Memory Card door.

2. Insert the battery in the larger slot, pushing the battery in until the latch catches.

3. Close the Battery/Memory Card door.

Diagram illustrating computer monitor status with directional arrows and plus/minus signs, likely indicating status indicators or function buttons.

NOTE: Fully charge the battery before using it the first time. Turn the camera off before removing the battery.

To remove the battery, move the battery latch as shown until the battery springs free.

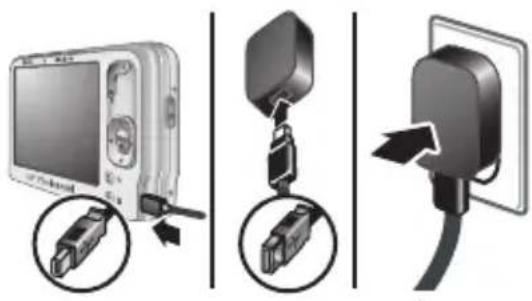

Charge the battery

You can charge the battery in the camera, using the USB cable and power adapter.

NOTE: Your camera uses a rechargeable HP Photosmart R07 Lithium Ion battery (L1812A/L1812B). Do not charge any other battery in the camera, optional dock, or optional quick recharger.

Diagram showing three steps of inserting a cable into a device, with arrows indicating the process.

Setting up your camera 9

1. Plug the small end of the USB cable into the camera, and the large end into the power adapter, as shown.
2. Plug the power adapter into an electrical outlet.

The camera's blinking Battery Charging light indicates that the battery is charging; the battery is fully charged when the light stays on solid (approximately 2-3 hours).

Turn on the camera

To turn on the camera, slide the lens cover open until it clicks, uncovering the lens.

To turn off the camera, slide the lens cover closed until it clicks, covering the lens.

Generic camera icon with a downward arrow, no text or symbols present

△ CAUTION: When sliding the lens cover, keep your fingers clear of the lens. Fingerprints on the lens can impair the quality of the picture.

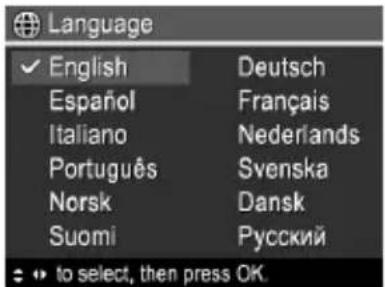

Choose the language

Use ▲ to choose the language that you want, then press .

Language ✓ English Deutsch Español Français Italiano Nederlands Português Svenska Norsk Dansk Suomi Rусский to select, then press OK.

10 HP Photosmart R830/R840 series Digital Camera

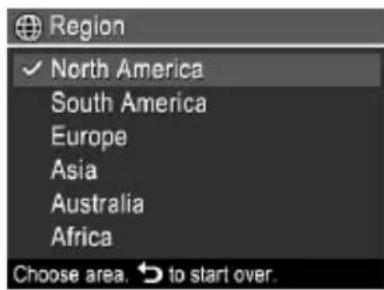

Set the region

Along with the language setting, the region setting determines the default date format and the format of the video signal for displaying camera images on a television.

Use ▲▼ to choose the region you want, then press .

Region ✓ North America South America Europe Asia Australia Africa Choose area. → to start over.

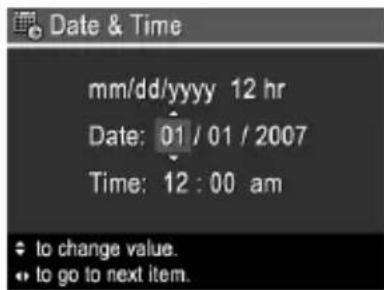

Set the date and time

Accurately setting the date and time will help you locate images once you have transferred them to your computer, and will ensure that images are accurately marked if you use the date and time imprint feature.

1. Use ▲▼ to adjust the highlighted value.

2. Use ◀▶ to move to the other selections and repeat Step 1 until the date and time are set correctly.

3. Press when the date, time, and format settings are correct, then press again to confirm.

Date & Time mm/dd/yyyy 12 hr Date: 01 / 01 / 2007 Time: 12 : 00 am to change value. to go to next item.

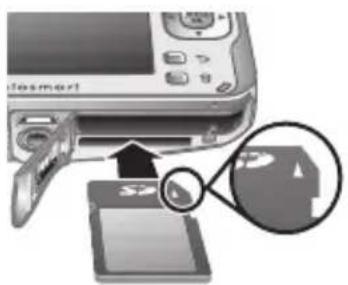

Install and format an optional memory card

This camera supports standard, high speed, and high capacity Secure Digital (SD and SDHC) memory cards, 32MB to 8GB.

1. Turn off the camera and open the Battery/Memory Card door.

2. Insert the optional memory card in the smaller slot as shown. Make sure the memory card snaps into place.

3. Close the Battery/Memory Card door and turn on the camera.

Diagram showing a device with a close-up of a card and a magnified view of the card's internal structure.

NOTE: When you turn on your camera with a memory card installed, the camera indicates the number of images you can store on the memory card at the current Image Quality setting. This camera supports storing a maximum of 1999 images on a memory card.

Always format new memory cards before first use. Formatting removes all images from the memory card, so make sure to transfer existing images before formatting.

1. With the camera turned on, slide

1. Press 🔒 to display the Delete menu.

2. Use ▲▼ to select Format Card, then press .

3. Use ▲▼ to select Yes, then press to format the card.

Once you install a memory card, all new images and video clips are stored on the card, rather than in internal memory.

12 HP Photosmart R830/R840 series Digital Camera

To use internal memory and view images stored there, turn the camera off, then remove the memory card.

Install the software

The HP Photosmart Software provides features for transferring images and video clips to your computer, as well as features for modifying stored images (remove red eyes, rotate, crop, resize, and more).

To install the HP Photosmart Software, your computer must meet the system requirements as stated on the camera packaging. To learn about Windows Vista support for your camera, see www.hp.com/go/windowsvista (English only).

If you have trouble installing or using the HP Photosmart Software, see the Hewlett-Packard Technical Support website for more information: www.hp.com/support.

Windows

1. Close all programs and temporarily disable any virus protection software.
2. Insert the HP Photosmart Software CD into the CD drive and follow the on-screen instructions. If the installation window does not appear, click Start, click Run, type D:\Setup.exe, where D is the letter of your CD drive, then click OK.
3. When the software has finished installing, re-enable virus protection software.

Macintosh

1. Insert the HP Photosmart Software CD into the CD drive.
2. Double-click the CD icon on the computer desktop.

Setting up your camera 13

1. Double-click the installer icon, then follow the on-screen instructions.

Once installation is complete and you have restarted your computer, System Preferences automatically opens to the HP Photosmart Camera settings. You may change settings so the HP Photosmart Software starts automatically when you connect your camera to your Macintosh (for more information, click the help button on the HP Photosmart Camera settings dialog).

3 Taking pictures and recording video clips

Slide 🎨 🎨 🎨 to either 🎨 to take pictures or to 🎨 to record video clips.

Take a still picture

You can take a picture when you are in Picture Capture.

1. Slide
   to
2. Frame the subject in the Image Display.

Close-up of a printer's front panel with a magnified inset showing a printer icon and arrow (no readable text or symbols)

1. Press the Shutter button halfway down to measure and lock the focus and exposure. The focus brackets in the Image Display turn solid green when focus is locked.

2. Press the Shutter button all the way down to take the picture.

After you have taken a picture, the camera displays it briefly in the Image Display.

Record a video clip

You can record a video when you are in 📁 Video Record.

1. Slide
   to
2. Frame the subject in the Image Display.

Close-up of a printer's front panel with a magnified inset showing a printer icon and a downward arrow (no text or symbols)

1. Press the Shutter button halfway down to measure focus and exposure. The focus brackets in the Image Display turn solid green when focus is locked.

Taking pictures and recording video clips 15

1. Press the Shutter button all the way down and release to begin recording video.
2. To stop recording video, press and release the Shutter button again.

After you have recorded a video clip, the camera displays it briefly in the Image Display.

4 Reviewing and deleting images and video clips

Review images and video clips

You can review images and video clips in playback.

1. Slide
2. Use ◀ to scroll through your images and video clips. To play a video clip, press ▲ once the first screen of the clip appears on the Image Display.

Delete an image

You can delete individual images during ▶playback:

1. Slide
2. Use ◀ to select an image or video clip.
3. Press 🔊 to display the Delete menu.
4. Use ▲▼ to select This Image, then press

5 Transferring and printing images

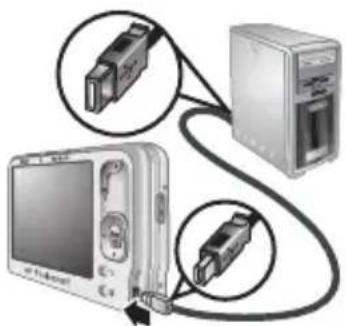

Transfer images

Use this procedure to transfer images and video clips to your computer.

NOTE: Transferring a large number of high-resolution images from a memory card to your computer may take up to two hours.

1. Turn off the camera.
2. Connect the camera to the computer using the USB cable that came with your camera.
3. Turn on the camera. When the Image Display indicates that the camera is connected to the computer, follow the instructions on the computer

Diagram showing connections between a desktop computer and a tower, with labeled connectors and cable routing.

screen to transfer the images. If you have installed the HP Photosmart Software and need more information, see the Help feature in the HP Photosmart Software.

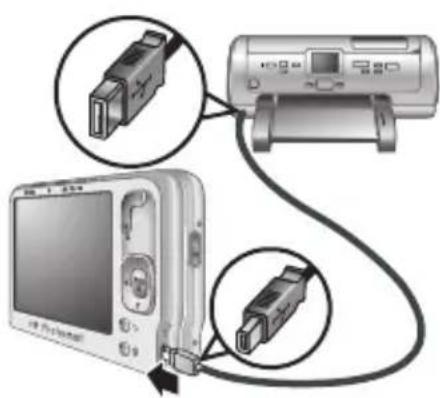

Print images from the camera

You can connect the camera to any PictBridge-certified printer to print images.

1. Check that the printer is turned on, there is paper in the printer, and there are no printer error messages.

PictBridge

18 HP Photosmart R830/R840 series Digital Camera

1. Turn off the camera, then connect the camera and printer using the USB cable that came with your camera.

2. Turn on the camera.

3. When the camera is connected to the printer, the Image Display shows an image. Use ◀▶ to select the image you want to print.

4. Press

5. In the Print Options menu, select Print this image now and press to begin printing.

displays on the selected image in the Image Display to indicate that the image is being printed.

1. After the printer has printed the image, disconnect the camera from the printer.

To learn about other printing options, see either the electronic User Guide or ? Camera Help located in any menu.

Diagram showing connection between a digital camera and a printer with labeled connectors

6 Camera quick reference

Use this chapter as a quick reference to camera features. To learn more about these camera features, refer to the electronic User Guide or on-camera Help.

Picture Capture, Video Record, and Playback

• Picture Capture allows you to frame pictures in the Image Display and take pictures. To activate
Picture Capture, slide to.
• Video Record allows you to frame videos in the Image Display and record videos. To activate
Video Record, slide to
- ▶ Playback allows you review and delete images and video clips. To activate ▶ Playback, slide
to

Camera Menus

Menus allow you to adjust camera settings, work with images, and access camera help.

• Within a menu, use ▲▼ to move to specific selections.
  • To exit the menu, press ↩ at any time.

Picture Capture Menu—Allows you to adjust camera settings that affect the characteristics of future images you capture with your camera. To access this menu, slide

to then press. You can select from the following options:

• Self-Timer
  • Steady Photo (R840 series)
• Adaptive Lighting
• Image Quality

20 HP Photosmart R830/R840 series Digital Camera

• B u r s t
• Tag
• Date & Time Imprint
• Exposure Compensation
• Exposure Bracketing
• White Balance
• ISO Speed
• AE Metering
• Camera Setup
• Camera Help

Video Record Menu—Allows you to adjust camera settings that affect the characteristics of future video clips you record with your camera. To access this menu, slide 📷 🐵 🐵 to 📷 then press . You can select from the following options:

• Video Quality
• Self - Timer
• Tag
• Exposure Compensation
• White Balance
• AE Metering
• Camera Setup
• Camera Help

▶ Playback Menu—Allows you to work with images. To access this menu, slide 🔍 🔍 🔍 to ▶ then press . Menu OK You can select from the following options:

- Design Gallery (Remove Red Eyes, Rotate, Apply Artistic Effects, Enhance Photos, Modify Color, Add Borders, Crop)

Camera quick reference 21

• Photosmart Express (Print, Share, Buy Prints Online)
• Tag
  • View Slideshow
• Stitch Panorama
• Move Images to Card
• Camera Setup
• Camera Help

Camera Setup Menu—Allows you to change the camera's behavior. To access this menu, press from 📋, 🌐, or ▶, then select 🔊 Camera Setup. You can select from the following options:

• Display Brightness
• Camera Sounds
• Display Timeout
• Digital Zoom
• Date & Time
• USB Configuration
• TV Configuration
• Language

? Camera Help Menu—Provides descriptions of camera features and picture-taking tips. To access this menu, press from 📷, 📌, or ▶, then select ? Camera Help. You can select from the following options:

• Top Ten Tips
• Camera Accessories
• Camera Buttons
  • Using Shooting Modes
  • Using Design Gallery

22 HP Photosmart R830/R840 series Digital Camera

• Using Photosmart Express
- Printing Images
- Recording Video Clips
• Reviewing Pictures and Video
- Tagging Images
- Deleting Images
• Transferring Images
- Managing Batteries
- Getting Assistance
• Tour Camera Features
- Camera Shortcuts
- About

English

© Copyright 2007 Hewlett-Packard Development Company, L.P.

Diagram showing a computer monitor with labeled buttons and directional arrows, indicating status or operation points.

Diagram showing three steps of inserting a cable into a device, with arrows indicating the process.

Icon of a camera with a lock and download arrow, no text or symbols present

Diagram showing a device with a magnified inset highlighting a file folder, likely illustrating a physical or digital processing setup.

Close-up of a printer's front panel with a close-up icon and downward arrow, no visible text or symbols

Diagram showing printer application interface with zoom and download icons, highlighting a location pin and lock button

Diagram showing connections between a desktop computer and a server, with labeled connectors and cable links.

Diagram showing connection between a digital camera and a printer with labeled components

© Copyright 2007 Hewlett-Packard Development Company, L.P.

Diagram illustrating a device setup with labeled components and directional arrows, including plus and minus signs.

Diagram showing three steps of inserting a cable into a device, with arrows indicating the process.

Icon of a camera with a downward arrow, no text or symbols present

Diagram showing a file transfer machine with an arrow pointing to a physical device, highlighting a close-up of the device's internal structure.

Close-up of a computer mouse with a pointing icon and a downward arrow, no visible text or symbols

Diagram showing a printer with an icon and a downward arrow, indicating a process step or location.

1. Spostare

Diagram showing cable connections between a desktop computer and a digital camera, with labeled connectors and cable paths.

Diagram showing connection between a digital camera and a printer with labeled ports and cable connections

© Copyright 2007 Hewlett-Packard Development Company, L.P.

Diagram illustrating a device with labeled directional arrows and polarity indicators, likely from an electronics or system interface.

Diagram showing three steps of inserting a cable into a device, with arrows indicating the process.

Camera icon with a black downward arrow indicating compression or disassembly (no text or symbols)

Close-up of a printer's front panel with a close-up icon and downward arrow, no visible text or symbols

Close-up of a printer's front panel with a close-up icon and downward arrow, no visible text or symbols

Diagram showing connections between a desktop computer and a server tower, with labeled components and cable routing.

Diagram showing connection between a printer and a digital camera, with labeled connectors and cable connections.

© Copyright 2007 Hewlett-Packard Development Company, L.P.

Diagram showing a server rack with directional arrows and polarity indicators, likely illustrating a system or system state.

Diagram showing three steps of inserting a device into a plug, with arrows indicating the process.

Generic camera icon with a black downward arrow, no text or symbols present

Diagram showing a printer with a magnified view of its internal components, including a close-up of the device's screen and a magnified inset of its internal structure.

Diagram of a printer with an icon and arrow indicating print location (no text or symbols present)

Diagram showing a device with an icon and a downward arrow, likely indicating a process or operation.

1. Deslice

Diagram showing connections between a desktop computer, tower, and monitor with labeled components

Diagram showing connection between a digital camera and a printer with USB cable, labeled in Chinese.

© Copyright 2007 Hewlett-Packard Development Company, L.P.

Diagram illustrating a device with directional arrows and polarity indicators, likely representing a system or process flow.

Diagram showing three steps of inserting a cable into a socket, with arrows indicating the process.

Camera icon with a black downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a printer with a close-up of a physical device and its internal components, likely illustrating a physical or digital setup.

Diagram of a printer with an icon and arrow indicating print location (no text or symbols present)

Close-up of a device with a pointing icon and a downward arrow, no visible text or symbols

16 HP Photosmart R830/R840 Series digitale camera

Diagram showing connections between a desktop computer and a server, with labeled components and cable routing.

Diagram showing connection between a digital camera and a printer with USB cable, labeled in Chinese.

© Copyright 2007 Hewlett-Packard Development Company, L.P.

Diagram illustrating computer monitor status change with directional arrows and polarity indicators

Diagram showing three steps of inserting a cable into a device, with arrows indicating the process.

Camera icon with a black downward arrow indicating compression or disassembly (no text or symbols)

Diagram showing a device with a magnified inset highlighting a location pin, likely illustrating a location or access point.

Close-up of a computer mouse with an arrow pointing to the mouse (no text or symbols visible)

Diagram of a printer with an icon and arrow pointing to the screen (no text or symbols present)

1. Deslize

Diagram showing connections between a desktop computer and a server tower, with labeled components and cable routing.

Diagram showing connection between a printer and a digital camera via cable, with magnified views of the device's cable.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

(הכלה) Camera Accessories

(הכלהה) Camera Buttons •

(הכלהה) Using Shooting Modes •

(בַרְהָרִי לְרָה) Using Design Gallery •

Photosmart-コウインウ) Using Photosmart Express •

(Express

(הכלהה) Printing Images •

(אַתְרָׁהִיָהִיָה) Recording Video Clips •

(אַעְרָה לַעְרָה לַעְרָה) Reviewing Pictures and Video

(הכלהה) Tagging Images

(הכלהה) Deleting Images

(הכלהה) Transferring Images •

(הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה) Tour Camera Features •

(הכלהה) Camera Shortcuts

(πιτικ) About •

(הכלהה) Image Quality

(הכלה) Exposure Compensation

(בַרְהָרִי) White Balance •

(הכלההוּרָה) AE Metering •

(הכלהה) Camera Setup

(הכלהה) Camera Help

Diagram showing connection between a digital camera and a printer with USB cable, labeled in Chinese.

הכלהה.2

תְפַרִי בְאָה בְאָה

USB-ת בְּרַעָה

.תְקַרָה בְּרָה

.3

הכלההוּרָה אַל.4

הכלה,הכלה

Diagram showing connections between a desktop computer, tower, and cable with labeled connectors

.הכלהה.1

Diagram showing a printer with an icon and a downward arrow, indicating a process or operation.

הַעְרָה אַעְרָה.1

הכלהה.2

.תְרָהוֹת

Diagram showing a printer with an icon and a downward arrow, indicating a process or operation.

Diagram showing a device with a magnified inset highlighting a specific component, likely illustrating a physical or technical process.

Region ✓ North America South America Europe Asia Australia Africa Choose area. → to start over.

Date & Time mm/dd/yyyy 12 hr Date: 01 / 01 / 2007 Time: 12 : 00 am to change value. to go to next item.

Generic camera icon with a black downward arrow indicating compression or download action (no text or symbols)

Diagram showing a computer monitor with labeled buttons and directional arrows, likely illustrating a system or process flow.

.1

Diagram showing three steps of inserting a device into a plug, with arrows indicating the process.

9 HP Photosmart R830/הכלההוּרָאִיְהַעֹרָאִיְהַעֹרָאִיְהַעֹרָאִיְהַעֹרָאִיְהַעֹרָאִיְהַעֹרָאִיְהַעֹרָאִיְ

HP Device Manager :Macintosh Camera User Guide Information and Settings

אַלְרָה

• Learn 🍼 γγγ, γγγ. www.hp.com 🍼 γγγ, γγγ. (γγγ) About: Digital Photography
