USER MANUAL AVC800 BESTRON

CONDITIONS DE GARANTIE

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for future reference.
• Use this appliance solely in accordance with these instructions.
• This appliance can be used by children older than 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, but only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance must not be done by children, except if they are older than 8 years and supervised.
• Keep the appliance and the cable out of reach of children under 8 years.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

• Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
  Always remove the plug from the socket when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. If the power cable is damaged, it must be replaced by the manufacturer, the after-sales service or a person with a similar qualification, in order to avoid any hazards.
• When using an extension lead always make sure that the entire cable is unwound from the reel.
• Use solely approved extension leads.
• Avoid stumbling over the extension lead or power cord.
  Make sure the air vents are not covered or blocked.
• Make sure that the appliance, the power cord or the plug do not make contact with heat sources, such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not make contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Never use the appliance in a humid room.
• Make sure that your hands are dry before touching the appliance, power cord or plug.
• Take care when fitting the filter. Do not use the appliance if the filter is damaged or fitted incorrectly; this could damage the appliance.

• Do not use the appliance to suck up the following objects:

• glowing or burning objects

• glass splinters or other sharp objects
• residues of plaster, cement, stone, soot, and similar
• liquids, or moist dirt.

These objects could cause serious damage to the appliance and the filter system, and make it unsafe to use.

• Do not use the vacuum cleaner on wet rugs and carpets.
• Never insert objects in the air-exhaust vents.
• Make sure that the suction and exhaust openings are open, and that the filter is not blocked. Blockages will cause the appliance to overheat. Switch off the vacuum cleaner immediately! Once you have remedied the problem, wait 20 to 30 minutes to allow the vacuum cleaner to cool down completely. It will then be ready for use again.
• Keep the nozzle and the tubes away from the body while the vacuum cleaner is running. This could cause serious injury, for example to the eyes or ears.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before emptying the appliance, cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
• Never immerse the appliance, the power cord or the plug in water or other liquid. After washing the filters make sure they are thoroughly dry before returning them to the appliance.

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

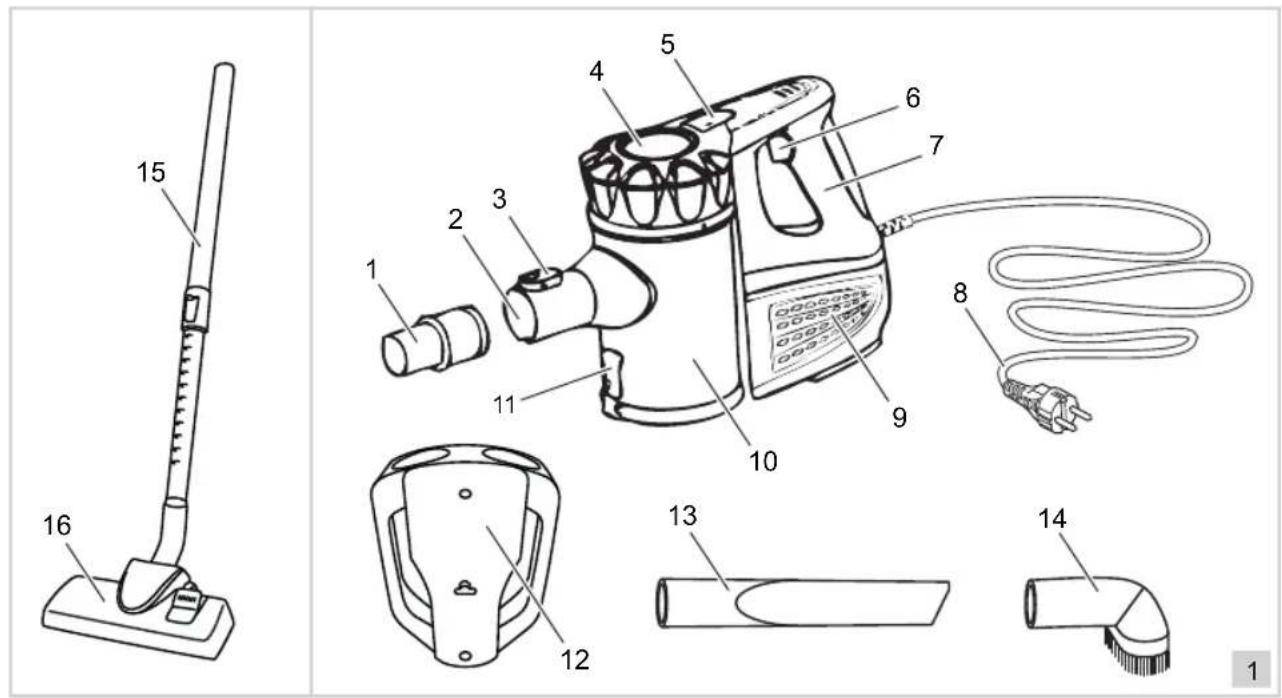

1. Coupler
2. Tube connection
3. Coupler release button
4. Dust container lid
5. Dust container release button
6. On/off switch
7. Handle

8. Plug and cord

9. Exhaust opening

10. Dust container
11. Dust container bottom flap release button
12. Wall mount
13. Crevice tool
14. Round brush tool
15. Telescopic interlocking tube
16. Combi nozzle

OPERATION

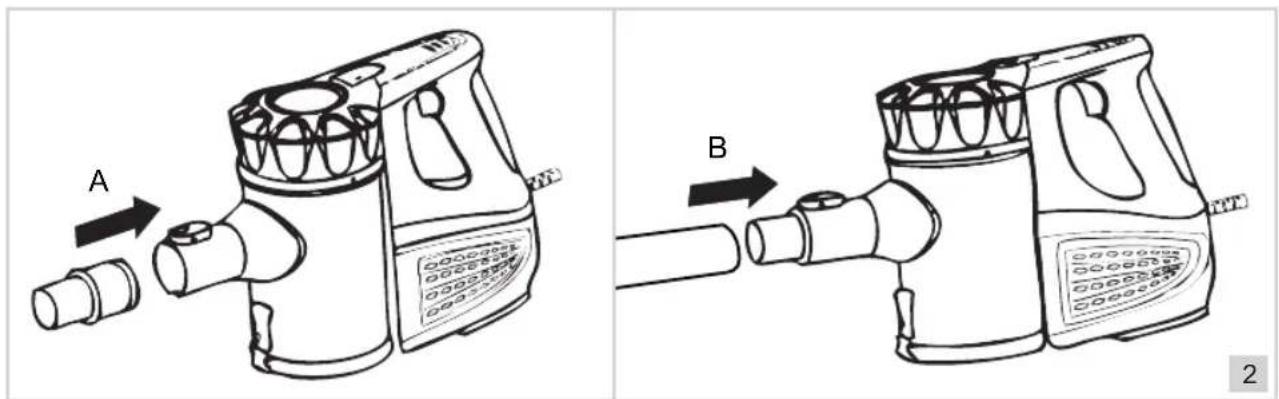

1. Push the coupler (1) into the tube connection (2) on the motor unit (see figure 2A). To remove the coupler, push the button (3) at the top of the tube connection and pull it out.

1. Slide the telescopic interlocking tube (15), the combi nozzle (16) or one of the other included accessories onto the coupler (see figure 2B). When using the telescoping interlocking tube, slide the combi nozzle or one of the other accessories onto the end of the tube.

2. Put the plug in the wall socket, and press the on/off switch (6).

3. Start vacuum cleaning. Press the on/off switch again to turn off the appliance.

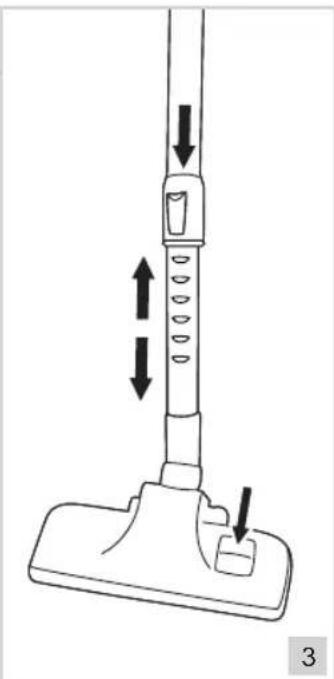

4. Press the button on the telescopic tube and keep it pressed in; you can then extend or retract the tube to the required length (see figure 3).
5. Press the foot button on the nozzle to set the combi nozzle for use on hard or soft surfaces (see figure 3). For use on hard surfaces, press the foot button on the combi nozzle to extend the brushes. Lift the button for use on soft surfaces.

ACCESSORIES

This vacuum cleaner is supplied with two accessory tools (see figure 4):

• a crevice tool (13) with a narrow nozzle, for cleaning radiators, window frames, crevices, small openings, and similar;
• a round brush (14), for cleaning delicate or irregular surfaces, furniture, Venetian blinds, and similar.

OPERATION - Storage after use

This vacuum cleaner is supplied with a wall mount (12), which can be attached to the wall using two screws. Place the vacuum cleaner and the accessories onto the wall mount to store them neatly in a fixed place.

1. Remove the plug from the wall socket.
2. Place the vacuum cleaner and the accessories onto the wall mount (see figure 4).

CLEANING AND MAINTENANCE - Removing waste from the dust container

1. Remove the plug from the wall socket.
2. Remove the telescopic interlocking tube from the vacuum cleaner.
3. Hold the vacuum cleaner above a waste-bin.

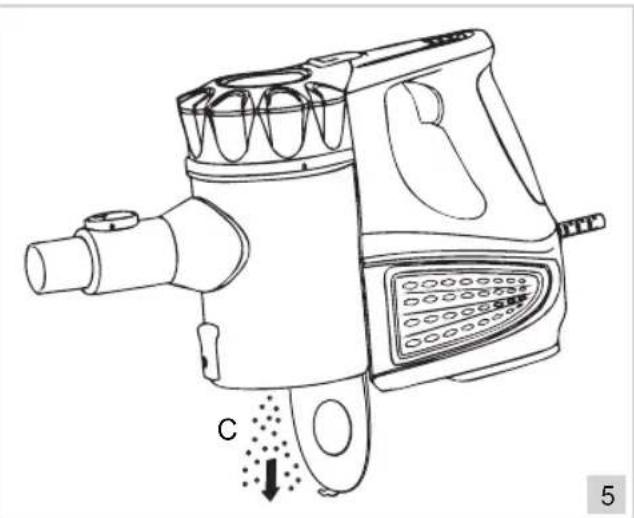

4. Press the button (11) to open the bottom flap (10) (see figure 5).
5. If so required, use your hand to remove any waste sticking to the container.
6. Close the bottom flap, and press until it clicks into place.

CLEANING AND MAINTENANCE - Cleaning the housing

1. Remove the plug from the wall socket.
2. Clean the outer surface of all parts with a damp cloth and a cleaner suitable for plastics.

• Never immerse the appliance, plug or power cord in water.

Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

CLEANING AND MAINTENANCE - Cleaning or replacing the filter

For best results clean or replace the filter after every second or third use of the vacuum cleaner, or more frequently if the filter is visibly blocked.

Clean the filter regularly to avoid that the filter becomes clogged and the engine overheated.

1. Remove the plug from the wall socket.
2. Remove the telescopic interlocking tube from the vacuum cleaner.
3. Remove the waste from the dust container (see "Removing waste from the dust container").

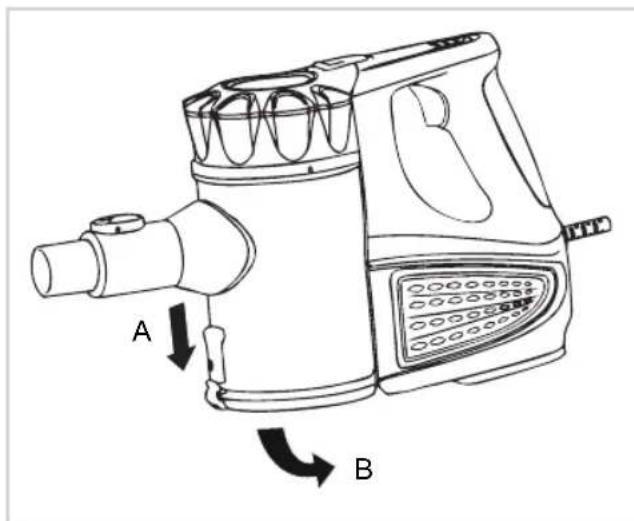

4. Remove the dust container from the vacuum cleaner by pressing the release button (see figure 6A) and taking out the dust container (figure 6B).

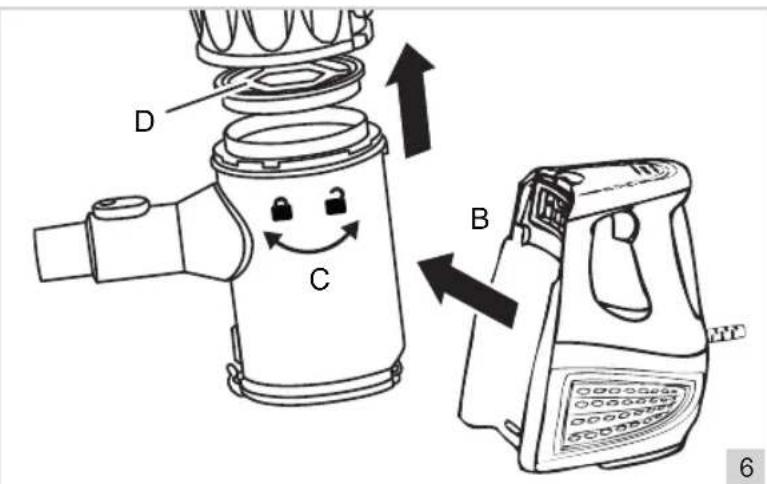

1. Turn the upper lid (4) and remove it from the dust container (figure 6C).
2. Take the dust separation system and filter from the dust separation system (figure 6D).
3. Rinse the filter and the dust separation system thoroughly in lukewarm water.
4. Allow the filter to dry thoroughly.
5. Mount the holders and filters in the reverse sequence.

Water could penetrate into the appliance if the filter is not thoroughly dry. This could result in (electrical) damage.

• Do not clean the filter in a washing machine.
• Do not dry the filter with a hairdryer.

THE ENVIRONMENT

• Dispos of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.
4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.
5. The warranty is issued solely to the first purchaser and cannot be transferred.
6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.
b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.
c. Connection to a mains voltage other than the voltage specified on the type plate.
d. Unauthorized modifications.
e. Repairs carried out by third parties.
f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.
b. The removal or changing of the appliance's serial number.
3. The guarantee does not cover power cords, lamps or glass parts.
9. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.
10. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
11. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department: www.bestron.com/service

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
RoHS - Directive 2011/65/EU

R. Neyman

Quality control
