USER MANUAL Tab 93 QCBT Sunstech

Abstract illustration of a white sphere and a gray book with partial moon, set against a dark background (no text or symbols)

TAB93QCBT

TABLET

USER GUIDE

CONTENT

MAIN FUNCTIONS....5

APPEARANCE 6

BASIC OPERATIONS 6

Turn on....6

Turn off....6

Power Reset 7

Screen Saver 7

Back to the desktop....7

Back to the previous interface 7

Settings....7

Charging....8

HOME SCREEN....9

Set wallpaper....10

Display all applications....11

Notification bar....11

Mobile Desktop icon 11

Delete the desktop icon 12

INSTALL THE APK APPLICATION 12

UNINSTALL APK APPLICATION 13

PICTURES AND MOVIES 15

CAMERA 16

MUSIC 17

REGULAR SETTINGS 18

Wireless & networks....18

Sound 18

Display....18

Storage....19

Battery 19

Apps....19

Users....19

Location....20

Security....20

Language & input....20

Back up and reset....21

Date & time....21

Accessibility 21

Printing 21

Developer options 22

About tablet....23

CONNECT COMPUTER 24

COMMON ISSUES 25

Out of run....25

No voice in the earphone 25

Charging issues 25

Download issues....25

Why some of downloaded videos cannot play normally? ...... 26

Device crashed or can't turn on 26

WARNINGS....27

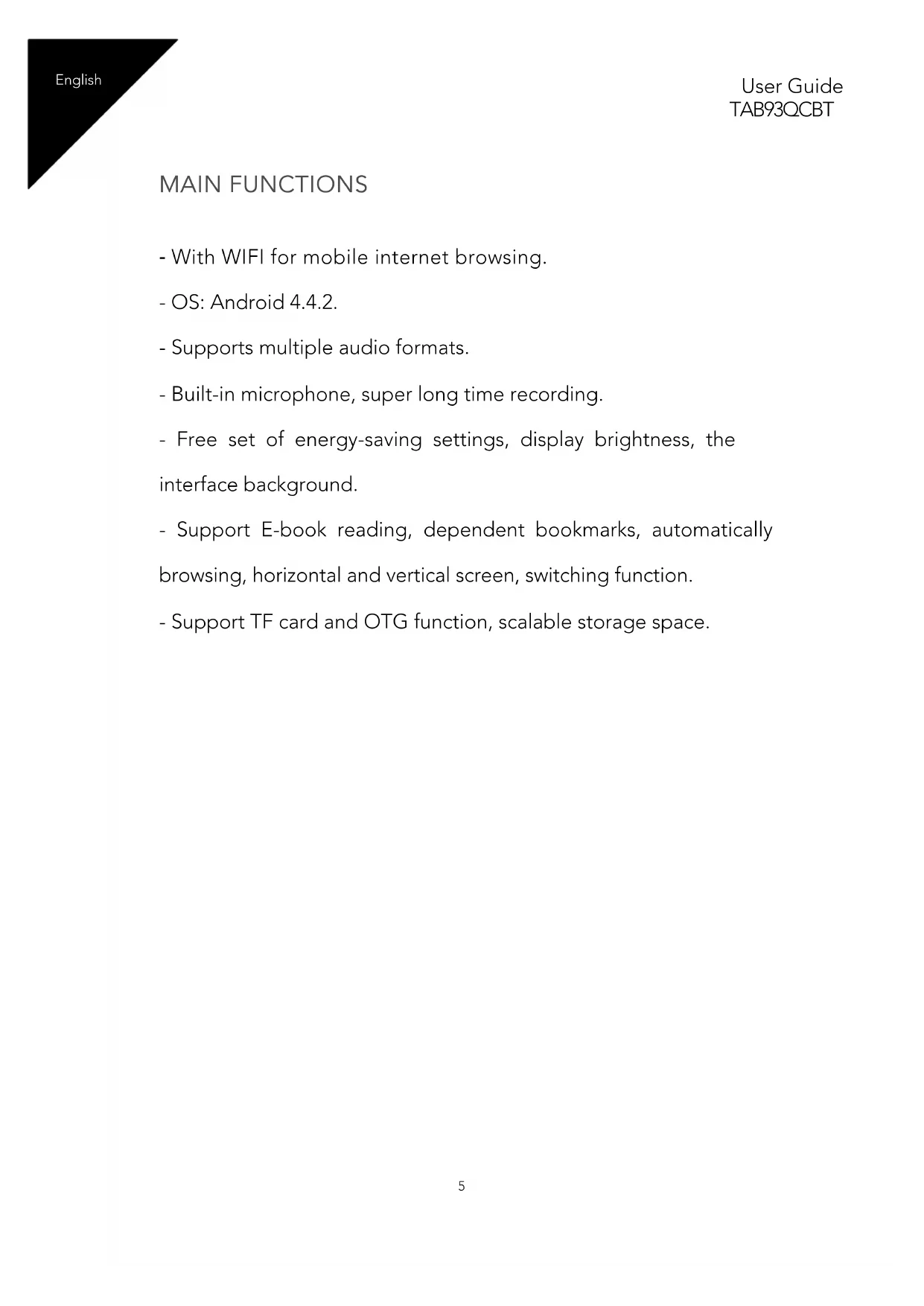

MAIN FUNCTIONS

• With WIFI for mobile internet browsing.
• OS: Android 4.4.2.
• Supports multiple audio formats.
• Built-in microphone, super long time recording.
• Free set of energy-saving settings, display brightness, the interface background.
• Support E-book reading, dependent bookmarks, automatically browsing, horizontal and vertical screen, switching function.
• Support TF card and OTG function, scalable storage space.

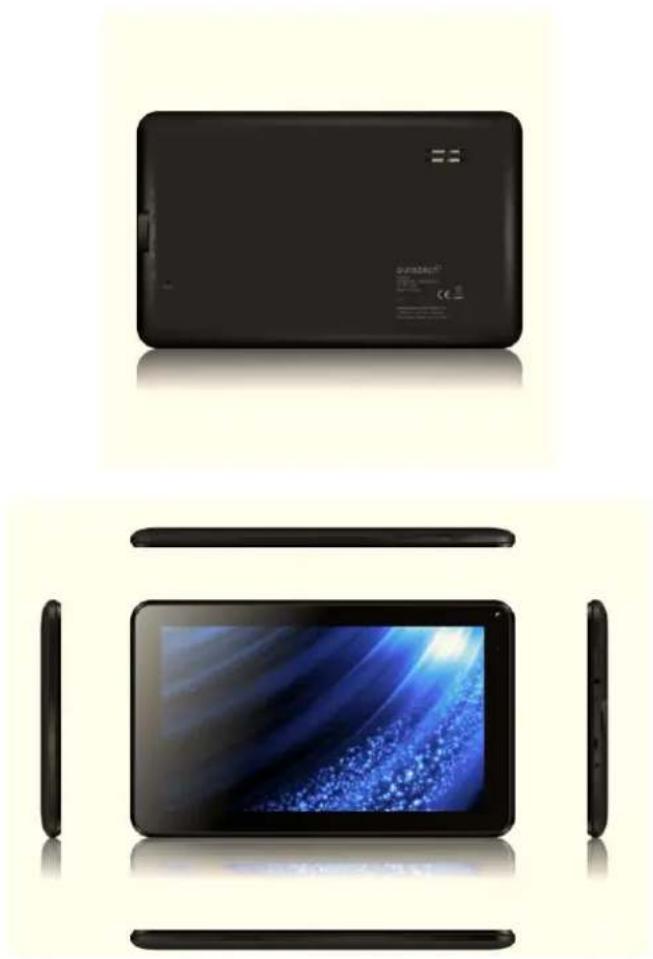

APPEARANCE

Black rectangular tablet with visible display screen and side connectors, no text or symbols on the device itself.

BASIC OPERATIONS

Turn on

A long press on the power bottom turns on the device.

Turn off

In the normal state, long press the power button to shutdown, select "OK" when popup whether to shut down the inquiry box.

Power Reset

Crash maybe occurred in the process of using due to Smart operating system .Tap the RESET button to force shutdown and then reboot if occurred.

Screen Saver

Press the power button, turn off the screen into the screen saver state, if you want to activate screen, press the power button again to enter the screen lock state, then slide the lock button to unlock.

Back to the desktop

Tap the screen bottom lower left of the Home icon "☐" can return to the desktop under any interface.

Back to the previous interface

Tap the Back icon "" I order left of the screen bottom can return to the previous desktop under any interface.

Settings

Tap the "☐" controls upper-right of the screen access to the application bar, tap the" Settings "icon into the set menu list interface.

Charging

Plug the DC connector of adapter into the DC-in of device. Plug the adapter into AC power socket. While charging, the device may heat up. This is normal and should not affect your device's lifespan or performance. When the battery is fully charged (the charging icon is no longer moving), unplug the adapter, driver from the device and then from the power socket.

[Warning]

*. Make sure the machine on a single charge once a month and then shut down before storing it without long use after fully charged.

*. Please do not use the device while it is charging.

Tips: using authorized accessories can enjoy adequate security to guarantee the maintenance services.

Before using the device for the first time, you should charge the battery. The power adapter (charger) is a key component of the device and plays a vital role in protecting it work properly and your safety.

Unauthorized chargers can cause batteries to explode or damage your device. Any damage caused by misuse is not covered by warranty.

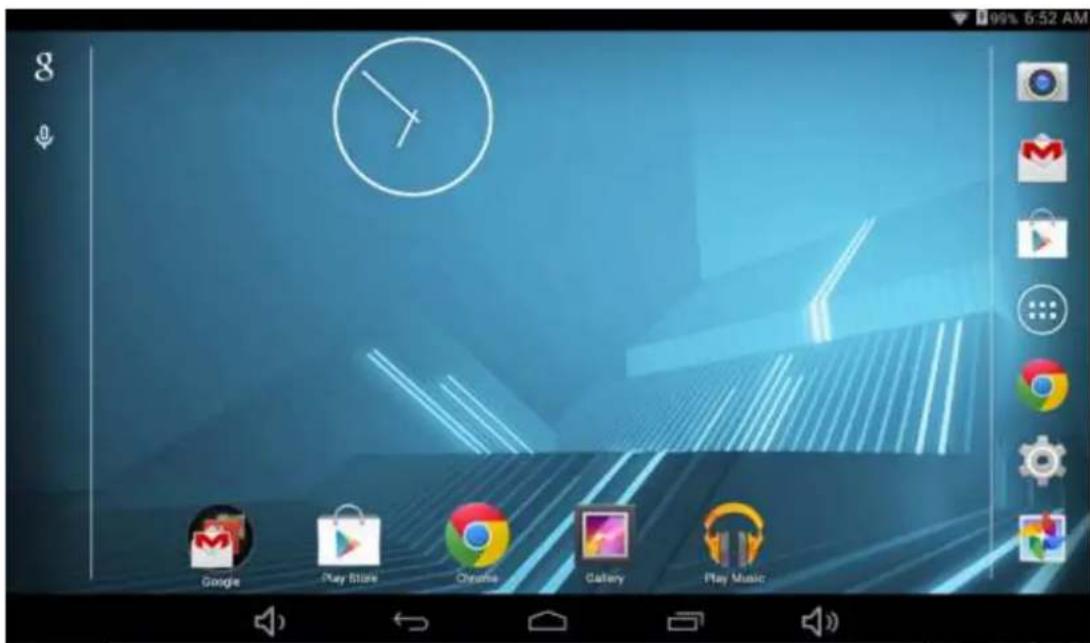

HOME SCREEN

By default, the home screen can open multiple pages, Implied icons are "Browser" and "Camera", etc. Sliding left / right can switch desktop display.

95% 6:52 AM Google Play Store Chrome Gallery Play Music

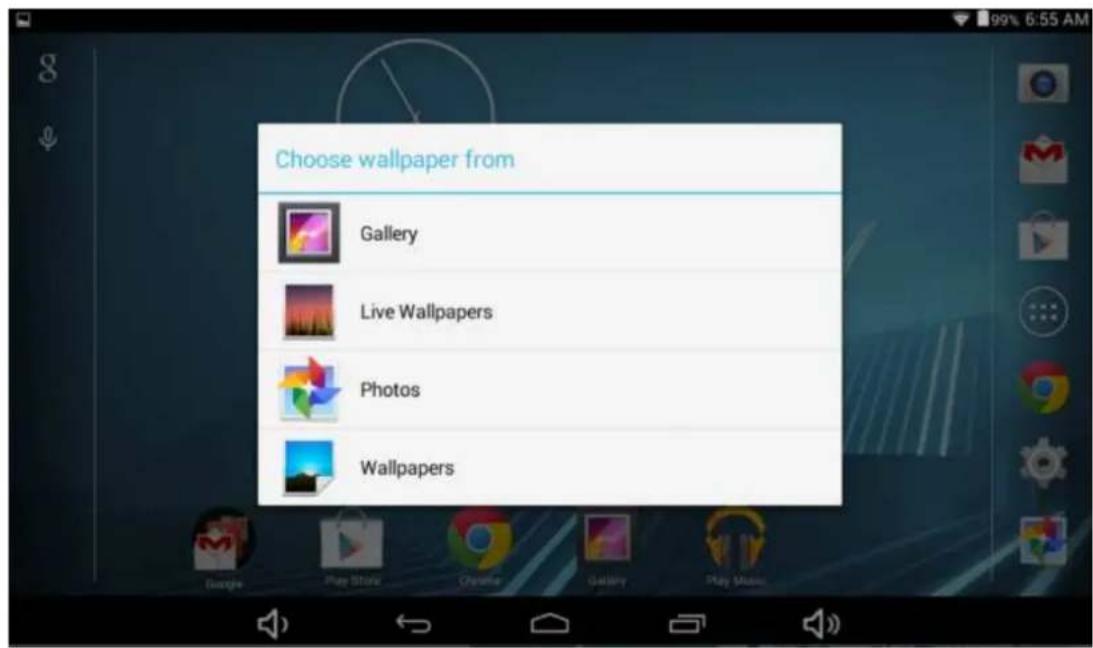

Set wallpaper

Long press the blank space of the home screen, then appear "Select

Wallpaper from", Choose an image according to the categories.

Choose wallpaper from Gallery Live Wallpapers Photos Wallpapers

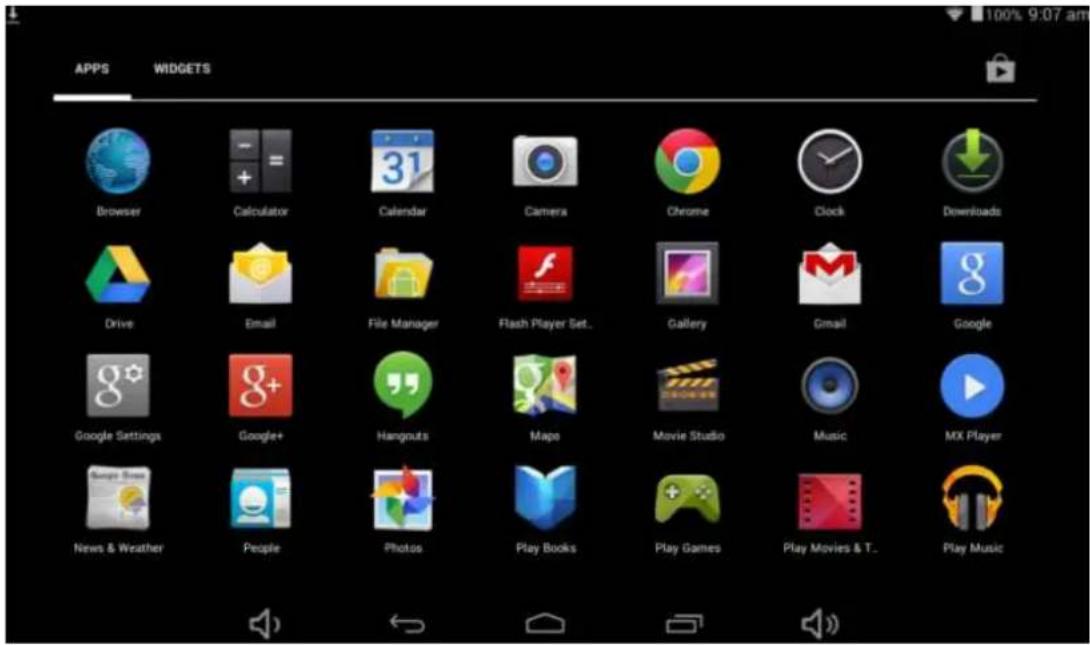

Display all applications

All installed applications will be displayed if tap "■" control upper right of the screen under the main interface.

100% 9:07 am APPS WIDGETS Browser Calculator Calendar Camera Chrome Clock Downloads Drive Email File Manager Flash Player Set.. Gallery Email Google Google Settings Google+ Hangouts Maps Movie Studio Music MX Player News & Weather People Photos Play Books Play Games Play Movies & T.. Play Music

Notification bar

Under the main interface, tap the status bar icon, such as USB connection into the notifications panel, which can display the current status of the USB, TF card status and the running application and status.

Mobile Desktop icon

Under the home screen, long press the application icon on the home screen, then you can move the selected icon after the icon be enlarged.

Delete the desktop icon

Under the home screen, long press the application icon on the home screen, move the selected icon to the trash can icon upper of the screen after the icon be enlarged, then stop pressing when the icon area displays orange and the desktop icon can be deleted.

INSTALL THE APK APPLICATION

Copy the needed APK format application into the device or TF card.

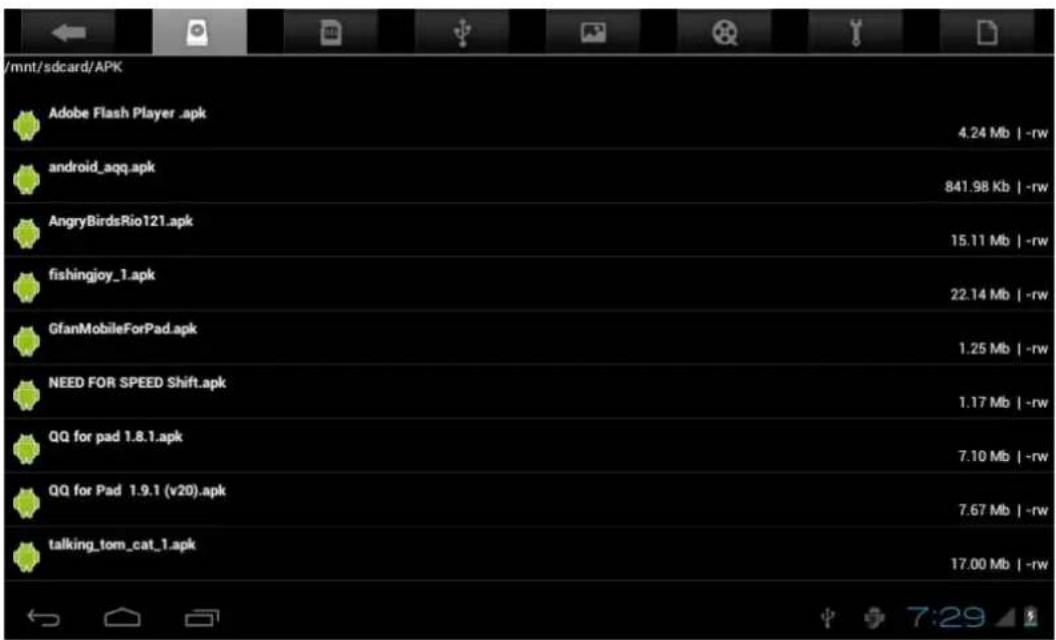

Tap "File Manager" to find the APK format application you want to install.

/mnt/sdcard/APK Adobe Flash Player .apk 4.24 Mb | -rw android_aqq.apk 841.98 Kb | -rw AngryBirdsRio121.apk 15.11 Mb | -rw fishingjoy_1.apk 22.14 Mb | -rw GfanMobileForPad.apk 1.25 Mb | -rw NEED FOR SPEED Shift.apk 1.17 Mb | -rw QQ for pad 1.8.1.apk 7.10 Mb | -rw QQ for Pad 1.9.1 (v20).apk 7.67 Mb | -rw talking_tom_cat_1.apk 17.00 Mb | -rw

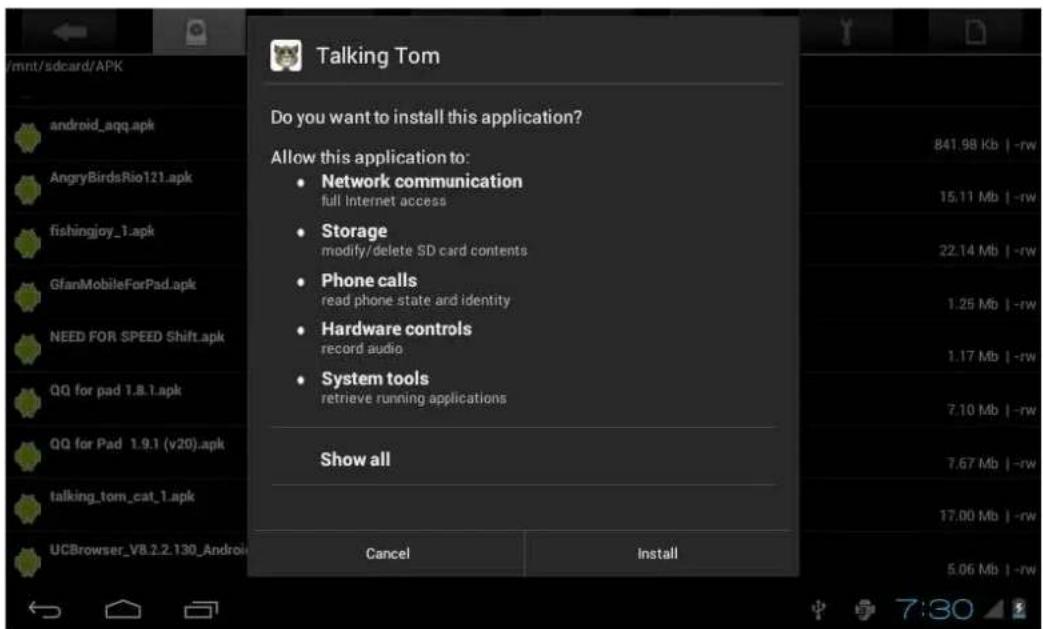

Tap the APK format application you want to install and then appear

"Do you want to install this application?"

Talking Tom Do you want to install this application? Allow this application to: • Network communication full Internet access • Storage modify/delete SD card contents • Phone calls read phone state and identity • Hardware controls record audio • System tools retrieve running applications Show all Cancel Install 841.98 Kb | -rw 15.11 Mb | -rw 22.14 Mb | -rw 1.25 Mb | -rw 1.17 Mb | -rw 7.10 Mb | -rw 7.67 Mb | -rw 17.00 Mb | -rw UCBrowser_V8.2.2.130_Andro 7:30

Tap "Install" to begin the installation of APK application

UNINSTALL APK APPLICATION

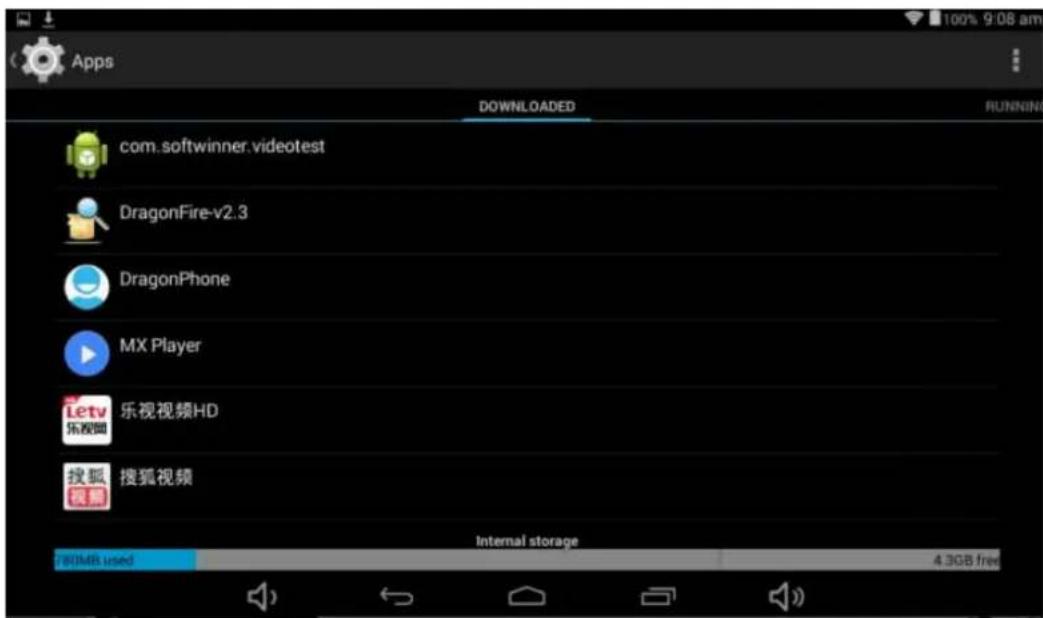

Tap "■" controls, tap "Settings" into Settings menu, then tap

"Apps" and display installed applications list.

100% 9:08 am Apps DOWNLOADED RUNNING com softwinner.videotest DragonFire-v2.3 DragonPhone MX Player letv 乐视视频HD 搜狐 搜狐视频 Internal storage 760MB used 4.3GB free

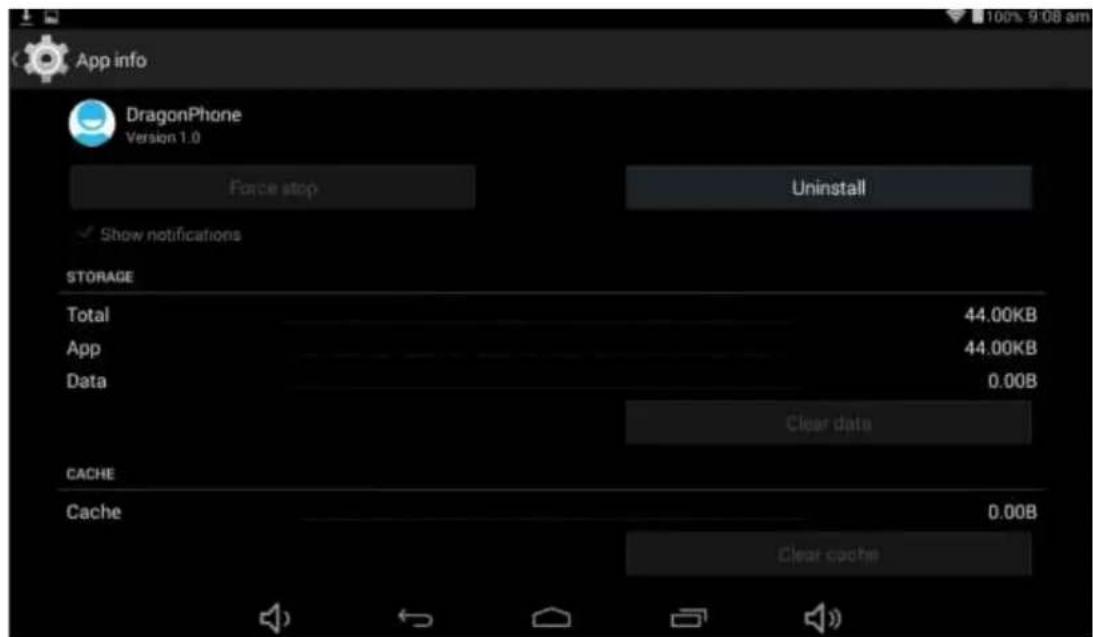

Tap the application you want to uninstall, popup prompt uninstall boxes.

App info DragonPhone Version 1.0 Force stop Uninstall Show notifications STORAGE Total 44.00KB App 44.00KB Data 0.00B Clear data CACHE Cache 0.00B Clear cache

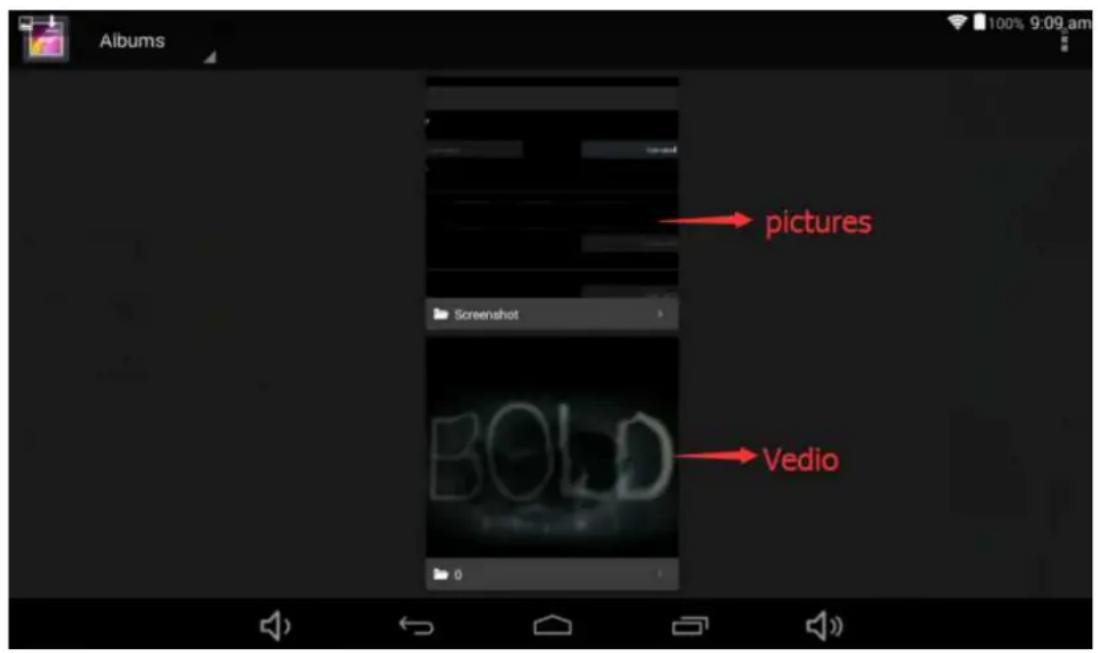

PICTURES AND MOVIES

Tap "Gallery" in the home screen to access to media interface.

Albums pictures Screenshot BOLD Vedio

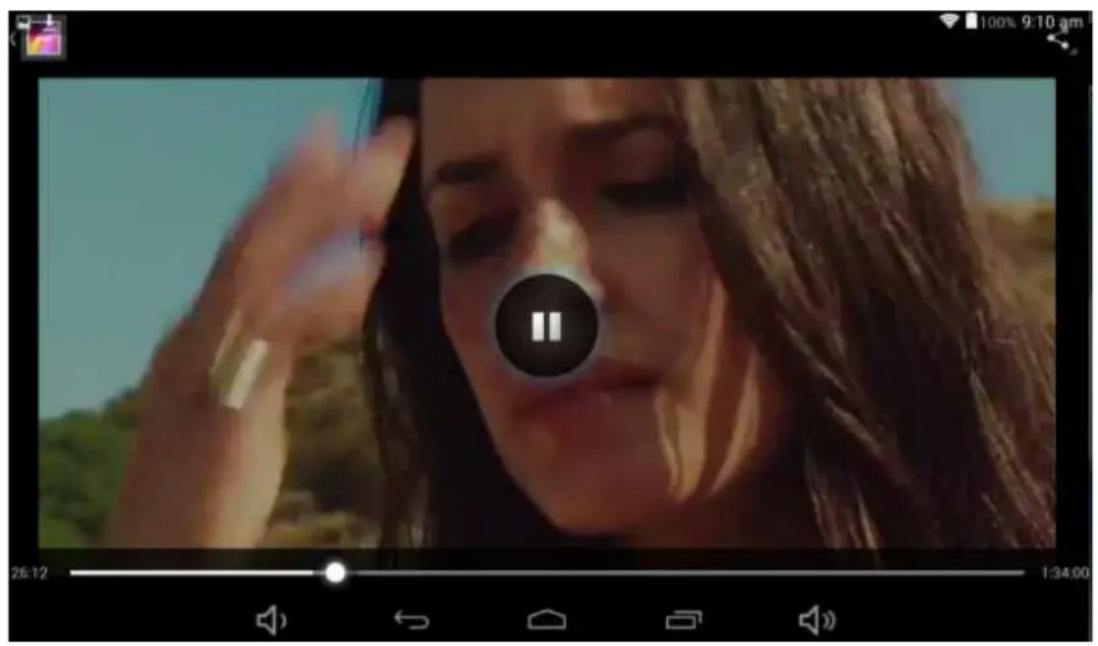

Then tap above the video you want to watch

Video player interface showing a person's face with a play button, set against a natural outdoor background (no readable text or symbols)

CAMERA

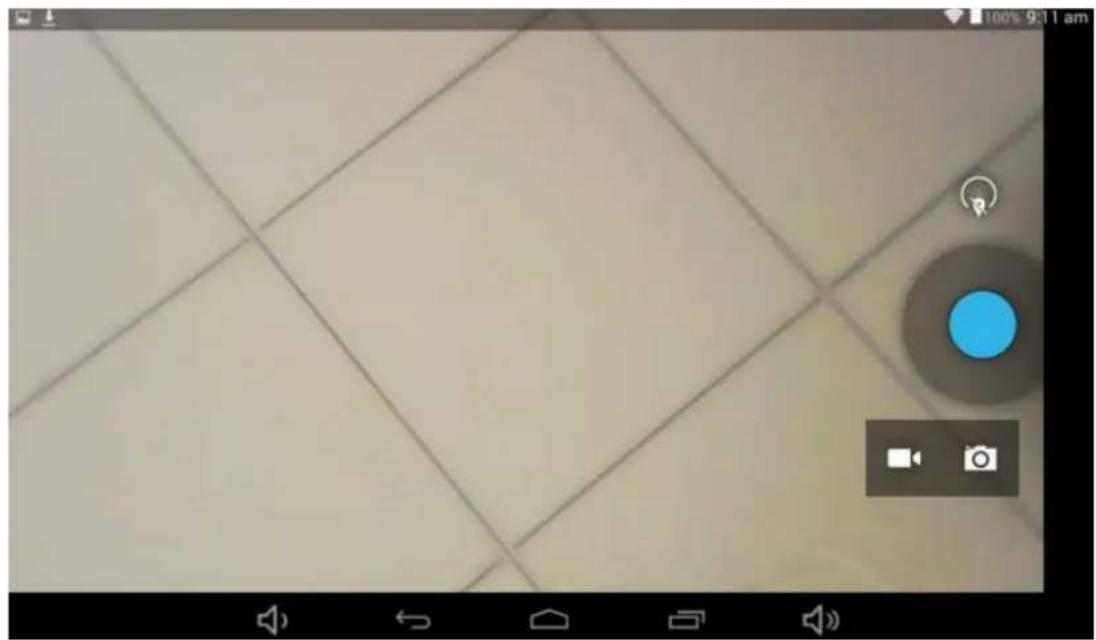

Built-in camera to take photos and video. Tap "camera" to take photos and video, "is status of taking photos, tap "to take photos and preserve automatically," "is recording video, tap "to start, tap " again to pause.

Top-down view of a tiled floor with diagonal lines and a blue circular button, no readable text or symbols present.

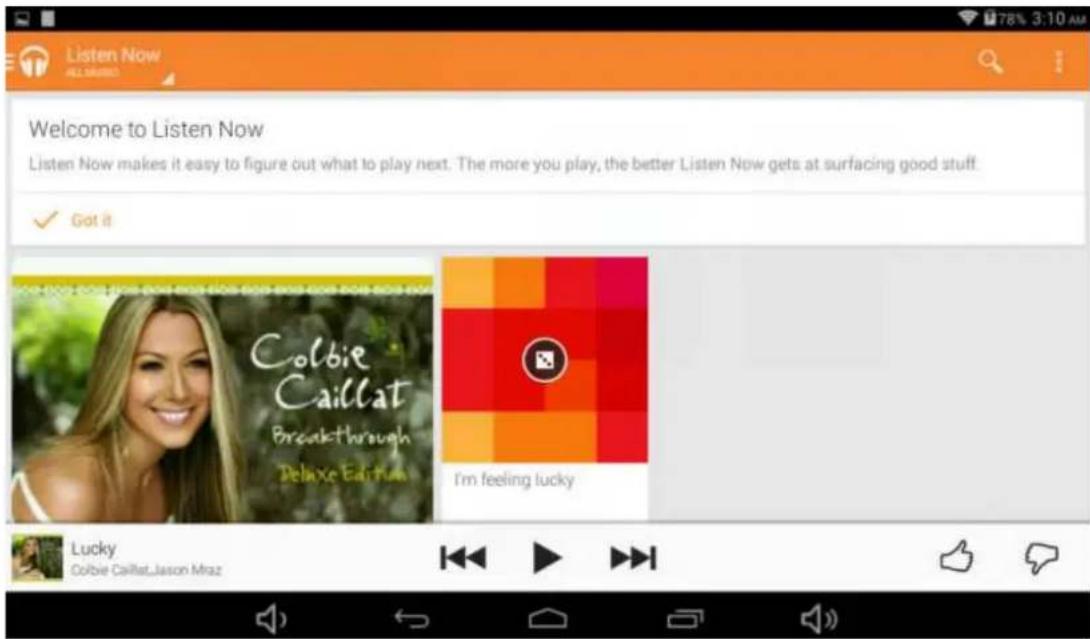

MUSIC

Tap "Playmusic" apk to access to music file list screen.

Listen Now ALL MIRI Welcome to Listen Now Listen Now makes it easy to figure out what to play next. The more you play, the better Listen Now gets at surfacing good stuff. ✓ Got it Colbie Caillat Breakthrough Deluxe Edition I'm feeling lucky Lucky Colbie Caillat.Jason Mraz

Files: tap the music you selected and play music.

Tap back to home screen, tap back to previous screen.

REGULAR SETTINGS

Select "settings" after access into application bar to set list interface.

Wireless & networks

Wi-Fi functions on or off.

Wi-Fi settings set up and manage a network connection.

Sound

Volumes: Adjust the volume level for call ringtones, music and videos, alarm ringtones, device system, and notifications.

Default Notification: Select the application which you want default notice.

Touch sounds: Set the device to sound when you unlock the touch screen.

Screen lock sounds: Set the device to sound when you lock the touch screen.

Display

Brightness: Set the brightness of the display.

Wallpaper: Select wallpaper for the home screen.

Auto-rotate screen: Viewing in portrait or landscape, adjusting automatically to fit the new orientation.

Sleep: Set sleeping time.

Font size: Set the size of the font.

Accelerometer coordinate system: Set the accelerometer coordinate system.

Screen adaptation: Used to adjust part of games' screen size.

Storage

Displays the memory card and USB storage settings of available storage space.

Battery

Displays the battery level or charging status.

Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Apps

View "DOWNLOADED", "ON SD CARD", "RUNNING" and "ALL" applications list, etc.

Users

Setting your personal information.

Location

Set to use the "Google Location reporting to gather and use date based on your location.

Security

Screen lock: Set screen lock way and owner information which can display on the lock screen.

Encrypt tablet: Set a password which required to input when you power on tablet.

Passwords: Make passwords visible or invisible.

Device administrators: View or deactivate device administrators.

Unknown sources: Allow installation of app from unknown sources.

Verify apps: Disallow or warn before installation of apps that may cause harm.

Trusted credentials: Display trusted CA certificates.

Storage type: Software only.

Install from SD card: Install certificates from SD card.

Clear credentials: Remove all certificates.

Language & input

Language: Select a display language for all menus and applications.

Personal dictionary: Add a word by touching the Add (+) button.

Keyboard & Input methods: Set keyboard and input methods.

Speech: Set the voice search and text-to-Speech (TTS) output.

Mouse/Trackpad: Set pointer speed.

Back up and reset

Back up my data to Google servers.

Factory data reset: Erases all data on tablet and restore to factory default.

System upgrade: Reboot into the system in Recovery Mode, can clear the data or system upgrade.

Date & time

Set date and time.

Accessibility

TalkBack: Set tum on/off TalkBack.

Large text: Display large text. Auto-rotate screen.

Touch & hold delay: Set the time of touch and hold delay.

Install web scripts: Set whether to allow the installation of web scripts.

Printing

Support cloud print.

Developer options

USB Debugging: Debug mode when USB is connected.

Development device ID: Display development device ID.

Stay awake: Screen will never sleep while charging.

Allow mock locations.

HDCP ichecking: Use HDCP checking for DRM content only.

Desktop backup password: Set the full desktop backup password.

Strict mode enabled: Flash screen when apps operating do long operations on main thread.

Pointer location: Screen overlay showing current touch data.

Show touches: Show visual feedback for touches.

Show screen updates: Flash areas of screen when they update.

Show CPU usage: Screen overlay showing current CPU usage.

Force GPU rendering: Use 2D hardware acceleration in applications.

Window animation scale: Animation scale 1x.

Transition animation scale: Animation scale 1x.

Don't keep activities: Destroy every activity as soon as the user leaves it.

Background process limit: Standard limit.

Show all ANRs: Show App Not Responding dialog for background apps.

About tablet

Touch panel 9" capacitive 5 points.

Android 4.4.2.

Resolution 800 x 480.

Storage 8GB Nand flash+ 512MB DDR III.

Micro card reader Max: 32GB.

USB port 2.0.

Digital camera 0,3 mega pixels front.

WIFI 802,11b/g/n.

Supported formats :

Picture file jpeg, jpg, bmp, gif, png.

Audio mp3, mp2, ape, wma, wav, flac, ogg, aac, 3gp.

Video rmvb, mkv, wmv, mov, mp4, pmp, mpeg, mpg, flv, 3gp, mpg, h,264

Battery 4000mAh.

Accessories included:

Main adaptor AC240V/DC5V 2A, USB Cable, Quick start guide.

CONNECT COMPUTER

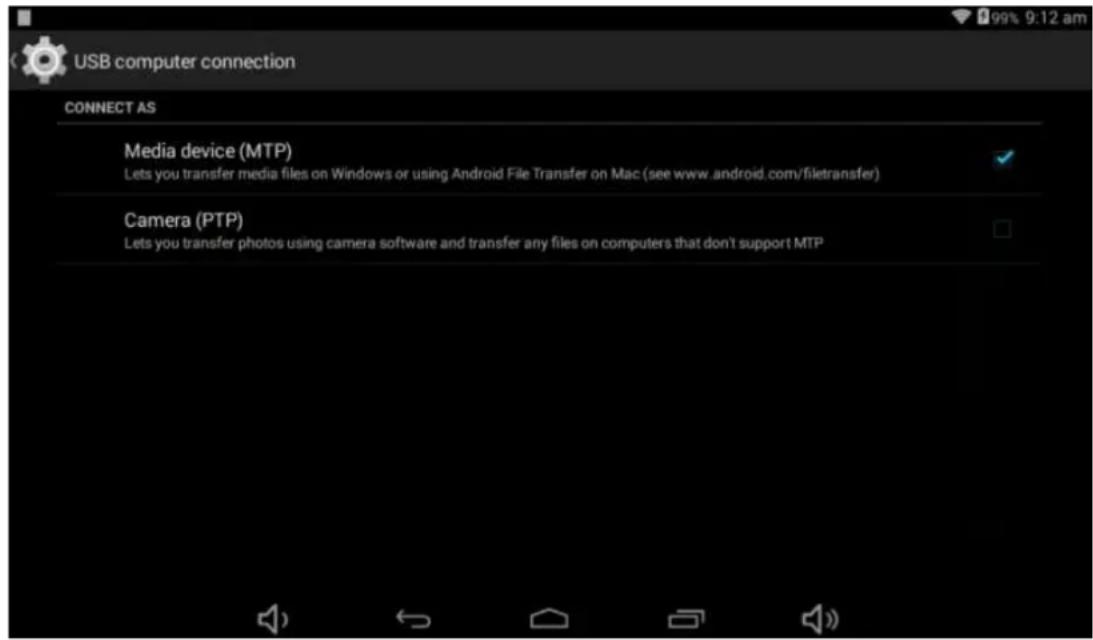

The device could connect to PC via USB wire for data copy and delete.

Connected the device to PC port via USB wire, then there will be showed "USB connected" on PC screen

Tap"USB connected" option, select "open USB storage setting", then you can see movable hardware icon which can be operated like using USB.

USB computer connection CONNECT AS Media device (MTP) Lets you transfer media files on Windows or using Android File Transfer on Mac (see www.android.com/filetransfer) Camera (PTP) Lets you transfer photos using camera software and transfer any files on computers that don't support MTP

COMMON ISSUES

Out of run

Check the batteries whether it out of charge. Checking after get connected to the power adapter. If it still cannot turn on after charging, please contact the customer service center.

No voice in the earphone

Make sure the volume is not turned down all the way. Unplug the headset and then plug it in again. Make sure you push connector all the way in.

Charging issues

Please make sure the setting of the charger is according with the device. Please don't use the front USB ports for charging.

Download issues

Make sure it connects with PC properly. You'd better not to use the front USB port to connect to PC.

Why some of downloaded videos cannot play normally?

The device is compatible with most of video file format, but there still have some differences in format, encoded mode, resolution and code rate etc. it could result in some of the videos cannot play or have play issues. Our suggestion is that use the three party adapter software for transforming in the PC then copy to the device.

Device crashed or can't turn on

Once device crashed during the running time, it can be restarted via tap the RESET button at the side of device.

WARNINGS

	Correct disposal of this Product(Waste Electrical & Electronic Equipment)(WEEE)Your product is designed and manufactured with high quality materials and components which can be recycled and reused.This symbol means that electrical and electronic equipment, at their end of-life should be disposed of separately from your household waste.Please dispose of this equipment at your local community waste collection/recycling centre.In the European Union there are separate collection systems used electrical and electronic products. Please help us to conserve the environment we live in!
	DO NOT place objects on top of the device, as objects may scratch the device.
	DO NOT expose the device to dirty or dusty environments.
	DO NOT place the device on an uneven or unstable surface.
	DO NOT insert any foreign objects into the device.
	DO NOT expose the device to strong magnetic or electrical field.
	DO NOT expose the device to direct sunlight as it can damage the device. Keep it away from heat sources.
	DO NOT store your device in temperatures higher than 40°C(104°F). The internal operating temperature for this device is from 20°C(68°F) to 60°C(140°F).
	DO NOT use the device in the rain.
	Please check with your Local Authority or retailer for proper disposal of electronic products.
	The device and adaptor may product some heat during norm operation of charging. To prevent discomfort or injury from he exposure, DO NOT leave the device on your lap.
	POWER INPUT RATING: Refer to the rating label on the device and be sure that the power adaptor complies with the rating. Only use accessories specified by the manufacturer.
	Clean the device with a soft cloth. If needed, dampen the clot slightly before cleaning. Never use abrasives or cleaning solutions.
	Always power off the device to install or remove external devices that do not support hot-plug.
	Disconnect the device from an electrical outlet and power off before cleaning the device.
	DO NOT disassemble the device. Only a certified service technician should perform repair.
	The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.
	Risk of explosion if battery replaced by an incorrect type. Dispose of used batteries according to the instruction.
	PLUGGABLE EQUIPMENT: the socket-outlet shall be installed near the equipment and shall be easily accessible.
	European Union: Disposal Information.This symbol means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this product reaches its end of life take it to a collection point designated by local authorities. The separate collection and recycling of your product and/or its battery at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.
MADE IN CHINA

sunstech®

For you. For everyone.

Abstract illustration of a white sphere and a gray book with partial moon, set against a dark background (no text or symbols)

TAB93QCBT

TABLET

GUÍA DE USUARIO

CONTENIDO

Black rectangular tablet with visible display and side panels, no text or symbols on the device itself

OPERACIONES BÁSICAS

Encendido

Choose wallpaper from Gallery Live Wallpapers Photos Wallpapers

Talking Tom Do you want to install this application? Allow this application to: • Network communication full Internet access • Storage modify/delete SD card contents • Phone calls read phone state and identity • Hardware controls record audio • System tools retrieve running applications Show all Cancel Install 841.98 Kb | -rw 15.11 Mb | -rw 22.14 Mb | -rw 1.25 Mb | -rw 1.17 Mb | -rw 7.10 Mb | -rw 7.67 Mb | -rw 17.00 Mb | -rw UCBrowser_V8.2.2.130_Androik 7:30

App info DragonPhone Version 1.0 Force stop Uninstall ✓ Show notifications STORAGE Total 44.00KB App 44.00KB Data 0.00B Clear data CACHE Cache 0.00B Clear cache

FOTOGRAFÍAS Y VÍDEOS

Video player interface showing a person's face with a play button, set against a natural outdoor background (no readable text or symbols)

CÁMARA

Top-down view of a tiled floor with diagonal lines and a blue circular button, no readable text or symbols present.

MÚSICA

Listen Now ALL MUSIC Welcome to Listen Now Listen Now makes it easy to figure out what to play next. The more you play, the better Listen Now gets at surfacing good stuff. ✓ Got it Colbie Caillat Breakthrough Deluxe EditHow I'm feeling lucky Lucky Colbie Caillat,Jason Mraz

USB computer connection CONNECT AS Media device (MTP) Lets you transfer media files on Windows or using Android File Transfer on Mac (see www.android.com/filetransfer) Camera (PTP) Lets you transfer photos using camera software and transfer any files on computers that don't support MTP

CUESTIONES COMUNES

No funciona

For you. For everyone.

Simple line drawing of a person reading a book with a large circle and a sun in the background (no text or symbols)

TAB93QCBT

TABLETTE

GUIDE D'UTILISATEUR

CONTENU

FONCTIONS PRINCIPALES 5

ASPECT 6

OPÉRATIONS DE BASE 6

Mise en marche....6

Arrêt....6

Redémarrage 7

Black rectangular electronic device with visible screen and side panels, no text or symbols present

OPÉRATIONS DE BASE

Mise en marche

Choose wallpaper from Gallery Live Wallpapers Photos Wallpapers

Talking Tom Do you want to install this application? Allow this application to: • Network communication full Internet access • Storage modify/delete SD card contents • Phone calls read phone store and identity • Hardware controls record audio • System tools retrieve running applications Show all Cancel Install

App info DragonPhone Version 1.0 Force stop Uninstall Show notifications STORAGE Total 44.00KB App 44.00KB Data 0.00B Clear data CACHE Cache 0.00B Clear cache

IMAGES ET VIDÉOS

Video player interface showing a person's face with a play button, set against a natural outdoor background (no readable text or symbols)

CAMÉRA

Interior view of a mobile phone interface showing a grid pattern, camera control buttons, and a blue circular play button (no readable text or symbols)

MUSIQUE

Play Music

Listen Now ALL WORKS Welcome to Listen Now Listen Now makes it easy to figure out what to play next. The more you play, the better Listen Now gets at surfacing good stuff. ✓ Got it Colbie Caillat Breakthrough Deluxe Edition I'm feeling lucky Lucky Colbie Caillat,Jason Mraz

USB computer connection CONNECT AS Media device (MTP) Lets you transfer media files on Windows or using Android File Transfer on Mac (see www.android.com/filetransfer) Camera (PTP) Lets you transfer photos using camera software and transfer any files on computers that don't support MTP

PROBLÈMES COURANTS

For you. For everyone.

Abstract illustration of a white sphere and a gray book with partial moon, set against a dark background (no text or symbols)

TAB93QCBT

TABLET

GUIA DO UTILIZADOR

CONTEÚDO

FUNÇÕES PRINCIPAIS 5

ASPETO....6

Black rectangular tablet with visible display screen and side connectors, no text or symbols on the device itself.

OPERAÇÕES BÁSICAS

Ligar

Choose wallpaper from Gallery Live Wallpapers Photos Wallpapers

Talking Tom Do you want to install this application? Allow this application to: • Network communication - full Internet access • Storage modify/delete SD card contents • Phone calls read phone state and identity • Hardware controls record audio • System tools retrieve running applications Show all Cancel Install 841.98 Mb | -rw 15.11 Mb | -rw 22.14 Mb | -rw 1.25 Mb | -rw 1.17 Mb | -rw 7.10 Mb | -rw 7.57 Mb | -rw 17.00 Mb | -rw 5.06 Mb | -rw

App info DragonPhone Version 1.0 Force stop Uninstall ✓ Show notifications STORAGE Total 44.00KB App 44.00KB Data 0.00B Clear data CACHE Cache 0.00B Clear cache

FOTOGRAFIAS E VÍDEOS

Toque "Galeria" no ecrã home para aceder à interface media.

Albums pictures Screenshot BOLD Vedio

Video player interface showing a person's face with a play button, set against a natural outdoor background (no readable text or symbols)

CÂMARA

Interior view of a mobile phone interface showing a grid pattern and a play button (no readable text or symbols)

MÚSICA

Listen Now ALL MUSIC Welcome to Listen Now Listen Now makes it easy to figure out what to play next. The more you play, the better Listen Now gets at surfacing good stuff. ✓ Got it Colbie Caillat Breakthrough Deluxe Edit Now I'm feeling lucky Lucky Colbie Caillat,Jason Mraz

Ficheiros: Toque a música que selecionou e reproduz a música

USB computer connection CONNECT AS Media device (MTP) Lets you transfer media files on Windows or using Android File Transfer on Mac (see www.android.com/filetransfer) Camera (PTP) Lets you transfer photos using camera software and transfer any files on computers that don't support MTP

QUESTÕES COMUNS

Não funciona

For you. For everyone.
