USER MANUAL INOSOP07CAP Synchro Digital

11:38 Fri, May 11 Charging, 61%

MODE D'EMPLOI FRANÇAIS / ENGLISH

REF : INOSOP07-CAP

Read the following instructions carefully and keep them for further use.

1. NOTES 1
2. ACCESSOIRES ...... 2
3. LA TABLETTE 2
4. DÉMARRAGE ET ARRÊT .... 3
5. BUREAU 4
6. BOUTONS 5
7. PARAMÈTRES SYSTÈME ...... 6
8. GESTION DES APPLICATIONS ...... 10
9. RÉSEAU 12
10. MUSIQUE 13
11. VIDÉO 14
12. FOND D'ÉCRAN 15
13. ENREGISTREMENT 16
14. CAMERA 17
15. PLAY STORE 18
16. E-MAIL 26
17. PÉRIPHÉRIQUES EXTERNES 29

18. DÉPANNAGE RAPIDE 30

19. NOTES 31

20. ACCESSORIES 32
21. OUTLOOK DESCRIPTION 32
22. STARTUP AND SHUTDOWN 33
23. DESKTOP 35
24. BUTTONS 35
25. SYSTEM SETTINGS 36
26. APPLICATIONS 40
27. NETWORK 42
28. MUSIC 43
29. VIDEO 44
30. WALLPAPER 45
31. RECORD 46
32. CAMERA 47
33. PLAY STORE 48
34. E-MAIL 55
35. EXTERNAL DEVICES 59
36. TREATMENT FOR COMMON PROBLEMS 60

1. NOTES

Google Power off Would you like to shut down? Cancel OK

Settings SCAN ADO NETWORK WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL To see available networks, turn Wi-Fi on.

Wi-Fi

Settings WI-FI ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL ChinaNet-hkWZ Secured with WPA (protected network available) EX-lighting Secured with WPA/WPA2 galaxywind ChinaNet-cGjx Secured with WPA dlink Protected network available ChinaNet-B76r Secured with WPA2 (protected network available) ChinaNet-fNRH Secured with WPA WEZONE Secured with WPA SCAN ADD NETWORK

Settings SCAN ADD NETWORK WIRELESS & NETWORKS Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL dlink Connected galaxywind Saved ChinaNet-hkWZ Secured with WPA (protected network available) ChinaNet-fNRH Secured with WPA EX-lighting Secured with WPA/WPA2 ChinaNet-cGjx Secured with WPA ChinaNet-B76r Secured with WPA2 (protected network available)

FR

Date et l'heure

Settings DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Brightness Wallpaper Brightness Cancel OK Accelerometer coordinate system Accelerometer uses the default coordinate system. screen adaption Used to adjust size of some games display screen . Calibrating the touch screen

Ecran de veille

Settings Device Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Sleep 15 seconds 30 seconds 1 minute 2 minutes 5 minutes 10 minutes 30 minutes Never Cancel Callorating the touch screen

8. GESTION DES APPLICATIONS

Settings Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM SCREEN SECURITY Screen lock Slide Owner info ENCRYPTION Encrypt tablet Require a numeric PIN or password to decrypt your tablet each time you power it on PASSWORDS Make passwords visible DEVICE ADMINISTRATION Device administrators View or deactivate device administrators Unknown sources Allow installation of non-Market apps 5:41

Settings Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM ENCRYPTION Encrypt tablet Require a numeric PIN or password to decrypt your tablet each time you power it on PASSWORDS Make passwords visible DEVICE ADMINISTRATION Device administrators View or deactivate device administrators Unknown sources Allow installation of non-Market apps CREDENTIAL STORAGE Trusted credentials Display trusted CA certificates Install from SD card Install certificates from SD card

Angry Birds Do you want to install this application? Allow this application to: • Network communication full Internet access Cancel Install 16.71 Mb | -rw 3 items | -drw 23 items | -drw 1.77 Mb | -rw 184.26 Kb | -rw 0 items | -drw 743.73 Kb | -rw 61.57 Mb | -rw 1 items | -drw

bbc.com http://www.bbc.co.uk/mobile/i/ BBC BBC News Sarkazy plea over shootings video Leaders warn over nuclear threat Chocolate 'may keep people slan' More from BBC News LIVE: BBC World Service 5 minute news bulletin BBC Sport England will make history - Swann United get ref advantage - Vieira More from BBC Sport Weather Find 5 day forecast Languages

Collage of six video thumbnails showing diverse scenes: running figures, spring, grass, blue sky, green field, and traditional architecture (no text or symbols)

Action scene of a character with a large mask suspended above a mechanical structure, surrounded by red lighting (no visible text or symbols)

12. FOND-ECRAN

Google Camera Wallpaper Manage apps

Choose wallpaper from 3D Gallery Live Wallpapers Super-HD Player Wallpapers

Make it Google To use Google Play you need a Google Account. Got Gmail? Sign in now. Get a Google Account Sign in

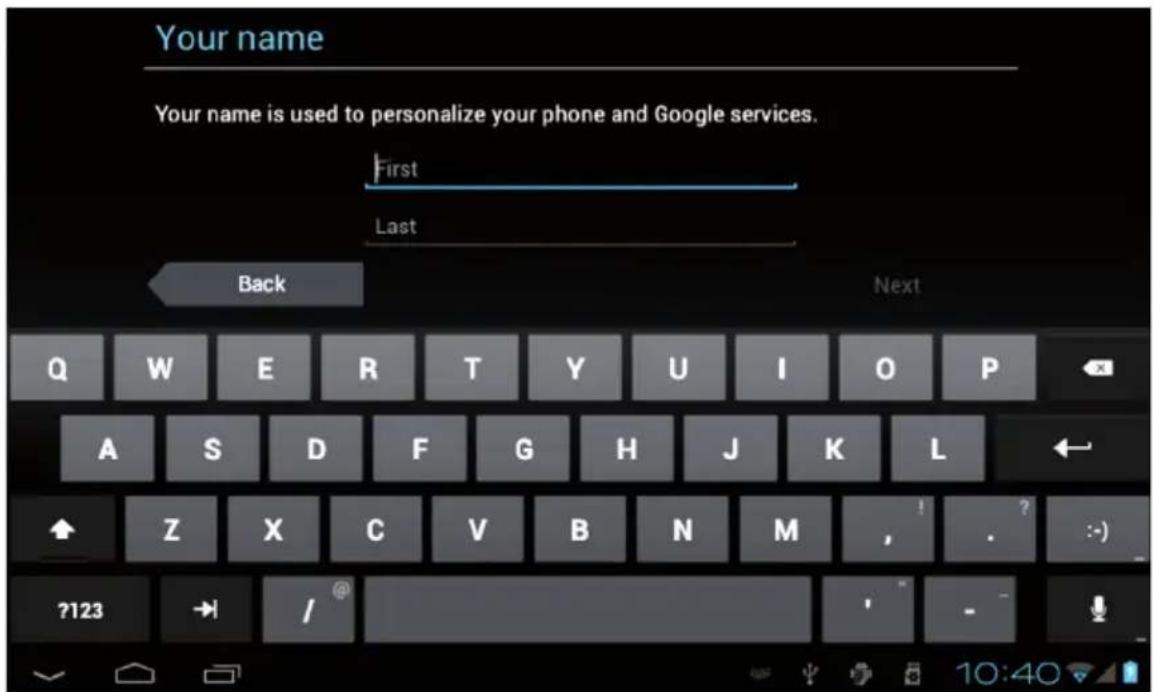

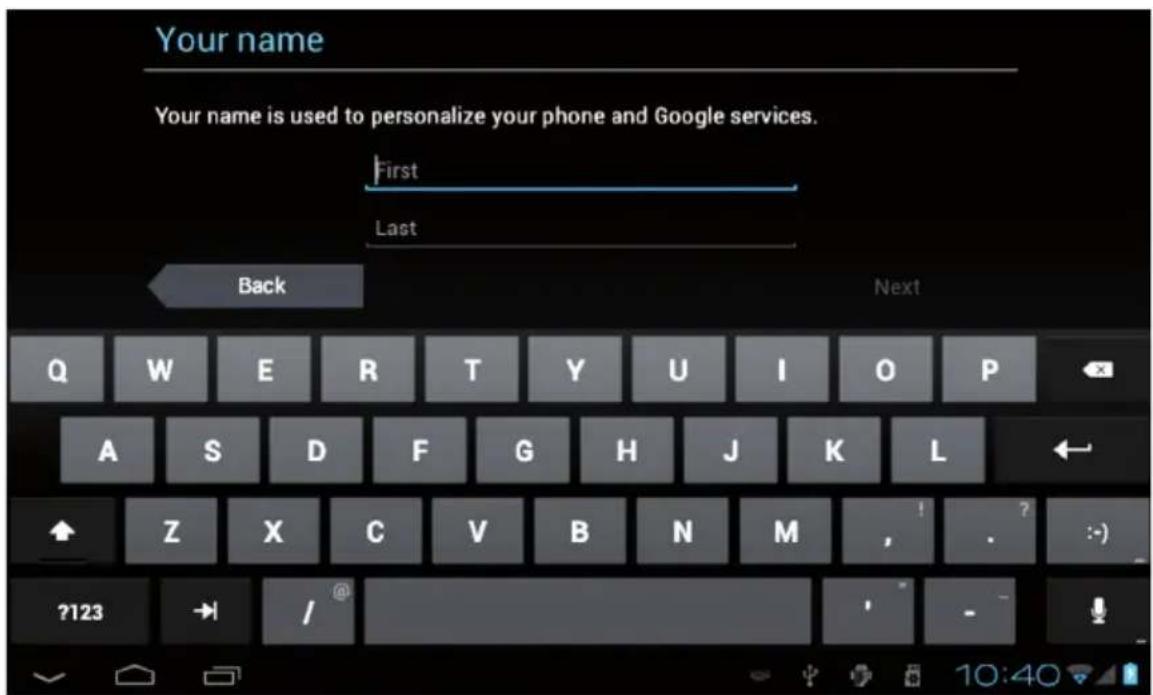

Your name Your name is used to personalize your phone and Google services. First Last Back Next Q W E R T Y U I O P A S D F G H J K L Z X C V B N M , ? :) ?123 / @ 10:40

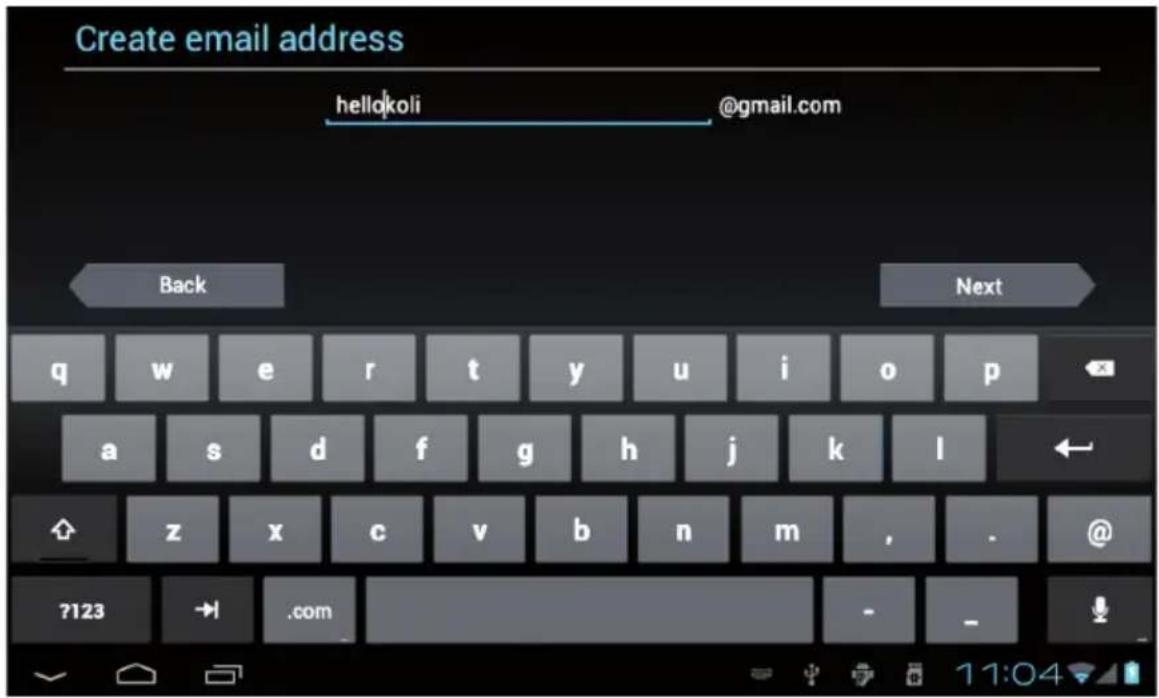

Create email address hellokoli @gmail.com Back Next q w e r t y u i o p a s d f g h j k l z x c v b n m , . @ ? ?123 → .com - -

Ecrivez «Prénom» et «Nom de famille».

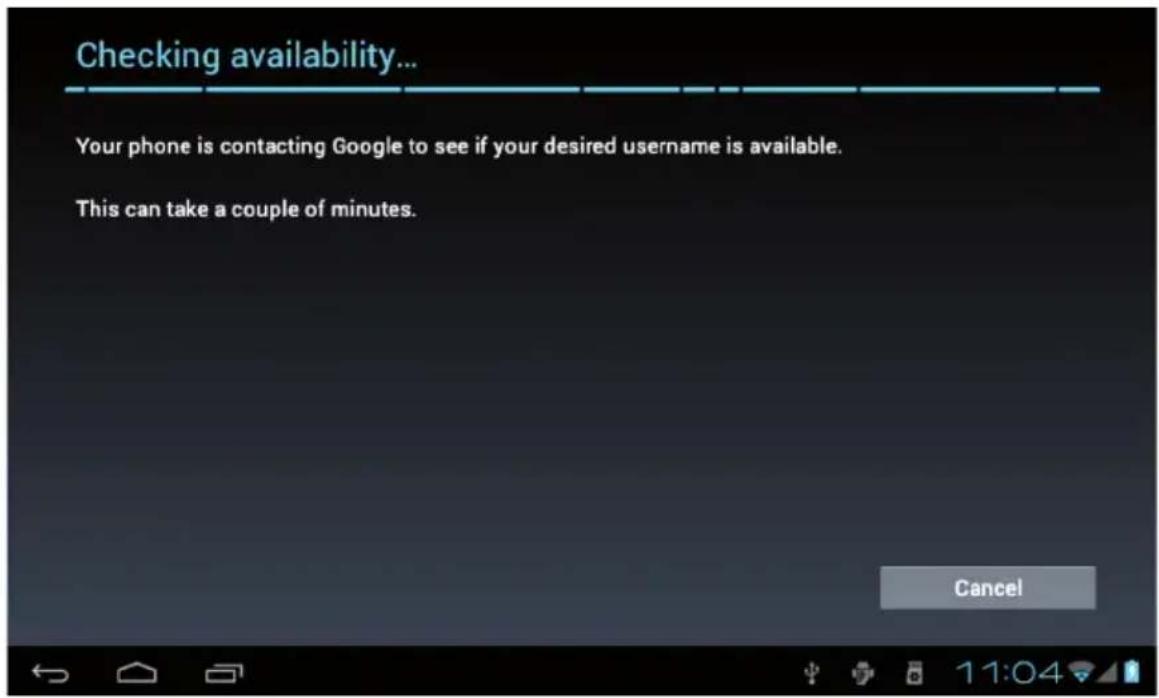

Checking availability... Your phone is contacting Google to see if your desired username is available. This can take a couple of minutes. Cancel

APPS WIDGETS Books Browser Calculator Calendar Gmail Google+ Latitude App Name Camera Clock Downloads Earth Maps Market Messaging Messenger eBay Email Facebook Gallery Camera Clock Downloads Earth

FR

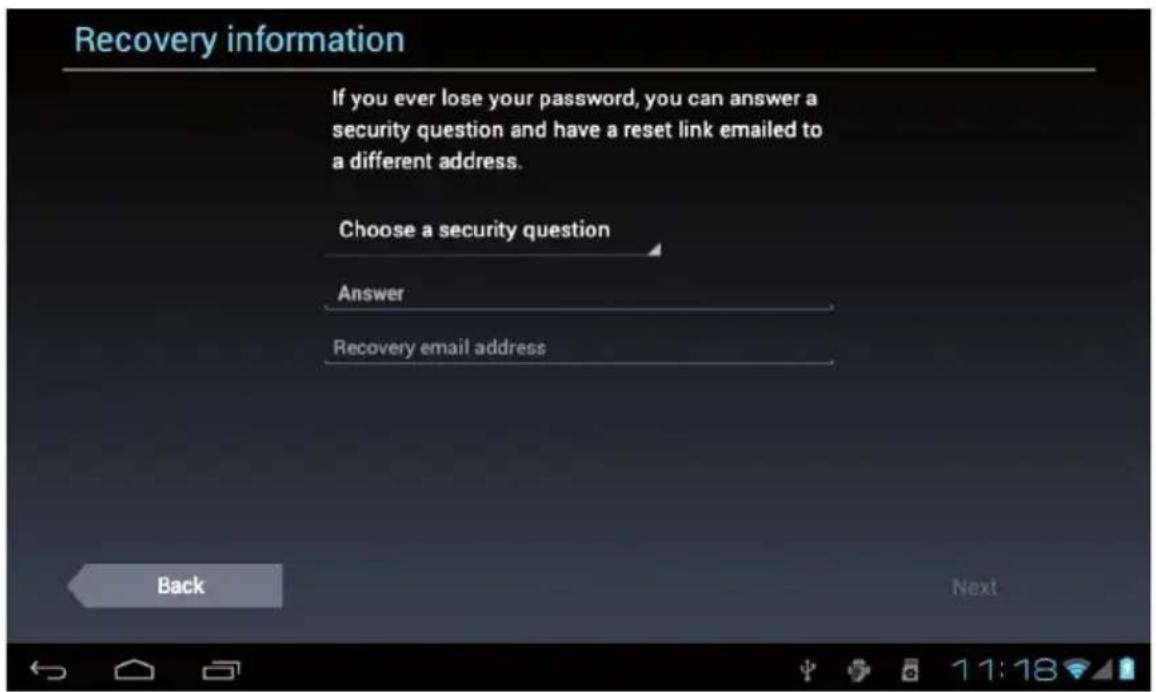

Recovery information If you ever lose your password, you can answer a security question and have a reset link emailed to a different address. Choose a security question Answer Recovery email address Back Next

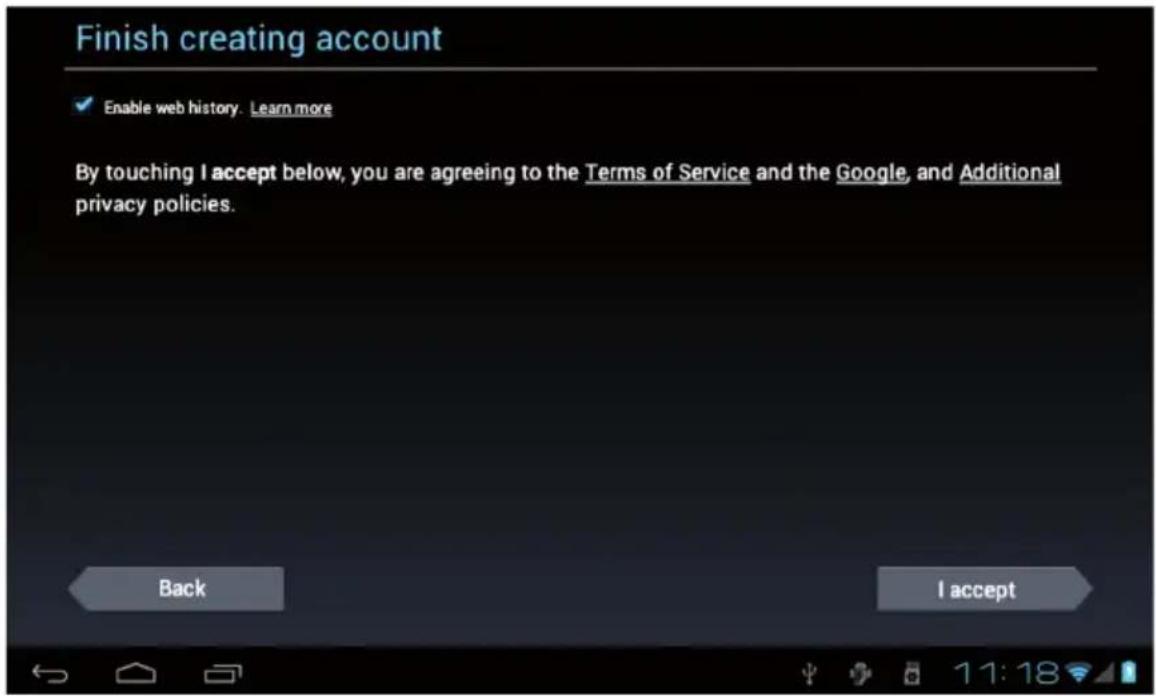

Finish creating account Enable web history. Learn more By touching I accept below, you are agreeing to the Terms of Service and the Google, and Additional privacy policies. Back (I accept

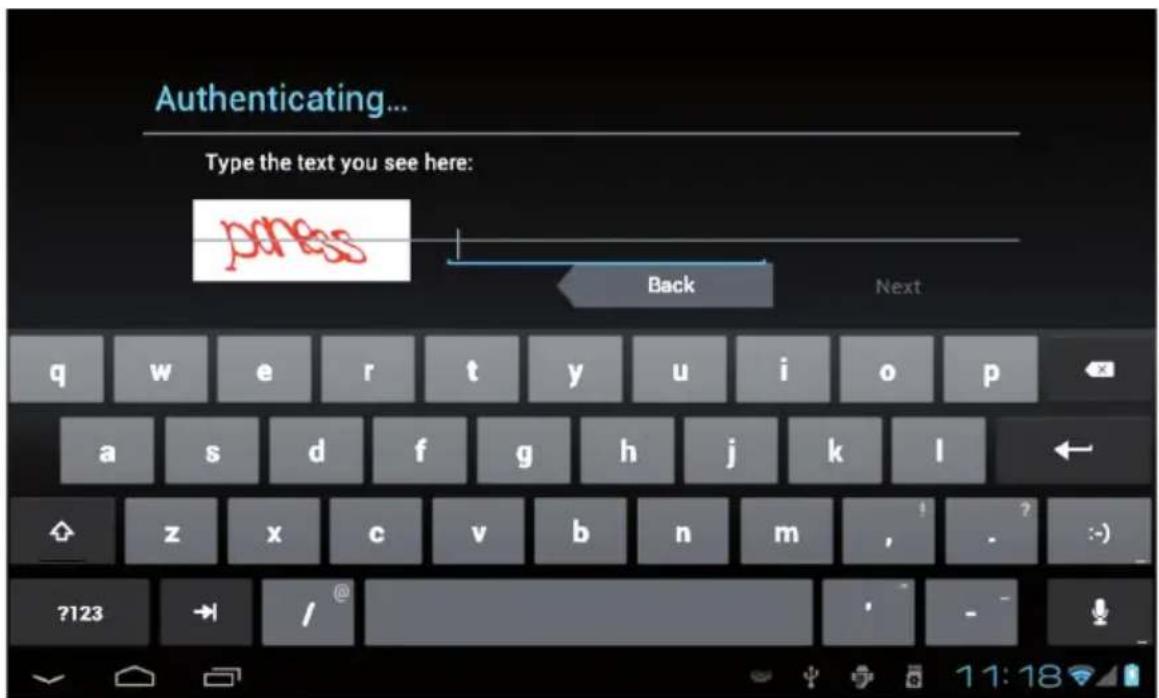

Authenticating... Type the text you see here: press Back Next q w e r t y u i o p a s d f g h j k l z x c v b n m , ? :) ?123 / @

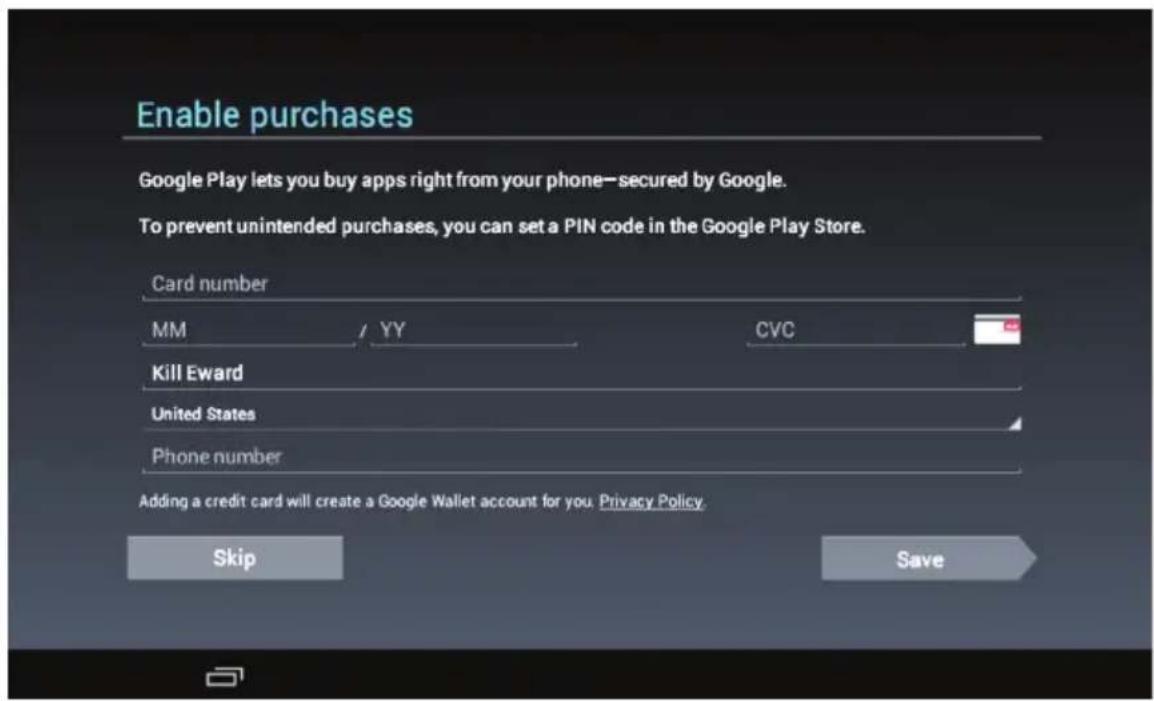

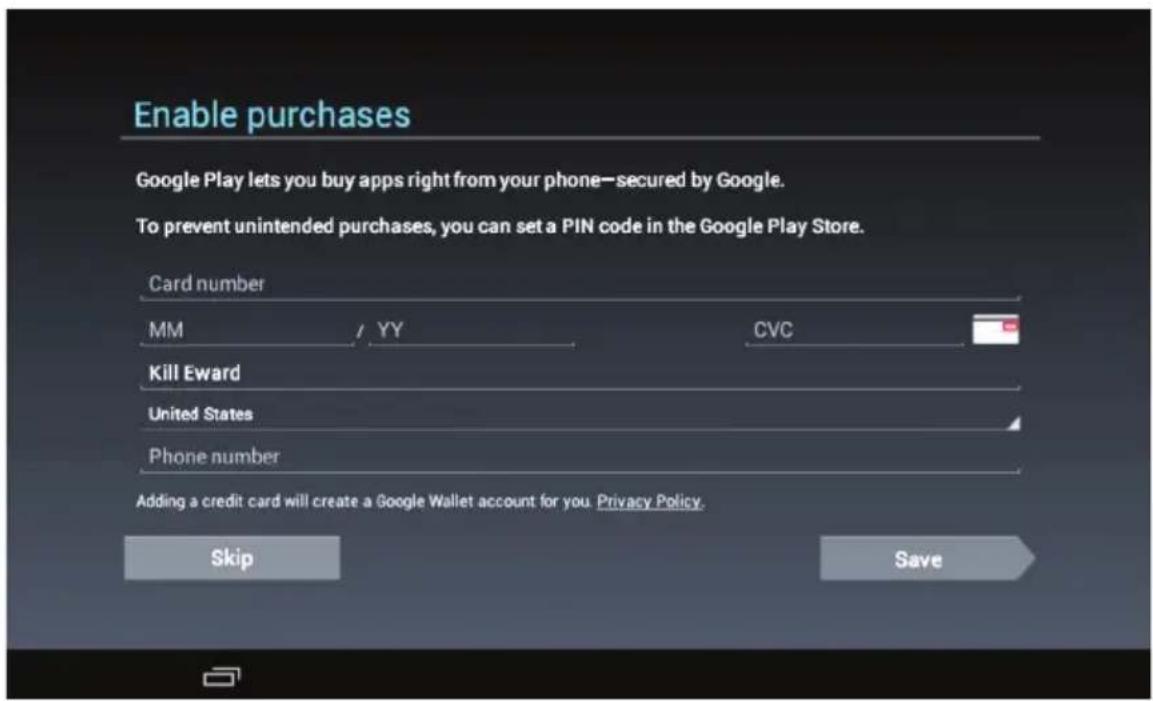

Enable purchases Google Play lets you buy apps right from your phone—secured by Google. To prevent unintended purchases, you can set a PIN code in the Google Play Store. Card number MM / YY CVC Kill Eward United States Phone number Adding a credit card will create a Google Wallet account for you Privacy Policy. Skip Save

FR

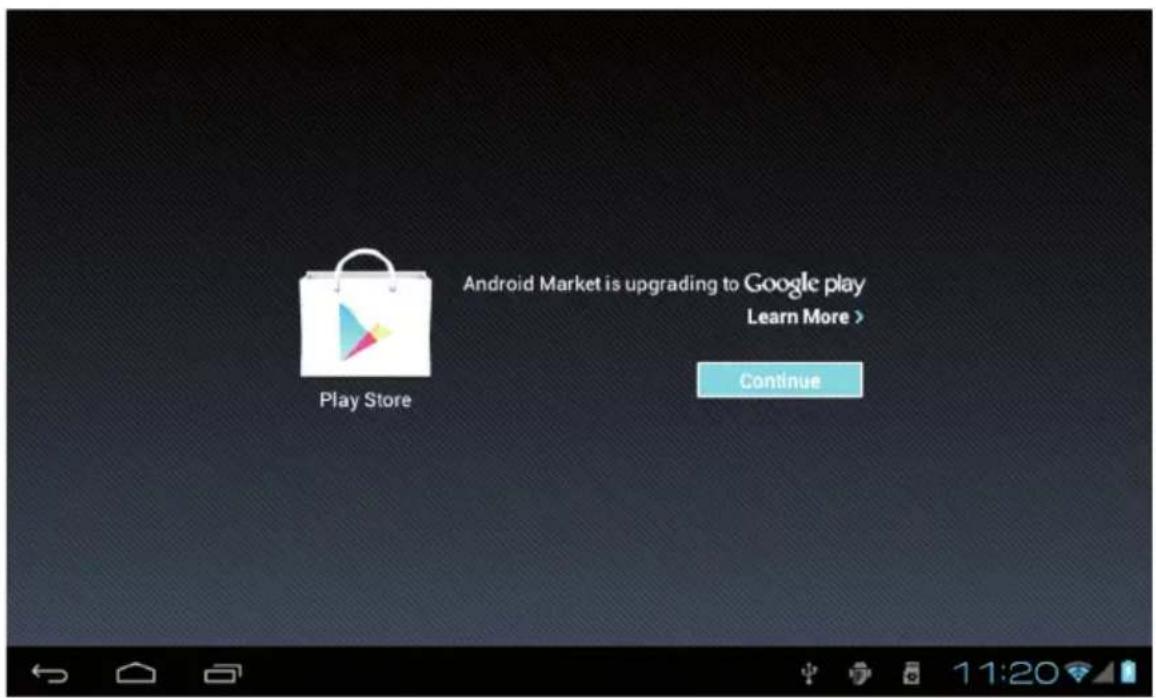

Android Market is upgrading to Google play Learn More > Play Store Continue

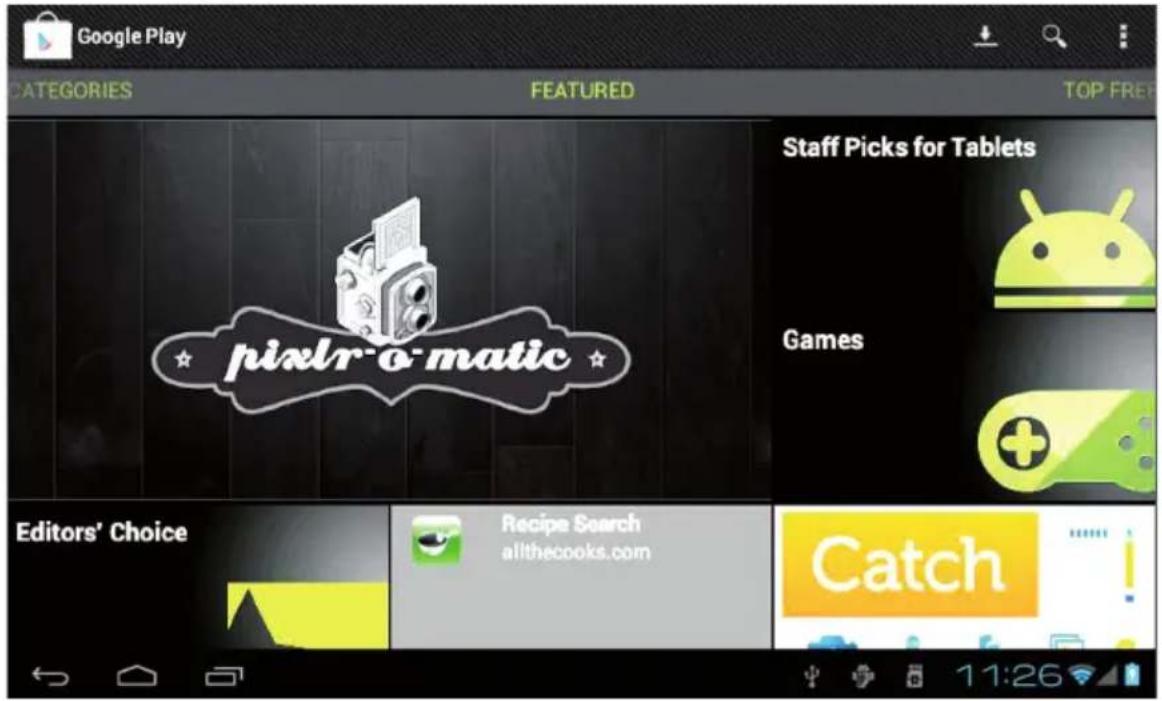

Google Play CATEGORIES FEATURED TOP FREE Staff Picks for Tablets piplr-o-matic Games Editors' Choice Recipe Search allthecooks.com Catch

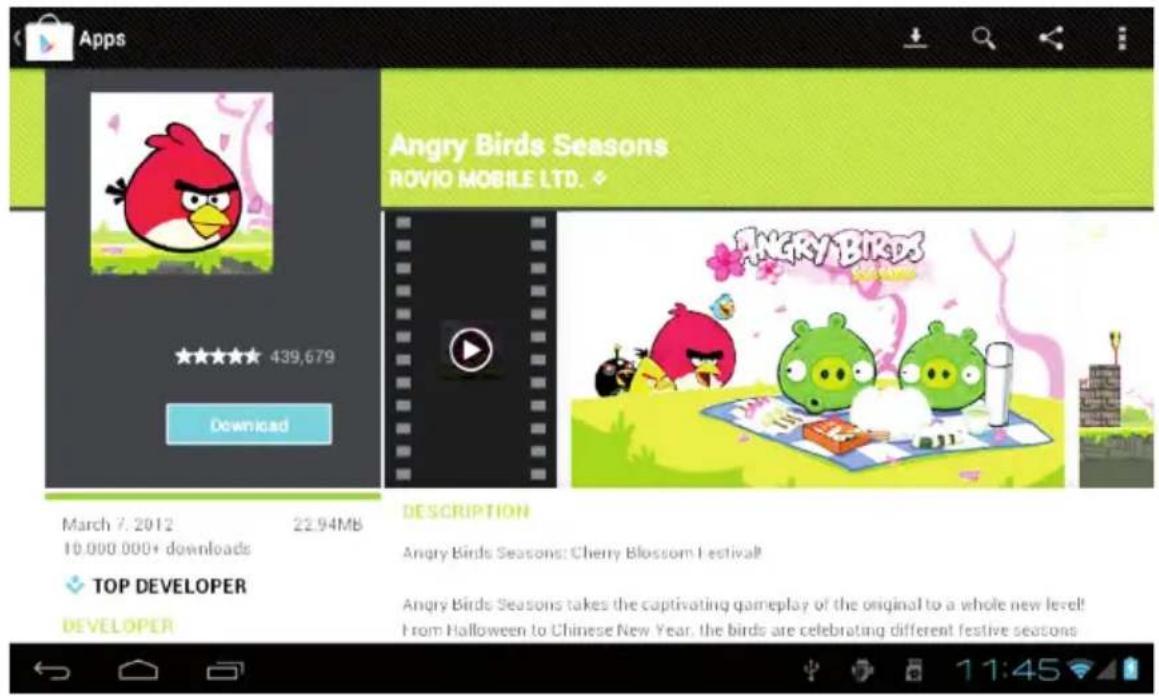

Apps Angry Birds Seasons ROVIO MOBILE LTD. ★★★★ 439,679 Download March 7, 2012 22.94MB 10,000 000+ downloads TOP DEVELOPER DEVELOPER DESCRIPTION Angry Birds Seasons: Cherry Blossom Festival! Angry Birds Seasons takes the captivating gameplay of the original to a whole new level! From Halloween to Chinese New Year, the birds are celebrating different festive seasons

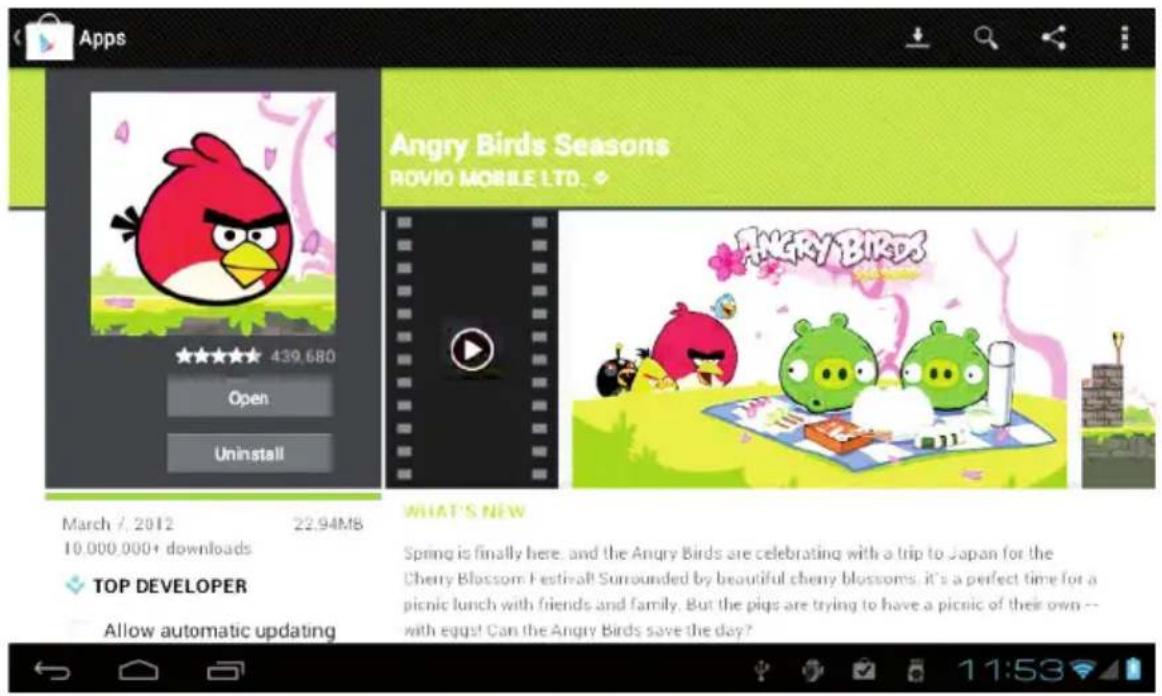

Apps Angry Birds Seasons ROVIO MOBILE LTD. ★★★★★ 439,680 Open Uninstall March 7, 2012 22.94MB 10,000,000+ downloads TOP DEVELOPER Allow automatic updating WHAT'S NEW Spring is finally here, and the Angry Birds are celebrating with a trip to Japan for the Cherry Blossom Festival! Surrounded by beautiful cherry blossoms. It's a perfect time for a picnic lunch with friends and family. But the pigs are trying to have a picnic of their own -- with eggs! Can the Angry Birds save the day?

16. E-MAIL

You can set up email for most accounts in just a few steps.

Email address

Passivo

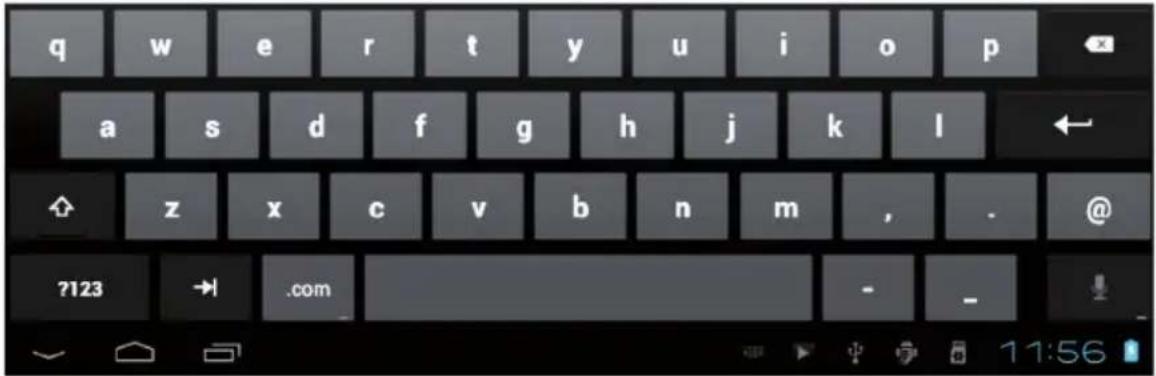

q w e r t y u i o p a s d f g h j k l ← z x c v b n m , . @ ?123 → .com - -

What type of account is this?

POP3

IMAP

Exchange

Previous

Mobile status bar with navigation icons and time display showing 11:58

Incoming server settings

Username	[e-mail]
Password	********	Previous
POP3 server	pop.126.com	Next
Security type	None
Port	110
Delete email from server	Never

Screenshot of a mobile status bar with navigation icons and time display showing 12:04

Outgoing server settings

SMTP server smtp.126.com Security type None Port 25 Previous Next

Require sign-in.

Username	[e-mail]
Password	·······

Mobile status bar screenshot showing navigation icons and timecode 1:37

Corriger le SMIP serveur «126.com» pour «smtp.126.com»

□ Send email from this account by default.
√ Notify me when email arrives.
Sync email from this account.

Previous

Next

Mobile status bar screenshot showing navigation icons and timecode 1:37

Account setup

Your account is set up, and email is on its way!

Give this account a name (optional)

[e-mail]

Your name (displayed on outgoing messages)

Kill Eward

Next

Mobile phone status bar with navigation icons and time display showing 1:37

Google Angry Birds Thursday March 29, 2012 1:05 No Internet connection 100% sdcard is mounted sdcard is mounted USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer. sdcard AOWAO40

. This is a high-density electronic product; please do not dismantle it by yourself.

. Avoid strong beat and collision.

. Avoid using this product in the following environments: high and low temperature, humidity, dusty, with strong magnetic and long-term exposure to the sun.

. Please wipe the product shell use twist dry wet cotton cloth gently; the use of other chemical cleaning is prohibited. This product should keep away from water drop and water splash, so cups filled with liquids should not be placed near the product.

. Use the headset long time, high volume may cause permanent damage to hearing.

. Do not use headphones when going across a road, driving a motorcycle or bicycle, in order to avoid traffic accidents.

. Please use permitted battery, charger and accessories only, the use of any other type of product would be a breach of warranty regulations, and may be dangerous.

. Please deal with waste machinery and accessories according to local environmental regulations.

. If you have any questions in the process of using of the product, please contact the local dealer or contact customer service center of our company directly.

. For the smeared memory loss that is caused by product damage, repair or other causes of product damage, repair, the company is not responsible for it, so please follow the user's guide and timely backup.

. All pictures display on this manual are just for reference, please according to actual products. The sellers retain all the rights to change specs & pictures & softwares & hardwares without notice

2. ACCESSOIRES

With your tablet you will find:

1.5V 2A Charge
2. User manual
3. USB cable
4. HDMI cable (option)

Please note that the SD card is not provided, you can get one in stores or in supermarkets multimedia.

3. OUTLOOK DESCRIPTION

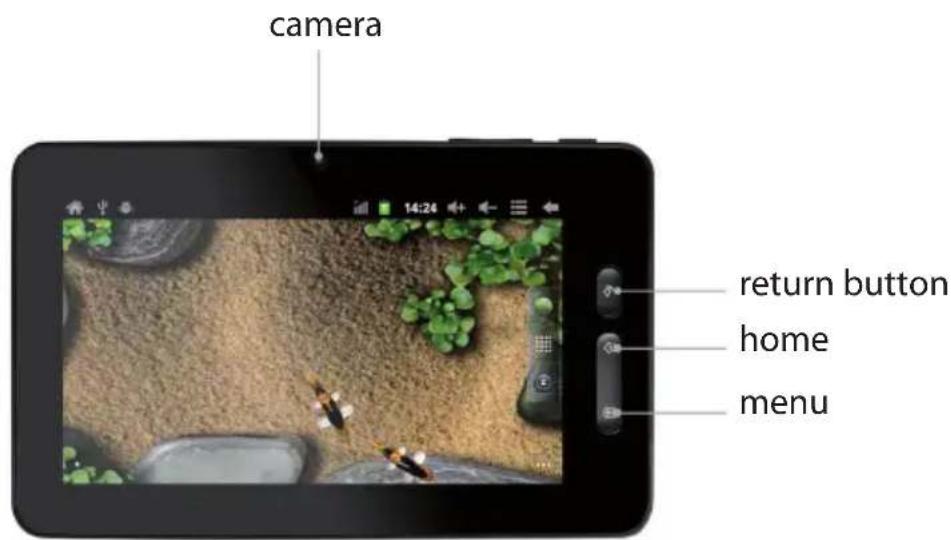

Front view:

camera 14:24 return button home menu

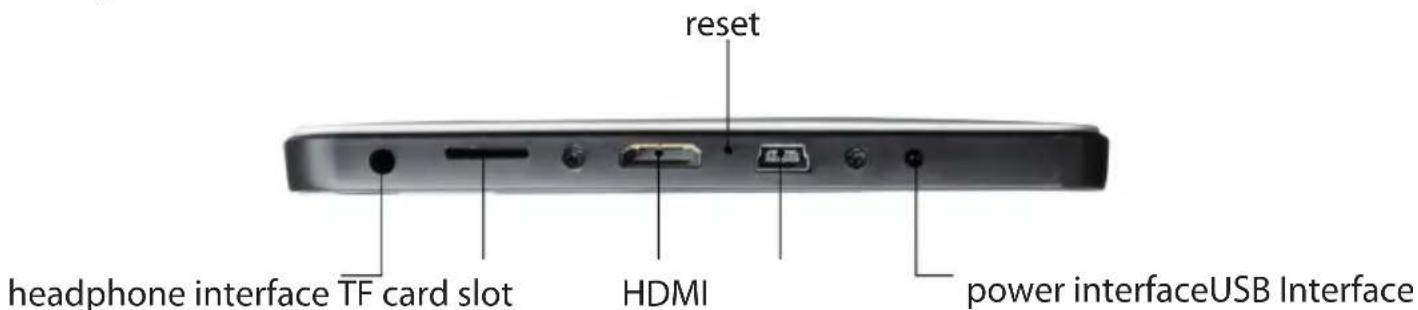

Right view:

reset headphone interface TF card slot HDMI power interfaceUSB Interface

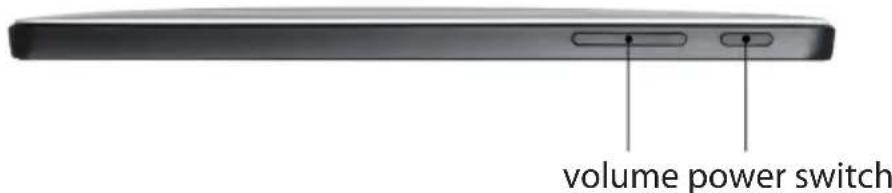

Top view :

volume power switch

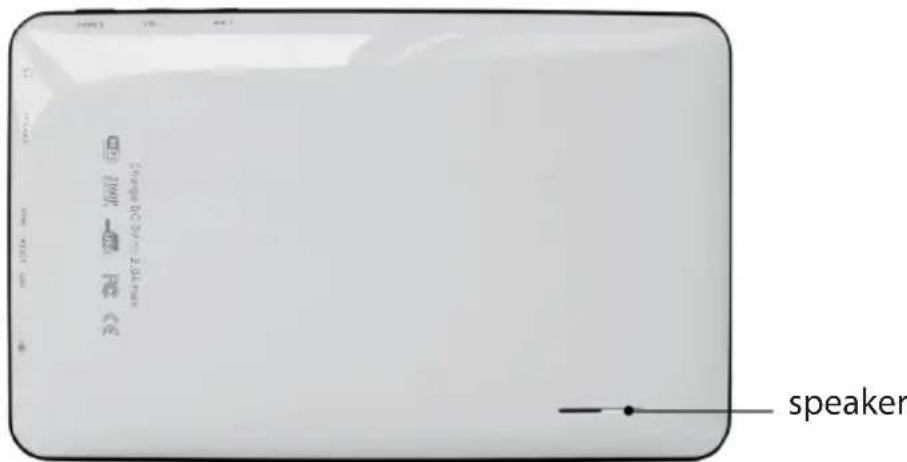

Back view:

speaker

4. STARTUP AND SHUTDOWN

STARTUP: press the power key and the system will enter the process of Startup, as shown below:

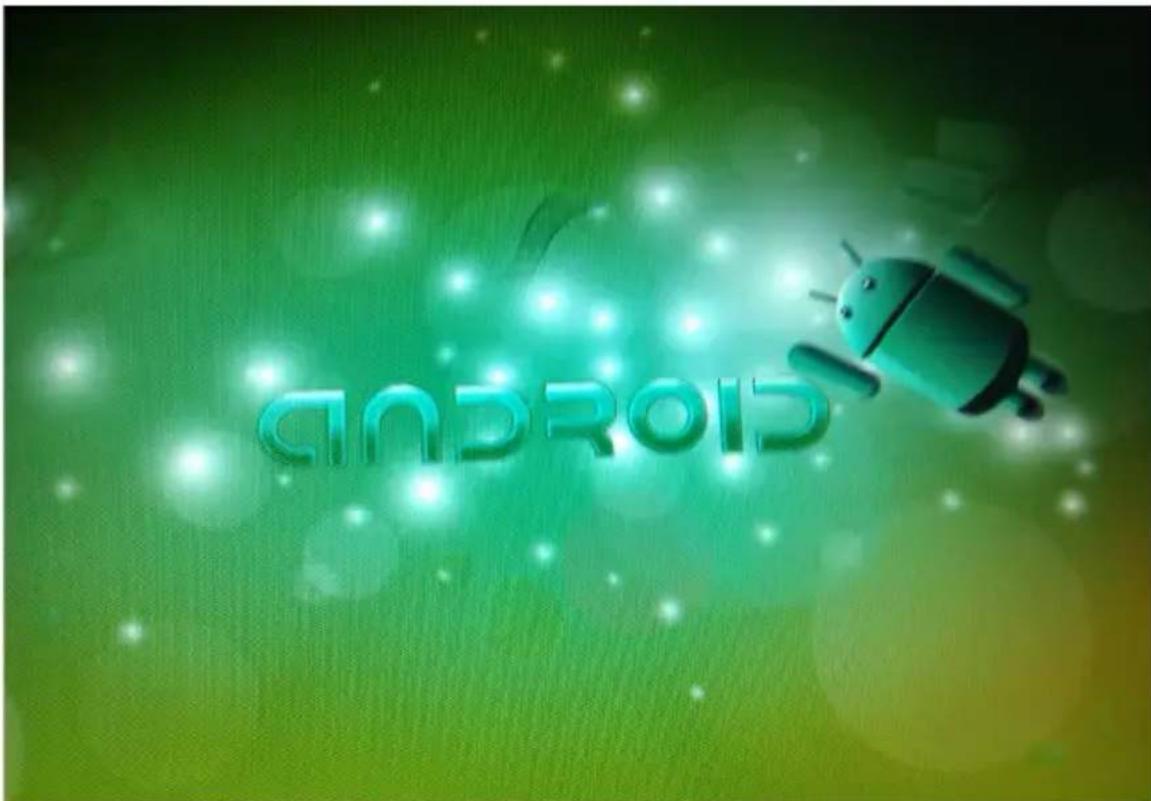

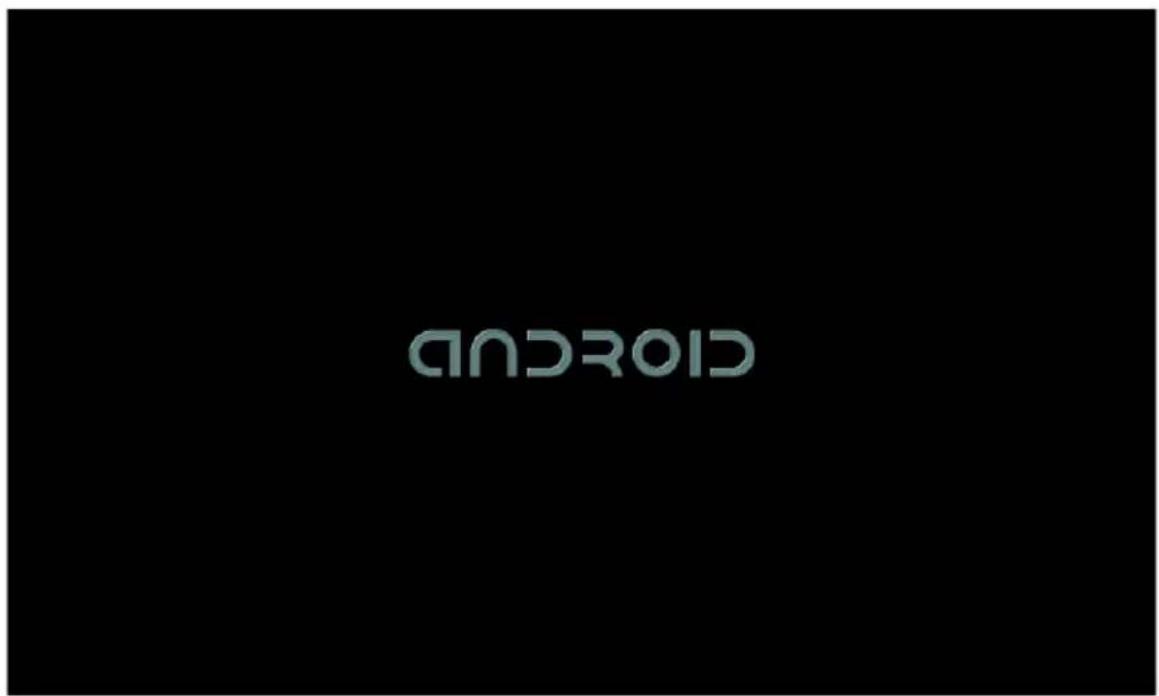

Startup Logo, in the process of startup

ANDROID

The system has been started and is entering the Android system:

ANDROID

EN

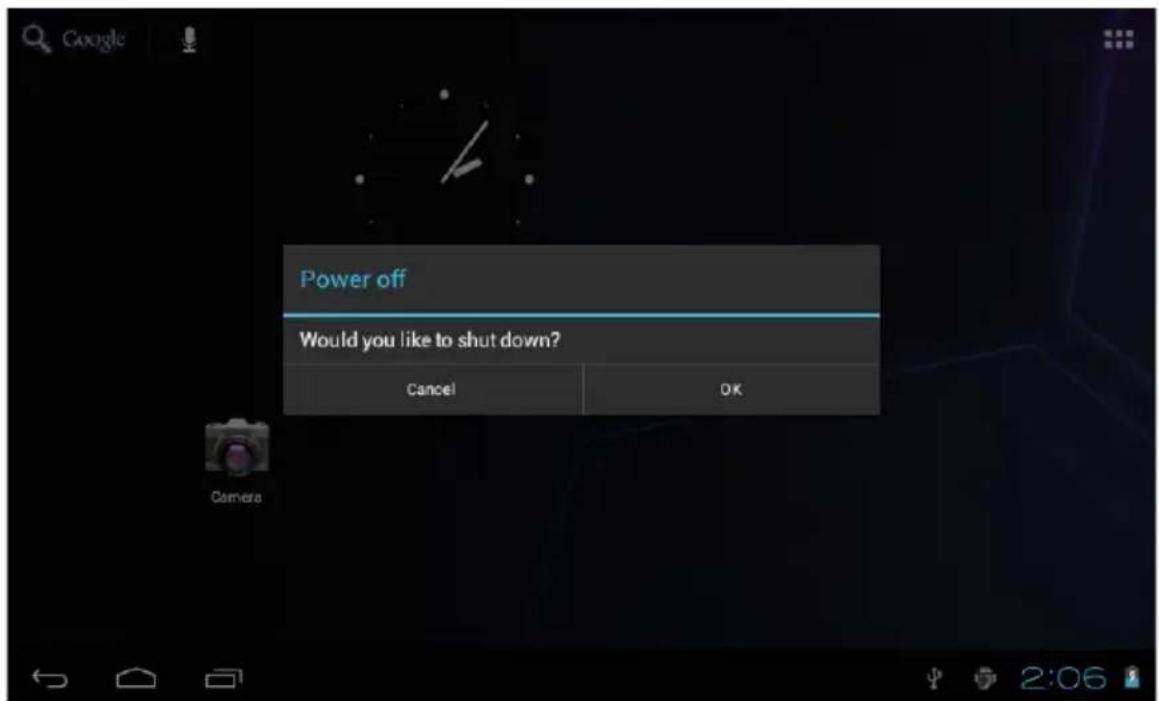

SHUTDOWN: Press the power key then pop-up options will be on the desktop, choose the option of Power off as shown below

Google Power off Would you like to shut down? Cancel OK Camera

SLEEP: in the normal state operation of the machine, press the power button, enter a state of dormancy, at this time, the screen will be closed. Another short press on the power button can be resume to normal mode. When machine is not used you can start this function, in order to reduce power consumption.

5. DESKTOP

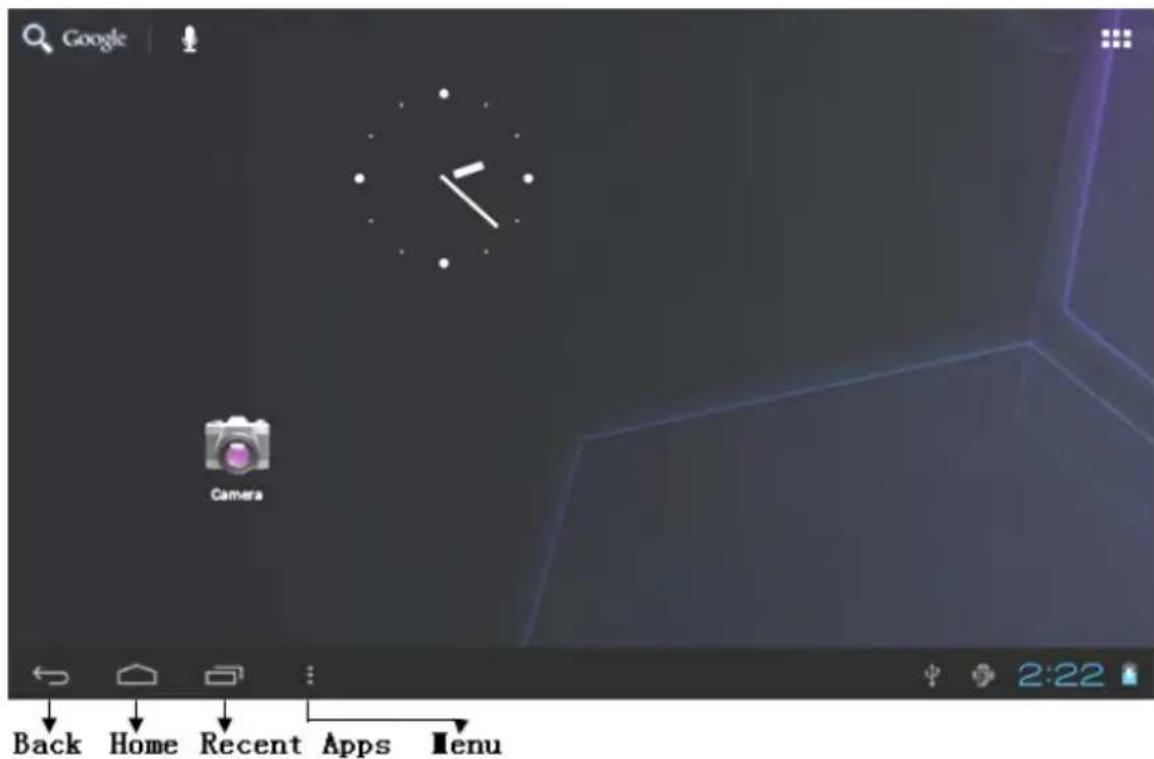

After the normal startup of the system is completed, you can see the Android4.0 desktop (below). The default desktop is consisted by quick search icon, status bar, menu label icon, etc.

Google Camera Back Home Recent Apps Menu

The status bar is used to display the network status of current system, battery power, time and other information.

Quick search box is used by typing keywords to do the Internet search. The main menu tag is in the right middle side of the screen, tap it and the default menu bar can be expanded.

6. BUTTONS

Keys used in Android systems process:

The volume keys: «Volume +», «Volume -» on the shell can be used for Volume change.

The power button: press long time for switching machine. Press quickly to enter or leave the state of dormancy.

The key «Menu»: display the current form of the menu item.

The key «Home»: return or select the main interface.

The key «Retour»: return to the last desktop.

Main menu operation

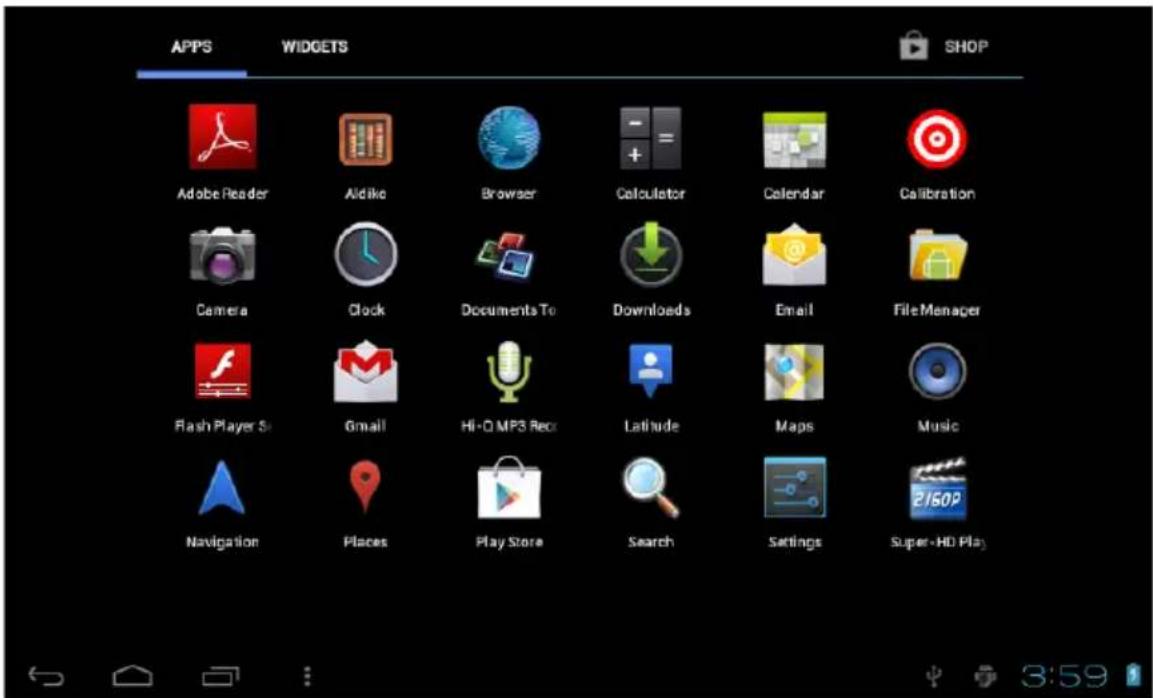

Press the main menu tag on the screen, as shown below:

APPS WIDGETS SHOP Adobe Reader Aldike Browser Calculator Calendar Calibration Camera Clock Documents To Downloads Email File Manager Flash Player Si Gmail Hi-O MP3 Recx Latitude Maps Music Navigation Places Play Store Search Settings Super-HD Play

In the main menu, you can set the system, operate the existed application, install a new application, play music, browse webpage, play game and other operations.

7. SYSTEM SETTINGS

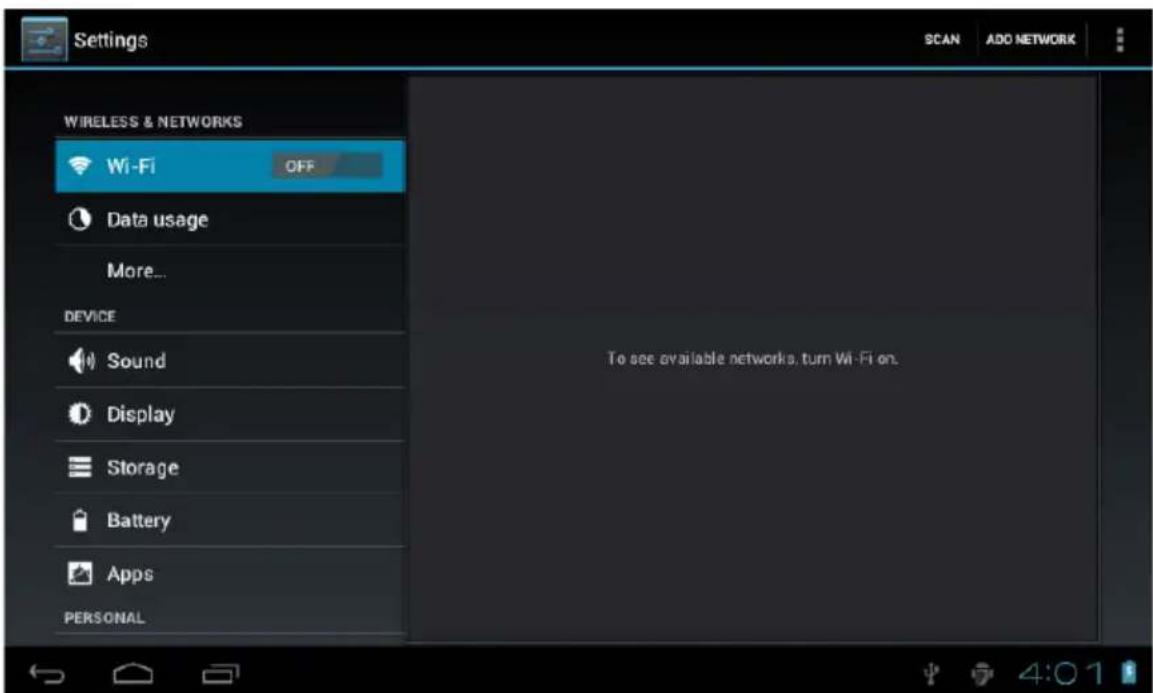

Tap the «Settings» icon, and then open the system settings interface, as shown below:

Settings SCAN ADD NETWORK WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL To see available networks, turn Wi-Fi on.

Wi-Fi

Tap "Wi-Fi" column and right drag the "OFF", you can open the WIFI function and into the wi-fi settings interface, as shown below:

Settings WIRELESS & NETWORKS Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL ChinaNet-hkWZ Secured with WPA (protected network available) EX-lighting Secured with WPA/WPA2 galaxywind ChinaNet-cGjx Secured with WPA dlink Protected network available ChinaNet-B76r Secured with WPA2 (protected network available) ChinaNet-fNRH Secured with WPA WEZONE Secured with WPA SCAN ADD NETWORK

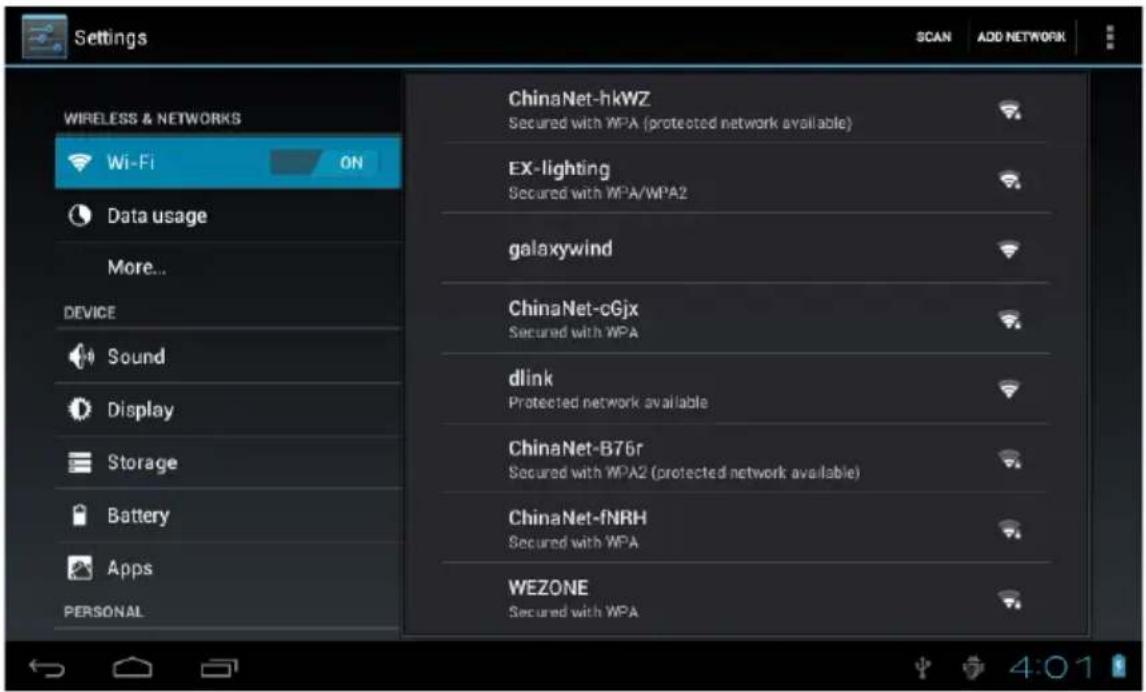

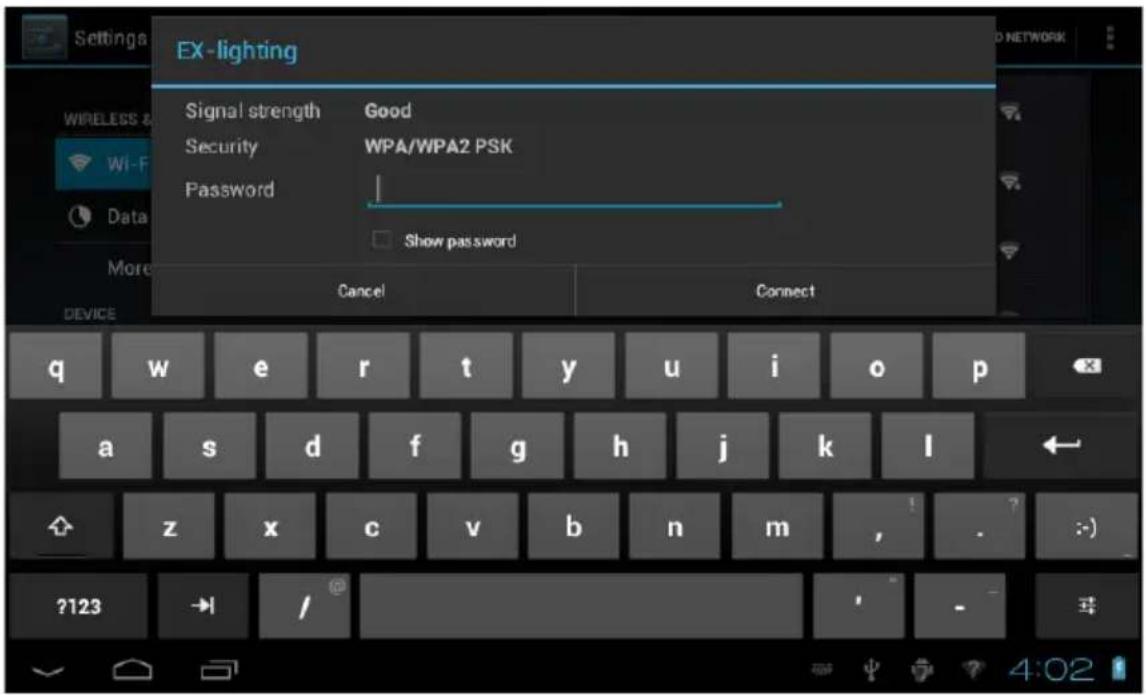

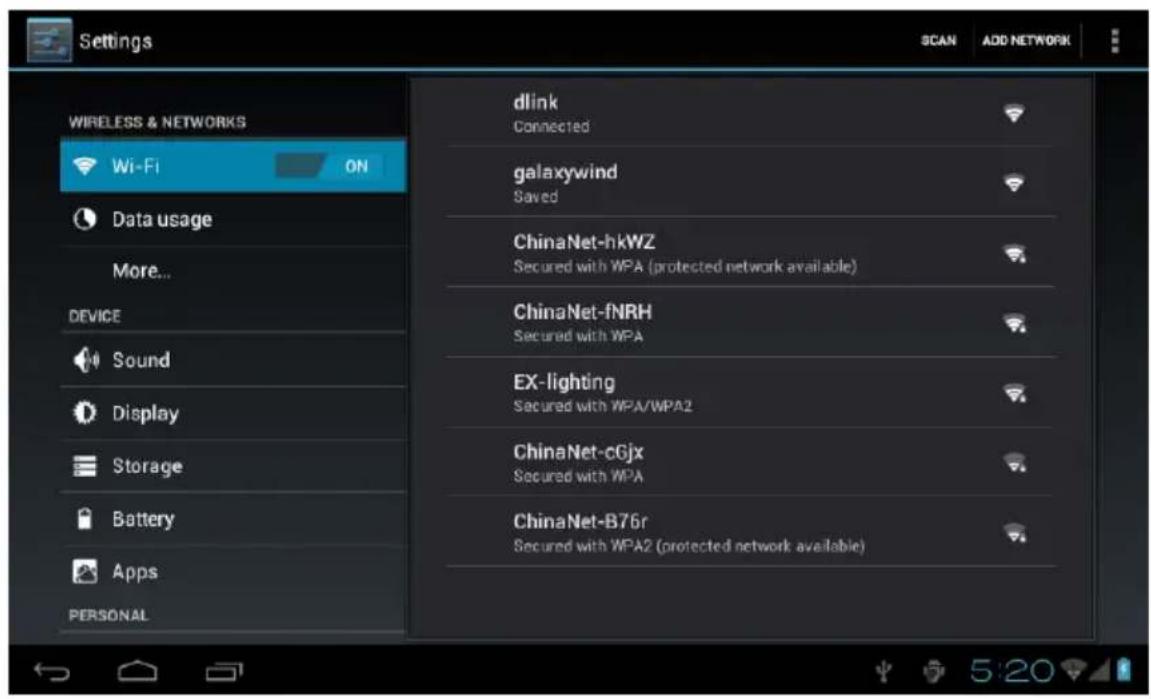

In the «WIFI» interface (pictured above), it will list the wireless router that is searched by MID, tap the searched wireless router setup window will pop-up, please according to the prompts to complete the WIFI network links. Some encryption network, need to enter a valid key. Link diagram as follows:

EX -lighting Signal strength Good Security WPA/WPA2 PSK Password Show password Cancel Connect q w e r t y u i o p a s d f g h j k l z x c v b n m , . :) ?123 / 4:02

After you connected WI-Fl as shown above, the follow image will appear:

Settings SCAN ADD NETWORK WIRELESS & NETWORKS Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL dlink Connected galaxywind Saved ChinaNet-hkWZ Secured with WPA (protected network available) ChinaNet-fNRH Secured with WPA EX-lighting Secured with WPA/WPA2 ChinaNet-cGjx Secured with WPA ChinaNet-B76r Secured with WPA2 (protected network available)

Date and time

In the interface of the setting to select «Date & time» to enter the date and time settings interface:

You can choose the automatic mode: using the network time.

You also can choose to set the date, select time zone, set time, select date format, set date and other information

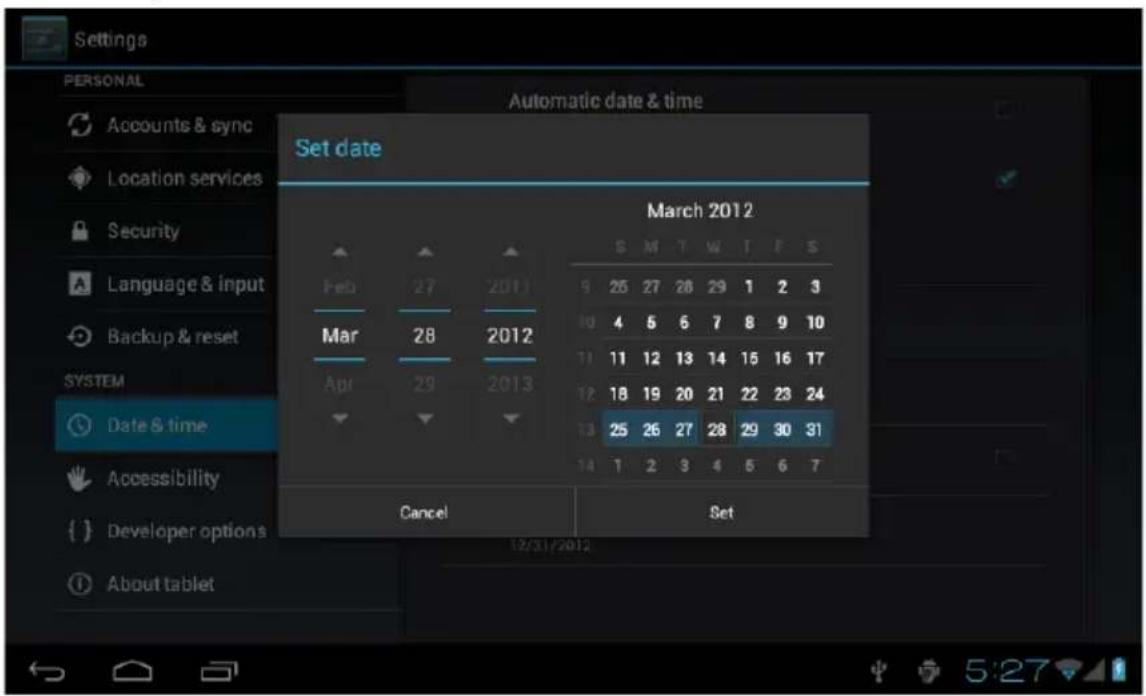

For example, choose the set date, as shown below:

Settings PERSONAL Automatic date & time Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet Set date March 2012 Feb 27 2011 Mar 28 2012 Apr 29 2013 S M T W T F S 9 26 27 28 29 1 2 3 10 4 5 6 7 8 9 10 11 11 12 13 14 15 16 17 12 18 19 20 21 22 23 24 13 25 26 27 28 29 30 31 14 1 2 3 4 5 6 7 Cancel Set 12/31/2012

You can also choose the number, enter the input pattern. Directly input the number, and then select the button done, as shown below:

Display

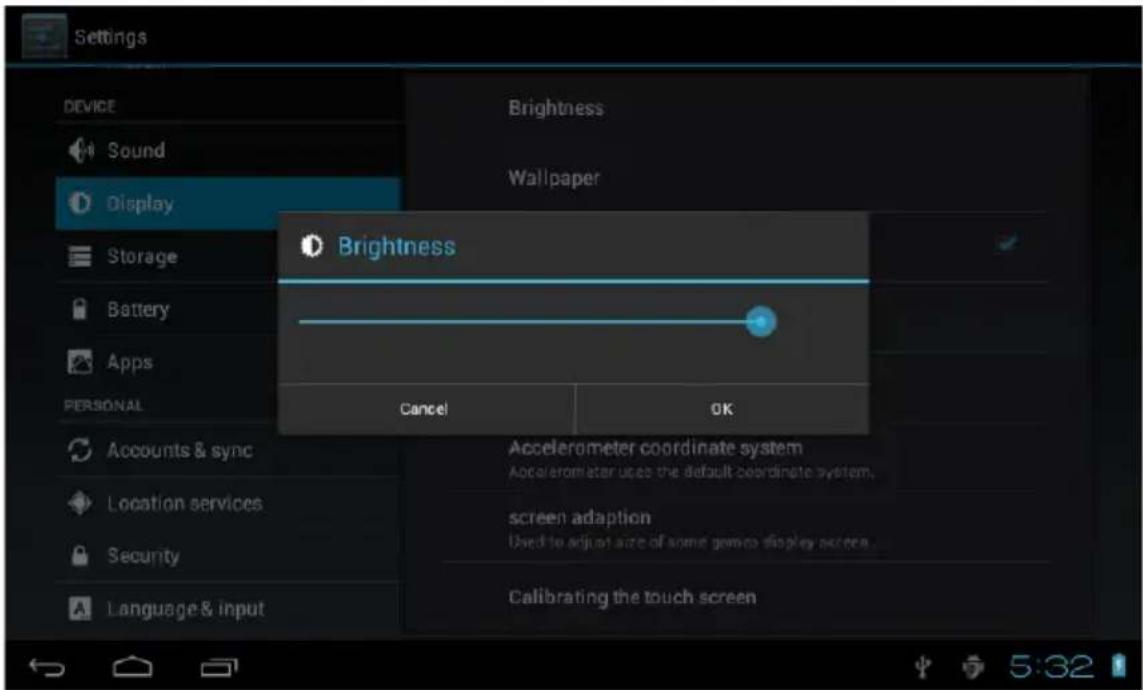

In the setting of the interface to select «Display» into the display settings interface, rolling drop-down lists, select «Brightness», appeared the following dialogue.

Settings DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Brightness Wallpaper Brightness Cancel OK Accelerometer coordinate system Accelerometer uses the default coordinate system. screen adaption Used to adjust size of some game to display screen... Calibrating the touch screen

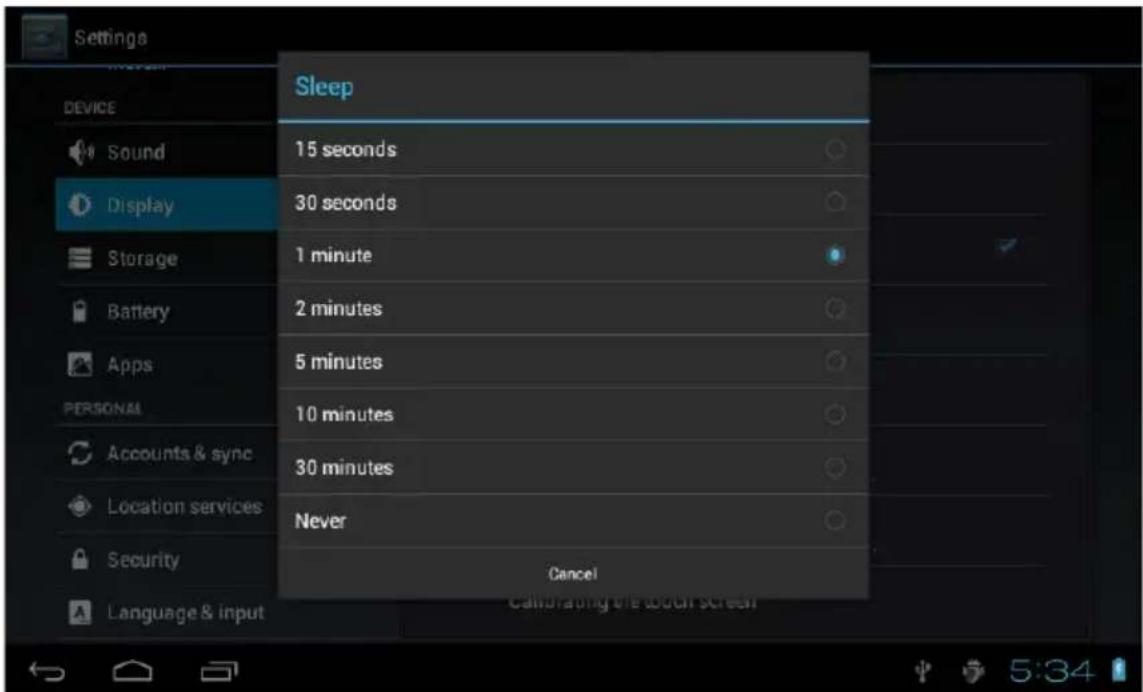

Screen standby

Screen standby: the delay before the screen standby automatic locking. In the setting of the interface to select «display settings» into the display settings interface, rolling drop-down lists, select «screen standby», appeared the following interface:

Note: during video broadcast, the screen automatically standby function is invalid.

Settings DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Sleep 15 seconds 30 seconds 1 minute 2 minutes 5 minutes 10 minutes 30 minutes Never Cancel Calibrating the touch screen

8. APPLICATIONS

Install the application: there are a variety of ways to install applications, for example by USB setup, third party programs support installation. Here we introduced the way to install with the TF card.

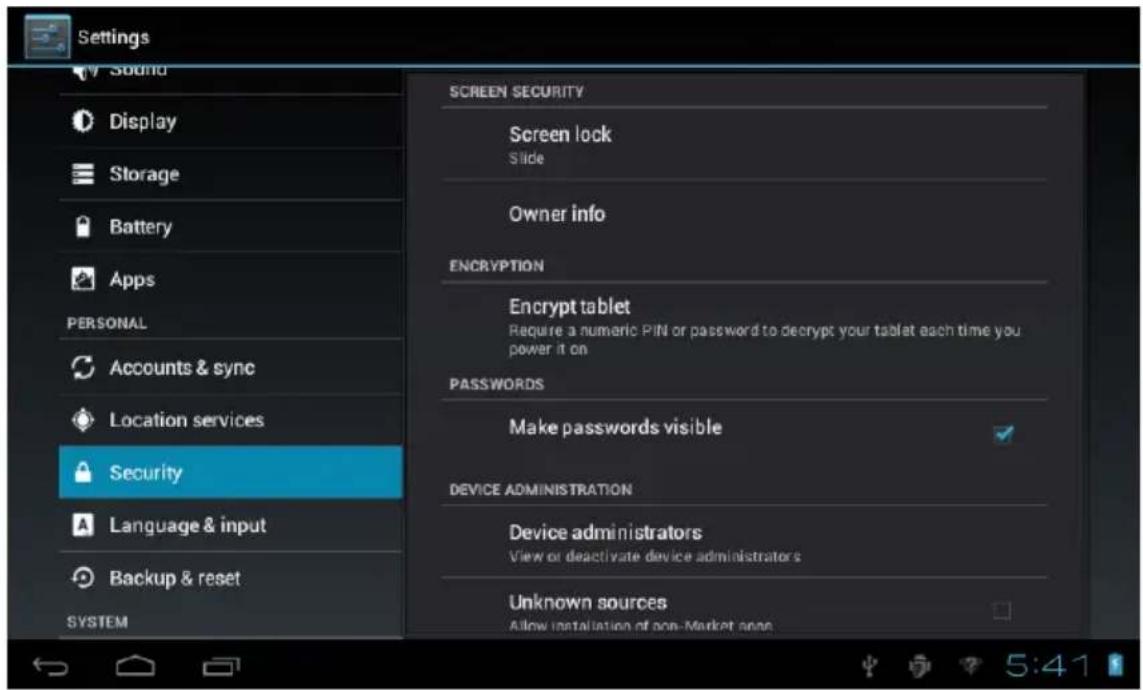

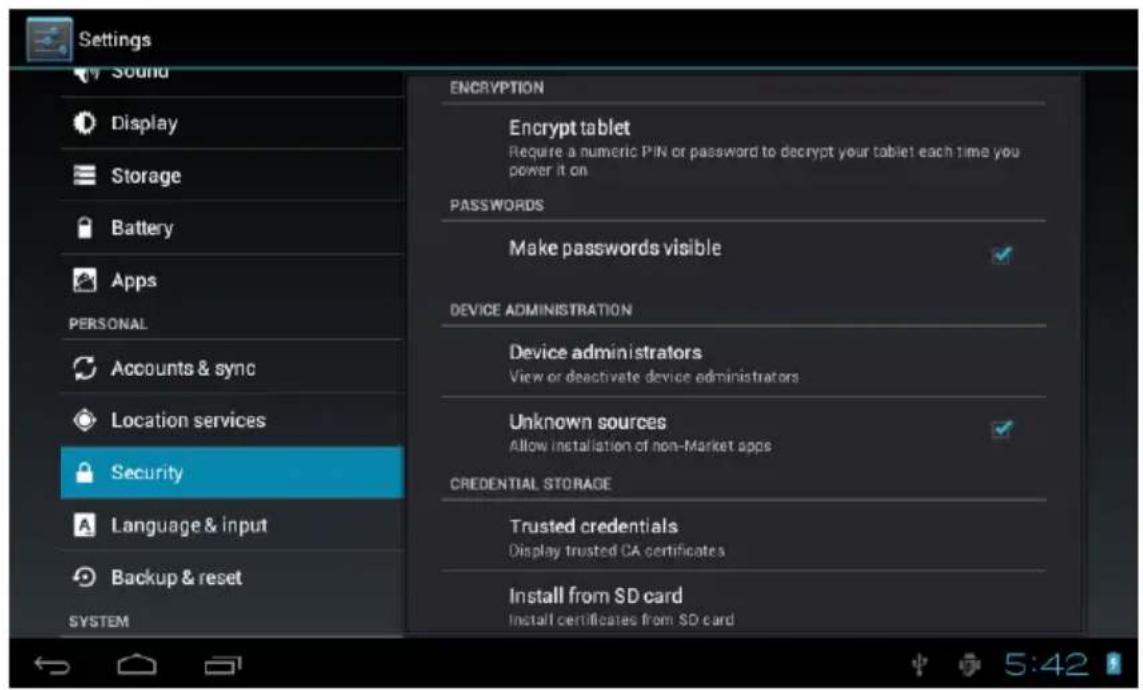

1- Enter the menu, select Settings - Security.

Settings Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM SCREEN SECURITY Screen lock Slide Owner info ENCRYPTION Encrypt tablet Require a numeric PIN or password to decrypt your tablet each time you power it on PASSWORDS Make passwords visible DEVICE ADMINISTRATION Device administrators View or deactivate device administrators Unknown sources Allow installation of non-Market apps 5:41

2- Press "Unknown sources" and then "OK" the following image will appear

Settings Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM ENCRYPTION Encrypt tablet Require a numeric PIN or password to decrypt your tablet each time you power it on PASSWORDS Make passwords visible DEVICE ADMINISTRATION Device administrators View or deactivate device administrators Unknown sources Allow installation of non-Market apps CREDENTIAL STORAGE Trusted credentials Display trusted CA certificates Install from SD card Install certificates from SD card

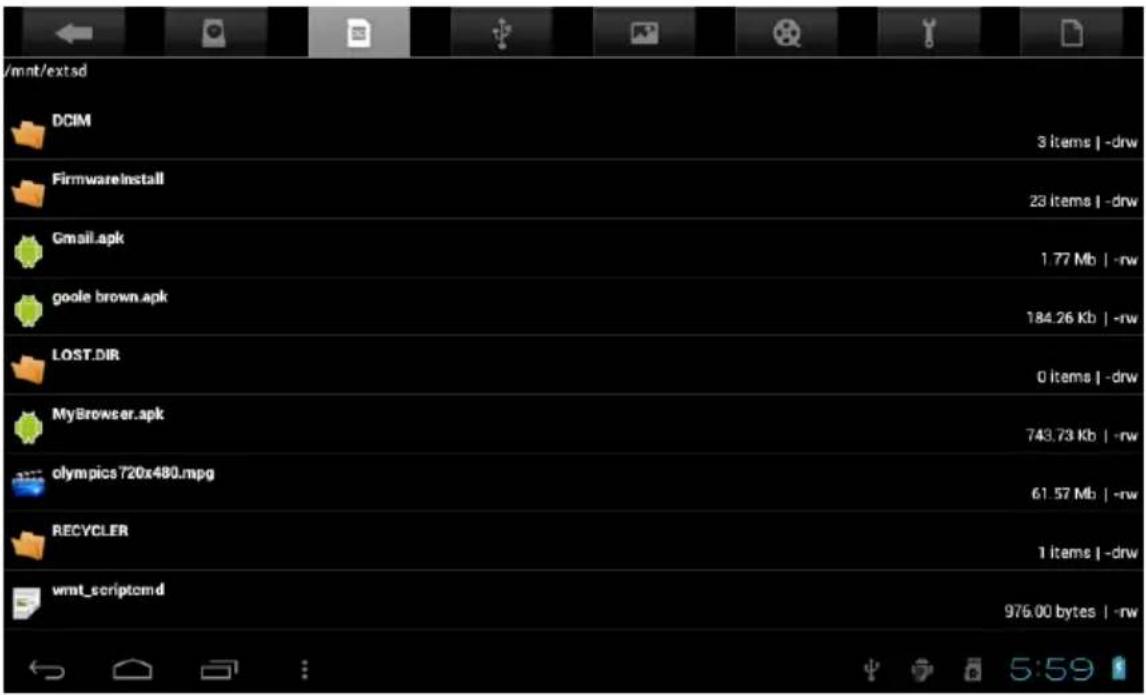

3- Copy the APK software program to the TF card on PC, the TF card insert to MID, tap main menu and then tap "File Manager" into File Manager interface, tap SD, as shown below:

/mnt/extsd DCIM 3 Items | -drw FirmwareInstall 23 Items | -drw Gmail.apk 1.77 Mb | -rw goole brown.apk 184.26 Kb | -rw LOST.DIR 0 Items | -drw MyBrowave.apk 743.73 Kb | -rw olympics720x480.mpg 61.57 Mb | -rw RECYCLER 1 Items | -drw wmt_scriptcmd 976.00 bytes | -rw

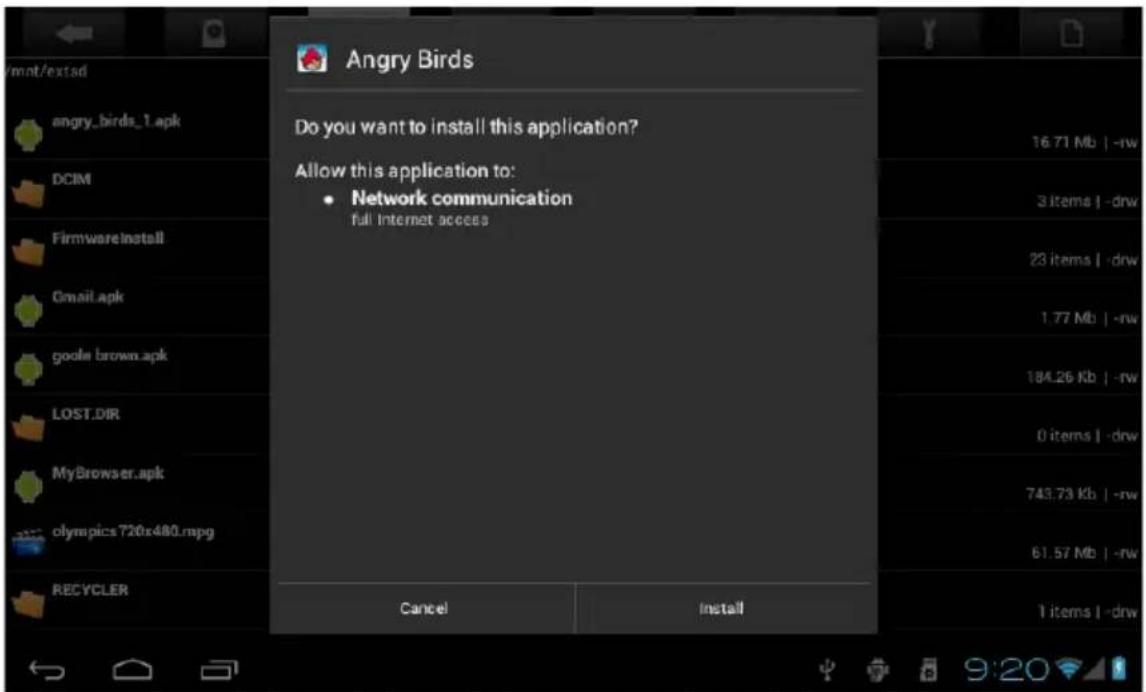

4- Tap "angry_birds.apk", and then tap "Install", as shown below:

Angry Birds Do you want to install this application? Allow this application to: • Network communication full Internet access 16.71 Mb | -rw 3 items | -drw 23 items | -drw 1.77 Mb | -rw 184.26 Kb | -rw 0 items | -drw 743.73 Kb | -rw 61.57 Mb | -rw 1 items | -drw Cancel Install

The user can do on-line installation through "Market", or download and install by the computer, or through a built-in browser download and install online.

Uninstall the application

you can use the third party software management tools or use the built-in Android application management software.

Select «Settings» / «Apps»/, select the corresponding installed applications to check the program information, uninstall the program and other operations.

9. NETWORK

Webpaging browsing

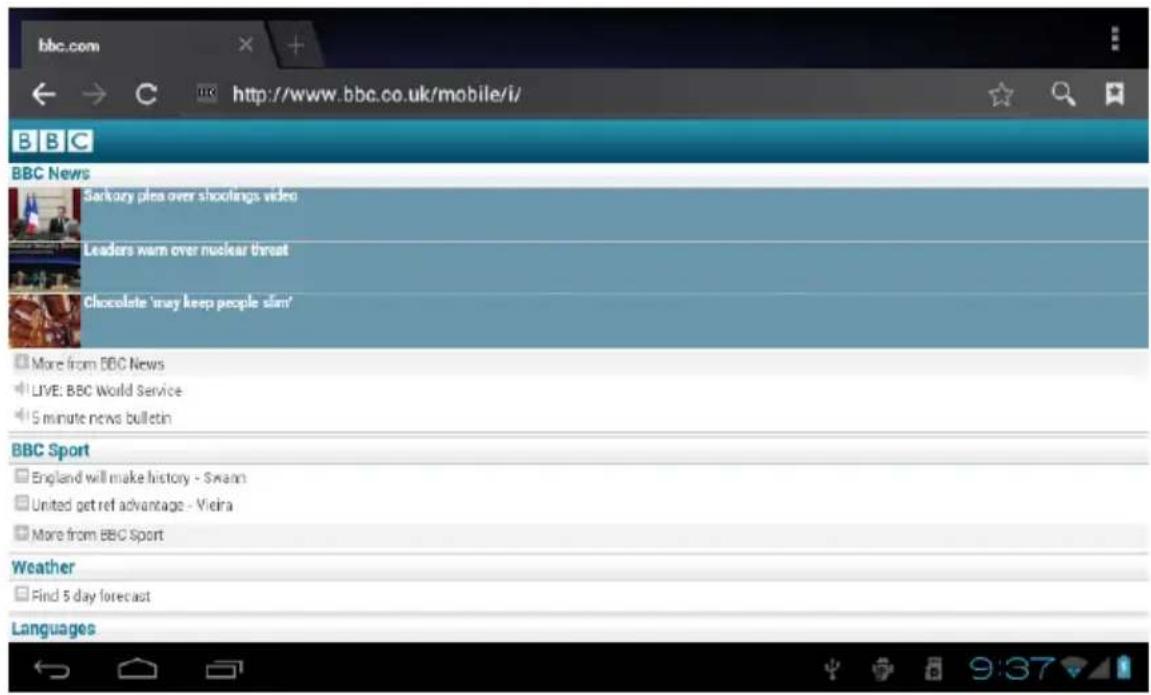

When the network is connected, open the browser and enter the URL, you can browse webpage; or through the main desktop search bar to input the URL and open the webpage.

bbc.com http://www.bbc.co.uk/mobile/i/ BBC BBC News Sarkory plea over shootings video Leaders warn over nuclear threat Chocolate 'may keep people slim' More from BBC News LIVE: BBC World Service 5 minute news bulletin BBC Sport England will make history - Swann United get ref advantage - Vieira More from BBC Sport Weather Find 5 day forecast Languages

Webpage can be free scaled by the scaling controller.

Online video

Users can through the “Market” or other ways to download online video player software, online TV player software, online music software, and then install in the machine. To open the installed software, you can watch online video or online TV, listen to online radio.

Users can also download other third party network application software, including the webpage browsing, video player, website client, instant messaging and other software.

10. MUSIC

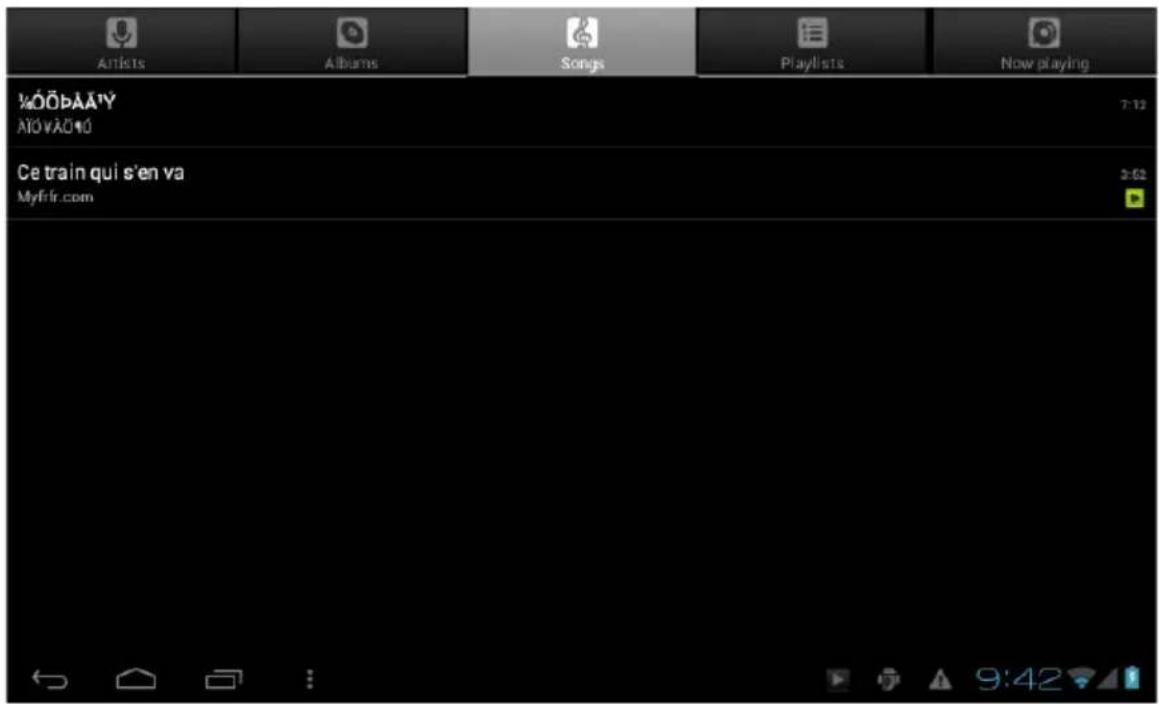

Tap the «music» icon on the main menu, and then enter the music player interface. The default list system in the user data area for all audio files as shown below:

Artists Albums Songs Playlists Now playing 7:12 ÀÑOÀÀÀY AÑOÀÀÀÚ Ce train qui s'en va Myfrfr.com 3:52

You can through the synchronous USB to input audio file, or by inserting a SD card with audio file to input audio files, you can also through the network to download the audio file.

Select the corresponding tag, and check the interface as «artists», «album», and “song» and so on to play the song.

Collage of six video thumbnails showing diverse scenes: a person dancing, green grass under blue sky, and traditional architecture (no text or symbols)

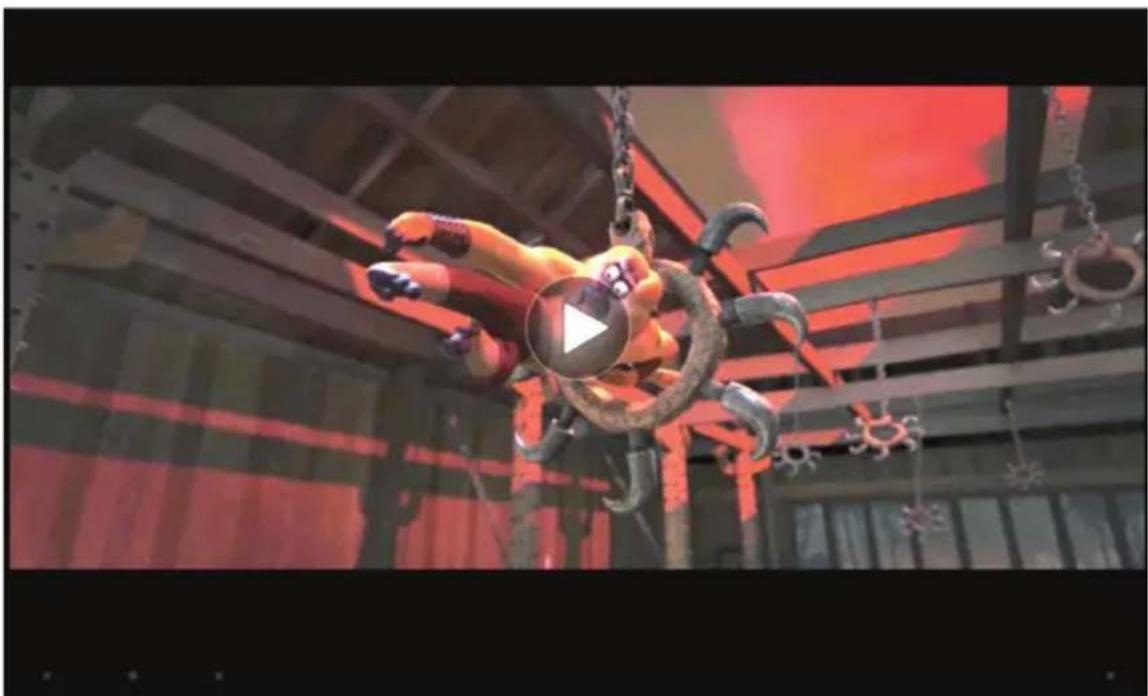

Select the video file and enter the video playing interface, as shown below. Select «play», «stop», «fast forward», «rewind», «progress» and other control keys to control the broadcast schedule.

Action scene of a character in a mechanical arena with glowing red lighting and chains (no visible text or symbols)

12. WALLPAPER

The system supports static wallpaper, and 3D wallpaper.

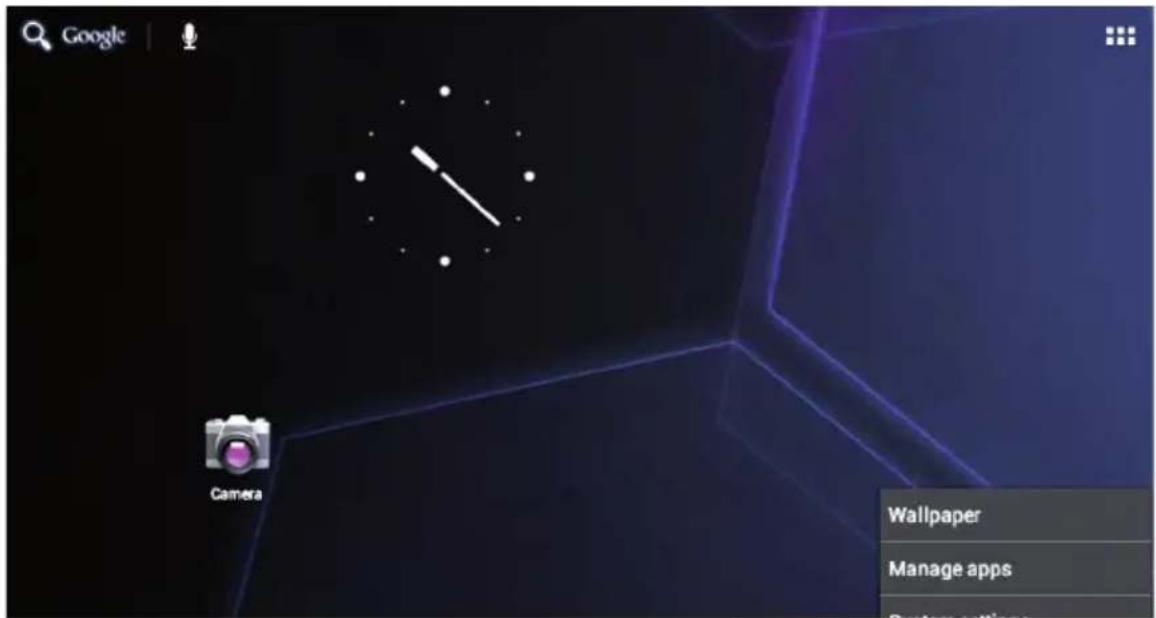

In the desktop interface, press down the Menu key, pop-up menu options, select «wallpaper», and pop-up “choose the wallpaper source» selection box:

Google Camera Wallpaper Manage apps

There are the following options:

Select «wallpaper»: can customized using image as wallpaper.

Select the «dynamic wallpaper»: can use the systems supplied 3D wallpaper.

Select the «Gallery»: can choose a picture supplied by the system as the static wallpaper.

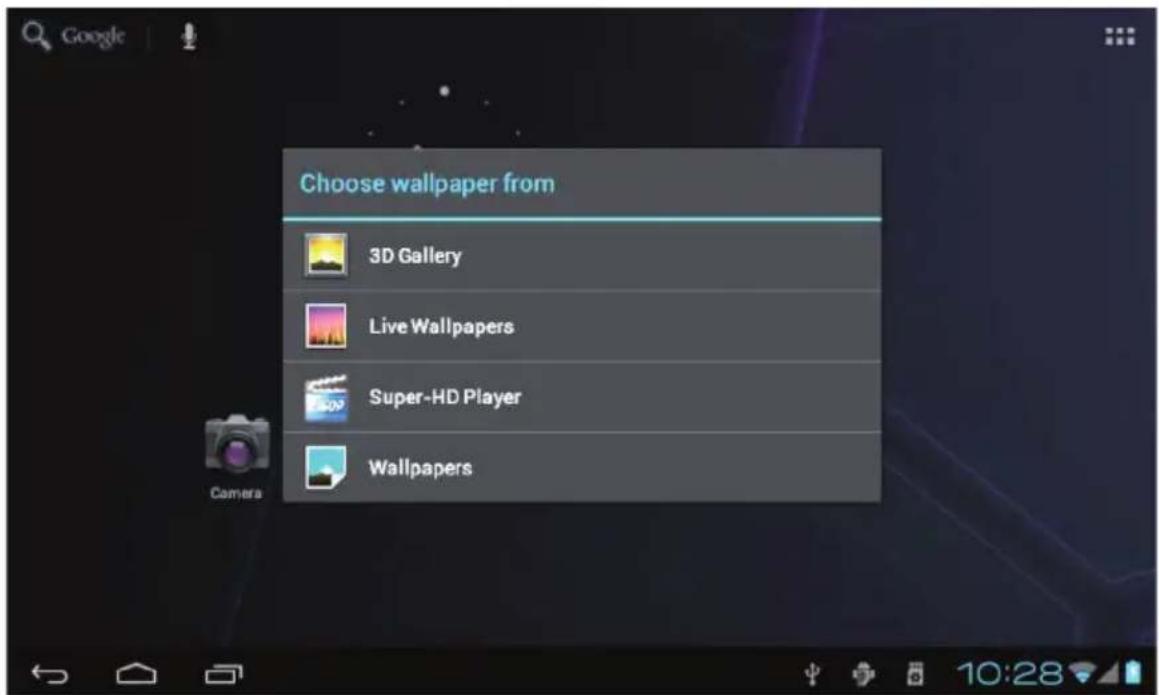

Or press on the screen and dialog box will pop up as follows:

Choose wallpaper from 3D Gallery Live Wallpapers Super-HD Player Wallpapers

Into the above dialog box, tap on the «wallpaper» set,

There are the following options:

Select «wallpaper»: can customized using image as wallpaper.

Select the «dynamic wallpaper»: can use the systems supplied 3D wallpaper.

Select the «Gallery»: can choose a picture supplied by the system as the static wallpaper.

13. RECORD

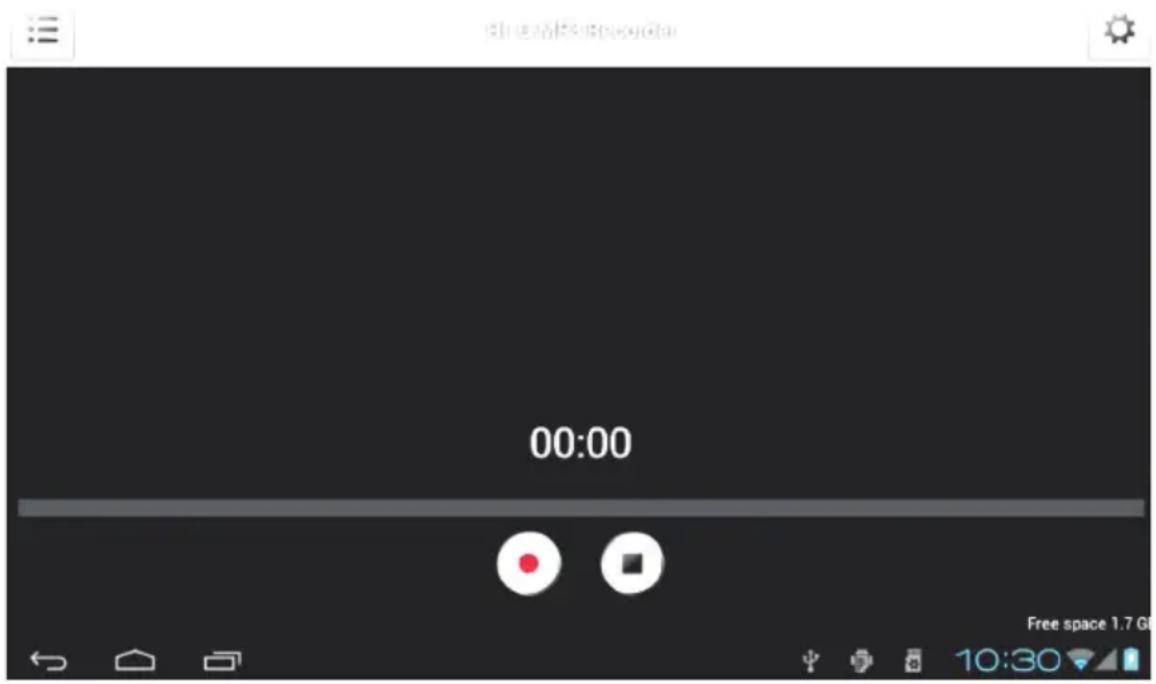

Tap the «Hi-Q MP3 Recorder» icon in main menu and enter the «Hi-Q MP3 Recorder» main interface as shown below:

00:00 Free space 1.7 G

Select the «recording» button to record, after recording is completed, press «stop» button. At this time you can select the «play» button to play the recorded sound. you can find the corresponding audio files in «File Manager»/“Recordings”.

14. CAMERA

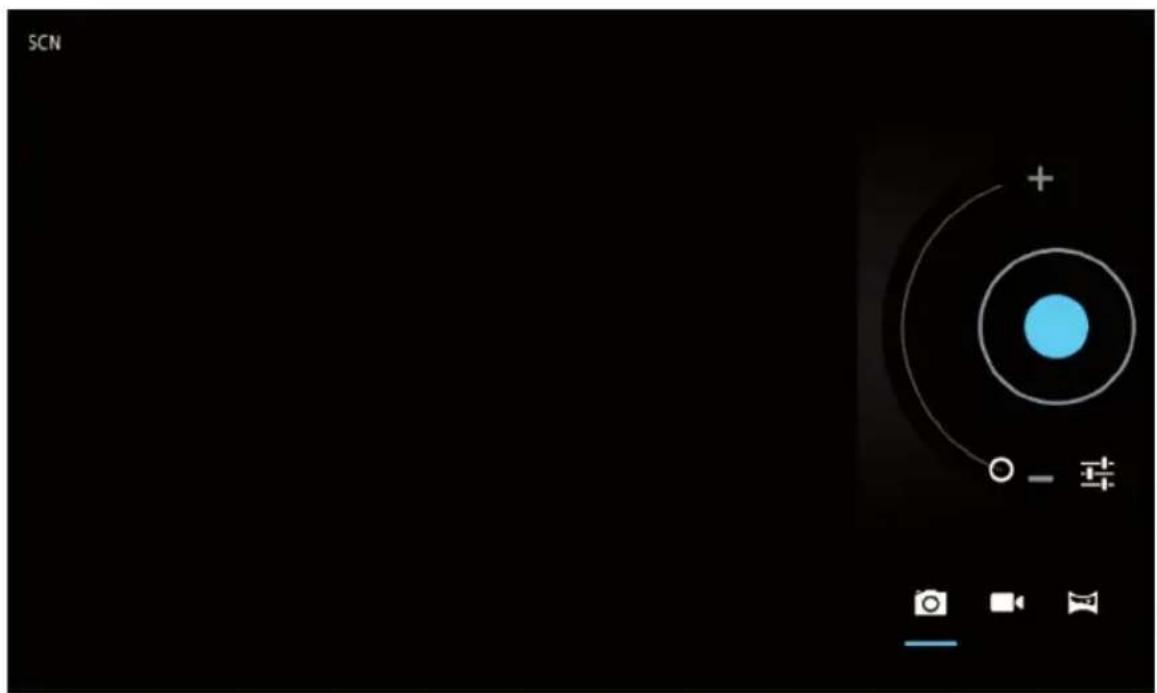

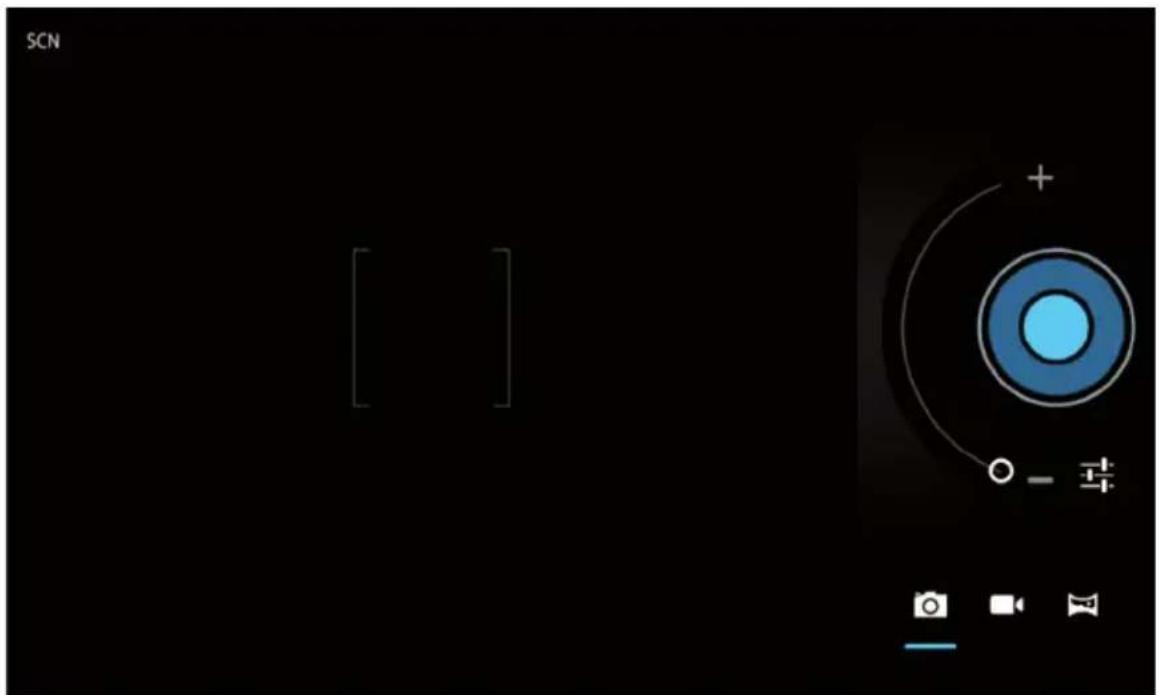

Tap the «Camera» icon on the main menu and enter the «camera» main interface as shown below:

SCN + - - 车

Tap on shutter in the camera:

SCN + - +

15. MARKET

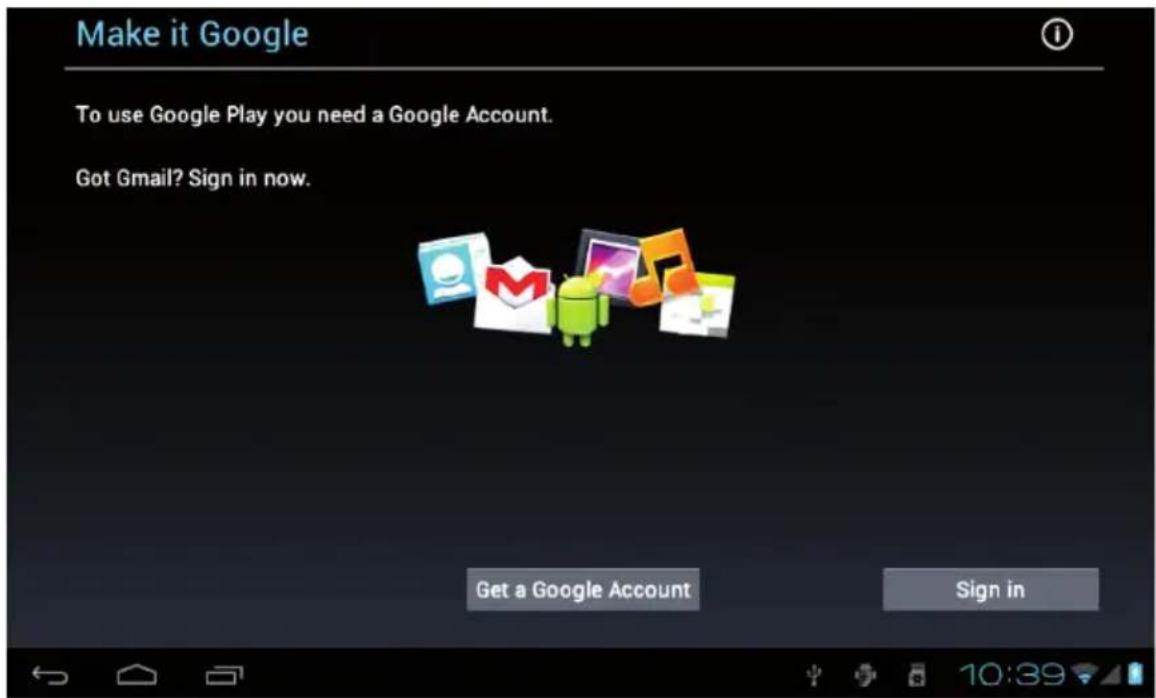

Tap the "Play Store" icon on the main menu, as shown below:

Make it Google To use Google Play you need a Google Account. Got Gmail? Sign in now. Get a Google Account Sign in

If you have no Gmail account, you need to create a Gmail account, tap «Get a Google Account» the following picture will appear:

Your name Your name is used to personalize your phone and Google services. First Last Back Next Q W E R T Y U I O P A S D F G H J K L Z X C V B N M , ! . :) ?123 /

Create email address hellokoli @gmail.com Back Next q w e r t y u i o p a s d f g h j k l z x c v b n m , . @ ? ?123 → .com - -

Input "First name" and "Last name".

Select "Next", input gmail account, the following picture will appear.

Checking availability... Your phone is contacting Google to see if your desired username is available. This can take a couple of minutes. Cancel

Create a password:

APPS WIDGETS Books Browser Calculator Calendar Gmail Google+ Latitude App Name Camera Clock Downloads Earth Maps Market Messaging Messenger eBay Email Facebook Gallery Camera Clock Downloads Earth

EN

Recovery information If you ever lose your password, you can answer a security question and have a reset link emailed to a different address. Choose a security question Answer Recovery email address Back Next

Finish creating account Enable web history. Learn more By touching I accept below, you are agreeing to the Terms of Service and the Google, and Additional privacy policies. Back (I accept

Authenticating... Type the text you see here: press Back Next q w e r t y u i o p a s d f g h j k l z x c v b n m , ? :) ?123 / @

Enable purchases Google Play lets you buy apps right from your phone—secured by Google. To prevent unintended purchases, you can set a PIN code in the Google Play Store. Card number MM / YY CVC Kill Eward United States Phone number Adding a credit card will create a Google Wallet account for you. Privacy Policy Skip Save

EN

Android Market is upgrading to Google play Learn More > Play Store Continue

Tap "Continue" and you will officially enter the «Google Play» the following picture will appear:

Google Play CATEGORIES FEATURED TOP FREE Staff Picks for Tablets Games micr-o-matic Editors' Choice Recipe Search allthecooks.com Catch 11:26

Tap "Games", the following picture will appear:

Games CATEGORIES TOP FREE TOP NEW FREE 1. Eagle Nest II:Revolution Feelingtouch Inc 2. Where's My Water? Free Disney 3. Ninja Chicken McMnus ★★★★★ Free ★★★★★ Free ★★★★★ 4. Skater Boy RUNNERGAMES 5. Bartender The Right Mix Drink Game 6. Jewels Star TREEGAMER ★★★★★ Free ★★★★★ Free ★★★★★ 7. Angry Birds Seasons Rović Mobile Ltd 8. Hit The Apple FEELINGTOUGHT INC 9. Pool Master Pro TerrainDroid ★★★★★ Free ★★★★★ Free ★★★★★ 10. Bubble Shoot RUNNERGAMES 11. AirAttack HD Part 1 Air In Games 12. Tilt Racing TerrainDroid ★★★★★ Free Editors' Choice Free

Tap "7. Angry Birds Seasons", the following picture will appear:

Apps Angry Birds Seasons ROVIO MOBILE LTD. ★★★★ 439,679 Download March 7, 2012 22.94MB 10,000 000+ downloads TOP DEVELOPER DEVELOPER DESCRIPTION Angry Birds Seasons: Cherry Blossom Festival! Angry Birds Seasons takes the captivating gameplay of the original to a whole new level! From Halloween to Chinese New Year, the birds are celebrating different festive seasons

Tap to download and install software (pictured above), take a few minutes, software will installed, as the following picture:

Apps Angry Birds Seasons ROVIO MOBILE LTD. ★★★★★ 439,680 Open Uninstall March 7, 2012 22.94MB 10,000,000+ downloads TOP DEVELOPER Allow automatic updating WHAT'S NEW Spring is finally here, and the Angry Birds are celebrating with a trip to Japan for the Cherry Blossom Festival! Surrounded by beautiful cherry blossoms. It's a perfect time for a picnic lunch with friends and family. But the pigs are trying to have a picnic of their own -- with eggs! Can the Angry Birds save the day?

16. E-MAIL

Tap the «e-mail» icon on the main menu to enter email client. Allocation of account information will be required the first time. As shown below:

Account setup

Email account

You can set up email for most accounts in just a few steps.

Email address

Password

q w e r t y u i o p a s d f g h j k l ← z x c v b n m , . @ ?123 → .com - - 11:56

Email requires network support, please ensure that network mail link is normal.

Here we take [e-mail] as an example:

In the email address bar, enter your valid email address: [e-mail] In the password field to enter your valid password: * * * * * * * *

Then you can choose the «next», account type selection interface will appear as shown below:

Account setup

Account type

What type of account is this?

POP3

IMAP

Exchange

Mobile status bar with navigation icons and time display showing 11:58

Here we are using the POP3 account type. And the receiving service settings will appear, interface as shown below:

EN

Account setup

Incoming server settings

Username	[e-mail]
Password	·······	Previous
POP3 server	pop.126.com	Next
Security type	None
Port	110
Delete email from server	Never

User interface toolbar with navigation icons and time stamp 12:04

Please according to each email provider's information, set different parameter, such as:

The POP3 server: default is «126.com», and should be modified for «pop.126.com"

The port number is «110»

Then select the «next», you will enter the «inspection acceptance server settings», if set up correctly, there will be a «foreign server settings» interface as follows:

Account setup

Outgoing server settings

SMTP server smtp.126.com Security type None Port 25 Previous Next

Require sign-in.

Username	[e-mail]
Password	·······

Mobile status bar with navigation icons and time display showing 1:37

Correct the SMIP server «126.com» for «smtp.126.com»

Modify the port number «587» to «25»

select the «Next», If set up correctly, you will enter the following interface:

Account settings

Account options

Inbox checking frequency Every 15 minutes

□ Send email from this account by default.
√ Notify me when email arrives.
Sync email from this account.

Previous

Next

Mobile phone status bar with navigation icons and time display showing 1:37

Account setup

Your account is set up, and email is on its way!

Give this account a name (optional)

[e-mail]

Your name (displayed on outgoing messages)

Kill Eward

Next

User interface toolbar with navigation icons and time display showing 1:37

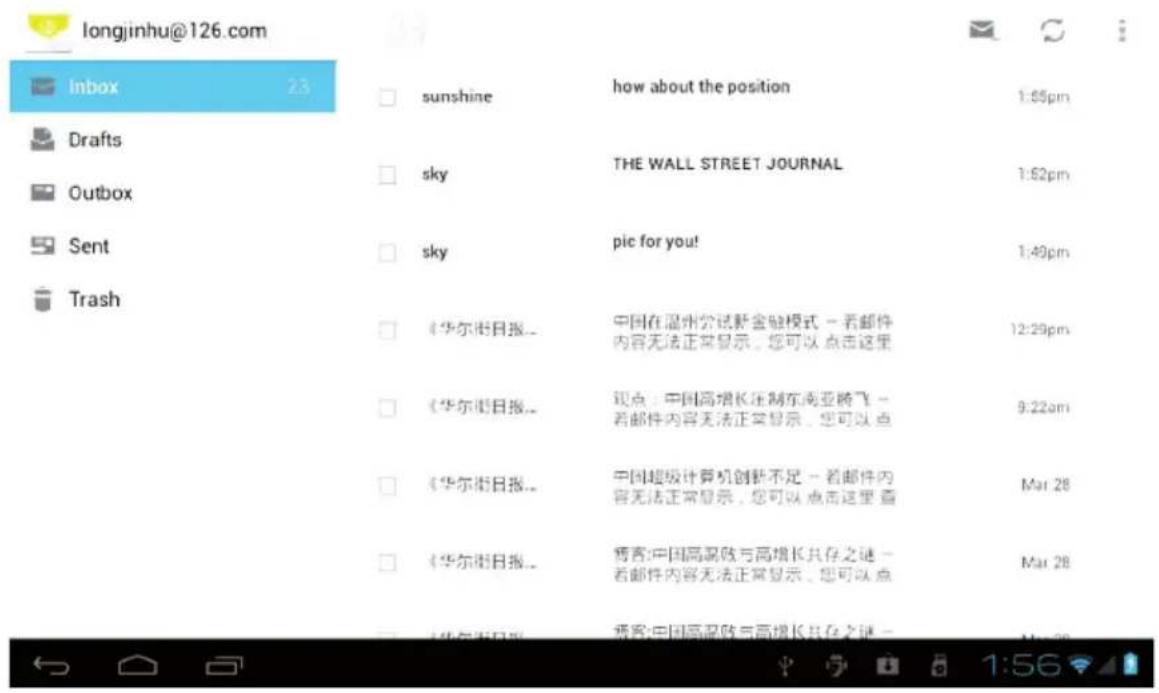

In the column «name» to input the name you want to display in the outgoing message, and then tap «Next» button. It will load the mail automatically; it list will be as follow:

EN

Using USB to connect the MID and PC, the default connection mode is a synchronous mode. You can drag the status bar to drop, appeared the following interface:

Google Angry Birds Camera Thursday March 29, 2012 1:05 No Internet connection 100% sdcard is mounted sdcard is mounted USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer. sdcard AIONAO40

«USB is connected»: means external memory (SD) loading is completed, and you can see the corresponding letter in the PC terminal.

OTG use

Support FAT32 format mobile equipment: such as U disk, mobile hard disk.

The plug-and-play connection method:

Use the OTG wire to connect the MID USB OTG and the external equipment.

Keyboard and mouse

Support plug and play USB mouse, keyboard device.

18. TREATMENT FOR COMMON PROBLEMS

1: What is an Android?

Answer: Android is an operating system name that Google announced on November 5, 2007 that based on the open source operating system of Linux platform.

2: What is a APK?

Answer: APK is Android Package acronym, Android installation package.

3: How to get APK?

Answer: can download and install it by PC terminal online, you can also download and install it by "Android market" online too.

4: What is the version of machine operating system?

Answer: This machine adopts Android2.3, 3D built-in hardware acceleration, can run on most Android applications.

5: Can the machine be charged by USB?

Answer: Yes it is. Recommend the use of the accessories DC. 5V adapter to charge.
