| Product type | Touchscreen tablet |
| Brand | Storex |
| Model | eZee Tab 7D 10S |
| Screen | Multi-touch capacitive, 7 inches (approx.) |
| Operating system | Google Android 4.0 (Ice Cream Sandwich) |
| Processor | Not specified (estimated: 1 GHz) |
| RAM | Not specified (estimated: 512 MB) |
| Internal storage | Not specified (estimated: 8 GB) |
| Wi-Fi connectivity | Yes, 802.11 b/g/n |
| Ports | USB PC, USB Host, HDMI output, 3.5 mm jack |
| Card reader | Built-in Micro SD |
| Power supply | 5V power adapter (included) |
| Dimensions (approx.) | 190 x 122 x 10 mm |
| Weight (approx.) | 320 g |
| Main functions | Internet browsing, HD video playback, music, photos, Google Play apps |
| Maintenance and cleaning | Soft dry cloth, do not use solvents |
| Safety | Do not expose to moisture, do not open, unplug before cleaning |
| Warranty | 1 year for the tablet, 3 months for accessories |
| Spare parts and repairability | Contact Storex support or www.e-storex.com |
| Certifications | CE, RoHS, ISO 9001:2008 |
Frequently Asked Questions - eZee Tab 7D 10S STOREX
User questions about eZee Tab 7D 10S STOREX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Tablet in PDF format for free! Find your manual eZee Tab 7D 10S - STOREX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. eZee Tab 7D 10S by STOREX.
USER MANUAL eZee Tab 7D 10S STOREX
INFORMATIONS DE SECURITE ....3
GENERALITES....3
SECURITE 3
ALIMENTATION ÉLECTRIQUE DU PRODUIT....3
CHOIX DE L'EMPLACEMENT DU PRODUIT ....3
NETTOYAGE 4
DEPANNAGE....4
REMARQUES IMPORTANTES....4
SECURITE - ENVIRONNEMENT 4
INTRODUCTION 5
FONCTIONNEMENT 5
CARACTERISTIQUES PRINCIPALES....5
CONNECTER LA TABLETTE AU PC 6
CONNECTER LA TABLETTE A LA TV (SELON MODELE)....7
COMMENT UTILISER LA TABLETTE 8
• MISE SOUS TENSION // HORS TENSION DE LA TABLETTE 8
• ACTIVER // DÉSACTIVER L'ÉCRAN LCD....8
• FONCTIONNEMENT DE L'ÉCRAN TACTILE ....8
PAGE D'ACCUEIL 9
COMPRENDRE LES IÇÕNES : 9
VISEULISER UNE VIDEO....10
ÉCOUTER DE LA MUSIQUE....11
VISEULISER VOS PHOTOS....12
GESTIONNAIRE DE FICHIERS 13
SURFER SUR INTERNET....14
INSTALLER UNE APPLICATION....15
PARAMETRES....16
CONDITIONS DE GARANTIE 17
SITE WEB STOREX 18
ENREGISTREMENT DE LA GARANTIE....18
INFORMATIONS DE SECURITE
CONNECTER LA TABLETTE AU PC
Illustration of a computer monitor with a blue button and a curved arrow pointing to it (no text or symbols)text_image
8:38 Thursday, October 20 Charging, 50% Android- FONCTIONNEMENT DE L'ECRAN TACTILE
Digital game scene showing a giant bird flying over a cityscape with skyscrapers and a watchtower (no readable text or symbols)- Mode de reprise de lecture (on, off).
Grid of 16 diverse images including animals, landscapes, and food items (no text or symbols)text_image
test/sdcard android Video Screenshots Ringtones Recordings Podcasts Pictures Notifications Music 6 items - drive 0 items - drive 0 items - drive 0 items - drive 0 items - drive 0 items - drive 0 items - drive 0 items - drive 0 items - drive 0 items - drive 0 items - drive 18:02
SECURITY INFORMATION....20
GENERAL....20
SAFETY 20
PRODUCT'S POWER SUPPLY 20
PLACING OF THE PRODUCT 20
CLEANING 21
TROUBLESHOOTING....21
IMPORTANT NOTE 21
SAFETY-ENVIRONMENT 21
INTRODUCTION 22
OPERATION 22
MAIN FEATURES....22
CONNECT THE TABLET TO YOUR PC 23
CONNECT TABLET TO YOUR TV ( ACCORDING TO MODEL) 24
HOW TO USE TABLET 25
• TURN ON/OFF TABLET 25
- ENABLE/ DISABLE LCD 25
VIEWING THE PICTURES 29
FILE MANAGER 30
SURFING ON | INTERNET: 31
INSTALL AN APPLICATION 32
SETTINGS....33
GUARANTEE CONDITIONS 34
STOREX WEBSITE 35
WARRANTY REGISTRATION....35
SECURITY INFORMATION
This device was designed and built in order to guarantee your safety. The safety mechanisms implemented in the product will protect you if you observe the following installation, operation and troubleshooting procedures:
- Please carefully read and follow the following instructions before handling and installing your device,
- Keep these instructions for further reference.
GENERAL
- Don't shake, or it may lead to damage to the product.
- Only use components and accessories (power supply...) recommended by the manufacturer.
- The illustrations of the product may vary from actual product.
SAFETY
- To prevent fire or electric shock, do not put the appliance near objects filled with liquids;
- If a heavy object or liquid is dropped on the device, unplug it immediately and send it to check by qualified personnel before re-use :
- When in operation, the housing surface generates heat; do place the product on a flat and rigid surface and avoid covering it or placing any object on it.
PRODUCT'S POWER SUPPLY
- In case you don't use the product for a long time or during a lightning storm, unplug the unit from the outlet by grabbing the plug itself, without pulling the cable.
- The included power adapter is specific to the product. Using a different adapter may cause damage or accidents.
PLACING OF THE PRODUCT
- Install the appliance away from any equipment with strong attraction such as microwave ovens, big speakers ...
- Place your product in a well-ventilated area and on a hard and flat surface to disperse heat from the device.
CLEANING
- Never open the product to clean, otherwise the warranty will be canceled;
- Unplug the product from the wall outlet before cleaning the product ;
- Clean the outside of the product using a soft, dry cloth. Never use an abrasive pad, scouring powder or solvent such as alcohol or gasoline.
TROUBLESHOOTING
- Refer all troubleshooting to qualified personnel. Troubleshooting is required when the appliance has been damaged in any way: plug or cord is damaged, liquid spilled into the product, introduction of small objects in the product, exposure to rain or moisture, malfunction, drop of the product...
IMPORTANT NOTE
- At full volume, for an extended period of time can damage your hearing.
- It is illegal to download music from the Internet without having bought the rights. STOREX is not responsible for the use of the STOREX product with illegal music downloading.
SAFETY-ENVIRONMENT
Your STOREX product has been laboratory tested; it complies with European guidelines corresponding to the CE labelling in force at the time of its launch.
Your STOREX product's components are traceable; this demonstrates the product's compliance to environmental guidelines (RoHS) in force at the time of its launch.
Once the product has reached the end of its lifespan, don't throw it in a dustbin. Return it to the retailer or bring it to a rubbish heap, to ensure the product is properly disposed of via a waste electrical and electronic equipment (WEEE) channel.
Your STOREX product has been prepared, tested and packaged in a French company, ISO9001: 2008 certified by an annual audit performed by a qualified person from Bureau Veritas Certification.
INTRODUCTION
Your tablet offers all the innovation of Google Android operating system for browsing and applications. Lightweight, ultra-connected, tactile..., the tablet is the answer to all your mobility needs!
On a touch screen evolving under Android 4.0, access the Internet using Wi-Fi and customize your applications through Android Market.
Your tablet is a transportable audio/video system that can play movies and music in high definition.
Your tablet becomes an authentic multimedia gateway once is connected to your TV (according to model).
OPERATION
- Your tablet allow you to watch your HD content with ease.
- Watch your movie or pictures, listen your music everywhere with your tablet.
- Transform your tablet in a multimedia gateway; connect it to your TV with the mini HDMI port.
MAIN FEATURES
- Audio connection: 3.5" output jack.
- High resolution screen.
- Integrated Card Reader (Micro SD).
- Multi-touch capacitive screen.
- PC USB port and USB Host.

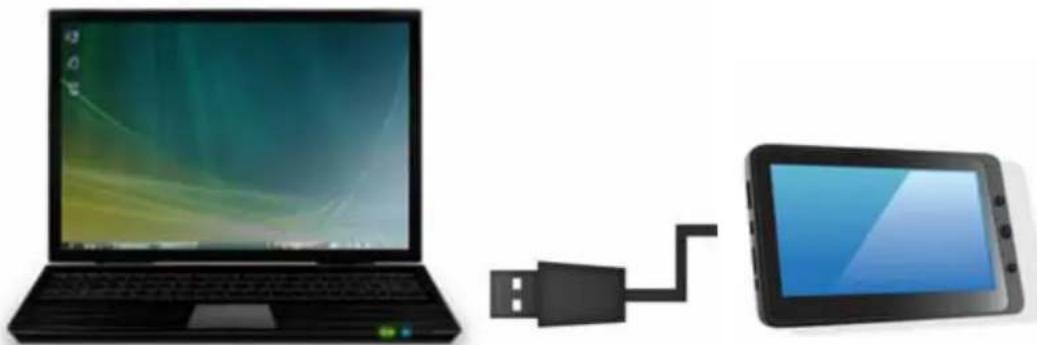

CONNECT THE TABLET TO YOUR PC
- Turn on your tablet by pressing POWER.
- Use the USB cable provided to connect your tablet to the USB PC port.


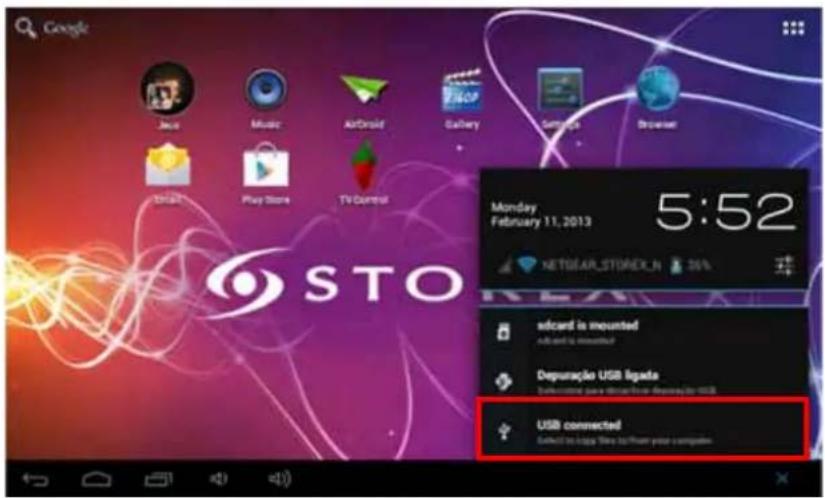

- Press the notification bar then select "USB connected".


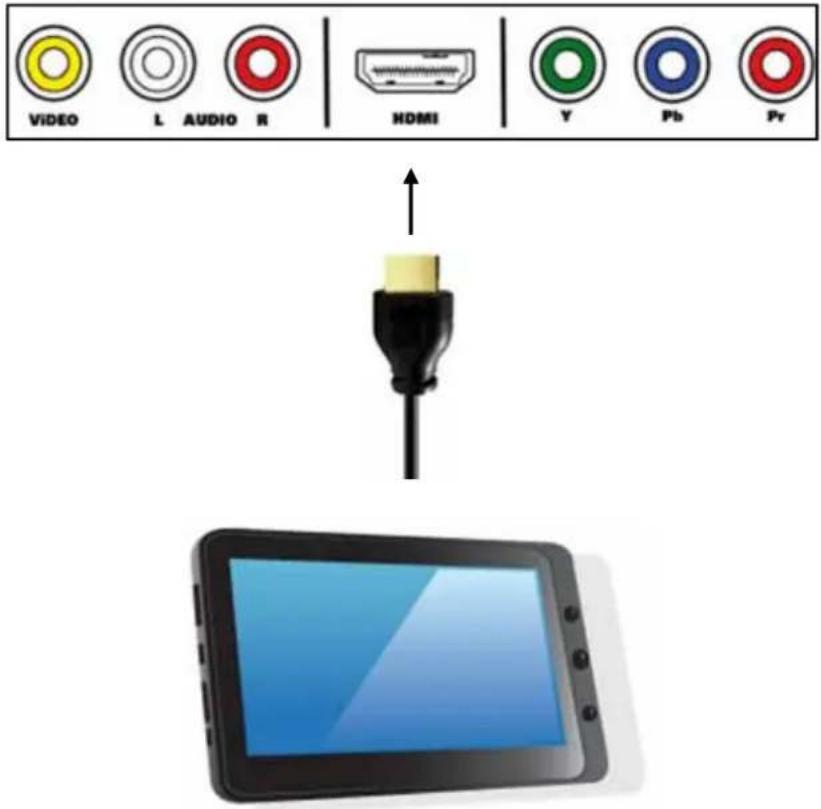

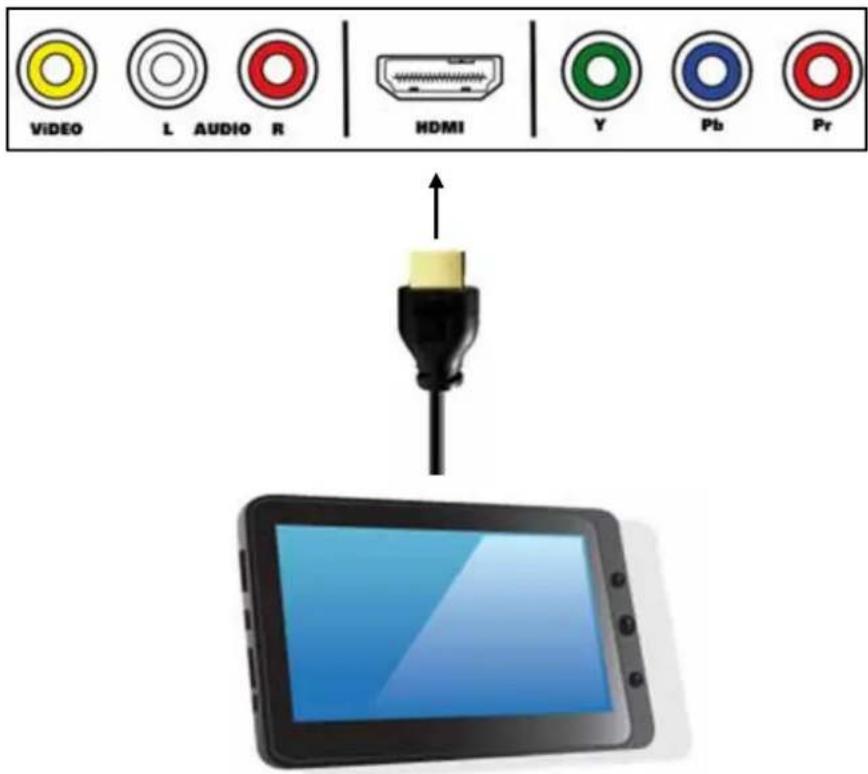

- Connect the power supply from the wall socket to your tablet DCIN port.
- Turn on the tablet by pressing ON.

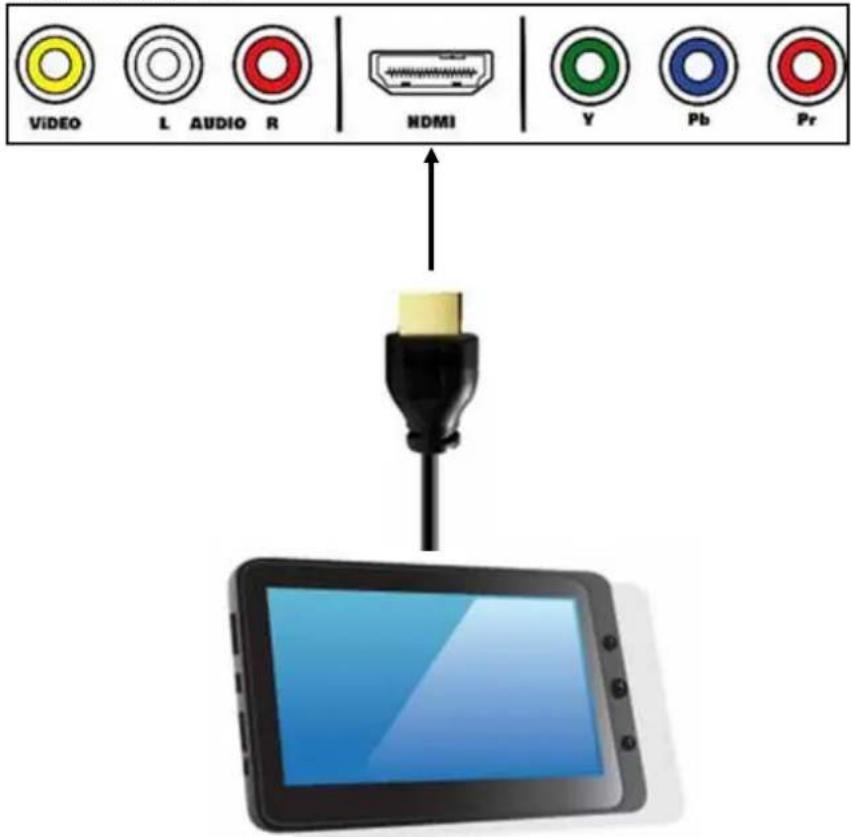

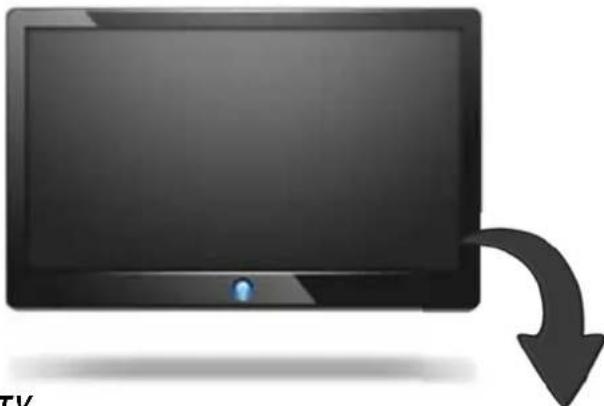

- Connect the HDMI cable from the unit to your TV (see illustration above).
- Check if your TV is on the right channel, normally there is diagram to guide you (AV1, AV2, HDMI1, HDMI2...).
- A notification will appear automatically, select the resolution by pressing it.
How to use TABLET
To turn on / off tablet, press the POWER button for 3 seconds. To turn off select "turn off the MID".

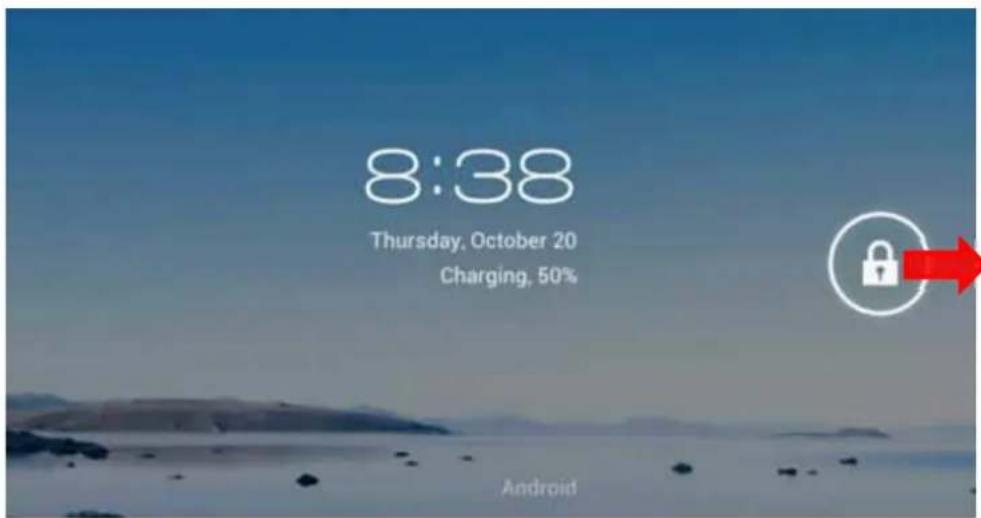

○ ENABLE/DISABLE LCD
Once the tablet is turned on, short press POWER to turn off the LCD screen, and you will save energy. To turn on the LCD screen, press POWER again.
HINT: The screen is locked when the screen is off; to unlock the screen, slide the lock icon from left to right.
-
Touch any icon on the screen to launch the application.
-
Hold: touch any icon on the home screen and hold. For example, touch an icon on the home screen and hold, a trash icon (💡) will appear on the right screen; drag the selected icon on the trash to remove the icon from the home screen.
-
Drag: Drag your finger from left to right or vice versa to scroll the screen.
HOME PAGE

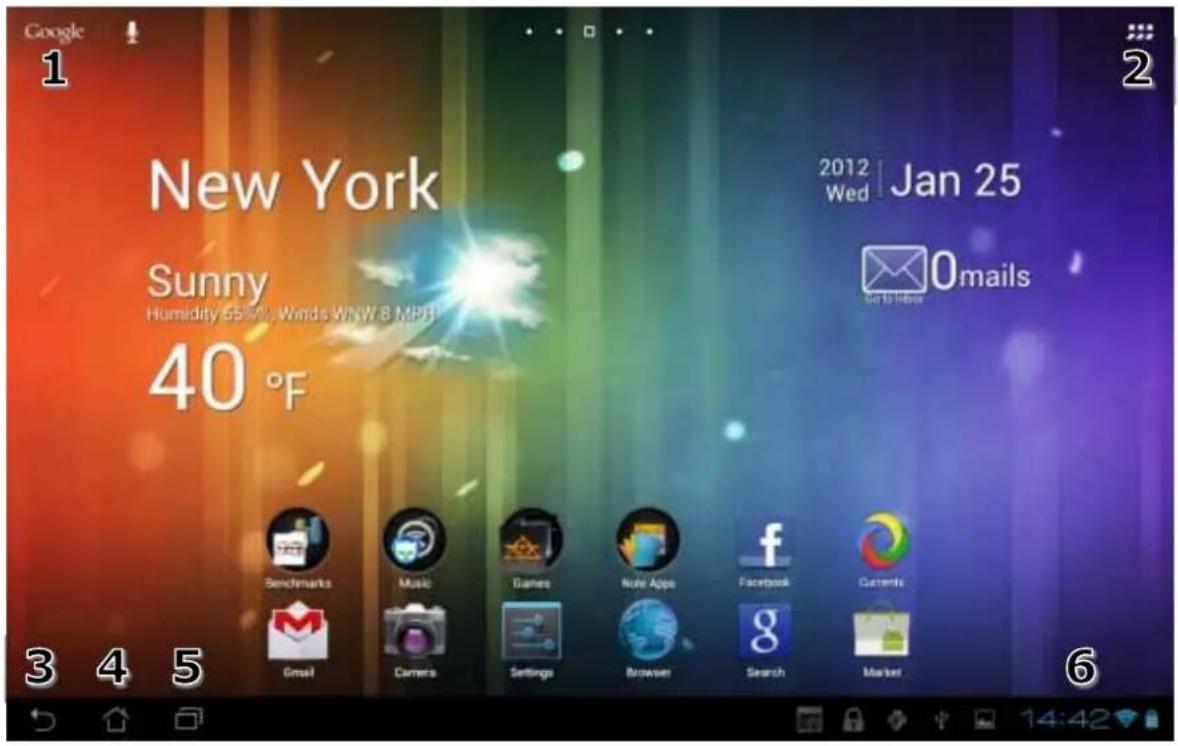

Once the tablet is turned on, the following screen will be displayed on your tablet.
| 3 | Back 4 Home | ||
| 5 | Last applications | 6 | Notifications barClock, Battery & Wifi |
* The displayed screen can change according to the applications and the backgrounds that are installed.
: Drag up to see the system notifications.


: To show the current state of the network connection, battery and
system time.

: To return to the previous page.

Press to display all the applications installed in your tablet.

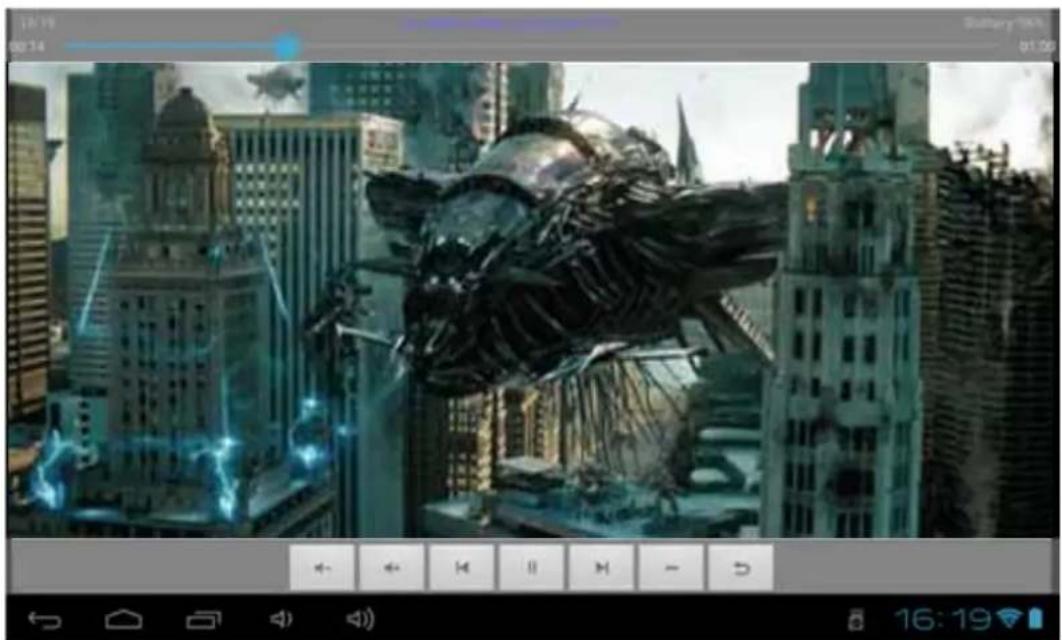

WATCH A VIDEO
On the applications page, press the icon to access the interface of the video player. Slide your finger across the screen from down to up, to scroll the list of files and press one of the desired files to start playing.

: Press to increase or decrease the volume.

: To visualize the playback time or to move to a specific point
of the video.

ss to play the previous / next video.

: Press to pause / resume playback.

: Press to display the submenu that includes the following options:
- Display mode (normal, full screen, 4:3 and 16:9).
- Resume Play mode (on, off).
- Play mode (repeat all, repeat one).
- Brightness (1, 2, 3, 4).

: Press to display the list of the files.


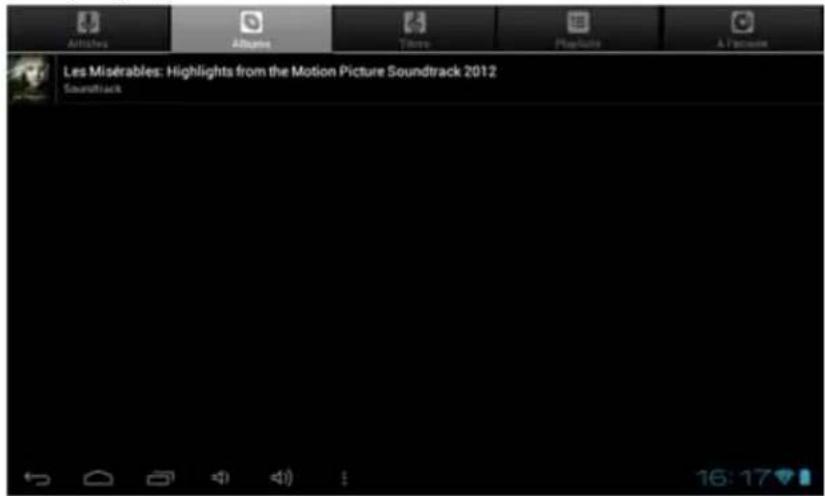

On the applications page, press icon to access the music player interface. Slide your finger across the screen from up to down to scroll the list of files and press one of the files to start playing.
: Press to display all the audio files on the screen.
: Press to sort the songs by album.
: Press to see the recently added titles.
: Press to return to the previous screen.

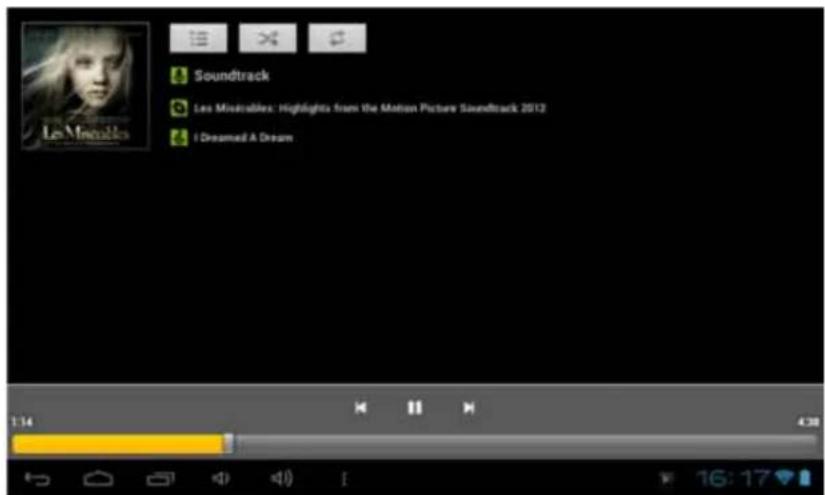

Slide your finger across the screen from top to bottom to display the list and press any to access the audio interface to as follows:
: To visualize the playback time or to move to a specific point of the audio file.
press to play the previous or next music.
■/▶: Press to pause or resume playback.
: Press to display the list of audio files.
: Press to enable / disable the shuffle.
Press to set the repeat mode, repeat all, repeat one or deactivate.

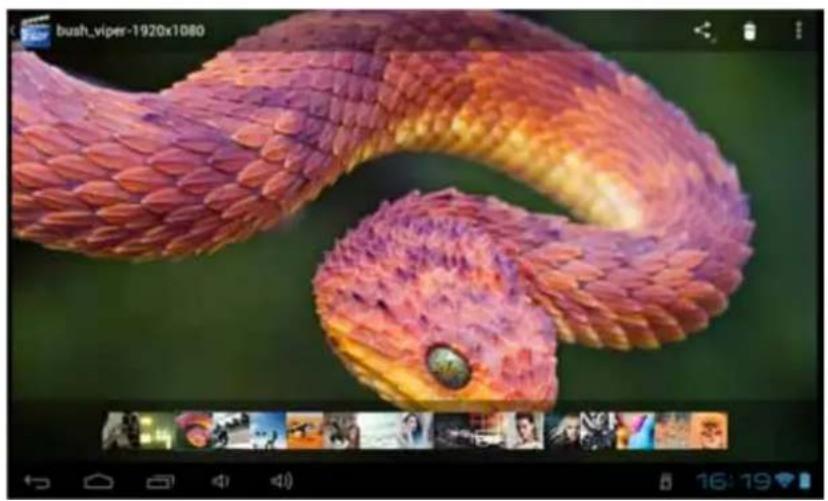

VIEWING THE PICTURES
On the applications page, press icon to access the picture player interface. The picture player interface is displayed below:


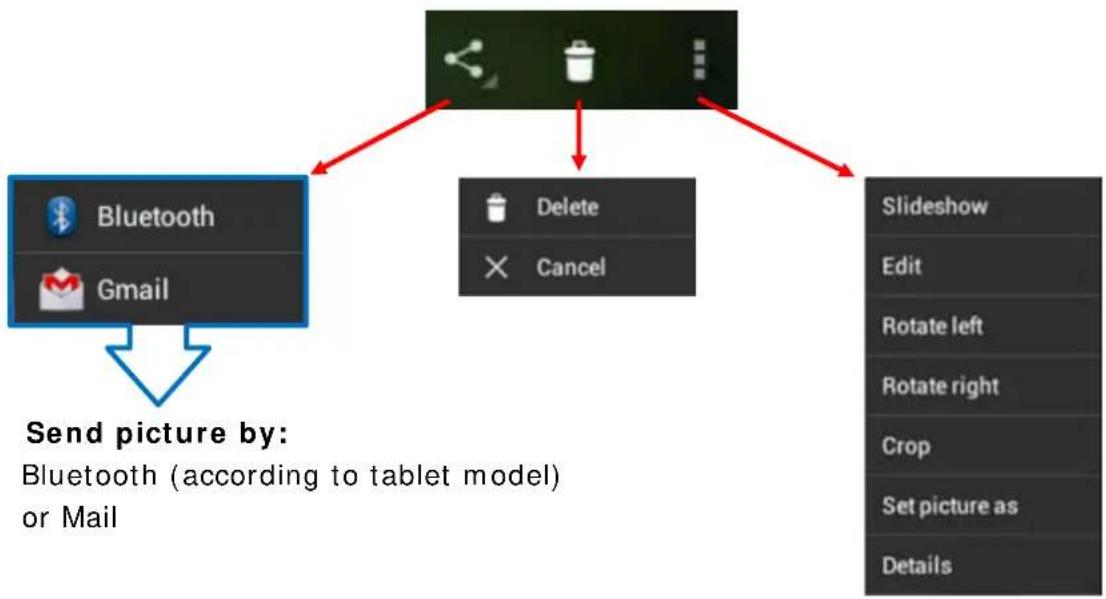

THUMBNAIL BANNER :

FILE MANAGER

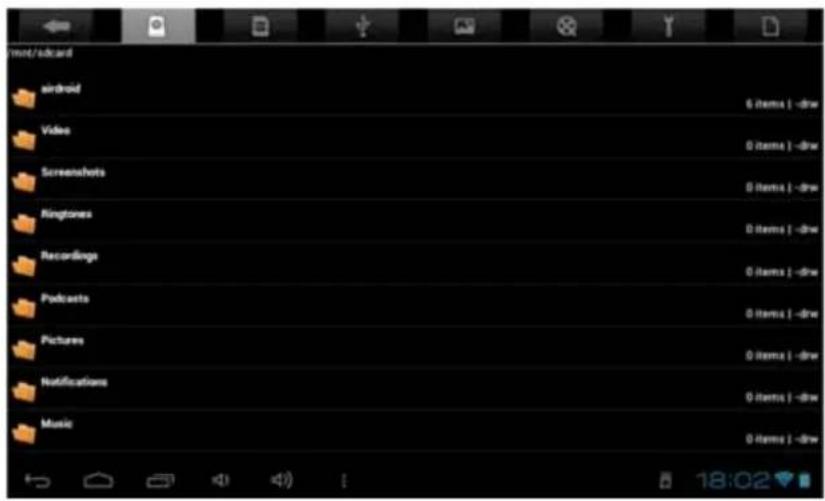

On the applications page, press icon to access the file manager interface. The file manager interface is shown below:


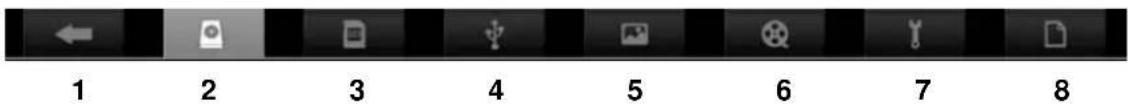

1 2 3 4 5 6 7 8- To return to the previous page.
- Allows you to select the SD card.
- Select the USB storage.
- To show picture files.
- To show all video files.
- Provides access to the settings of the application.
- To display the copy, paste, and move options.

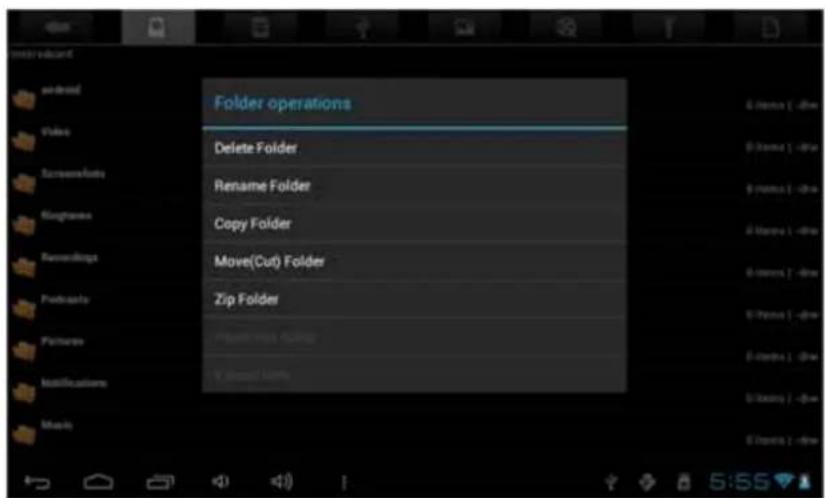

In order to copy, paste, move, delete, or rename a file/folder, press the file/folder in question, the following window will appear with different options:
SURFING ON INTERNET:

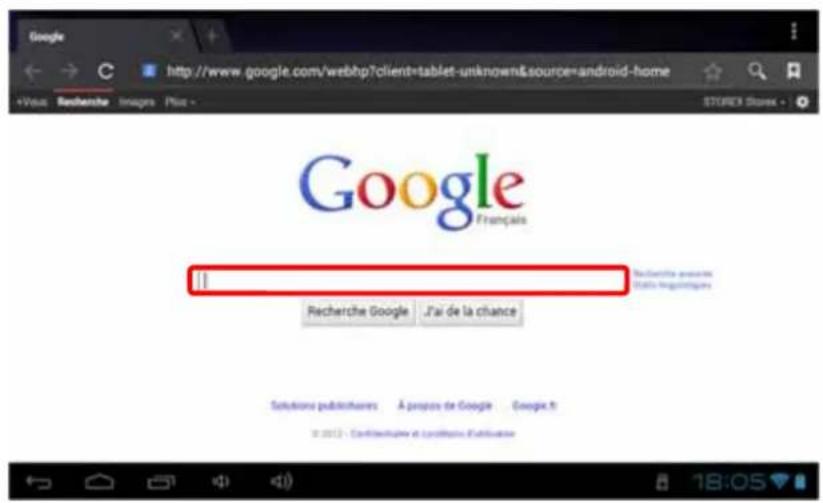

On the home page, press icon to open the internet browser.

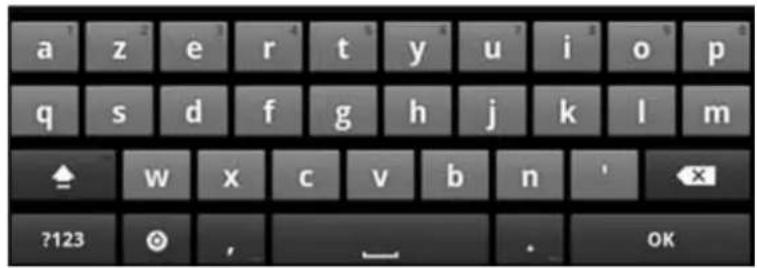

Press the above part to reveal the virtual keyboard. Once the text has been entered, press OK to start the research.


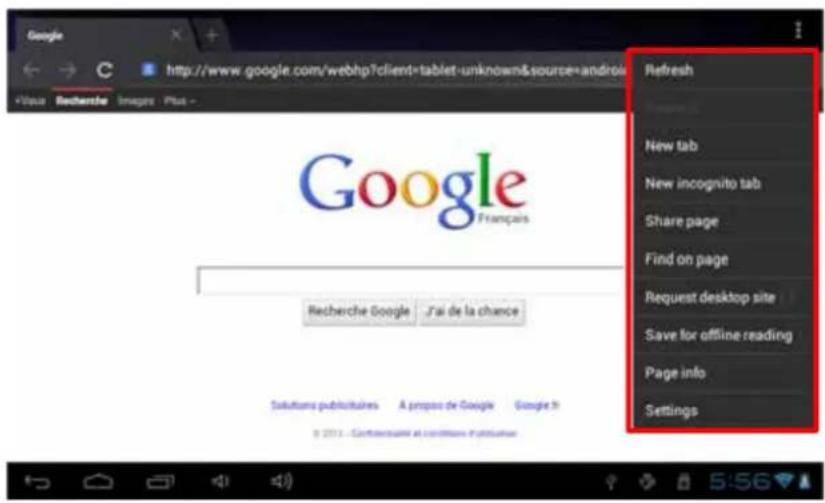

a z e r t y u i o p q s d f g h j k l m w x c v b n ?123 , OKPress 📄 display the menu below.
On the applications page, tap on the icon to access the file manager interface. The manager files interface is shown below:


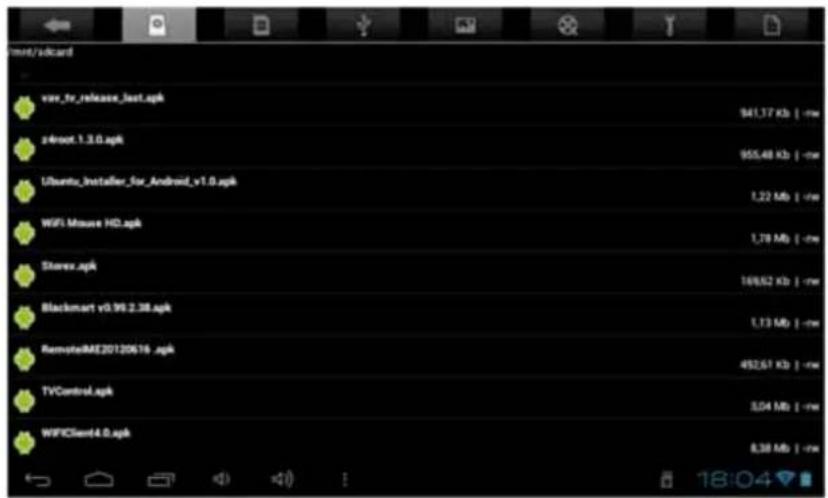

msv/sdcard vss_tr_release_last.apk 941.37 Kb / -ve z6root.1.3.0.apk 955.48 Kb / -ve Ubuntu_installer_for_Android_v1.0.apk 1,22 Mb / -ve WiFi Mouse HD.apk 1,78 Mb / -ve Stevz.apk 169.62 Kb / -ve Blackmart v0.96.2.38.apk 1,13 Mb / -ve RemoteME20120616 .apk 492.61 Kb / -ve TVControl.apk 3,04 Mb / -ve WFClient4.0.apk 8.38 Mb / -veSelect your .apk (installation file) file by pressing on it. The window below should appear.


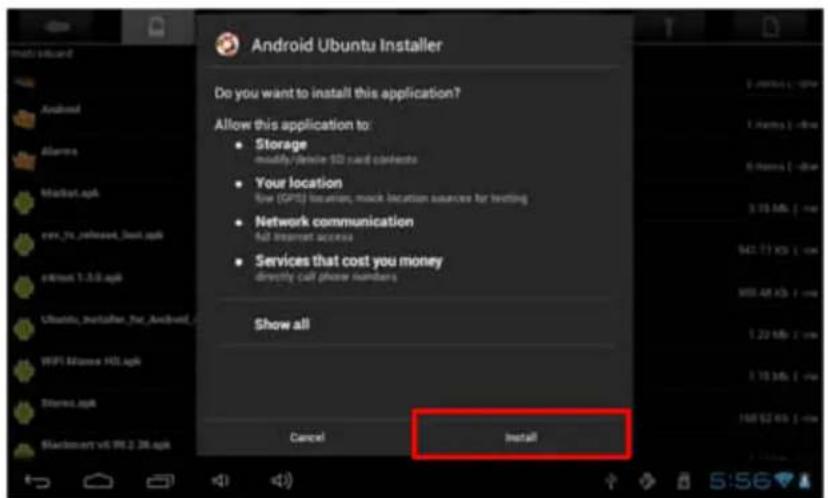

Android Ubuntu Installer Do you want to install this application? Allow this application to: • Storage modify/delike SD card contents • Your location fire (GPS) locations, music location sources for listening • Network communication full internet access • Services that cost you money directly call phone numbers Show all Cancel InstallPress "Install" to install the application on your device. Press "OK" to complete the installation or "Open" if you want to launch it.
NOTE: Some applications may not compatible with the version of the operating system.
If the installation of the application is refused, go to "Settings" → "Security" and then select "Unknown Sources".
SETTINGS
On the home page, press to enter the system settings. You can then adjust the settings below:

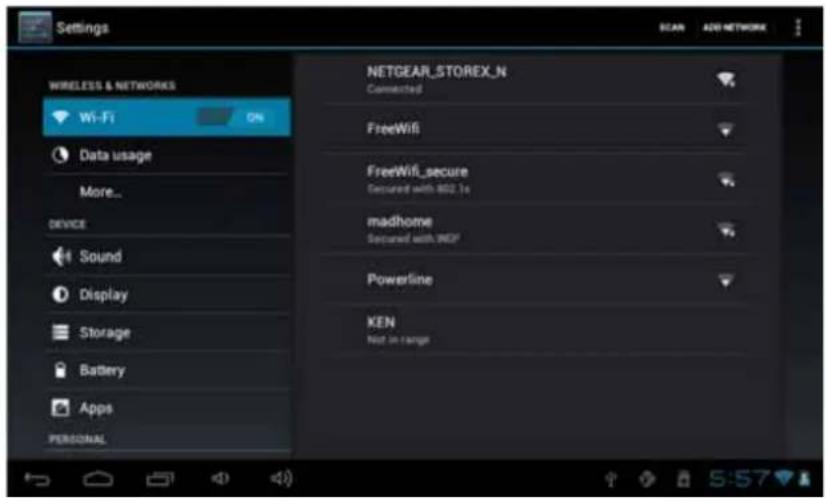

To set up the wireless connection press the "Wi-Fi" option to activate.
Select your Wireless network name (SSI D) by pressing on it.


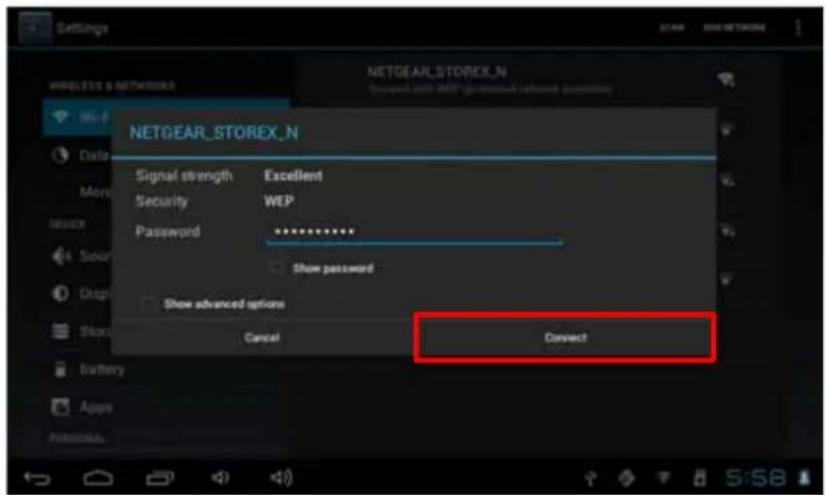

Settings WIRELESS & NETWORKS Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL NETGEAR_STOREX_N Connected FreeWifi FreeWifi_secure Secured with 802.1s madhome Secured with INDF Powerline KEN Not in rangeSelect the security mode of your network, and then enter the security key. Once the data is entered press "Connect".
- Sound: To set the volume of notifications and applications.
- Display: Allows you to adjust the brightness of the screen and the rotation of it.
- Storage: To check the status of the internal memory storage, USB or SD card.
- Applications: To manage your applications (uninstall, move, or delete data).
- ...

GUARANTEE CONDITIONS
STOREX's available guarantee is valid for 1 year for tablet and 3 months long for its accessories (remote control, AV cables, power supply ...).
STOREX guarantees your products against any manufacturing or assembling faults. This guarantee only applies to the first purchase of the tablet by the end user and is not transferable if the device is resold. This warranty does not cover any incompatibilities found by end user apart from recommendations specified on the packaging, or any other incompatibility generated by other hardware or software on the computer that is connected to the tablet.
Proof of purchase must be presented to our services to apply STOREX guarantee.
The guarantee doesn't cover failures or defects induced by non-compliance to this manual's instructions, neglect, alteration, improper installation or maintenance, reparation or alteration not authorized by STOREX, improper tests, accident or external factor such as (not exhaustive) excessive heat or dampness, power failures or bad installation / uninstalling of tablet.
The only contractual obligation endorsed by STOREX pertains to the reparation or replacement of a defective product. In no case, STOREX cannot be held responsible for any loss of data, or its consequences induced by operational fault or a product failure. In any case, STOREX won't be bound to any financial responsibility for any amount exceeding the value of the product purchased by the end user.
This guarantee is well defined and cannot be modified, decreased or increased without written consent from STOREX. In addition, STOREX cannot be held responsible for any technical advice or service provided in relation to tablet.
For any request not covered by this guarantee, please contact STOREX support or log on to www.e-storex.com to order accessories.
You are not the grantee of this current warranty. This warranty covers only your tablet and is governed by French law.
Note:
STOREX ^TM reserves the right to modify the user manual without prior notice according to the product's evolutions. You can find the latest version of the manual on our website: http://www.storex.eu
STOREX WEBSITE
Go to http://www.storex.eu.
Select "Multimedia Tablet" and then select tablet. You will be able to download the latest full version of the manual and software updates.
WARRANTY REGISTRATION
In order to facilitate the management of your issue, should you contact our support team, we invite you to register your tablet guarantee on our website at the following address:
http://garantie.storex.eu
For repairing, contact your dealer to repair your tablet under guarantee, or send your request via email to the following address:
support@storex.eu
or by phone at:
France: 01 55 85 82 00 (local call charge to Paris)
Spain: 902 110 572 (soporte.es@storex.eu)
Portugal: 308 800 836 (apoio.pt@support.eu)
England: (support.uk@storex.eu)
Monday to Thursday from 9:30 to 19:30.
Friday from 9:30 to 18:30.
TABLA DE CONTENIDOS
Illustration of a black monitor with a blue button and a curved arrow pointing to it (no text or symbols)text_image
8:38 Thursday, October 20 Charging, 50% Androidtext_image
Google 1 New York Sunny Humidity 65%, Winds WNW 8 MPH 40 °F 2012 Wed Jan 25 Email 0mails 3 4 5 Email Music Games Note Apps Facebook Currents Settings Browser Search Market 14:42natural_image
Futuristic cityscape with a giant bird flying over skyscrapers, no visible text or symbolsnatural_image
Close-up of a vibrant, serpentine snake with detailed scales and eye (no text or symbols visible)natural_image
Row of 15 diverse images including a person, car, and abstract shapes (no text or symbols)text_image
Folder operations Delete Folder Rename Folder Copy Folder Move(Cut) Folder Zip Folder
NAVEGAR POR INTERNET
Illustration of a black monitor with a blue dot and a curved arrow pointing downward, symbolizing download or download (no text or symbols present)Traseira TV
8:38 Thursday, October 20 Charging, 50% Androidtext_image
Google 1 New York Sunny Humidity 65%, Winds WhW 8 MPa 40 °F 2012 Wed Jan 25 Emails Sendmarks Music Games Note Apps Facebook Currents Email Cameras Settings Browser Search Market 3 4 5 6 14:42natural_image
Digital game scene showing a futuristic, winged character amidst a cityscape with skyscrapers (no visible text or symbols)- Modo de retoma de leitura (on, off).
- Modo de leitura (repetir tudo, repetir um).
Row of 15 diverse images including animals, landscapes, and beauty (no text or symbols visible)text_image
Folder operations Delete Folder Rename Folder Copy Folder Move(Cut) Folder Zip Folder Properties Properties Properties Properties 5 items - drive 6 items - drive 6 items - drive 6 items - drive 6 items - drive 6 items - drive 6 items - drive 6 items - drive 5:55
NAVEGAR NA INTERNET:
Google 21 40 10°C Haute 14°C Basse 6°C Intel 4 April 2012 Bry-sur-Marne Apparel photo Camera Navigator Sabine clear R Play Store Action Video Plus Documents To OS Participated SocialJogger Facebook Parametro Lumifield YouTube Email StoreHound in NEW 4 AVR. VSN 5 AVR. Sunday Friday Data & IPv3 Easter LUN 9 AVR. Samsung 10 Apr 2012 Easter Mondaynatural_image
Illustration of a black monitor with a blue dot and a curved arrow pointing downward (no text or symbols)
8:38 Thursday, October 20 Charging, 50% Androidtext_image
Google 1 New York Sunny Humidity 65.0%, Winds WNW 8 MPI# 40 °F 2012 Wed Jan 25 Go to info Emails 3 4 5 Senchmarks Music Games New Apps Facebook Currents Small Cameras Settings Browser Search Market 6natural_image
Futuristic cityscape with a giant bird flying over skyscrapers, no visible text or symbolsnatural_image
Close-up of a metallic ring with two yellow connectors against a dark gray background (no text or symbols visible)ASCOLTA MUSICA
Grid of 16 diverse images including animals, landscapes, and food items (no text or symbols visible)Venerdì 9:30-18:30 p.m.
