Product type	Multimedia tablet
Brand	STOREX
Model	eZee Tab 10Q 16
Operating system	Android 4.0 (Ice Cream Sandwich)
Screen	Multi-touch capacitive, 10 inches
Internal storage	16 GB
Connectivity	Wi-Fi 802.11 b/g/n
Ports	1 x USB PC, 1 x USB Host, 3.5 mm jack output, microSD reader, HDMI (depending on model)
Power supply	DC IN power adapter (included)
Main functions	Internet browsing, HD video playback, music, photos, games, Android apps
Safety	Use original accessories, do not expose to moisture, read the manual
Maintenance and cleaning	Clean with a soft dry cloth, do not use solvents
Warranty	1 year for the tablet, 3 months for accessories
Manual version	Downloadable from storex.eu

Frequently Asked Questions - eZee Tab 10Q 16 STOREX

How to turn the tablet on and off?

To turn the tablet on or off, press the POWER button for 3 seconds. To completely shut down, select 'Turn off tablet'.

How to connect the tablet to a PC?

Use the provided USB cable by plugging it into the USB PC port on the tablet. On the tablet, tap the notification bar, select 'Connected by USB', then 'Turn on USB storage'. The device will appear as a USB drive on your PC.

How to connect the tablet to a TV?

Connect an HDMI cable (not included) from the tablet to the TV. Make sure the TV is on the correct HDMI channel. A notification appears on the tablet to select the display resolution.

How to install an app from an APK file?

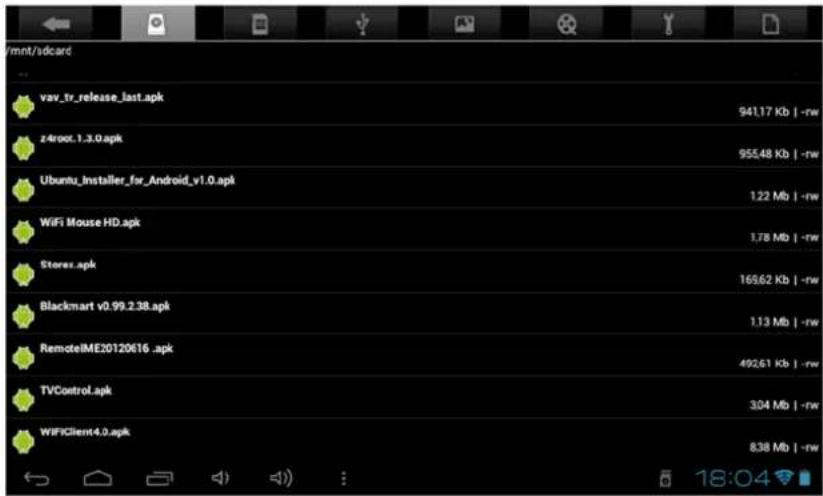

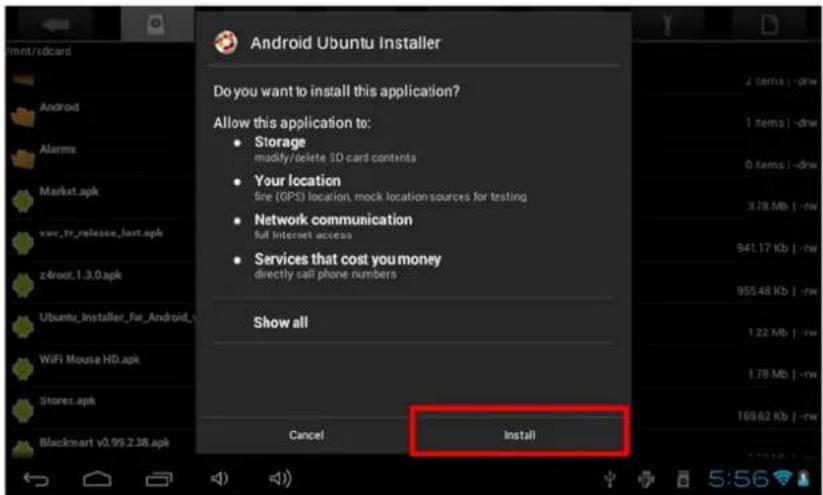

Open the file manager, select the .apk file, then tap 'Install'. If installation is refused, go to Settings > Security and check 'Unknown sources'.

How to transfer files between the tablet and a computer?

Connect the tablet via USB (USB PC port) and enable USB storage as explained above. You can then copy files from/to the SD card or internal memory.

What to do if the screen is locked?

To unlock the screen, slide the lock icon from left to right.

How to adjust volume and brightness?

Volume can be adjusted in Settings > Sound. Brightness is adjusted in Settings > Display.

How to clean the tablet?

Unplug the tablet, then clean the exterior with a soft dry cloth. Never use abrasive pads, scouring powder, or solvents like alcohol.

What to do in case of malfunction?

First consult the manual. If the problem persists, contact STOREX support by email ([e-mail]) or phone [phone] for France).

What is the warranty period?

The warranty is 1 year for the tablet and 3 months for accessories (cables, power adapter, etc.). A proof of purchase is required.

USER MANUAL eZee Tab 10Q 16 STOREX

03:06:29 FILES You Tube

TABLE DES MATIÈRES

INFORMATIONS DE SECURITE 4

GENERALITES 4

SECURITE 4

ALIMENTATION ÉLECTRIQUE DU PRODUIT....4

CHOIX DE L'EMPLACEMENT DU PRODUIT ....4

NETTOYAGE 5

DEPANNAGE....5

REMARQUES IMPORTANTES....5

SECURITE - ENVIRONNEMENT 5

INTRODUCTION 6

FONCTIONNEMENT 6

CARACTERISTIQUES PRINCIPALES....6

CONNECTER LA TABLETTE AU PC 7

CONNECTER LA TABLETTE A LA TV (SELON MODELE)....8

COMMENT UTILISER LA TABLETTE 9

• MISE SOUS TENSION // HORS TENSION DE LA TABLETTE 9

• ACTIVER // DÉSACTIVER L'ÉCRAN LCD....9

• FONCTIONNEMENT DE L'ÉCRAN TACTILE ....9

PAGE D'ACCUEIL 10

COMPRENDRE LES IÇÕNES : 10

VISEULISER UNE VIDEO....11

ÉCOUTER DE LA MUSIQUE....12

VISEULISER VOS PHOTOS....13

GESTIONNAIRE DE FICHIERS 14

SURFER SUR INTERNET....15

INSTALLER UNE APPLICATION....16

PARAMETRES....17

CONDITIONS DE GARANTIE 18

SITE WEB STOREX 19

ENREGISTREMENT DE LA GARANTIE....19

INFORMATIONS DE SECURITE

CONNECTER LA TABLETTE AU PC

Illustration of a laptop connected to a tablet via USB cable (no text or symbols)

Illustration of a black monitor with a blue button and a curved arrow pointing downward (no text or symbols)

8:38 Thursday, October 20 Charging, 50% Android

- FONCTIONNEMENT DE L'ECRAN TACTILE

Google 1 New York Sunny Humidity 55%, Winds WNW 8 MPH 40 °F 2012 Wed Jan 25 Emails Sibilization Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails Emails

16:19 00:14 Bigglow_Hotting_Mg_00:00 Battery: 96% 01:00 ← ← → ← → ← 16:19

- Mode de reprise de lecture (on, off).

Close-up photo of a vibrant, serpentine snake with detailed scales and vibrant coloration against a blurred green background (no text or symbols)

Grid of 16 diverse images including animals, vehicles, and food items (no text or symbols visible)

CONDITIONS DE GARANTIE

PLACING OF THE PRODUCT 21

CLEANING 22

TROUBLESHOOTING....22

IMPORTANT NOTE 22

SAFETY-ENVIRONMENT 22

INTRODUCTION 23

OPERATION 23

MAIN FEATURES....23

CONNECT THE TABLET TO YOUR PC 24

CONNECT TABLET TO YOUR TV ( ACCORDING TO MODEL ) 25

HOW TO USE TABLET 26

- TURN ON/OFF TABLET 26

- ENABLE/ DISABLE LCD 26

VIEWING THE PICTURES 30

FILE MANAGER 31

SURFING ON | NTERNET: 32

INSTALL AN APPLICATION 33

SETTINGS 34

GUARANTEE CONDITIONS 35

STOREX WEBSITE 36

WARRANTY REGISTRATION....36

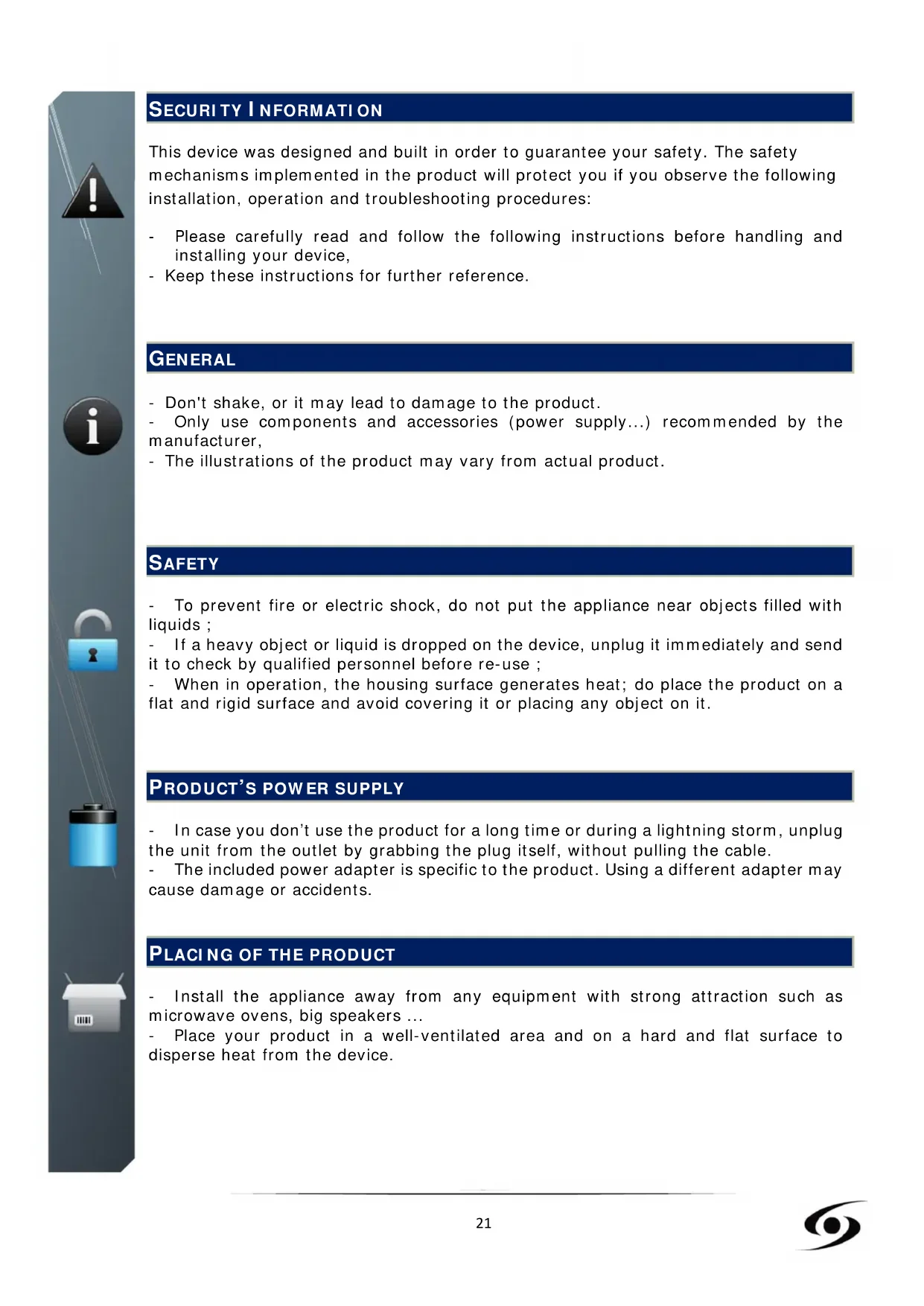

SECURITY INFORMATION

This device was designed and built in order to guarantee your safety. The safety mechanisms implemented in the product will protect you if you observe the following installation, operation and troubleshooting procedures:

• Please carefully read and follow the following instructions before handling and installing your device,
• Keep these instructions for further reference.

GENERAL

• Don't shake, or it may lead to damage to the product.
• Only use components and accessories (power supply...) recommended by the manufacturer.
• The illustrations of the product may vary from actual product.

SAFETY

• To prevent fire or electric shock, do not put the appliance near objects filled with liquids;
• If a heavy object or liquid is dropped on the device, unplug it immediately and send it to check by qualified personnel before re-use :
• When in operation, the housing surface generates heat; do place the product on a flat and rigid surface and avoid covering it or placing any object on it.

PRODUCT'S POWER SUPPLY

• In case you don't use the product for a long time or during a lightning storm, unplug the unit from the outlet by grabbing the plug itself, without pulling the cable.
• The included power adapter is specific to the product. Using a different adapter may cause damage or accidents.

PLACING OF THE PRODUCT

• Install the appliance away from any equipment with strong attraction such as microwave ovens, big speakers ...
• Place your product in a well-ventilated area and on a hard and flat surface to disperse heat from the device.

CLEANING

• Never open the product to clean, otherwise the warranty will be canceled;
• Unplug the product from the wall outlet before cleaning the product ;
• Clean the outside of the product using a soft, dry cloth. Never use an abrasive pad, scouring powder or solvent such as alcohol or gasoline.

TROUBLESHOOTING

- Refer all troubleshooting to qualified personnel. Troubleshooting is required when the appliance has been damaged in any way: plug or cord is damaged, liquid spilled into the product, introduction of small objects in the product, exposure to rain or moisture, malfunction, drop of the product...

IMPORTANT NOTE

• At full volume, for an extended period of time can damage your hearing.
• It is illegal to download music from the Internet without having bought the rights. STOREX is not responsible for the use of the STOREX product with illegal music downloading.

SAFETY-ENVIRONMENT

Your STOREX product has been laboratory tested; it complies with European guidelines corresponding to the CE labelling in force at the time of its launch.

Your STOREX product's components are traceable; this demonstrates the product's compliance to environmental guidelines (RoHS) in force at the time of its launch.

Once the product has reached the end of its lifespan, don't throw it in a dustbin. Return it to the retailer or bring it to a rubbish heap, to ensure the product is properly disposed of via a waste electrical and electronic equipment (WEEE) channel.

Your STOREX product has been prepared, tested and packaged in a French company, ISO9001: 2008 certified by an annual audit performed by a qualified person from Bureau Veritas Certification.

INTRODUCTION

Your tablet offers all the innovation of Google Android operating system for browsing and applications. Lightweight, ultra-connected, tactile..., the tablet is the answer to all your mobility needs!

On a touch screen evolving under Android 4.0, access the Internet using Wi-Fi and customize your applications through Android Market.

Your tablet is a transportable audio/video system that can play movies and music in high definition.

Your tablet becomes an authentic multimedia gateway once is connected to your TV (according to model).

OPERATION

• Your tablet allow you to watch your HD content with ease.
• Watch your movie or pictures, listen your music everywhere with your tablet.
• Transform your tablet in a multimedia gateway; connect it to your TV with the mini HDMI port.

MAIN FEATURES

• Audio connection: 3.5" output jack.
• High resolution screen.
• Integrated Card Reader (Micro SD).
• Multi-touch capacitive screen.
• PC USB port and USB Host.

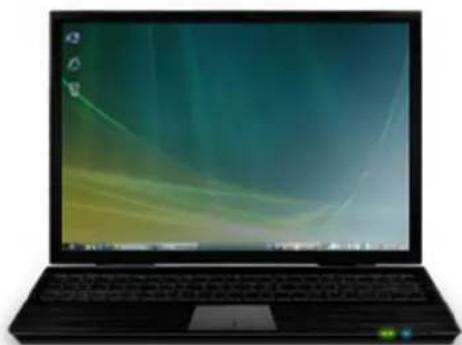

CONNECT THE TABLET TO YOUR PC

1. Turn on your tablet by pressing POWER.
2. Use the USB cable provided to connect your tablet to the USB PC port.

Black laptop computer with visible screen and keyboard, no text or symbols on screen or background

Illustration of a USB cable connected to a tablet device (no text or symbols)

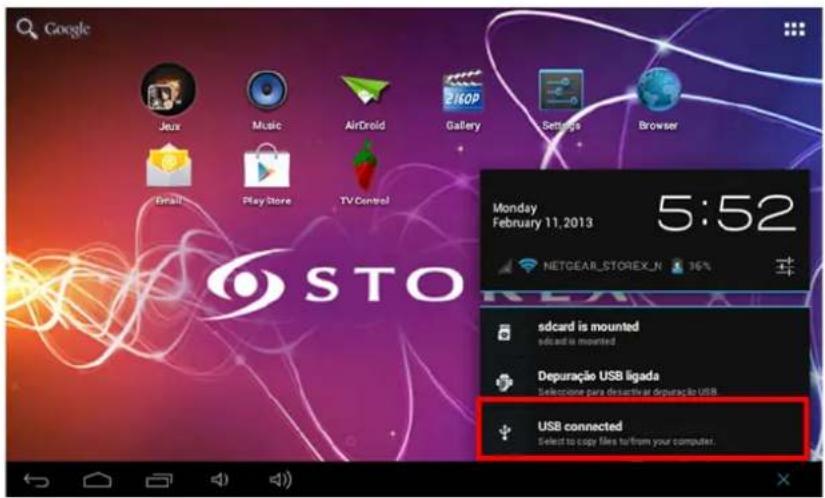

1. Verify if the USB cable is well connected on the USB port of the tablet. This one should be connected to the USB PC and not to the USB Host port.
2. Press the notification bar then select "USB connected".

Google Jeux Music AirDroid Gallery Settings Browser Email Play Store TV Control Monday February 11, 2013 5:52 NETGEAR_STOREX_N 36% sdcard is mounted sdcard is mounted Depuração USB ligada Selecione para desactivar depuração USB USB connected Select to copy files from your computer.

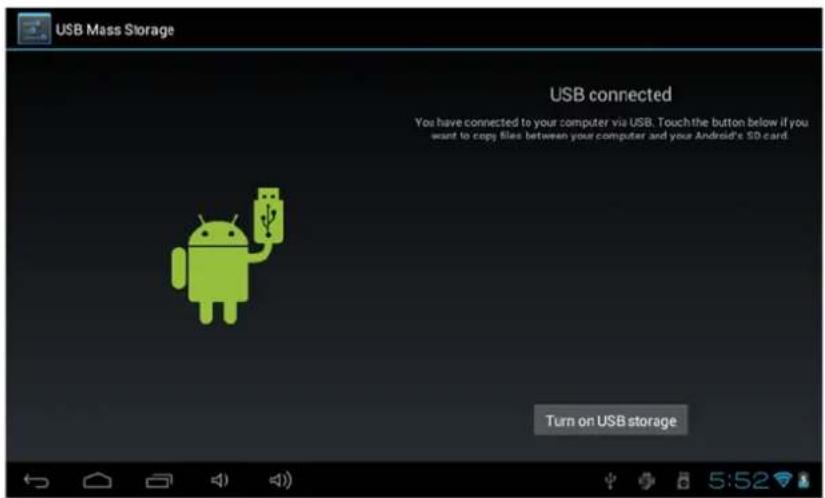

1. On the new screen, press "Turn on USB storage". The device should appears on the desktop of your PC.

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

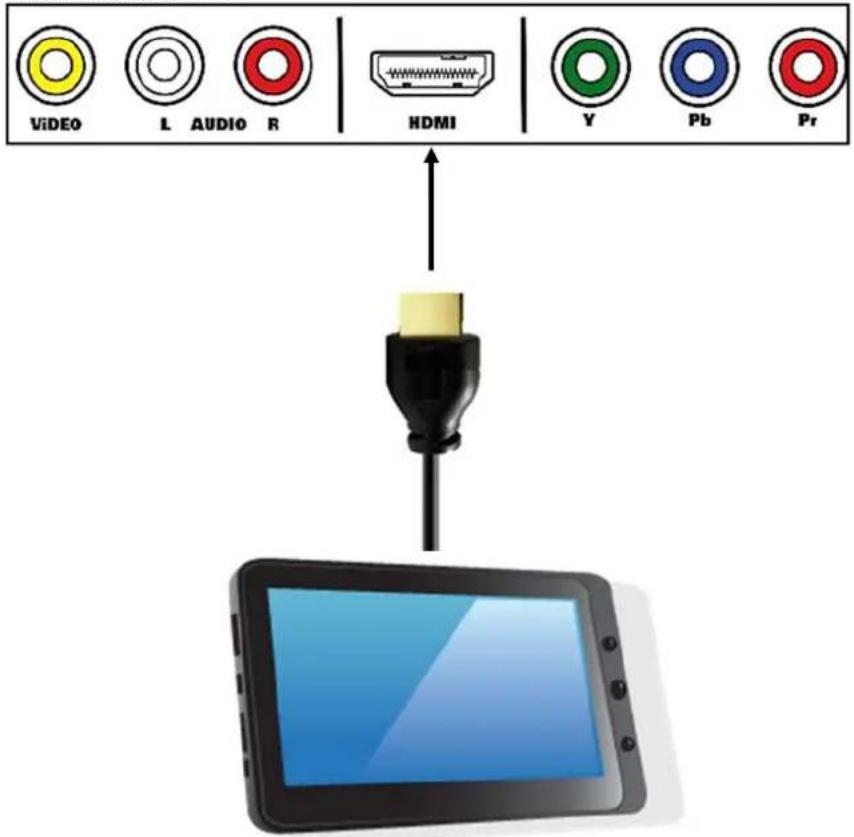

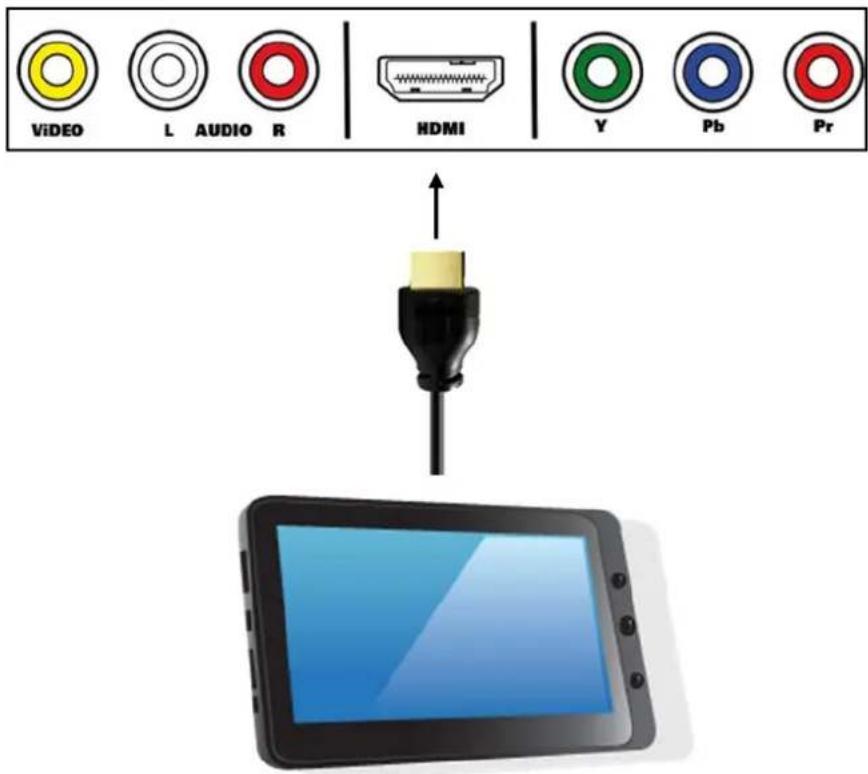

CONNECT TABLET TO YOUR TV ( ACCORDING TO MODEL )

Illustration of a black monitor with a blue dot at the front and a curved arrow pointing downward (no text or symbols)

Rear view of TV


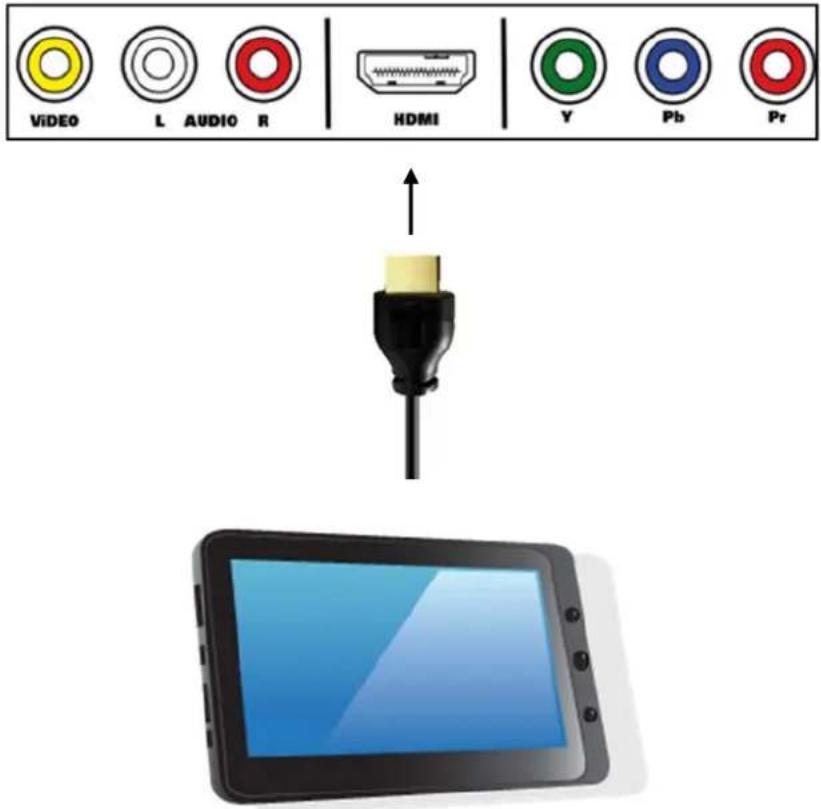

1. Connect the power supply from the wall socket to your tablet DCIN port.
2. Turn on the tablet by pressing ON.
3. Connect the HDMI cable from the unit to your TV (see illustration above).
4. Check if your TV is on the right channel, normally there is diagram to guide you (AV1, AV2, HDMI1, HDMI2...).
5. A notification will appear automatically, select the resolution by pressing it.

How to use TABLET

To turn on / off tablet, press the POWER button for 3 seconds. To turn off select "turn off the MID".

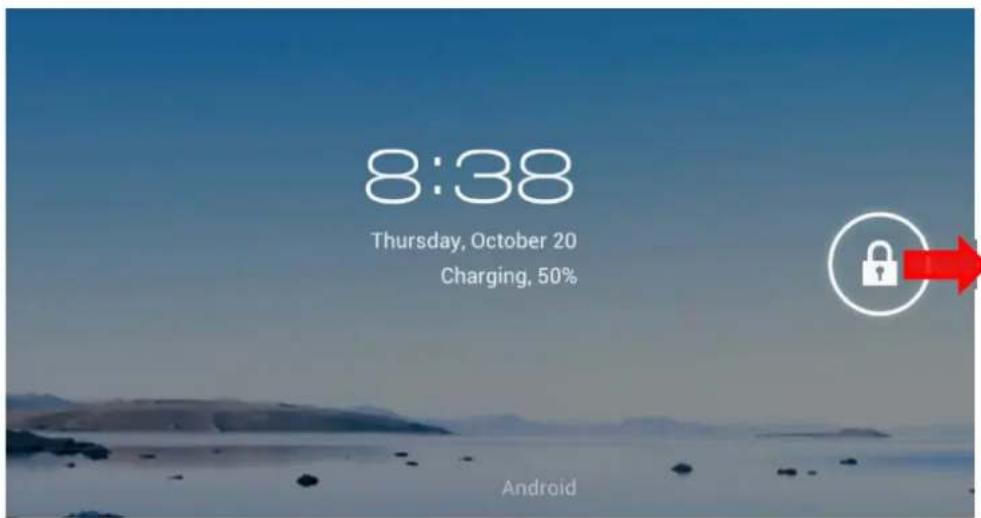

○ ENABLE/DISABLE LCD

Once the tablet is turned on, short press POWER to turn off the LCD screen, and you will save energy. To turn on the LCD screen, press POWER again.

HINT: The screen is locked when the screen is off; to unlock the screen, slide the lock icon from left to right.

8:38 Thursday, October 20 Charging, 50% Android

There are three ways to operate the screen of your tablet:

1. Touch any icon on the screen to launch the application.

2. Hold: touch any icon on the home screen and hold. For example, touch an icon on the home screen and hold, a trash icon (💡) will appear on the right screen; drag the selected icon on the trash to remove the icon from the home screen.

3. Drag: Drag your finger from left to right or vice versa to scroll the screen.

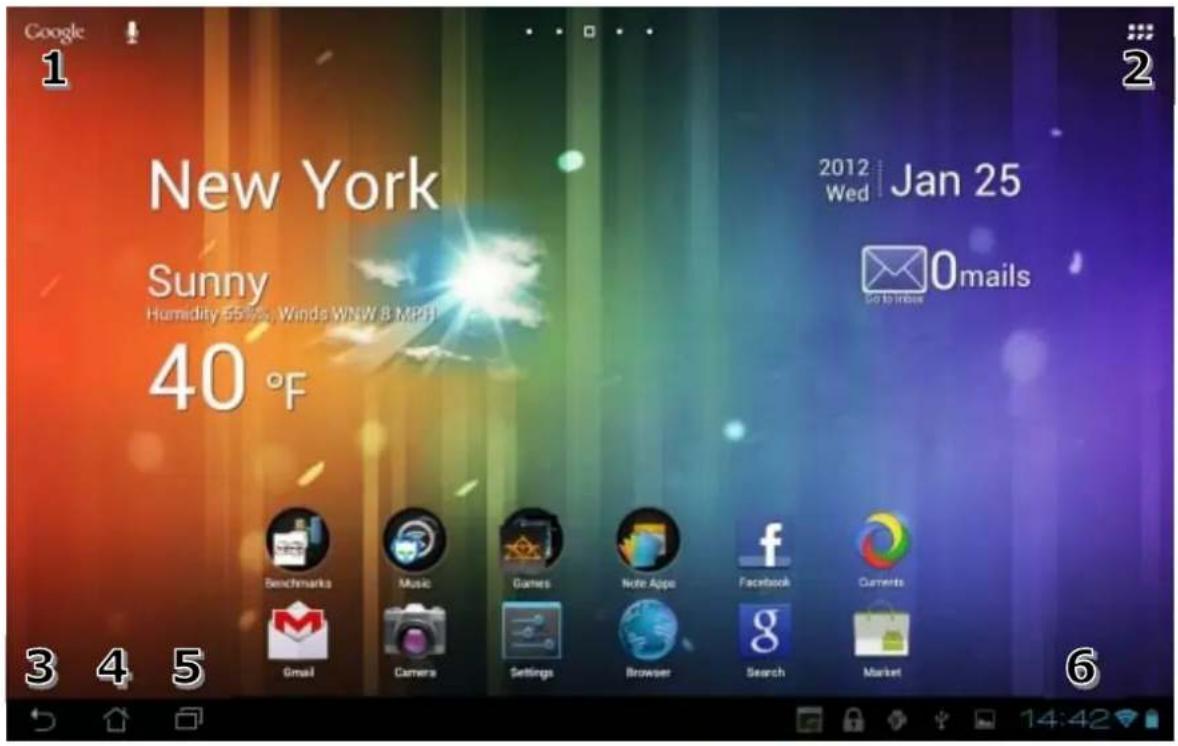

HOME PAGE

Once the tablet is turned on, the following screen will be displayed on your tablet.

Google 1 New York Sunny Humidity 65%, Winds WNW 8 MPH 40 °F 2012 Wed Jan 25 Go to Index 0mails 3 4 5 6 14:42

1	Google Search		2 Applications
3	Back 4 Home
5	Last applications	6	Notifications barClock, Battery & Wifi

* The displayed screen can change according to the applications and the backgrounds that are installed.

: Drag up to see the system notifications.

: To show the current state of the network connection, battery and

system time.

: To return to the previous page.

Press to display all the applications installed in your tablet.

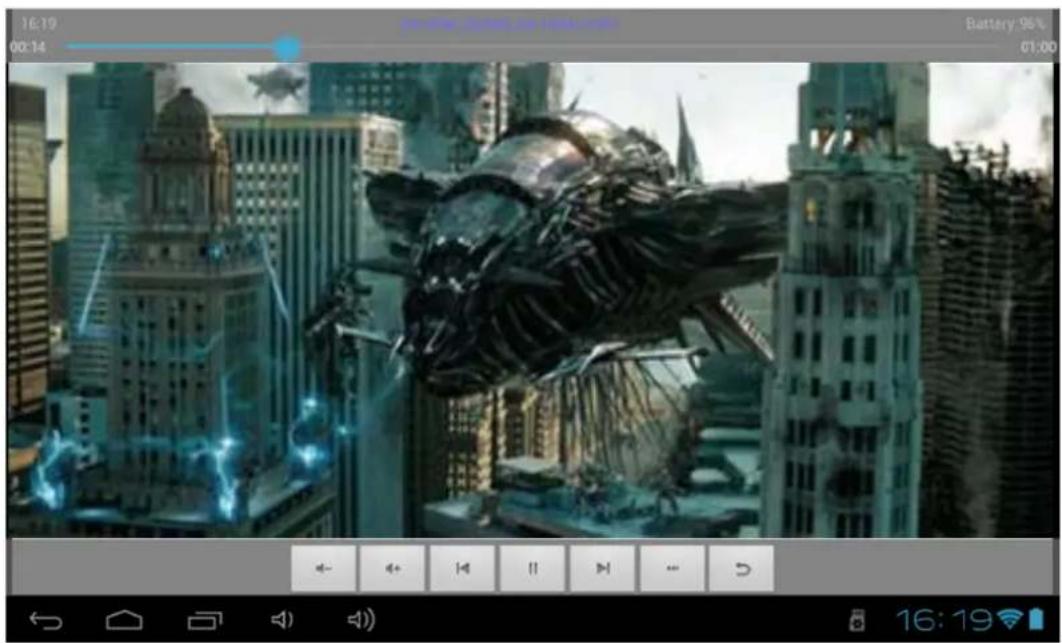

WATCH A VIDEO

On the applications page, press the icon to access the interface of the video player. Slide your finger across the screen from down to up, to scroll the list of files and press one of the desired files to start playing.

Digital game interface displaying a futuristic spaceship in a cityscape with skyscrapers and blue lighting (no readable text or symbols)

The icons in the toolbar above are the functions of the video playback:

: Press to increase or decrease the volume.

: To visualize the playback time or to move to a specific point of the video.

ss to play the previous / next video.

: Press to pause / resume playback.

: Press to display the submenu that includes the following options:

• Display mode (normal, full screen, 4:3 and 16:9).
• Resume Play mode (on, off).
• Play mode (repeat all, repeat one).
• Brightness (1, 2, 3, 4).

: Press to display the list of the files.

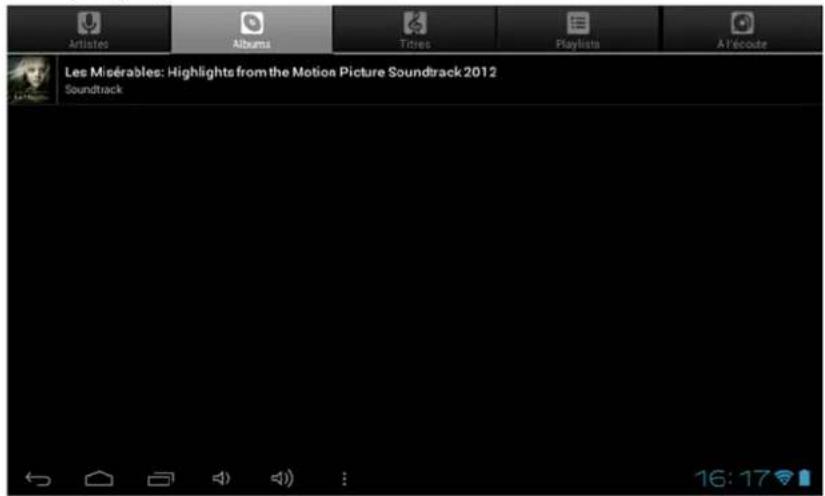

LISTEN TO MUSIC

On the applications page, press icon to access the music player interface. Slide your finger across the screen from up to down to scroll the list of files and press one of the files to start playing.

Artistes Albums Titles Playlists At l'écoute Les Misérables: Highlights from the Motion Picture Soundtrack 2012 Soundtrack

: Press to sort the songs by singer.

: Press to display all the audio files on the screen.

: Press to sort the songs by album.

: Press to see the recently added titles.

: Press to return to the previous screen.

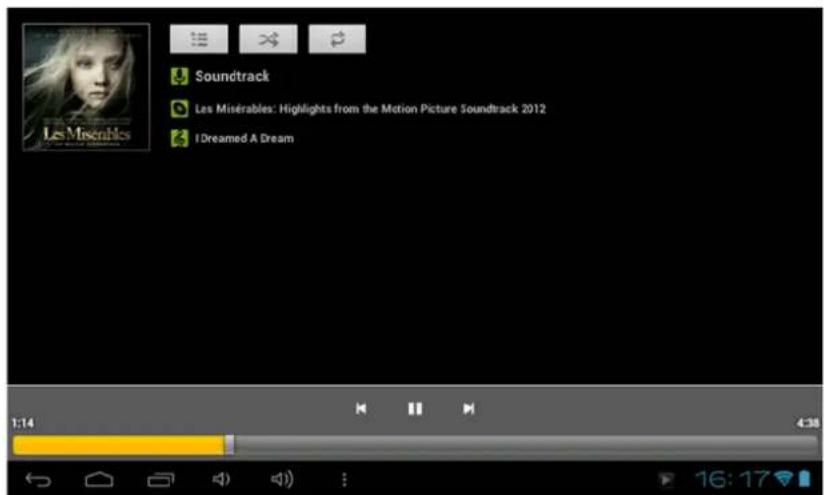

Slide your finger across the screen from top to bottom to display the list and press any to access the audio interface to as follows:

Soundtrack Les Misérables: Highlights from the Motion Picture Soundtrack 2012 I Dreamed A Dream

The icons in the toolbar above are functions of the audio playback:

: To visualize the playback time or to move to a specific point of the audio file.

press to play the previous or next music.

■/▶: Press to pause or resume playback.

: Press to display the list of audio files.

: Press to enable / disable the shuffle.

Press to set the repeat mode, repeat all, repeat one or deactivate.

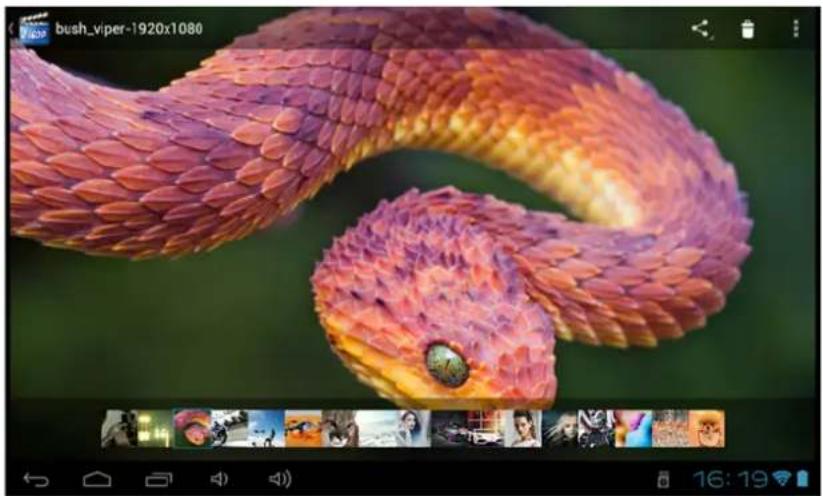

VIEWING THE PICTURES

On the applications page, press icon to access the picture player interface. The picture player interface is displayed below:

Close-up photo of a vibrant, serpentine snake with detailed scales and eye (no text or symbols visible)

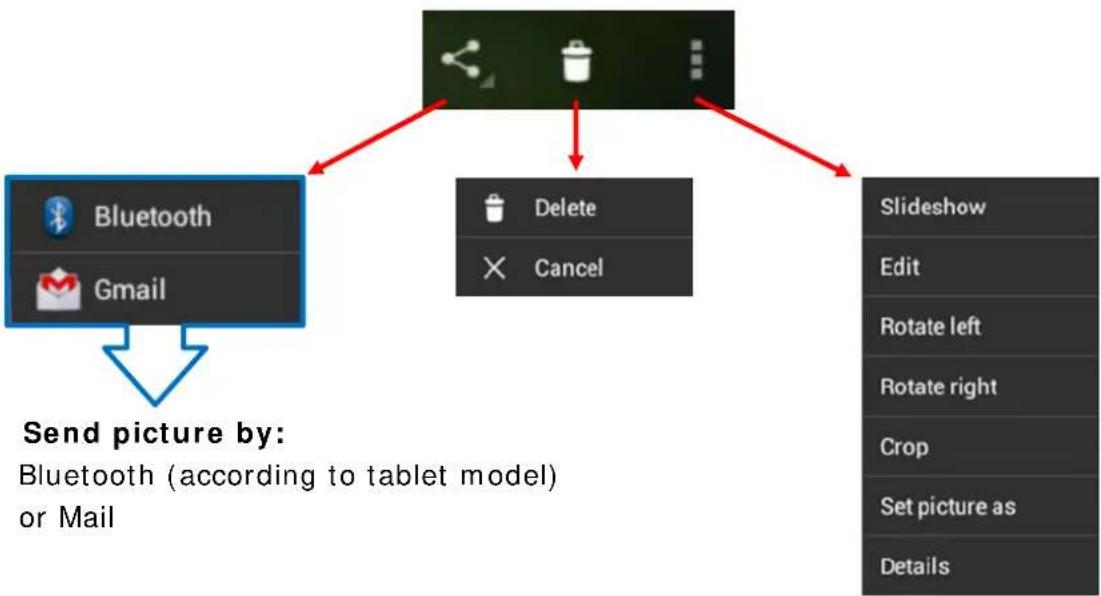

The icons of the toolbar displayed on the interface above have the following functions:

THUMBNAIL BANNER :

Row of 15 diverse fashion and beauty product images including accessories, toys, and cars (no visible text or symbols)

This panel allows you to easily select your photos stored on your tablet. Just press the thumbnail to view it in full screen.

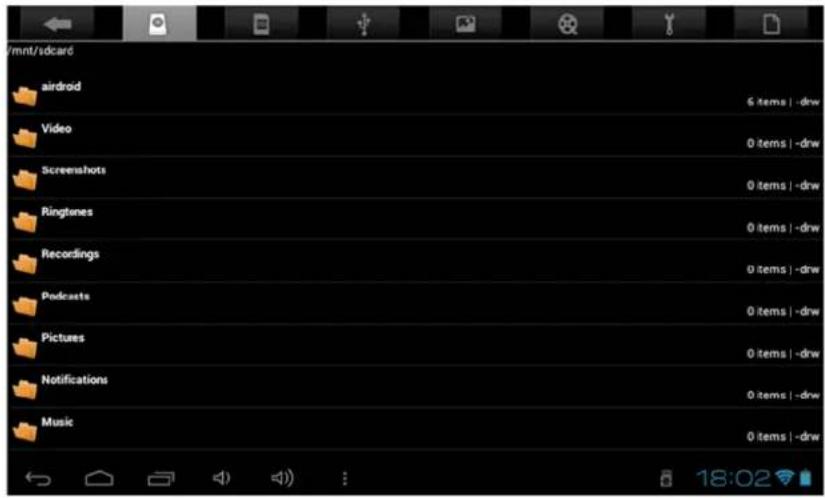

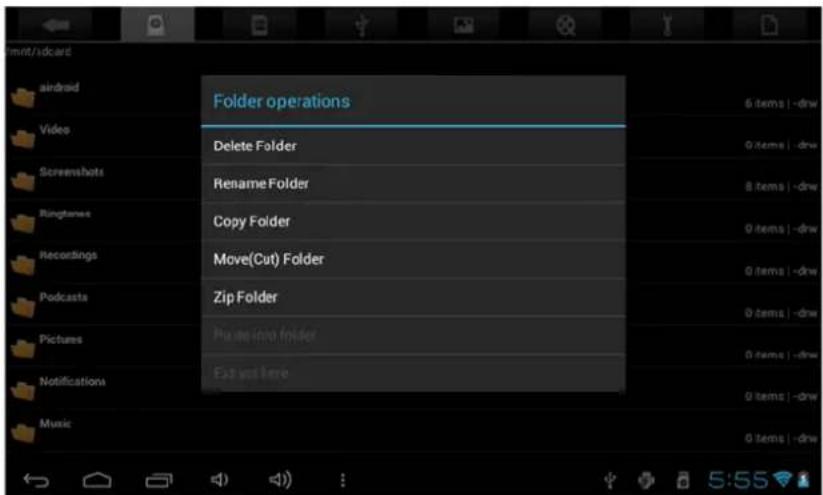

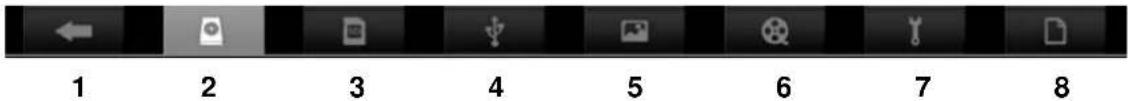

FILE MANAGER

On the applications page, press icon to access the file manager interface. The file manager interface is shown below:

/mnt/sdcard airdroid 6 items | -drw Video 0 items | -drw Screenshots 0 items | -drw Ringtunes 0 items | -drw Recordings 0 items | -drw Podcasts 0 items | -drw Pictures 0 items | -drw Notifications 0 items | -drw Music 0 items | -drw

1 2 3 4 5 6 7 8

1. To return to the previous page.
2. Allows you to select the SD card.
3. Select the USB storage.
4. To show picture files.
5. To show all video files.
6. Provides access to the settings of the application.
7. To display the copy, paste, and move options.

In order to copy, paste, move, delete, or rename a file/folder, press the file/folder in question, the following window will appear with different options:

Folder operations Delete Folder Rename Folder Copy Folder Move(Cut) Folder Zip Folder Picture into folder Extr not here 6 items | drive 0 items | drive 8 items | drive 0 items | drive 0 items | drive 0 items | drive 0 items | drive 5:55

SURFING ON INTERNET:

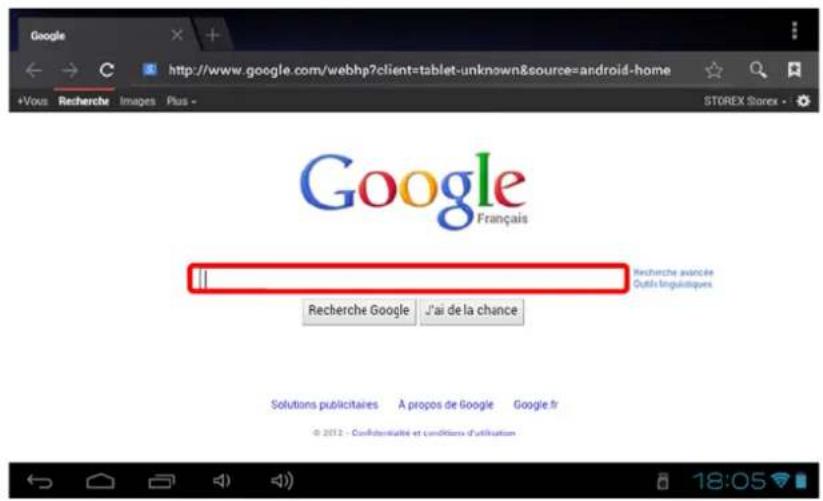

On the home page, press icon to open the internet browser.

Press the above part to reveal the virtual keyboard. Once the text has been entered, press OK to start the research.

a 1 z 2 e 3 r 4 t 5 y 6 u 7 i 8 o 9 p q s d f g h j k l m ▲ w x c v b n ' × ?123 Ⓤ , — . OK

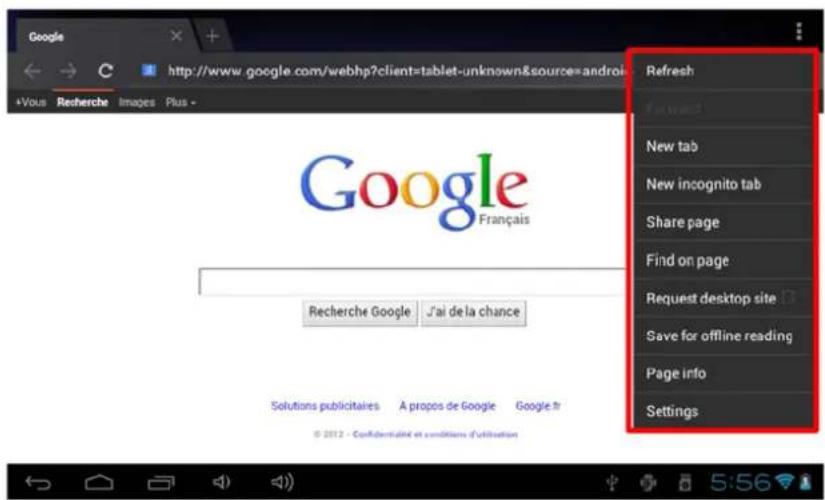

Press 📄 display the menu below.

Google http://www.google.com/webhp?client=tablet-unknown&source=android +Vous Recherche Images Plus - Google Français Recherche Google J'ai de la chance Refresh New tab New incognito tab Share page Find on page Request desktop site Save for offline reading Page info Settings Solutions publicitaires A propos de Google Google fr © 2012 - Confidentialité et conditions d'utilisation

INSTALL AN APPLICATION

On the applications page, tap on the icon to access the file manager interface. The manager files interface is shown below:

/mnt/sdcard vav_tr_release_last.apk 941,17 Kb | -rw z4roct.1.3.0.apk 955,48 Kb | -rw Ubuntu_installer_for_Android_v1.0.apk 1,22 Mb | -rw WiFi Mouse HD.apk 1,78 Mb | -rw Stores.apk 169,62 Kb | -rw Blackmart v0.99.2.38.apk 1,13 Mb | -rw RemoteIME20120616 .apk 492,61 Kb | -rw TVControl.apk 304 Mb | -rw WIFClient4.0.apk 838 Mb | -rw

Select your .apk (installation file) file by pressing on it. The window below should appear.

Android Ubuntu Installer Do you want to install this application? Allow this application to: • Storage modify/delete 3D card contents • Your location fire (GPS) location, mock location sources for testing • Network communication full Internet access • Services that cost you money directly call phone numbers Show all Cancel Install

Press "Install" to install the application on your device. Press "OK" to complete the installation or "Open" if you want to launch it.

NOTE: Some applications may not compatible with the version of the operating system.

If the installation of the application is refused, go to "Settings" → "Security" and then select "Unknown Sources".

SETTINGS

On the home page, press to enter the system settings. You can then adjust the settings below:

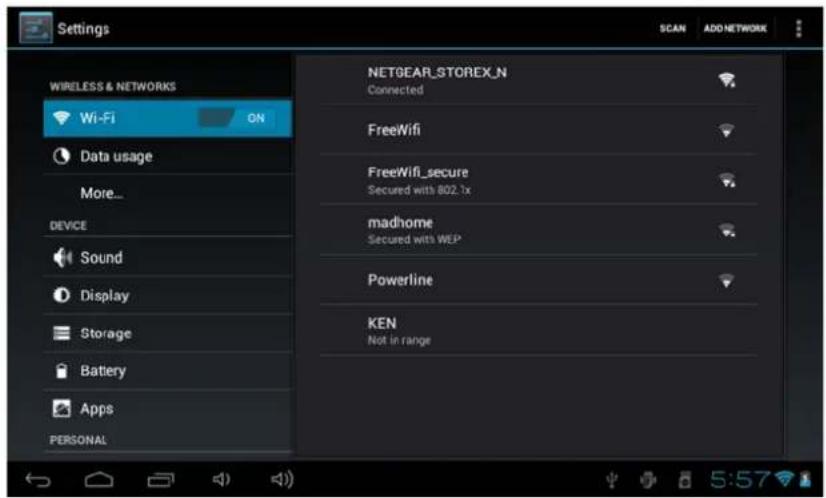

To set up the wireless connection press the "Wi-Fi" option to activate.

Select your Wireless network name (SSID) by pressing on it.

Settings WIRELESS & NETWORKS Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL NETGEAR_STOREX_N Connected FreeWifi FreeWifi_secure Secured with 802.1x madhome Secured with WEP Powerline KEN Not in range

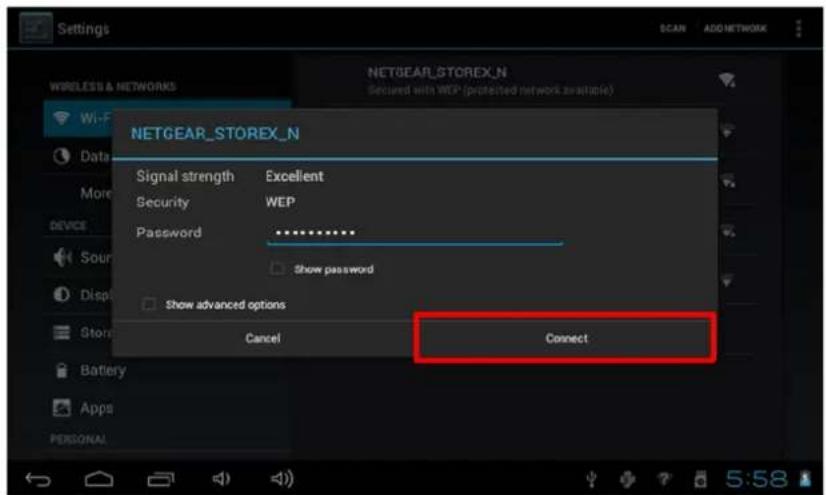

Select the security mode of your network, and then enter the security key. Once the data is entered press "Connect".

NETGEAR_STOREX_N Wi-Fi Data More Device Source Display Store Battery Apps PERSONAL SCAN ADD NETWORK NETGEAR_STOREX_N Secured with WEP (protected network available) Signal strength Excellent Security WEP Password Show password Show advanced options Cancel Connect

Other options are available in the settings page:

• Sound: To set the volume of notifications and applications.
• Display: Allows you to adjust the brightness of the screen and the rotation of it.
• Storage: To check the status of the internal memory storage, USB or SD card.
• Applications: To manage your applications (uninstall, move, or delete data).
• ...

GUARANTEE CONDITIONS

STOREX's available guarantee is valid for 1 year for tablet and 3 months long for its accessories (remote control, AV cables, power supply ...).

STOREX guarantees your products against any manufacturing or assembling faults. This guarantee only applies to the first purchase of the tablet by the end user and is not transferable if the device is resold. This warranty does not cover any incompatibilities found by end user apart from recommendations specified on the packaging, or any other incompatibility generated by other hardware or software on the computer that is connected to the tablet.

Proof of purchase must be presented to our services to apply STOREX guarantee.

The guarantee doesn't cover failures or defects induced by non-compliance to this manual's instructions, neglect, alteration, improper installation or maintenance, reparation or alteration not authorized by STOREX, improper tests, accident or external factor such as (not exhaustive) excessive heat or dampness, power failures or bad installation / uninstalling of tablet.

The only contractual obligation endorsed by STOREX pertains to the reparation or replacement of a defective product. In no case, STOREX cannot be held responsible for any loss of data, or its consequences induced by operational fault or a product failure. In any case, STOREX won't be bound to any financial responsibility for any amount exceeding the value of the product purchased by the end user.

This guarantee is well defined and cannot be modified, decreased or increased without written consent from STOREX. In addition, STOREX cannot be held responsible for any technical advice or service provided in relation to tablet.

For any request not covered by this guarantee, please contact STOREX support or log on to www.e-storex.com to order accessories.

You are not the grantee of this current warranty. This warranty covers only your tablet and is governed by French law.

Note:

STOREX ^TM reserves the right to modify the user manual without prior notice according to the product's evolutions. You can find the latest version of the manual on our website: http://www.storex.eu

STOREX WEBSITE

Go to http://www.storex.eu.

Select "Multimedia Tablet" and then select tablet. You will be able to download the latest full version of the manual and software updates.

WARRANTY REGISTRATION

In order to facilitate the management of your issue, should you contact our support team, we invite you to register your tablet guarantee on our website at the following address:

http://garantie.storex.eu

For repairing, contact your dealer to repair your tablet under guarantee, or send your request via email to the following address:

[e-mail]

or by phone at:

France: 01 55 85 82 00 (local call charge to Paris)

Spain: 902 110 572 ([e-mail])

Portugal: 707 20 14 20 ([e-mail])

England: ([e-mail])

Monday to Thursday from 9:30 to 19:30.

Friday from 9:30 to 18:30.

TABLA DE CONTENIDOS

Illustration of a laptop connected to a tablet via USB cable (no text or symbols)

Illustration of a black monitor with a blue indicator light and a curved arrow pointing downward (no text or symbols)

8:38 Thursday, October 20 Charging, 50% Android

Google 1 New York Sunny Humidity 55%, Winds WNW 8 MHz 40 °F 2012 Wed Jan 25 Go to Mail 0mails Benchmarks Music Games Note Apps Facebook Currents Email Camera Settings Browser Search Market 3 4 5 6 14:42

Digital game interface displaying a futuristic spaceship on a cityscape with skyscrapers and a helicopter overhead (no readable text or symbols)

Close-up photo of a vibrant, serpentine snake with detailed scales and eye (no text or symbols visible)

Row of 15 diverse personal photos including animals, cars, and a bird (no text or symbols visible)

Folder operations Delete Folder Rename Folder Copy Folder Move(Cut) Folder Zip Folder Paste into Folder Extract here

NAVEGAR POR INTERNET

Illustration of a laptop connected to a tablet via USB cable (no text or symbols)

Illustration of a black monitor with a blue button and a curved arrow pointing downward, symbolizing download or transfer (no text or symbols present)

Traseira TV

VIDEO L AUDIO R HDMI Y Pb Pr

8:38 Thursday, October 20 Charging, 50% Android

Google 1 New York Sunny Humidity 55%, Winds WNW 8 MPH 40 °F 2012 Wed Jan 25 Emails Up to Invest Benchmarks Music Games Note Apps Facebook Currents Gmail Cameras Settings Browser Search Market 3 4 5 6 14:42

16:19 00:14 Battery:96% 01:00 ← ← → ← → ← 16:19

- Modo de retoma de leitura (on, off).

- Modo de leitura (repetir tudo, repetir um).

Close-up of a pair of headphones on a plain background (no text or symbols visible)

OUVIR MÚSICA

Close-up of a vibrant, serpentine snake with detailed scales and eye (no text or symbols visible)

Row of 16 diverse images including animals, cars, and food items (no text or symbols visible)

Folder operations Delete Folder Rename Folder Copy Folder Move(Cut) Folder Zip Folder Paste into folder Extract here 6 items | drive 0 items | drive 8 items | drive 0 items | drive 0 items | drive 0 items | drive 5:55

NAVEGAR NA INTERNET:

Illustration of a laptop connected to a tablet via USB cable (no text or symbols)

Illustration of a computer monitor with a curved arrow pointing to it, symbolizing download or transfer (no text or symbols present)

ViDEO L AUDIO R HDMI Y Pb Pr

8:38 Thursday, October 20 Charging, 50% Android

Google 1 New York Sunny Humidity 55%, Winds WNW & MPB 40 °F 2012 Wed Jan 25 Emails Go to Web 3 4 5 6 14:42

16:19 00:14 86. white, battery, 45. music video Battery: 96% 01:00 16:19

Close-up of a vibrant, serpentine snake with detailed scales and vibrant coloration against a green background (no text or symbols)

Grid of 16 diverse image thumbnails including animals, landscapes, and cars (no text or symbols)

Venerdì 9:30-18:30 p.m.

STOREX
