BC1500 - Kitchen scales UFESA - Free user manual and instructions

Product type	Kitchen scale
Brand	Ufesa
Model	BC1500
Maximum capacity	5000 g (5 kg)
Precision	± 1 g
Units of measurement	g, ml, lb, oz, fl oz
Power supply	2 CR2032 batteries
Automatic shut-off	After 60 seconds of inactivity
Tare function	Yes
Weighing platform	Metal
Anti-slip feet	Yes (rubber)
Display screen	Digital
Housing material	Plastic
Cleaning	Damp cloth, do not immerse
Safety	Do not use on carpet, do not exceed 5 kg, do not expose to moisture
Standards	CE, electromagnetic compatibility (2004/108/EC)
Battery compartment	Under the scale
Recommended use	Hard and flat surface
Symbol display	TARE, LO (low battery), EEEE (overload)
Warranty	Not specified

Frequently Asked Questions - BC1500 UFESA

How to turn on the Ufesa BC1500 scale?

Press the power button (3) to turn on the device. Wait for the '0' symbol to appear on the screen.

How to change the weight unit?

Press the Unit button (2) until the desired unit (g, ml, lb, oz, fl oz) is displayed.

How to use the tare function?

Place an empty container on the scale, then press the zero button (3) to reset the weight to zero. The TARE symbol appears if the container weighs more than 600 g.

What does the 'EEEE' display mean?

The 'EEEE' display indicates an overload. Immediately remove the weighed product to avoid damaging the scale. The maximum capacity is 5000 g.

What to do if the screen shows a battery symbol?

The battery symbol indicates that the batteries are low. Replace both CR2032 batteries, respecting the polarity.

How to replace the batteries?

Open the battery compartment under the scale, remove the old batteries and insert two new CR2032 batteries, respecting the polarity. Close the cover.

Can I weigh liquids?

Yes, you can weigh liquids in a suitable container. Use the tare function to subtract the weight of the container. Avoid any contact of liquids with the scale.

What is the maximum capacity of the scale?

The maximum capacity is 5000 g (5 kg). Do not exceed this limit to avoid damaging the device.

How to clean the scale?

Clean the scale with a slightly damp cloth. Never immerse the scale in water and do not use corrosive chemicals.

Does the scale turn off automatically?

Yes, the scale turns off automatically after about 60 seconds of inactivity to save batteries. You can also turn it off manually by holding the power button for 2 seconds.

USER MANUAL BC1500 UFESA

Congratulations on your choice of our appliance, welcome among the users of ufasa products.

In order to achieve best possible results we recommend using exclusively original ubesa accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Handling instructions

Do not hit Do not use or store in humid

Do not immerse in water

Technical parameters

Technical parameters are shown on the rating plate. Measurement accuracy: ± 1g

Capacity: 2g - 5000g

Battery: 2 × CR2032.

The appliance meets the requirements of the applicable standards.

The appliance is compliant with the requirements of the following directives:

Electromagnetic compatibility (EMC) - 2004/108/EC.

The CE mark is shown on the product's rating plate.

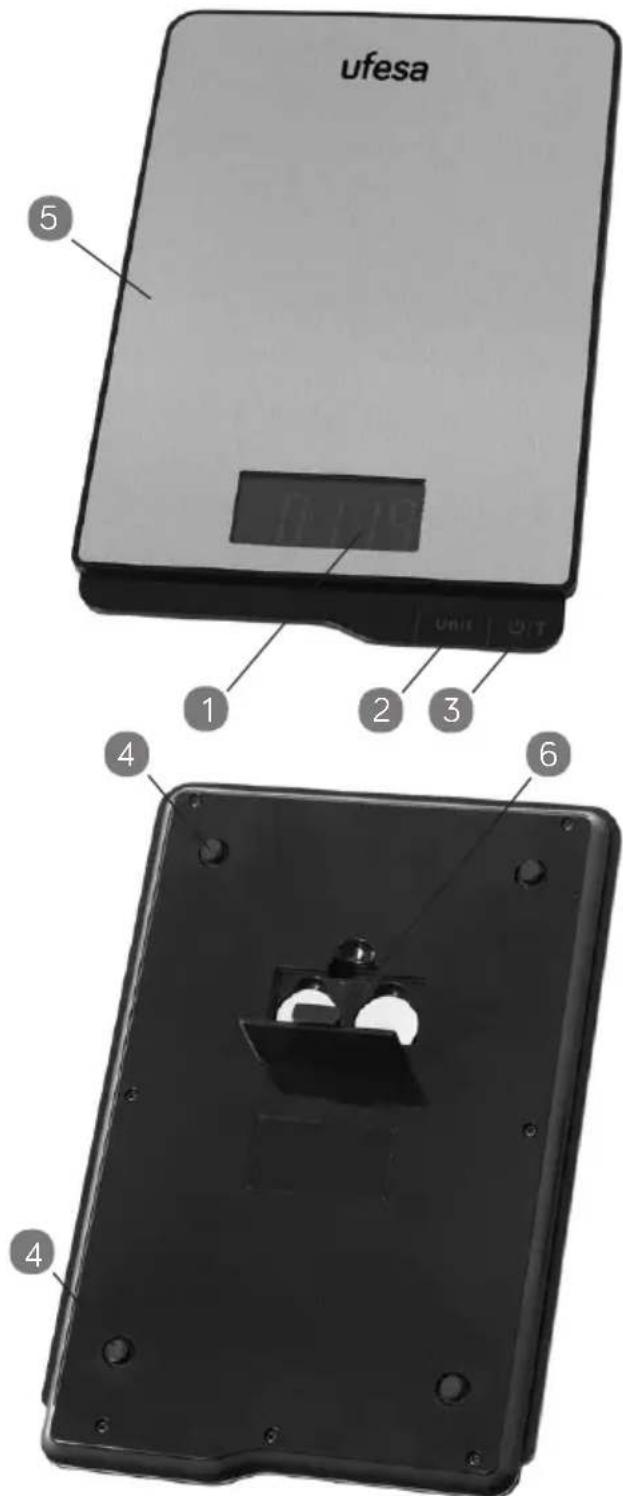

Features

Electronic display
Weight unit conversion button Unit
3 On/Off \ Reset (Tare) button
4 Rubber feet
Metal weighing platform
6 Battery compartment

Operation and Performance

Before the first use

1 Remove the scales from the packaging.
2 Remove the battery protection (see "Battery Replacement").

Operation

1 Place the scales on a hard, level surface. Do not use the appliance on carpets or any soft surfaces.
2 Press the button (3) to switch on the appliance.
Wait until the display shows.
4 Select the required weight unit (see "Weight Unit Selection").
When the weighing has been completed, press the U T (3) button and hold it for about 2 seconds to switch off the appliance.

Warning indicators

The battery must be replaced - will appear on the display. The scales will switch off automatically after several seconds.

Weight overload - the display will show .EEE Remove the item in order not to damage the scales.

Do not exceed the maximum capacity of 5000g (5 kg).

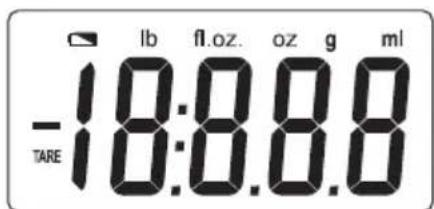

Display - symbols

• • negative value

TARE - reset (tare)
lb oz - pounds, ounces
fl oz. - ounces
g - grams
ml - millilitres

"-" will appear on the display when the tare function is used or when the tared container or another item is removed from the scales.

Description of functions

Weighing

Press the button (3) to switch on the appliance.
Wait until the display shows.
3 Select the required weight unit (see "Weight Unit Selection").
4 Place the items that you wish to weigh on the metal weighing platform (Do not exceed the maximum capacity of 5000 g!).

500

Reset (tare)

When the appliance is on, and the display shows, place a plate, bowl or another container on the scales and press the button (3) to reset the scales.

The "TARE" symbol will only be shown if the container is heavier than 600 g.

Automatic switch-off

The appliance will switch off automatically if no operation is carried out for approx. 60 seconds.

To maximize the life of batteries, it is recommended to switch off the scales when you have finished the operation.

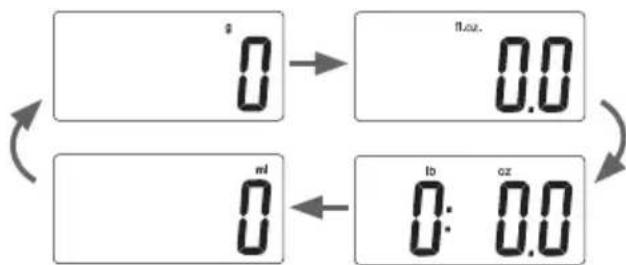

Weight unit selection

The appliance has a weight unit selection function. To change the unit, press the Unitersion button (2) until the required unit appears on the display.

Battery replacement

You will find the battery compartment at the bottom of the scales. Open the compartment and remove battery protection before the first use.

To replace the batteries, remove the compartment lid (6) and take the used batteries out.
2 Replace the old batteries with two new CR2032 batteries. Make sure that the + / - terminals are the correct way round.
3 Close the compartment lid.

Cleaning and Maintenance

Clean the appliance with a slightly damp cloth. Do not immerse the scales in water. Do not use caustic chemical detergents.

All plastic components should be cleaned immediately if soiled with grease, spices, vinegar or food with an intensive taste/colour. A contact with sour citric fruit juices should be avoided.

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials.

This product complies with EU Directive 2002/96/EC. The crossed wheelie bin symbol shown on the appliance indicates that when it comes to dispose of the product it

must not be included in with household refuse. It must be taken to a special refuse collection point for electric and electronic appliances or returned to the distributor when purchasing a similar appliance. Under current refuse disposal regulations, users who fail to take discarded appliances to special refuse collection points may be penalised. Correct disposal of discarded appliances means that they can be recycled and processed ecologically, helping the environment and allowing materials used in the product to be reused. For more information on available waste disposal schemes contact your local refuse service or the shop where the product was purchased. Manufacturers and importers are responsible for ecological recycling, processing and disposal of products, whether directly or via a public system.

Your local town council can provide you with information about how to dispose of obsolete appliances.

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling. The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
