Sicherheitshinweise

Eine Störung, was tun?

Achtung!

This appliance is intended for domestic use or for household-based, non-commercial applications. Household-based applications include, e.g. usage in employees catering facilities for shops, offices, agricultural and other commercial operations, as well as usage by guests of guest houses, small hotels and similar residential establishments.

Install and operate the appliance as described in the text and illustrations. We do not accept liability for damage resulting from failure to heed these instructions.
This appliance is intended for use up to an altitude of 2000m above sea level.
The appliance may only be installed and stored in a frost-free room (due to residual water).

Risk of electric shock!
Switch off the mains voltage supply immediately if a fault occurs (DE05101, DE06101, DE06111, DE08101, DE08111) or disconnect the plug from the mains supply (DE04101, DE10104).
Immediately shut off the cold water supply to the appliance should it leak.

The appliance may only be connected and put into operation by a qualified professional.
In order to avoid potential sources of danger, repairs and maintenance may only be undertaken by a suitably qualified specialist.
- Shut off the water supply before connecting the appliance. The electrical connection must be disconnected from the mains supply. Unscrew the fuse or switch off the circuit breaker.
Never open the appliance without disconnecting the power supply beforehand.
Only connect the continuousflow heater to a cold water line.
Connect the water supply first, circulate water through the appliance and then connect the electrical supply.
Observe the statutory regulations as well as the connection regulations of the electrical and water utility companies.
Compliance with the IEC60364-7-701 (DIN VDE 0100 Part 701) must be observed during installation of the appliance or the electrical accessories.

During installation, an all-pole separator must be fitted with a minimum contact gap of 3mm
The continuous-flow heater is a Class I appliance and must be connected to the protective earth.
Permanently installed appliances must be permanently connected to fixed wiring. The conductor cross-section must comply with the appliance being installed.
Caution: Earthy water pipes may give the appearance of a connected protective earth.
The continuous-flow heater is suitable for connection to DVGW-tested plastic pipes.
After installation, electrically live parts must be touch protected.
The appliance should be disconnected from the electrical mains supply when working on the water supply. After service work is complete, proceed as during the first-time appliance start-up.
No changes may be made to the appliance.

This appliance can be used by children aged 8 years and older as well as by persons with diminished bodily, sensory or mental perception, or those who lack knowledge or experience, if they are monitored or have received instruction concerning use and comprehend the possible dangers that can result. Children may not play with the appliance. Cleaning and maintenance by the user may not be performed by unsupervised children.

• Keep children away from the appliance.
  Please monitor children to ensure that they do not play with the appliance.
  The warm water pipe may be hot. Please inform and instruct children appropriately.
  If the power cord of this unit is damaged, it must be replaced by the manufacturer, an authorised servicing agent or a similarly qualified person so as to avoid danger.
  Do not use aggressive or abrasive cleaning detergents!
  Do not use a steam cleaner.
  The appliance is only to be descaled by a suitably qualified specialist.

Congratulations on purchasing this Siemens appliance. You have acquired a top-quality product, which will give you a lot of enjoyment.

Please read this installation and operating instruction manual carefully, then act accordingly! Store for future reference.

Installation instructions

Install the continuous-flow heater as described in the illustrated section. Observe the instructions in the text.

The illustrations can be found in the centre of the instruction manual.

Unpacking

Inspect the new appliance for transport damage!
Please dispose of the packaging, and if applicable, the old appliance in an environmentally-friendly manner.

Scope of delivery

1 Housing
2 Mounting (3 screws, 3 wall plugs)
3 Operation indicator (only on DE06111 and DE08111)
4 Installation bracket
5 Mounting bracket
6 Aerator
7 Documentation

Product description

The electronic continuous-flow heater is suitable for both open (unpressurised) and closed (pressurised) connections. It heats the water as it passes through the appliance.

The continuous-flow heater switches on and heats the water when the warm water tap is opened. It switches off as soon as the tap is closed.

The appliance may not be operated with pre-heated water, as otherwise the overtemperature protection will trip.

This installation and operating instruction manual describes various appliance types:

Over-sink appliances:

• DE06111 and DE08111: for fixed electrical connection

Undersink appliances:

• DE04101 and DE10104: with plug connection
• DE05101, DE06101 and DE08101: for fixed electrical connection

Only for permanently installed appliances:

The device is compliant to IEC 61000-3-12.

Preparations for installation

Shut off the water supply before connecting the appliance. The electrical connection must be disconnected from the mains supply. Un-screw the fuse or switch off the circuit breaker.

For all appliances

A clearance of about 60~mm on all sides of the appliance is required for installation.

Observe the technical appliance data.
Break out the installation bracket from the rear of the appliance (A).

Only for DE04101 and DE10104

Break out one of the side knock-outs (B1) provided for an incoming electrical supply cable.
Feed the desired length of the incoming electrical supply cable downwards through the knockout (B2).
Important: Connect the unit only to a mains socket with protective contact that is installed according to regulations. Do not use an extension cord. If necessary, equip the unit with a longer cord.

Only for DE05101, DE06101, DE06111, DE08101 and DE08111 (fixed electrical connection)

Press the upper and lower latches (C1), then remove the housing cover (C2).

Wall mounting

Undersink appliances

• Attach mounting template D to the wall.
  Mark the locations for the holes; drill the holes and insert the wall plugs.
• Attach the installation bracket to the wall using the screws (D1).

Only for permanently installed appliances:

Pass the connection cable through the cable grommet, suspend the appliance in the installation bracket and screw it onto the mounting bracket (D2).

Only for appliances with mains plug:

• Suspend the appliance in the installation bracket and screw it onto the mounting bracket (D3).

Over-sink appliances

• Attach mounting template E to the wall.
  ■ Mark the locations for the holes; drill the holes and insert the wall plugs.
• Attach the installation bracket to the wall (E1).
  Pass the connection cable through the cable grommet, suspend the appliance in the installation bracket and screw it onto the mounting bracket (E2).

Only for DE05101, DE06101, DE06111, DE08101 and DE08111 (fixed electrical connection)

The variants for feed through of cables using flush mounting electrical connection should be observed on the mounting template.
The cable grommet must completely enclose the connection cable to guarantee optimum protection against dampness. The opening must be sealed watertight if it is damaged.
Use the openings provided on the rear for mounting.

Water connection

Left: pressurised (closed);

right: unpressurised (open)

The appliance is only approved for heating water with a specific electric resistance of ≥ 1300 cm at 15^ . Your water utility company can give you information about the specific water resistance.

Installation

Ensure the axial fit of the connection pipes in the nozzles.
- Tighten the union nuts on the nozzles with an open-end wrench and counter hold with a suitable open-end wrench.
The T-piece (for the pressurised connection) and flexible connection hose are available commercially.
Only the approved unpressurised valves may be used when connecting without pressure (Special accessories: Single-lever mixer tap BZ13062, Two handle fixture BZ13051).
Exchange the perlator from the tap fixture with the supplied aerator to change the spray pattern of the tap.

Controlling temperature

The supply temperature (probably lower in winter) and pressure fluctuations can influence the temperature of the water leaving the tap.

Turn the valve slowly in the closed direction for higher temperatures (F1).
Add cold water for lower temperatures (F2).

Electrical connection

DE05101, DE06101, DE06111, DE08101 and DE08111 (fixed electrical connection)

Connect the appliance on the terminal strip in accordance with the connection schematic.
Put on the housing cover and push it onto the rear wall of the appliance so that the upper and lower latches engage.

DE04101 and DE10104

Replacing the Power Supply Cord:

The power supply cord must be replaced by our customer service only in order to avoid a hazard. The mains plug must be pulled before replacing.

For all appliances

Vent the continuous-flow heater: Fully open the warm water tap and flush out the appliance for about 1 minute (G), until bubbles no longer emerge.

After installation

DE05101, DE06101, DE06111, DE08101 and DE08111 (fixed electrical connection) Switch on the fuses.

DE04101 and DE10104

Insert the plug into the mains socket.

First start-up

Initial rinsing

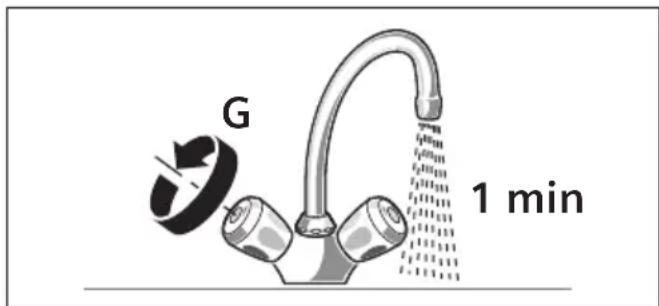

• Open the warm water tap and allow water to flow for at least 1 minute (flow-rate at least 2 litres per minute). Only then (for safety reasons) will the appliance begin to heat.

Info: The appliance will not heat if the dispensed water flow is interrupted prematurely. Open the warm water tap again and allow water to flow for at least 1 minute.

Tip: Should the appliance not start because of a reduced flow-rate, remove the perlator, aerator or similar before starting and repeating the process.

Important: If the continuous-flow heater does not have sufficient water flow due to low water line pressure in your domestic plumbing system:

• Switch off the circuit-breakers/fuses or remove the mains plug.

Remove the flow-rate limiter (H1-H4).

Controlling temperature

The supply temperature (probably lower in winter) and pressure fluctuations can influence the temperature of the water leaving the tap (see Fig. IV, left: pressurised [closed], right: unpressurised [open]).

Turn the valve slowly in the closed direction for higher temperatures (F1).

Add cold water for lower temperatures (F2).

Hand over the installation and operating instructions to the user and explain how the appliance operates.

Technical data

Type		DE04101 DE10104 Undersink	DE05101 Undersink	DE06101 Undersink	DE08101 Undersink	DE06111 Over-sink	DE08111 Over-sink
Design		pressurised	pressurised		pressurised	pressurised	pressurised
Power	[kW] 3.6	4.5 6 7.2 6 7	2
Electrical connection	[V] 230	230 230 230	230 230
Minimum cable cross-section	[mm²] 1	5 2.5 4 4 4 4
Rated current	[A] 15.7	19.1 26	31.3 26	31.3
Fuse protection	[A]	16	20	32	32	32	32
Water connection thread	[Inch]	G 3/8	G 3/8	G 3/8	G 3/8	G 1/2	G 1/2
Supply temp. max.	[°C]	20	20	20	20	20	20
Warm water output at supply temp. of 12 °C to 38 °C	[I/min]	1.9 2.4 3.2	3.9 3.2	3.9
Protection type	IP	24	24	24	24	24	24
Switch on flow pressure (without flow rate limiter)	[bar]	<0.25	<0.25	<0.25	<0.25	<0.25	<0.25
Switch on flow	[I/min]	1.8	1.8/1.9	1.8/2.1	1.8/2.3	1.8/2.1	1.8/2.3
Switch off flow	[I/min]	1.6	1.6/1.7	1.6/2.0	1.6/2.2	1.6/2.0	1.6/2.2
Flow lomit at	[I/min]	2	2	3	4	3	4
Weight	[kg]	1.1 1.1 1.1	1.1 1.1	1.1
Application area in water: specific electric resistance at 15°C	[Ωcm]	≥ 1300	≥ 1300	≥ 1300	≥ 1300	≥ 1300	≥ 1300
Rated pressure	[MPa(bar)]	1.0 (10.0)	1.0 (10.0)	1.0 (10.0)	1.0 (10.0)	1.0 (10.0)	1.0 (10.0)
Plug-in ready		✓	-	-	-	-	-
Fixed connection		-	✓	✓	✓	✓	✓
Energy efficiency class		A	A	A	A	A	A
Load profile		XXS XXS	XXS	XXS XXS	XXS
Annual energy consumption	[kWh]	467 470 470	471 470 471
Daily energy consumption	[kWh]	2.145	2.150	2.154	2.161	2.154	2.161
Sound power level	[dB]	15	15	15	15	15	15
Hot water heating energy efficiency	[%]	39.4	39.3	39.2	39.1	39.2	39.1

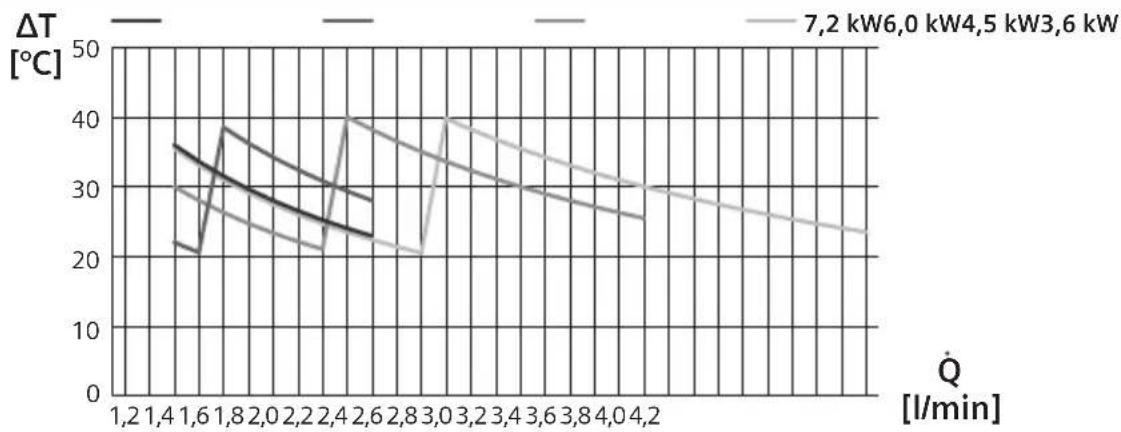

The temperature of the water leaving the tap is dependent on the flow of water:

Operating instructions

Please read and observe the detailed safety instructions at the start of these instructions!

Important: The appliance may never be exposed to frost!

Risk of electric shock!
Switch off the mains voltage supply immediately if a fault occurs (DE05101, DE06101, DE06111, DE08101, DE08111) or disconnect the plug from the mains supply (DE04101, DE10104).

• Immediately shut off the cold water supply to the appliance should it leak.

Operation

The electronic continuous-flow heaters of this series operate automatically.

Switching on

• Open the tap fully. The electronic continuous-flow heater switches on. The water is heated as it flows through the appliance.
• The over-sink appliances DE06111 and DE08111 feature an automatic operation indicator. The operation indicator lights yellow at half power and red at full power, dependent on the water flow rate.

Switching off

Close the tap, and the appliance will switch off.

Regulating water temperature

Open the tap fully, and the appliance switches on.

Now increase the temperature of the water by reducing the flow of water.

Info: In winter, the temperature of the water supply may be lower, so that the temperature of the water leaving the tap will not be reached. Please proceed as described under "Water connection".

Cleaning

Do not use aggressive or abrasive cleaning detergents! Do not use a steam cleaner.

Clean appliance externally with a mild cleaning agent.
Clean the dirt and lime scale deposits in the aerator filter.

Maintenance

Repairs and maintenance may only be carried out by an authorised customer service representative to avoid potential sources of danger.

The electrical mains supply and the water supply must be shut off before all work on the appliance.

Customer Service

We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer.

You will find the number between both water connection nozzles of the continuous-flow heater.

Disposal

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as appli cable throughout the EU.

Please ask your specialist retailer about current disposal facilities

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer, from whom the appliance was purchased, or directly from our representative in the country. Furthermore, the guarantee conditions can also be found on the Internet at the website address stated. The bill of sale or receipt must be produced when making any claims under the terms of this guarantee.

Subject to change without notice.

A fault, what to do?

Attention!

Repairs must only be carried out by an authorised technician. Improper repairs can lead to risk of serious injury to the user.

If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service personnel.

Fault Cause Solution	Who
The appliance does not start (heat), no water flows.	The fuse in the house electrical installation has tripped/ blown.	Check the fuse in the house electrical installation.	Customer
	Power failure or initial start-up.	Starts rinsing: Open the warm water tap and allow water to flow for at least 30 seconds (flow-rate at least 2 litres per minute). Only then (for safety reasons) will the appliance begin to heat. Should the appliance not start because of a reduced flow-rate, remove the perlator, shower head or similar before start and repeat the process.	Customer
	The air sensor in the appliance detects air in the water and momentarily switches the heating element off.
The desired water temperature leav-ing the tap is no longer reached.	The supply temperature has reduced.	Reduce the water flow on the taps until the desired water temperature is reached.	Customer
Water flow-rate is too low.	The filter in either the water tap or the showerhead is clogged.	Remove the filter and either clean it or descale it.	Customer
	The filter in the corner regulating valve is clogged.	Remove, clean and reinstall the filter. Circulate water through the appliance. If necessary, repeat this procedure until the filter is free of particles.	Servicing expert
The water is not sufficientlywarm.	The appliance's automatic circuit breaker has been tripped.	Get the appliance's automatic circuit breaker checked by an electrician. Check the permissible supply temperature.	Servicing expert
	Water flow-rate is too high and/or the cold water supply temperature is too low.	Use the angle valve to regulate the flow-rate. Check the flow-rate limiter or replace it with a smaller one.	Servicing expert

If the fault could not be eliminated, please call customer service.

European Trade Center Building, 5th floor

1784 Sofia

Tel.:[phone]

Fax:[phone]

mailto:[e-mail]

www.siemens-home.bg

CH Schweiz, Suisse, Svizzera, Switzerland

BSH Hausgeräte AG

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

IavvAynio nAeepwvo:181 82

(aotnXpwn)

www.siemens-home.gr

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com.hk

HR Hrvatska, Croatia

BSH kučni uredaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/hr

LU Luxembourg

www.siemens-home.com/lu

ME Crna Gora, Montenegro

Elektronika komerc

UI.Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil:069324812

mailto:[e-mail]

MK Macedonia,Makeonna

GORENEC

Jane Sandanski 69 lok.3

1000 Skopje

Tel:[phone]

Mobil: 070 697 463

mailto:[e-mail]

PH Philippines

Hafele Philippines, Incorporated

Levi Mariano Avenue, Brgy. Ususan,

Taguig City 1632

Metro Manila

Tel.: [phone]

Fax:[phone]

mailto:[e-mail]

PL Polska, Poland

TH Ratcha Anachak Thai,

BSH Home Appliances Limited

2034/1-5 Ital Thai Building,

1st Floor, New Petchburi Road

Bangkapi, Huaykwang,

Bangkok, 10310

Tel.: [phone]

Fax:[phone]

Service Call Center 02 351 8995

Spareparts 02 769 7975

www.siemens-home.com/th

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi ve Ticaret A. S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Umraniye, Istanbul

Tel.:[phone]

Fax:[phone]

mailto:[e-mail]

www.siemens-home.com/tr

BSH group is a Trademark Licensee of Siemens AG. Manufacturer's Service for Siemens Home Appliances.

www.siemens-homeappliances.com

9001155287
