USER MANUAL EQ.6 plus extraKlasse TE653F08DE SIEMENS

Register your product online

de	Deutsch	2
en	English	27
fr	François	51
nl	Nederland	77
it	Italiano	102

A

Included in delivery (see page 30)

Dear Coffee Connoisseur,
Congratulations on purchasing this fully automatic coffee machine from Siemens.

This instruction manual describes a number of versions of the appliance with minor differences.

Please also take note of the enclosed Quick reference guide, which you can then keep in the specially provided compartment 16 until you need it again.

How to use these instructions:

You can open up the front cover of this instruction manual to see illustrations of the appliance with each part numbered. These numbers will be referred to throughout the text.

Example: brewing unit 14

These instructions also show display texts and symbols in a special way so that you can clearly see where we refer to texts displayed by the appliance or symbols that are marked on it.

Example of display texts: Espresso

Example of control elements: [start/stop]

Contents

Intended use 28

Important safety information. 28

Included in delivery. 30

Overview 30

Overview of control elements 31

Display 32

Initial use. 33

Own settings "Favourite" 34

Childproof lock 34

Preparing drinks 34

Preparing coffee drinks. 35

Preparation using milk 36

Special beverages 37

Preparation using ground coffee 38

Adjusting the grind setting 38

Menu 38

Care and daily cleaning 41

Cleaning the milk system. 42

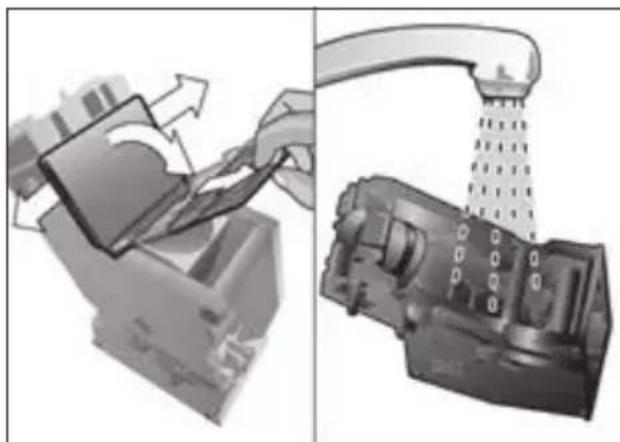

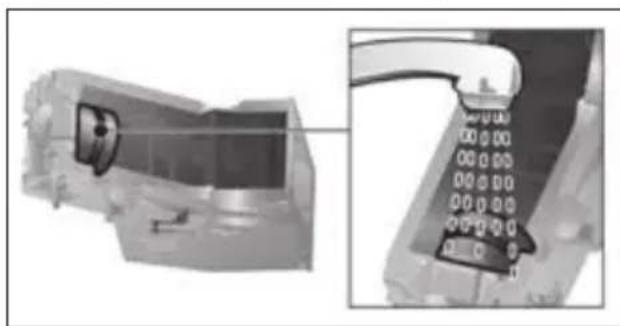

Cleaning the brewing unit (Figure G). 43

Service programmes 44

Cleaning the milk system. 44

Descending 44

Cleaning 45

calc'nClean 45

Tips on energy saving. 46

Frost protection 47

Storing accessories 47

Accessories 47

Disposal. 47

Guarantee 47

Simple troubleshooting 48

Technical specifications 50

Intended use Important safety information

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000m above sea level.

Please read and follow the operating instructions carefully and keep them for later reference! Enclose these instructions when you give this appliance to someone else.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Warning Risk of electric shock!

The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.
- Connect and operate the appliance only in accordance with the specifications on the rating plate.
- Do not use the appliance if the power cord and/or appliance are damaged.
Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.
- Never immerse the appliance or mains cord in water.
If there is a fault, pull out the mains plug immediately or switch off the power supply.
- Avoid spillage on the connector.

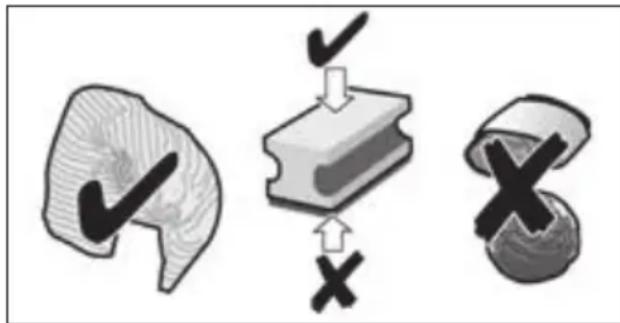

- Please note the special information on cleaning in the instructions.

Warning Hazard due to magnetism!

The appliance contains permanent magnets which can affect electronic implants such as pacemakers or insulin pumps. Persons wearing electronic implants must maintain a minimum distance of 10 cm from the appliance and from the following parts upon removal: milk container, milk system, water tank, drip tray and brewing unit.

Warning Risk of suffocation!

• Do not allow children to play with packaging material.
  Store small parts safely as they can be easily swallowed.

Warning Risk of injury!

• Do not reach into the grinding unit!
• Improper use of this appliance may result in injury.

! Warnin Risk of burns!

The milk system becomes extremely hot. After use, always let it cool down before you touch it.
After use the surfaces of the heating element or hotplate can remain hot for some time.
- Freshly prepared beverages are very hot. Leave to cool a little if necessary.

Included in delivery

(Figure A on the fold-out pages)

Fully automatic coffee machine
User Manual
Quick reference guide
Milk tube and suction pipe
Water hardness testing strip

Measuring spoon
Water filter
Milk container with "freshLock" lid *
Descalating tablets

Overview

Figures B, C, D, E, F and G on the fold-out pages

1 Mains switch ①
2 Control panel (see next page)
3 Display
4 Drinks outlet (coffee, milk, hot water), height-adjustable

a) Cover
b) Milk system /coffee outlet (two-part)
c) Milk tube
d) Suction pipe

5 Removable water tank
6 Lid for water tank
7 Storage compartment for measuring spoon
8 Measuring spoon (insertion aid for water filter)
9 Bean container
10 Aroma cover

11 Dial selector for grinding level
12.7 (for ground coffee/cleaning tablet)
13 Door to brewing unit
14 Brewing unit a) Locking mechanism b) Cover
15 Eject lever
16 Storage compartment for quick reference guide
17 Drip tray a) Drip tray panel b) Drip tray (two-section) c) Coffee grounds container d) Floater
18 Compartment for power cord
19 Rating plate (E number, FD)

Overview of control elements

Figure B on the fold-out pages

The following symbols are visible or backlit depending on the appliance's current operating mode:

Espresso Latte Macchiato
Espresso Macch. Caffe Latte
Coffee Milk froth
Cappuccino	Special beverages (see the section “Special beverages”).
[ start/stop] - Start/stop button [√] - Selection down
[ √] - Back	menu [menu] - Open menu
[ √p] - Dispense two cups simultaneously	ok√ [ok√] - Confirm/Store
[ ∅] - Set coffee strength	ml [ml] - Select cup size
[ ∅] - Call up Favourite (touch briefly) and Childproof lock (touch for at least 3 seconds).

en Display

Mains switch ①

The mains switch ① is used to switch the appliance on or off. The appliance rinses itself automatically when it is switched on and off.

The appliance does not rinse if:

it is still warm when switched on, or
no coffee was dispensed before it was switched off.

The appliance is ready for use when the symbols and the display on the control panel are lit.

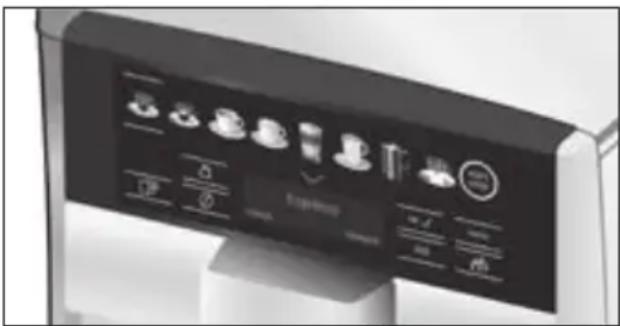

Control panel (touch field)

In the control panel you can easily navigate the controls just by touching the symbols and characters.

You will hear an audible signal.

These audible signals can be switched on or off (see the section "Menu - Key tones").

Drink selection

Touching the corresponding symbol selects the desired drink (see the section "Preparing drinks").

Start/stop button

Touching [start/stop] either begins preparing a drink or launches a service programme. If you touch [start/stop] again while the drink is being prepared, dispensing will be prematurely halted.

Menu

Touching [menu] calls up the menu, the navigation symbols will be activated and light up. Touch [√], [ok√] and [☑] to navigate through the menu and call up information or change settings (see the section "Menu").

Drink options

Touching [O] or [ml] adjusts the strength or size of the drink, touching [P] prepares two cups simultaneously as soon as you touch [start/stop] to begin dispensing (see the section "Preparing drinks").

"Favourite" and Childproof lock

Briefly touching [oo] calls up personalised beverages (see the section "Own settings Favourite").

Touching [品 ] for 3 seconds or more activates or deactivates the childproof lock (see the section "Childproof lock").

Display

The display shows the selected drinks and settings plus messages reporting the appliance's operating status.

Espresso

Regular medium

Please refill water tank

These messages are cleared as soon as the action has been carried out.

Initial use

General

Fill the appropriate container using only pure, cold, uncarbonated water and solely roasted beans. Do not use coffee beans that have been glazed, caramelised or treated with other additives containing sugar, since they will block the brewing unit. The water hardness setting on the appliance can be adjusted. The factory setting for the water hardness is 4. Use the enclosed test strip to determine the hardness of your water supply. If this shows a value other than 4, you will need to programme the appliance appropriately after it has been taken into service (see section "Menu - Water hardness").

Setting up the appliance

Remove any protective plastic film.
- Place the fully automatic coffee machine on a level, waterproof surface that is able to support its weight.
The appliance's ventilation slits must not be covered or obscured.

Important: Only use the appliance in a frost-free room. If it has been transported or stored at temperatures below 0^ , wait at least 3 hours before taking it into operation.

• Connect the power supply (cable storage compartment 18) to the socket. You can adjust the length of the cable by pulling it further out or pushing it back in. To do this, place the appliance with its back flush with the edge of the work surface and either pull the cable out downwards or push it in upwards.

Flip up the lid of the water tank 6.
- Remove the water tank 5, rinse it out and fill it with fresh cold water. Do not fill it past the "max" mark.
- Replace the water tank 5, making sure that it is straight, and push it right down into place.
Reclose the lid of the water tank 6.

• Fill the bean container 9 with coffee beans.

Use the main switch ① 1 to switch on the appliance.

The control panel and the display will be activated. The display will show the previously specified language, which will also be used for all subsequent display texts. A number of different languages are available.

• Touch [√] repeatedly until the display indicates the desired language.

• Touch [start/stop] to confirm your selection.

The chosen language is now stored.

The brand logo will light up on the display 3. The appliance will heat up and rinse itself, a small amount of water will run out of the drink outlet 4.

The appliance is ready for use when the symbols and the display on the control panel are lit.

The factory settings of the fully automatic coffee machine are programmed for optimal performance. The appliances switches off automatically after a configured time (see the section "Menu - Automatic shut-down").

When the appliance is used for the first time, after a service program has been run and when it has not been operated for a long period, the first beverage will not have the full aroma and should not be consumed.
When the fully automatic coffee machine is first used, you will achieve a suitably thick and stable "crema" only after the first few cups have been dispensed.
i If the appliance is in use for a long period of time, water droplets will form on the ventilation slits. This is normal.

Own settings "Favourite"

The number of Favourites depends on the model of the appliance. The menu item "Favourite" can be used to store and change individual (personalised) beverages (see the section "Menu - Favourite").

Call up individual beverage

Briefly touch [m].
- Select one of the Favourites already stored with your own settings.
- Touch [start/stop] to begin dispensing the beverage.

Childproof lock

The appliance can be locked to protect children against scalding and burns.

• Touch [] for at least 3 seconds. A key symbol appears on the display 3. The childproof lock is now active. It is no longer possible to operate the appliance.
• Touch [] for at least 3 seconds. The key symbol disappears from the display 3. The childproof lock is now deactivated. The appliance can be used in the usual way.

Preparing drinks

This fully automatic coffee machine grinds fresh beans for every brewing. For optimum quality, store the beans in a cool place in sealed containers.

i Important: Fill the water tank 5 with fresh clean water every day. The tank 5 should always contain sufficient water for operating the appliance.
Cups should be prewarmed, e.g. with hot water. This applies particularly to small thick-walled espresso cups.
i For a number of settings, coffee is prepared in two stages (see " aromaDouble Shot"). Please wait until the process is completely finished.

Different beverages can be prepared just by touching a key.

Drink selection

Touching the appropriate symbol selects the desired drink. Your selection is indicated by lines above and below the symbol. The name of the drink and the currently active values for strength and cup size are shown in display 3.

You can choose from the following drinks:
Espresso Latte Macchiato
Espresso Macch. Caffe Latte
Coffee Milk froth
Cappuccino

Touch the "special beverages" button several times to select different drinks one after the other:

Hot water American * Warm milk * Flat White *

Coffee pot* Cafe Cortado *

Items marked * are not present in all models.

Adjusting the strength, selecting ground coffee

Touch [ ] to set the strength of your coffee individually or to specify that ground coffee is to be used.

The following settings are possible:

very mild very strong

mild doubleshot strong

regular doubleshot strong+

strong Ground coffee

• Touching the appropriate symbol selects the desired drink.
• Touch [] repeatedly until the desired setting e.g. strong or Ground coffee (see the section "Preparation using ground coffee") appears on the display.

aromaDouble Shot

The longer the coffee is brewed, the more bitter substances and undesired aromas are released. This has a negative effect on the taste and makes the coffee less easily digestible. So for extra strong coffee, the appliance has a special aromaDouble Shot function. When half the quantity has been prepared, it grinds and brews fresh coffee beans so that only the pleasant, aromatic scents are released.

The aromaDouble Shot function can be selected for any drink containing a proportion of at least 35ml coffee volume. It is not available for small drinks such as a small espresso or when the [ P] setting is enabled.

Select cup size

Touching [ml] individually selects the beverage volume desired.

The following settings are possible:

small medium large

• Touching the appropriate symbol selects the desired drink.
• Touch [ml] repeatedly until the display indicates the desired setting.

An arrow or multiple arrows next to the setting, e.g. large indicate that the preset capacity (see the section "Menu - Set cup size") has been changed.

Two cups at once

Once you have selected a black coffee or milky coffee drink (for some appliances, this applies only to black coffee), touching [P] prepares two cups simultaneously as soon as you touch [start/stop] to begin dispensing.

The setting is shown on the display.

• Touching the appropriate symbol selects the desired drink.
  Touch [P].
  Place two prewarmed cups at left and right underneath the beverage outlet 4.
• Touch [start/stop] to begin dispensing the beverage.

The selected drink will be brewed and will then be dispensed into the two cups.

The drink is prepared in two stages (two grinding operations). Please wait until the process is completely finished.

Depending on the type of appliance the function "Two cups at once" may be available only for black coffee, not for milky coffee drinks.

Preparing coffee drinks

The appliance must be ready for use.

• Place a prewarmed cup underneath the beverage outlet 4.
• Touch the appropriate symbol to select the desired drink, Espresso or Coffee.

The name of the drink and the currently active values for strength and cup size are shown in display.

en Preparing drinks

i You can change the cup size and coffee strength by touching [ml] and [ ] .If you select Ground coffee, follow the procedure described under "Preparation using ground coffee".

For example:

• Touch [ml] repeatedly until the display shows large.
• Touch [ ] repeatedly until the display shows mild.
• Touch [start/stop] to begin dispensing the beverage.

The coffee is brewed and then dispensed into the cup.

You can touch [start/stop] again to prematurely halt dispensing.

Preparation using milk

This fully automatic coffee machine possesses an integrated milk system that enables you to prepare coffee with milk or milk froth or warm milk alone.

Risk of burns!

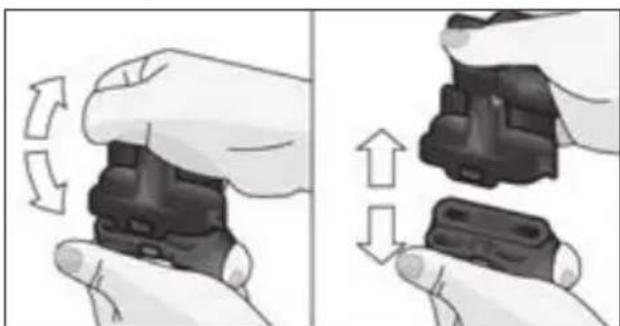

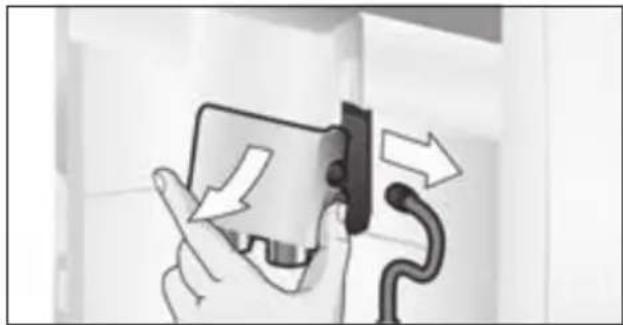

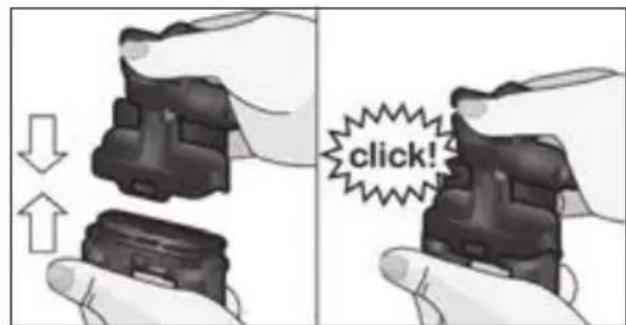

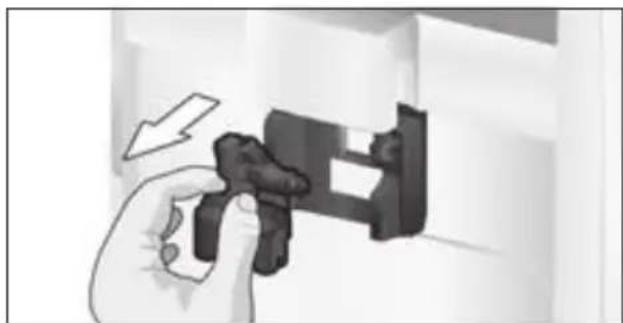

The upper and lower sections of the milk system 4b become extremely hot. After use, always let them cool down before you touch them.

Caution!

Dried milk residues are difficult to remove, so you should always clean the appliance after each use (see the section "Cleaning the milk system").

While milk is being prepared you may hear a whistling sound. This is due to the technical nature of the milk system 4b.

Touch [start/stop] again to prematurely halt dispensing.

The appliance must be ready for use. The milk tube and suction pipe must be connected.

Insert the suction pipe 4d into the milk container.
- Place a prewarmed cup or glass underneath the beverage outlet.

Coffee-based drinks with milk

• Touch the appropriate symbol to select
  Espresso Macch., Caffe Latte, Latte
  Macchiato or Cappuccino.

The name of the drink and the previously specified values for strength and cup size are shown in display.

You can change the cup size and coffee strength by touching [ml] and [ ] .If you select Ground coffee, follow the procedure described under "Preparation using ground coffee".

• Touch [start/stop] to begin dispensing the beverage.

The milk or milk froth is dispensed into the cup or glass first. Then the coffee is brewed and runs into the cup or glass.

You can touch [start/stop] again to prematurely halt dispensing of the milk or coffee, touching [start/stop] twice stops the entire dispensing process.

Milk froth

• Touch the symbol to select Milk froth.

• Touch [ml] to select the cup size.

• Touch [start/stop] to begin dispensing the beverage.

Milk froth is dispensed from the beverage outlet.

Special beverages

Touch the "special beverages" button several times to select different drinks one after the other.

Items marked * are not present in all models.

Hot water

Before hot water is dispensed, the milk system should be cleaned and the milk tube removed (see the section "Cleaning the milk system"). If the milk system is not cleaned, small amounts of milk may be dispensed together with the hot water.

Risk of burns!

The milk system 4b becomes extremely hot. After use, always let it cool down before you touch it.

The appliance must be ready for use.

• Place a cup or glass underneath the beverage outlet 4.
• Touch the "special beverages" symbol repeatedly until Hot water appears on the display.
• Touch [ml] to select the cup size.
• Touch [start/stop] to begin dispensing the beverage.

If you see the message Please remove suction hose, proceed as follows:

Take off the milk tube 4c and then touch [start/stop] again.

Hot water will flow out of the outlet 4.

You can touch [start/stop] again to prematurely halt dispensing.

Warm milk*

Please read through first and take note of the section "Preparation using milk".

Then:

• Touch the "special beverages" symbol repeatedly until Warm milk appears on the display.
• Touch [ml] to select the cup size.
• Touch [start/stop] to begin dispensing the beverage.

Warm milk will flow out of the outlet 4.

You can touch [start/stop] again to prematurely halt dispensing.

Americano*

• Place a prewarmed cup underneath the beverage outlet 4.
• Touch the "special beverages" symbol repeatedly until Americano appears on the display.
• Select settings such as the cup size and strength as described in the section "Preparing coffee drinks".
• Touch [start/stop] to begin dispensing the beverage.

The coffee is brewed and then dispensed into the cup.

You can touch [start/stop] again to prematurely halt dispensing.

Flat White * or Cafe Cortado *

Please read through first and take note of the section "Preparation using milk".

Then:

• Place a cup or glass underneath the beverage outlet 4.
• Touch the "special beverages" symbol repeatedly until Flat White or Cafe Cortado appears on the display.
• Select settings such as the cup size and strength as described in the section "Preparing coffee drinks".
• Touch [start/stop] to begin dispensing the beverage.

First, the milk is dispensed into the cup or glass. Then the coffee is brewed and runs into the cup or glass.

You can touch [start/stop] again to prematurely halt dispensing of milk or coffee. Touching [start/stop] twice stops the entire dispensing process.

Pot function*

• Place a pot underneath the beverage outlet 4.
• Touch the "special beverages" symbol repeatedly until Pot function appears on the display.
• Touch [ ] to select the desired coffee strength.
• Touch [ml] to select the desired quantity (4 or 6 cups).
• Touch [start/stop] to begin dispensing the beverage.

The coffee is brewed and then dispensed into the pot.

You can touch [start/stop] again to prematurely halt dispensing.

Preparation using ground coffee

This fully automatic coffee machine can also be operated using ground coffee (but not instant coffee).

When using ground coffee, the setting for the strength of the coffee, dispensing two cups at once and aromaDouble Shot is not available.

The appliance must be ready for use.

• Place a prewarmed cup underneath the beverage outlet 4.
• Touch the appropriate symbol to select a black or milky coffee drink.
• Touch [ ] repeatedly until the display shows Ground coffee.
• Open the ground coffee drawer 12.
  Place no more than two level measuring spoons of ground coffee in the drawer.

Caution!

Do not place coffee beans or instant coffee in this drawer.

• Close the ground coffee drawer 12.
• Touch [start/stop] to begin dispensing the beverage.

The coffee is brewed and then dispensed into the cup.

Touch [start/stop] again to prematurely halt dispensing.

Adjusting the grind setting

You can use the rotary selector 11 to adjust the grind setting from coarse to fine.

Caution!

Adjust the grind setting only while the grinding unit is running, otherwise you may damage the appliance.

Risk of injury!

Do not reach into the grinding unit.

• With the grinding unit running, adjust the selector 11 from fine (a: turn anticlockwise) to coarse (b: turn clockwise).

The new setting will not become apparent until after the second cup of coffee.

For dark roast coffee beans, choose a finer grind, for lighter beans a coarser grind.

Menu

The menu is used for changing individual settings, accessing information and launching processes.

• Touch [menu] to open the menu. In the display you will see the various setting options, the navigation symbols light up. The current setting is marked on the display.

Navigating through the menu:

[√] = move down

[ \text{[ok√]} = \text{confirm} / \text{store} ]

[ ] = go back

[menu] = open the menu/

exit from the menu

i Touching [ ] displays each setting or selection option in order. After you reach the lowest menu item the topmost one is shown again.

For example:

Setting the coffee temperature to max. :

• Touch [menu]. The menu is opened.

• Touch [√] repeatedly until the display shows Coffee temperature.

• Touch [ok√], the display shows e.g. high.

• Touch [√] repeatedly until the display shows max.

• Touch [ok√] to store the setting. The display shows the confirmation.
  The menu item Coffee temperature appears.
• Touch [ ] to exit from the menu.

You can specify the following settings:

Cleaning and care

Starting the special service programmes.

You can select Rinse the milk system,

Descale, Clean or calc'nClean.

Use [V] to choose the desired programme and touch [ok√] to confirm your choice.
- Touch [start/stop] to begin running the programme.

Important: Be sure to take note of the section on "Service programmes".

Info Service programmes

depending on the type of appliance)

Display how many beverages can still be prepared before it will be necessary to run one of the service programmes.

Use [√] to display Clean after --- or Descale after --- .

• Touch [☑] to exit from the display.

For technical reasons the counter does not represent a precise number of cups.

Coffee-milk ratio

The coffee-milk mixing ratio set in the factory can be adjusted in several steps.

Use [V] to select the beverage (only for coffee drinks with milk) and confirm with [ok].
Use [V] to select the desired mixing ratio (setting of milk content in %) and confirm with [ok].
The setting is saved.

Example: If a value of 30% is selected, 30% milk and 70% coffee will be dispensed.

Items marked * are not present in all models.

Favourite

The menu item Favourite can be used to create or change personalised beverages. The number of Favourites depends on the model of the appliance.

Use [V] to select a new or existing profile and confirm with [ok√]
- Touch the desired beverage and confirm with [ok] .
- Your selection for the beverage settings appears on the display depending on the beverage, e.g. ml or Coffee-milk ratio.
Make your settings and confirm with [ok√] each time.
The beverage is now saved in the profile.

Set cup size

Set up the volume dispensed for each drink and each size of cup. The volumes set up in the factory can be adjusted stepwise.

Use [V] to choose a drink and touch [ok√] to confirm your choice.
Use [ ] to choose the desired volume and touch [ok] to confirm your choice.

The setting is then saved.

Water hardness

Set this to the hardness of the local water supply.

Level 1, 2, 3, 4 or Softening system can be selected. The preset level of water hardness is level 4.

en Menu

Use [V] to choose the desired water hardness and touch [ok√] to confirm your choice.

It is important to set the water hardness correctly, so that the appliance indicates accurately when the descaling programme should be run.

You can check the water hardness using the enclosed test strip or by asking your local water supplier. If a water softening system is installed in the house, please select the Softening system setting.

• Briefly dip the test strip in the water and check the result after one minute.

Level Water hardness

	German (°dH)	French (°fH)
1	1-7	1-13
2	8-14	14-25
3	15-21	26-38
4	22-30	39-54

Automatic shut-down

Setting how long the appliance should wait after the last drink was prepared before it automatically switches itself off.

You can specify values from 15 minutes to 3 hours. The factory setting is 30 minutes.

Use [V] to choose the desired interval and touch [ok] to confirm your choice.

Coffee temperature

Specifying the temperature for coffee drinks and hot water.

You can choose normal, high, or max.

The setting applies to all types of drink preparation.

Use [V] to choose the desired temperature level and touch [ok√] to confirm your choice.

Water filter

Specifying whether a water filter should be activated or whether no filter is used.

You can choose Activate new filter or No filter.

A water filter lessens limescale deposits and reduces impurities in water. The appliance also does not need to be descaled so often.

Water filters are available from retail outlets or from customer services (see the section "Accessories").

i Important: Before you can use a new water filter it will need to be rinsed.

Use the measuring spoon 8 to press the water filter firmly into the water tank 5.

Fill the water tank with water up to the "max" mark.
Connect the milk tube 4c to the milk system 4b and the suction pipe 4d.

Insert the end of the suction pipe 4d into the drip plate 17b.
- Touch [menu] and use [] to select Water filter.
- Touch [ok√] and use [√] to select Activate new filter.
Empty the drip tray and re-insert.
Touch [ok√] to confirm.

Water will now flow through the filter to rinse it.

Then empty the drip tray and re-insert.

The appliance is ready for use again.

Rinsing the filter simultaneously activates the setting for displaying the message "Please change water filter". When this message appears, or at the latest after two months, the filter will no longer be effective. It needs to be replaced for reasons of hygiene and to prevent a build-up of limescale (which could damage the appliance).
If you do not intend to insert a new filter, select the setting No filter and touch [ok√] to confirm.
If the appliance has not been used for a prolonged period (for example, while you are on holiday), the existing filter should be rinsed before the appliance is used again. To do this, simply dispense a cup of hot water.

Languages

Setting up the language to be used for display texts.

Use [V] to choose the desired language and touch [ok√] to confirm your choice.

Frost protection

Service programme to prevent frost damage during transportation and storage. This programme completely empties the appliance.

The appliance must be ready for use and the water tank 5 must be filled.

• Touch [start/stop] to begin running the programme.
• Remove the water tank; the appliance automatically empties all its pipes and then switches itself off.
  Empty the water tank 5 and the drip tray 17.

Key tones

Switches on or off the tones that you hear when you touch the control panel.

• Touch [ok√] to confirm your choice.
  Use [√] to choose Key tones ON or Key tones OFF and touch [ok√] to confirm your choice.

Beverage statistics

Depending on the type of appliance) Shows the volume of drinks dispensed since the appliance was taken into service.

• Touch [ú] to exit from the display.

Factory settings

Resets your own settings to the condition when delivered.

• Touch [start/stop] to clear all your own settings.

Care and daily cleaning

Risk of electric shock!

Before cleaning the appliance, unplug it from the mains. Never immerse the appliance in water. Do not use a steam cleaner.

Wipe the outside of the appliance with a soft, damp cloth.
Clean the control panel with a microfibre cloth.
- Do not use any cleaning agents containing alcohol or spirits.
- Do not use abrasive cloths or cleaning agents.

Always immediately remove any limescale, or residues of coffee, milk, cleaning or descending solution. It is possible for corrosion to form underneath such deposits.
- New sponge cloths may contain salts that can cause rust films to form on stainless steel, so such cloths should always be thoroughly rinsed before use.

Pull the drip tray 17 and coffee grounds container 17c towards the front and remove them. Take off the panel 17a and drip plate 17b. Empty and clean the drip tray and coffee grounds container.
Wipe out the inside of the appliance (holder, trays) and the drawer for ground coffee (this cannot be removed).
- Remove the float 17d and clean it with a moist cloth (depends on the type of appliance).

Do not put the following parts in the dishwasher:

Panel of drip tray 17a, cover 4a, brewing unit 14, water tank 5 and aroma cover 10.

The following parts may be cleaned in the dishwasher:

Drip tray 17, drip plate 17b, coffee grounds container 17c, measuring spoon 8 and the upper and lower parts of the milk system 4b.

Important: The drip tray 17 and coffee grounds container 17c should be emptied and cleaned every day in order to prevent deposits.

If the appliance is cold when switched on, or if it is switched off after dispensing coffee, it rinses automatically. The system is therefore self-cleaning.

Important: If the appliance is not used for a lengthy period (e.g. while you are on holiday), clean the entire appliance thoroughly, including the beverage dispenser 4, milk system 4b, drip tray 17 and brewing unit 14.

Cleaning the milk system

Be sure to clean the milk system 4b every time you make a drink involving milk!

The milk system 4b is automatically cleaned with a short jet of steam directly after preparing a milk drink. For particularly thorough cleaning, the milk system 4b can be automatically rinsed with the programme "Cleaning the milk system" (see the section "Service programmes - Cleaning the milk system").

Cleaning by hand

Risk of burns!

The milk system 4b becomes extremely hot. After use, always let them cool down before you touch them.

Take the milk system 4b apart to clean it:

Push the beverage outlet 4 right down.
Take off the cover 4a towards the front and pull off the milk tube.

• Remove the milk system 4b by pulling it straight forward.

Take apart the upper and lower parts of the milk system 4b.

• Separate the milk tube from the suction pipe.
  Clean the individual parts with washing-up liquid and a soft cloth.
  Rinse all parts with clean water and dry them.

The upper and lower parts of the milk system 4b, the milk tube 4c and the suction pipe 4d can also be cleaned in a dishwasher.

Reassemble the individual parts.

Place the milk system 4b back in the appliance from the front, making sure it is straight.
Replace the cover 4a.

Cleaning the brewing unit (Figure G)

See also the Quick reference guide in the storage compartment 16.

In addition to the automatic cleaning programme, the brewing unit 14 should be removed regularly for cleaning.

Use the main switch 1 to switch the appliance completely off.
Open the door 13 to the brewing unit.

• Slide the red latch 14a on the brewing unit 14 all the way to the left.
  Press the eject lever 15 right down. The brewing unit will be released.
  Take hold of the brewing unit 14 by the recessed grips and carefully remove it.

Important: Clean it without using washing-up liquid and do not put it in the dishwasher.
- Remove the cover 14b and thoroughly clean the brewing unit 14 under running water.

Thoroughly clean the strainer of the brewing unit under the water jet.

Thoroughly clean the inside of the appliance with a moist cloth, removing any coffee residues.
- Allow the brewing unit 14 and the inside of the appliance to dry.
- Replace the cover 14b on the brewing unit and then push the brewing unit 14 back into the appliance until it latches into place.
Press the eject lever 15 right up.

• Slide the red latch 14a all the way to the right and close the door 13.

Service programmes

See also the Quick reference guide in the storage compartment 16.

Following prior notification, either

Descending necessary or

Cleaning necessary or calc'nClean necessary.

appears in display 3 at certain intervals.

The unit should immediately be cleaned or descaled using the appropriate programme.

The two processes Descale and Clean can optionally be carried out together using

the calc'nClean function (see the section

"calc'nClean"). Failure to carry out the service programme according to the instructions may damage the appliance.

Using a water filter increases the intervals until a descending programme needs to be performed.

i Important: if descending is not performed on the appliance in good time, then the following appears: Descaling overdue. Appliance will soon be locked press menu for 3 sec. Immediately perform the descending process in accordance with the instructions. If the appliance is locked, it can only be operated again once the descending process has been carried out.

Caution!

For each of the service programmes, use descending and cleaning agents as described in the instructions.

Never interrupt a service programme.

Do not swallow any cleaning fluids! Never use citric acid, vinegar or any vinegar-based agents. Never place descaling tablets or other descaling materials in the coffee drawer 12!

Before starting the service program (Descale, Clean or calc'nClean) remove the brewing unit, clean it as instructed and replace it.

Specially developed suitable descending and cleaning tablets are available from retail outlets or from customer services (see the section "Accessories").

Cleaning the milk system

Takes about 1 minute.

Touch [menu] to open the menu.

Use [V] to choose Cleaning and care and touch [ok√] to confirm your choice.

Use [√] to choose Rinse the milk system and touch [ok√] to confirm your choice.

• Touch [start/stop] to begin running the programme.

The display 3 will indicate the progress of the programme:

• Place an empty glass under the beverage outlet 4 and stand the end of the suction pipe 4d in it.

• Touch [start/stop]. The milk system will now clean itself automatically.

• Then empty the glass and clean the suction pipe 4d.

You should also regularly clean the milk system manually (dishwasher or by hand).

Dscaling

Takes about 30 minutes.

The line at the bottom of the display indicates the progress of the descending process.

If there is a water filter in the water tank 5, be sure to remove it before starting the service programme.

• Touch [menu] to open the menu.

Use [√] to choose Cleaning and care and touch [ok√] to confirm your choice.

Use [V] to choose Descale and touch [ok√] to confirm your choice.

• Touch [start/stop] to begin running the programme.

he display 3 will indicate the progress of the programme:

Empty and re-insert the drip tray 17.

The following request appears: Remove water filter if inserted start.

• Remove the filter and then touch [start/stop] again.
  Pour lukewarm water into the empty water. The line at the bottom of the display tank 5 up to the "0.51" mark and then indicates the progress of the descaling. dissolve one Siemens descaling tablet process.
  Takes about 9 minutes.
  The line at the bottom of the display indicates the progress of the descending process.

TZ80002N in it.

Touch [start/stop].
Place a container with a capacity of 0.5 litre under the beverage outlet 4.
- Place the end of the suction pipe 4d in the container.
Touch [start/stop].

The descending programme will now run for about 20 minutes.

If there is not enough descending solution in the water tank 5, you will see the prompt Refill descaler start.

• Add more descending solution and then touch [start/stop] again.
  Rinse the water tank 5 and refill it with fresh water up to the "max" mark.
  If you use a filter, replace it now.
  Touch [start/stop].

The descending programme will now run for about 1 minute and rinse the appliance.

Empty and re-insert the drip tray 17.

Important: Wipe over the appliance with a soft damp cloth to ensure that you immediately remove any traces of descending solution. It is possible for corrosion to form underneath such deposits. New sponge cloths may contain salts that can cause rust films to form on stainless steel, so such cloths should always be thoroughly rinsed before use. Clean the suction pipe 4d of the drinks outlet particularly carefully.

The appliance has finished descaling and is ready for use again.

Cleaning

• Touch [menu] to open the menu.

Use [√] to choose Cleaning and care and touch [ok√] to confirm your choice.

Use [√] to choose Clean and touch [ok√] to confirm your choice.

• Touch [start/stop] to begin running the programme.

The display 3 will indicate the progress of the programme:

Empty and re-insert the drip tray 17.
Open the ground coffee drawer 12.
- Drop one Siemens cleaning tablet in the drawer 12 and close it.
Touch [start/stop].

The cleaning programme will now run for about 7 minutes.
- Empty and re-insert the drip tray 17. The appliance has finished cleaning and is ready for use again.

calc'nClean

Takes about 43 minutes. calc'nClean combines the functions Descale and Clean.

If both programmes are due to be carried out close together the fully automatic coffee machine will automatically suggest this service programme.

The line at the bottom of the display indicates the progress of the descending process.

If there is a water filter in the water tank 5, be sure to remove it before starting the service programme.

• Touch [menu] to open the menu.

Use [√] to choose Cleaning and care and touch [ok√] to confirm your choice.
Use [√] to choose calc'nClean and touch [ok√] to confirm your choice.
- Touch [start/stop] to begin running the programme.

The display 3 will indicate the progress of the programme:

Empty and re-insert the drip tray 17.
Open the ground coffee drawer 12.
- Drop one Siemens cleaning tablet in the drawer 12 and close it.
Touch [start/stop].

The following request appears:

Remove water filter if inserted start.

• Remove the filter and then touch [start/stop] again.
  Pour lukewarm water into the empty water tank 5 up to the "0.5l" mark and then dissolve one Siemens descaling tablet TZ80002N in it.

Touch [start/stop].
- Place a container with a capacity of 1 litre under the beverage outlet 4.
- Place the end of the suction pipe 4d in the container.
Touch [start/stop].

The descending programme will now run for about 28 minutes.

If there is not enough descending solution in the water tank 5, you will see the prompt Refill descaler start.

• Add more descending solution and then touch [start/stop] again.

■ Rinse the water tank 5 and refill it with fresh water up to the "max" mark.
If you use a filter, replace it now.
Touch [start/stop].

The descending programme will now run for about one more minute, and then the cleaning programme will run for about 7 minutes and rinse the appliance.

Empty and re-insert the drip tray 17.

Important: Wipe over the appliance with a soft damp cloth to ensure that you immediately remove any traces of descending solution. It is possible for corrosion to form underneath such deposits. New sponge cloths may contain salts that can cause rust films to form on stainless steel, so such cloths should always be thoroughly rinsed before use. Clean the suction pipe 4d of the drinks outlet particularly carefully.

The appliance has finished descaling and is ready for use again.

Important: If any of the service programmes is ever interrupted, for instance by a power failure, please proceed as follows:

Rinse the water tank 5 and refill it with fresh water up to the "max" mark.
Touch [start/stop].

The appliance will be rinsed for approx. 2 minutes for safety reasons.
- Empty and re-insert the drip tray 17. The aborted service programme must be restarted.

Tips on energy saving

• When the fully automatic coffee machine is not in use, use the mains switch ① 1 on the front of the appliance to switch it off.

In the menu, set the Automatic shut-down period to 15 minutes.

If possible, do not interrupt the dispensing of coffee or milk froth. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly.
Descale the appliance regularly to avoid a build-up of limescale. Limescale residues cause higher energy consumption.

Frost protection

Caution!

To prevent frost damage during transportation and storage, completely empty the appliance beforehand.

See the section "Menu - Frost protection".

Storing accessories

The fully automatic coffee machine has special compartments to hold the measuring spoon and the Quick reference guide.

To store the measuring spoon 8, lift off the water tank 5 and place the spoon in the preformed recess 7.
To store the Quick reference guide, open the door to the brewing unit 13 and insert the guide into the space provided 16.

Accessories

The following accessories are available from retailers or from customer service:

Accessories Order number

	Retail / Customer service
Cleaning tablets TZ80001N/00311807
Descaling tablets TZ80002N / 00576693
Water filter TZ70003 / 00575491
Care set TZ80004 / 00576330
Milk container with “freshLock” lid	TZ80009N / 00576166

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electricity and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposalfacilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Simple troubleshooting

Problem Cause Solution
Coffee or milk froth quality varies considerably.	Build-up of limescale in the appliance.	Descale the appliance as described in the instructions.
No hot water dispensed. The milk system or its holder is not clean.	Clean the milk system or its holder (see the section "Cleaning the milk system").
Too little milk froth, or none at all, or the milk system is not taking in any milk.	The milk system or its holder is not clean.	Clean the milk system or its holder (see the section "Cleaning the milk system").
	Milk not suitable for foaming.	Do not use milk that has already been boiled. Use cold milk with a fat content of at least 1.5%.
	The milk system is incorrectly assembled.	Moisten the upper and lower sections and fit them together.
	Build-up of limescale in the appliance.	Descale the appliance as described in the instructions.
The selected per-cup quantity is not reached. Coffee dispensing slows to a trickle or stops completely.	Coffee is being ground too finely, or the pre-ground coffee is too fine.	Adjust the grinding unit to a coarser setting. Use a coarser ground coffee.
	Heavy build-up of lime-scale in the appliance.	Descale the appliance as described in the instructions.
Coffee has no "crema". Unsuitable type of coffee. Use a type of coffee with a higher proportion of robusta beans.
The beans are no longer fresh.	Use fresh beans.
The grinding setting is not suitable for the beans.	Adjust the grinding unit to a finer setting.
Coffee is too "acidic". The grinding setting is too coarse or the pre-ground coffee is too coarse.	Adjust the grinding unit to a finer setting or use finer pre-ground coffee.
Unsuitable type of coffee. Use a darker roast.
Coffee is too "bitter". The grinding setting is too fine or the pre-ground coffee is too fine.	Adjust the grinding unit to a coarser setting or use coarser pre-ground coffee.
Unsuitable type of coffee. Change the type of coffee.
If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions.
The coffee tastes "burnt". The brewing temperature is too high	Reduce the temperature, see the section "Menu - Coffee temperature".
The grinding setting is too fine or the pre-ground coffee is too fine.	Adjust the grinding unit to a coarser setting or use coarser pre-ground coffee.
Unsuitable type of coffee. Change the type of coffee.
The water filter does not stay in position in the water tank.	The water filter is not mounted correctly.	Firmly press the water filter straight down into the tank connection.
The coffee grounds are not compact and are too wet.	The grinding setting is too fine or too coarse, or not enough ground coffee has been used.	Adjust the grinding unit to a coarser or finer setting, or use 2 level measuring spoons of ground coffee.
Water dripped onto the inner floor of the appliance when the drip tray was removed.	Drip tray was removed too soon.	Wait a few seconds after the last drink was dispensed before removing the drip tray.
Display shows Please refill bean container although the container is already full, or the grinder is not grinding any beans.	Beans are not falling into the grinding unit (beans too oily).	Gently tap the bean container. Possibly change the type of coffee used. When the bean container is empty, wipe it with a dry cloth.
Display shows Please empty drip tray despite the drip tray being empty.	Emptying is not detected when the appliance is switched off.	When the appliance is switched on, remove and re-insert the drip tray.
	The drip tray is soiled. Clean the drip tray thoroughly.
Display shows Refill with still water or change filter	Water tank wrongly inserted.	Insert water tank correctly.
	Carbonated water in the water tank.	Fill the water tank with fresh tap water.
	Float is stuck in the water tank.	Remove the tank and clean thoroughly.
	New water filter did not rinse according to the instructions.	Rinse the water filter according to instructions and then switch on.
	Air in the water filter. Dip the water filter into water until no more air bubbles escape, replace the filter.
	Water filter is old. Insert a new water filter.
If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions.
Very frequent display that descending is necessary.	Water is too hard. Insert a water filter and activate (see chapter "Menu-Water filter").
	Beverage dispenser blocked.	Clean the beverage dispenser and milk system intake.
Display shows Please clean brewing unit, then replace	Brewing unit is soiled. Clean the brewing unit.
	Too much pre-ground coffee in the brewing unit.	Clean the brewing unit. Place no more than two level measuring spoons of ground coffee in the drawer.
	The mechanism of the brewing unit is stiff.	Clean the brewing unit (see the section "Daily maintenance and cleaning").
Display shows Please restart appliance	Appliance is too warm. Leave the appliance to cool down.
	Brewing unit is soiled. Clean the brewing unit.
Display shows Descaling insufficient. Repeat process	Incorrect or insufficient descaler or excessive scale existing on appliance.	Perform descending programme again.
Display shows Please let appliance cool down	Appliance is too hot. Switch off appliance for 30 minutes.
Display shows Error Please contact hotline	The appliance has a fault. Please contact the hotline.
If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions.

Technical specifications

Power connection (voltage - frequency) 220-240 V - 50/60 Hz
Power rating 1500 W
Maximum static pump pressure 15 bar (TE651.., TE653.., TE654..)	19 bar (TE655.., TE657..)
Maximum water tank capacity (without filter)	1.7 l
Maximum capacity of the coffee bean container	~300 g
Length of power cable	100 cm
Dimensions (H x B x D)	385 x 301 x 458 mm
Weight, empty	10-12 kg
Type of grinding unit	Ceramic

Chere amatrice de cafe,
cher amateur de cafe,

normal doubleshot fort+

fort comp. poudre

Toccando [P]ismo after the Italian tradition of the Italian tradition. In Italy, the Italian tradition is a combination of two elements: the first is the use of a single word in the sentence and the second is the use of a variety of different words. The latter is the use of a variety of different types of words.

www.siemens-home.bsh-group.de

AE United Arab Emirates,

BSH Home Appliances FZE

Round About 13, Plot Nr MO-0532A

Jebel Ali Free Zone - Dubai

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/ae

AL Republika e Shqiperise, Albania

ELEKTKRO-SERVIS sh.p.k

Rr. Shkelqim Fusha, Selite,

Pallati "Matrix Konstruktion",

Kati 0 dhe +1

1023 Tirane

Tel.: [phone], -131

Fax:[phone]

mailto:[e-mail]

EXPERT SERVIS

Rugae Kavages,

Kulla B Nr 223/1 Kati I

1023 Tirane

Tel.: [phone]

Tel.: [phone]

Fax:[phone]

Cel: [phone]

mailto:[e-mail]

unter: www.siemens-home.bsh-group.at

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

Fax: [phone]

mailto: [e-mail]

www.siemens-home.bsh-group.com/au

*Mo-Fr: 24 hours

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel.: [phone]

Fax: [phone]

mailto:bosch_siemens_sarajevo@

yahoo.com

BE Belgique,Belgié,Belgium

BSH Home Appliances S.A. - N.V.

www.siemens-home.bsh-group.com/be

BG Bulgaria

BSH Domakinski Uredi

Bulgaria EOOD

115K Tsarigradsko Chausse Blvd.

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.siemens-home.bsh-group.com/bg

BH Bahraia

Khalaifat Est.

P.O.Box 5111

Manama

Tel.: [phone]

mailto:[e-mail]

CH Schweiz, Suisse,

www.siemens-home.bsh-group.com/chi

CY Cyprus, Kuppo

BSH Ikiakes Syskeves-Service

39, Arh. Makaariou III Str.

2407 Egomi/Nikosia (Lefkosia)

Tel.: [phone]

Fax: [phone]

mailto:bsh.service.cyprus@

cytanet.com.cy

CZ Ceska Republika, Czech Republic

www.siemens-home.bsh-group.com/cz

DK Danmark, Denmark

BSH Hvidevarer A/S

Telegrafvej 4

2750 Ballerup

Tel.: [phone]

Fax:[phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/dk

EE Eesti, Estonia

SIMSON OÜ

Turi tn.5

11313 Tallinn

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.simson.ee

Renerki Kaubanduse OÜ

Tammsaare tee 134B

(Euronici kaupluses)

12918 Tallinn

Tel.: [phone]

Fax: [phone]

mailto [e-mail]

www.renerk.ee

Eliser OU

Mustamae tee 24

10621 Tallinn

Tel.: [phone]

mailto:[e-mail]

www.kodumasinate-remont.ee

ES Espana, Spain

www.siemens-home.bsh-group.es

Fl Suomi, Finland

BSH Kodinkoneet Oy

Italahdenkatu 18 A

PL 123

00201 Helsinki

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www siemens-home.bsh-group.com/fi

www.siemens-home.bsh-group.fr

GB Great Britain

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order

spare parts or accessories or for

product advice please visit

www siemens-home.bsh-group.uk

or call

Tel.: [phone]*

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Eλλας

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

www.siemens-home.bsh-group.com/gr

HK Hong Kong,港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/hk

HR Hrvatska, Croatia

BSH kučni urežaj di.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/hr

www.siemens-home.bsh-group.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]*

Fax: [phone]

www.siemens-home.bsh-group.ie

*0.03 € per minute at peak.

Off peak 0.0088 € per minute.

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/il

IN India, Bharat,

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House,

Main Blog, 2nd Floor

Plot No. 103, Road No. 12

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 209 1850*

www.siemens-home.bsh-group.com/in

Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.bsh-group.com/it

KZ Kazakhstan, Ka3aKcTaH

IP Anackiy A.N. PTN-Service

Kuyshi Dina str.23/1 N3

Astana

Tel.: [phone]

mailto: [e-mail]

Technodom Service

Utegen Batira str.73

480096 Almaty

Tel.: [phone]

mailto: [e-mail]

www.technodom.kz

Kombitechnocentr

Zhambyl st. 117

480096 Almaty

Tel.: [phone]

mailto:[e-mail]

www.cts.kz

TOO Evrika Service

Shimkent, Riskulova 22.

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

www.evrika.com

AV SERVICE

Abulhair hana Str. 51

Uralsk 090000

Tel.: [phone]

mailto:[e-mail]

www.avservice.kz

LB Lebanon

Tehaco s.a.r.l.

Boulevard Dora 4043 Beyrouth

P.O.Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Baltic Continent Ltd.

Luksiog.23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.It

Senuku prekybos centras UAB

Jonavos g.62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

LU Luxembourg

www.siemens-home.bsh-group.com/lu

LV Latvija, Latvia

SIA "General Serviss"

Bulli eila 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

www.serviscentrs.lv

Elkor Serviss

Brivibas gatte 201

1039 Riga

Tel.: [phone]; -36

Fax:[phone]

mailto:[e-mail]

www. elkorserviss.lv

Sia Elektronika-Serviss

Tadaiku iela 4

1004 Riga

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.elektronika.lv

MD Moldova

S.R.L. "Rialto-Studio"

yn. Lycceba 98

2012 KIIMHeB

Ten./φaKc: 022 23 81 80

MK Macedonia,Makeonna

GORENEC

Jane Sandanski 69 lok.3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Aplan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederlande, Netherlands

www.siemens-home.bsh-group.nl

NO Norge, Norway

www.siemens-home.bsh-group.com/no

NZ New Zealand

BSH Home Appliances Ltd.

Unit F2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

• Mo-Fr: 8.30 am to 5.00 pm

(exclude public holidays)

PL Polska, Poland

www.siemens-home.bsh-group.pl

PT Portugal

BSHP Electrodomésticos,

www.siemens-home.bsh-group.com/pt

RO Romania, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti,

nr. 19-21, sect. 1

13682 Bucaresti

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/ro

RU Russia, Poccn

OOO“BCX BbITOBaTexHnka"

CepBnC OT npOn3BoDnteTne

MaJra Kanyckar, 15

119071 MockBa

Tei.: 8 (800) 200 29 62

mailto:[e-mail]

www.siemens-home.bsh-group.ru

SE Sverige, Sweden

BSH Home Appliances AB

Landsvagen 32

169 29 Solna

Tel.: [phone] local rate

mailto:[e-mail]

www.siemens-home.bsh-group.com/se

SG Singapore新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

• Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm (exclude public holidays)

SI Slovenija, Slovenia

BSH Hisni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax:[phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/si

SK Slovensko, Slovakia

BSH domaci spotbrebice s.r.o.

Firemniservisdomacich spotbreicu

Radlická 350/107c

158 00 Praha 5

Tel.: [phone]

mailto:[e-mail]

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Umraniye, Istanbul

Tel.: [phone]*

Fax: [phone]*

mailto:[e-mail]

www.siemens-home.bsh-group.com/tr

• Cagli merkezini sabit hatlardan

aramanin bedeli sehir ici ücretlendirme,

Cep telefonlarindan isekullanlan

www.siemens-home.bsh-group.com/ua

XK Kosovo

SERVICE-GENERAL SH.P.K.

Rruqa Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

Tel.: [phone]

mailto:a_service@

gama-electronics.com

XS Srbija, Serbia

BSH Kučni aparati d.o.o.

Milutina Milankovica br. 92

11070 Novi Beograd

Tel.: [phone]

Fax:[phone]

mailto:[e-mail]

www siemens-home.bsh-group.com/rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand-Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/za

www siemens-home.bsh-group.com

AE 048030501

AL 066 206 47 94

AT 0810550522

AU 1300 368 339

BA 033 213 513

BE 070 222 142

BG 029315062

CH 043 455 4095

CN 4008899999

Call rates depend on the network used

CZ 0251 095 546

DE 0911 70 440 044

DK 44898985

EE 06278730

ES 902 11 88 21

FI 0207510700

Lankapuhelimitsa 8,28 snt/puhelu +7 snt/min (alv 24%

Calls charged at local or mobile rate

GR 18 182 (Aotikni xpewo)

HR 013028226

HU 003614895461

IE 014502655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

IL 08 9777 222

IS 05203000

IT 800 018 346 (Line Verde)

LI 052741788

LU 26349300

LV 067 425 232

ME 050432575

MK 022454600

NL 0884244020

NO 22660600

PL 801 191 534

PT 214250720

RO 021 203 9748

RU 88002002962

SE 0771 11 22 77 (local rate)

SK 0244452041

SL 012007017

TR 444 6688

www.siemens-home.bsh-group.com
