USER MANUAL SV200 CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your SV200 will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

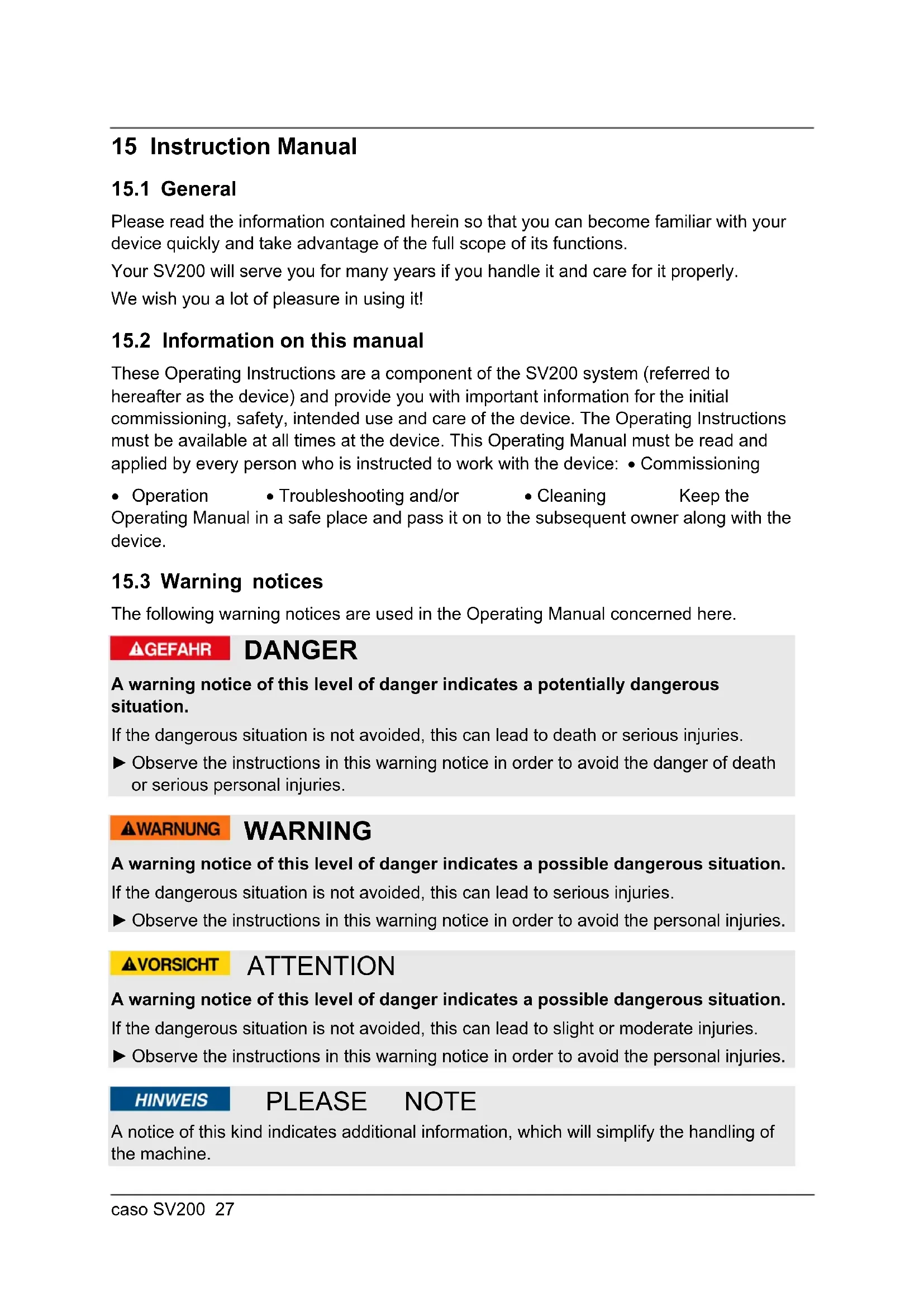

15.2 Information on this manual

These Operating Instructions are a component of the SV200 system (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

15.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.caso SV200 28

15.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observance of the manual Uses for non-intended purposes Improper repairs Technical alterations, modifications of the device Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

15.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is intended solely for indoor domestic use for sous vide cooking. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.caso SV200 29

15.8 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician to avoid any hazard. ► This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ► Children shall not play with the appliance. ► Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised ► Keep the appliance and its cord out of reach of children less than 8 years. ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Do not leave the device unsupervised when it is in operation.caso SV200 30 Please note ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► When disconnect, please unplug by grasp the plug and not the cord, to avoid any injury. ► Do not let the appliance unsupervised during operation. ► Unwind the cord completely during operation. ► Device should not be cleaned in dishwasher. ► The device may only be set vertically in a heat-resistant cooking vessel. ► The device is only suitable for heating up of drinking water. Otherwise the device could be damaged. ► Observe the markings for minimum and maximum of water level. Otherwise the device could be damaged. ► Do not remove the device from cooking vessel during operation. ► Do not move the cooking vessel during operation.

The device is very hot during and after operation! The heated water is also very hot. Risk of burn. ► The device is hot during operation. Let the device cool down before cleaning or touchinig it. Do not touch the heated metal. ► Touch the heated device exclusively at the control element.caso SV200 31 Warning ► The heated device, the heated cooking vessel, the heated water and the steam can cause burns. Be careful with them. Use pot holders or oven gloves when you want to move the cooking vessel. ► Touch and remove the heated (vacuumed) food exclusively with a heat-resistant serving tong or something like that.

15.9.2 Danger of fire

Warning There is a danger of fire due to the event the device is not used properly. Observe the following safety notices to avoid dangers of fire: ► Do not set up the device near flammable material. ► Keep this appliance away from sources of heat (gas, electric, burner, heated oven). ► Observe that the cord does not touch the hot device. ► Do not cover the device with foil or towels.

15.9.3 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician to avoid any hazard.caso SV200 32 Danger ► Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Before plugging the appliance in or when you operate it, make sure your hands are dry. ► Remove the plug from the wall socket when the unit is not in use, and also before cleaning. ► Never immerse the control element into liquid. Keep the cord of device away from water. Dive only the heating element of the device into water. Observe the min- and max-marking of the device when you fill the cooking vessel. ► If the entire device and/or control element was in contact with water, then pull the power plug and send the device to customer service. Attention: Risk of electrical shock. 16 Getting Started This chapter will guide you through safely unpacking and setting up your new unit.

16.1 Packaging safety information

DANGER Packaging materials are not toys and should be disposed of properly. ► Do not allow children to play with packaging materials due to risk of suffocation.caso SV200 33

16.2 What’s included

The SV200 includes the following components: SV200 Instruction manual PLEASE NOTE ► Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage. ► Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

Carefully remove the packaging material and unit from the carton.

16.4 Disposal of the packaging

Caso believes in the importance of recycling and has selected packaging materials that not only protect your unit from damage during transit, but can be recycled to minimize any ecological impact. Recycling the packaging materials preserves raw materials and reduces waste. Take any packaging materials that are no longer required to a recycling collection point for proper disposal. PLEASE NOTE ► If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary. 17 Setup

17.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfill the following prerequisites: Attach the device only in the provided bracket at a heat restistant cooking vessel. The heat-resistant cooking vessel must be set up on a firm, flat, level and heat- resistant surface. The carrying capacity of the support must be appropriate to withstand the weight of the cooking vessel, including device, water filling and the heaviest expected food loading. Do not set up the unit in a hot or damp environment or near flammable material. Do not move the cooking vessel with device when it is in operation. The device should not touch hot surfaces. The electrical outlet must be easily accessible so that the plug can be quickly disconnected in the case of an emergency.caso SV200 34 The setup of this unit in non-stationary locations (e.g., boats, airplanes, motor homes) must be carried out by a qualified electrician, provided they guarantee the prerequisites for the safe use of the unit.

17.2 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Before plugging in the unit, compare the voltage and frequency data on the vacuum sealer’s rating plate (found on the bottom of the unit) with that of your electrical network. This data must be compatible. If in doubt consult a qualified electrician. The electrical outlet must be protected by a 16A safety cut-out switch. The use of a multi-plug outlet adapter is not recommended due to fire danger. Inspect the power cord for damage and ensure it doesn’t run under the unit or over hot or sharp surfaces. The electrical safety of the unit is only guaranteed if it is connected to a properly installed protective conductor system. Use of the unit without a protective conductor is prohibited. If in doubt, consult a qualified electrician. The manufacturer cannot be made responsible for damages due to a missing or damaged protective conductor.

17.2.1 Extension cords

If an extension cord is used: ► The electrical rating of the extension cord should be at least as great as the electrical rating of the unit. ► The cord should be arranged so that it does not drape over a countertop or tabletop where it can be pulled on by children or tripped over.

18 Complete Overview This chapter provides you with an overview of your device and explains some of its key features.caso SV200 35

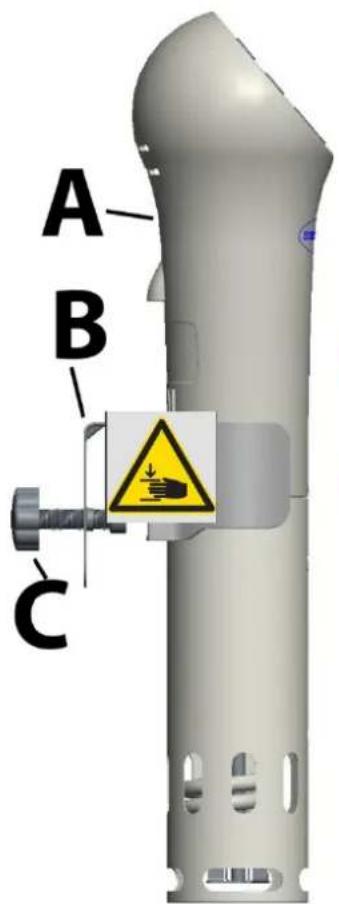

18.1 Appliance diagram

Place the bracket (B) at edge of cooking vessel and fix the screw (C). Place the device (A) into the bracket. Fill water into the cooking vessel and observe min-/max-marking at device. Plug in the power plug into outlet after this. Risk of crushing! Warning Refill probable evaporated water during use, so that always water is filled into cooking vessel up to min-marking. Otherwise the device could be damaged. The the cooking vessel should not be covered with a lid. Use a cooking vessel with capacity 6 – 19 L.caso SV200 36

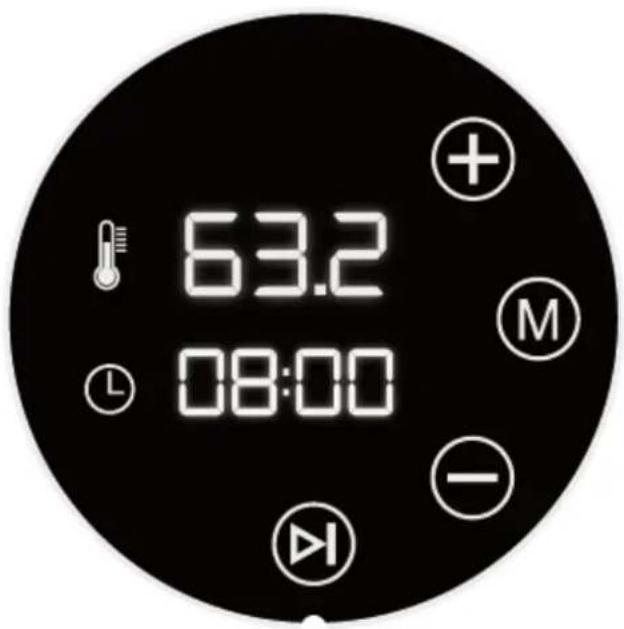

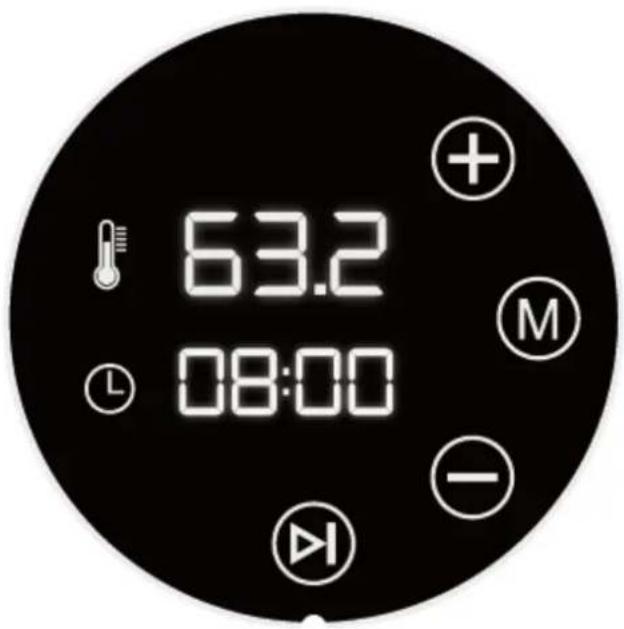

Activation of device and starting of heating/cooking process. Cancelation of heating/cooking process Change of settings. Press button M for 5 seconds to switch between CELSIUS and FAHRENHEIT. Increase/ decrease of temperature or time setting

The rating plate with the connection and performance data can be founded on the back side below the control element of the unit. 19 Operation This chapter provides instructions on the proper operation of your vacuum sealer:caso SV200 37

19.1 SousVide cooking

Cook gently in a vacuum bag. The food is cooked at low temperature in its own juice, making it particularly tender and tasty.

1. Plug in the power plug. The LED-Display flashes. Press button for 5

seconds. The LED-Display will light up.

2. Press button . After this you can change the settings.

3. Adjust the temperature from 45- 90 °C in 0,1 C° steps with

4. Adjust the time from 00:10 minutes to 72:00 hours. Minimum: 10 minutes.

00:10 – 2:00 in 1 minute steps 2:00 – 72:00 in 5 minutes steps

5. Press afterthis to start the heating process. The device will beep once

desired temperature is reached. Place the vacuumed food into the cooking vessel. If needed weight the vacuumed bags. The device counts down the time and will beep again, once time is over. You can cancel the cooking process at every time by pressing . Warning ► Risk of scalding! Carefully remove the food. Note: E1 ► If the device should indicate “E1” in the LED display after switching on even though the water filled in is above the minimum level, please add some salt to the water and stir well.caso SV200 38 20 Storage Store the unit in its upright position, out of the reach of children. PLEASE NOTE ► Turn off the device after use. So you can avoid unnecessary energy consumption and ensure your safety. ► Always unplug the appliance from its outlet immediately after using and before cleaning. 21 Cleaning and Maintenance This chapter provides important information on properly cleaning and maintaining your SV200.

21.1 Safety information

Danger Please observe the following safety notices, before cleaning the unit to avoid damage to the unit or personal injury: ► To ensure optimum performance, the unit must be cleaned regularly. Failure to clean the unit regularly can lead to potential malfunctions, as well as safety and health risks. ► Turn off and unplug the unit prior to cleaning. ► Clean the unit after every use as soon as it has cooled. Leaving the unit uncleaned for long periods can make it very difficult to remove leftover food and grime and may even damage the unit. ► If moisture penetrates the unit’s housing, it can damage the electronic components. Please ensure that no moisture enters the device (control element). ► Do not use any harsh or abrasive cleaning agents. ► Do not attempt to scrape off stubborn grime with hard or abrasive tools. ► Dry all parts thoroughly before using after cleaning. ► Do not clean the device in the dishwasher. Never immerse the control element of the device into liquid.

21.2 Maintenance and cleaning:

Let the device cool down before cleaning. Take the device out off the cooking vessel and dry it thoroughly with a damn cloth. Place it on a damp cloth after this, so that the heating element can dry inside. 22 Troubleshooting The following table may help you narrow down and address minor malfunctions:caso SV200 39

Danger ► Only qualified electricians, who have been trained by the manufacturer may carry out any repairs on electrical equipment. ► Improperly performed repairs may result in personal injury or damage to the device.

22.2 Troubleshooting

The device does not work:

1. Check that the cable is properly plugged into the wall socket

2. Check cable for damage.

3. Verify that the wall socket works with another device.

22.3 Troubleshooting table

The digital display is lit, but the device does not start the cooking program and displays an error code instead: Error Code Possible Causes Solution E1 1. Cooking vessel is empty Fill clean water up to above the “MIN” level.

2. Water too low Fill clean water up to above the “MIN” level.

positioned correctly on the table Place the device on a flat surface

4. Error in electronics Please contact customer service

E4 The overheating protection has been triggered. When the water level is lower than MIN mark or the water shortage sensor probably is not working correctly, the overheating protection will be activated. Pull the plug and let the device cool down. Fill in enough water and plug in again. Danger ► If whole device or control element were in contact with water then unplug device and contact customer service. Risk of electric shock!

PLEASE NOTE ► In the event of technical troubles, faulty devices or missing parts, please contact Customer Service.caso SV200 40 23 Disposal of the Old Device To protect the environment, it’s important to dispose of old electronic devices properly. Do not place your old unit in the non-recyclable waste under any circumstances. PLEASE NOTE ► Please take your old unit to the nearest recycling center for safe disposal. ► Until it can be disposed of properly, store your old unit away from children. 24 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 25 Technical Data Device Sous-Vide Cooker Name SV200 Item No.: 1308 Mains data 220-240V~ 50/60 Hz Power consumption 800 W Capacity 6-19 L External measurements (W x H x D): 37,8 cm height, 85 cm cord length 6 cm diameter bottom 9 cm diameter upside Net weight 0,923 kgcaso SV200 41 Mode d'emploi original Cuiseur sous vide SV200
