USER MANUAL PVD4754SK PANASONIC

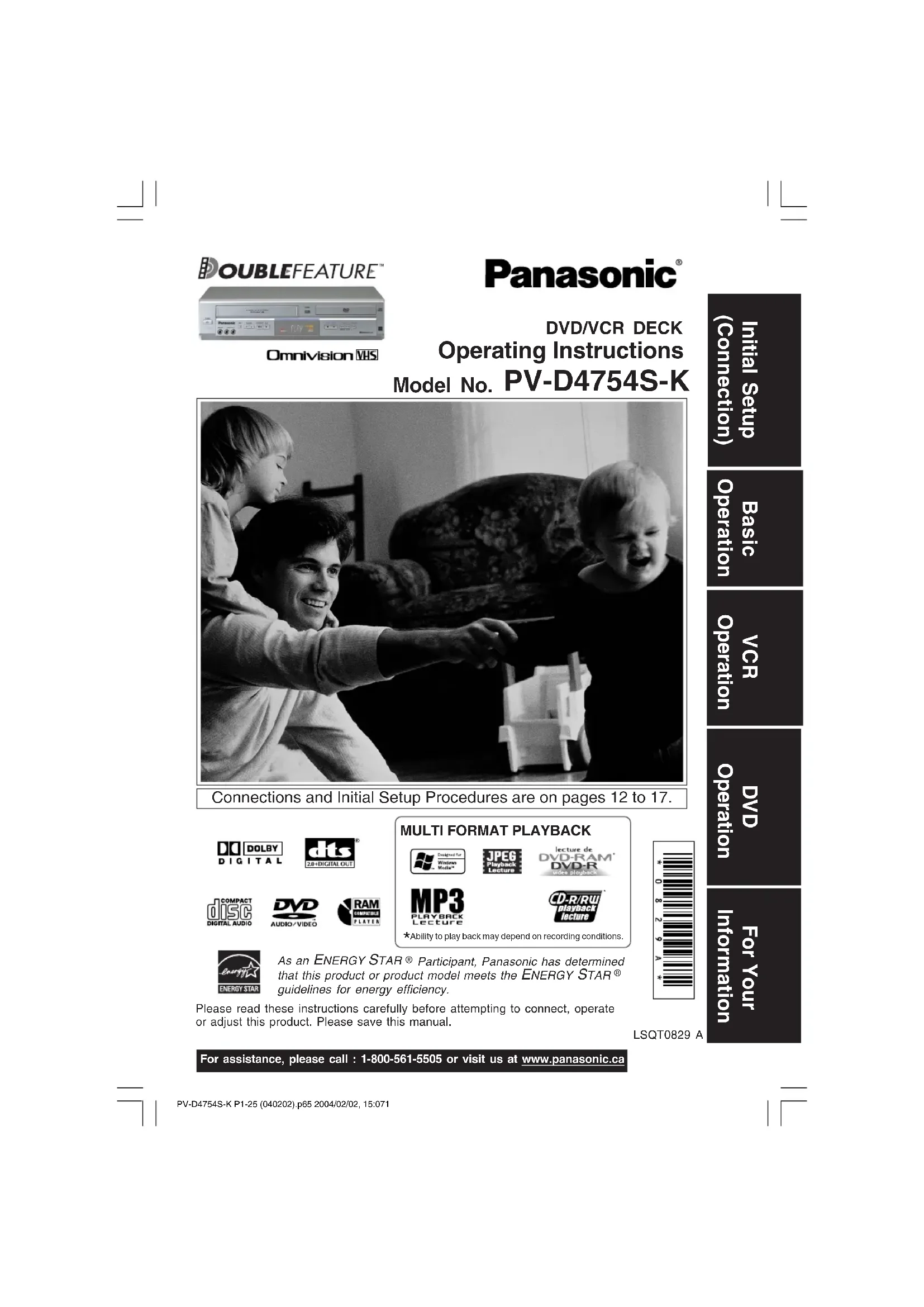

DVD/VCR DECK Operating Instructions Model No. PV-D4754S-K

Connections and Initial Setup Procedures are on pages 12 to 17.

MULTI FORMAT PLAYBACK

*Ability to play back may depend on recording conditions.

As an ENERGY STAR® Participant, Panasonic has determined that this product or product model meets the ENERGY STAR® guidelines for energy efficiency.

Please read these instructions carefully before attempting to connect, operate or adjust this product. Please save this manual.

For assistance, please call : 1-800-561-5505 or visit us at www.panasonic.ca

LSQT0829 A

Important Safeguards and Precautions

WARNING

TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, INJURY TO PERSONS OR DAMAGE TO THIS PRODUCT, READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL WARNINGS IN THE MANUAL AND ON THE PRODUCT.

INSTALLATION

1 POWER SOURCE CAUTION

Operato only from a power source indicated on the unit or in this manual. If necessary, have your Electric Utility Service Company or Video Products Dealer verify the power source in your home.

2 POLARIZED OR GROUNDING PLUG

As a safety feature, this product comes with either a polarized power cord plug (one blade is wider than the other), or a three-wire grounding type plug.

POLARIZED PLUG CAUTION:

This plug will only fit into an outlet one way. If you cannot fully insert the plug, try reversing it. If it still will not fit, have an electrician install the proper wall outlet. Do not defeat the safety feature by tampering with the plug.

GROUNDING PLUG CAUTION:

This plug will only fit Into a three-hole grounding outlet. If necessary, have an electrician install the proper outlet. Do not defeat the safety feature by tampering with the plug.

3 POWER CORD

Make sure power cords are routed so that they are not likely to have anything rest on them, roll over them, or be in the way of walking traffic. If an extension cord is used, make sure it also has either a polarized or grounded plug and that the cords can be securely connected. Frayed cords, damaged plugs, and damaged or cracked wire insulation are hazardous and should be replaced by a qualified service technician.

Overloaded outlets and extension cords are fire hazards and should be avoided.

4 DO NOT BLOCK VENTILATION HOLES

Ventilation openings in the cabinet release heat generated during operation. If they are blocked, heat build-up inside the unit can cause failures that may result in a fire hazard or heat damage to cassettes or discs.

For protection, follow these rules:

a. Never cover ventilation slots or the unit while in use, or operate the unit when placed on a bed, sofa, rug, or other soft surface.

b. Avoid built-in installation, such as a book case or rack, unless proper ventilation is provided.

S UPLACEMENT: AVOID EXTREMELY HOT LOCATIONS OR Sudden TEMPERATURE CHANGES

Do not place the unit over or near heater or radiator, in direct sunlight, inside closed vehicles, in high temperature [over 104^ (40^)] , or in over 75% humidity. If the unit is suddenly moved from a cold place to a warm one, moisture may condense in the unit and on the tape causing damage. Never subject the unit to vibration, impact, or place it so that the surface is tilted as internal parts may be seriously damaged.

6 TO AVOID PERSONAL INJURY

• Do not place unsecured equipment on a sloping surface.
• Do not place this unit on any support that is not firm, level, and adequately strong. The unit could fall causing serious injury to a child or adult and damage to the unit.
• An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
• Carefully follow all operating instructions and use the manufacturer's recommended accessories when operating this unit or connecting it to any other equipment.

2

OUTDOOR ANTENNA INSTALLATION

1 SAFE ANTENNA AND CABLE CONNECTION

If an outside antenna or cable system is connected to the equipment, be sure the antenna or cable system is grounded so as to provide some protection against built up static charges and voltage surges.

Part 1 of the Canadian Electrical Code, in

USA Section 810 of the National Electrical

Code, ANSI/INFPA 70, provides information

with respect to proper grounding of the mast

and supporting structure, grounding of the lead

in wire to an antenna discharge unit, size ofmounting condusion location of antenna discharge

grounding conductors , location of antenna dischargeunit connection to grounding electrodes and equipment

in the cornection to ground the grounding electrode.

2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR

CIRCUITS

An outside antenna system should be located well away from power lines, electric light or power circuits and where it will never come into contact with these power sources if it should happen to fall. When installing an outside

antenna, extreme care should be taken to avoid touching power lines, circuits or other power sources as this could be fatal. Because of the hazards involved, antenna installation should be left to a professional.

USING THE UNIT

If the unit has been in storage or moved to a new location, refer first to the INSTALLATION section of these safeguards.

1 KEEP THE UNIT AWAY FROM WATER OR MOISTURE OF ANY KIND.

2 IF EQUIPMENT IS EXPOSED TO RAIN, MOISTURE, OR STRONG

IMPACT, unplug the unit and have it inspected by a qualified service technician before use.

3 DURING AN ELECTRICAL STORM

During a lightning storm, whether indoors or outdoors, or before leaving the unit unused for extended periods of time, disconnect all equipment from the power source as well as the antenna and cable system.

4 WHEN THE UNIT IS PLUGGED IN

• Never expose the unit to rain or water. DO NOT OPERATE if liquid has been spilled into the unit. Immediately unplug the unit, and have it inspected by a service technician. Fire and shock hazards can result from electrical shorts caused by liquid contact inside.
• Never drop or push any object through openings in the unit. Some internal parts carry hazardous voltages and contact can cause electric shock or fire hazard. Do not put any foreign object on the disc tray.
• Avoid placing the unit directly above or below your TV set as this may cause electrical interference. Keep all magnets away from electronic equipment.

5 USING ACCESSORIES

Use only accessories recommended by the manufacturer to avoid risk of fire, shock, or other hazards.

6 CLEANING THE UNIT

Unplug the unit. Then, use a clean, dry, chemically untreated cloth to gently remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air that could over-spray, or seep into the unit and cause electrical shock. Any substance such as wax, adhesive tape, etc. may mar the cabinet surface. Exposure to greasy, humid, or dusty areas may adversely affect internal parts.

SERVICE

1 DO NOT SERVICE THIS PRODUCT YOURSELF

If, after carefully following the detailed operating instructions, this product does not operate properly, do not attempt to open or remove covers, or make any adjustments not described in the manual. Unplug the unit and contact a qualified service technician.

2 IF REPLACEMENT PARTS ARE REQUIRED

Make sure the service technician uses only parts specified by the manufacturer, or those having the same safety characteristics as the original parts. The use of unauthorized substitutes may result in fire, electric shock, or other hazards.

3 HAVE THE SERVICE TECHNICIAN PERFORM A SAFETY CHECK

After any service or repairs to the unit, request the service technician to conduct a thorough safety check as described in the manufacturer's service literature to ensure that the unit is in safe operating condition.

Safety Precautions

WARNING

To prevent fire or shock hazard, do not expose this equipment to rain or moisture.

CAUTION

To prevent electric shock, match wide blade of plug to wide slot, fully insert.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit. This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

CAUTION:

UNIT IS A CLASS I LASER PRODUCT.
HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD
CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED.
WHEN THIS UNIT IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE
YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER
OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION:

LASER RADIATION WHEN OPEN DO NOT STARE INTO BEAM.

(Inside of product)

FCC NOTE:

This equipment has been tested and found to comply with part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver.

If necessary, consult the dealer or an experienced radio/TV technician for help. The user may find the booklet, "Something About Interference" available from FCC local regional offices helpful.

FCC Caution:

To assure continued compliance, (example- use only shielded interface cables when connecting to other devices.) Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Region Management Information:

This DECK is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DECK, this DECK cannot play this disc.

The Region number for this DECK is "1".
The Player will play DVD-Video marked with labels containing "1" or "ALL".

Example:

Before Using

Congratulations

on your purchase of one of the most sophisticated and reliable products on the market today. Used properly, it will bring you years of enjoyment. Please fill in the information below. The serial number is on the tag located on the back of your DECK.

• Date of Purchase
  Dealer Purchased From
  Dealer Address
  Dealer Phone No.
• Model No.
  Serial No.

Accessories

Remote Control EUR7724KB0

□ Batteries 2 "AA"

RF Coaxial Cable LSJA0418

Loading the Batteries

1) Open cover.
2) Insert batteries as marked.
3) Close cover.

□ Battery replacement caution

• Do not mix old and new batteries.
• Do not mix alkaline with manganese batteries.

Record/Playback Time

Only use tapes with the WMSark in this DECK.

Tape Speed Setting	Type of Video Cassette
			T180T1
SP (Standard Play)	2 Hours	2 Hours 40 Minutes	3 Hours
SLP (Super Long Play)	6 Hours	8 Hours	9 Hours

Head Cleaning

Playing older or damaged tapes may eventually cause video heads to become clogged.

Video Head Clog Sensor

During playback, this screen appears if clogging is detected. To remove screen, press PLAY on the remote or DECK.

VIDEO HEADS MAY NEED CLEANING PLEASE INSERT HEAD IN THE TABLE OR REFER TO MANUAL

END :P LAY

• Use "dry" type head cleaning cassette only. (Part No. NV-TCL30PT is recommended.)
• Follow cleaning tape instructions carefully. Excessive use of tape can shorten head life.
  If head clog symptoms persist, contact your nearest Factory Servicentre or authorized Servicentre (see p. 61).

Cleaning DECK

Use a soft cloth or dusting attachment of a vacuum cleaner to remove dust from the ventilation holes on the back sides and bottom of the cabinet.

Plastic surfaces are easily scratched and can be marred by alcohol and various solvents.

Avoid excessive use of oil-based furniture polishes since the materials used in the cabinet will accumulate more dust. We recommend using a non-abrasive, antistatic cleaner and polishing.

Features for a Quality Picture (VCR)

Digital Auto Picture

Automatically controls the video output signal for less noise depending on the tape condition.

Digital Auto Tracking

Continuously analyzes the signal and adjusts for optimum picture quality.

Manual Tracking Control

(to reduce picture noise)
Use during Playback and Slow Motion mode to reduce picture noise.
Press CH (TRACKING) / on the remote control or on DECK until the picture clears up.
To return to Auto Tracking, press POWER off, then on again a few seconds later.

V-Lock Control (to reduce picture jitter)

In Still mode, CH (TRACKING) ▲/▼ operate as a V-Lock control.

4

Table of Contents

DVD / VCR

Important Safeguards and Precautions 2,3

Before Using 4

DECK & Cassette Information 6,7

Location of Controls 8~10

Displays (On Screen Displays and Multi Function Display) 11

Connections 12~15

Initial Setup for Basic Connections (Ready to Play) 16, 17

VCR

Reset Language, Channels, Clock, VCR's Output Channel ... 18, 19

Playback/ Record on a Tape 20, 21

DVD

Basic DVD Operation 22, 23

Timer Recording 24, 25

MTS Broadcast/ VHS Hi-Fi Stereo System 26, 27

Multi-Brand Control Feature 28, 29

Tape Operation (Search System) 30, 31

Special VCR Features 32~34

Copying Your Tapes (Dubbing) 35

Disc Operation 36~41

DVD-RAM Operation (DVD-RAM only) 42, 43

DVD Operation using On-Screen Displays 44~48

MP3/WMA/JPEGPlaybackOperation 49~51

Settings for DVD Operation 52~55

A/V OPTIMIZER 55

Language Code List 56

DVD / VCR

Warning and Instruction Displays 57

Before Requesting Service 58, 59

Limited Warranty 60

Servicentre List 61

Index 62, 63

(ounonone)

dn

O

!

onereoe

HA

O

C

e

JnoJor

DECK & Cassette Information

Prevent Accidental Tape Erasure

Break off the tab to prevent recording.

Record Tab Screw driver

To record again

Cover the hole with cellophane tape.

Disc formats supported by this DECK

DECK can play back discs bearing any of the following marks:

Logo Disc	type
DVD RAM RAM4.7	DVD-RAM (Version 1.1 of the Video Recording Format a unified video recording standard)
DVD DVDVIDEO	DVD (DVD-Video)
DVD R RA7	DVD-R (DVD-Video formatted discs [finalized])
DVD AUDIO	DVD-Audio
CD (CD-DA)
CD-R/CD-RWCD-DA formatCD-WMA/MP3/JPEG file and finalized.*

[Discs Played 8cm (3") or 12cm (5")]
^* A process that allows play on compatible equipment.

Discs which cannot be played

DVD with Region No. other than "1" or "ALL
PAL discs (the audio on DVD-Audio can be played), DVD-ROM, DVD-RW, DVD+R, DVD+RW, CD-ROM, CDV, CD-G, CVD, SVCD, SACD, CD-TEXT, Divx Video Disc, Photo-CD and Video CD

Notes

• Do not use irregularly shaped discs (e.g. heart-shaped), as these can damage the unit.
  It may not be possible to play CD-R, CD-RW, DVD-R and DVD-RAM in all cases due to the type of disc or condition of the recording.

DVD-RAM discs

DVD-RAM discs must meet the following conditions for this unit to be able to play them.

Type	·Non-cartridge discs ·Discs that can be removed from their cartridges (TYPE 2 and 4)
Capacity	·12 cm (5") 9.4 GB (double-sided) and 4.7 GB (single-sided) ·8 cm (3") 2.8 GB (double-sided)

• Remove TYPE 2 and 4 discs from their cartridges before use, then return them when you are finished. Read the instructions for the disc carefully.

• Some parts of the disc, for example where one program ends and another begins, may not play smoothly.

Disc Handling

Handling precautions

• Sticking a label on the disc may impair DVD-R playback.
• Do not attach sticker to discs. (Do not use discs with exposed adhesive from tape or left over peeled-off stickers.)
  Only hold disc by edges as shown below. Fingerprints, dirt and scratches can cause skipping and distortion.

• Do not write on label side of disc.

• Never use record cleaning sprays, benzine, thinner, static electricity prevention liquids, or any other solvent.

Disc tray. Disc

• Do not try to close disc tray when disc is not properly placed.

To clean disc surface

With a soft, damp (water only) cloth, gently wipe from the center hole to the outer edge as shown below. (Wiping in a circular pattern will scratch the surface.)
DVD-RAM, DVD-R: Clean only with the DVD-RAM disc cleaner available. Never use cloths or cleaners for CDs etc.

If disc is brought from a cold to a war

environment, moisture may form on the disc Wipe away moisture with a soft, dry, lint-free cloth before using disc. (See above.)

Improper disc storage

Discs could be damaged if stored or left in areas:

exposed to direct sunlight.
that are humid or dusty.
- near heat (i.e. heater, radiator, etc.).

Specifications

Power Source: 120 V AC, 60 Hz

Power Consumption: Power On: Approx. 28 watts, Power Off: Approx. 0.85 watts

Video Signal: EIA Standard NTSC colour

Video Recording System: 4 rotary heads helical scanning system

Audio Track: 1 track (Normal), 2 channel (Hi-Fi Audio Sound)

Tuner

Broadcast Channels: VHF 2 ~ 13, UHF 14 ~ 69

CABLE Channels: Midband A through I (14 ~ 22), Superband J through W (23 ~ 36)

Hyperband AA EEE (37 - 64), Lowband A-5 A-1 (95 - 99)

Special CABLE channel 5A (01), Ultraband 65 94 100 125

Input/Output Terminal: Audio/Video Line Input/Output, RF Input/Output

Input Terminal: Audio/Video Line Input (Front)

Output Terminal: S-Video Output (DVD only), Component Video Output (DVD only)

Audio Output 2 (L), (R)

Operating Temperature: 5^ 40^ (41°F~104°F)

Operating Humidity: 10% 75%

Weight: 3.85kg (8.5 lbs).

Dimensions: 430 (W) x 95 (H) x 273 (D) mm

16-15/16" (W) x 3-3/4" (H) x 10-3/4" (D) inch

Discs Played

(1) DVD-Video Disc

DVD-Audio Disc

2 cm) single-sided single-layer

5" (12 cm) single-sided double-layer

5" (12 cm) double-sided double-layer (one layer per side)

3" (8 cm) single-sided single-layer

3^ (8 cm) single-sided double-layer

3^ (8 cm) double-sided double-layer (one layer per side)

5" (12 cm) 9.4 GB (double-sided) and 4.7 GB (single-sided)

3" (8 cm) 2.8 GB (double-sided)

5" (12 cm) disc

3^ (8cm) disc

DVD-RAM Disc

(2) Compact Disc

(CD-DA)

(CD-R/CD-RW,MP3,WMA,JPEG)

Digital Audio Output:

Pickup:

Digital Optical Connector

Wavelength: 655 nm (DVD), 790 nm (CD)

Laser power:CLASS II

Note: Designs and specifications are subject to change without notice.

Definition of Terms (DVD)

Angle: Some DVD discs feature scenes simultaneously shot from different angles. The ANGLE button can be used to view the scene from different angles. (ANGLE Indicator lights on DECK when a scene recorded at different angles is detected.)

Chapter Number: Titles are subdivided into numbered sections. You can quickly search for a favorite scene using these numbers.

DVD: A high-density optical disc on which high-quality pictures and sound have been digitally recorded. DVD incorporates video compression technology (MPEG II) and high-density recording technology which allow entire movies to be recorded with incredible playback quality.

Subtitles: Written dialogue which appears at the bottom of the screen.

Time Number: The elapsed play time from the start of a disc or title. Use to quickly find scenes. (May not work with some discs.)

Title Number: For DVD discs with two or more titles, the title is numbered as title 1, title 2, etc.
Track Number: Numbers assigned to tracks on CDs to allow specific tracks to be quickly located.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098 and 4,907,093, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Location of Controls

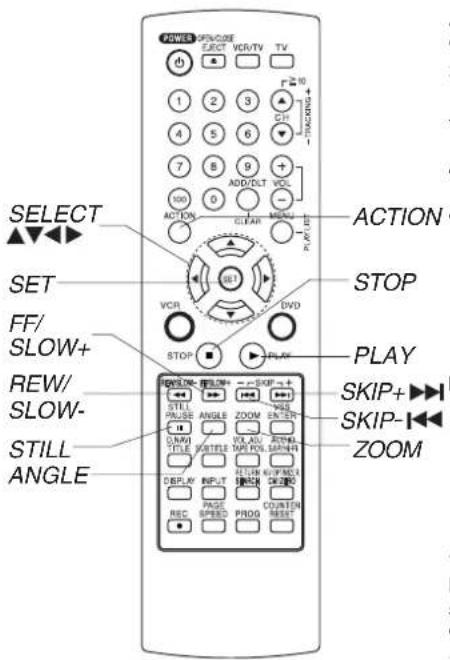

Remote Control
Bold: VCR Function / Bold Italic: VCR and DVD Functions
Italic: DVD Function / Normal: Others

8

Front View of DECK

Bold: VCR Function

Italian: DVD Function

Bold Italic: VCR and DVD Functions

Normal: Others

If the disc cannot be removed...

First, unplug DECK. Then, prepare a rigid wire (e.g. an extended paper clip) and, applying moderate force, insert it straight into the hole at the base of the tray.

The tray will eject a little. Now, pull the tray all the way out and remove the disc.

Returns to factory setting. Use if relocating DECK, or if Initial Setup needs to be redone.
- Make sure a tape is not inserted in the DECK.

1 Turn DECK Power on.
2 Press and hold both VCR PLAY and CHANNEL an the DECK for more than 5 seconds.
The power shuts off.
3 Perform "Initial Setup (Ready to Play)" on page 16.

Location of Controls (continued)

Rear View of DECK

Bold: VCR Function

Italic: DVD Function

Bold Italic: VCR and DVD Functions

AC Power Plug

• While plugged into an AC outlet, this DECK consumes 0.85 W of electrical power in off mode.

VHF/UHF Antenna Output Terminal p.12

VHF/UHF Antenna Input Terminal p.12

The following table shows the status of the output jacks when in VCR or DVD mode.

	Video Output Audio Out 1 Audio Out 2	Component Video Output	S-VIDEO OUT
VCR	YES	N/A	N/A
DVD	YES	YES

PROG functions on the remote are not available when using Component Video Output and S-VIDEO OUT. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROG.

To enjoy PROGRESSIVE SCAN video

(1). Connect Component Video Output to the component video input terminals of a television. (See p. 13.)
(2). When PROGRESSIVE OUT is set to "ON" in the DVD Main Menu (p. 55), a Progressive Scan signal is output from the Component Video Output Connector.

Notes

• The screen may shift off-center when using progressive output. Please adjust the screen position if this occurs. (Refer to your TV manual.)
• If the television is not progressive compatible, a progressive scan picture is not available. Connect the Video Output or S-Video Output connector (see p. 12, 13) and set PROGRESSIVE OUT to "OFF" in the DVD Main Menu. (See p. 55.)

10

Displays (On Screen & Multi Function)

On Screen Displays (VCR)

Function & Channel Displays

CH08

When a function button is pressed, e.g. PLAY, or you change channels, a 5-second display appears.

Blank Tape/ No Video Signal Indications

Whenever a blank section of a tape comes up in Play mode, or when the selected channel has no broadcast signal with Weak Signal Display Feature (p. 33) set to OFF, the TV screen will turn solid blue.

(ounon)

dms

VCR Status & Clock Displays

To display or remove screen shown at right,

press DISPLAY.

Rec Time Remaining (OTR mode only, see p. 21.)

Broadcast Audio Being Received (See pp.26,27.)

Multi Function Display

VCR mode Indicator

Lights up when DECK is in VCR mode.

Tape Indicator

Lights up when a tape is inserted.

DISC Indicator

Lights up when a disc is inserted.

DVD mode Indicator

Lights up when DECK is in DVD mode.

Timer Indicator

Lights up when DECK is set for Timer Recording, or when One Touch Recording (OTR) is used. Flashes when Timer Recording is set, but a tape has not been inserted into DECK and when a power interruption occurs during Timer Programming.

VCR REC Indicator

Lights up during recording.

CD/MP3/WMA

Indicator

CD : Lights when an Audio CD is inserted or JPEG file is played.

MP3/WMA: Lights when an MP3 or WMA file is played.

DTS Indicator

Lights up when a DTS formatted DVD is played. (DVD only)

Hi-Fi Indicator

Lights up when Hi-Fi audio is present in Play mode.

AM/PM Indicator

ANGLE Indicator

Lights up when a scene recorded at different angles is detected. (See p. 37.) (DVD only)

Clock/ Status/ Channel/ Speed Display

Displays current time. Briefly displays DECK status when you press a function button, channel number or "L1" or "L2" when you select channel or line input, and recording speed when you press SPEED.

Dolby Digital

Indicator

Lights up when a "Dolby Digital" formatted DVD is played. (DVD only)

Connections

Basic Connections

• If your TV has AUDIO and VIDEO IN terminals, connect them to DECK for higher quality picture and sound.
• You can enjoy stereo sound even if your TV is not stereo by connecting a stereo amplifier to DECK.
• Connect DECK and TV with an RF Coaxial Cable (a) (supplied) or an AV Cable (b) (not supplied) as shown in the figure below.

When using "Nut type" RF coaxial cables, tighten with fingers only. Overtightening may damage terminals.

Note to CABLE system installer

This reminder is provided to call the CABLE system installer's attention to Article 820-40 of the NEC in USA (and to the Canadian Electrical Code in Canada) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Other Connections

With a Cable Box (DECK Cable Box TV)
Connect With Two Cable Boxes

view any (including scrambled) channel.
- use Remote Control to select channels without using Multi-brand control feature.

• record and view both scrambled and unscrambled channels if additional equipment is added. This connection requires: two converter boxes, an A/B switch, and a 2-way splitter.

You Cannot

• record scrambled channels.

You Cannot

view a channel other than the one selected for any type of recording.
- set a Timer recording of a channel unless you select it on the Cable Box.

Connections For DVD Only (enjoying higher picture quality)

① Connect AUDIO OUT2 (L, R) to the AUDIO IN (L, R) of the TV. (audio input for COMPONENT or S-VIDEO mode).
If your TV has COMPONENT VIDEO INPUT, connect to COMPONENT VIDEO OUT. If your TV does not have COMPONENT Video INPUT but has S-VIDEO INPUT, connect to S-VIDEO OUT.
3When in DVD mode, set your TV to either COMPONENTVIDEO IN or S-VIDEO IN.

Notes

• You can watch DVDs through the S-VIDEO or COMPONENT VIDEO, VHF/UHF OUT TO TV, and VIDEO OUT connections to your TV. The VCR and TUNER pictures are available only from the VIDEO OUT and VHF/UHF OUT TO TV connections to your TV.

• PROG functions on the remote are not available when using S-VIDEO OUT and COMPONENT Video Output. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROG.

• TV must have capability to accept and display a progressive scan signal to use PROGRESSIVE mode. Consult your TV operating instructions.

Connections (continued)

Audio Connections

Ready Checklist

Turn down the volume, then turn DECK, as well as other equipment to be connected, off before proceeding with connection.
Do not block ventilation holes of any of the equipment and arrange them so that air can circulate freely.
Read through the instructions before connecting other equipment.
Ensure that you observe the colour coding when connecting audio and video cables.

Connecting Amplifier (2ch stereo system)

Enjoying digital audio output from the digital audio output connector Notes on audio output from the optical digital audio output connector

Disc	Sound recording format	Optical digital audio output from connector
DVD	Dolby Digital	Dolby Digital bitstream (1-5.1 ch) or PCM (48 kHz sampling/16 bit only)*1
	Linear PCM (48/96/192/44.1/88.2/ 176.4 kHz 16/20/24bit)	Linear PCM (2 ch) (48 kHz sampling/16 bit or 44.1 kHz sampling/ 16 bit)*2
	DTS	Bitstream or PCM (48 kHz sampling/16 bit only)*1
DVD-RAM	Dolby Digital	Dolby Digital bitstream (1 - 5.1 ch) or PCM (48 kHz sampling/16 bit only)
	Linear PCM(48 kHz/16 bit)	Linear PCM (2 ch)
CD	Linear PCM	Linear PCM (44.1 kHz sampling)
MP3	MP3	Linear PCM (It depends on the MP3 file)
WMA	WMA	Linear PCM (It depends on the WMA file)

1 The type of audio output from the connector can be selected by the Settings for DVD Operation. (See p. 53.)
2 When "LPCM(DVD)" is set to OFF in the DVD Main Menu, 44.1 or 48kHz sampling/16 bit is output. When set to ON, sampling of sound quality greater than 44.1 or 48kHz/16 bit is reduced to 44.1 or 48kHz/16 bit. (See page 53.)

For your reference:

• Dolby Digital is a digital sound compression technique developed by the Dolby Laboratories Licensing Corporation. Supporting 5.1-channel surround sound, as well as stereo (2-channel) sound, this technique enables a large quantity of sound data to be efficiently recorded on a disc.
• Linear PCM is a signal recording format used in CDs. While CDs are recorded in 44.1 kHz/16 bit, DVDs are recorded in 44.1 kHz/16 bit ~ 192 kHz/24 bit.
• If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that provide full 5.1 channel Dolby Digital soundtracks, as well as from titles with the Dolby Surround mark. For information on Panasonic Dolby Pro Logic Surround Sound Decoders please contact your local dealer.

- Connecting Amplifier (5.1 ch Surround system) [Digital connection] - DECK Dolby Digital Receiver Amplifier Speaker

or DECK DTS (Digital Theater Systems) Receiver Amplifier Speaker

When DVDs recorded in Dolby Digital or DTS are played, Dolby Digital bitstream or DTS bitstream is output from the DECK OPTICAL digital audio output connector. When DECK is connected to a Dolby Digital or DTS receiver, you can enjoy theater-quality audio in your home. [An optical digital audio cable (optional) is required when an optional Dolby Digital or DTS receiver is used.]

(ounen)

dms

Caution for optical digital audio output connector:

• When connecting an amplifier (with an Optical Digital Input Connector) which does not contain the Dolby Digital or DTS receiver, be sure to select "PCM" at "Dolby Digital" and "PCM" at "dts" of the Settings for DVD Operation "Audio Output" (see p. 53). Otherwise, any attempt to play DVDs may cause such a high level of noise that it may be harmful to your ears and damage your speakers.
• When a Dolby Digital/DTS receiver is connected, please select "Bitstream" at "dts" or "Dolby Digital" of the Settings for DVD Operation "Audio Output". If "PCM" is selected, there will be stereo sound. (See p. 53.)
• CDs can be played as usual.
  Note:
• Some DTS receivers which do not support DVD-DTS interface may not work properly with DECK.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No's. 5,451,942, 5,956,674, 5,974,380, 5,978,762, 6,487,535 and other US. and world-wide patents issued and pending. "DTS" and "DTS 2.0 + Digital Out" are trademarks of Digital Theater Systems, Inc. Copyright 1996, 2003 Digital Theater Systems, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. "Dolby," "Pro Logic," and the double-D symbol are trademarks of Dolby Laboratories.

Initial Setup for Basic Connections (Ready to Play)

Before doing Initial Setup

1 Turn TV on.
See connections a RF Coaxial Cable Connection and b AV Cable Connection on page 12.

Set TV to channel 3.

Set TV toVIDEO.

3 [DECK TV]

• Go to "Initial Setup (Ready to Play)." (See below.)
  [Cable Box DECK TV], [DSS DECK TV]
• Turn on Cable Box and set it to your Public Broadcasting Station (PBS) channel in your time zone.
  If you use a DSS Receiver, it must be turned off.

Initial Setup (Ready to Play)

1 Press VCR on remote for VCR mode.
2 Plug DECK Power Cord into AC wall outlet. DECK comes on and SELECT LANGUAGE screen appears. When one of "1", "2", "3" keys is pressed, auto channel and clock set starts.

• If screen below does not appear, check DECK - TV connection and, if TV is tuned to channel 3, try switching it to channel 4.
  To change VCR's output channel, please refer to "VCR's Output Channel" on page 19.

• If wrong language is set, do "Reset All Memory Functions" (p. 9).

Plug VCR Power plug into an AC wall outlet.

Select language

Press 1: English

Press 2 : French

Press 3:Spanish

Notes

• Function buttons are void during Initial Setup.
  To eject a tape during Auto Set, press EJECT on remote or STOP/EJECT twice on DECK. Then make settings manually. (See p. 18.)
• If Auto Clock Set takes more than 30 minutes, press STOP and perform settings manually. (See p. 18.)

16

ly to Play)

*Important: If a remote control button does not work when pressed, press the VCR button on the remote and try the button again.

3 Settings are made automatically. When complete, this screen appears.

If "AUTO CLOCK SET IS INCOMPLETE" appears, manually set clock (below).

Manual Clock Set

If Auto Clock Set was incomplete.

Press ACTION* on remote to display CLOCK screen.

2 Press to select the month and SET to set. In the same manner, select and set the date, year, time, and DST (Daylight Saving Time).

3 Press ACTION to start clock and exit.

Reset Language, Channels, Clock,

VCR's

1

Press ACTION* to display MENU.

• PROGRAM functions are not available when using COMPONENT Video Output and S-VIDEO OUT. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROGRAM.

2

Language

1) Press select language item.

2) Press SET repeatedly to change language item as shown below.

3) Press ACTION to exit.

Channels

1) Press select "SET UP CHANNEL," and press SET.

2) Press select "ANTENNA," then press SET to set your antenna system ("TV" or "CABLE.")

3) Press select "AUTO SET," then press SET.

• If you use a Cable Box, set it to the PBS channel in your time zone.

After Channel Auto Set is finished, Auto Clock Set will be performed.

Clock

1) Press select "SET CLOCK," and press SET.

2) Press to select "MANUAL," and press SET. (For Auto Clock Set, select "AUTO CLOCK SET.")

("TIME ZONE ADJUST" appears only when auto clock is set.)

3) Press and to select, then set the date, time, and DST (Daylight Saving Time).

4) Press ACTION to start Clock and exit this mode.

18

k,

VCR's Output Channel

*Important: If a remote control button does not work when pressed, press the VCR button on the remote and try the button again.

Time Zone Adjust (Orthodox Auto Clock in 1985)

1) Press select "SET CLOCK," and press SET.

2) Press select "TIME ZONE ADJUST,"

and press SET to subtract or add hour(s) as necessary.

3) Press ACTION

• "TIME ZONE ADJUST" returns to "0" if clock is set manually.

VCR's Output Channel

1) Press select "VCR'S OUTPUT CH." and press SET.

2) Press SET.

IF YOU PRESS ACTION KEY, VCR'S OUTPUT CH SWITCHES TO CH 4

3) Press ACTION

PLEASE TUNE YOUR TV TO CH 4.

After 3 seconds

To Make Corrections, repeat steps 1) 3).

ouonone

IsB

Add or Delete a Channel

To add channel: Select channel with NUMBER keys and press ADD/DLT.

CHANNEL 0B ADDED

To delete channel:
Select channel with CH NUMBER keys and press ADD/DLT.

CHANNEL 08 DELETE

DST (Daylight Saving Time)

DECK auto adjusts clock for DST. (p. 17.)

Spring (First Sunday in April) DST:ON Sets clock ahead one hour.

Autumn (Last Sunday in October) DST:ON Tums clock back one hour.

• If your area does not observe Daylight Saving Time, select DST:OFF.
• Keep these time changes in mind when programming DECK for timer recordings.

Playback/ Record on a Tape

Ready Checklist

All connections are made. (pp. 12 ~ 15)
TV and DECK are plugged in.
TV is on and tuned to CH 3, 4, or VIDEO.
Remote is in VCR mode. (Press VCR.)

Playback a Tape

1 Insert a tape.

• DECK power comes on. If Auto VCR/TV (see p. 32) is set to "OFF," press VCR/TV on the remote for VCR mode.

Press PLAY* to play a tape.

• If tape has no rec. tab (p. 6), auto play begins.

Special Features During Play

Forward/Reverse Scene Search

Press FF/SLOW+ or REW/SLOW-
Press PLAY to release.

After search has begun, each additional press of FF or REW changes speed.

Notes

• Picture interruption may occur with some TVs.
  FF and REW search speed may vary depending on current tape position.
  After 10 minutes in search mode, VCR returns to Play mode to protect the tape and the video heads.

Still (Freeze) Picture

Press PAUSE/STILL.
Press PLAY to release.

Frame by Frame Picture

Press PAUSE/STILL in Still mode.
Press PLAY to release.

Slow Motion Picture

Press FF/SLOW+ (increase speed) or REW/SLOW- (decrease speed) in Still mode.
Press PLAY to release.

3 Press STOP to stop a tape.

Rapid Rewind/FF

Press REW/SLOW- or FF/SLOW+ in Stop mode to rewind or fast forward a tape.
Rewinds a T-120 tape in approx. 1 minute.
Press EJECT on remote, or STOP/EJECT on DECK to eject a tape.

Notes

These features work best in SP or SLP mode.
The sound will be muted.
To reduce picture noise, see "Manual Tracking Control" on page 4.
After 3 minutes in Still or Slow mode, VCR stops to protect the tape and the video heads.

Playback using DECK buttons

Press STOP/EJECT to stop and/or eject a tape.

20

*Important: If a remote control button does not work when pressed, press the VCR button on the remote and try the button again.

Record on a Tape

Insert a tape with a record tab (p. 6).

• DECK power comes on. If Auto VCR/TV (see p. 32) is set to "OFF," press VCR/TV on the remote for VCR mode.

Press CH NUMBER keys

to select the channel.

If channel number is over 100, first press 100 key then the other 2 digits.
For "LINE" input, see p. 35.

Press SPEED

to select the record speed (p. 4).

SP = Standard Play
SLP = Super Long Play
- Speed appears on-screen and on Multi Function Display.

PressREC

4 to start recording.

(The VCR REC indicator lights up on Multi Function Display),

To edit out unwanted scenes, press PAUSE/STILL to pause, and again to resume recording.
- You cannot view another channel during recording.

Press STOP

to stop recording.

One Touch Recording (recording in progress),

press REC repeatedly to set the recording length (30 min. 4 hours) (see right).

• DECK shuts off after the preset record length.

Record one station, watch another,

press VCR/TV on the remote (change to TV mode),
select channels at TV (recording continues).

Select Channels at DECK (In Stop or Rec. Pause mode)

press VCR/TV on the remote
(change to TV mode)
select channels at DECK.

Play a disc while recording a tape.

insert a disc during recording,
press DVD, and then press PLAY.

Notes

It is not possible to record from DVD/ CD to VHS tape using DECK.
- Watching one channel and recording another is not possible when using Cable Box or DSS Receiver.
After 5 minutes in Pause mode, DECK stops to protect a tape and video heads.

This video recorder, equipped with HQ (High Quality) system, is compatible with existing VHS equipment.

Only use tapes with the Wark. Only tapes tested and inspected for use in 2,4,6,and 8 hour machines are recommended.

Note

Remove loose or peeling labels from tapes to prevent tape jam.

ouonone

018g

Record using DECK buttons

Press STOP/EJECT to stop.

Basic DVD Operation

Ready Checklist

All connections are made. (pp. 12 - 15)
DECK is plugged in.
If DECK is connected to an audio amplifier, turn the stereo system's power on.

Operation using DECK buttons

• Interactive DVD...

May include multiple camera angles, stories, etc.

Press POWER on the remote or DECK.

Press DVD to select DVD mode.

If a disc is already inserted, go to step 4. (Depending on the disc, playback may start automatically.)

Press OPEN/CLOSE, and then place a disc into the disc tray.

Hold disc by its edges only (p. 6) with printed side up and use guides to place into tray. Use 13^ (8 cm) or 25^ (12 cm) disc. DVD-RAM see p.42

Press PLAY to start playing. Disc tray closes automatically.

• You may also close tray by pressing OPEN/CLOSE.
• Data reading time differs with each disc.

If an interactive DVD*1 is used and TITLE MENU appears, go to step 5.

Press NUMBER keys (see below) to select title, and press SET or PLAY to start playing.

• Pressing SET or PLAY is not necessary when using NUMBER keys.

Using NUMBER keys starts play automatically. The number of available titles varies with each disc.

2 digit number 12 ≥ 10 1 2

Press SKIP+ SKIP- go to next or previous menu screen.

• SKIP function not available with all discs. Please refer to disc jacket for operation information.

To return to menu (play stops) Press TITLE, MENU, or RETURN.

Press STOP to stop playing.

Press OPEN/CLOSE to eject the disc.

22

*Important: If a remote control button does not work when pressed, press the DVD button on the remote and try the button again.

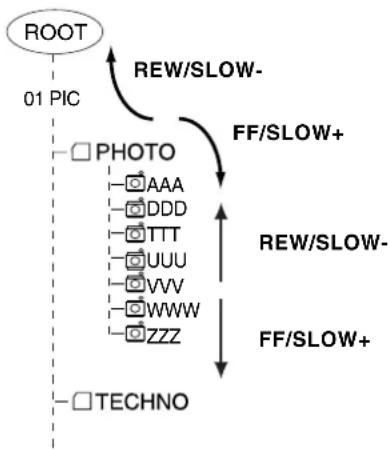

Forward/Reverse Scene Search

Press FF/SLOW+ or REW/SLOW- during play. Press PLAY to release.

• Search speed, slow at first, increases with each additional press of the button up to 5 levels.

Forward/Reverse Chapter/Track Skip

Press SKIP_+ or SKIP-1 during play. Each press skips a chapter (DVD-Video), track (DVD-Audio/CD) or Program/Play List/Marker (DVD-RAM).

DVD-Video, DVD-Audio and CD

• Pressing SKIP- once midway through a chapter/track returns to the start of that chapter/track. Each additional press skips back one chapter/track.

DVD-RAM

• Pressing SKIP-1 once midway through a program/play list returns to the start of that program/play list. Each additional press skips back one program/play list.

Current playback position Marker

■Still Picture or Pause

Press PAUSE/STILL during play. Press PLAY to release.

DVD: DECK will enter still picture mode. CD: DECK will enter pause mode.

Frame by Frame Picture (DVD)

Press PAUSE/STILL in still mode. Press PLAY to release.

Each press advances picture one frame.
- Hold button down for consecutive frame advance. - Whether pictures are advanced by "FRAME" or "FIELD" is selected automatically. (See p. 54.)

Slow Motion Picture (DVD)

Press FF/SLOW+ or REW/SLOW-in still mode. Press PLAY to release.
- Slow motion speed, slow at first, is increased with each additional press of the button up to 5 levels.

Auto-Power Off Function

Power turns off after DECK has been in Stop mode (DVD) for about 5 minutes.
- When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

V.S.S. (Virtual Surround Sound)

Enjoy a surround-like effect if you are using two front speakers only. The effect is broadened and sound seems to come from virtual speakers on either side if the disc has surround signals recorded on it.

Press VSS in DVD mode.

• The Surround sound effect can be changed by pressing VSS repeatedly as shown by the figure below.

Note

• Surround sound effect is available in DVD mode only.
• Turn off the surround effects on the other equipment.
  V.S.S. will not work, or will have less effect, with some discs.
• Turn V.S.S. off if it causes distortion
  Sound will only come from the two front speakers if V.S.S. is on.

Resume Function

DECK memorizes the point where STOP is pressed (STOP displayed on screen). Press PLAY to resume play from this point. Pressing STOP again or opening the tray cancels RESUME, however, RESUME is not cancelled when power is turned off and on.

• RESUME works only with discs for which elapsed play time is displayed during play.
• When a DVD-RAM still picture is played back, the counter will not be displayed, however RESUME will function.

Notes

• Please read the disc jacket for operation information.
• If a single sided disc is placed in upside down, "THIS TYPE OF DISC CANNOT BE PLAYED. PLEASE INSERT A DIFFERENT DISC" is displayed.
• Remove disc and press DECK POWER off when not in use.
• Disc continues to rotate with menu displayed even after play is done. Press STOP to clear menu display when finished with menu.

Onen

IsB

Timer Recording

Ready Checklist

All connections are made. (pp. 12 ~ 15)
TV and DECK are plugged in.
Clock set correctly. (p. 18)
Tape has record tab intact. (p. 6)
Remote is in VCR mode. (Press VCR.)
Sufficient tape remaining for recording time.

Press PROG* to display Program.

Example
Today

1) Press

2) Set record DATE, press to select: 1 31 = one time, or DAILY=Monday~Friday, or WEEKLY= same time each week.

See selection order left.

3) Set remaining items, press SET to set START/ STOP times, CH (channel) or LINE input (p. 35), and tape speed (SP, SLP).

Then press to select.

Press PROG

to end programming.

To Enter More Programs, press

to select and press SET

to set an unused program number, and then repeat step 2.

Or

Press PROG to exit.

• The "Timer" Indicator lights up on DECK.
• You can set Timer Recording with the power on or off.
• "TIMER REC WILL START SOON" appears on-screen for 2 minutes before Timer Recording starts. If DECK is in DVD mode, no message appears, but the VCR REC Indicator, the VCR mode indicator and "REC" will flash on Multi function Display.

24

Review, Replace or Clear Program Contents:

(Recording is not in progress)

1 Press PROG to display Program List.

To cancel a Timer Recording in progress...

Hold down STOP in VCR mode for a few seconds to cancel the Timer Recording.

(The "TIMER" Indicator goes out on Multi Function Display.)

• Any future daily or weekly recording will be performed as programmed.

3 To Replace program...

Repeat Step 2 (p. 24) to set new programs.

or To Clear program...

Press ADD/DLT.

4 Press PROG to end the programming.

Notes

• If you are using a Cable Box, the VCR's channel for Timer Recording must be set to the Cable Box input channel and Cable Box must be manually set to the desired channel. Cable Box power must be left on.
• 2 minutes before Timer Recording is performed, "PLEASE PREPARE FOR TIMER REC" appears and Timer Indicator flashes. Be sure a cassette with record tab is loaded and DECK is in Stop mode.
• If a power interruption occurs while programming the timer, the timer program(s) may be cancelled. If "TIMER PROGRAMS WERE LOST DUE TO POWER INTERRUPTION" appears on-screen, please re-enter the timer programs.
• If the start time for Timer Recording comes up during recording and playing back, Timer Recording will not be performed.

Important notes when using DSS Receiver

• When recording programs via DSS Receiver, DSS Receiver must be left on.
• When recording programs via an antenna or cable, DSS Receiver must be turned off.

MTS Broadcast/ VHS Hi-Fi Stereo System

Connection

Make the Audio/Video Connection as shown on pp. 12 ~ 15.

• You can use TV connected to a Stereo amplifier and speakers instead of Stereo TV.

Receivable Broadcast Types

The following are possible audio broadcast types and on-screen displays.

The signal being received is indicated with a " " mark while the selected audio mode is indicated with an arrow.

To display the broadcast signal being received,

press DISPLAY*.

MTS Stereo and SAP broadcast

Multi-channel Television Sound Stereo (main language) and Secondary Audio Program (sub language) broadcasts are being received simultaneously. Select STEREO or SAP audio mode.

MTS Stereo broadcast

Multi-channel Television Sound Stereo broadcast. Select STEREO audio mode.

If stereo broadcast is weak and display flickers, select MONO audio mode for possible better results.

SAP broadcast

Secondary Audio Program (sub language) broadcast. Select SAP audio mode for the sub language.

MONO broadcast

Normal monaural sound broadcast.

Equipped with dbx-TV Noise Reduction for true MTS reproduction. dbx-TV Noise Reduction is required for good stereo separation and audio fidelity. dbx is a registered trademark, and is licensed by dbx Technology Licensing.

Audio Mode for Recording

Press AUDIO (SAP/Hi-Fi) to display audio mode.

(Display disappears after 5 seconds.)

Press AUDIO (SAP/Hi-Fi) repeatedly to select desired mode.

Refer to "Receivable Broadcast Types" on p. 26.
- Arrow indicates selection.

3 Make a recording. See p. 21.

Audio Mode for Playback

1 Start playback. See p. 20.
2 Press AUDIO (SAP/Hi-Fi) to display audio mode.

- Arrow indicates selection.

Press AUDIO (SAP/Hi-Fi) repeatedly to select desired mode.

• Select "HIFI (L/R)" or "HIFI (L)" or "HIFI (R)" to listen to stereo recordings in stereo sound.
  Select "NORMAL" for monaural sound.
• Display disappears after 5 seconds.

Notes

• Only tapes recorded in Hi-Fi stereo will playback with true stereo sound. Standard stereo tapes will playback in monaural sound.
• To listen to Hi-Fi stereo playback, the DECK AUDIO (L/R) jacks must be connected to a stereo TV or an external stereo amplifier and speakers. (See pp. 12, 14.)
• If tracking is adjusted during playback, Hi-Fi audio may revert to normal audio.
• Hi-Fi and normal audio playback volume level may differ.

O

Multi-Brand Control Feature

Multi-Brand Control Setup

The Remote Control can be set to control some TVs.

1 Find your TV Brand Code Number on the following page.

2 Set up for TV control,

hold down TV button.
enter code with NUMBER keys.

2 Confirm code entry,

press POWER to turn selected unit on or off.
See table below for controllable functions in each mode.

Notes

• Repeat setup after remote battery replacement.
• Remote will not control every TV made by the manufacturer listed. If you get no response, your particular unit cannot be controlled.

There are NO additional codes for the products listed. If your product is not listed, then the remote is not compatible with that product.

Using Multi-Brand Control

After remote is set up, you can select VCR, DVD, or TV for the desired function.

Press VCR, DVD, or TV on the remote.

(Table below shows available remote buttons for each mode.)

Unit Mode	DVD/VCR TV
DVD VCR	All	VOL +/-
TV	EJECT/OPEN/CLOSE*, DISPLAY, PLAY, STOP, FF/SLOW+, REW/SLOW-, VCR/TV, PAUSE/STILL, SKIP, AUDIO, CM/ZERO, SPEED, REC, TAPE POSITION, PAGE, COUNTER RESET	POWER, INPUT, NUMBER keys, ENTER, CH▲▼VOL +/-

• Bold: VCR Function

Italic: DVD Function

Bold Italic: VCR and DVD Functions

Normal: TV

Notes

Not all functions listed may be controllable.
- In TV mode, it may be necessary to press ENTER after pressing NUMBER keys for channel selection.

28

TV Brand Code Numbers

Panasonic 01, 02 Toshiba 09

Quasar. 01, 02 Sanyo 10

RCA 03 Fisher. 10

GE 03 JVC 11

Zenith 04 Hitachi 12

Magnavox 05 Mitsubishi 07,13

Sylvania 05 Samsung 14

Sharp 06, 07 Gold Star 15, 16, 17

Sony 08

Important Notes

• Some manufacturers use several codes for one brand. If the first code entered fails, try the next one listed.
• Some TVs require you to turn on the power manually.

Operation

<CR

Tape Operation

Search System

For each recording, an invisible index mark is placed on the tape. A program index and information are also included for timer recordings. These marks are used to access or scan recordings.

Index Search

1

INDEX SEARCH
ENTER INDEX NUMBER :1
USING 1-9 KEYS
FORWARD SEARCH:FF
REVERSE SEARCH:REW
EXIT :SEARCH

Press SEARCH* to display SEARCH in Stop or Play mode, and then press NUMBER keys to select recording number. To calculate number, see below. Press FF/SLOW+ or REW/SLOW-on the remote to start search.

2

Play begins at search end. To search forward or back 1 index, press FF/SLOW+ or REW/SLOW- on the remote while screen left is displayed (10 sec.). To cancel, press PLAY or STOP.

To Calculate Index Number

Example 1:

To go to rec. 2 from rec. 4, enter 3 and press REW.

Example 2:

To go to rec. 6 from rec. 2, enter 4 and press FF.

NOTE: indicates start points of each recording.

Note

• If Index Search is started very close to an index mark, that index mark may not be counted in the search.

30

Zero Search

To quickly return to a specified tape location.

Press DISPLAY during play to display Counter.

2

Press COUNTER RESET on remote at desired position to reset to "0:00:00".

3 Continue to record, playback etc.

4 Press STOP.

5

Press CM/ZERO in Stop mode to start Zero Search.

• DECK will go into FF or REW mode and stop at the last point the Counter was set to 0:00:00.

Commercial Skip

DECK fast forwards (skips) over 1, 2, or 3 minutes of recorded tape as desired.

1 Press CM/ZERO in Play mode.

The skip time can be changed by pressing CM/ZERO repeatedly as shown by the figure below.

No indication appears on-screen.

Tape Select

Select your tape length so the tape position and amount of tape remaining are properly displayed. (See "Tape Position and tape status Display" section right.)

1 Press ACTION to display MENU.

Press to select "SET UP VCR," and press SET.

Press select "TAPE SELECT," and press SET to set "T-120," "T-160" or "T-180." T-120 → T-160 → T-180

• Select "T-120" for tapes 120 minutes or less, "T-160" if 140 or 160 minutes, and "T-180" if 180 minutes.

4 Press ACTION to return to normal screen.

Repeat Play

Set to playback a recording over and over.

1 Press ACTION to display MENU.

Press to select "SET UP VCR," and press SET.

Press to select "REPEAT PLAY," and press SET to set "ON" or "OFF."

• Play repeats at tape end or if unrecorded portion over 30 sec. is detected.

4 Press ACTION to return to normal screen.

Note

• For repeat play in DVD mode, see page 47.

Tape Position and Tape Status Display

To find out the present tape position and amount of tape remaining.

Tape position is displayed incorrectly in the following cases:

• If VHS-C type cassettes, tapes under 30 minutes, tapes over 180 minutes, or incompatible tapes are used.
• If the correct tape length is not selected. (See "Tape Select" section left.)

1 Press TAPE POSITION to detect current tape position.

• "DETECTING TAPE POSITION" only appears the first time a cassette is inserted and it takes several seconds for correct indication to appear.
  The present tape position indication and amount of tape remaining (according to tape speed) are displayed. Tape remaining time display may not be precise.

D

#

2 Press TAPE POSITION (or wait 5 seconds) to return to normal screen.

Auto Operation Functions

Auto Play

Insert a tape Power comes on, Play starts if there is no record tab (see p. 6).

Auto Rewind

Play Fast Forward Tape end Rewind Stop

Play Auto Eject

(Repeat Play must be off)
Play Tape end Rewind Stop Tape ejects if some programs are set.

Special VCR Features

VCR/TV Seled

The VCR/TV selection can be set to auto or manual.

1 Press ACTION* to display MENU.

Press to select "SET UP VCR," and press SET.

Press ▲
to select "AUTO VCR/TV," and press SET to set "ON" or "OFF."

• OFF(Manual): You select "VCR" or "TV" mode using the VCR/TV button on the remote.
  ON(Auto): "VCR" mode is automatically set when VCR is turned on, or in Play mode.

4 Press ACTION to return to normal screen.

Note

For more on VCR/TV selection, see "Record one station, watch another" and "Select channels at DECK" sections (see p. 21).

VCR Lock Feature

When set to ON, all operations except for timer record and tape eject are prohibited. Useful for households with small children.

To turn on, hold down REC on DECK in Stop mode with no tape inserted for 7 seconds. (Please ignore "NO CASSETTE" warning.)

To turn off, repeat above.

VCR Lock cancels in 24 hours.

Note

DVD functions will work even when VCR Lock is set to ON.

32

bnBlealtLIGHT ON/OFF Feature

You can turn DECK's blue light off if you find it to be glaring.

To turn LIGHT off, press DISPLAY for 5 seconds in VCR mode.

To turn LIGHT on, repeat above.

Notes

This operation is not possible in power off mode.
- If you unplug DECK, DECK turns to default setting (Blue light turns on).

Weak Signal Display Feature

When "ON," picture is displayed regardless of signal strength.

1 Press ACTION to display MENU.

Press to select "SET UP CHANNEL," and press SET.

Press to select "WEAK SIGNAL DISPLAY," and press SET to set "ON" or "OFF."

ON: Picture is displayed regardless of signal condition, and may not always be clearly visible.
OFF: Screen turns solid blue when signal is weak or non-existent.
- Selecting ON has no effect on connected equipment with blue back feature.

4 Press ACTION to return to normal screen.

Auto Shut-Off Feature

The power shuts off at a preset time.

1 Press ACTION to display MENU.

Press to select "SET UP VCR," and press SET.

Press to select "AUTO SHUT-OFF." Press SET repeatedly to change shut-off time as shown below.

4 Press ACTION to return to normal screen.

Note

The shut-off countdown will not function during Play or Record.

Special VCR Features (continued)

Remote Warning Feature

If Multi-brand feature is used (p. 28), and this feature is set to on, a warning appears whenever an invalid key is pressed in TV mode.

1 Press ACTION* to display MENU.

Press to select "SET UP VCR," and press SET.

Press to select "REMOTE WARNING," and press SET to set "ON" or "OFF."

• If "OFF," remote warning will not appear when invalid key is pressed.

4 Press ACTION to return to normal screen.

Multi Function Display (Front Display) ON/OFF Feature

Multi Function Display (Front Display) can be set to ON/OFF.

1 Press ACTION to display MENU.

Press to select "SET UP VCR," and press SET.

Press V to select "FRONT DISPLAY," and press SET to set "ON" or "OFF."

• ON: When set to "ON," Multi Function Display is displayed.

OFF: When set to "OFF," Multi Function Display is not displayed. If a Timer Program is set, Multi Function Display is displayed.

4 Press ACTION to return to normal screen.

34

*Important: If a remote control button does not work when pressed, press the VCR button on the remote and try the button again.

Multi Function Display (Front Display)

Copying Your Tapes (Dubbing)

Connection

VCR/Camcorder (Hi-Fi)

① Connect VIDEO OUT terminal on Playing VCR to VIDEO IN terminal on DECK. To monitor the dubbing, also connect TV as shown.
② Connect "L" and "R" AUDIO OUT terminals on Playing VCR to "L" and "R" AUDIO IN terminals on DECK. In place of Playing VCR, you can use other equipment, such as a Camcorder. Simply connect the unit's Audio/Video outputs to DECK.

Playing (Source) VCR

1

Insert a pre-recorded tape.

Recording (Editing) DECK

Insert a blank tape with record tab.

2

Press PLAY, then PAUSE immediately to enter PLAY/PAUSE mode.

Press INPUT to set DECK Input mode to LINE for Video Input. (See "Selecting the Input Mode" below.)

The operation of steps 4 and 5 must be done on the playing and recording VCRs at the same time.

Press REC, then STILL/PAUSE immediately to enter REC/PAUSE mode.

4

Press PLAY to start dubbing. Playing VCR starts playback.

Press STILL/PAUSE to start dubbing.
DECK starts recording.

5

Press STOP to stop dubbing.

Press STOP to stop dubbing.

To Monitor Dubbing on TV

1 Turn TV on and tune to the Recording VCR channel (CH 3 or CH 4).
2 If Auto VCR/TV (see p. 32) is set to "OFF," press VCR/TV on the remote for VCR mode.

Note

• Dubbing tapes protected with Copy Guard will result in poor quality recordings.

Selecting the Input Mode

Method 1: Press INPUT repeatedly. Channel Number LINE1 LINE2 Method 2: Press CH Display will change as below

• "L1" or "L2" lights up on Multi Function Display (about 4 seconds) when LINE1 or LINE2 is selected.
• LINE1: For rear audio/video connection.
  LINE2: For front audio/video connection.

Caution: Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

• Please note that some tapes cannot be dubbed on DECK. Also, it is not possible to dub DVD/ CD to VHS tapes using DECK.
• When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

D

Disc Operation

Subtitle Language (DVD only)

You can select a different subtitle language (if offered) than the one set at the Settings for DVD Operation. (See p. 52.)

1

Press SUB TITLE*

in Play mode to display the subtitle selection on-screen.

• Display disappears after 5 seconds.
• When no subtitles are offered, "-" will be displayed instead of the language number.

2

Press SUB TITLE, NUMBER keys to select a desired language.

Subtitle language being played back (see chart, right).

Notes

• If after several presses of the button the language does not change, language selection is not offered on the disc.
• When disc is removed, subtitles revert to initial setting language. If the initial language is not recorded on the disc, the disc's priority language will appear.
• With DVD-RAM, the subtitle can only be set to ON/OFF. The subtitle language cannot be selected.
• Subtitles may not change to the selected language immediately.

Audio Soundtrack Language (DVD only)

You can change the audio soundtrack language, selected at the Settings for DVD Operation, to a different language if available. (See p. 52.) (This operation works only with discs on which multiple audio soundtrack languages are recorded.)

1

Press AUDIO in Play mode to display the audio selection on-screen.
- Display disappears after 5 seconds. Information of the audio stream currently being played back is displayed. (See page 53.)

2

Press AUDIO, NUMBER keys to select desired language.

Audio soundtrack language being played back (see chart, above right).

Ready Checklist

Please read "Basic DVD Operation" on page 22.

[Subtitle language]

[Audio sound track language]

ENG	English
FRA	French
DEU	German
ITA	Italian
ESP	Spanish
NLD	Dutch
SVE	Swedish
NOR	Norwegian
DAN	Danish
POR	Portuguese
RUS	Russian
JPN	Japanese
CHI	Chinese
KOR	Korean
MAL	Malay
VIE	Vietnamese
THA	Thai
*	Other

• Change the No. by pressing , and press SET.

[Audio attribute 1 type, sampling frequency, bit No. of the disc (see p. 53)]

LPCM	44.1 kHz ? 192 kHz	16 bit	Linear PCM disc
		20 bit
		24 bit
Dolby Digital	1 ch - 5.1 ch		Dolby Digital disc
DTS	1 ch - 5.1 ch		DTS disc

Notes

If, after several presses of the AUDIO button the language does not change, language selection is not offered on the disc.
- When disc is removed, language reverts to initial setting. If this language is not recorded on the disc, the language recorded will be heard.
With DVD-RAM, Audio Soundtrack Language cannot be set. Audio stream and Audio mode (LR/L/R) setting can be made. Audio stream operation method is the same as Audio Soundtrack Language. Press to move the cursor to Audio mode, then press AUDIO or to select LR/L/R.

When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

Multiple Angle Viewing (DVD only)

DVDs may contain scenes shot from multiple camera angles allowing the same scene to be viewed at different angles. You can view these angles, if available, using the ANGLE button.

Press ANGLE in Play mode to display the angle selection on-screen.

• Display disappears after 5 seconds.

Press ANGLE repeatedly or select the desired angle.

Number of angle being played back.

Note This function not available with DVD-RAM.

Vocal Selection for Karaoke Discs (DVD only)

1 Press AUDIO in Play mode to display the audio screen.

Press select
VOCAL and
press AUDIO or select as shown below.

DVD Karaoke (1 vocal) VOCAL ON VOCAL OFF DVD Karaoke (2 vocals) VOCAL V1 VOCAL V2 VOCAL V1+V2 VOCAL OFF

Picture Zoom (DVD only)

You can enlarge specific portions of a picture and select the zoom ratio using the ZOOM button during DVD playback.

Press ZOOM repeatedly to change display as follows.

• You can enlarge the center portion of the image to one of 2 magnifications.

Use the , , and buttons to move the position up, down, left and right.

O

A

Notes

• The ANGLE Indicator lights up on DECK when a scene recorded at different angles is detected.
• The angle number can be set beforehand so that the angle is switched whenever the ANGLE Indicator lights up.

Notes

The subtitle cannot be enlarged or moved.
During picture zoom, "ZOOM1" or "ZOOM2" appears on-screen for 5 seconds.
- Zooming, on some discs, may result in poor picture quality, or may not operate at all.

Disc Operation (continued)

Title Menu (DVD only)

Some DVDs have more than one title, e.g. movies. If the disc offers a title menu, you can select the desired title number. (Operation may vary according to the disc.)

Press TITLE* in Play mode to display the title screen.

Press NUMBER keys to select a title, and press SETor PLAY to start playing.

• "PressingSET or PLAY" is not necessary when using NUMBER keys.

DVD Menu (DVD only)

DVDs may offer a special menu. This menu may include guides to unique contents, audio/subtitle languages, etc. Although contents and operation may vary, the following steps show basic procedure for using the menu.

Press MENU in Play mode to display DVD MENU.

Press NUMBER keys to select an item, and press SETor PLAY to perform. Pressing SET or PLAY is not necessary when using NUMBER keys. Repeat step 2 if there is more than one menu.

38

Program Play (CD only)

You can program specific tracks and order of play.

1 Press ACTION to display DVD MAIN MENU.

Press to select "PLAY MODE," and press SET to display.

Press ▲
to select
"PROGRAM PLAY,"
and
press SET to display.

Press ▲▼▲▶
to select a track
number (Track
numbers on disc are
displayed.), and
press SET.

• Repeat step 4 to select another track.

• The selected track is added on the right side.

Press to select "START," and press SETto start play of programs in the sequence selected.

• To cancel, press STOP during play, then press CLEAR.

Notes

• Up to 15 tracks can be programmed.
• “ ” or “ ” (depending on disc) indicates additional PROGRAM PLAY screen. Press for next or previous screen.
  To clear the last program one by one Press to move to "CLEAR LAST" and press SET. (Pressing CLEAR on remote control also clears last program.)
  To clear all programs Press to move to "CLEAR ALL" and press SET. (Programs are also cleared when the power is turned off or the disc is removed.)

Ready Checklist

DECK is in DVD mode, press DVD.
CD is inserted.

Program Repeat Play (CD only)

1 Do operation steps 1 through 5 at left on this page.
2 Press DISPLAY to display Disc Information screen. (Disc Information Screen)

3 Press DISPLAY to display DECK Information screen.
4 Press SET to enter Select mode. Cursor move to "OFF." (DECK Information Screen)

5 Press ▲▼ to select "DISC." (DECK Information Screen)

6 Press SET to set mode. Cursor moves to "REPEAT." To cancel, select "REPEAT: OFF" in step 5, then press SET.

opoeon

DvD

Disc Operation (continued)

Random Play (CD only)

Tracks are played in a random order.

1 Press ACTION to display DVD MAIN MENU.

Press

to select "PLAY MODE," and press SET to display.

Press ▲

to select "RANDOM PLAY," and press SET to begin random play.

To cancel, press STOP during play, then press CLEAR.

Ready Checklist

DECK is in DVD mode, press DVD.

Setting the VOLUME ADJUST (DVD only)

Some DVDs are recorded in lower than average volume levels. For these DVDs, this DECK can be set so that the average volume is increased automatically.

Press VOL.ADJ repeatedly to change "OFF" "ON."

• "OFF" or "ON" lights up on Multi Function Display (about 3 seconds) when VOL.ADJ is pressed.

	VOLUME ADJUST “OFF”	VOLUME ADJUST “ON”
Some DVD [Low volume level]	Volume is at the original level.	Volume level is increased when played back.

• "ON" is set .... When a DVD is played back, the average volume is increased.
• "OFF" is set.... The volume level recorded on the disc is played back just as it is.

Notes

While settings can be made with all discs, they may have no effect with some discs. Please set as you prefer.
- When audio equipment is connected, setting the Sound Output level to "OFF" is recommended.
- If the sound becomes abnormal while playing a disc, set the Sound Output level to "OFF."

40

DVD-Audio Operation (DVD-Audio only)

This DECK, equipped with a 192 kHz/ 24 bit Audio D/A converter, supports DVD-Audio recorded with high quality sound.

The DVD-Audio feature includes "Still Image Skip" and "Bonus Group Playback" functions. (See below.)

Please refer to "Basic DVD Operation" on pages 22 and 23.

Still Image Skip (DVD-Audio only)

DVD-Audio still images (only if contained) can be skipped over.

Press PAGE

in Play or Pause mode to display the still image and page number.

Each press of PAGE changes page number as shown below.

• Pressing PAGE on the last page returns to PAGE 1.

Note

• Still Image Skip function not available with all discs.

Bonus Group playback (DVD-Audio only)

Some DVD-Audio discs contain bonus groups. To enjoy these groups you may have to enter a password. Refer to the disc's jacket.

Press DISPLAY in stop mode to display "On-Screen Displays."

Note

• During playback, Bonus Group tracks cannot be selected.

2

Press to select "GROUP," and press SET. Press or NUMBER keys to select bonus group number, and press SET (see pp. 44, 45.)

Notes

• If the proper secret code is already entered, Bonus Group tracks can be selected. (Secret code enter screen is skipped.)

3

Press NUMBER keys to enter bonus group secret code.

To Make Corrections

Press repeatedly to move the cursor.

Press NUMBER keys to make the correction.

Note

• When the proper secret code has been entered, Bonus Group track 1 playback begins. If a mistake is made, the secret code enter screen is redisplayed.

4 Pre

Press CLEAR to return to normal screen.

DVD-RAM Operation (DVD-RAM only)

You can enjoy playing your personally recorded/edited DVD-RAM discs on this DECK.

Note

• This DECK was designed for playback only. DVD-RAM recording is not possible.

Play a DVD-RAM

1 Do steps 1 ~ 3 on page 22.
- Play begins from the first program title recorded on the DVD-RAM.
2 Press D.NAVI* or PLAY LIST to display Direct Navigator or Play List menu for easy title or scene selection.
See below for "Direct Navigator" or next page for "Play List information".
3 Press STOP to stop playing.
4 Press OPEN/CLOSE to eject the disc.

Direct Navigator

If the DVD-RAM features Direct Navigator, a list of recorded titles is displayed. Simply select a title number and start playback. (Operation can vary with disc used.)

Press D.NAVI

in Play/Stop mode to display the Direct Navigator menu.

2 Press to select a page and press to select a title (Program No.).

Then, press SET or PLAY to start playing.

• "Pressing SET or PLAY" is not necessary when using NUMBER keys.

Using NUMBER keys starts playing automatically.

The number of available titles varies with each disc.

<input 1 digit number 1

Example> 2 digit number 12 ≥ 10 1 2

3 Press D.NAVI to clear Direct navigator menu.

Recording time and date
(Example)

42

Play List

If the DVD-RAM features a Play List, your preselected list of favorite scenes is displayed for easy access. (Operation can vary according to how you edited the DVD-RAM.)

1 Press PLAY LIST in Play/Stop mode to display the Play List menu.
2 Press to select a page and press to select a title (Play List No.).

Then, press SET or PLAY to start playing.
- "Pressing SET or PLAY" is not necessary when using NUMBER keys.

Using NUMBER keys starts playing automatically.

The number of available titles varies with each disc.

Input 1 digit number 1 1 Example> 2 digit number 12 ≥ 10 1 2

3 Press PLAY LIST to clear Play List menu.

Operation

DVD

Notes

• Titles of Direct Navigator and Play List cannot be changed using this DECK.
• With Direct Navigator, up to 99 programs can be displayed. With Play List, up to 99 titles (999
  scenes) can be displayed.
• While DVD MAIN MENU is displayed, Direct Navigator and Play List display will not appear even if TITLE or MENU is pressed.
• When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

43

DVD Operation using On-Screen Displays

When DISPLAY is pressed, On-Screen Displays show disc information (title/chapter/track number, elapsed playing time) and DECK information (repeat play, play mode).

Ready Checklist

DECK is in DVD mode, press DVD.

1 Press DISPLAY in Play or Stop mode to display "On-Screen Displays."

Each press of DISPLAY changes the on-screen display as follows. (Refer to pp. 44 ~ 48.)

Note

• DISPLAY button does not function while main menu of DVD, title menu of DVD, Direct Navigator or Play List is displayed.
  2 Press to select an item, and press SET.
  3 Press NUMBER keys to select the setting, and press SET.

• When numbers are displayed (e.g. title number), NUMBER keys are also available.
  If the number entered is not on the disc, the entry will have no effect. Re-enter the correct number.
  For more details, refer to the disc operation information.

To return to normal screen, press DISPLAY repeatedly.

Note

• When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

Detailed Descriptions of each On-Screen Display

Disc information screen (for DVD-Video)

1. TITLE No.

Go directly to a preset title number.
- Select "TITLE", and press SET.
- Change the No. by pressing or NUMBER keys, and press SET.

2. CHAPTER No.

Go directly to a preset chapter number.
- Select "CHAPTER", and press SET.
- Change the No. by pressing or NUMBER keys, and press SET.
This function does not work with some discs.

3. Disc currently being played

The type of disc currently inserted is displayed.

4. Elapsed playing time

The screen may be changed by selecting the elapsed time.
- Select the elapsed playing time ("xx:xx:xx"), and press SET.
- Change the elapsed time by pressing NUMBER keys.
Enter time starting with seconds.
If the time entered is not on the disc, the entry will have no effect.
Re-enter the correct time.
e.g., press 0 1 2 3 4 5 SET for "01:23:45".
press 3 0 SET for "00:00:30"
This function does not work with some discs.

Disc information screen (for DVD-Audio)

A.GROUP No.

Go directly to a preset group number.
- Select "GROUP", and press SET.
- Change the No. by pressing or NUMBER keys, and press SET.

B.TRACK No.

Go directly to a preset track number.
- Select "TRACK", and press SET.
- Change the No. by pressing or NUMBER keys, and press SET.

C.Disc currently being played

The type of disc currently inserted is displayed.

D.Elapsed playing time

The screen may be changed by selecting the elapsed time.

• Select the elapsed playing time ("xx:xx:xx"), and press SET.
• Change the elapsed time by pressing NUMBER keys.

Enter time starting with seconds.

If the time entered is not on the disc, the entry will have no effect.

Re-enter the correct time.

e.g., press 0 1 2 3 4 5 SET for "01:23:45".

press 3 0 SET for "00:00:30"
- This function does not work with some discs.

Operation
DvD

DVD Operation using On-Screen Displays (continued)

Disc information screen (for CD)

1. TRACK No.

Go directly to a preset track number.
- Select "TRACK", and press SET*.
- Change the No. by pressing or NUMBER keys, and press SET.

2. Disc currently being played

The type of disc currently inserted is displayed.

3. Elapsed playing time

Disc information screen (for DVD-RAM)

A.Direct Navigation (PROGRAM) or PLAY LIST No.

Go directly to a preset title number
- Select "PROGRAM" or "PLAY LIST", and press SET.
- Change the No. by pressing or NUMBER keys, and press SET.

B.Disc currently being played

The type of disc currently inserted is displayed.

C.Elapsed playing time

The screen may be changed by selecting the elapsed time.
- Select the elapsed playing time ("xx:xx:xx"), and press SET.
- Change the elapsed time by pressing NUMBER keys. Enter time starting with seconds.

If the time entered is not on the disc, the entry will have no effect. Re-enter the correct time.

e.g., press 0 1 2 3 4 5 SET for "01:23:45".
press 3 0 SET for "00:00:30"
This function does not work with some discs.

Note

• When appears on the screen while a button is being operated, it means that the corresponding operation is prohibited by DECK or the disc.

*Important: if a remote control button does not work when pressed, press the DVD button on the remote and try the button again.

■ DECK information screen (for DECK)

1. Operating mode

The current operation is displayed.

2. Repeat Play mode (see p. 48)

Repeat play mode can be selected.

• Select "REPEAT", and press SET.
• Change the desired mode during play by pressing , and press SET.

		Repeat Play mode
DVD-Video CHAPTER		TITLE OFF (NORMAL)
DVD-Audio TRACK GR		GROUP OFF (NORMAL)
DVD-RAM	(PROGRAM)	PROGRAM	DISC	OFF (NORMAL)
	(PLAYLIST)	PLAY LIST ALL	PLAY LIST OFF	(NORMAL)
CD TRACK DISC OFF		(NORMAL)

3. Play mode [CD only] (See p. 39, 40.)

When Play mode is set (p. 39, 40), the mode name is displayed.

PROGRAM PLAY	program play
RANDOM PLAY	random play
-----	normal play

Note

• For repeat play in VCR mode, see p. 31.

on

A

47

DVD Operation using On-Screen Displays (continued)

For your reference

Repeat Play mode example (see p. 47)

• CHAPTER/TITLE REPEAT PLAY (DVD-Video)

• TRACK/GROUP REPEAT PLAY (DVD-Audio)

CURRENT PLAYBACK POSITION

• TRACK/DISC REPEAT PLAY (CD)

• PROGRAM/DISC REPEAT PLAY (DVD-RAM [PROGRAM])

CURRENT PLAYBACK POSITION

• PLAY LIST/ALL PLAY LIST REPEAT PLAY (DVD-RAM [PLAY LIST])

Note For repeat play in VCR mode, see p. 31.

*Important: if a remote control button does not work when pressed, press the DVD button on the remote and try the button again.

MP3/WMA/JPEGPlaybackOperation

This unit can play MP3/WMA/JPEG format CD-R or CD-RW recorded for personal use on a PC, etc. Some discs may not play due to the condition of the recording.

1 Press POWER* on the remote or DECK.
2 Press OPEN/CLOSE then place an MP3/WMA/JPEG disc into the disc tray. Press OPEN/CLOSE to close.
3 MP3/WMA/JPEG MENU is displayed.
- Playback starts automatically (except JPEG files).
- CD directory is displayed.

MP3

:Folder

:JPEG file

WMA file
Parent folder

Diagram left shows CD directory structure as displayed in example .SD above.)

Notes

• Only File (not Folder) area operation is possible.
• Files are displayed in the following order:
  (1...0,1...9,A,B....Z).

4 Select file (During STOP mode) 1)Press 口 select an MP3/WMA file (

MP3/WMA Playback (see right).
2) Press to select a JPEG file (□).
JPEGPlayback (see p.50)
3)Press SKIP + next or SKIP - 1 (previous) to skip a file/folder page (7 files) in the File area.
- Select folder (During STOP mode)
1)Press A select a folder ().
2)Press SET to display files/folders contained in the folder.
- Select parent folder (During STOP mode)
1)Press A select a folder ( ).
2)Press SETto make changes to the previous directory display.

5 Press ACTION to return the DVD MAIN MENU. (→ Press ACTION again to return to the MP3/WMA/JPEG MENU.)

MP3/WMA Playback

Do steps 1~3 at left.

a Press select an MP3/WMA file (During STOP mode)
b Press SETor PLAY to start playback.
Forward/Reverse Search

Press FF/SLOW+ or REW/SLOW- during play. Press PLAY to release.
- Search speed, slow at first, increases with each additional press of the button up to 5 levels.

Forward/Reverse Track Skip

Press SKIP+ SKIP- during play.
Each press skips a track.
- If pressed within first 3 seconds of playback, skips to the previous track. If over 3 seconds, returns to top of track. (SKIP-I▲ly.)
- Put DECK in Stop mode before performing folder/file selection (see step 4.)

Pause

Press PAUSE during play.
Press PLAY to release.

C Press STOP to stop play.

Press OPEN/CLOSE to eject the disc. The MP3/WMA/JPEG MENU is closed automatically.
Note - Copyright protected files and files containing errors cannot be played back. The DECK skips to the next file.

■ Select PLAY MODE [MP3/WMA Playback]

(During STOP mode)
Press to select the desired PLAY
MODE (see below)

[PLAY MODE]

NORMAL:
All MP3/WMA files are selected and played back one time only.
SINGLE REPEAT:
The selected MP3/WMA file is played back repeatedly.
FOLDER REPEAT:
The MP3/WMA files contained in the selected folder are played back repeatedly. However, folders below the selected folder are not played back.
DISC REPEAT:
All MP3/WMA files are played back repeatedly.

A

49

MP3/WMA/JPEGPlaybackOperation(continued)

JPEGPlayback

You can play back JPEG images.

Displayable Image Size: 32 × 32 7680 × 7680 pixels

Note Some JPEG format may not be played back.

Do steps 1~3 on page 49.

1 Press to select a JPEG file (

Press SETor PLAY.

Selected JPEG file is displayed. [JPEG Playback Screen]

■Returned on the MP3/WMA/JPEG MENU Press STOP. (See p. 49)

■Next/Previous Search

Press SKIP+ SKIP-

Start Slide-show Press FF/SLOW+ or REW/SLOW-. (below)
■ Enlarging an image Press ZOOM. (P. 51)
Rotating an image Press ANGLE. (P. 51)

3 Press STOP to return to the MP3/WMA/JPEG MENU.

JPEG Slide-show

(During JPEG Playback.)

JPEG files are displayed automatically (about every 3 seconds) as a slide-show.

1 Press FF/SLOW+or REW/SLOW-

Image changes every 3 seconds.

■Cancel slide show

Press STOP to return the MP3/WMA/JPEG MENU. (See p. 49)

■Still picture

Press STILL (only SLIDE).

Press PLAY to release.

Forward/Reverse File Skip Press SKIP+ SKIP-Each press skips a file.

2 Press ACTION to return to the DVD MAIN MENU.

50

■Select PLAY MODE [JPEG Slide-show] (During STOP mode)

Press select the desired PLAY MODE (See below).

[PLAY MODE]

NORMAL:

All JPEG files are selected and played back one time only.

SINGLE REPEAT

The selected JPEG file is played back repeatedly.

FOLDER REPEAT:

The JPEG files contained in the selected folder are played back repeatedly. However, folders below the selected folder are not played back.

DISC REPEAT:

All JPEG files are played back repeatedly.

Operation can be done when files are in order, such as in the diagram below.

JPEG Zoom

(During JPEG Playback.)

You can enlarge specific portions of a JPEG picture and select the zoom ratio using the ZOOM button on the remote during JPEG Playback screen.

Set Zoom size.

Press ZOOM repeatedly to change display as follows.

Press STOP to return the MP3/WMA/JPEG MENU.
- You can enlarge the center portion of the image to one of 2 magnifications.
Operation can be done during Rotation (below).

X1.0 (ORIGINAL) X1.5 (ZOOM 1) X2.0 (ZOOM 2)

Use the , , and buttons to move the position up, down, left and right. (Position cannot be changed on X1.0 ORIGINAL images.)

JPEG Rotation

(During JPEG Playback.)

You can rotate a JPEG picture using the ANGLE button on the remote during JPEG Playback screen. (The JPEG picture will be rotated 90^ clockwise.)

Set rotation.

Press ANGLE repeatedly to change display as below.

Press STOP to return the MP3/WMA/JPEG MENU
Operation can be done during Zoom (above).
The vertical/horizontal ratio of rotated JPEG images may vary when they are displayed.

1st press 2nd press 3rd press

O

AAD

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

51

Settings for DVD Operation

1 Press ACTION* to display DVD MAIN MENU.

Press to select an item, and press SET.

DISC LANGUAGES (See below) All languages offered on the disc can be set. If a language not offered is set, the original disc language will be selected.

AUDIO OUTPUT (See p. 53.) You can set the audio output that comes from the digital audio output terminal.

STILL MODE (See p. 54.) To select "FIELD" (Field still) or "FRAME" (Frame still) to prevent jitter or make small text or fine patterns clearly visible in a still picture. When "AUTO" is set, "FIELD" or "FRAME" is selected automatically.

TV MODE (See p. 54.) To select whether the video material for a wide-screen will be played back in the Pan & Scan style, Letterbox style or 16:9 style.

Disc Languages (DVD only)

To select and set the language of the audio soundtrack, subtitles, or title/DVD menus for all discs to be played.

Press to select "DISC LANGUAGES," and press SET to display screen.

Press to select an item, and press SET repeatedly for desired language. (Please refer right.)

5 Press ACTION to redisplay DVD MAIN
MENU and go to step 2 to setup another item.
Or, press ACTION twice to exit.

Once initial settings are done, they remain in memory (even after power is turned off) until changed. This means DECK will operate under the same conditions (especially DVDs) each time.

Ready Checklist DECK is in DVD mode, press DVD.

"AUDIO" selections

(Factory preset: English)
To select the audio soundtrack language.
English/Spanish/French/Japanese
Original: Original disc language
OTHER 0000: Other language selection*1

"SUBTITLE" selections

(Factory preset: AUTO) To select the subtitle language AUTO: Same language sele for "AUDIO"

• If language set for "AUDIO" is used in playback, subtitles will not appear.
• If another language is used during playback, the subtitles will appear in the language selected at "AUDIO" setup.

English/Spanish/French/Japanese OTHER 0000:Other language selection

"MONTHS" selections (factory preset: English) To select the language used in title menus or DVD menus. English/Spanish/French/Japanese OTHER 0000: Other language selection*

To enter OTHER *** code number, Press NUMBER keys (Please refer to language codes on p.56). To make corrections, press repeatedly to delete language code number, and correct.

^*1 If the selected language is not offered, the original disc language is selected.

52

Audio Output (DVD only)

Select the digital output to be output from the optical digital audio output connector of DECK.

1 Press ACTION to display DVD MAIN MENU.

LPCM (DVD) selections

OFF: Linear PCM of less than 44.1 or 48kHz / 16 bit is output. When playing DVDs recorded in linear PCM of over 44.1 or 48kHz / 20 bit, no digital audio is output. (Factory preset)

PCM: When playing DVDs recorded in linear PCM of 44.1 or 48kHz / 20 bit/24 bit or more, digital audio converted to 44.1kHz / 16 bit or 48kHz / 16 bit is output. (Digital output of PCM audio is restricted to 48kHz / 16 bit or below for copyright protection.)

Dolby Digital"selections

Bitstream: Dolby Digital bitstream (1 ch - 5.1 ch) is output. (Factory preset)

PCM: When you have connected an amplifier that doesn't have a built-in Dolby Digital decoder.

"dtselections

Bitstream: DTS bitstream is output. (Factory preset)

PCM: When you have connected an amplifier that doesn't have a built-in DTS decoder.

DRC (Dynamic Range Compression) selections

OFF: Normal audio range is selected. (Factory preset)

ON: For dynamic sound even at low volume, this is useful for late-night listening. [Dolby Digital DVDs only].

4 Press ACTION to redisplay DVD MAIN MENU and go to step 2 to setup another item.

Or, press ACTION twice to exit.

Ready Checklist

DECK is in DVD mode, press DVD.

Type of amplifier to be connected	Recommended setting
	LPCM (DVD)	Dolby Digital	DTS
No amplifier is connected	—	—	—
AV amplifier (with digital audio input connector) without Dolby Digital/DTS decoder	PCM	PCM*1	PCM*1
AV amplifier including Dolby Digital decoder	PCM	Bitstream	PCM
AV amplifier including Dolby Digital/DTS decoder	PCM	Bitstream	Bitstream*2

• Make settings according to amplifier connected to optical audio output as shown in above table.
  1 When connecting an amplifier (with an optical digital input connector) which does not contain the Dolby Digital or DTS decoder, be sure to select "PCM". If "Bitstream" is selected, starting DVD play may cause such a high level of noise as to be harmful to your ears and damage the speakers.
  2 When a dts decoder is connected, please select "Bitstream" in "dts." If "PCM" is selected, there will be stereo sound.

When a Dolby Digital decoder is connected, please select "Bitstream" in "Dolby Digital." If "PCM" is selected, there will be stereo sound.

ouenrreae

C

Settings for DVD Operation (continued)

Still Mode (DVD only)

Set to reduce jitter in a displayed still picture or a motion picture.

1 Press ACTION* to display DVD MAIN MENU.

Press to select "STILL MODE," and press SET repeatedly for mode. (See below.)

AUTO: "FIELD" (Field still) or "FRAME" (Frame still) is automatically selected during the still mode. (Factory preset)

FIELD: "FIELD" (Field still) is always selected. This setting will reduce jitter when compared with "AUTO" on some discs.

FRAME:"FRAME" (Frame still) is always selected. Some texts and fine patterns will be seen clearly when compared with "AUTO" on some discs.

3 Press ACTION to exit this mode.

TV Mode (DVD only)

Set the screen display style for wide-screen video material playback.

1 Press ACTION to display DVD MAIN MENU.

Press to select "TV MODE," and press SET repeatedly for mode. (See below.)

4:3 Pan & Scan (Factory preset): Wide-screen video data is played in Pan & Scan style (left and right of screen is trimmed.) Video data not formatted in Pan & Scan will play in letterbox style.

4:3 Letterbox : Wide-screen video data is played in Letterbox style (top and bottom of screen has black margin).

16:9: Set "16:9" when using Wide-screen TV.

3 Press ACTION to exit this mode.

Example

• Pan & Scan (Factory preset)

Letterbox

54

*Important: If a remote control button does not work when pressed, press the DVD button on the remote and try the button again.

PROGRESSIVE OUT

Sets the Component Video Output Connector (p. 10, 13) to output the Progressive scan signal.

1 Press ACTION to display DVD MAIN MENU.

Press select "PROGRESSIVE OUT," and press SET repeatedly for mode. (See below.)

OFF: Progressive scan signal is not output.

ON: Progressive scan signal is output from the Component Video Output Connector.

3 Press ACTION to exit this mode.

A/V OPTIMIZER

You can set to preset audio/video effects as desired.

Press A/V OPTIMIZER in Play mode to display the A/V OPTIMIZER selection on-screen.

• Display disappears after 5 seconds.

Press A/V OPTIMIZER to select the desired mode below.

opera

DvD

The video/audio effect of each mode is listed below.

Mode	Video	Audio
NORMAL	Standard video	Standard audio
CINEMA	Bright areas are subdued.	Enhances high/low range for dynamic sound.
DRAMA	Standard video	Reduces high/low range so dialog and vocals can be heard clearly.
ACTION	Brightness and sharpness are enhanced.	Enhances high/low range for dynamic sound.

Note

• With some discs, the audio/video effect may not be obtained, also the audio/video effects may not work well.

Language Code List

Enter the appropriate code number for the initial settings "AUDIO", "SUBTITLE" and/or "MENUS" (see p. 52).

Code	Language
6565	Afar
6566	Abkhazian
6570	Afrikaans
6577	Ameharic
6582	Arabic
6583	Assamese
6588	Aymara
6590	Azerbaijani
6665	Bashkir
6669	Byelorussian
6671	Bulgarian
6672	Bihari
6678	Bengali; Bangla
6679	Tibetan
6682	Breton
6765	Catalan
6779	Corsican
6783	Czech
6789	Welsh
6865	Danish
6869	German
6890	Bhutani
6976	Greek
6978	English
6979	Esperanto
6983	Spanish
6984	Estonian
6985	Basque
7065	Persian
7073	Finnish
7074	Fiji

Code	Language
7079	Faroese
7082	French
7089	Frisian
7165	Irish
7168	Scotts Gaelic
7176	Galician
7178	Guarani
7185	Gujarati
7265	Hausa
7273	Hindi
7282	Croatian
7285	Hungarian
7289	Armenian
7365	Interlingua
7378	Indonesian
7383	Icelandic
7384	Italian
7387	Hebrew
7465	Japanese
7473	Yiddish
7487	Javanese
7565	Georgian
7575	Kazakh
7576	Greenlandic
7577	Cambodian
7578	Kannada
7579	Korean
7583	Kashmiri
7585	Kurdish
7589	Kirghiz
7665	Latin

Code	Language
7678	Lingala
7679	Laothian
7684	Lithuanian
7686	Latvian, Lettish
7771	Malagasy
7773	Maori
7775	Macedonian
7776	Malayalam
7778	Mongolian
7779	Moldavian
7782	Marathi
7783	Malay
7784	Maltese
7789	Burmese
7865	Nauru
7869	Nepali
7876	Dutch
7879	Norwegian
7982	Oriya
8065	Panjabi
8076	Polish
8083	Pashto, Pushto
8084	Portuguese
8185	Quechua
8277	Rhaeto-Romance
8279	Romanian
8285	Russian
8365	Sanskrit
8368	Sindhi
8372	Serbo-Croatian
8373	Singhalese

Code	Language
8375	Slovak
8376	Slovenian
8377	Samoan
8378	Shona
8379	Somali
8381	Albanian
8382	Serbian
8385	Sundanese
8386	Swedish
8387	Swahili
8465	Tamil
8469	Telugu
8471	Tajik
8472	Thai
8473	Tigrinya
8475	Turkmen
8476	Tagalog
8479	Tonga
8482	Turkish
8484	Tatar
8487	Twi
8575	Ukrainian
8582	Urdu
8590	Uzbek
8673	Vietnamese
8679	Volapük
8779	Wolof
8872	Xhosa
8979	Yoruba
9072	Chinese
9085	Zulu

Warning and Instruction Displays

These displays will alert you to a missed operation or provide further instructions.

CautionOSD Page
PLEASE SET CLOCK BY PRESSING ACTION KEY	If you attempt to set or review a TimerRecording and the Clock is not set...	24
PLEASE PREPAREFOR TIMER REC	If the DECK is not in Stop mode, or cassette isnot inserted, or cassette has no record tab, ortape is at its end 2 minutes before a TimerRecording is about to begin...	2425
CHECK CASSETTERECORD TAB	If you press REC on the remote control or DECK,and a cassette is inserted with no record tab...	6
NO CASSETTE	If you press PLAY, FF, REW, or REC on theremote control or DECK without a cassetteinserted...	2021
TO CANCEL TIMER RECHOLD DOWN STOP KEYFOR APPROX 3 SEC	If you press STOP or POWER during a TimerRecording...(visible in VCR mode only)	25
VIDEO HEADS MAYNEED CLEANINGPLEASE INSERT HEADCLEANING CASSETTEROR REFER TO MANUALEND : PLAY	If head cleaning becomes necessary whileplaying back a tape...	4
VCR LOCK ACTIVATED	If you press a function button other than STOP/EJECT or POWER while DECK isin VCR Lock mode...	32
REMOTE CONTROL IS SETTO TV MODEUSE VCR : VCR KEYUSE DVD : DVD KEY	If you press an invalid key on the remote whilein TV mode...	282934
PLEASE CHECK THE DISC,AND FOR STAINS ORSCRATCHES ON DISC	If you press PLAY, and DECK reads data froma stained or scratched disc in DVD mode.	6
THIS DISC MAY NOT BE PLAYEDIN YOUR REGION	Playback of a disc with different region numberwas attempted. Only discs marked region "1",“ALL”, or those that include "1" are playable onthis DECK.	3
THIS TYPE OF DISC CANNOT BEPLAYED. PLEASE INSERT ADIFFERENT DISC	An unusable disc is inserted in the unit, or thedisc is not installed with label side up.	6
CANNOT PLAY THIS FILE	This file format cannot be played.(Appears during MP3/WMA/JPEG file playback)	49
THIS FILE IS PROTECTED	This file is copyright protected and cannot beplayed back. (Playback is prohibited.)(WMA only)	49

e

JnoJor

Before Requesting Service

Check the following points if you are having trouble with your DECK.

Power	Solution
No power...	• Completely insert Power Plug into an AC outlet. • Press POWER button on. • Make sure power source is active.
Power turns itself off...	• Auto power-off (shutoff) occurs after about 5 min. in DVD mode with no operation, or if there is no broadcast signal in TV or Playback mode. Turn the power back on. (pp. 23, 33)
Recording & Playback	Solution
TV program cannot be recorded...	• Check connections between DECK, external antenna, and TV. • Check channel selections. • Make sure your antenna system (CABLE or TV) is correctly set. (Channels [p. 18]) • Make sure cassette record tab is intact. (p. 6)
Timer recording cannot be performed...	• Confirm that clock is set to current time and date. • Make sure Cable/DSS box (if used) is left on and tuned to channel to be recorded. • Set recording start/stop times correctly. (p. 24) • Timer recording may not be performed or continued if a power interruption occurs before or during a Timer Recording, even after power is restored.
There is no playback picture, or the playback picture is noisy or contains streaks...	• Select channel 3 or 4 on TV to match VCR output channel (3 or 4) (p. 16) or select LINE. • Set VCR/TV selector to "VCR." • Adjust TRACKING control in either direction. (p. 4) • Try Head Cleaning. (p. 4)
During special effects playback picture may contain some vertical jitter when using a TV with an Automatic Vertical Hold Control...	• Set TV's Vertical Hold Control to MANUAL, then adjust.
DECK cannot be controlled...	• Make sure DECK power is on. • Check Remote batteries. • Make sure VCR LOCK is set to off. (p. 32) • Make sure Remote is in proper mode. (p. 28) • Make sure Timer Recording is not in progress.
Remote Control	Solution
DECK cannot be remote controlled...	• Make sure DECK power is on. • Make sure Remote is in VCR mode. • Aim Remote Control directly at remote sensor on DECK. (p.9) • Avoid any object blocking signal path. • Check Remote batteries. (p. 4) • Exposing DECK remote sensor to direct fluorescent or outdoor light may cause signal interference.
PROG buttons do not respond...	• PROG functions are not available in COMPONENT Video Output and S-VIDEO OUT. Set TV to either RF IN or VIDEO IN. (p. 10) • Check Remote batteries. (p. 4) • Press VCR or DVD button for DVD/OCR mode. (p. 28)

DVD/CD	Solution
Play fails to start even when PLAY is pressed...	·This DECK cannot play discs other than DVDs and CDs. ·The disc may be dirty and require cleaning.
Picture is distorted during rapid advance or rapid reverse...	·The picture will be somewhat distorted at times: this is normal.
No Forward/Reverse Scene Search play...	·Some discs may have sections which prohibit Forward/Reverse Scene Search. (p. 23)
Audio soundtrack and/or subtitle language is not the one selected at the initial settings...	·If the audio soundtrack and/or subtitle language selected at DVD initial settings does not exist on the disc, it will not be accessible.
No subtitles...	·Subtitles appear only when available on disc. ·“OFF” is selected at the changing subtitle language. Select “ON” at the “Subtitle Languages” section (p. 36) to display the subtitles.
Alternative audio soundtrack (or subtitle) language cannot be selected...	·Alternative language cannot be selected with discs which do not contain more than one language. ·For some discs, alternative language cannot be selected with the AUDIO or SUB TITLE button. Try selecting it from the DVD MAIN MENU if available.
Angle cannot be changed...	·This function is dependent on software availability. Even if disc has multiple angles, they may be recorded for specific scenes only (ANGLE indicator on DECK lights up). (p. 37)
Miscellaneous	Solution
Programs cannot be viewed on TV...	·Make sure TV is tuned to VCR's output channel (3 or 4). ·Check connections between DECK, external antenna, and TV. ·Set VCR/TV selector to “TV.” (p. 21) ·Make sure proper signal source is selected. ·If the television is not progressive compatible, a progressive scan picture is not available. Connect the Video Output or S-Video Output connector (pp. 12, 13) and set PROGRESSIVE OUT to “OFF” in the DVD Main Menu. (p. 55)
Video cassette cannot be inserted...	·Insert the cassette with window side up; record tab facing you.
Video cassette ejects when a recording is started or the power is turned off for timer recording...	·Make sure cassette record tab is intact. (p. 6)
In Stop mode, the motor (CYLINDER) continues to rotate...	·To enable Quick play mechanism, the cylinder will rotate for about 3 minutes. This reduces response time from Stop to Play mode.
The disc cannot be removed...	·First, unplug DECK. Then, prepare a rigid wire (e.g. an extended paper clip) and, applying moderate force, insert it straight into the hole at the base of the tray. The tray will eject a little. Now, pull the tray all the way out and remove the disc. (p. 9)

eennnnnne
JnoJ0

Limited Warranty

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT - LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

DVD/VCR DECK-One (1) year, parts and labour

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty.

This warranty is extended to the original end user purchaser only.

A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTYES, EXPRESS OR IMPLIED, EXCLUDING ANY IMPLIED WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

Servicentre List

WARRANTY SERVICE

For product operation and information assistance, please contact your

Dealer or our Customer Care Centre at:

Telephone #:

[phone]

Fax#:

[phone]

Web:

www.panasonic.ca

For product repairs, please contact one of the following:

• Your Dealer who will inform you of an authorized Servicentre nearest you.
• Our Customer Care Centre at [phone] or www.panasonic.ca
• A Panasonic Factory Servicentre listed below:

Richmond, British Columbia

Panasonic Canada Inc.

12111 Riverside Way

Richmond, BC V6W 1K8

Tel: [phone]

Fax: [phone]

Calgary, Alberta

Panasonic Canada Inc. 6835-8thSt.N.E.

Calgary, AB T2E 7H7

Tel: [phone]

Fax: [phone]

Mississauga, Ontario

Panasonic Canada Inc.

5770 Ambler Dr.

Mississauga, ON L4W 2T3

Tel: [phone]

Fax: [phone]

Lachine, Quebec

Panasonic Canada Inc.

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton. Include details of the defect claimed, and proof of date of original purchase.

e

JnoJor

Index

DECK & VCR

A ACTION button 8,18
Accessories 4
ADD/DELETE button (Add or Delete a Channel) 8, 19
Audio Broadcast types (Stereo/SAP/Mono) 26
Audio Mode (Playback, Recording) .... 27
Auto Operation Functions 31
Auto Shut-Off 33
B Batteries 4 Blue Light (ON/OFF Feature) 9,32
C Channel ("SET UP CHANNEL") 18
Channel Up/Down, Tracking/V-Lock Button 4, 8
Clock ("SET CLOCK") 18
CM/ZERO SEARCH button 8,30
Commercial Skip 30 Connections. 12-15
Copy Your Tapes (Dubbing) 35
COUNTER RESET button 8,30
D DISPLAY button 8,11 DST (Daylight Saving Time) 19
E EJECT button 8,20 ENTER button (For tuning TV Channel) 8,28
F FAST FORWARD/SLOW+ button .... 8,20
H Head Cleaning 4
I Index Search 30
Indicator (Multi Function Display) 11
Initial Setup (Ready to Play) 16, 17
INPUT button 8, 35
L Limited Warranty 60 Location of Controls (Remote, DECK) 8~10
M Multi-Brand Control 28, 29
Multi Function Display (Front Display) ON/OFF Feature 34
O On-Screen Displays (VCR) 11 One Touch Recording 21

P PLAY button (Playback a Tape) .... 8, 20

POWER button 8
PROG button (PROGRAM) 8, 24
Program Clear, Review, Replace 25

Quality Picture 4
R REC button (Record on a Tape) .... 8, 21

Record Tab 6
Remote Sensor 9
Remote Warning 34
Repeat Play 31
Reset All Memory Functions 9
REWIND/SLOW- button 8,20

S SAP/Hi-Fi 27

SEARCH button 8,30
Servicentre List 61
Specifications. 7
SPEED button 8,21
Still (Freeze) Picture 20
STILL/PAUSE button (Still Picture) .. 8, 20
STOP button 8,20

T Tape Position, Tape Status 31

Tape Select 31
Timer Recording 24
Trouble Shooting 58, 59
TV mode button. 8,28

V VCR Lock 32

VCR mode button 8,28
VCR/TV button 8,21
VCR/TV Selection Feature 32
VOLUME +/- button (TV Volume) .... 8, 28

WWarning and Instruction Displays 57

Weak Signal Display 33

62

DVD

A ACTION button 8,52

ANGLE button

(Multiple Angle Viewing) 8, 37, 51

AUDIO button

(Audio Soundtrack Language) 8, 36

Audio Output

(For Selecting Audio Output) 53

Auto-Power Off Function 23

A/V OPTIMIZER. 55

B Bonus Group (For DVD-Audio) 41

C CLEAR button 8,39

Component Video Output 10, 13

D Direct Navigator 42

Disc Languages 52

DISPLAY button

("On-Screen Display") 8,44

DTS 14

DVD-Audio 41

DVD Menu 38

DVD mode button 8,28

DVD-RAM (DVD-VR) 42

F Frame by Frame Picture 23

Forward/Reverse Chapter/Track Skip ... 23

Forward/Reverse Scene Search 23

JJPEG 49~51

K Karaoke

(Vocal Selection for Karaoke Discs) ... 37

L Language Code List 56

MMENU button

(To display DVD Menu) 8,38

MP3 49

Multiple Angle Viewing. 37

OPEN/CLOSE button 8,22

Optical Digital Audio Output 10, 15

P PAGE button (Still Image Skip) 8,41

PLAY button (Play a Disc) 8, 22

Play List. 43

Program Play (For CD) 39

Progressive Scan 10, 13, 55

R Random Play (For CD) 40

Repeat Play 47, 48

Resume Function 23

RETURN button 8,22

Rotation. 51

$ SKIP+▶or SKIP-▶ button

(Forward/Reverse Chapter/Track) 8, 23

Slide-show 50

SLOW+/SLOW- button

(Slow Motion Picture) 8, 23

STILL/PAUSE button

(Still Picture or Pause) 8, 23

Still Mode

(For selecting "FIELD" or "FRAME") .. 54

STOP button 8,22

SUB TITLE button

(For selecting Subtitle Language) ... 8, 36

S-Video Out 10, 13

T TITLE button (Title Menu) 8,38

TV Mode

(For selecting the screen display style) .. 54

V VOLUME ADJUST button 8,40

V.S.S. (Virtual Surround Sound) .... 8, 23

WWMA 49

Z ZOOM button (Picture Zoom).... 8, 37, 51

ou

JnoJor

63

Panasonic

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario L4W 2T3

[phone]

www.panasonic.ca

Montreal: 3075 Louis A. Amos, Lachine, Quebec H8T 1C4 [phone]

Toronto: 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 [phone]

Calgary: 6835 8th Street N.E., Calgary, Alberta T2E 7H7 [phone]

Vancouver: 12111 Riverside Way, Richmond, BC V6W 1K8 [phone]

Printed in Indonesia

LSQT0829 A

S0104-1024

Omnivision

Panasonic

Cable RF coaxial LSJA0418

Insertion des piles

□ Avertissement

Puisance du laser:CLASS II

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

Certificat de garantie limitee Panasonic

Panasonic Canada Inc.

Panasonic Canada Inc.

Panasonic Canada Inc.

12111 Riverside Way

6835-8thSt.N.E.

5770 Ambler Dr.

Richmond, BC V6W 1K8

Calgary, AB T2E 7H7

Mississauga, ON L4W 2T3

Tel.: [phone]

Panasonic Canada Inc.

Touche CLEAR 8,39,50

Touche DISPLAY 8,44

Touche DVD 8,28

Touche MENU 8,38

Touche OPEN/CLOSE 8,22

Touche PAGE. 8, 41

Touche PLAY 8,22

Touche RETURN 8,22

Touche SKIP_+ Iou SKIP-I 8,23

Touche SLOW+/SLOW- 8,23

Touche STILL/PAUSE 8,23

Touche STOP 8,22

Touche SUB TITLE 8,36

Touche TITLE 8,38

Touche VSS 8,23

Touche ZOOM 8,37,51

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario L4W 2T3

[phone]

www.panasonic.ca

Montreal: 3075 Louis A. Amos, Lachine, Quebec H8T 1C4 [phone]

Toronto: 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 [phone]

Calgary: 6835 8th Street N.E., Calgary, Alberta T2E 7H7 [phone]

Vancouver: 12111 Riverside Way, Richmond, BC V6W 1K8 [phone]
