Product Type	Passive 3D Glasses
Brand	Panasonic
Model	TY-EP3D10EB
Lens Type	Circular Polarizing Filter
Dimensions (L x H x D)	149.0 mm x 44.0 mm x 171.0 mm
Weight	Approx. 18 g
Body Materials	Resin
Lens Materials	Resin
Power Supply	None (passive operation)
Operating Temperature Range	0 °C to 40 °C (32 °F to 104 °F)
Recommended Viewing Distance (50" TV)	1.9 m or more
Recommended Viewing Distance (65" TV)	2.4 m or more
Compatibility	Passive 3D compatible HDTVs
Usage	Viewing 3D content
Cleaning	Soft, dry cloth; do not use benzene, thinner, or wax
Storage	Avoid locations with high humidity and high temperature
Safety	Do not disassemble; do not use if cracked or broken; stop if fatigued
Warranty	Panasonic European warranty (see terms in manual)
Certifications	Complies with Directive 2004/108/EC

Frequently Asked Questions - TYEP3D10EB PANASONIC

How do I use the 3D glasses with my TV?

Make sure your TV is compatible with passive 3D. Activate 3D mode on the TV and wear the glasses. Refer to the TV manual for specific settings.

Which TVs are compatible with the TY-EP3D10EB glasses?

These glasses are designed for HDTVs that support passive 3D. Check the Panasonic website for a list of compatible models.

What is the recommended viewing distance?

For a 50-inch TV, minimum distance of 1.9 m; for a 65-inch TV, 2.4 m. Respect these distances to avoid eye strain.

Can I wear the 3D glasses over my prescription glasses?

Yes, the 3D glasses are designed to be worn over prescription glasses. If you have visual impairments, correct your vision first.

How do I clean the 3D glasses?

Use a soft, dry cloth. Shake the cloth to remove dust before cleaning. Never use benzene, thinner, or wax.

What if images are not displaying in 3D?

Check that the TV supports these glasses and that 3D mode is enabled in the TV settings. Consult the TV user manual.

Are the 3D glasses suitable for children?

Not recommended for children under 5-6 years old. If a child uses them, an adult should ensure they do not strain their eyes.

What should I do if I experience eye strain or discomfort?

Stop using immediately and rest sufficiently before resuming. If discomfort persists, consult a doctor.

Can I use the 3D glasses as sunglasses?

No, these glasses are exclusively for viewing 3D content. Do not use them as sunglasses.

How should I store the 3D glasses?

Store them in a dry place, away from moisture and high temperatures. Avoid direct sunlight.

USER MANUAL TYEP3D10EB PANASONIC

Operating Instructions

3D Eyewear

Model No. TY-EP3D10EB

This product cannot and must not be used as sunglasses.

Black-framed eyeglasses with reflective lenses (no text or symbols)

ENGLISH

DANSK

NEDERLANDS

FRANÇAIS

DEUTSCH

ITALIANO

KA3AK

PORTUGUÊS

РУССКИЙ

ESPAÑOL

SVENSKA

TÜRKÇE

УКРАЇНСЬКА

GUARANTEE

ГАРАНТИЙНЫЙ ТАЛОН

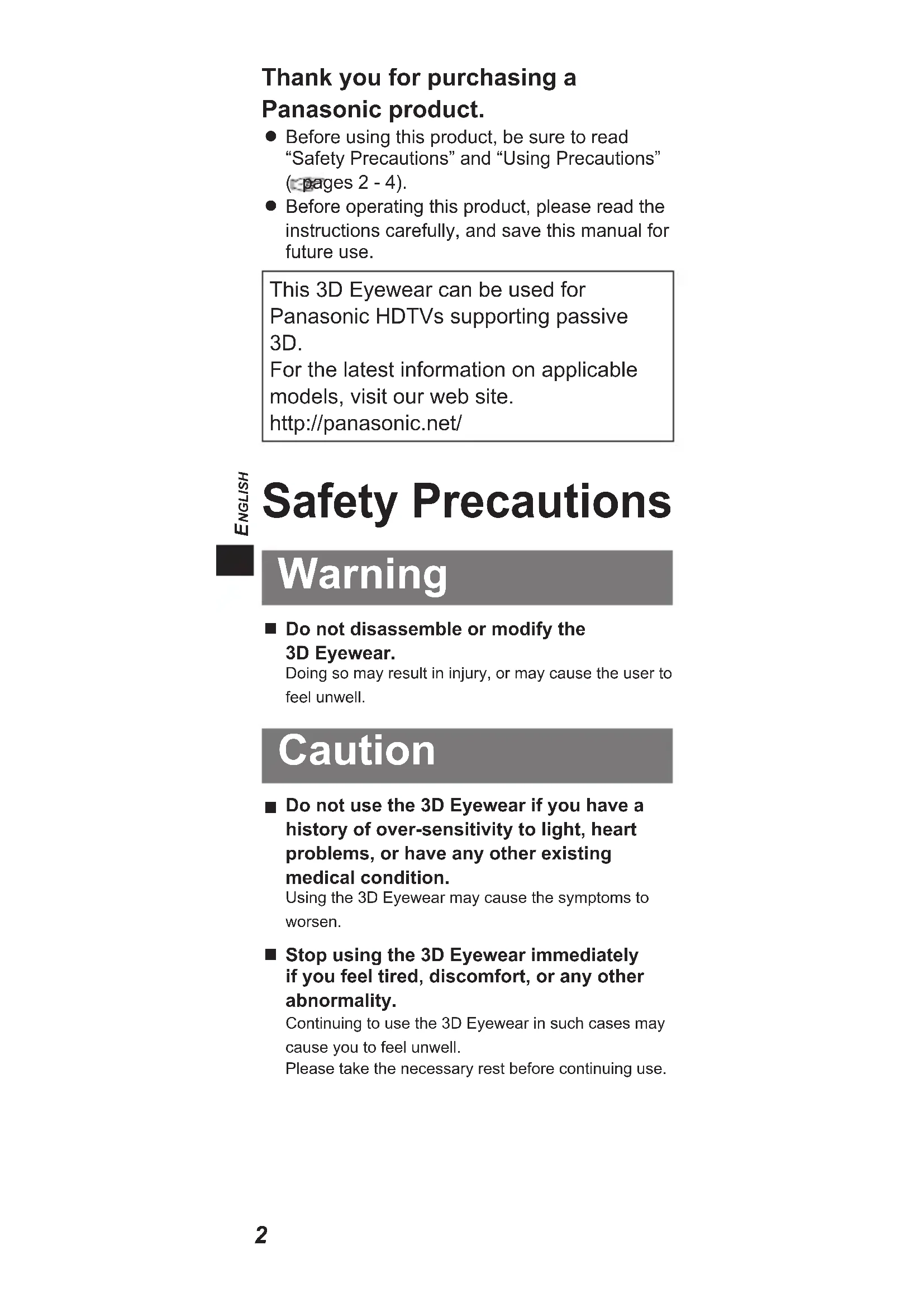

Thank you for purchasing a Panasonic product.

• Before using this product, be sure to read "Safety Precautions" and "Using Precautions" (pages 2 - 4).
• Before operating this product, please read the instructions carefully, and save this manual for future use.

This 3D Eyewear can be used for Panasonic HDTVs supporting passive 3D.

For the latest information on applicable models, visit our web site.

http://panasonic.net/

Safety Precautions

Warning

■ Do not disassemble or modify the 3D Eyewear.

Doing so may result in injury, or may cause the user to feel unwell.

Caution

■ Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other existing medical condition.

Using the 3D Eyewear may cause the symptoms to worsen.

■ Stop using the 3D Eyewear immediately if you feel tired, discomfort, or any other abnormality.

Continuing to use the 3D Eyewear in such cases may cause you to feel unwell.

Please take the necessary rest before continuing use.

■ As a guide, 3D Eyewear should not be used by children younger than 5 - 6 years old.

As it is difficult to judge younger children's reactions to fatigue or discomfort, it may be difficult to prevent them from suddenly feeling unwell.

- When this product is being used by a child, the parent or guardian should check to ensure that the child's eyes are not becoming tired.

■ Use the 3D Eyewear when viewing 3D images.

■ When using the 3D Eyewear, make sure your eyes are on an approximately horizontal level, and keep a position where you do not see double images.

■ View the screen at a distance at least 3 times further than the effective height of the screen.

Recommended distance:

For a 50-inch TV 1.9 m or more

For a 65-inch TV 2.4 m or more

Using the 3D Eyewear at a distance closer than the recommended distance may cause eyesight fatigue.

If you suffer from myopia (short-sightedness), hyperopia (far-sightedness), astigmatism, or have eyesight differences between the left and right eyes, please use corrective glasses or other such methods to correct your eyesight before putting on the 3D Eyewear.

■ Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.

Prolonged use may cause eyesight fatigue.

■ Do not use if the 3D Eyewear is cracked or broken.

Doing so may result in injury or eyesight fatigue.

■ When using the 3D Eyewear, be careful not to strike the television screen or other people by mistake.

As the images are in 3D, the distance between the user and screen may be mistaken, causing the user to strike the screen which may result in injury.

■ Stop using the 3D Eyewear immediately if your skin feels unusual.

In rare cases, the paint or materials used in the 3D Eyewear may cause an allergic reaction.

■ Do not use the 3D Eyewear for any other purpose except viewing 3D images.

■ Do not drop, exert pressure on, or step on the 3D Eyewear.

Doing so may damage the glass section, which may result in injury.

■ Be careful of the tips of the frame and the hinge section when putting on the 3D Eyewear.

Failure to heed this warning may result in injury.

- Pay special attention when children are using this product.

Storage and Cleaning

- Clean using a soft, dry cloth.

- Wiping the 3D Eyewear with a soft cloth that is covered in dust or dirt may scratch the eyewear. Shake off any dust from the cloth before use.

- Do not use benzene, thinner, or wax on the 3D Eyewear, as doing so may cause the paint to peel off.

- Do not dunk the 3D Eyewear in liquid such as water when cleaning.

- Avoid storing the 3D Eyewear in hot or highly humid locations.

Troubleshooting/Q&A

Check the followings first.

Images are not 3D.

▶ Does the TV support on this 3D Eyewear?

Use the 3D Eyewear with compatible TVs.

(page 2)

▶ Are the image settings switched to 3D images?

Refer the television operating instructions.

Specifications

Lens type

circularly-polarized filter

Usage temperature range

0^-40^(32^-104^)

Materials

Main body: Resin

Lens section: Resin

Dimensions

Width 149.0 mm
Height 44.0 mm
Overall length 171.0 mm
Mass Approx. 18	g

ENGLISH

Pursuant to the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

Panasonic Corporation

Web Site : http://panasonic.net/

© Panasonic Corporation 2012

Panasonic Testing Centre

Panasonic Service Europe, en afdeling af

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Tyskland

Panasonic Corporation

Web Site : http://panasonic.net/

© Panasonic Corporation 2012

Panasonic Testing Centre

© Panasonic Corporation 2012

Mode d'emploi

lunettes 3D

Panasonic Testing Centre

© Panasonic Corporation 2012

Gebrauchsanleitung

3D Eyewear

Panasonic Testing Centre

© Panasonic Corporation 2012

Istruzioni d'uso

Occhiali 3D

Larghezza 149,0 mm
Altezza 44,0 mm
Lung. totale 171,0 mm
Peso circa 18	g

Pursuant to the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

Panasonic Corporation

Web Site : http://panasonic.net/

© Panasonic Corporation 2012

Жумыс істеу

Нускауыбы

3D көзілдірігі

Модель нөмірі

TY-EP3D10EB

© Panasonic Corporation 2012

Largura 149,0 mm
Altura 44,0 mm
Comprimento geral 171,0 mm
Peso Aprox. 18	g

Pursuant to the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

Panasonic

Winsbergring 15, 22525 Hamburg, F.R. Germany

Panasonic Corporation

Web Site : http://panasonic.net/

© Panasonic Corporation 2012

Инструкция по

эксплуатации

3D очки

© Panasonic Corporation 2012

Panasonic Testing Centre

© Panasonic Corporation 2012

Panasonic Testing Centre

Panasonic Service Europe, en division av

Panasonic

© Panasonic Corporation 2012

Kullanım Kılavuzu

3D Gözlük

Model No. TY-EP3D10EB

Panasonic Testing Centre

Panasonic Service Europe, Panasonic Marketing

© Panasonic Corporation 2012

Інструкція з

використання

3D окуляри

© Panasonic Corporation 2012

PANEUROPEAN GUARANTEE

3D Eyewear

Communication Camera

Caution: Please retain your sales receipt.

The Panasonic Pan European Guarantee applies to your product.

You may obtain a copy of the guarantee from:

• the dealer where you purchased your product
• Website : www.panasonic.co.uk/euguarantee
• Panasonic Customer Communications Centre:
  UK - 0844 844 3852 / Ireland - 01 289 8333

The Panasonic Pan European Guarantee applies to your product.

You may obtain a copy of the guarantee from :

• the dealer where you purchased your product
• Website : www.digitalplanet.com.mt
• Panasonic Customer Call Center : [phone] or [phone]
• Email: [e-mail]

CY KYΠΡΟΣ

Panasonic Marketing Europe GmbH. - South-East Europe Branch Office –

PME-SEE Branch Office

Panasonic predstavništvo Beograd

Bulevar despota Stefana 41, 11000 Beograd/Srbija

Tel: [phone]

[phone]

e mail: [e-mail]

www.panasonic.rs

BIH BOSNA I HERCEGOVINA

Potpisani uvoznik/distributer garantira ispravnost ovog proizvoda i usluge servisiranja u Panasonicovim ovlaštenim servisima, navedenim u priloženom popisu u trajanju od:

1. Dvije (2) godine za sve proizvode iz domena proizvodnog potfolija potrošačke elektronike (kao što su digitalni fotoaparati, digitalni kamkorderi, LCD i plazma ekrani, kućna kina, Hi Fi uređaji, mali kućanski aparati i proizvodi za osobnu njegu).
2. Dvije (2) godine za sve proizvode iz domena portfolija bijele tehnike (frižideri i veš mašine), izuzev kompresora za frižidere na koji postoji dodatne 3 godine garancije za sami dio.
3. Garancije za klime daju ovlašteni uvoznici ovih Panasonic proizvoda, dužina garancije može varirati na osnovu ponude i dogovrenih modaliteta održavanja.

Gore navedeni garancijski period je na snazi od dana kupovine uređaja, te garantira i besplatne dijelove i rad servisera pod slijedećim uslovima:

(1) Proizvod mora biti dostavljen u servis (ili mjesto prijema) ovlašten od PSEE-a za obavljanje servisa u garantnom roku, zajedno sa ovim garantnim listom i originalnim računom. Prilikom kupovine obavezno je garantni list ispuniti ispravno i u potpunosti, te ga potvrditi. U protivnom, garancija neće vrijediti.
(2) Garancija se ne odnosi na slijedeće slučajeve:
(a) Nezgodu tj. štetu uzrokovanu nepravilnim rukovanjem prilikom i za vrijeme isporuke.
(b) Kvar ili štetu nastalu nepravilnim rukovanjem proizvodom, nepažnjom kupca, upotrebom proizvoda u druge svrhe od onih opisanih u uputstvu ili u slučaju da se proizvod koristi u komercijalne, profesionalne, industrijske i slične svrhe. Kao npr. DVD snimači i video rekorderi za masovno kopiranje, mikrovalne pećnice u ugostiteljskim objektima itd.
(c) Kvar ili štetu nastalu zbog požara, potresa, poplave, nevremena i drugih prirodnih pojava, nepravilnog napona, rata, nemira (revolucija, pobuna, itd), nepredvidivih nezgoda ili drugih vanjskih faktora.
(d) Ukoliko je proizvod prepravljala, popravljala ili adaptirala neovlaštena osoba.

Isto tako ukoliko je proizvod instaliran, modificiran ili upotrebljavan na način koji nije u skladu sa tehničkim specifikacijama i/ili mjerama opreza.

PME - SEE Branch Office

Predstavništvo u Bosni i Hercegovini

Zmaja od Bosne 4,

71000 Sarajevo

Bosna i Hercegovina

Tel: [phone]

Fax: [phone]

E mail: [e-mail]

E mail: [e-mail]

MK MAKEDONIJA

ГАРАТИНИЧИЙ ТАНОН

© Panasonic Corporation 2012
