USER MANUAL TYST50PX20 PANASONIC

Pedestal for Wide Plasma Display Installation Instructions

Before attempting to assemble these accessories, please read these instructions completely. Please retain this book for future reference.

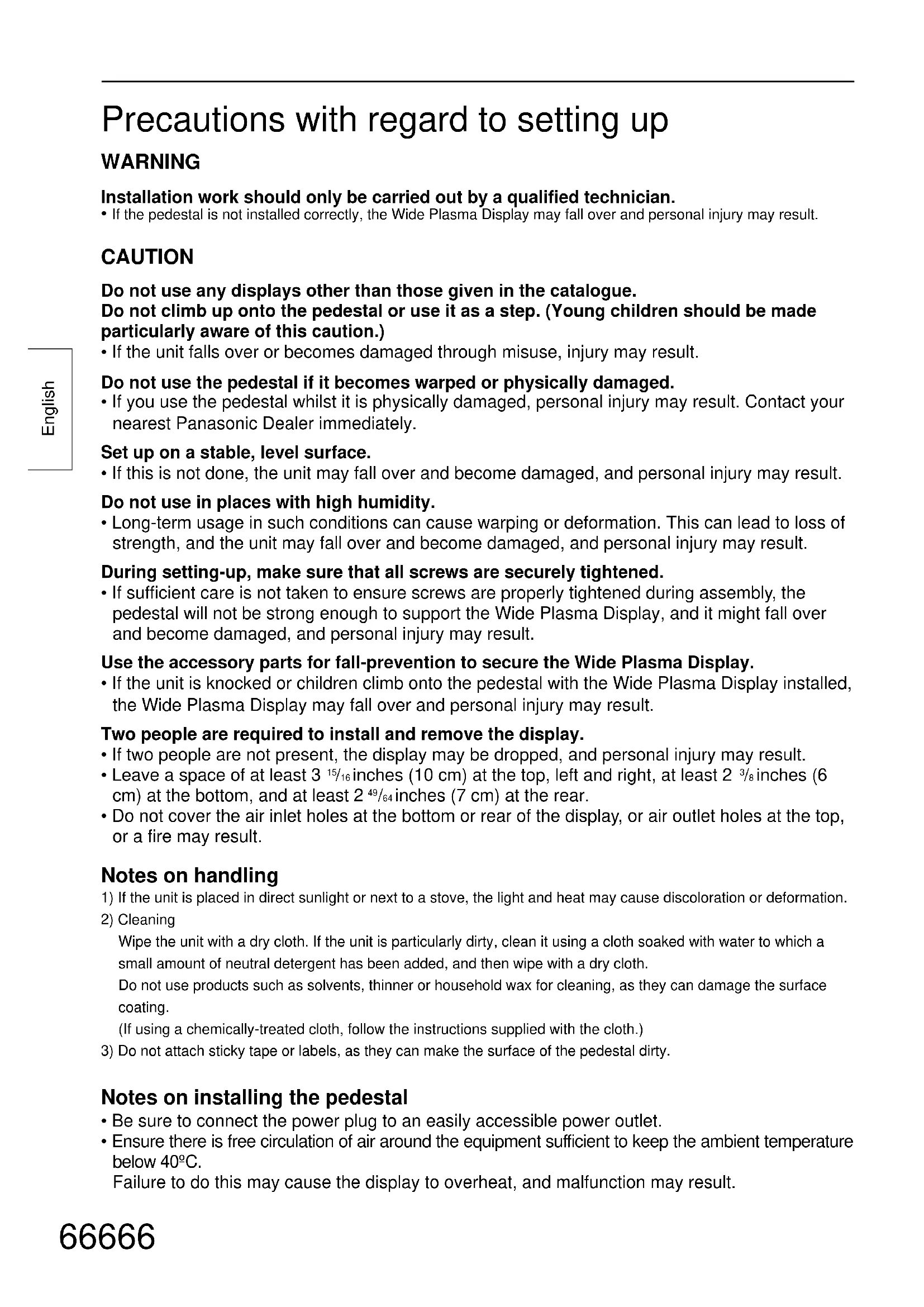

Precautions with regard to setting up

WARNING

Installation work should only be carried out by a qualified technician.

• If the pedestal is not installed correctly, the Wide Plasma Display may fall over and personal injury may result.

CAUTION

Do not use any displays other than those given in the catalogue.

Do not climb up onto the pedestal or use it as a step. (Young children should be made particularly aware of this caution.)

• If the unit falls over or becomes damaged through misuse, injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

• If you use the pedestal whilst it is physically damaged, personal injury may result. Contact your nearest Panasonic Dealer immediately.

Set up on a stable, level surface.

• If this is not done, the unit may fall over and become damaged, and personal injury may result.

Do not use in places with high humidity.

• Long-term usage in such conditions can cause warping or deformation. This can lead to loss of strength, and the unit may fall over and become damaged, and personal injury may result.

During setting-up, make sure that all screws are securely tightened.

• If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the Wide Plasma Display, and it might fall over and become damaged, and personal injury may result.

Use the accessory parts for fall-prevention to secure the Wide Plasma Display.

• If the unit is knocked or children climb onto the pedestal with the Wide Plasma Display installed, the Wide Plasma Display may fall over and personal injury may result.

Two people are required to install and remove the display.

• If two people are not present, the display may be dropped, and personal injury may result.
• Leave a space of at least 3^15 / 16 inches (10 cm) at the top, left and right, at least 2^3/8 inches (6 cm) at the bottom, and at least 2^49/64 inches (7 cm) at the rear.
• Do not cover the air inlet holes at the bottom or rear of the display, or air outlet holes at the top, or a fire may result.

Notes on handling

1) If the unit is placed in direct sunlight or next to a stove, the light and heat may cause discoloration or deformation.
2) Cleaning

Wipe the unit with a dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small amount of neutral detergent has been added, and then wipe with a dry cloth.

Do not use products such as solvents, thinner or household wax for cleaning, as they can damage the surface coating.

(If using a chemically-treated cloth, follow the instructions supplied with the cloth.)

3) Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty.

Notes on installing the pedestal

• Be sure to connect the power plug to an easily accessible power outlet.
• Ensure there is free circulation of air around the equipment sufficient to keep the ambient temperature below 40^ .

Failure to do this may cause the display to overheat, and malfunction may result.

Parts for assembly

① Short screws .... 4

③ Poles 2 Pedestal 1

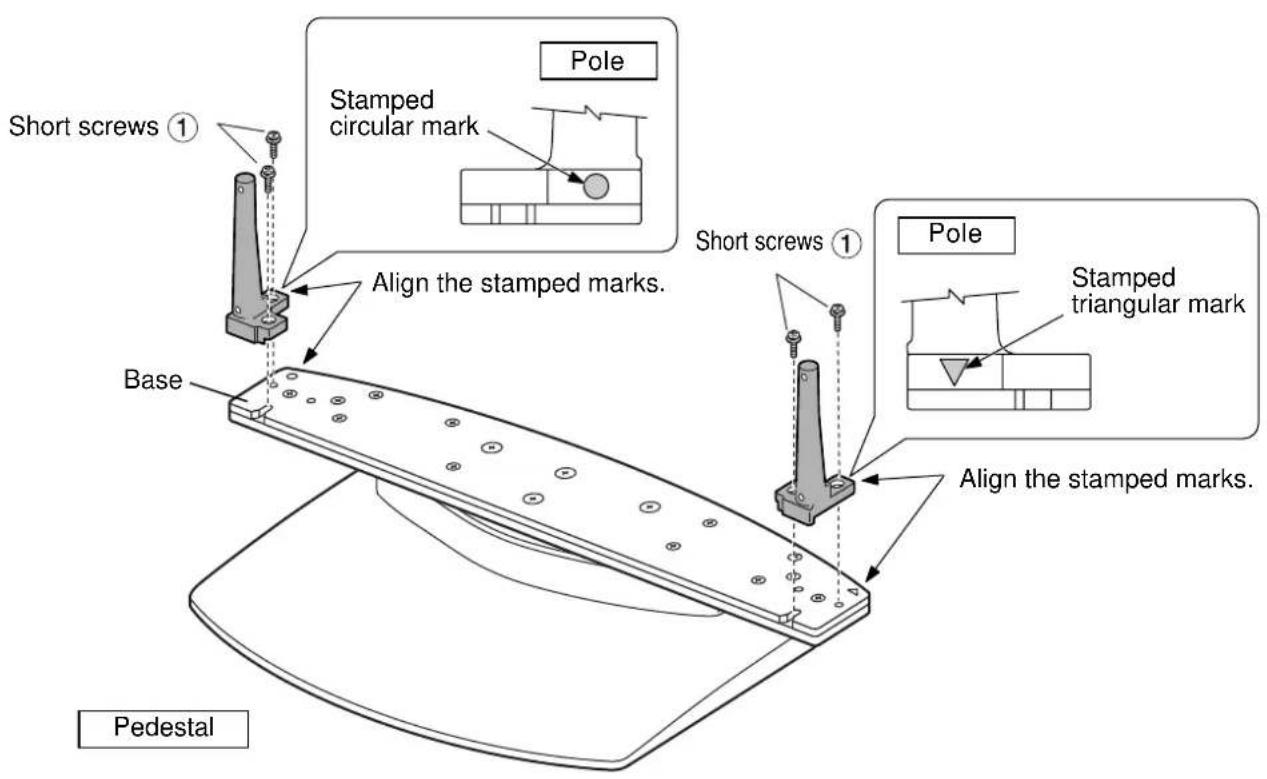

Securely attach both left and right poles to the top face of the base as shown below using short screws ① .

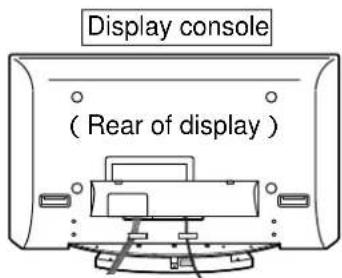

Attach to the display console

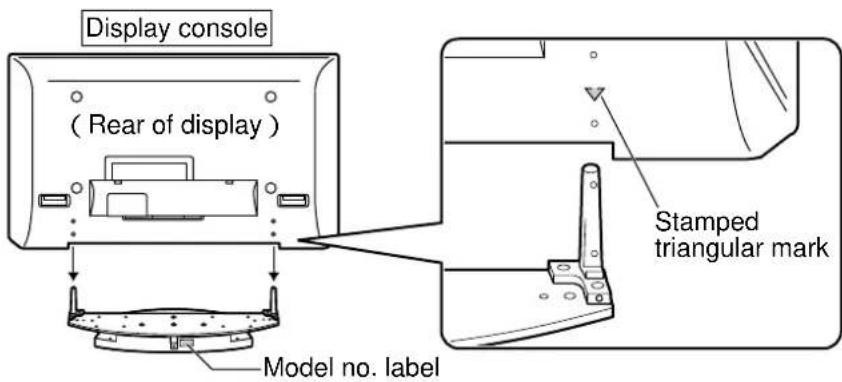

1. Insert the poles into the holes in the display console.

• Position the side of the pedestal with the model no. label to the rear. Push the assembly into the display until it stops.

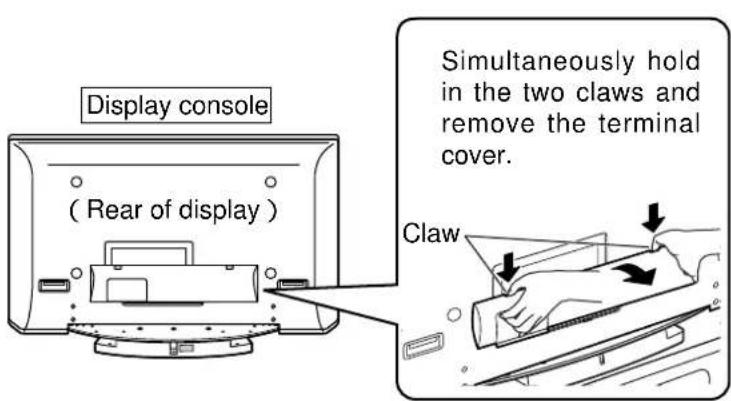

• Remove terminal cover.

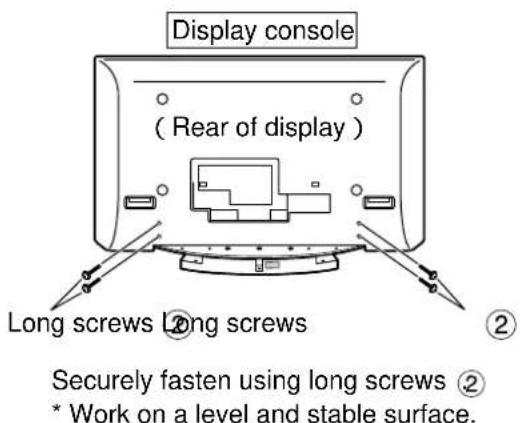

1. Fasten with screws

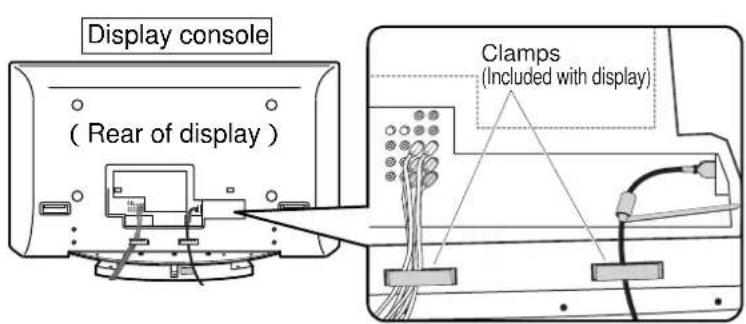

(Example of connecting cable routing)

1. Fit the terminal cover.4. Co

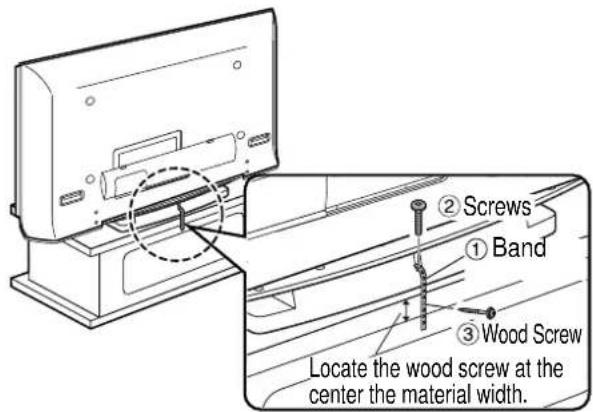

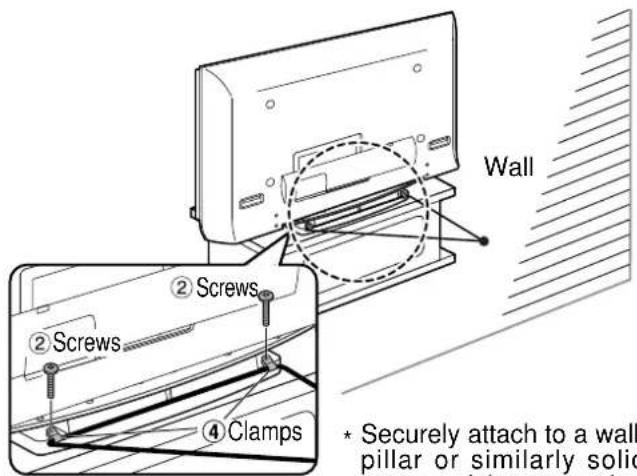

Secure the console to prevent tipping

Tip-prevention parts

① Band......1 Wood screws.....1....3

(3)

④ Clamps.2

- Attaching to a TV stand - Attaching to a wall

* Securely attach to a wall, pillar or similarly solid structural feature using separately- obtained products such as cords or chains of adequate strength.

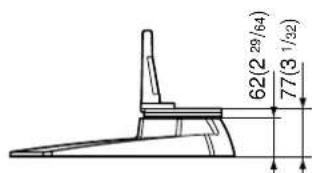

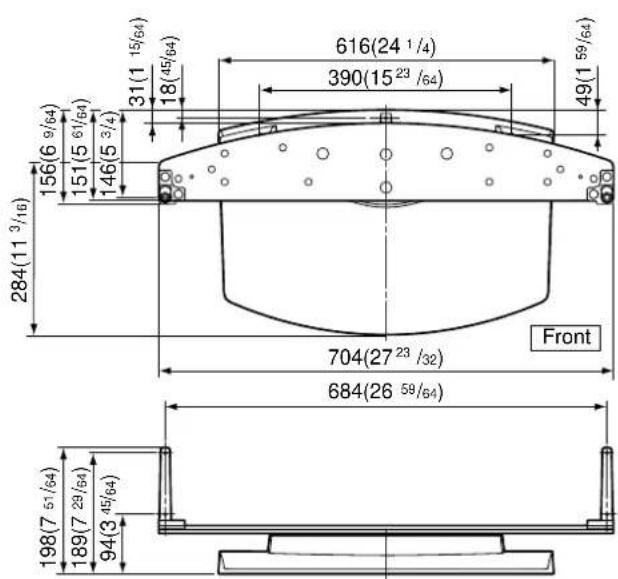

Dimension diagram

Units: mm (inches)

Panasonic Consumer Electronics Company Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucaus, NJ 07094

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc.

AVE. 65 de Infanteria, Km 9.5
San Gabriel Industrial Park
Carolina, Puerto Rico 00985

Panasonic®

RACKS AND STANDS

Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as "the warrantor"), will replace parts in case of defects in materials or workmanship, free of change, in the USA or Puerto Rico, for ten (10) days from the date of the original purchase.

In-warranty parts in the USA

can be obtained during the warranty period be contacting:

Panasonic Services Company (PASC)

20421 84th Avenue South

Kent, Washington 98032

Tel.:[phone]

Fax.:[phone]

(6 am to 5 pm Monday-Friday; 6 am to 10:30 am Saturday; PST)

Service in Puerto Rico can be obtained during the warranty period by calling the telephone number listed above.

This warranty is extended only to the original purchaser. A purchase receipt or other proof of the original purchase is required for replacement parts under the warranty.

This warranty only covers failures due to materials and workmanship and does not cover normal wear. The warranty does not cover damages which occurred in shipment or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, faulty installation, set-up adjustments, improper maintenance, alteration, line power surge, lightning damage, modification, or commercial use, such as hotel, office, restaurant, or other business or rental use of the product, or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above.

PANASONIC SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGE RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTYES. INCLUDING THE WARRANTYES OF MERCHANTABILITY, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or call the number listed above.

If the problem is not handled to your satisfaction, then write to the Customer Satisfaction Center at the Panasonic Consumer Electronics Company address indicated above.

③ Supports verticals .. 2

④ Pied 1
