Product Type	External Battery / Portable Charger
Brand	Anker
Model	PowerCore 20100 PD Nintendo Switch
Battery Capacity	20100 mAh
Output Ports	1x USB-C PD, 1x USB-A (PowerIQ not compatible)
Input Port	USB-C PD
Fast Charging Technology	Power Delivery (PD) for Nintendo Switch
Compatibility	Nintendo Switch, smartphones, tablets
Battery Level Indicator	4 LED Indicators
PowerCore Charging Time	Approximately 3 hours with Nintendo Switch charger
Nintendo Switch Charging Time	Variable depending on use
Thermal Protection	Automatic shutdown at 60°C
Power Button	Yes (on the side)
Dimensions (approx.)	166 x 60 x 22 mm
Weight (approx.)	360 g
Maintenance	Recharge at least every 4 months
Included Accessories	USB-C cable, USB-A cable (not specified)
Warranty	Standard Anker (check website)
Manual available in	French, English, German, etc.

Frequently Asked Questions - PowerCore 20100 PD Nintendo Switch Anker

How do I check the battery level of the PowerCore?

Press the button on the side. The 4 LED indicators show the charge level.

Can I charge my Nintendo Switch and my phone at the same time?

Yes, the PowerCore has two ports (USB-C and USB-A) allowing you to charge two devices simultaneously.

Why doesn't charging start automatically?

If charging doesn't start, press the power button for 10 seconds, then reconnect the cable.

What should I do if all the LED indicators are blinking?

This indicates that the internal temperature exceeds 60°C. The PowerCore shuts down automatically and will resume when the temperature drops.

How long does it take to recharge the PowerCore?

Approximately 3 hours with a Power Delivery compatible Nintendo Switch wall charger. Without PD, the time may exceed 20 hours.

Is the PowerCore compatible with Qualcomm Quick Charge fast charging?

No, this product is not compatible with PowerIQ, PowerIQ 2.0, or Qualcomm Quick Charge.

Can I use the PowerCore while it is recharging?

No, the PowerCore cannot charge an external device while it is being charged itself.

How do I stop charging a device?

Press the button on the side of the PowerCore twice quickly.

What cables should I use for charging?

Use the original cables provided with your devices or certified third-party cables.

How do I maintain the battery to extend its lifespan?

Recharge the PowerCore at least once every 4 months, even if not in use.

USER MANUAL PowerCore 20100 PD Nintendo Switch Anker

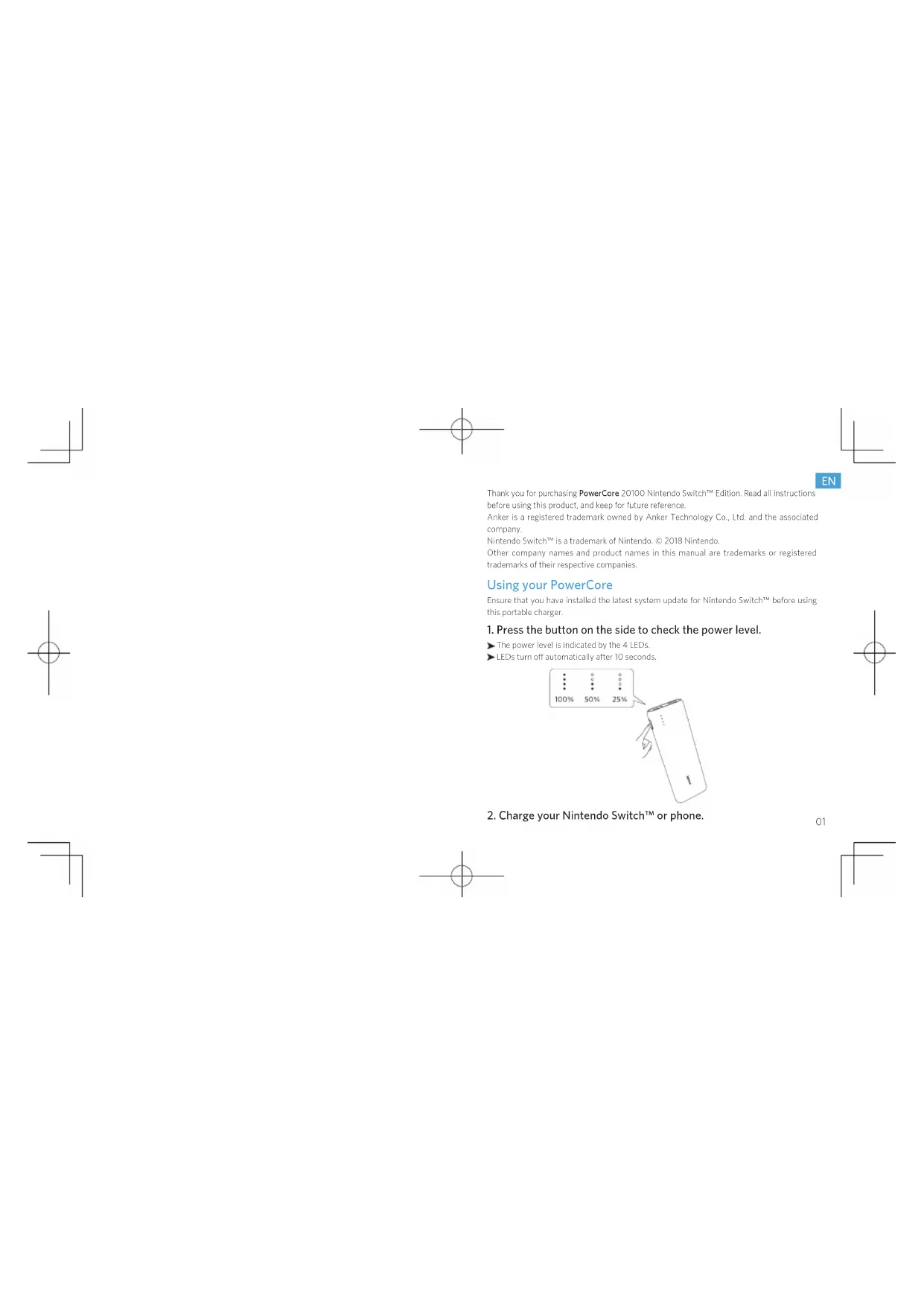

Thank you for purchasing PowerCore 20100 Nintendo Switch™ Edition. Read all instructions before using this product, and keep for future reference.

Anker is a registered trademark owned by Anker Technology Co., Ltd. and the associated company.

Nintendo Switch™ is a trademark of Nintendo. © 2018 Nintendo.

Other company names and product names in this manual are trademarks or registered trademarks of their respective companies.

Using your PowerCore

Ensure that you have installed the latest system update for Nintendo Switch™ before using this portable charger.

1. Press the button on the side to check the power level.

The power levels is indicated by the 4 LEDs.
LEDs turn off automatically after 10 seconds

1. Charge your Nintendo Switch™ or phone.

EN

Check your device's battery indicator for charging progress.

ITD will remain lit while your device is charging.

When charging USB-C PD (Power Delivery) devices like Nintando Switch™, connect the cable to the USB PD port.
When charging other devices, connect the cable to the USB-A port.

After correcting the cable, charging will begin automatically. If not, press the button on the side of PowerCore, wait for 10 seconds, then reconnect the cable.
When temperatures exceed 140^ / 60^ , all LEDs will flash for 10 seconds. To prevent risk of damage, the USB A port's output will automatically shut off. USB A functionality will return when temperatures fall below 140^ / 60^ .
To stop charging, press the button on the side of PowerCore twice in rapid succession. To

begin charging again, press the button once.

3. Recharge your PowerCore

EN

LED flashes continuously while PowerCore is recharging. LEDs will deactivate when PowerCore is fully recharged.
PowerCore cannot charge your Nintendio SwitchTM or phone while recharging itself.
Connect the cable with the JSB PD port on PowerCore.

【Recharging time】

About 3 hours via Nintendoc Switch's AC adapter.

When your PowerCore is fully charged, the 4 LEDs will remain illuminated for 10 minutes before turning off automatically.
For optimal recharging speed, use a Power Delivery wall charger. Using a charger without Power Delivery may result in recharging times over 20 hours.
This product is not compatible with PowerIQTM, PowerIQTM 2.0, or Qualcomm® Quick Charge™.
To preserve the battery's lifespan, use and recharge PowerCore at least once every 4 months.

Use the original cables provided with your device to charge (or use a certified third-party cable).

Specifications

Capacity: 20100mAh	Battery: Lithium ion battery
PD input: 5V 3A/9V 8A/15V 2A/20V 15mA =
PD output: 5V 3A/9V=2.6A/15V 1.6A =
Standard output: 5V	2A=
Size: About 168 x 62	x 22 mm / 6.6 x 2.4 x 0.9 in
Weight (Main unit)	360 g / 12.7 oz

ESB

Specifications techniques

Capacité: 20100mAh Baterie: batterie au lithium-ion
Entrée PD:	5V=BA/9V 5A/15V 2A/20V 1.5A
Sortie PD:	5V=BA/9V 5A/6A/15V 1.5A
Sortie standard:	5V=2A
Taille:	Environ 168 x 62 x 22 mm / 6.6 x 2,4 x 0.9 pouces
Poids (unité principale)	360 g
