USER MANUAL EC775SB20D SIEMENS

Black-and-white photo of a prepared dish with chicken wings and garnish, alongside a side-by-side photo of a bowl of soup with dipping sauce (no visible text or symbols)

en Operating instructions
de Gebrauchsanweisung
fr Mode d'emploi
it Avvertenze per l'uso
es | Instrucciones de funcionamiento
pt | Manual de utilizac o
nl Gebruiksaanwijzing

We would like to thank and congratulate you for your choice.

This practical modern appliance has been made using materials of the highest quality, which have been put through the strictest of Quality Controls during manufacture and meticulously tested to ensure that they meet all of your cooking demands. To make life easier, this instructions booklet is divided up into two sections: instructions of use and installation instructions.

We kindly ask you to read and follow these simple instructions in order to guarantee first-class results from the very start. This booklet contains important information not only concerning use, but also concerning your own personal safety and maintenance of the appliance.

Our products need to be carefully packed to protect them during transportation. All the material used for packing is considered essential for this purpose and is also completely recyclable. You too can contribute towards protecting the environment by disposing of this material at your nearest recyclable refuse collection point. Do not dispose of used cooking oil down the kitchen sink. Oil may seriously damage the environment. Dispose of it in a closed container at your nearest collection point or, failing this, dispose of it in your rubbish bin. Although this last solution is far from perfect, your oil will be taken to a controlled refuse dump where it will not be allowed to pollute water. You and your children will appreciate it.

Render your old appliance useless before disposing of it at your nearest recyclable refuse collection centre.

Your local authority will be pleased to inform you where your nearest centre is.

Packagingandoldappliances

If the symbol

appears on the specifications plate, follow these instructions:

Disposinginan environmentally-responsible manner

Unpacktheapplianceanddisposeofthepackaging inanenvironmentally-responsiblemanner.

This appliance is labelled in accordance with the European Directive 2002/96/EC concerning used electrical and electronic appliances (waste electrical and electronicequipment—WEEE).

Theguidelinedeterminestheframeworkforthereturn andrecyclingofusedappliancesasapplicable.

CONTENTS

Safety Warnings 3

Your new hob 5

Gas Burners.6....

Recommended receptacle diameters 7.

Cooking recommendations 8....

Warnings of use 9

Cooking 9

Cleaning and maintenance 10

Troubleshooting 11

Conditions of warranty 12

Safety warnings

Read this manual carefully in order to cook efficiently and safely.
☐ In accordance with current regulations, the installation and adaptation of gas systems may only be performed by an officially authorised technician.
☐ Check all measurements before proceeding to install your new hob.
☐ This appliance should not be connected to device for extracting combustion products.
☐ This appliance has been designed for home use only, not for commercial or professional use. This appliance cannot be installed on yachts or in caravans. The warranty will only be valid if the appliance is used for the purpose for which it was designed.
These instructions are only valid for the countries indicated on the appliance. Refer to the technical instructions to adapt the appliance to the conditions of use for the relevant country.
It is of the utmost importance that the place in which the appliance is to be installed should have suitable, fully-functioning ventilation (Basic Rules for Gas Installations in Inhabited Buildings). BOE no. 281, 24/11/93).
☐ The appliance should not be exposed to strong draughts, as these may blow the burners out.
☐ This appliance leaves the factory set for the gas supply indicated on the characteristics plate. Call the Service Centre this it needs to be altered.
Do not tamper inside the appliance. If necessary, call your local Service Centre.
☐ Look after these instructions of use and installation so as to be able to produce them should the appliance ever change hands.
☐ Do not use a damaged appliance.
☐ The surfaces on heating and cooking appliances get hot when in use. Be careful. Keep children away from the appliance.

☐ Only use your appliance for the preparation of food and never for room-heating purposes.
☐ Overheated fat or oil can easily catch fire. Never leave the appliance unattended when cooking food with fat or oil, e.g. chips.
☐ Never pour water on burning fat or oil. DANGER OF BURNS! Cover the receptacle to smother the flames and turn the hob off.
☐ In the event of a fault, cut the gas and electricity supplies to the appliance. Call our Service Centre to repair the fault.
☐ Do not use unstable or uneven-based receptacles on cooking plates or burners. They may accidentally tip over.
☐ If a gas supply knob/valve jams, do not force it. Call your official Service Centre immediately for them to repair or replace it.
☐ Do not use steam clearing machines to clean the hotplate, as there is risk of electrocution.
☐ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
☐ Never leave the appliance unattended during operation.
☐ The illustrations used in this booklet are only intended as a guide.

IF THESE INSTRUCTIONS ARE NOT FOLLOWED, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY.

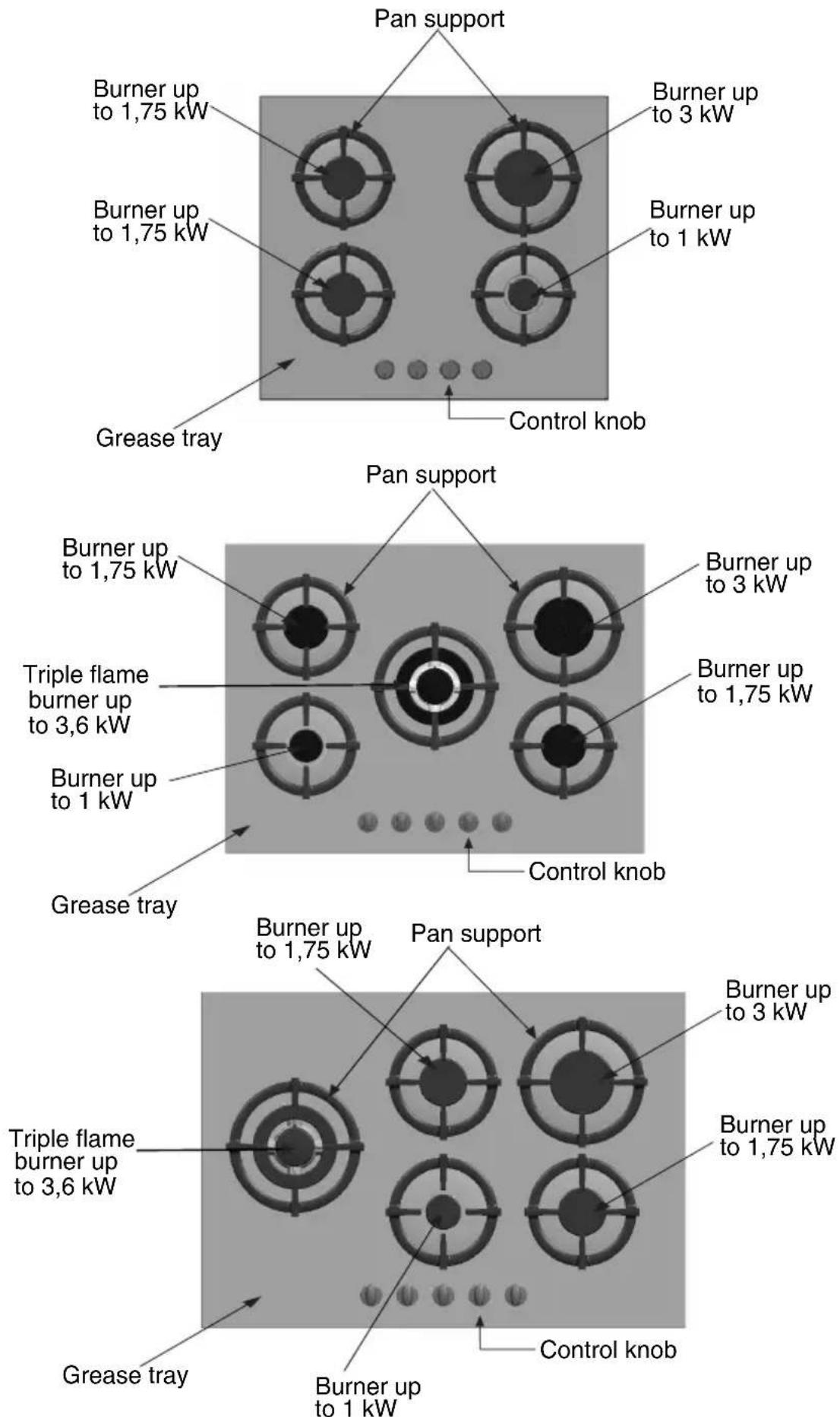

Your New Hob:

Pan support Burner up to 1,75 kW Burner up to 1,75 kW Burner up to 1 kW Grease tray Control knob Pan support Burner up to 1,75 kW Triple flame burner up to 3,6 kW Burner up to 1 kW Grease tray Control knob Pan support Burner up to 3 kW Burner up to 1,75 kW Burner up to 1 kW Grease tray Control knob Pan support Burner up to 1,75 kW Triple flame burner up to 3,6 kW Burner up to 1 kW Grease tray Control knob Pan support Burner up to 3 kW Burner up to 1,75 kW Grease tray Control knob

Gas burners

Fig 1.

Simple illustration of a rotary knob with sunburst and flame symbols (no text or labels)

Each control knob on the oven and on the control panel is clearly marked to show which burner it controls Fig. 1.

To light a burner, press the burner switch and turn it left to the maximum position, keeping it in this position for a few seconds until the burner lights before releasing and adjusting it to the required position. Hold the knob at the maximum position for a few seconds until the burner ignites and then release and set the knob to the desired setting. If the burner does not light at the first attempt, repeat the operation.

If your hob does not come with any kind of automatic ignition system, then light the burners with a naked flame (cigarette lighter, matches, etc.).

If the spark plugs are dirty, then a fault may occur in the ignition system. Keep them completely clean. Clean the spark plugs using a small brush, remembering that the plugs must not receive any kind of violent impact.

If your hob is equipped with burners with safety valves which prevent gas from being released should the burners accidentally go out, proceed to light as described above, but keep the control knob pressed in until the burners light and then for a few more seconds once alight. If complete ignition does not occur, repeat the operation keeping the knob pressed in for approx. 10 seconds

To turn the burners off, turn the control knob in a clockwise direction to the ● setting. When doing this, the ignition system may work again, this is completely normal.

Your modern functional hob is equipped with progressive valves which permit you to find the perfect flame setting between maximum and minimum.

Depending on the model that you have purchased, your hob may come with a triple-flame burner, the perfect system for cooking paellas, using woks, etc.

Gas appliances create both heat and humidity in the room they are used in. Make sure that your kitchen is properly ventilated: keep natural ventilation outlets open or install a mechanical ventilation system (extractor fan). When using your appliance for a prolonged period of time, it may be necessary to provide additional ventilation e.g. by opening a window (without creating a draught) or turning up the setting on your mechanical ventilation system.

An orange-coloured flame is normal and it is produced in the presence of dust in the atmosphere, spillages, etc.

Recommended receptacle diameters (cm.)

Depending on model:

BURNER	MINIMUM ∅ RECEPTACLE MAXIMUM ∅ RECEPTACLE
Triple flame:		>22 cm
Rapid:	22 cm 26 cm
Semi-rapid:	12 cm 20 cm
Auxiliary: 10 cm 12 cm

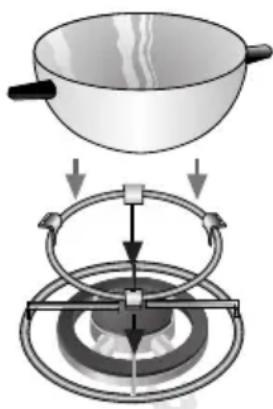

Additional pan support:

Fig 2.

Diagram illustrating a cooking process with a pan and rotating fan, showing step-by-step steps of heating.

Depending on the model that you have purchased, your hob may come equipped with an additional pan support. This pan support is essential when using the triple-flame burner for receptacles with diameters of more than 26 cm, griddles, terracotta casseroles and all kinds of concave receptacles (woks, etc...) Fig 2.

If you do not have a pan support, then these are available from your Service Centre, code 484128.

Coffee pot support: Depending on the model that you have purchased, your hob may come equipped with an additional coffee pot support. This pan support is only for use on the auxiliary burner for receptacles with diameters of less than 10 cm. If you do not have a pan support, then these are available from your Service Centre, code 184200.

The manufacturer cannot be held responsible for the non-use or misuse of these additional pan support.

Cooking recommendations

These recommendations are only intended as a guide

Very strong Strong Medium Slow
Triple flame Boiling, stewing, grilling, Re-heating and keeping foodbrowning off, paellas, orientalfood (wok). warm: prepared food,pre-cooked food
Rapid	Escalope, steak, omelette, Rice,fried food	white Steaming:sauce,ragout.	fish,vegetables.
Semi-rapid	Steamed potatoes, fresh vegetables, stews, pasta	Re-heating and keeping foodwarm: pre-cooked food anddelicate stews.
Auxiliary Stews, rice pudding, caramel. Thawing and Making/melting:slow boiling:pulses, fruit,chocolate,frozen food jelly

Warnings concerning cooking:

DON'Ts

DOs

Illustration of a cooking pot with steamers on a stove (no text or symbols)

Do not use small receptacles on large burners. The flame should not touch the sides of receptacles.

Always use suitably sized receptacles on each burner. This helps avoid excessive gas consumption and prevents receptacles from getting tarnished.

Illustration of a cooking pot with a lid and two side handles, mounted on a stand (no text or symbols)

Illustration of a cooking pot with steam rising, crossed by diagonal lines (no text or symbols)

Do not cook without lids or with lids only partially covering receptacles. You are wasting energy.

Always use lids.

Only use thick-, flat-based saucepans, frying pans and casseroles.

Illustration of a steaming pot with a lid and side handles, no text or symbols present

Illustration of a cooking pot with steam rising from a stove (no text or symbols)

Do not use receptacles with uneven bases. They lengthen cooking times and increase energy consumption.

Always place receptacles in the middle of burners.

Illustration of a cooking pot on a stove (no text or symbols)

Illustration of a cooking pot with crossed x marks on a stand (no text or symbols)

Do not place receptacles on burners off centre. They could tip over.

Always place receptacle on the pans support. Make sure that the metal grids and the tops of the burners are correctly positioned before using them.

Illustration of a kitchen appliance with a lid and base, showing no text or symbols

Illustration of a cooking pot with crossed-out triangular symbols (no text or labels)

Do not use wide-based receptacles on the burners nearest to the controls. When centred on the burner, they could touch the controls or raise the temperature in the area. This may damage the hob.

Handle receptacles on the hob with care.

Illustration of hands holding a circular object with gears, viewed from above (no text or symbols)

Illustration of a mechanical press or clamping device with lever and triangular supports (no text or symbols)

Do not place receptacles directly on top of burners.

Do not use excessive weights or strike the hob with heavy objects.

Only use one recipient per burner. Use the extra metal grid on the burner with three flames.

Diagram illustrating a cooking process with a bowl and rotating ring, showing steps of adding liquid into a pan.

Cleaning and care

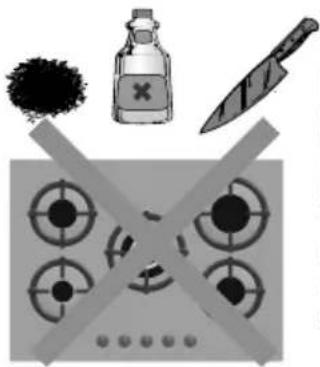

NO

Illustration of a cooking pan with crossed panes and a bottle, no text or symbols present

NEVER use abrasive products, sharp instruments, steel scourers, knives, etc... to remove bits of hardened food that have stuck to the hob, pan supports or burns.

YES

Once the appliance is cool, use a sponge, water and soap. Wipe away all spilled liquids as soon as spillage occurs to save unnecessary effort at a later stage.

Five circular target-like symbols with crosshairs, arranged in a grid on a gray background (no text or labels)

DO NOT use steam cleaning machines to clean the hob, this could damage it.

Diagram showing a rose above a water tank with cross-shaped valves and control points (no text or symbols)

Avoid spilling acidic liquids (such as lemon juice or vinegar) on your cooking hob.

In order to keep the burners and the pan supports clean they should be periodically cleaned by submerging them in soapy water and scrubbing them with a non-metallic brush so that all holes and grooves are perfectly clean and free from dirt. This will ensure correct flames. Always dry the burner covers and the pan supports if they have become wet.

After cleaning and drying the burners, make sure the burner covers are correctly placed on the burner's flame diffuser.

Illustration of a hand cleaning a circular object on a sink (no text or symbols)

Diagram showing a mechanical component with arrows indicating assembly or force direction (no text or symbols present)

The ring cover of the triple-flame burner and stainless steel parts such as grease pans and the area around the burners may become discoloured over time. This is NORMAL because of the high temperatures. Each time the appliance is used these parts should be cleaned with a product that is suitable for stainless steel.

After washing the pan supports, dry them completely before cooking with them again. Drops of water or damp patches on the surfaces when you begin cooking may cause deterioration of the enamel.

If the pan supports on your cooking hob are fitted with rubber rests, take care when you clean them, as they might come off, leaving your pan support without protection, and it may scratch the cooking hob.

The stainless steel cleaner must not be used in the area around the controls. The (printed) symbols may be wiped off.

Troubleshooting

It is not always necessary to call the Service Centre. In some cases, you may be able to solve the problem yourself. This table contains some useful information. Important information:

Only authorised personnel from our Service Centre are qualified to work on the main gas and electric systems.

What's wrong	Possible cause Solution
...if none of the electrical system works?	-Faulty fuse. -Check the fuse in- The automatic circuit breaker or mains differential has been triggered.	the main fuse box and replace it if it is faulty-Check to see if the circuit breaker or a differential has been triggered in the mains supply box
...if the electric ignition system does not work?	-There may be food or cleaning product particles between the spark plugs and the burners.-The burners are wet. -Dry the- The covers on the burners are not in the right position.	-The gap between the spark plug and the burner needs to be cleaned carefully.burner covers and spark plugs carefully.-Check that the covers have been put in the proper position.
...if the flame on the burners is not evenly distributed?	-The burner components have not been assembled properly.-The gas outlets on the burners are dirty.	-Put the components in their correct positions.-Clean the gas outlets on the burners.
...if the gas flow does not seem normal or there is no gas flow at all?	-The gas flow has been cut at an intermediate stopcock.-If the gas is supplied from a gas bottle, it may be empty.	- Open any intermediate stopcocks.-Replace the gas bottle with a full one.
...if the kitchen smells of gas?	-One of the valves has been left open.-Possible leak on the gas bottle coupling.	-Check to see if a valve has been left open.-Check that the coupling on the gas bottle is in order.
...if the safety devices on the different burners do not work?	-The control knob has not been kept pressed in for long enough.-The outlets on the burners are dirty.	-Once ignited, keep the control knob pressed in for a few seconds.-Clean the gas outlets on the burners.

Should you need to contact our Service Centre, please quote the following information:

E - NR FD

These indications appear on your appliance's characteristics plate on the bottom of your appliance.

Conditions of warranty

The conditions of warranty are those set out by our company's representatives in the country where you purchased your appliance. The salesperson that sold you the appliance will be only too pleased to inform you as to the details of these conditions. Proof of purchase must be produced when making any kind of claim against the warranty.

The manufacturer reserves the right to modify these conditions.

Geschätzter Kunde:

Simple illustration of a knob with sparkles and droplets around it (no text or symbols)

Diagram illustrating a cooking process with a pan and rotating platform, showing liquid level changes.

Illustration of a cooking pot with steam rising from its side (no text or symbols)

Illustration of a cooking pot with steam rising, crossed by diagonal lines (no text or symbols)

Illustration of a cooking pot with steam rising from a stove (no text or symbols)

Simple line drawing of a cooking pot with two handles crossed over it, placed on a stand (no text or symbols)

Illustration of a cooking pot with crossed-out triangular symbols (no text or labels)

Illustration of a hot airken emitting steam, no text or symbols present

Illustration of a cooking pot on a stove (no text or symbols)

Illustration of a steaming pot with a lid and side legs, no text or symbols present

Illustration of a cooking pot with a stove (no text or symbols)

Diagram of a cooking pot with a lid and three cups on a stove (no text or symbols)

Illustration of hands holding a circular object with a gear-like structure, no text or symbols present

Diagram illustrating a cooking process with a pan, stirring dish, and rotating platform

Illustration of a gas stove with a cooking pan and a knife, no text or symbols present

Diagram of a gas stove interior with circular gauges, fuel drop, and fire extinguisher (no text or labels)

Illustration of a kitchen gas stove with five circular gauges and a handle (no text or symbols)

Illustration of a hand washing a circular object into a sink (no text or symbols)

Diagram showing a mechanical assembly with a lid and a central component, no text or symbols present.

Simple diagram of a knob with sparkles and flame icons (no text or labels)

Diagram illustrating a cooking process with a pan and rotating platform, showing directional arrows for motion.

Illustration of a cooking pot with steamers on a platform (no text or symbols)

Illustration of a cooking pot with steam rising and crossed out by a crossed-out triangular frame (no text or symbols)

Illustration of a cooking pot with steam rising from a stove (no text or symbols)

Illustration of a cooking pot with crossed x-bracing on a stand (no text or symbols)

Illustration of a cooking pot with crossed-out triangular symbols (no text or labels)

Illustration of a mechanical device with a central knob and two arms, emitting motion lines (no text or symbols)

Illustration of a cooking pot with a lid and two side handles, mounted on a stand (no text or symbols)

Illustration of a steaming pot with a lid and side handles, no text or symbols present

Illustration of a cooking pot on a stove (no text or symbols)

Diagram of a kitchen appliance with a lid and base, showing no text or symbols

Illustration of hands holding a circular mechanical component with gears, no text or symbols present

Diagram illustrating a cooking process with a bowl, rotating rings, and rotating panes, showing directional arrows.

Illustration of a gas stove with cooking utensils and kitchen utensils (no text or symbols)

Illustration of a gas stove with five circular gauges and a handle (no text or symbols)

Illustration of a gas stove with circular gauges and a water drop, no text or symbols present

Illustration of a hand cleaning a kitchen sink with a circular object above (no text or symbols)

Diagram showing a mechanical assembly with a lid and a circular base, no text or symbols present.

Simple diagram of a knob with sunburst and flame icons around it (no text or labels)

Diagram illustrating a cooking process with a pan and rotating platform, showing directional arrows for heating or cooling steps.

Illustration of a cooking pot with steamers on a platform (no text or symbols)

Illustration of a cooking pot with a lid and side handles, mounted on a stand (no text or symbols)

Illustration of a pot with a lid and side legs, containing a pan of food (no text or symbols)

Illustration of a cooking pot with steam rising and crossed by crossed-out X marks (no text or symbols)

Illustration of a cooking pot with steam rising from a stove (no text or symbols)

Illustration of a cooking pot with a lid and side handles (no text or symbols)

Illustration of a cooking pot on a stove with crossed x-bracing (no text or symbols)

Illustration of a kitchen appliance with a lid and base, showing a cylindrical component inserted into a bowl (no text or symbols)

Illustration of a cooking pot with crossed-out triangular symbols (no text or labels)

Illustration of hands holding a circular object with a gear-like structure, no text or symbols present

Illustration of a hot airken with steam rising from its chimney (no text or symbols)

Diagram illustrating a cooking process with a pan, stirring dish, and rotating platform

Illustration of a gas stove with kitchen utensils and circular target patterns (no text or symbols)

NO

Five circular target-like targets with crosshairs, arranged in a grid on a gray background (no text or symbols)

Illustration of a hand cleaning a sink with a circular object above it (no text or symbols)

Diagram of a gas stove with circular gauges, water droplets, and a funnel pouring into the air (no text or labels)

Diagram showing a mechanical assembly with a lid and a circular base, no text or symbols present.

Simple diagram of a knob with sunburst and flame icons around it (no text or labels)

Diagram illustrating a cooking process with a pan, rotating ring, and rotating base with a central valve.

Two identical cooking pots with steam rising from their bases, crossed out by a diagonal line (no text or symbols)

Illustration of a cooking pot with steam rising from a stove (no text or symbols)

Simple line drawing of a cooking pot on a stove with crossed x marks (no text or symbols)

Illustration of a cooking pot with crossed-out triangular symbols (no text or labels)

Illustration of a mechanical device with motion lines and a central knob (no text or symbols)

Illustration of a cooking pot with a lid and two side handles, mounted on a stand (no text or symbols)

Illustration of a cooking pot with a lid and side handles, no text or symbols present

Illustration of a cooking pot with a stove (no text or symbols)

Illustration of a kitchen appliance with a dial and a lid, showing no text or symbols

Illustration of hands holding a circular object with a gear-like structure, no text or symbols present

Diagram illustrating a cooking process with a bowl, rotating ring, and rotating base with a square object

Illustration of a cooking pan with a bottle, crossed eyes, and circular patterns (no text or symbols)

Five circular target-like shapes with crosshairs, arranged in a grid on a gray background (no text or symbols)

Illustration of a hand cleaning a circular object on a sink (no text or symbols)

Illustration of a gas stove with no visible text, numbers, or symbols.

Diagram showing a mechanical assembly with a lid and a rotating disc (no text or symbols)

Simple illustration of a rotary knob with sunburst and flame symbols (no text or labels)

Diagram illustrating a cooking process with a pan, stirring rod, and rotating platform with stirrer

Illustration of a cooking pot with crossed x marks on a metal stand (no text or symbols)

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with steam rising and crossed by a crossed-out triangular frame (no text or symbols)

Illustration of a pot on a stove with visible steam rising (no text or symbols)

Illustration of a cooking pot with crossed panes (no text or symbols)

Illustration of a cooking pot on a stove (no text or symbols)

Illustration of a cooking pot on a stand with crossed x marks (no text or symbols)

Illustration of a gas stove with a lid and control panel, no text or symbols present

Illustration of a cooking pot with crossed-out triangular symbols (no text or labels)

Illustration of hands holding a circular object with a gear-like structure, no text or symbols present

Illustration of a mechanical device with a central knob and surrounding blades (no text or symbols)

Diagram illustrating a cooking process with a bowl, rotating ring, and rotating base with arrows indicating steps.

Illustration of a gas stove with kitchen utensils and circular eyes, no text or symbols present

Illustration of a gas stove with circular gauges and a water bottle, no text or symbols present

Illustration of a gas stove with five circular ventricles and a hand pointing upward (no text or symbols)

Illustration of a hand cleaning a circular object on a sink (no text or symbols)

Diagram showing a mechanical assembly with a lid and a circular component below, no text or symbols present.

Simple diagram of a knob with sunburst and flame icons around it (no text or labels)

Diagram illustrating a cooking process with a pan and rotating ring, showing step-by-step steps.

Illustration of a cooking pot with crossed x-shaped bands on a metal stand (no text or symbols)

Illustration of a cooking pot with steam rising and crossed out by a ladder (no text or symbols)

Illustration of a cooking pot with steam rising from a stove (no text or symbols)

Simple line drawing of a cooking pot on a stove with crossed x marks (no text or symbols)

Illustration of a cooking pot with crossed-out kitchen panes (no text or symbols)

Illustration of a portable stove with steam rising from its top (no text or symbols)

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a pot with a lid and side handles, containing a dish (no text or symbols visible)

Illustration of a cooking pot with a side dish on a stove (no text or symbols)

Illustration of a gas stove with a lid and three control units (no text or symbols)

Illustration of hands holding a circular object with a gear-like structure, no text or symbols present

Diagram illustrating a cooking process with a pan, rotating ring, and rotating base with a central valve.

Illustration of a gas stove with a cooking pan, crossed crossbars, and a knife (no text or symbols)

Five circular target-like symbols with crosshairs, arranged in a grid on a gray background (no text or labels)

Illustration of a hand cleaning a kitchen sink with a circular object above (no text or symbols)

Diagram of a fuel pump with rotating components and fuel nozzle (no text or labels)

Diagram showing a mechanical assembly with a cylindrical component and a circular base, no text or symbols present.
