Product type	Pressure-resistant instantaneous electric water heater
Power supply	220-240 V, 50 Hz
Temperature range	30 °C to 60 °C (adjustable in 0.5 °C increments)
Display	Digital screen
Control	Rotary selector
Functions	Solar mode, energy saving
Safety	Automatic shutdown in case of error, disconnection in case of air detection in water
Cleaning	Damp cloth, do not use abrasive products or steam cleaner
Installation	By a specialist in accordance with the installation instructions
Repairs	Only by an approved installer
Warranty	According to distributor's conditions, upon presentation of proof of purchase
Intended use	Domestic use only
Disposal	In accordance with Directive 2012/19/EU, recycling via the retailer
After-sales service	Contact details on the last page of the manual
Serial number	On the rating plate inside the front cover

Frequently Asked Questions - DE5262427M SIEMENS

How to adjust the water temperature?

Turn the rotary selector to set the desired temperature between 30 °C and 60 °C in 0.5 °C increments. The selected temperature is displayed on the screen.

What to do if an error code 'E...' appears on the screen?

An error code 'E...' indicates a fault in the appliance. Contact an approved installer for inspection and repair.

Why is the water not hot enough despite a high temperature setting?

Reduce the water flow at the tap until the desired temperature is reached. In winter, the supply temperature may be lower.

How to use solar mode?

The appliance can use water preheated by a solar installation. Caution: if the outlet temperature exceeds the set value, adjust the thermostatic mixer to a lower temperature to prevent burns.

What to do after a power outage?

Fully open the hot water tap and let the water run until it is hot.

What to do after a water shutdown?

Turn off the appliance (disconnect the fuses). Open the hot water tap to bleed air from the pipes, then reconnect the fuses. Open the tap for at least one minute: the appliance will then heat automatically.

How to save energy with this appliance?

Set the desired temperature directly on the appliance without adding cold water at the tap. This avoids unnecessary water and energy consumption and reduces scaling.

How to clean the water heater?

Clean the appliance with a damp cloth. Do not use abrasive products, harsh detergents, or steam cleaners.

Who can repair the appliance in case of failure?

Only an approved installer is authorized to repair the appliance. Unprofessional repairs can be dangerous.

Where to find the serial number of the appliance?

The serial number (No. and FD) is on the rating plate located on the inside of the front cover of the appliance.

USER MANUAL DE5262427M SIEMENS

Operating instructions

Eine Störung, was tun?

Achtung!

This appliance is intended for domestic use and the household environment only.

Important safety information

Please read these instructions carefully, then act accordingly! Store for future reference. These instructions must be included when transferring this appliance to a new owner.

Risk of electric shock!

Switch off the mains voltage supply immediately if a fault occurs. Immediately shut off the cold water supply to the appliance should it leak.

The installation and initial start-up must be undertaken by a specialist who complies with the enclosed installation instructions. The safety information in the installation instructions must be observed. We do not accept liability for damage resulting from failure to heed these instructions and the installation instructions.

This appliance can be used by children aged 8 years and older as well as by persons with diminished bodily, sensory or mental perception, or those who lack knowledge or experience, if they are monitored or have received instruction concerning use and comprehend the possible dangers that can result. Children may not play with the appliance. Cleaning and maintenance by the user may not be performed by unsupervised children.

• Keep children away from the appliance.
  Please monitor children to ensure that they do not play with the appliance.
  The mixer and the warm water pipe may be hot. Please inform and instruct children appropriately.
  Do not use aggressive or abrasive cleaning detergents!
  Do not use a steam cleaner.
  The appliance is only to be descaled by a suitably qualified specialist.

Congratulations on purchasing this Siemens appliance. You have acquired a top-quality product, which will give you a lot of enjoyment.

Operating instructions

Getting to know your appliance

This appliance is an electronically-regulated, pressurized continuous-flow heater for decentrally supplying hot water.

The electronic continuous-flow heater heats the water as it flows through the appliance. One or more taps can be supplied with warm water.

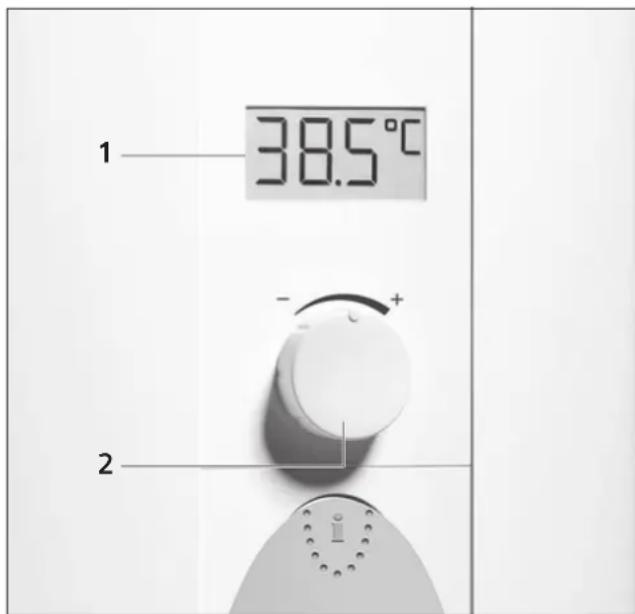

Operating elements and displays

1 Display
2 Rotary selector switch

Operating the appliance

Switching the appliance on and off

The continuous-flow heater switches on and heats the water when the warm water tap is opened. It switches off again if the water tap is closed.

Setting the water temperature

Turn the rotary selector switch. Any desired temperature can be set between 30^ to 60^ in increments of 0.5^ . The display shows the selected temperature.

Note: The displayed temperature is the water temperature inside the appliance. The temperature of the water leaving the tap can vary from this due to heat losses in the pipework.

Error message in the display

If an error message "E..." appears in the display or an LED flashes, see chapter "A fault, what to do?"

Solar heated

The appliance can be operated with pre-warmed water (for example, from a solar energy unit).

Attention! Scalding danger!

If the output temperature of the water leaving the tap is higher than the set temperature, then this is because the supply water temperature from the domestic system is too hot, e. g. due to its being heated by a solar energy unit.

The thermostatic premixer in the domestic supply must be set accordingly to lower temperatures.

Startup after power failure

Open the warm water tap fully and allow water to flow until it is warm.

Using the appliance after switching off the water supply

Switch off the appliance (unscrew the fuse in the fusebox).
Open the warm water tap and keep it open until the air has been completely forced out of the water pipe.
Switch the fuse back on again.

Open the warm water tap fully and allow water to flow for at least one minute,

Only then (for safety reasons) will the appliance begin to heat. The appliance is now ready to operate.

Saving energy

Set the desired water temperature directly on the appliance.

Note: Mixing in of cold water at the faucet/fitting consumes unnecessary water and energy.

This also accelerates calcification (scaling) of the appliance. Therefore, please always set the desired temperature directly on the continuous-flow heater.

Winter operation

Note: It is possible in winter that the supply temperature of the water is reduced and the required outlet temperature is no longer achieved.

Reduce the water flow on the taps until the desired water temperature is reached.

Cleaning

Only wipe off the appliance using a moist cloth.
Do not use acidic or abrasive cleaning materials.
Do not use a steam cleaner.

Customer Service

We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer. You will find the numbers on the ratings plate on the inner side of the front flap.

The contact information for your country can be found on the last pages of these instructions.

Environmentally-friendly disposal

• Dispose of the packaging in an environmentally sound manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

Subject to change without notice.

A fault, what to do?

Attention!

Repairs must only be carried out by an authorised technician. Improper repairs can lead to risk of serious injury to the user.

If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service personnel.

Faults that the customer can troubleshoot himself

Fault Cause Solution
Water flow-rate is too low The filter in either the water tap or the showerhead is clogged.	Remove the filter and either clean it or descale it.
A high water temperature is set, but it is not reached.	The continuous-flow heater is connected to a thermostatically-controlled water tap.	Set the temperature on the continuous-flow heater to „60°C".
The display is blank. The fuse in the fusebox has tripped/blown. Check the fuse in the fusebox.
The water is not warm. The supply temperature has reduced. Reduce the water flow on the taps until the desired water temperature is reached.
The temperature of the water leaving the tap is higher than the set temperature.	The temperature of the water supplying the continuous-flow heater is higher than the set temperature (e.g. due to pre-warmed water supplied from a solar water heater).	The thermostatic premixer in the domestic supply must be set accordingly to lower temperatures.
“℃” flashes in the display. The power limit has been reached. Reduce the water flow at the tap or lower the temperature setting on the appliance.

If the fault could not be eliminated, please call customer service.

Faults that the customer service specialist should troubleshoot

Fault Cause Solution
Water flow-rate is too low despite cleaning of filter using the water tap or showerhead	A filter in the appliance is clogged. Get a servicing expert to clean the appliance.
The display is blank despite fault-free function of the mains electricity supply fuses.	There is a fault in the appliance. Get a servicing expert to check the appliance.
The display shows the error code “E.”	There is a fault in the appliance. Get a servicing expert to check the appliance.

Faults that are automatically remedied

Fault Cause Solution
The display shows "00,0°C". The air sensor in the appliance detects air in the water and momentarily switches the heating element off.	After a few seconds, the continuous-flow heater automatically goes back into operation.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
