Product type Range hood
Brand Neff
Model D5645X0GB
Available width 53 cm or 73 cm (depending on version)
Weight (1 motor version, 53 cm, extracted air) 5.0 kg
Weight (1 motor version, 53 cm, recirculated air) 6.3 kg
Weight (2 motor version, 53 cm, extracted air) 8.3 kg
Operating modes Extracted to outside or recirculated (with activated carbon filter)
Grease filter Felt (disposable) or metal (dishwasher safe)
Activated carbon filter Optional, replace approximately once a year
Lighting Incandescent bulbs (max 40 W, E14 socket) or halogen bulbs (12 V, max 20 W, G4 socket)
Power supply 230 V, grounded plug, 1.20 m cord
Minimum distance above an electric cooktop 650 mm
Minimum distance above a gas cooktop 650 mm
Air outlet diameter 120 mm or 150 mm depending on version
Cleaning Hot water and mild dish soap, never use abrasive products
Safety Turn off before maintenance, never flambé under the hood, supervise frying
Spare parts Grease and activated carbon filters, bulbs

Frequently Asked Questions - D5645X0GB NEFF

What is the minimum distance between the hood and the cooktop?
For electric or gas cooktops, the minimum distance is 650 mm between the lower edge of the hood and the burners.
How to clean the metal grease filter?
The metal filter can be cleaned in the dishwasher or by hand. For manual cleaning, soak it in hot water with dish soap, brush, rinse, and drain. It may slightly change color.
When should the felt grease filter be replaced?
Under normal use (1 to 2 hours per day), replace the felt filter every 8 to 10 weeks. On printed mats, replace as soon as the color print disappears.
How to replace the activated carbon filter?
Remove the filter cassettes, insert the new activated carbon filter and lock it with the wing nut. Under normal use, replace it approximately once a year.
How to replace a defective bulb?
Turn off and unplug the hood. Remove the filter frame to access the bulbs. Use a 40 W max (E14 socket) bulb or a halogen bulb 12 V, 20 W max (G4 socket). Only touch the halogen bulb with a clean cloth.
Can the hood operate in recirculation mode?
Yes, by installing an activated carbon filter (optional). The purified air is returned to the kitchen.
What to do if the hood does not turn on?
Check that the plug is connected and the fuse is in good condition. Ensure the bulbs are properly inserted into their sockets. If the problem persists, contact customer service.
How to reduce cooking odors?
Turn on the hood at the start of cooking and let it run for a few minutes after finishing. Use an activated carbon filter for recirculation mode.
Can I install the hood above a solid fuel fireplace?
Yes, only if the fireplace is equipped with a closed and non-removable lid and if the installation complies with national regulations. This restriction does not apply to gas ranges.
What are the risks of using the hood with fats?
Overheated fats can ignite. Never flambé under the hood and always supervise frying. Clean the grease filters regularly to avoid fire risk.

User questions about D5645X0GB NEFF

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Range hood in PDF format for free! Find your manual D5645X0GB - NEFF and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. D5645X0GB by NEFF.

USER MANUAL D5645X0GB NEFF

Operating and installation instructions

de page 3-10

en page 11-18

fr pages 19-26

nl pagina 27-34

it pagina 35-42

es página 43-50

el σελίδα 51-58

Illustration of hands installing a mesh notebook or rack device with a black arrow indicating the process (no text or symbols).

Diagram showing a cross symbol crossed over a building facade, with no visible text or labels.

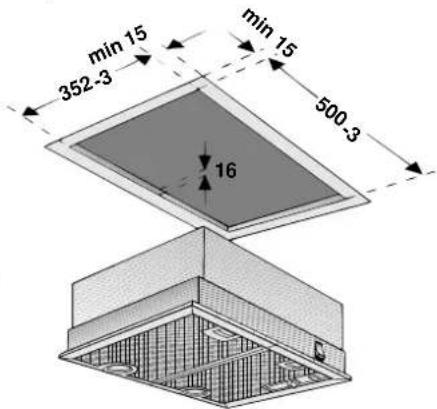

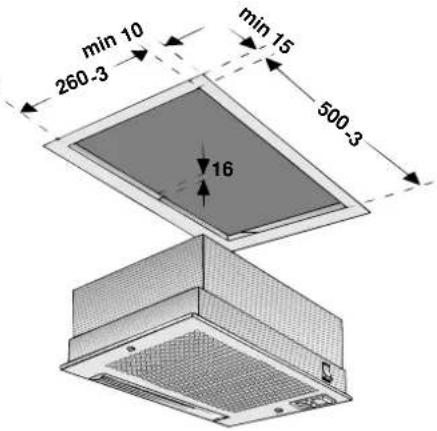

Recirculation modeDiagram of a mechanical or structural component with directional arrows, adjacent to a brick wall (no text or symbols)

Before using the first time

How to operate the extractor hood

Exhaust-air mode

The ventilator fan draws the vapours produced during cooking into the extractor hood, where they pass through the grease filter and out into open air. The grease filter absorbs the grease contained in the vapours produced during cooking. The kitchen is kept almost totally free from grease and odours.

Circulating-air mode

An activated carbon filter must be fitted for this operating mode (see Filters and maintenance). Activated carbon filters can be purchased from specialist outlets (see Optional accessories on the last page). The ventilator fan draws the vapours produced during cooking into the extractor hood, where they pass through the grease filter and the activated carbon filter before the clean air is discharged back into the kitchen. The grease filter absorbs the grease contained in the vapours produced during cooking. The activated carbon filter absorbs any odorous substances.

⚠️ Never operate the extractor hood without a grease filter. Overheated fat or oil can easily catch fire.

If you are cooking with fat or oil, e.g., chips, etc., never leave the cooker unattended. ⚠ Do not flambé food directly under the extractor hood.

! Risk of grease filter catching fire due to flames.

⚠️ The hotplates must always be covered with a utensil. Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / Gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

The most effective method of removing vapours produced during cooking is to: ☐ Switch the ventilator ON as soon as you begin cooking. Switch the ventilator OFF a few minutes after you have finished cooking.

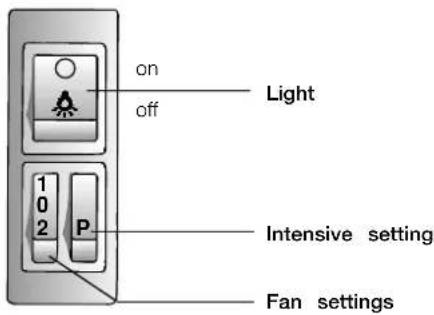

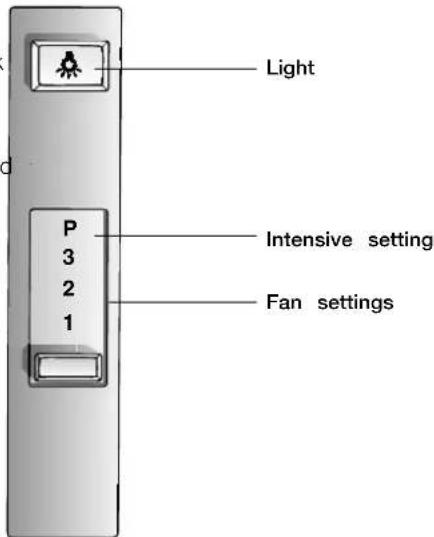

Operating controls on different models

On/off Light 1 0 2 P Intensive setting Fan settings

Light P 3 2 1 Intensive setting Fan settings

Note: The light can be switched on at any time, including when the vapour extractor tray has been pushed back into the hood.

Before using the first time

Important notes

This extractor hood complies with all relevant safety regulations.

Repairs should only be carried out by qualified specialists.

⚠️ If the connection cable of this appliance is damaged, it must be replaced by the manufacturer, his customer service or a similarly qualified person in order to prevent a hazardous situation.

Improperly executed repairs can give rise to significant hazards for the user.

The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure they do not play with the appliance. ⚠ The appliance should only be connected to the mains and put into operation by a qualified specialist. ⚠ Dispose of packaging materials properly (see Installation instructions). ⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading. Light bulbs must always be fitted when the extractor hood is in use.

Various types of grease filters can be used to absorb the grease contained in the vapours produced during cooking.

Fleece grease filter

The filter mat is made from material that is itself virtually non-inflammable.

Caution:

As it becomes more and more saturated with grease, however, the filter becomes increasingly inflammable. The efficiency of the extractor hood can also be adversely affected.

Important:

Renewing the fleece filter at appropriate intervals prevents the possibility of it catching fire as a result of a build-up of heat, such as occurs when deep-fat frying or roasting is taking place.

Renewing the fleece filter:

Under normal operating conditions (1 to 2 hours per day), the fleece filter will require replacing after 8 to 10 weeks. Printed fleece filters must be renewed no later than when the coloured printing has started to fade.

☐ Use only original replacement filters. In so doing you will ensure that safety regulations are upheld and the extractor hood performs as effectively as possible.

Disposing of the old fleece grease filter:

⚠️ Fleece grease filters do not contain any pollutants. They can be composted and disposed of as biodegradable waste.

Metal grease filter

The filter mat is made of non-combustible metal.

Caution:

As it becomes more and more saturated with grease, the filter also becomes increasingly inflammable. The efficiency of the extractor hood can also be adversely affected.

Important:

Clean the metal grease filter at regular intervals.

Cleaning the metal filter:

Under normal operating conditions (1 to 2 hours per day), the metal grease filter will require cleaning after 8 to 10 weeks.

The filter can be cleaned in a dishwasher. This can however cause slight discoloration.

Important:

Metal filters that are heavily saturated with grease should not be cleaned at the same time as any crockery, etc.

If the filter mat is going to be cleaned by hand, soak it first of all in a hot detergent solution for several hours. Clean the filter with a brush, rinse it off thoroughly and allow it to drip dry.

Use only original replacement filters. In so doing you will be ensuring that the extractor hood performs as effectively as possible.

Removing and installing the grease filter

Extractor hoods with a filter mat:

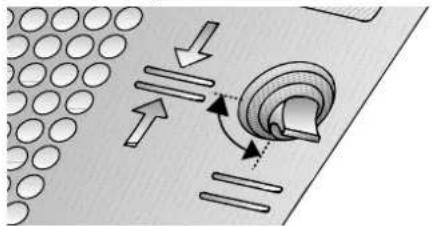

  1. Rotate the handles on the left and right of the filter grille.

Diagram showing circular patterns and directional arrows, no text or symbols present

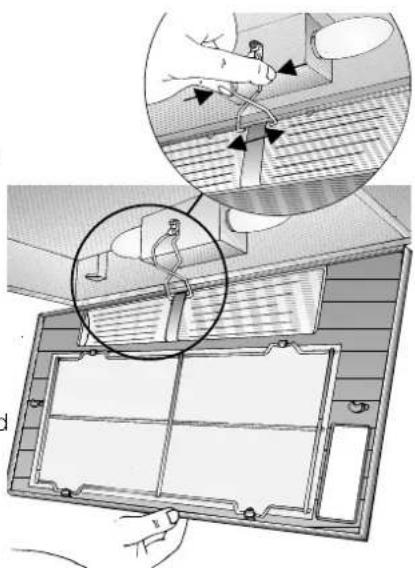

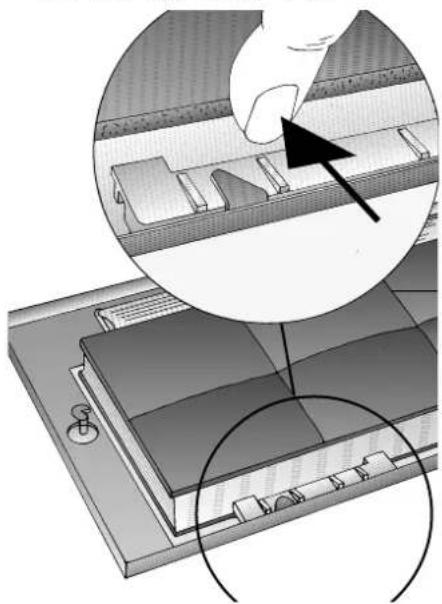

  1. Press the retaining spring and remove the filter frame.

Illustration of a ceiling fixture with hand positioning and close-up views of the component (no text or symbols)

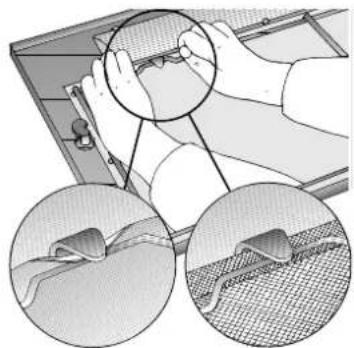

  1. Remove the wire grille and replace the filter mat.

Illustration of hands adjusting a component with magnified insets showing internal structures (no text or symbols)

  1. Install the filter frame in reverse sequence.

⚠️ Re-attach the retaining spring.

The left and right sides of the filter frame must lock into position!

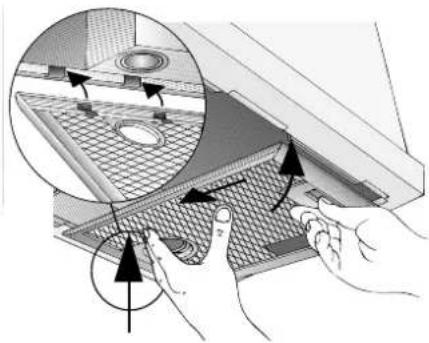

Extractor hoods with two filter cartridges:

Warning: The halogen bulbs must be switched off and cool.

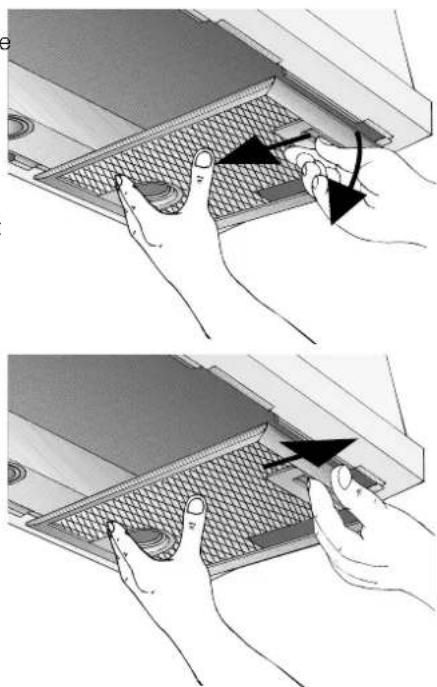

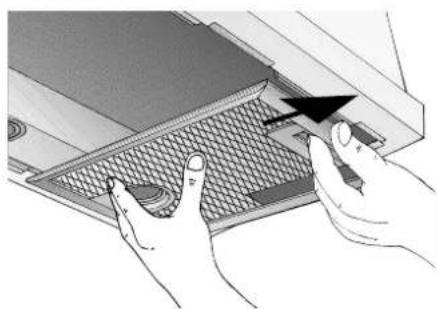

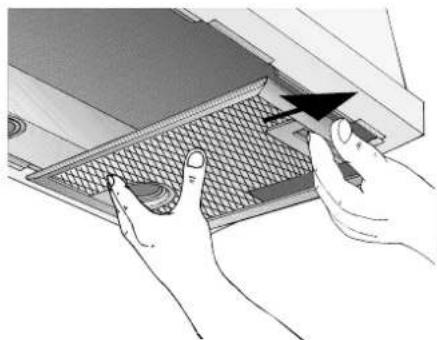

  1. Depress the detent on the grease filters in the direction of the arrow and fold down the grease filter slightly. Detach the grease filter by pulling it towards yourself.

Two-step diagram showing hands installing or adjusting a mesh panel inside a device (no text or symbols present)

  1. Clean the grease filters.

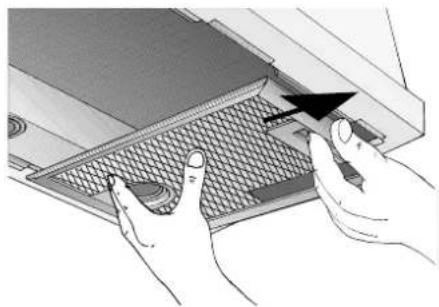

  2. Re-insert the clean grease filters.

Illustration of hands installing or adjusting a grid-patterned panel with arrows indicating movement (no text or symbols)

Removing and installing the activated carbon filter

Extractor hoods with a filter mat:

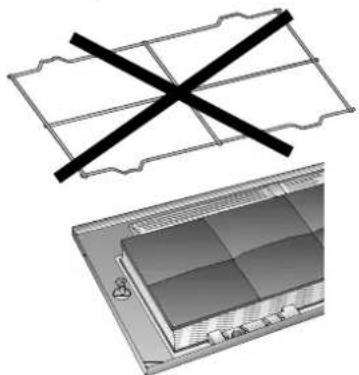

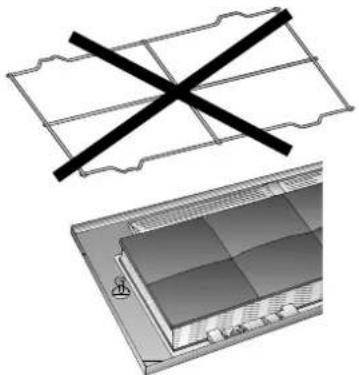

  1. Remove the filter; see grease filter. ☐ The wire grille is no longer required when an activated carbon filter is installed.

Architectural floor plan and interior layout diagram with no visible text or symbols

  1. Place the activated carbon filter on the filter mat and clamp it in.

Diagram of a mechanical assembly with layered components and a magnified inset showing a specific section (no text or symbols present)

  1. Install the filter frame. ☐ See grease filter.

Extractor hoods with two filter cartridges:

  1. Remove the filter cartridge. ☐ See grease filter.

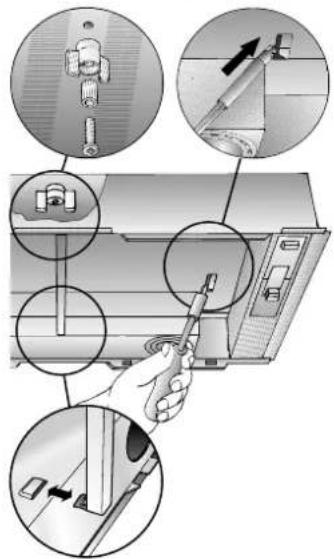

  2. Insert the screw through the wing nut and the sleeve and screw in the middle screw in the false bottom (required only during the initial installation). Screw, sleeve and wing nut are enclosed with the activated carbon filter.
  3. Using a screwdriver, press in the two lugs on the false bottom. If a spacer rail has been installed, it must be removed.

Diagram illustrating the installation of a mechanical device with labeled components and directional arrows indicating assembly or inspection steps.

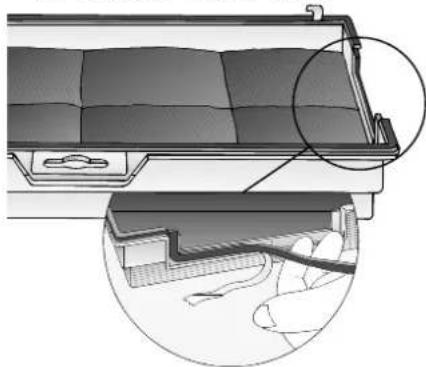

  1. Tape over the activated carbon filter with the enclosed sealing strip.

Technical diagram of a car interior showing roof structure and floor level (no text or symbols)

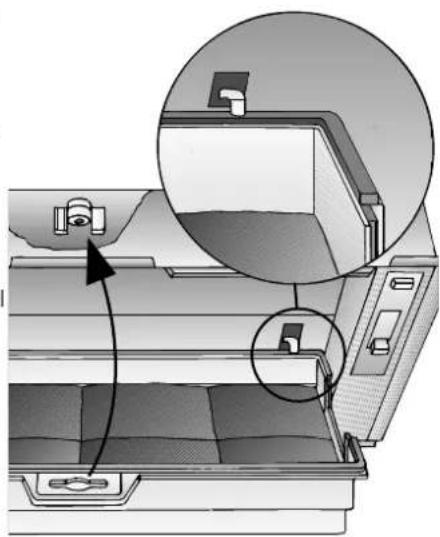

  1. Insert the activated carbon filter at the rear, fold up and lock in the middle with the wing nut. If the spacer rail has been removed, it must be re-installed.

Diagram of a printer internal structure with zoomed-in detail view (no text or symbols)

  1. Re-insert the two filter cartridges.

Removing the activated carbon filter:

☐ The activated carbon filter is removed in reverse sequence.

Changing the activated carbon filter: If used normally (1 to 2 hours daily), the activated carbon filter should be changed approx. once a year.

Activated carbon filters can be purchased from SPECIALIST OUTLETS (see optional accessories on the last page).

Use original filters only. This will ensure optimum performance.

Disposing of the old activated carbon filter:

Activated carbon filters do not contain any pollutants. They can be disposed of e.g. a residual waste.

Switch off the extractor hood and isolate it from the power supply before changing the bulbs.

Pull out the mains plug or switch off the disconnector on the installation side.

At the same time as you renew the grease filter (see Filters and maintenance), clean off any grease from all accessible parts of the housing. This significantly reduces the fire hazard and ensures that the extractor hood performs as effectively as possible. Clean the extractor hood with a hot detergent solution or a mild window cleaning agent. If the hood is extremely dirty (older stains), use a liquid window cleaner. Do not scratch off dried-on dirt, but wipe off with a damp cloth. Do not use scouring agents.

Warning: Clean the control buttons with a mild detergent solution and a soft, damp cloth only.

Painted, aluminium and plastic surfaces:

Do not use scouring agents or abrasive sponges. Do not use dry cloths. Do not use corrosive, acidic or alkaline cleaning agents. Note: Do not use alcohol (spirit) on plastic parts, otherwise the surface may become matt in appearance. Caution! Ensure that the kitchen is adequately ventilated. Avoid naked flames.

  1. Switch off the extractor hood and isolate it by pulling out the mains plug or switching off the disconnector on the installation side.
  2. Remove the filter frame. See grease filter.

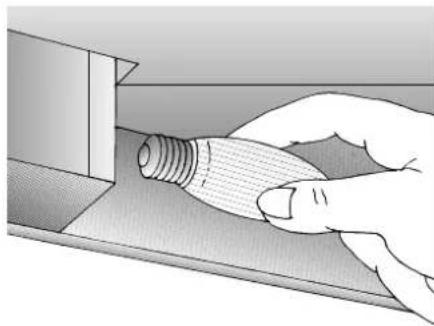

  3. Replace the bulb (standard filament bulb, max 40 W, E14 bulb holder).

Illustration of a hand inserting a bulb into a rectangular block (no text or symbols).

  1. Attach the filter frame.

See grease filter.

Halogen bulbs:

1. Switch off the extractor hood and isolate it by pulling out the mains plug or switching off the disconnector on the installation side.

When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.

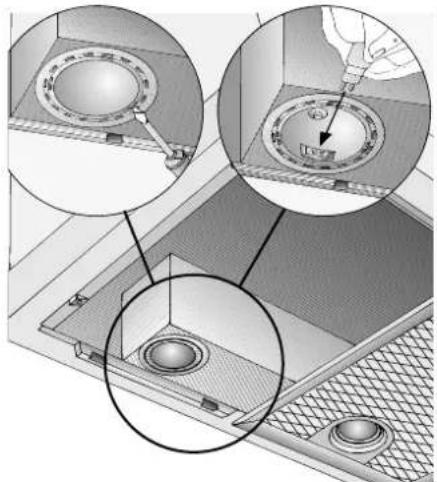

  1. Remove the bulb ring with a screw or similar tool.
  2. Replace the halogen light bulb (conventional halogen bulb, 12 Volt, max. 20 Watt, G4 cap).

Caution: Refer to for plug-in lampholder.

Take hold of the bulb with a clean cloth.

Technical diagram showing a mechanical assembly with circular components and a close-up of a component (no text or symbols visible).

  1. Re-insert the bulb ring.
  2. Plug the appliance into the mains or switch it on at the fuse box.

Note: If the light does not function, check that the bulbs have been inserted correctly.

If you encounter a problem

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

Important information

Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.

⚠️ You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

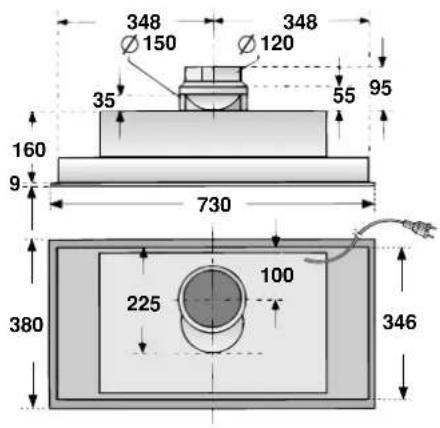

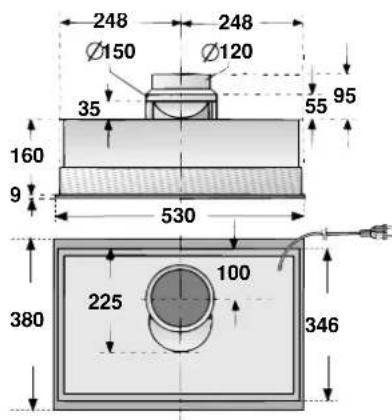

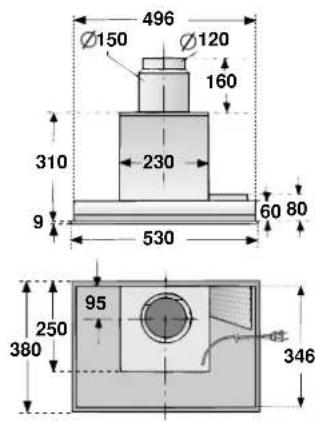

The extractor hood can be used in exhaust air or circulating air mode.

⚠️ Always mount the extractor hood over the centre of the hob.

⚠️ Minimum distance between electric hob and bottom edge of extractor hood: 650 mm.

The extractor hood must not be installed over a solid fuel cooker - a potential fire hazard (e.g. flying sparks) - unless the cooker features a closed, non-removable cover and all national regulations are observed.

The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).

⚠️ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.

⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.

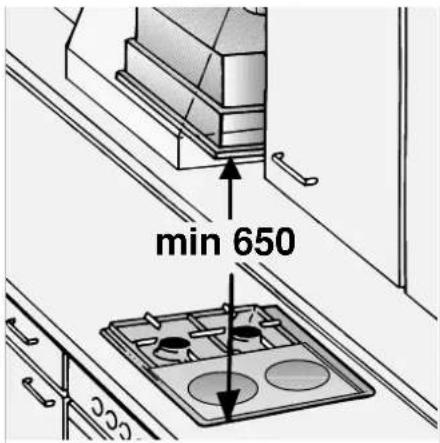

Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm.

min 650

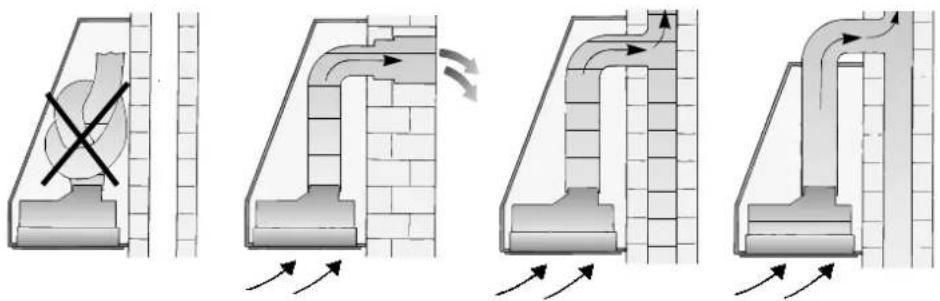

Exhaust-air mode

NEFF D5645X0GB - Exhaust-air mode - 1

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use

of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if the combustion air can be replenished by being able to flow through non-closeable openings such as in doors, windows, wall ventilation boxes, or by alternative technical measures such as reciprocally shutting the other device off, etc.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

All legal requirements concerning the discharge of exhaust air must be observed. Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

The extractor hood should be fitted with a one-way flap for exhaust-air mode if there is not already one installed in the exhaust-air pipe or wall box. If a one-way flap is not enclosed with the appliance, purchase one from a specialist outlet (see optional accessories on the last page).

Attaching the one-way flap

☐ Insert the two lugs on the one-way flap into the holes on the air-pipe connector or air outlet and lock into position.

Before installing the one-way flap, ensure that the lettering or stamp is on the outside.

Optimum performance of the extractor hood:

☐ Short, smooth extraction pipe. ☐ As few pipe bends as possible. ☐ Largest possible pipe diameter (preferably 150 mm ∅) and large pipe bends.

Round pipes:

We recommend an inner diameter of at least 120 mm for single-motor models, and at least 150 mm for double-motor models.

Flat ducts must have an inner cross-section equivalent to round pipes with an inner diameter of 120/150 mm.

120 mm diameter: approx. 113 cm²; 150 mm diameter: approx. 177 cm².

If pipe diameters differ, use a sealing strip.

Ensure an adequate air supply for exhaust-air mode.

Pipe connection

Extractor hoods with 120 mm diameter air outlet:

100 mm diameter extraction pipe

Insert the reducing connector (see optional accessories on the last page) into the air-pipe connector and then attach the exhaust-air pipe.

120 mm diameter extraction pipe

Attach the exhaust-air pipe directly to the air-pipe connector.

Extractor hoods with 150 mm diameter air outlet:

150 mm diameter extraction pipe

Screw the reducing connector (see optional accessories on the last page) onto the air outlet. Attach the extraction pipe to the reducing connector.

150 mm diameter extraction pipe

Attach the exhaust-air pipe directly to the air outlet.

If a one-way flap has been fitted, conduct a performance test.

Extractor hoods with rectangular air outlet:

Screw the enclosed air-pipe connector over the air outlet.

Diagram of a mechanical assembly with a screw and nut, showing components like bolts and a housing (no text or labels).

Recirculated air mode

Diagram of a mechanical structure with directional arrows, adjacent to a brick wall (no text or symbols).

The air cleaned by an additional activated carbon filter is conveyed back into the room. In recirculated air mode the exhaust opening must be protected by a gr (see optional accessories on the last page) in order to prevent a mechanical or electrical hazard.

The extractor hood must be connected to a correctly installed earthed socket only.

Attach the earthed socket as close to the appliance as possible and in an accessible position. If the earthed socket is no longer accessible following installation of the extractor hood, a disconnector must be provided on the installation side. Disconnectors are switches with a contact opening of more than 3 mm and all-pole disconnection. LS switches and contactors are regarded as disconnectors.

The appliance must be isolated before repairs are carried out.

Repairs may be carried out by authorised technicians only.

If the connection cable of this appliance is damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person in order to prevent a hazardous situation.

Improper repairs may put the user at considerable risk.

Length of connection cable: 1.20 m.

Electrical specifications:

The electrical specifications can be found on the rating plate inside the appliance when the filter frame has been removed.

Do not place hand in the air outlet.

This appliance complies with the EC radio interference suppression regulations.

The extractor hood is particularly suitable for installation in a flue or chimney.

To ensure optimum extraction performance

(especially important for kitchen island solutions):

Install the extractor hood as high as possible within the structure. The structure must cover the entire cooking area.

The following cutouts must be made for the installation depending on the model:

Extractor hood with rocker switch, 53 cm wide, 1-motor:

Extractor hood with slide control, 53 cm wide, 1 and 2-motor:

min 15 352-3 min 15 500-3 16

min 10 260-3 min 15 500-3 16

248 Ø150 Ø120 35 95 160 9 530 100 225 380 346

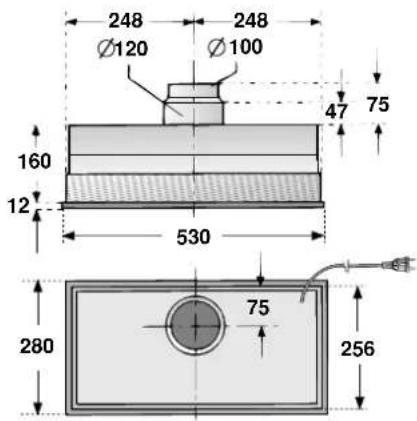

248 248 Ø120 Ø100 47 75 160 12 530 280 75 256

496 Ø150 Ø120 160 310 230 60 80 9 530 250 95 380 346

Installation

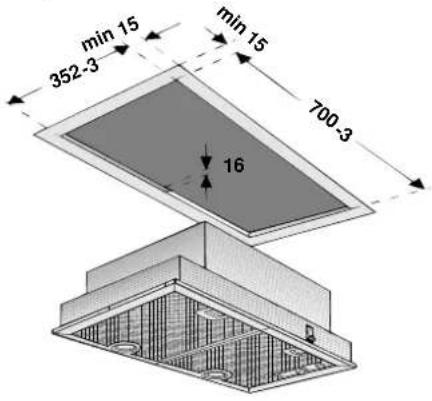

Extractor hood with slide control, 73 cm wide, 1 and 2-motor

min 15 352-3 min 15 700-3 16

348 Ø150 348 Ø120 35 55 95 160 9 730 225 100 380 346

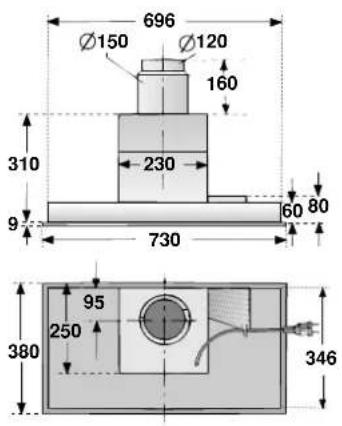

696 Ø150 Ø120 160 310 230 60 80 9 730 95 250 380 346

  1. Remove the filter grille (see operating instructions).
  2. Connect the power.
  3. Press the extractor hood up into the installation opening until the installation aid locks into position at the front and rear.

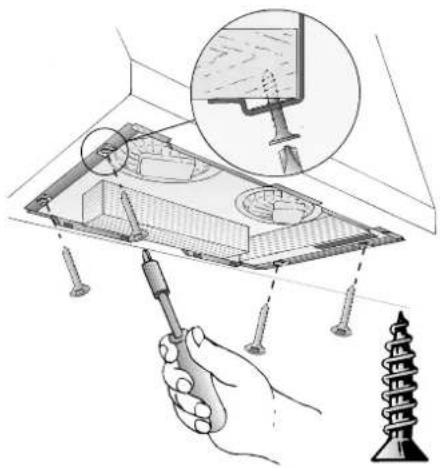

  4. Screw in the extractor hood.

Technical illustration of a hand using a screwdriver to install a component, with an inset magnified view showing the same assembly (no text or symbols present).

  1. Insert and secure the filter grille (see operating instructions).

Weight in kg:

ModelWidthExhaust airRecircu lated air
1-motor Rocker switch53 cm5,0 63
1-motor Slide control53 cm9,510,7
1-motor Slide control73 cm10,3 111,6
2-motor Slide control53 cm8,39,5
2-motor Slide control73 cm8,79,9

Design changes with respect to technical development shall remain withheld.

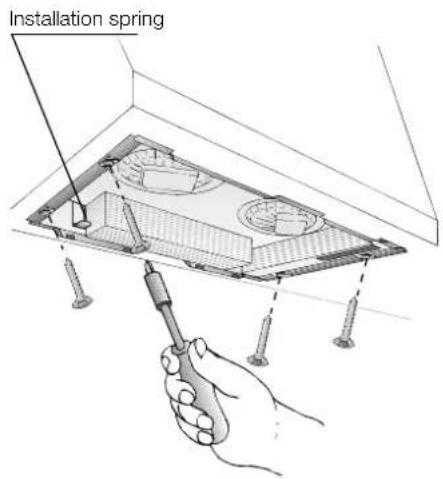

Removal

  1. Loosen the screws.
  2. Hold the underside of the extractor hood.

Installation spring

  1. Lower the extractor hood and remove.

Illustration of hands using a tool to adjust or install a grid-patterned device.

Recirculation mode

Illustration of hands using a tool to adjust or install a grid-patterned device.

Illustration of hands installing or adjusting a mesh panel with a black arrow pointing to the component.

Online shop: www.neff-eshop.com

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : NEFF

Model : D5645X0GB

Category : Range hood
