USER MANUAL UHD7510 HITACHI

UHD 75" INTERACTIVE FLAT PANEL DISPLAY

UHD7510WHPC - UHD7510WH - UHD7510BKPC - UHD7510BK

Pixelated grayscale image of a human eye with no visible text or symbols

Contents

Important Safety Information ....2

General View....6

Control Buttons on the Display 7

Connecting the IR (Infrared Receiver)......8

Turning the Display On/Off 8

Embedded Infrared Overlay Touch Screen .....9

OPS PC (Optional Built In PC)....10

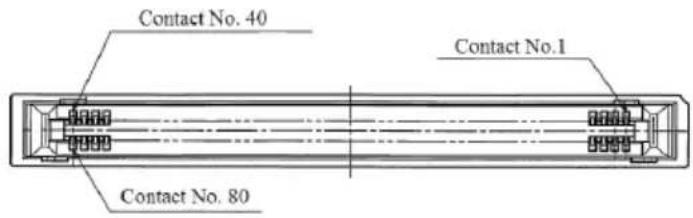

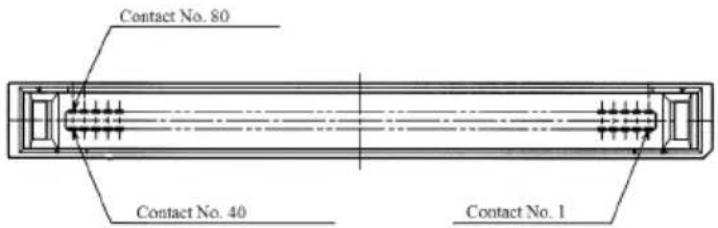

OPS Connection Scheme ....10

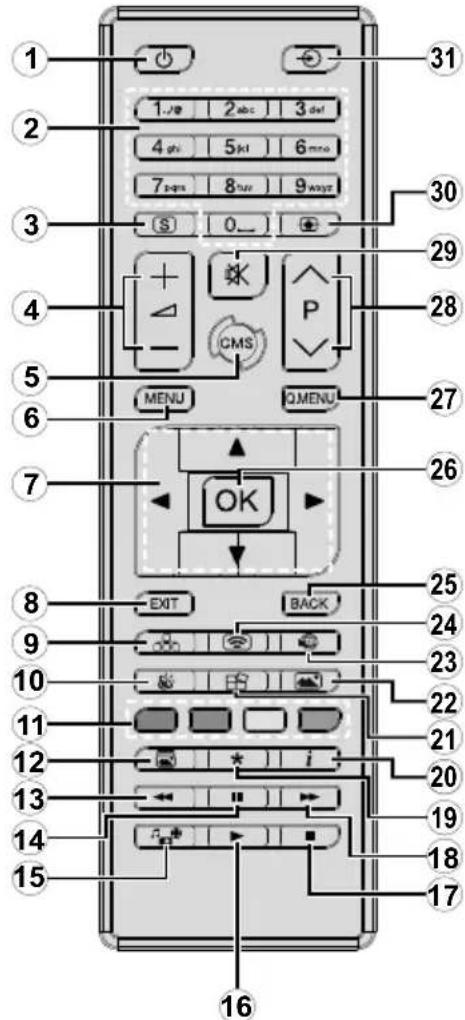

Remote Control 12

First Time Installation....13

Media Playback via USB Input 13

Display Menu Contents ....15

Connectivity 20

Internet Browser 22

Internal USB Operations....22

OSD Rotation Support (*)....23

DisplayPort 23

Controlling With An External PC....23

RS232/LAN Command Tables....25

RS232 HEX Commands....34

Maximum Pixel Rates....38

Supported Media Formats from USB 38

System Features ....39

Federal Communication Commission Interference Statement 41

Accessories Included....41

Information for Users on Disposal of Old Equipment and Batteries 41

Notification....42

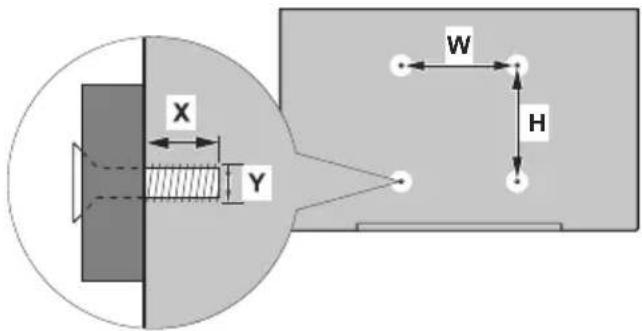

Vesa Wall Mount Measurements....43

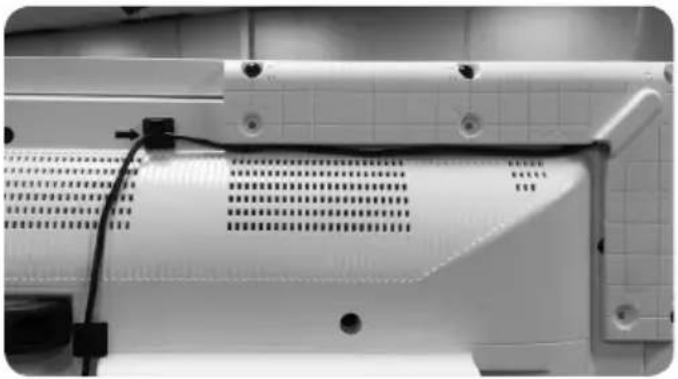

Installation On An Indented Wall 43

Important Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

Please read these instructions fully and carefully before use and keep for future reference

WARNING: This device is not intended for use by persons (including children) without physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instruction concerning use of the device by a person responsible for their safety.

• This product is for indoor use only.

- Use this product at an altitude of less than 2000 meters above the sea level and in dry locations and in regions with moderate or tropical climates.

- Please keep this manual for further use.

- Unplug your product before starting to clean. Do not clean the product when it is on. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. If that does not help, please use LCD display cleansers. Do not apply the cleaner directly on the product.

- To prevent breakdown, do not use non-advised accessories.

- Please do not place your product near wash basins, sinks, water pans, pools etc.

- Do not expose the product to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the product (e.g., on shelves above the unit).

- Please leave at least 5 cm of free space between the product and walls or other furnitures for ventilation purposes.

- That product can only be started by the defined power source on its rating plate. For further information, please contact with your dealer.

- As a safety precaution, a three-wired grounding plug is given with the product. As a safety precaution, please do not make any change on the grounding plug. Always use earthed socket outlet for product.

- Please provide the plug and socket to supply the needed power for appliance.

- Please place the product in a position that electric cables cannot be affected by the operations on the product.

- Follow all warnings and instructions marked on the product.

- Follow the on screen instructions for operating the related features.

- To prevent the risk of fire or electric shock, please do not overuse the plugs and extension cords. Please do not open the lid of the monitor to service yourself. If the required service needs are not met by an authorized service, dangerous voltage and other risks may occur.

- If you will not use the product for a long period of time, unplug the power cord from the mains.

- Put the product on a well-ventilated place and prevent from bright light, overheat and damp.

- The product should be kept in 0 C° - 40 C°. Otherwise, the appliance may be damaged permanently.

- Plug the appliance to a grounded outlet. Always use the grounded power cord supplied with your product. Manufacturer is not responsible for any damage caused unearthed usage.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.

- The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

- Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.

- Do not expose the product to direct sunlight or do not place open flames such as lit candles on the top of or near the product.

- Do not place any heat sources such as electric heaters, radiators, etc. near the product.

- In order to prevent a potential electrical shock, in extreme weather (storms, lightning) disconnect the product from the mains.

- Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

• Do not shake the product. Ensure that it stays in a balanced stance on its position.
• Do not throw or drop any object on your product.
• Do not interfere on your products screen or any other surface with a sharp object.
• Do not keep your product in a humid environment.
• Do not keep your product in an extremely cold environment.
• Do not keep your product in an extremely hot environment.
• Do not place the product on the floor and inclined surfaces.
• To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.

Vent holes of the product

The vent holes are designed to provide the product to work constantly and prevent it from overheat. Do not block these openings in anyway. For the same reason, please do not place your product on beds, sofas, carpets and similar surfaces.

Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting any objects in the vents or openings of the product may cause electric shock, short circuit of the internal parts and/or fire. For the same reason, do not spill water or liquid on the product.

Repair

Unless a basic implementation on the product is specified by the producers' technical department on a document, do not repair your product by yourself. Otherwise, your guarantee may get suspended and you may risk your health or your product. In case of need, consult your authorized service.

• When the cable is worn off or harmed.
• If the product has been dropped or the cabinet has been damaged.
• If the performance of the product is changed or the appliance needs to be repaired.
• When a liquid was spilled on the product or when objects have fallen into the product.
• When the product has been exposed to rain or water.
• When the product does not operate properly as described in the operating instructions.

Replacement parts

In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

Safety checks

Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

Wall mounting

When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.

• Read the instructions before mounting the product on the wall.
• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with the product.
• Do not install the product on a ceiling or on an inclined wall.
• Use the specified wall mounting screws and other accessories.
• Tighten the wall mounting screws firmly to prevent the product from fall. Do not over-tighten the screws.

Power Cord

• The power cord is used to disconnect the product from the mains and therefore it must remain readily operable. If the product is not disconnected electrically from the mains, the device will still draw power for all situations even if the product is in standby mode or switched off.
• Use only the power cord supplied with the monitor.
• Do not damage the power cord nor place heavy objects on it, stretch it, over bend it or step on it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.
• When unplugging the appliance, always pull directly on the plug. Do not pull from the cable when unplugging the appliance.
• Do not use the power cord with a power tap. Adding an extension cord may lead to fire as a result of overheating.
• Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.
• Unplug the power cord if it is not used for a long time.
• Do not attempt to repair the power cord if it is broken or malfunctioning. When damaged it must be replaced, this should only be done by qualified personnel.

Especially for child safety

• Don't allow children to climb on or play with the monitor.
• Don't place the monitor above furniture that can easily be used as steps.
• Remember that children can become excited while watching a program, especially on a “larger than life” monitor. Care should be taken to place or install the

monitor where it cannot be pushed, pulled over, or knocked down.

- Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.

Connections

Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting cables. Also, read the manual of the equipment to be connected.

Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and other problems.

Positioning

If a monitor is positioned in an unstable or inclined location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple pre-cautions such as:

• Using fixing devices like wall mount brackets recommended or supplied by the manufacturer.
  • Educating children about the dangers of climbing on furniture to reach the monitor or its controls. If your existing product is being retained and relocated, the same considerations as above should be applied

Transport and Shipping

• Your device must be kept in its original package to protect from damage to its accessories during transport and shipping.
• Keep the product in normal position during transport.
• Do not drop the device during transport and protect it against impacts.
• Damages and faults that occur during transport after the delivery of the appliance to the customer are not included in the warranty cover.
• Product transportation, installation, repair and servicing must be done by qualified technical service personnel.

Intended Use

• This product is intended to be used in public places such as schools, offices, theatres, places of worship.
• Product is only suitable for connecting commercial mains socket outlets. Do not connect product industrial socket outlets.

Foreseeable misuse and incorrect use

- For apparatus intended to be used in vehicles, ships or aircraft or at altitudes exceeding 2000m above sea level, for outdoor use or in general for the application other than mentioned in user manual additional requirements may be necessary.

CAUTION

Do not leave a static image displayed for prolonged period of time. If a static image is displayed continuously for a long period of time, that image may cause image sticking on the display. This condition is not permanent, but may require a considerable amount of operational display time to dissipate, depending upon the degree of image stick. 120 minutes of continuous motion display will eliminate most image sticking effects at normal room temperature (not lower than 10 C).

As the nature of the TFT technology, you may see some amount of bright, dark, red, green and blue dots and sparklings on the screen, those do not affect the performance of the computer and are not accepted as a defect.

Warning

This is a class A. In a domestic environment this may cause radio interference in which case the user may be required to take adequate measures.

BATTERY SAFETY GUIDELINES

Used correctly, domestic batteries are a safe and dependable source of portable power. Problems can occur if they are misused or abused resulting in leakage or, in extreme cases, fire or explosion.

Here are some simple guidelines to safe battery use designed to eliminate any such problems.

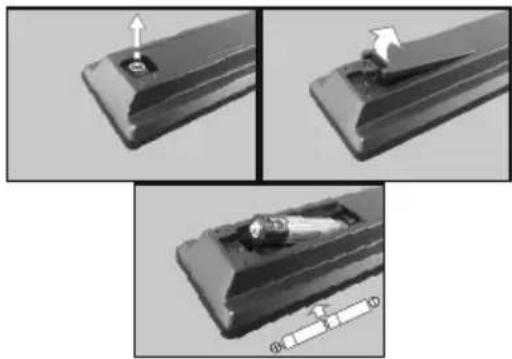

• Take care to fit your batteries correctly, observing the plus and minus marks on the battery and appliance. Incorrect fitting can cause leakage or, in extreme cases, fire or even an explosion.
- Replace the whole set of batteries at one time, taking care not to mix old and new batteries or batteries of different types, since this can result in leakage or, in extreme cases, fire or even an explosion.
- Store unused batteries in their packaging and away from metal objects which may cause a short-circuit resulting in leakage or, in extreme cases, fire or even an explosion.
- Remove dead batteries from equipment and all batteries from equipment you know you are not going

to use for a long time. Otherwise the batteries may leak and cause damage.

• Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
• Never dispose of batteries in fire or with hazardous or flammable materials as this can cause them to explode. Please recycle dead batteries; do not put with the normal household waste.

- Never attempt to recharge ordinary batteries, either in a charger or by applying heat to them. They may leak, cause fire or even explode. There are special rechargeable batteries which are clearly marked as such.

- Supervise children if they are replacing batteries themselves in order to ensure these guidelines are followed.

- Do not ingest the battery, Chemical Burn Hazard.

- This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

- Remember that small button cell batteries such as used in some hearing aids, toys, games and other appliances, are easily swallowed by young children and this can be dangerous.

- Keep new and used batteries away from children.

- Make sure battery compartments are secure. If the battery compartment does not close securely, stop using the product and keep it away from children.

- Seek immediate medical attention if you believe batteries might have been swallowed or placed inside any part of the body.

- If leaked battery fluid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your clothing may cause a skin irritation or damage your eye.

CAUTION

RISK OF EXPLOSION IF BATTERY IS

REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS.

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Class II Equipment With Functional Earthing: This appliance is designed in such a way that it does not require a safety tion to electrical earth, the earth connection is or functional purposes.

Protective Earth Connection: The marked terminal is intended for connection of the protective earthing conductor associated with pply wiring.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

Any issues which are caused by customer mis-adjustment of any software including the operating system are not covered by the warranty.

Depending on the model you buy, the actual appearance of the product may differ from the images used in this manual.

General View

Front Side

1. LCD Panel

Simple gray rectangle with a numbered label '1' pointing to the top edge (no text or symbols on the main area)

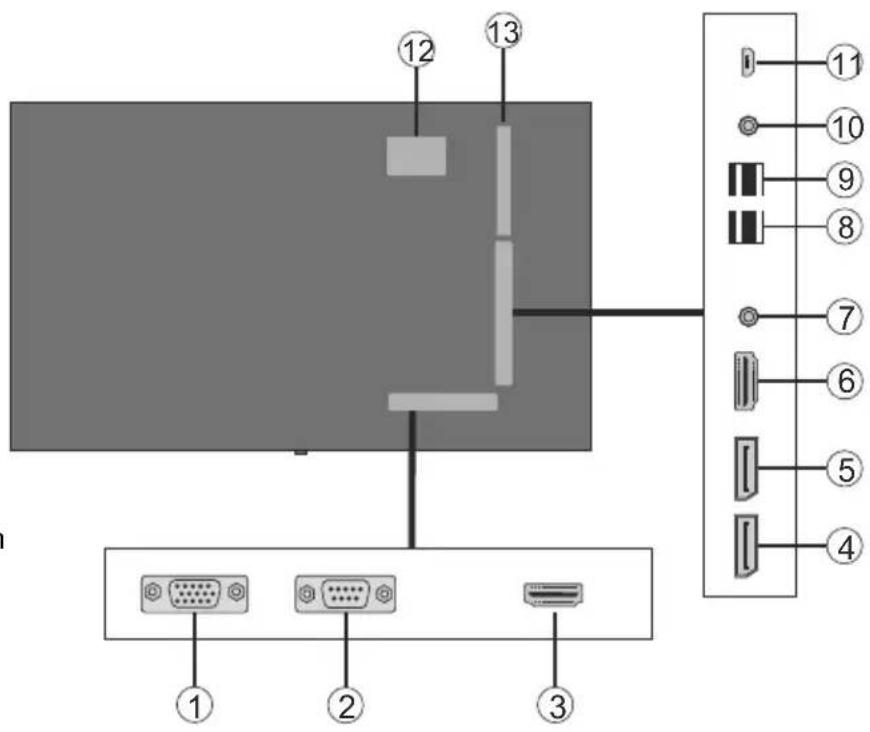

Rear Side (1)

1. VGA
2. RS232
3. HDMI 2
4. Display Port Input
5. Display Port Output
6. HDMI 1
7. Headphone
8. USB (2.0) for memory stick
9. USB (3.0) for memory stick
10. IR Input
11. Micro USB for touch function with external PC
12. Covered panel for USB Overlay cable
13. Connection Slot for PC (OPS) Module

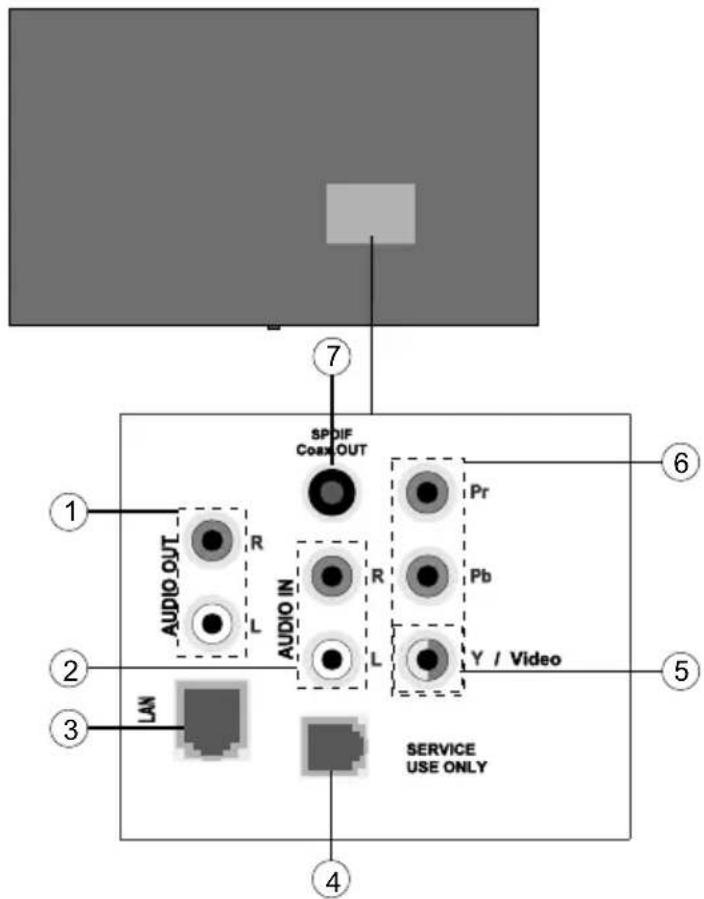

Diagram showing connection between a monitor and a server with labeled ports and connectors

1. Audio Out
2. Audio In
3. Ethernet
4. RJ12 (service use only)
5. Video In
6. YPbPr
7. SPDIF Coaxial Out

1 2 3 4 5 6 7 AUDIO OUT R L AUDIO IN SPDIF Coast OUT Pr R L Pb Y / Video SERVICE USE ONLY

Control Buttons on the Display

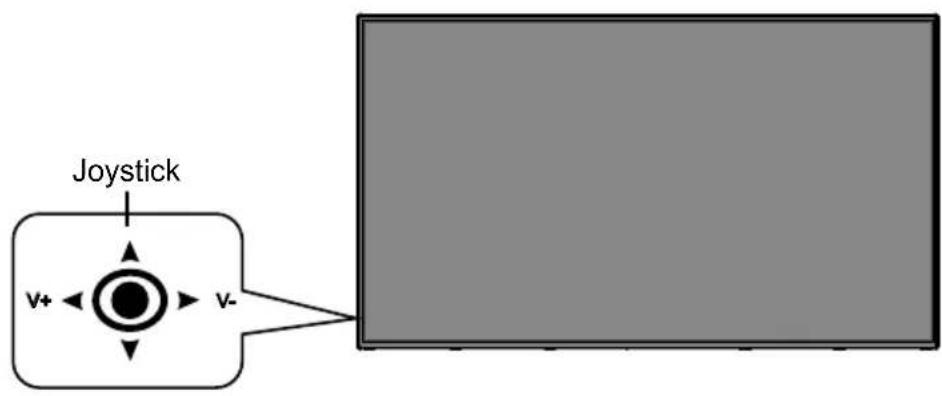

To turn on the Display: Press the centre of the joystick in, the Display will turn on and hold for 5 seconds until RED LED on the IR receiver goes out.

To turn the Display off: Press the centre of the joystick in and hold it down for a few seconds, the Display will turn into standby mode.

To change source: Press the centre of the joystick in, the sources list will appear on the screen. Scroll through the available sources by pushing the joystick up or down.

To change volume: Increase the volume by pushing the joystick right. Decrease the volume by pushing the joystick left.

Note: Main menu OSD cannot be displayed via joystick.

V+ V-

Connecting the IR (Infrared Receiver)

Before plugging the Display into the mains supply, connect the supplied IR receiver to the IR input on the Display. Place the IR receiver in sight of your own remote control. Simply operate your remote control whilst pointed at the IR receiver and it will relay the control signal to your Display. For optimum performance place the receiver below the Hitachi logo in the lower center of the bezel.

Illustration of a remote control with signal waves and a monitor on top (no text or symbols)

Turning the Display On/Off

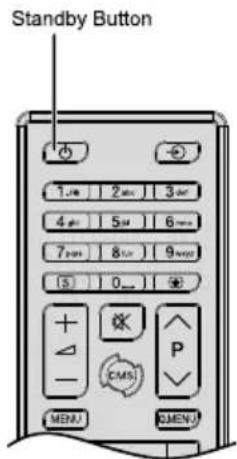

Press the Standby button on the remote or by pressing and holding the joystick on rear left of the Display to switch it on from standby or to switch it into standby mode.

Standby Button 1µ 2µ 3µ 4µ 5µ 6µ 7µ 8µ 9µ (5) 0...

LED Status Status of the monitor
Power LED not lit Power on
Power LED lit Power off (Standby mode)
Power LED flashing (slow) Scheduler active
Power LED flashing (fast) Power up/down and software update

OPS PC (Optional Built In PC)

Disconnect the Display from the power supply before connecting or disconnecting the OPS. Failure to do so may cause damage to the OPS and/or the Display.

Open Pluggable Specification (OPS) is a standardized system architecture between displays and media players. It may be based on x86 or ARM structure. This Panel complies with both structures. The OPS size is standard (180 mm x 119 mm x 30 mm)

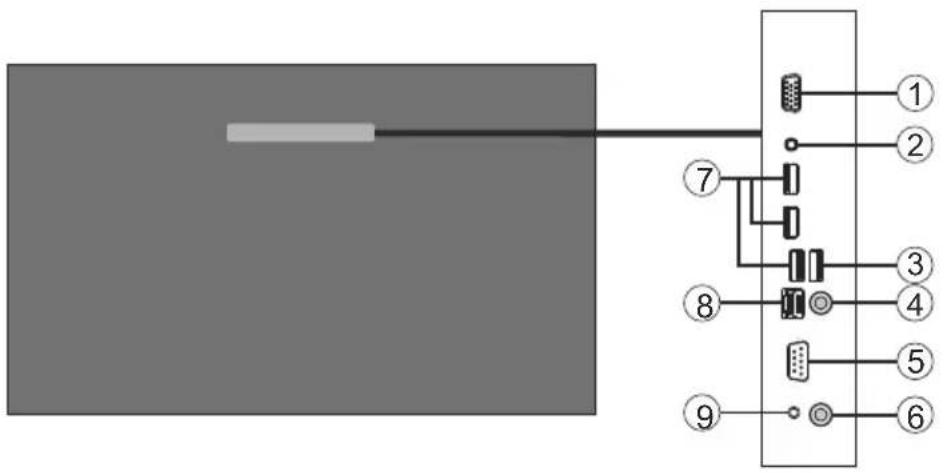

Rear Side

1. VGA
2. Microphone / Headphone (3.5mm jack)
3. USB 2.0 port
4. WiFi Antenna Connector
5. RS232
6. WiFi Antenna Connector
7. 3 × USB 3.0 ports
8. RJ45 10/100/1000 Mbps Ethernet
9. On/Off Button

Diagram showing a device panel connected to nine labeled components, with numbered parts and connecting lines.

USB 2.0 / USB 3.0 Ports

Use a commercially available USB cable to bidirectional transfer data.

Lan Terminal/Ethernet

Use commercially available Ethernet cable to connect Local Area Network.

Microphone and Headphone terminals

Use headphone terminal to listen the stereo sound files.

Use Microphone terminal to record the sounds.

Wi-Fi Antenna

Connect a wireless antenna to this connector.

OPS Connection Scheme

Connection Scheme refers to both Intel and ARM OPS PC. OPS PC has an 80 pin OPS standard connection interface. Interconnection of ARM/Intel OPS PC and another board (i.e. docking board, monitor board or main board...) is provided by JAE TX24/TX25 plug and receptacle connectors.

Two gray plastic electronic components with ribbed and rectangular ends, shown from different angles (no text or symbols visible)

Left: OPS PC plug connector (p/n: TX25-80P)

Right: Receptacle connector (p/n: TX24-80P)

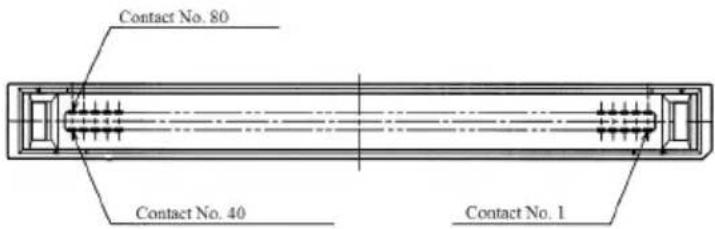

Contact No. 80 Contact No. 40 Contact No. 1

OPS PC Plug Connector / TX25 Pinout

Contact No. 40 Contact No.1 Contact No. 80

Receptacle Connector / TX24 Pinout

Remote Control

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 S 0_ MENU Q MENU CMS OK EXIT BACK

Inserting the Batteries into the Remote

Remove the screw that secure the battery compartment cover on the back side of the remote control first. Lift the cover gently. Insert two AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Place the cover back on. Then screw the cover back on again.

Three-panel technical illustration showing a mechanical component with a bolt and a tool, no visible text or symbols.

1. Standby: Switches On / Off the Display
2. Numeric buttons: Enters a number or a letter in the text box on the screen.
3. Signage: Displays Signage Settings menu
4. Volume +/-: Increases or decreases the volume
5. CMS: Opens the predefined Start url (in Signage Settings>Link options menu). Press and hold 3 seconds to open the predefined Settings url (in Signage Settings>Link options menu).
6. Menu: Displays the main menu
7. Directional buttons: Helps navigate menus, content etc.
8. Exit: Closes and exits from displayed menus or returns to previous screen
9. Network: Displays Network/Internet Settings menu
10. Sound: Displays Sound Settings menu
11. Coloured Buttons: Blue button is also screen freeze.
12. Picture Mode: Cycles between picture modes
13. Rapid reverse: Moves frames backwards in media such as movies
14. Pause: Pauses the media being played
15. Media browser: Opens the media browsing screen
16. Play: Starts to play selected media
17. Stop: Stops the media being played
18. Rapid advance: Moves frames forward in media such as movies
19. No function
20. Info: Displays information about on-screen content
21. Video Wall: Displays Video Wall Settings menu
22. Picture: Displays Picture Settings menu
23. Internet: Opens the predefined Open browser initial page (in Signage Settings>Link options menu).
24. Wireless Display: Opens the wireless display connection screen
25. Back/Return: Returns to previous screen
26. OK: Confirms user selections
27. Quick Menu: Displays a list of menus for quick access
28. No function
29. Mute: Completely turns off the volume of the Display
30. Screen: Changes the aspect ratio of the screen
31. Source: Shows all available content sources

*Buttons 13-18 only apply to media playback from USB stick.

First Time Installation

When turned on for the first time, the language selection screen will be displayed. Select the desired language and press OK.

On the next screen, set your country preference and press OK to continue.

You will be asked to set and confirm a PIN at this point. For some Country options, the PIN cannot be set to 0000, in this case you need to enter another 4-digit number combination. You have to enter this PIN if you are asked to enter a PIN for any menu operation later.

The Signage Settings menu will be displayed next. Set ID, OSD Orientation(*), Auto software update options can be configured using this menu. Model name, Serial number and Software version options are for information only. They will be grayed out and not selectable. Refer to the Signage Settings Menu Contents section for more information on the options of this menu. While this menu is displayed on the screen you can copy database files from a connected USB device to the Display by pressing the Yellow button. You can also save the model information data of the Display to a connected USB device by pressing the Blue button. After the settings are completed, press OK to continue.

(*) This option may not appear depending on the model

On the next screen, the Network/Internet Settings menu will be displayed. Please refer to Connectivity section to configure a wired or a wireless connection. After the settings are completed press OK button to continue. To skip to the next step without doing anything press the Rapid advance button.

The First Time Installation is completed.

To repeat this process and reset the Display's settings to the factory defaults enter the Signage Settings menu, highlight First time installation and press OK. You will be asked to enter the PIN that you have defined in the First Time Installation. If the correct PIN is entered a confirmation message will be displayed asking whether you want to delete all settings and reset the Display. Select Yes and press OK to confirm.

Note: Do not turn off the Display while initializing first time installation. Note that, some options may not be available depending on the country selection.

Media Playback via USB Input

Note: If internal USB device (*) is inserted and external device is also inserted, media player will use the external device only. You can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your Display by using the USB input/s of the Display.

IMPORTANT! Back up the files on your storage devices before connecting them to the Display.

Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this Display. The Display supports FAT32 and NTFS disk formatting. (see page 37 for list supported file types)

Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.

You can use USB hubs with your Display's USB input/s. External power supplied USB hubs are recommended in such a case.

It is recommended to use the Display's USB input/s directly, if you are going to connect a USB hard disk.

Note: When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.

Media Browser Menu

You can play photo, music and movie files stored on a USB disk by connecting it to your Display. Connect a USB disk to one of the USB inputs located on the side of the Display. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings menu.

Loop/Shuffle Mode Operation
Start playback with the Play button and activate	All files in the list will be continuously played in original order
Start playback with the OK button and activate	The same file will be played continuously (repeat)
Start playback with the Play button and activate	All files in the list will be played once in random order
Start playback with the Play button and activate	All files in the list will be continuously played in the same random order.

USB Auto Play Feature

USB AutoPlay feature is to start playing the media content in removable device, automatically. It uses the Media Browser. The media content types have different priorities in order to be played. The reducing priority order is as Photo, Video and Audio. That means, if there is Photo content in the root directory of the removable device, MediaBrower will play the Photos in a sequence (in file name order) instead of Video or Audio files. If not, it will be checked for Video content and as last Audio.

This feature will only work if all of the following circumstances occur:

- The USB device is plugged in.

- Auto Play option is enabled. It is placed in the Media Browser>Settings menu.

Failover Feature

If No Signal option in the Signage Settings menu is set as Failover the Display checks the connected USB device for available files to play. If no playable files are available or there is no USB device connected to the Display, the No Signal image will be displayed and the Display will turn itself off after a period of 5 minutes. If there isn't any No Signal Image available, No Signal OSD will be displayed on the screen and the Display will turn itself off after a period of 5 minutes.

Note: The setting of the Auto Play option in the Media Browser>Settings menu is not important, in Failover mode it will function anyway.

Display Menu Contents

System - Picture Menu Contents
Mode		You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Text, Game, Sports, Signage and Natural.
Contrast		Adjusts the light and dark values on the screen.
Brightness		Adjusts the brightness values on the screen.
Sharpness		Sets the sharpness value for the objects displayed on the screen.
Colour		Sets the colour value, adjusting the colours.
Energy Saving		This Display is designed to be environmentally friendly. If you set this option to Minimum, Medium, Maximum or Auto the Display will reduce energy consumption by regulating the backlight level accordingly. If you like to set the backlight level to a fixed value set as Custom and adjust the Backlight (located under this setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.If pressed Right button while Auto option is selected or Left button while Custom option is selected, "Screen will be off in 15 seconds." message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.When the Display is not in use, please switch off or disconnect the Display from the mains plug. This will also reduce energy consumption.Note: Available options may differ depending on the selected Mode.
	Backlight	This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.
Advanced Settings
	Dynamic Contrast	You can change the dynamic contrast ratio to desired value.
	Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
	Colour Temp	Sets the desired colour temperature value. Cool (1300K), Normal (9300K) and Warm (8500K) options are available.
	Picture Zoom	Sets the desired image size format.
	Movie Sense	Press left/right buttons to set Movie Sense to Low, Medium, High or Off. While Movie Sense is active, it will optimize the Display's video settings for motional images to acquire a better quality and readability. When Movie Sense option is set to Low, Medium or High, Movie Sense demo option will be available. If one of these options is selected and if you press OK button, then the demo mode starts. While demo mode is active, the screen will be divided into two sections, one displaying the movie sense activity, the other displaying the normal settings for Display screen.Note: This feature may not be available depending on the model of your unit.
	Film Mode	Films are recorded at a different number of frames per second. Turn this feature on when you are watching films to see the fast motion scenes clearly.
	RGB Gain	Adjust the strength of the red, green and blue colours. You can use this feature for fine adjustment of white balance in the picture.
	HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position		Appears only when the input source is set to VGA/PC.
	Autoposition	Automatically optimizes the display. Press OK to optimize.
	H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
	V Position	This item shifts the image vertically towards the top or bottom of the screen.
	Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset	Resets the picture settings to factory default settings (except Game mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

System - Sound Menu Contents
Volume	Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance	Adjusts whether the sound comes from the left or right speaker.
Headphone	Sets headphone volume.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing. Only available if Headphone/Lineout option is set to Headphone.
Audio Link	Press OK to open the Audio Link menu screen. Using this screen you can discover and connect the sound devices to your Display wirelessly.
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between sources.
Headphone/Lineout	When you connect an external amplifier to your Display using the headphone jack, you can select this option as Lineout. If you have connected headphones to the Display, set this option as Headphone.Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Digital Out	Sets digital out audio type. PCM and Compressed options are available.
Surround Sound	Surround sound mode can be changed as On or Off.

System - Settings Menu Contents
Language	Sets the OSD menu language preference.
Date/Time	Sets date and time.
Sources	Enables or disables selected source options. There will be Regular, Enhanced and Disabled options available for HDMI sources, if your Display supports Ultra HD. Regular and Enhanced options are affecting the colour settings of the selected HDMI source. To be able to watch 4K images from an HDMI source related source setting should be set as Enhanced if the connected device is HDMI 2.0 compatible. Set as Regular if the connected device is HDMI 1.4 compatible. Set accordingly or disable the related HDMI source by setting as Disabled.
Network/Internet Settings	Displays network/internet settings.
More	Displays other setting options of the Display.
Menu Timeout	Changes timeout duration for menu screens.
Standby Led	Enables or disables the functionality of the standby led. If disabled the led will not function.
Software upgrade	Ensures that your Display has the latest firmware. Press OK to see the menu options.
Application Version	Displays current software version.
Auto Display OFF	Sets the desired time for the Display to automatically go into standby mode when not being operated.
Audio Video Sharing	Audio Video Sharing feature allows you to share files stored on your smartphone or tablet pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your Display. See instructions of your sharing software for more information.
Video Wall Settings	Press OK to open the Video Wall Settings menu screen. Row Count, Column Count, Cell and Offset options are available.
Speakers	To hear the Display audio from the connected compatible audio device set as Amplifier. You can use the remote control of the Display to control the volume of the audio device.
DP Stream Setting (*)	Sets the DisplayPort stream type. MST and SST options are available. (*) This menu item appears only when the input source is set to DP.

Signage Settings Menu Contents
Device Info
	Set ID	Sets the device ID. You can select a value between 0-99 using the numeric buttons on the remote in order to identify your Display.
	Software upgrade	Displays current software version. Press OK to see the Upgrade options menu. You can use these options to start a manual search for software updates and set your automatic scan preference.
	Serial number	Displays serial number of the unit. (Cannot changed by user)
	Model name	Displays model name of the unit. (Cannot changed by user)
	Save model information	Copies the model information data of the unit to a connected USB device.
	Temperature Settings	Press OK to open the Temperature Settings menu screen. Current system temperature will be displayed. You can also change the maximum system shutdown temperature using the related option.Note: This feature may not be available depending on the model of your unit.
	Display Life Time	Displays the duration of life of the unit.
Controls
	OSD Orientation	Sets the OSD (On Screen Display) rotation of your Display. Landscape and Portrait options are available.
	Pixel shift	Enables or disables pixel shifting. This option can be used to avoid image retention (after image effects) that can occur when displaying fixed patterns or still images for a long periods of time. If enabled, the picture and OSD (On-Screen Display) will be shifted at specified time intervals.
	No Signal	Sets the behavior preference of the Display, when no signal is detected from the current set input source. Failover and Input Search options are available.If Failover is selected the Display checks the connected USB device for available files to play. If no playable files are available or there is no USB device connected to the Displa the No Signal image will be displayed. If there isn't any No Signal Image available, No Signal OSD will be displayed on the screen. The setting of the Auto Play option in the Media Browser>Settings menu is not important, in Failover mode it will function anywayIf Input Search is selected the Display will search all available input sources consecutively to find signal. If no signal is detected from other available sources, No Signal OSD will be displayed and the Display will turn itself off after a period of 30 seconds.
	No Signal DelayNo signal Power off	Sets a delay value to the 'No Signal' preferences when the Display is in No Signal state After the set delay time is expired 'No Signal' preferences will be applied.When enabled the Display will turn itself off after a period of 5 minutes, if no signal is received from the selected source.This feature will only work if all of the following circumstances occur:- No Signal option is set as Failover.- USB device is not connected to the Display / USB device is connected but there are no playable files installed in the USB device.
	Panel Lock	Set as Off to prohibit the use of the buttons on the Display.
	RCU Inhibit	Set as On to inhibit the use of the remote. Remote control will function in Stand-By mode independently from the setting of this option.To turn this option off and be able to use the remote again, press MENU/M-1-9-7-3 buttons on the remote consecutively.Signage Settings menu will appear. Enter the Controls menu and set this option as Off.
	UART 0	Select ASCII/HEX protocol for UART 0. Default value is ASCII. There is no need to restart the Display after selection in order to work with the protocols correctly. If the selection is changed, the latest selected protocol will be preserved and started when the Display is booted up.Note that ASCII/HEX selection is not working while debug logs are enabled. If it is wrongly changed to HEX while debug logs are enabled, revert the selection to ASCII and reboot the Display in order to correct the debug logs and the ASCII protocol behaviour. Also note that HEX protocol will work with the baud rate value 19200 for UART0
	UART 1	Select ASCII/HEX protocol for UART 1. Default value is HEX. There is no need to restart the Display after selection in order to work with the protocols correctly. If the selection is changed, the latest selected protocol will be preserved and started when the Display is booted up.Note that ASCII/HEX selection is always working as expected. It does not matter if the debug logs are enabled or not.Also note that HEX protocol will work with the baud rate value 9600 for UART1
	Embedded Touch	Enables or disables the functionality of the embedded touch screen.
Power Up Settings
	Power Up Mode	Configures the power up mode preference.Last State, Always On and Standby options are available.
	Quick Standy	If this feature is enabled the Display can be turned on again with the RS232 and Lan commands if it is turned off through it. Press Left or Right button to enable or disable the feature.
	Power on Delay	Sets a delay value at power on. This value can be set from 0 to 2000 ms in steps of 100 ms. The Display will turn on after the set delay time is expired.
	Boot Up Picture Mode	Configures the picture mode preference at power on. If set as Off the last set picture mode will be used at power on.
	HDMI1 Wake Up Enabled	If this option is set as Enabled, the Display will turn on with the HDMI input source, when it is switched on. This feature works based on HDMI 5V signal. When this signal is active the Display wakes up and when the signal is inactive the Display shuts down. You can disable this option by setting as Disabled.If any Scheduler is set or an OPS unit is connected to the Display, this option will be inactive and can not be set as Enabled.Note: This feature may not be available depending on the model of your unit.
USB
	Clone to USB	Copies the database files from the unit to a connected USB device.
	Clone from USB	Copies the database files from a connected USB device to the unit.
	Internal USB operations	Copies files from internal USB to the unit. Only available when internal USB device is connected.
	Copy app cache from USB	Copies app cache data from a connected USB device to the unit.Note: This feature may not be available depending on the model of your unit.
	USB Information	Press OK to open the USB information menu screen. Current Total space and Free space informations of the connected USB device will be displayed. You can also format the connected USB device using the Format Disk option in this menu (FAT32 format only).
	USB operations	Highlight and press OK to perform USB operations.
	USB Option	Set as Off to disable the USB ports on the Display. You can also set this option as 5V to provide 5 volts power over USB. In this case it will still not be available to browse the USB content via Media Browser feature of the Display.
Video Wall Settings		Press OK to open the Video Wall Settings menu screen. Row Count, Column Count, Cell and Offset options are available.
OPS Settings		Press OK to open the OPS Settings menu screen. Three sub-menu options are available.OPS Information: Displays read-only information about the OPS unit, if supported.OPS Status: Displays whether the OPS module is on or off. Allows the change of status via soft PSON signal (0.5s)Boot Signal: Enables or disables sending of a PSON signal. The Display checks the status signal of the OPS at bootup in order to turn it on by sending a PSON signal if it is off. Some OPS's send incorrect information on their status during the bootup of the Display, so they seem to be on even though they are off. For such non-standard OPS's, this option must be enabled. In this case, a PSON signal will be send for the OPS regardless of the received status information at bootup.Powerdown: Turns the OPS off via hard PSON signal (5s)Note: This menu will not be available if OPS is not supported or not connected to the unit.
Scheduler Settings		Press OK to open the Scheduler Settings menu screen. You can set up to 4 different schedulers. Highlight the Status column of the desired scheduler option and set as Enabled by using the Left/Right directional buttons after pressing the OK button. Using the scheduler options you can set the unit to turn on automatically at defined time intervals with the defined input source setting. If the Source option is set as Last Source, the input source will not be changed at the power-up. If the Source option is set as USB, the media files in the connected USB device will be played back automatically as explained in the section entitled 'USB Auto Play Feature'. Press the Green button to save settings when complete.
Link options		Press OK to open the Link Options menu screen. Current Start url and Settings url links will be displayed. These items are for information only and not selectable. Open browser initial page and NTP server link preferences can be configured using the related options.
Volume Settings Press		OK to see available menu options.
Reset to Default Values		Highlight this option and press the OK button on the remote to return the Display to default settings.
First time installation		Highlight and press OK to perform First Time Installation and reset all settings to factory settings. You will need to enter the correct PIN to carry out this operation.Note: Enter the PIN you have defined during the First Time Installation process.

Connectivity

To configure wired or wireless settings please refer to the Network/Internet Settings section in the System>Settings menu.

Wired Connectivity

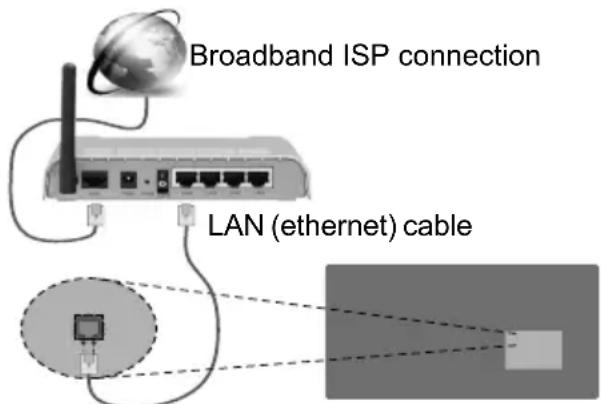

To Connect to a Wired Network

• You must have a modem/router connected to an active broadband connection.
• Connect your Display to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your Display.

Broadband ISP connection LAN (ethernet) cable

LAN input on the rear side of the Display

Configuring Wired Device Settings

Network Type

The Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the active connection to the Display. Select this as Wired Device if you are connecting via an ethernet.

Internet Speed Test

Highlight Internet Speed Test and press the OK button. Display will check the internet connection bandwidth and display the result when complete.

Advanced Settings

Highlight Advanced Settings and press the OK button. On the next screen you can change the IP and DNS settings of the Display. Highlight the desired one and press Left or Right button to change the setting from Automatic to Manual. Now you can enter the Manual IP and / or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons on the remote. Press the OK button to save settings when complete.

Wireless Connectivity

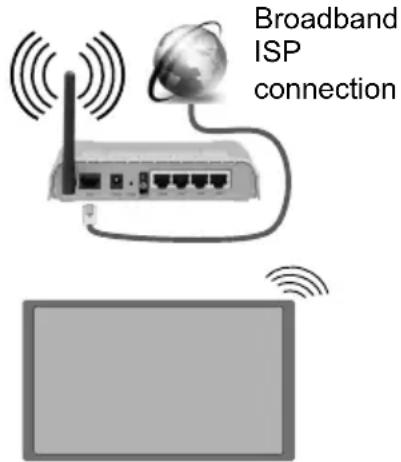

To Connect to a Wireless Network

The Display cannot connect to the networks with a hidden SSID (wireless network name). To make your modem's SSID visible, you should change your SSID settings via the modem's software.

Broadband ISP connection

• A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, file transfers and wireless gaming.
• The frequency and channel differ depending on the area.
• The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.
• The location where the transmission is most effective differs depending on the usage environment.
• The Wireless feature of the Display supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.
• You must change your modem's SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.

Configuring Wireless Device Settings

Open the Network/Internet Settings menu and select Network Type as Wireless Device to start connection process.

The Display will scan the wireless networks automatically. A list of available networks will be displayed. Please select your desired network from the list.

Note: If the modem supports N mode, you should set N mode settings.

If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the directional buttons and the OK button on the remote control.

Wait until the IP address is shown on the screen.

This means that the connection is now established. To disconnect from a wireless network, highlight Network Type and press Left or Right buttons to set as Disabled.

If your router has WPS (Wi-Fi Protected Setup) button, you can directly connect your Display to the modem/router without entering a password or adding the network first. Highlight the Press WPS on your wifi router option and press the OK button. Then press the WPS button on your router/modem to connect.

Highlight Internet Speed Test and press the OK button to check your internet connection speed. Highlight Advanced Settings and press the OK button to open the advanced setting menu. Use directional and numeric buttons to set. Press the OK button to save settings when complete.

Wireless Display

Wireless Display is a standard for streaming video and sound content by Wi-Fi Alliance. This feature provides the ability to use your Display as wireless display device.

Using with mobile devices

There are different standards which enable sharing of screens including graphical, video and audio content between your mobile device and Display.

Plug the wireless USB dongle to Display first, if the Display doesn't have internal WiFi feature.

Then press the Source button on the remote and switch to Wireless Display source.

A screen appears stating that the Display is ready for connection.

Open the sharing application on your mobile device. These applications are named differently for each brand, please refer to the instruction manual of your mobile device for detailed information.

Scan for devices. After you select your Display and connect, the screen of your device will be displayed on your Display.

Note: This feature can be used only if the mobile device supports this feature. Scanning and connecting processes differ according to the programme you use. Android based mobile devices should have the software version V4.2.2 and above.

Connecting Other Wireless Devices

Your Display supports another short range wireless connection technology too. A pairing is required before using these kind of wireless devices with the Display

set. You should do the followings to pair your device with the Display:

• Set the device to pairing mode
• Start device discovery on the Display

Note: Refer to the user manual of the wireless device to learn how to set the device to pairing mode.

You can connect audio devices wirelessly to your Display. Unplug or switch off any other connected audio device in order for wireless connection feature to work correctly. For audio devices you should use the Audio Link option in the System>Sound menu. Select the menu option and press the OK button to open the related menu. Using this menu you can discover and connect the devices that use the same wireless technology and start to use them. Follow the on-screen instructions. Start the device discovery. A list of available wireless devices will be displayed. Select the device you want to connect from the list and press the OK button to connect. If "Device connected" message is displayed, the connection is successfully established. If the connection fails try it again.

Note: Wireless devices may operate within the same radio frequency range and may interfere with one another. To improve the performance of your wireless device place it at least 1 meter away from any other wireless devices.

Connectivity Troubleshooting

Wireless Network Not Available

• Ensure that any firewalls of your network allow the Display wireless connection.
• Try searching for wireless networks again, using the Network/Internet Settings menu screen.

If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connectivity section for more information on the process.

If the Display does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.

Connection is Slow

See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following in such a case:

Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.

Internet Connection Not Available

If the MAC address (a unique identifier number) of your PC or modem has been permanently registered, it is possible that your Display might not connect to the internet. In such a case, the MAC address is authenticated each time when you connect to the internet. This is a precaution against unauthorized access. Since your Display has its own MAC address, your internet service provider cannot validate the MAC address of your Display. For this reason, your Display cannot connect to the internet. Contact your internet service provider and request information on how to connect a different device, such as your Display, to the internet.

It is also possible that the connection may not be available due to a firewall problem. If you think this causes your problem, contact your internet service provider. A firewall might be the reason of a connectivity and discovery problem while using the Display in Audio Video Sharing mode or while browsing via Audio Video Sharing feature.

Invalid Domain

Ensure that you have already logged on to your PC with an authorized username/password and also ensure that your domain is active, prior to sharing any files in your media server program on your PC. If the domain is invalid, this might cause problems while browsing files in Audio Video Sharing mode.

Internet Browser

To use the internet browser enter the main menu first by pressing the Menu botton. Then launch the Internet Browser application from the Internet menu.

(*) The appearance of the internet browser logo may change In the initial screen of the browser, the thumbnails of the predefined (if any) links to web sites available will be displayed as Speed Dial options along with the Edit Speed Dial and the Add to Speed Dial options.

You can press the Internet button on the remote to open the initial internet browser page. If the Open browser initial page URL in the Signage Settings>Link Options menu is defined, the browser will open on this page. Otherwise this button will not be functional.

To navigate the web browser, use the directional buttons on the remote or a connected mouse. To see the browser options bar, move the cursor to the top of the page. History, Tabs and Bookmarks options and the browser bar which contains previous/next buttons, the refresh button, the adress/search bar, the Speed Dial and the Opera buttons are available.

To add a desired website to the Speed Dial list for quick access, move the cursor to the top of the page. The browser bar will appear. Highlight the Speed Dial button and press the OK button. Then select Add

to Speed Dial option and press the OK button. Fill in the blanks for Name and Address, highlight OK and press the OK button to add. Whilst you are on the site you wish to add to the Speed Dial list, highlight the Opera-0 button and press the OK button. Then highlight Add to Speed Dial option in the submenu and press the OK button again. Name and Address will be filled automatically according to the site you are visiting. Highlight OK and press the OK button to add.

You can also use the Opera menu options to manage the browser. Highlight the Opera-0 button and press the OK button to see available page specific and general options.

There are various ways to search or visit websites using the web browser.

Enter the address of a website(URL) into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to visit the site.

Enter keyword/s into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to start a search for the related websites.

Highlight a Speed Dial thumbnail and press the OK button to visit the related website.

Your Display is compatible with USB keyboard/mice. Plug your device into the USB input of your Display for easier and quicker navigation.

Some web pages include flash content. These are not supported by the browser.

Your Display does not support any download processes from the internet via the browser.

All sites on the internet might not be supported. According to the site; content problems may occur. In some circumstances video contents might not be able to be played.

Internal USB Operations

Your Display has an internal memory. There are 4 operations available that can be performed with the internal memory: Copy From USB, Copy To USB, Delete and Format Disk (FAT32 only).

These options can be found in the Signage Settings>Internal USB operations menu.

The internal memory of your Display has a default folder named "int_usb" in the root directory. All Copy From/To USB operations are performed using this folder. If you want to copy data from an external USB storage device to the internal memory of your Display, this/these data file/s should be installed in a folder named "copy_to_int_usb" in the root directory of the external USB storage device. If you want to copy data from the internal memory of your Display to an external USB storage device, a folder named

"copy_from_int_usb" should be created in the root directory of the external USB storage device.

Copy From/To USB operations will only be available if a USB storage device is connected to your Display. Delete and Format Disk options will be still functional, even if no USB storage device is connected. The default "int_usb" folder in the root directory of the internal memory will be automatically recreated after each time Delete and Format Disk operations are performed.

OSD Rotation Support (\*)

You can change the OSD (On Screen Display) rotation of your Display if desired. While performing First time installation set the OSD Orientation option as desired when the Signage Settings menu is displayed. You can also change this setting later from the Signage Settings>Controls menu. Available options are: Landscape and Portrait.

(*) This feature may not be available depending on the model of your Display

DisplayPort

DisplayPort version 1.2 is supported via the DisplayPort input and output connectors on your Display.

DP Stream Setting option in the System>Settings>More menu is set as MST(Multi-Stream Transport) by default. If a MST compliant source device is connected to the Display, the streaming data should be configured on the source device (Daisy-chaining). If DisplayPort version 1.1 compliant or SST (Single-Stream Transport) compliant source device with DisplayPort version 1.2 support is connected to the Display, DisplayPort output on the Display will work as a splitter. In this case, same image will be displayed in all connected Displays.

To be able to stream the same image to all connected Displays using a MST compliant device, DP Stream Setting option in the System>Settings>More menu should be set as SST.

The maximum amount of the Displays that can be connected by using daisy-chaining function may differ depending on the source device's capacity. The image that will be displayed in all Displays will be defined by the source device. For example, to be able to stream 4 different FHD images, the source device should be capable of supporting this operation.

Note: It is recommended to use a DisplayPort certified cable for connection.

In SST operation mode the total amount of the Displays is limited (a maximum of 7 units) due to HDCP encryption. If the signal is stable and there is no cable loss, there will be no limitation in case the source content is not HDCP-encrypted. When using cascade-connected Displays, it is recommended to set the DP Stream Setting as SST on all Displays in SST operation mode.

For proper operation in MST operation mode make sure your source device is MST compliant. If your source device is a computer check the specifications of its graphic card to ensure MST compatibility. When using daisy-chained Displays, it is recommended to set the DP Stream Setting as MST on all Displays in MST operation mode.

Controlling With An External PC

PC RS-232 to USB Adaptor RS-232 straight cable (commercially available) RS-232 Input Socket To COM port

You can control the product from an external PC via RS-232 (COM port) or LAN (Ethernet port) on the PC. For instance, system source can be changed by RS-232 from remote computer. When a command is sent from the PC to the product, the product operates according to the received command and sends a response message to the PC. (NOTE: Only certain commands are supported according to your model)

Equipment/Tools:

• RS-232 (female) to RS-232(male) cable or LAN cable (connected via router)
  • USB to RS-232(male) cable
• Notebook or PC which has USB or LAN port
• Installed program on remote PC to send commands: In general, the RS-232 commands are sent for operating the implemented functions via serial port

and utility. A suitable utility can be used such as described below.

Connecting to the Display (LAN port)

Download and install the PuTTY software from the following link first: http://www.putty.org/.

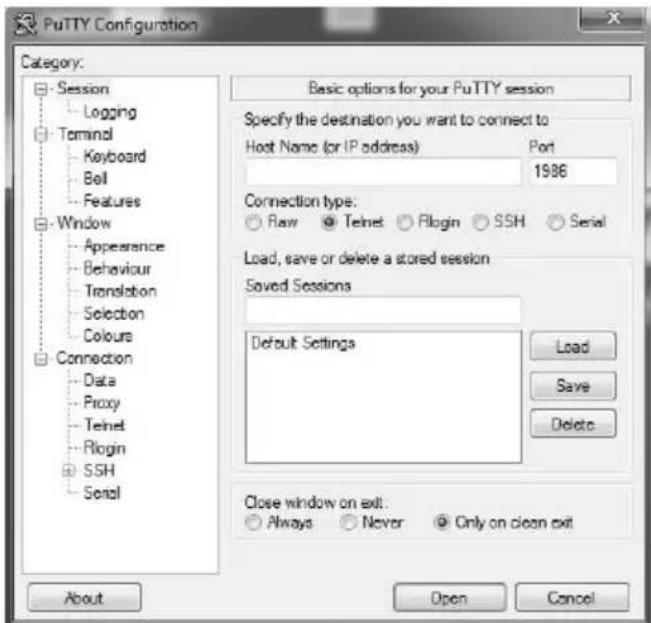

Run the software and enter the Display's IP address in the field Host Name. Enter "1986" as a default value in the field Port. Then select "Telnet" as Connection type and click the Open button.

Note: Refer to the Connectivity section of this manual for information on connecting the Display to a network and displaying the IP address of the Display.

PuTTY Configuration Category: Session Logging Terminal Keyboard Bell Features Window Appearance Behaviour Translation Selection Colours Connection Data Proxy Teinet Rlogin SSH Serial Basic options for your PuTTY session Specify the destination you want to connect to Host Name (or IP address) Port 1986 Connection type: Raw Telnet Rlogin SSH Serial Load, save or delete a stored session Saved Sessions Default Settings Load Save Delete Close window on exit: Always Never Only on clean exit About Open Cancel

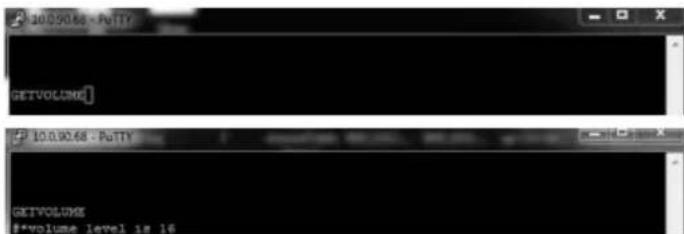

Use the commands in the RS232 Command Table. For example, if "GETVOLUME" command is entered, current volume level should be displayed on the putty window as shown in the pictures below.

10.90.68 - PUTY GETVOLUME 10.90.68 - PUTY GETVOLUME #*volume level is 16

Another example;

Volume level can be changed by using "VOLUME" command. After sending this command, you can verify the changes from the Display.

VOLUME 15 #*set. volume to 15

The last example ;

When "GETSOURCE" command is entered, current source should be displayed on the putty window as shown in the picture below.

GETSOURCE #*source is HMI1

Connecting to the Display (RS232 port)

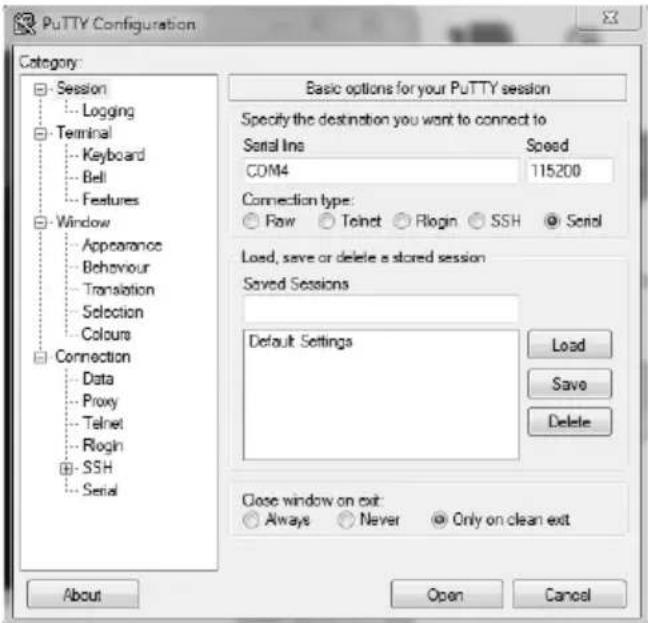

Run the software and select Serial as Connection Type. Enter the Display's serial port in the field Serial Line (in the following example it is COM4) and "115200" in the field Speed. Then click the Open button.

PuTTY Configuration Category: Session -- Logging Terminal -- Keyboard -- Bell -- Features Window Appearance Behaviour Translation Selection Colours Connection Data Proxy Telnet Rlogin SSH Serial Basic options for your PuTTY session Specify the destination you want to connect to Serial line Speed COM4 115200 Connection type: ● Flow ● Telnet ● Rlogin ● SSH ● Serial Load, save or delete a stored session Saved Sessions Default Settings Load Save Delete Close window on exit: ● Always ○ Never ○ Only on clean exit About Open Cancel

Note : Some commands apply to certain models only and may not work for your particular model.

RS232/LAN Command Tables

AUDIO COMMANDS
Command Description	Option Parameter Return
GETVOLUME Volume	level information. no parameter #*volume level is ...
HEADPHONEVOLUME	"Set headphone volume level." integer n (0 ≤ n ≤ 100) #*set headphone volume to n
GETHEADPHONEVOLUME	"Headphone volume level information." no parameter #*headphone volume is ...
GETMUTE Get mute	value on/off. no parameter		"*MUTE OFFor"*MUTE ON"
SETMUTE Set mute	value on/off. no parameter		"*MUTE OFFor"*MUTE ON"
SETSOUNDMODE	"Set sound mode.SETEUSERFREQ 100Hz 10"	"integer n (0 = mono, 1 = stereo, 2 = dual I, 3 = dual II, 4 = mono left, 5 = mono right)"	"*setSoundMode() set to nor"*Invalid sound mode entered"
SETBALANCE Set balance value. integer n (-50 < n < 50)	"*set balance level to nor"*invalid balance level entered"
GETBALANCE Get balance value. no parameter #*balance level is ...
SETAVL	Set AVL state. integer n (0 = off, 1 = on)	"*set avl state to n
GETAVL	Get AVL state. no parameter	"*avl state is ...
SETDYNAMICBASS	Set dynamic bass state. integer n (0 = off, 1 = on)	"*set dynamic bass state to n
SETEUSERFREQ	Set equalizer user freq.value for any band. "string n (120Hz, 500Hz, 1.5KHz, 5KHz, 10KHz) integer n -13 < n < 13Example: SETEUSERFREQ 120Hz 10"	"*setEQUserFreq() set to n or"*Incorrect sound system parameter enteredor"*Incorrect equalizer mode. It should be USER mode"
GETDIGITALOUT	Get digital out. no parameter	"*digital out is pcm or *digital out is compressed
SETEQMODE	Set equalizer mode. string n (Music, Movie, Speech, Flat, Classic, User)	"*setEQMode() set to nor"*Incorrect equalizer parameter entered"
SETDIGITALOUT	Set digital out. string n (compressed, pcm)	"*setDigitalOut() set to n OR"*Incorrect digital out mode parameter entered
VOLUMEUP	"Increase Volume Level by 1 step(Until max volume) " no parameter	"*volume LEVEL is increased to...or"*You can NOT increase volume LEVEL further. Confirmed Max Volume Level is ..."
VOLUMEDOWN	Decrease Volume Level by 1 step no parameter	"*volume LEVEL is decreased to..or"*You can NOT decrease volume LEVEL further. Current Volume level is ..."
SETHEADPHONEOUTPUT	Set headphone output string n (headphone,lineout)		"#*set headphone output to n or #*Invalid Parameter"
GETHEADPHONEOUTPUT	Get headphone output no parameter #*LINEOUT or #*HEADPHONE
GETDYNAMICBASS Get dynamic bass state. no parameter			#*the dynamic bass state is ... (0 = off, 1= on)
GETBASSGAIN Get bass gain no parameter			"#*the bass gain level is n Note: Above n is -6 <= n <= 6"
GETEQUSERFREQ	Get equalizer user freq. value of specified band	string n (120Hz, 500Hz, 1.5KHz, 5KHz, 10Khz)	"#*the equalizer value for the band is n or #*Incorrect sound system parameter entered Note: Above n is -13 < n < 13"
GETEQMODE Get equalizer mode no parameter			"#*the equalizer mode is n Note: Above n is one of Music, Movie, Speech, Flat, Classic, User"
SOUNDRESET Reset sound settings no parameter			"#*Fixed Volume is set to ... #*Fixed volume availability is set to ... #*Headphone volume control availability is set to ... #*Start volume availability is set to ... #*Start volume limit is set to ... #*Start headphone volume limit is set to ... #*Lower volume limit is set to ... #*Upper volume limit is set to ... #*Headphone volume limit is set to ... #*Wakeup time volume is set to ... #*All equalizer bands are set to ... #*Volume is set to ... #*Headphone volume is set to ... #*Headphone balance is set to ... #*Headphone bass is set to ... #*Headphone treble is set to ... #*Digital audio out is set to ... #*Audio output description path is set to ... #*Audio description is ... #*Audio description relative volume is set to ... #*Audio description language is set to ... #*Sound Loudness is set to ... #*Sound mode digital is set to ... #*Sound mode is set to ... #*Sound subwoofer is set to ... #*SPDIF out is ... #*DTS is ... #*Bass gain is set to .. or #*Dynamic bass is ... "
BROWSER COMMANDS
Command Description	Parameter Return
OPENURL	Starts the given URL and returns web page load status directly.	string-integer n <load url='n' />	#*status= ... url=n
GETURL	Gets URL of the current page if the portal is active.	no parameter #*URL : ...
GETUSERAGENT	Gets portal user agent. no parameter #*Current UA : ...
GETCURSORPOSITION	Gets cursor position in the browser.	no parameter #*X: ... Y: ...
SETCURSORPOSITION	Sets cursor position in the browser.	string-integer a,b #*X: a Y: b
SETSETTINGSURL	Sets the settings URL string #*Setting URL is set
GETSETTINGSURL	Gets the settings URL no parameter #*Setting URL is ...
SETSTARTURL	Sets the start URL string #*Start URL is set
GETSTARTURL	Gets the start URL no parameter #*Start URL is ...

GENERAL DISPLAY COMMANDS
Command Description Parameter		Return
SETRC	Enables/disables remote control commands.	string-integer n (n = ON, n = OFF)	set remote state On or set remote state OFF
SETSOURCE	Set source as enable/disable.	"string n, integer b (n = SCART1, n = SCART2, n = FAV, n = SVHS, n = HDMI1, n = HDMI2, n = HDMI3, n = HDMI4, n = YPBPR, n = VGA, n = SCART1S, n = SCART2S) (b = 1(enable), b = 0(disable))"	"*Selected source n\n*Enable/Disable state : b"
GETSOURCE	Gets source.	no parameter	#source is ...
GETCOUNTRY	Get country in channels state.	no parameter	*COUNTRY IS : ...
GETSWVERSION	Returns the software version of tv.	no parameter	*V...
KEY	Send key to Eclipse.	string-integer n (n = 0, n = 1, ..., n = up, ..., n = menu, ....ext.)	n key send to Eclipse
RESET	Reset the device.	no parameter	Reset process was successfully accomplished. You need to establish the connection again.
STANDBY	Switch display to hard standby.(Note: Don't use this command with the product that has OPS. You can use other "KEY standby" command.)	no parameter	"*enterLowPowerMode() returns successfully. or\n*enterLowPowerMode() returns unsuccessfully! or\n*enterStandbyMode() returns successfully. or\n*enterStandbyMode() returns unsuccessfully!"
MENUTIMEOUT Set	menu time out mode.	integer n (n = 0 , n = 15, n = 30, n = 60)	"*set menu timeout mode to OFF or"*set menu timeout mode to 60 or"*Invalid menu timeout mode"
GETMODELNO Get model no. no parameter #*Model no: ...
GETSERIALNO Get serial no. no parameter #*Serial no: ...
GETLED Get led on/off state. no parameter			"*LED is on"*LED is off"
GETRC	Get remote control commands enabled status	no parameter	"*remote control commands are on"*remote control commands are off"
USBOPERATIONS Perform USB Operations no parameter			You may observe prints Bank 0, Bank 1 etc. Be sure or observe debug print outs: "MFC ISP: done" will be written... This may take over 10 minutes.
GETMENUTIMEOUT Get menu time out mode no parameter			"*menu timeout mode is OFF"*menu timeout mode is n"*can not get menu timeout mode Note: Above n is one of (15, 30, 60)"
GETTVLIFETIME	Prints Monitor life time in minutes.	no parameter #*Monitor Life Time: n
SETPOWERONDELAY Set poweron delay level		integer n (0<=n<=20, delay is calculated as 100ms*n)	"*Poweron delay set to ... Ms"*NACK"
GETPOWERONDELAY Get poweron delay level no parameter #*The power on delay is ... ms
SIGNAGERESET	Set all items in the signage settings menu to their default values.	no parameter	"*All signage settings set to default values
SELECTSOURCE	Select source.(0=TV, other source indexes(some of them are not enabled))	integer n (5=FAV,7=HDMI1, 8=HDMI2,11=YPbPr, 12=Vga,18=DVI, 19=DP,20=OPS)	"*select TV source or"*select External source ..."
KEY standby	Switch box to Standby mode. ( For quick standby)	no parameter standby key send to Eclipse
TIME	Display the current date and time.	no parameter Time = ...
GETSTANDBY	Get standby on/off.	no parameter	"*standby off or"*standby on"
STARTFTI	Start First Time Installation.	no parameter #*FTI was initialising.
CHANGELNG Change active language.	"integer-integer x yx = language type (0 = System Language, 1 = Event Language, 2 = Primary Audio Language, 3 Secondary Audio Language,4 = Primary SubtitleLanguage, 5 = Secondary Subtitle Language, 6 = Primary Teletext Language,7 = Secondary Teletext Language)y = language (0 = Danish,1 = German, 2 = Estonian,3 = English, 4 = Spanish,5 = Greek, 6 = French,7 = Gaelic, 8 = Croatian,9 = Italian, 10 = Latvian,11 = Lithuanian, 12 = Hungarian, 13 = Dutch, 14= Norwegian, 15 = Polish,16 = Portuguese, 17 = Russian, 18 = Romanian, 19= Albanian, 20 = Slovenian,21 = Slovak, 22 = Serbian,23 = Finnish, 24 = Swedish,25 = Turkish, 26 = Czech, 27= Ukrainian, 28 = Bulgarian,29 = Arabic, 30 = Persian, 31= Hebrew , 32 = Belarusian,33 = Macedonian, 34 = Montenegrin, 35 = Kazakh,36 = Thai)Example: CHANGELNG 0 25(To set system language to Turkish)"	"**Active language was changed or"*Incorrect item parameter entered"
SETCOUNTRY	Set country in no channels state.	"##* setCountry() set to nor"*Country should be set only in the FTI mode (no channels state)"
SETQUICKSTANDBY	SETQUICKSTANDBYn, where n is one of (off, on).	"*Set Quick Standby onor"*Set Quick Standby offor"*Quick Standby is not enabled"
GETQUICKSTANDBY	Returns Quick Standby state n (on or off)	#*Quick Standby is n
USBOPERATIONS Perform USB Operations no parameter		You may observe prints Bank 0,Bank 1 etc. Be sure or observedebug print outs: "MFC ISP: done"will be written... This may take over 10 minutes.

NETWORK COMMANDS
Command Description	Parameter Return
set_IP_address	Set static IP address of eth0 network interface.	str-int n Example: set_IP_address 192.168.0.15	"*IP address setting Succesfull #*IP address setting NOK"
get_IP_address	Get IP address of eth0 network interface. Usage: get_IP_address	no parameter #*IPaddr: ...
SETNETWORKTYPE	set network type (eg. SETNETWORKTYPE value) (value should be 'wired', 'wireless' or 'disabled' as string)	string n ('wired', 'wireless' or 'disabled')	#*Network type is set to:
GETNETWORKTYPE	get network type (eg. GETNETWORKTYPE)	no parameter	#*the network type is
SETSUBNETMASK	set subnet mask (subnet mask value should be of format nnn.nnn.nnn.nnn) (eg. SETSUBNETMASK nnn.nnn.nnn.nnn)	string "nnn.nnn.nnn.nnn"	"*set subnet mask: nnn.nnn.nnn.nnn#*setting subnet mask is failed"
GETSUBNETMASK	get subnet mask (eg. GETSUBNETMASK)	no parameter	#*the subnet mask is nnn.nnn.nnn.nnn
SETDEFAULTGATEWAY	set default gateway (default gateway value should be of format nnn.nnn.nnn.nnn) (eg. SETDEFAULTGATEWAY nnn.nnn.nnn.nnn)	string "nnn.nnn.nnn.nnn"	"*set default gateway: nnn.nnn.nnn.nnn"*setting default gateway is failed"
GETDEFAULTGATEWAY	get default gateway (eg. GETDEFAULTGATEWAY)	no parameter	#*the default gateway is nnn.nnn.nnn.nnn
GETDNS1	get DNS server 1 (eg. GETDNS1)	no parameter	#*DNS server 1 is nnn.nnn.nnn.nnn
GETDNS2	get DNS server 2 (eg. GETDNS2)	no parameter	#*DNS server 1 is nnn.nnn.nnn.nnn
INTERNETSPEED start internet speed test no parameter			" Speed test is started.Prints ""No internet connection found"" message if fails."

VGA/PC COMMANDS
Command Description	Parameter Return
HPOS Set horizontal position. int n (-25 ≤ n ≤ 25)		"set horizontal position to ... (percentage in the range)#*invalid value entered"
VPOS Set vertical position. int n (-25 ≤ n ≤ 25)		"#*set vertical position to ... (percentage in the range)#*invalid value entered"
DOTCLOCK Set dot clock. int n (-50 ≤ n ≤ 50)		"#*set dot clock to ... (percentage in the range)#*invalid value entered"
AUTOPOS Set auto position no parameter #*set auto position
GETOSDORIENTATION	Get OSD orientation	no parameter	#*The OSD orientation ...
GETHPOS	Get horizontal position.	no parameter	#*The horizontal position is ...
GETVPOS	Get vertical position.	no parameter	#*The vertical position is ...
GETDOTCLOCK	Get dot clock.	no parameter	#*The dot clock is ...

SETOPSPOWER Set OPS power status

string parameter "on" or "off"

"*Turning OPS on\n*Turning OPS off\n*The OPS is already on\n*The OPS if already off\n*The OPS is not enabled\n*The OPS is not plugged in\n*invalid value entered"

PICTURE COMMANDS
Command Description	Parameter Return
COLOURTEMP Set colour temperature.		str-int n (n = normal, warm, cool)	#*setColourTemp() set to n
GETPICTUREMODE Get picture mode. no parameter			#*Picture Mode is ... for current source
PICTUREMODE Select picture mode.		int n (1 = dynamic, 2 = natural, 3 = cinema, 4 = game)	"#*setPictureMode() set to n #*Incorrect picture mode paramater entered"
GETCONTRAST	Get picture contrast value.	no parameter #*THE CONTRA	ST VALUE : ...
SETCONTRAST	Set picture contrast value.	int n (0 ≤ n ≤ 100)	"#*Picture contrast value is set to n #*Same value is set. Do nothing. #*Incorrect value must between defined ranges 0-100"
GETBRIGHTNESS	Get picture brightness value.	no parameter #*THE BRIGHTNESS VALUE : ...
SETBRIGHTNESS	Set picture brightness value.	int n (0 ≤ n ≤ 100)	"#*Picture brightness value is set to n #*Same value is set. Do nothing. #*Incorrect value must between defined ranges 0-100"
GETSHARPNESS	Get picture sharpness value.	no parameter #*THE SHARPNESS VALUE : ...
SETSHARPNESS	Set picture sharpness value.	int n (0 ≤ n ≤ 100)	"#*Picture brightness value is set to n #*Same value is set. Do nothing. #*Incorrect value must between defined ranges 0-100"
GETCOLOUR Get picture colour value. no parameter #*THE COLOUR VALUE : ...
SETCOLOUR Set picture colour value. int n (0 ≤ n ≤ 100)			"#*Picture colour value is set to n #*Same value is set. Do nothing. #*Incorrect value must between defined ranges 0-100"
SETSKINTONE	Set picture skin tone value.	int n (-5 ≤ n ≤ 5)	"#*Picture skin tone value is set to n #*Same value is set. Do nothing. #*Incorrect value must between defined ranges -5-5"
PICTUREZOOM Set picture zoom mode.		str-int n (n = auto, 16:9, subtitle, 14:9, 14:9zoom, 4:3, full(only for HD channels), panaromic, cinema)	"#*setPictureZoomMode() set to n #*Incorrect picture zoom mode parameter entered"
SETWB Set white balance value.		str-int type, value (type = redgain, greengain, bluegain, redoffset, greenoffset, blueoffset) (0 ≤ value ≤250)	"#*White Balance is set to value Invalid value for White Balance (0-255) Invalid type for White Balance"
GETWB Get white	balance value.	str-int type (type = redgain, greengain, bluegain, redoffset, greenoffset, blueoffset)	#* type ...
SET3DMODE	Set 3D mode values (values are off, auto, side by side, top bottom and game)	int n (n = off, auto, side by side, top bottom, game)	"*set3DMode() set to n\n#Incorrect 3d mode parameter entered"
SETVIRTUAL3D Set virtual 3d values.		int n (0 = off, 1 = low, 2 = medium, 3 = high)	"seMonitorirtual3D() set to n\nIncorrect virtual 3d mode paramater entered"
CONTRASTUP	Increase Contrast Level by 1 step	no parameter Picture contrast	value is set to ...
CONTRASTDOWN	Decrease Contrast Level by 1 step	no parameter Picture contrast	value is set to ...
GETENERGYSAVING	Get energy saving mode. (if enabled from profile)	no parameter #*The energy saving mode is ...
GETPOWERSAVE Get power save mode no parameter			"*Powersavemode is ON\n#*Powersavemode is OFF"
GETCOLOURTEMP Get colour temperature. no parameter #*Colour temp is ...
GETHUE Get picture hue value. no parameter #*Hue level is ...
GETSKINTONE	Get picture skin tone value.	no parameter #*Picture skin tone is ...
GETPATTERN	Get selected pattern of the Monitor screen	no parameter The pattern is ...

VIDEO WALL COMMANDS
Command Description	Parameter Return
SETROWCOUNT	Set row count.	integer n (0 ≤ n ≤ 100)	#*set row count to n
GETROWCOUNT Get	row count. no p	parameter #*row count is ...
SETCOLUMNCOUNT	Set column count.	integer n (0 ≤ n ≤ 100)	#*set column count to n
GETCOLUMNCOUNT	Get column count. no para	meter #*column count is ...
SETCELL	Set cell.	integer n (0 ≤ n ≤ 100)	#*set cell to n
GETCELL	Get cell.	no parameter	#*cell is ...
SETOFFSET	Set offset.	integer n (0 ≤ n ≤ 100). n is the number of pixels which will be cropped from all four sides.	#*set offset to n
GETOFFSET	Get offset.	no parameter	#*offset is ...
SETVIDEOWALL	Set videowall parameters	"parameters for items in following format: RowCount-ColumnCount-Cell-Offset"	#*set row count to ..., set column count to ..., set cell to ..., set offset to ...
GETVIDEOWALL Get	videowall parameters no p	parameter	#*row count is ..., column count is ..., cell is ..., offset is ...
SETALLVIDEOWALL	Set all videowall parameters	"parameters for items in following format: picture_mode-contrast-brightness-sharpness-color-powesave_mode-backlight_mode-colortemp-zoom_mode-hdmi_trueblack-picture_hue-volume-headphone_volume"	#*... ("set to" for each parameter in order)
GETALLVIDEOWALL	Get all videowall parameters	no parameter	#*picture_mode-contrast-brightness-sharpness-color-powesave_mode-backlight_mode-colortemp-zoom_mode-hdmi_trueblack-picture_hue-volume-headphone_volume
SETPIXELSHIFT	Set pixel shift is enabled or not	string-integer n (n = on, n = off)	"#*ACK #*NACK"
GETPIXELSHIFT Get	pixel shift no parameter #*Pixel Shift is ...
SETSIGNAGEID Set	Signage ID	integer n (1 ≤ n ≤ 100). n is the Signage ID	"#*ACK #*NACK"
GETSIGNAGEID Get	Signage ID no parameter		"#*The signage ID is ... (If return value is 0, then it means no signage id is assigned. 0 is the default value.)"

MEDIA BROWSER COMMANDS
Command Description	on Parameter Return
SETVIEWSTYLE	set view style (Flat or Folder)	string n (Flat, Folder)	#*The view style is set to ... (Flat or Folder)
GETVIEWSTYLE	get view style (Flat or Folder)	no parameter	#*The view style is ... (Flat or Folder)
SETSLIDESHOWINTERVAL	set slide show interval	integer n (5, 10, 15, 20, 25, 30)	#*The slideshow interval is set to ... seconds
GETSLIDESHOWINTERVAL	get slide show interval no parameter	#*The slideshow interval is ... seconds
SETUSBAUTOPLAY set	usb autoplay mode string n (ON, OFF)	#*The USB autoplay is set to ... (ON, OFF)
GETUSBAUTOPLAY	get usb autoplay mode	no parameter	#*The USB autoplay is ... (ON, OFF)

ADMIN PANEL COMMANDS
Command Description	Option Parameter Return
RST Restart no	parameter #Monitor will be	restarted
STV	Sets Monitor Volume, parameter value will ve set for volume level	integer (volume level)	#Volume set level= ...
STL	Set Monitor Language	string-int (please look at abbreviations of languages)	#Language changed to ...
STWA	Stop wake up alarm	no parameter	#WakeupAlarm stopped !!!
STEA	Stop emergency alarm	none	#Emergency Alarm is stopped !!!
UNP	Send Message	"string-int (message text - 0) [message content should be ""word1+ word2+word3 ...""]	#Message Sent in SUCCESS !!!
GTSURL	Get Monitor Portal URL	none	#StartUp url is ....
SIGNAGE SETTINGS COMMANDS
Command Description	on Parameter Return
GETTOTALSPACE	get total usb space (in MB)	no parameter #*The total space is ... MB
GETFREESPACE	get free usb space (in MB)	no parameter #*The total space is ... MB
SAVEMODELINFO	saves model name and sw version to a removable device	no parameter	#*Model info is savedOR#*No Removable drive is connected(If there is no device connected)
SETSCHEDULER	enables/disables scheduler	string n (ON, OFF)	#*The scheduler is set to .... (ON, OFF)
GETSCHEDULER	get scheduler enabled/disabled	no parameter #*The scheduler	is .... (ON, OFF)
SETSCHEDULEOP	set scheduler parameters	string n ( on time_off time_source in format: hh:mm_hh:mm_source )	#*Schedule parameters are ... (set/not set).
GETSCHEDULEOP	get scheduler parameters	no parameter	#*Scheduler on/off time and source is: ......(hh:mm_hh:mm_source)

RS232 HEX Commands

Protocol Test Steps

- Before testing, please know the board type you have. There are two types of board. The UART 0 and UART 1 connections of the these boards are explained below:

1. RJ12 is connected to UART 0, DSUB9 is connected to UART 1. Therefore, UART 0 and UART 1 could be tested separately in this type of the board
2. RJ12 and DSUB9 both are connected to UART 0. UART 1 is supported for OPS module but not reachable. Therefore, only UART 0 could be tested in this type of the board.

- Activate HEX protocol on Display.

a. Enter Signage Settings Menu.
b. Change ASCII option to HEX in UART 0 or UART 1 sub-menu item

- Open any serial port communications program (e.g Realterm). Configure serial communication settings as below:

Baud Rate : 19200 for UART0, 9600 for UART1

Parity : None

Data Bits : 8

Stop Bits : 1

Handshake : None

- Note that UART0 default value: ASCII, UART1 default value: HEX

In the tables given below, XY represents are variable byte.

All byte values are hexadecimal.

Error Responses

• NAK reply: 15 When the display cannot understand the received command, it returns this value. In such a case, check the sending code and send the same command again.
• Error reply: 1C 00 00 When the display cannot execute the received command for any reasons, it returns this value. In such a case, check the sending code and the setting status of the display.

Command received by display															Reply sent by display for successful operation
Byte Number 0 1 2 3 4		5 6 7	8 9 10	11 12											0 1	2 Notes
		Header Data
		Header code		Packet	Data Size		CRC flag		Action Type				Setting code
Name O	Operation L H L	H L H	L H H	L H L H
Monitor	ON BE EF 03 06	00 19	D3 02	00 00	60 02	00 06
	OFF	BE	EF 03	06 00	19 D3	02 00	00 60	01 00	06
	GET	BE	EF 03	06 00	19 D8	03 00	00 60	07 00	1D 00	XY								XY can be either 00 or 01. 00 means OFF, 01 means ON.
Mute	ON BE EF 03 06	00 D6	D2 01	00 02	20 01	00 06
	OFF	BE	EF 03	06 00	46 D3	01 00	02 20	00 00	06
	GET	BE	EF 03	06 00	75 D3	02 00	02 20	00 00	1D 00	XY								XY can be either 00 or 01. 00 means OFF, 01 means ON.
Screen	ON BE EF 03 06	00 6B	D9 01	00 20	30 01	00 06
	OFF	BE	EF 03	06 00	FB D8	01 00	20 30	00 00	06
	GET	BE	EF 03	06 00	C8 D8	02 00	20 30	00 00	1D 00	XY								XY can be either 00 or 01. 00 means OFF, 01 means ON.
Source	OPS	BE	EF 03	06 00	FE D2	01 00	00 20	00 00	06
	HDMI	BE	EF 03	06 00	E D2	01 00	00 20	03 00	06
	VGA	BE	EF 03	06 00	E D2	01 00	00 20	01 00	06
	FAV	BE	EF 03	06 00	00 00	01 00	00 20	05 00	06
Source	HDMI2	BE	EF 03	06 00	00 00	01 00	00 20	08 00	06
	YPbPr	BE	EF 03	06 00	00 00	01 00	00 20	0B 00	06
	DP	BE	EF 03	06 00	00 00	01 00	00 20	13 00	06
	WIDI	BE	EF 03	06 00	00 00	01 00	00 20	15 00	06
	GET	BE	EF 03	06 00	CD D2	02 00	00 20	00 00	1D 00	XY								XY can be one of the following: 01: OPS, 02: HDMI, 03: VGA, 04: S-Video, 05: HDMI2, 0B: YPbPr, 6: DVI, 7: DP, 8: WIDI Note that all of the sources are not enabled.
Volume	GET	BE	EF 03	06 00	31 D3	02 00	01 20	00 00	1D 00	XY
	INCREMENT	BE	EF 03	06 00	57 D3	04 00	01 20	00 00	06
	DECREMENT	BE	EF 03	06 00	66 D2	05 00	01 20	00 00	06
	SET	BE	EF 03	06 00	31			D3 03	00 01	20 01	XY 06							XY can take 00 as a minimum and 1D as a maximum.

Command received by display																Reply sent by display for successful operation
Byte Number		0	1	2	3	4	5	6	7	8	9	10	11	12	0 1	2 Notes
		Header							Data
		Header code		Packet	Data Size		CRC flag		Action Type				Setting code
Name O	Operation L H L	H L H L H		L H L H
OPS Power	ON BE EF 03 06	00 BA	D2 01	00 05	20 01	00 06
	OFF BE EF 03 06	00 2A	D3 01	00 05	20 00	00 06
	GET BE EF 03 06	00 19	D3 02	00 05	20 00	00 1D	00 XY										XY can be either 00 or 01. 00 means OFF, 01 means ON.
Backlight	GET BE EF 03 06	00 89	D2 02	00 03	20 00	00 1D	00 XY
	INCREMENT BE	EF 03	06 00	EF D2	04 00	03 20	00 00	06
	DECREMENT BE	EF 03	06 00	3E D3	05 00	03 20	00 00	06
	SET	BE EF 03 06	06 00	89 D2	03 00	03 20	01 XY	06			range: 0x64 - 0x1E
	RESET	BE EF 03 06	06 00	58 D3	06 00	03 20	00 00	06
Auto Adjust	ON BE EF 03 06	00 32	D4 01	00 19	20 01	00 06											Auto adjust command is for only VGA.
	OFF BE EF 03 06	00 A2	D5 01	00 19	20 00	00 06
Keypad Lock	ON BE EF 03 06	00 93	97 01	00 11	24 01	00 06
	OFF BE EF 03 06	00 03	96 01	00 11	24 00	00 06
	GET BE EF 03 06	00 30	96 02	00 11	24 00	00 1D	00 XY										XY can be either 00 or 01. 00 means OFF, 01 means ON.
Remote Controller Lock	ON BE EF 03 06	00 77	97 01	00 16	24 00	00 06
	OFF BE EF 03 06	00 E7	96 01	00 16	24 01	00 06
	GET BE EF 03 06	00 44	97 02	00 16	24 00	00 1D	00 XY										XY can be either 00 or 01. 00 means OFF, 01 means ON.
OSD Menu	ON BE EF 03 06	00 6A	63 01	00 00	37 01	00 06
	OFF BE EF 03 06	00 FA	62 01	00 00	37 00	00 06
Contrast	GET BE EF 03 06	00 FD	D3 02	00 04	20 00	00 1D	00 XY
	SET	BE EF 03 06	06 00	FD D3	03 00	04 20	01 XY	06			range: 0x4E - 0xB2
	INCREMENT BE	EF 03	06 00	9B D3	04 00	04 20	00 00	06
	DECREMENT						4A D2	05 00	00 04	20 00	00 06
Auto Position	EXECUTE	BE EF 03 06	06 00	91 D0	06 00	0A 20	00 00	06
Color Temperature	INCREMENT	BE	EF	03	06	00	0B	F5	10	00	B0	30	03	00	06
	DECREMENT	BE	EF	03	06	00	CB	F8	01	00	B0	30	13	00	06
	GET BE EF 03 06	00 C8	F5 02	00 B0	30 00	00 1D	00 XY										9300K, 6500K, 13000K
Clock	INCREMENT BE	EF 03	06 00	19 D4	03 00	02 21	03 00	06									9300K, 6500K, 13000K
	DECREMENT BE	EF 03	06 00	19 D5	03 00	02 21	04 00	06									9300K, 6500K, 13000K
	GET BE EF 03 06	00 19	D7 03	00 02	21 06	00 1D	00 XY										9300K, 6500K, 13000K
Phase	INCREMENT BE	EF 03	06 00	2F 83	04 00	03 21	00 00	06									9300K, 6500K, 13000K
	DECREMENT BE	EF 03	06 00	FE 82	05 00	03 21	00 00	06									9300K, 6500K, 13000K
	GET BE EF 03 06	00 49	83 02	00 03	21 00	00 1D	00 XY										9300K, 6500K, 13000K
H-Position	INCREMENT BE	EF 03	06 00	97 82	04 00	01 21	00 00	06
	DECREMENT BE	EF 03	06 00	46 83	05 00	01 21	00 00	06
	GET BE EF 03 06	00 F1	82 02	00 01	21 00	00 1D	00 XY										9300K, 6500K, 13000K
V-Position	INCREMENT BE	EF 03	06 00	6B 83	04 00	00 21	00 00	06
	DECREMENT BE	EF 03	06 00	BA 82	05 00	00 21	00 00	06
	GET BE EF 03 06	00 0D	83 02	00 00	21 00	00 1D	00 XY										9300K, 6500K, 13000K
Command received by display															Reply sent by display for successful operation
Byte Number		0	1	2	3	4	5	6	7	8	9	10	11	12	0 1	2 Notes
		Header							Data
		Header code		Packet	Data Size		CRC flag		Action Type				Setting code
Name O	Operation L H L	H L H	L H H	L H L H
Color Temp Gain R	INCREMENT BE	EF 03	06 00	52 F4	04 00	B1 30	00 00	06
	DECREMENT BE	EF 03	06 00	83 F5	05 00	B1 30	00 00	06
	GET BE EF 03 06	00 34	F4 02	00 B1	30 00	00 1D	00 XY
Color Temp Gain G	INCREMENT BE	EF 03	06 00	16 F4	04 00	B2 30	00 00	06
	DECREMENT BE	EF 03	06 00	C7 F5	05 00	B2 30	00 00	06
	GET BE EF 03 06	00 70	F4 02	00 B2	30 00	00 1D	00 XY
Color Temp Gain B	INCREMENT BE	EF 03	06 00	EA F5	04 00	B3 30	00 00	06
	DECREMENT BE	EF 03	06 00	3B F4	05 00	B3 30	00 00	06
	GET BE EF 03 06	00 80	F5 02	00 B3	30 00	00 1D	00 XY
Freeze	EXECUTE BE EF	03 06	00 00	00 06	00 C0	30 00	00 06	Toggles video freeze status.

Maximum Pixel Rates

For Ultra HD panels,

Source Max. Resolution	Colour Space Bits	/Component Pixel/Rate
HDMI 4k@60Hz YCbCr4:2:0 12 bit 445.50MHz
DVI 1080p@60Hz YCbCr4:4:4 8 bit 165MHz
OPS 4k@60Hz YCbCr4:2:0 12 bit 445.50MHz
HDMI (DVI opt) 4k@60Hz YCbCr4:2:0 12 bit 445.50MHz

Supported Media Formats from USB

Supported Video File Formats for USB Mode

Video Codec Resolution Bit Rate Container
MPEG1/2	1080Px2@30fps, 1080P@60fps	40Mbps	MPEG program stream (.DAT, .VOB, .MPG, .MPEG), MPEG transport stream (.ts, .trp, .tp), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv), ASF (.asf)
MPEG4			MPEG program stream (.MPG, .MPEG), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv), ASF (.asf)
XviD			MP4 (.mp4, .mov), AVI (.avi), MKV (.mkv), ASF (.asf)
Sorenson H.263			FLV (.flv), AVI (.avi), SWF(.swf)
H.263			MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv)
H.264	3840x2160@30fps, 1080P@60fps	135Mbps	FLV (.flv), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), MPEG transport stream (.ts, .trp, .tp), ASF (.asf), AVI (.avi), MKV (.mkv)
Motion JPEG	720P@30fps	10Mbps	AVI (.avi), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov), MKV (.mkv), ASF (.asf)
VP8	1080P@30fps	20Mbps	MKV (.mkv), WebM (.webm)
HEVC/H.265	4K2K@60fps	100Mbps	MP4 (.mp4, .mov), MKV (.mkv), MPEG transport stream (.ts, .trp, .tp)
	1080P@60fps	50Mbps	MP4 (.mp4, .mov), MKV (.mkv), MPEG transport stream (.ts, .trp, .tp), 3GPP (.3gpp, .3gp)
VP9	4K2K@30fps	100Mbps	MKV (.mkv), WebM (.webm)

Supported Picture File Formats for USB Mode

Image	Photo	Resolution (width x height)	Remark
JPEG	Base-line	15360x8640	The limit for max resolution depends on DRAM size
	Progressive	1024x768
PNG	non-interlace	9600x6400
	interlace	1200x800
BMP		9600x6400

Supported Audio File Formats for USB Mode

Audio Codec	Sample rate	Bit Rate Container
MPEG1/2 Layer1	16KHz ~ 48KHz	32Kbps ~ 448Kbps	MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), WAV (.wav)
MPEG1/2 Layer2	16KHz ~ 48KHz	8Kbps ~ 384Kbps	MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), WAV (.wav)
MPEG1/2 Layer3	16KHz ~ 48KHz	8Kbps ~ 320Kbps	MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), FLV (.flv), WAV (.wav), SWF (.swf)
AC3	32KHz, 44.1KHz, 48KHz	32Kbps ~ 640Kbps	AC3 (.ac3), AVI (.avi), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG)
EAC3	32KHz, 44.1KHz, 48KHz	32Kbps ~ 6 Mbps	EAC3 (.ec3), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG)
AAC, HEAAC 8KHz	~ 48KHz		AAC (.aac), AVI (.avi), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a), MPEG transport stream (.ts, .trp, .tp), MPEG program stream (.DAT, .VOB, .MPG, .MPEG), FLV (.flv), RM (.ra)
WMA 8KHz ~ 48KHz		128bps ~ 320Kbps	ASF (.wma, .asf), AVI (.avi), Matroska (.mkv, .mka)
WMA 10 Pro M0 48KHz < 192kbps
WMA 10 Pro M1 48KHz < 384kbps
WMA 10 Pro M2 96KHz < 768kbps
G711 A/mu-law 8KHz		64Kbps ~ 128Kbps	WAV (.wav), AVI (.avi), Matroska (.mkv, .mka), 3GPP (.3gpp, .3gp), MP4 (.mp4, .mov, m4a)
LBR (cook)	8KHz, 11.025KHz, 22.05KHz, 44.1KHz	6Kbps ~ 128Kbps	RM (.ra)
FLAC 8KHz~96KHz < 1.6Mbps Matroska (.mkv, .mka)

System Features

Panel

Panel type		75" (190cm) 16/7 UHD DLED
Resolution		3840x2160 UHD
Visual angle	Horizontal	89°
	Perpendicular	89°
Max. brightness		Typ: 400 cd/m2
Response time		6ms
H-Frequency		60 Khz
V-Frequency		67.5 Khz

Audio

2 x 12 W Audio Output Power

Network Connection

Ethernet (LAN) for Internet connectivity

802.11 a/b/g/n built in WIFI Support (optional)

Input/Output Ports

1 x USB 2.0 port (500mA)

1 x USB 3.0 port (1A)

1 x Internal USB 2.0 port (500mA)

1 x HDMI 2.0 In port

1 x HDMI 1.4 or 2.0

1 x VGA port

1 x Audio input port

1 x Audio output port

1 x RS232 port

1 x RJ12 port service use only

1 x Video In port

1 x YPbPr port

1 x SPDIF Coaxial Out port

1 x Diplay Port v1.2 In

1 x Diplay Port v1.2 Out

1 x Headphone port

1 x IR port

OPS

Up to 40w

Power

With OPS : 110-240V AC 50-60Hz 3200mA

W/O OPS : 110-240V AC 50-60Hz 2500mA

Weight (kg)

36

TV Dimensions DxLxH (mm)

1684mm x 967mm x 93mm

OPS MODULE - SKYLAKE

CPU:

Intel ^® Core ^TM i5-6200U Processor

2 cores, 4 threads

3MB L3 smart cache

15W TDP

System Memory:

2 x SO-DIMM DDR3L

Up to 16GB

Network:

LAN: 10/100/1000 Mbps LAN support

WLAN: 802.11 a/g/n wireless support

Bluetooth 4.0

Storage:

2.5" 500GB HDD

256GB SSD

Input/Output Ports:

1 x RS232

1 x RJ45

3 x USB 3.0 (5V DC, 900mA)

1 x USB 2.0 (5V DC, 500mA)

1 x VGA

1 x Mic-In / Line-Out

2 x WiFi antenna

Wireless LAN Transmitter Specifications

Frequency Ranges	Max Output Power
2400 - 2483,5 MHz (CH1-CH13) < 100 mW
5150 - 5250 MHz (CH36 - CH48) < 200 mW
5250 - 5350 MHz (CH52 - CH64) < 200 mW
5470 - 5725 MHz (CH100 - CH140) < 200 mW

Country Restrictions

This device is intended for home and office use in all EU countries (and other countries following the relevant EU directive) without any limitation except for the countries mentioned below.

Country Restriction
Bulgaria	General authorization required for outdoor use and public service
France In-door	use only for 2454-2483.5 MHz
Italy	If used outside of own premises, general authorization is required
Greece	In-door use only for 5470 MHz to 5725 MHz band
Luxembourg	General authorization required for network and service supply(not for spectrum)
Norway	Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation	In-door use only

The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for both 2.4 GHz and 5 GHz wireless LAN's.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For product available in the USA/Canada market, only channel 1\~11 can be operated. Selection of other channels is not possible.

IMPORTANT NOTE

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Accessories Included

• Remote Control
• Batteries: 2 x AAA

• Instruction Book

• IR Extender

• OPS Antenna (if your model includes OPS)
• MicroUSBtoUSB Cable
• 4 x Cable Holder

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

Equipment bearing these symbols should not be disposed as general household waste.

You should look for appropriate recycling facilities and systems for the disposal of these products.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

For drivers and additional information please visit: www.hitachidigitalmedia.com

For technical support please contact [e-mail]

Notification

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

Manufactured under license from Dolby Laboratories. Dolby Audio and the double-D symbol are trademarks of Dolby laboratories. Dolby Audio™ (supporting Dolby Digital Plus™)

DOLBY AUDIO™

Vesa Wall Mount Measurements

Hole Pattern Sizes (mm)	W	H
	600 400
Screw Sizes
Length (X)	min. (mm) 15mm
	max. (mm) 15mm
Thread (Y) M8

X Y W H

Installation On An Indented Wall

Side view	Plane view
	A Minimum 50 mmB Minimum 70 mmC Minimum 50 mmD Minimum 50 mmE Ambient temperature range: 0-35°C

When installing the product on an indented wall, allow at least the space specified above between the product and wall for ventilation and ensure that the ambient temperature is kept between 0^ C- 35^ C.

Do not expose the product to direct sunlight.

We will take no responsibility for any damages or failures in case our products are not being used subject to these recommendations and/or instructions for use.

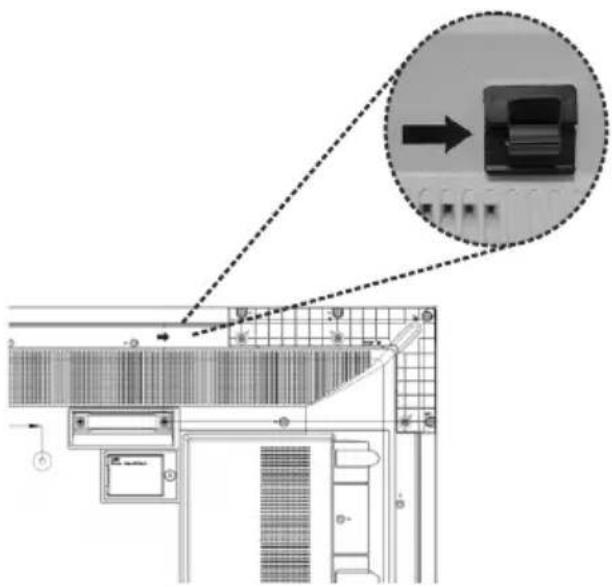

Fixate one of the supplied cable holders next to the arrow on the rear side of the display shown below.

Diagram showing a room layout with a magnified inset highlighting a device component, likely illustrating electrical or mechanical installation.

Thread the touch screen cable through the cable holder and route it into the internal USB compartment. You can also use additional cable holders for more efficient cable management as shown below.

Close-up of a white electronic device panel with a black cable and connector, mounted on a grid-patterned surface (no visible text or symbols)

Table des matières

Simple gray rectangle with a numbered label '1' pointing to the top edge (no text or symbols on the main area)

Arrière (1)

Diagram showing connection points and labeled components of a device panel, including VGA, USB, and display ports.

Simple diagram with a gray rectangle and a central circular symbol with arrows pointing to it, no text or labels present.

Illustration of a remote control with signal waves and a cable, no text or symbols present

Diagram showing a device with labeled components and connections, including numbered parts 1 through 9.

Ports USB 2.0 / USB 3.0

Two black plastic electronic components with ribbed and rectangular body designs (no text or symbols visible)

Contact No. 80 Contact No. 40 Contact No. 1

Contact No. 40 Contact No.1 Contact No. 80

Three-panel technical illustration showing a mechanical component with a bolt and a scale bar, no visible text or symbols.

PuTTY Configuration Category: Session Logging Terminal Keyboard Bell Features Window Appearance Behaviour Translation Selection Colours Connection Data Proxy Telnet Rlogin SSH Serial Basic options for your PuTTY session Specify the destination you want to connect to Host Name (or IP address) Port 1996 Connection type: Raw Telnet Rlogin SSH Serial Load, save or delete a stored session Saved Sessions Default Settings Load Save Delete Close window on exit: Always Never Only on clean exit About Open Cancel

GETVOLUME] GETVOLUME #*volume level is 16

Autre exemple ;

VOLUME 15 **set volume to 15

Dernier exemple ;

GETSOURCE #*SOURCE is HDMI

PuTTY Configuration Category: Session Logging Terminal Keyboard Bell Features Window Appearance Behaviour Translation Selection Colours Connection Data Proxy Telnet Rlogin SSH Serial Basic options for your PuTTY session Specify the destination you want to connect to Serial line Speed COM4 115200 Connection type: Row Telnet Rlogin SSH Serial Load, save or delete a stored session Saved Sessions Default Settings Load Save Delete Close window on exit: Always Never Only on clean exit About Open Cancel

Dimensions TV D x L x (mm)

1684mm x 967mm x 93mm

MODULE OPS - SKYLAKE

UC :

Architectural floor plan with zoomed-in detail showing a printer icon and directional arrow, likely for architectural or inventory reference.

Close-up of a white electronic panel with a black cable and connector, mounted on a grid-patterned surface (no visible text or symbols)

Inhaltsverzeichnis

EXPLOSIONSGEFAHR. ENTSORGEN SIE DIE

Simple gray rectangle with a numbered label '1' pointing to the top edge (no other text or symbols)

Rückseite (1)

Diagram showing device connections with labeled ports and connectors, including a monitor, USB devices, and a vertical connector.

Illustration of a remote control with signal waves and a cable, no text or symbols present

Diagram showing labeled components of a device or sensor system with numbered parts and connecting lines

USB 2.0 / USB 3.0 Anschlüsse

Two gray plastic electronic components with ribbed and rectangular ends, shown from different angles (no text or symbols visible)

Links: OPS PC-Steckverbinder (p/n: TX25-80P)

Rechts: Steckverbinder (p/n: TX24-80P)

Contact No. 80 Contact No. 40 Contact No. 1

Contact No. 40 Contact No. 1 Contact No. 80

Three-panel technical illustration showing a mechanical component with a bolt and a small object, no visible text or symbols.
