USER MANUAL JG010V++ DOMO

INSTALLATION Attention:

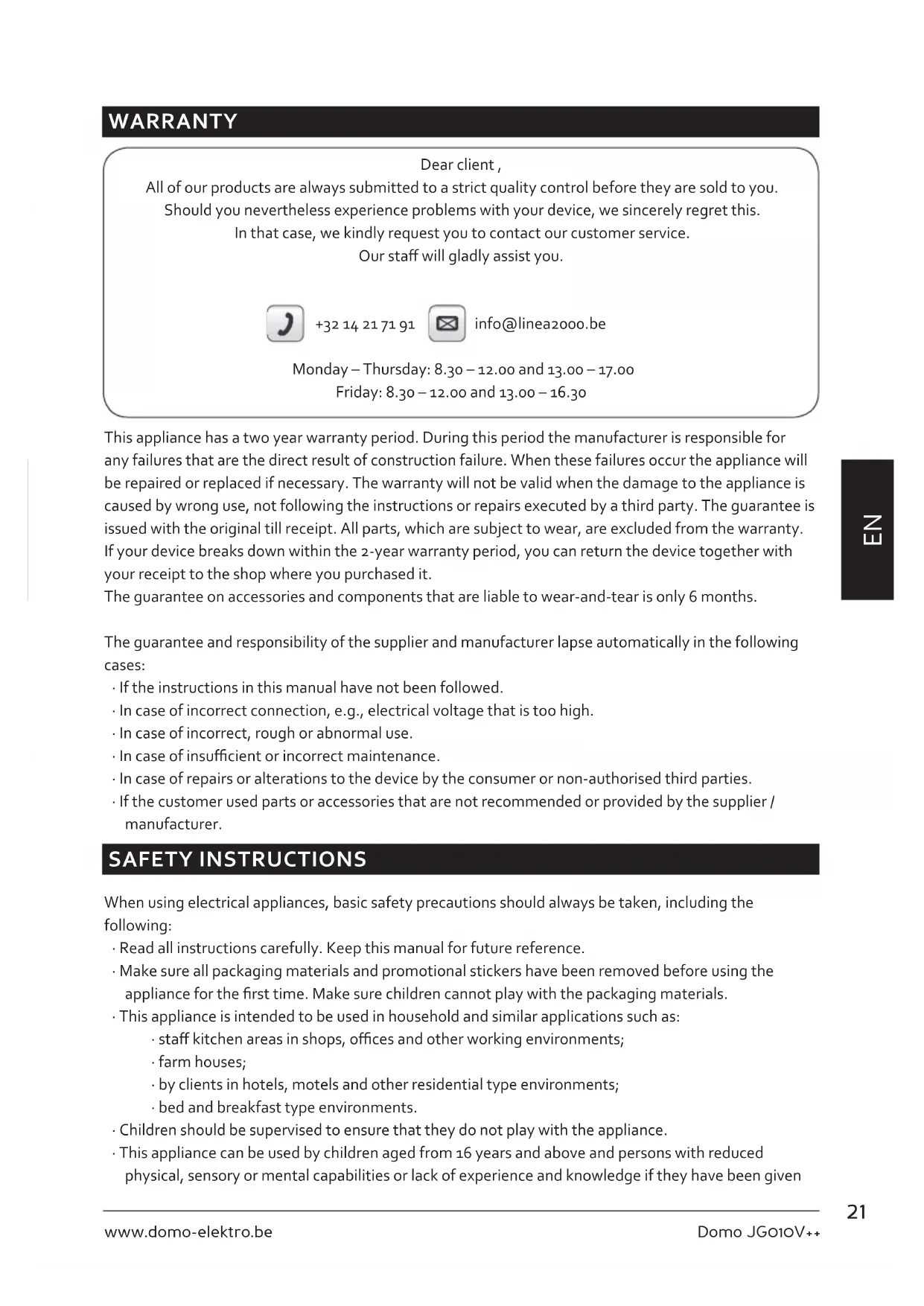

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given22 Domo JG010V++

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• Attention: This appliance cannot be used with an external timer or a separate remote control.

• Before use, check if the voltage indicated on the appliance corresponds with the voltage of your power net.

• Do not let the cord hang on a hot surface or over the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction of the appliance or when the appliance is damaged. In that case, take the appliance to the nearest qualied service center for check-up and repair. Never try to repair the appliance yourself.

• Strict supervision is necessary when the appliance is used near or by children.

• The use of accessories that are not recommended by the manufacturer could cause re, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning. Unplug by pulling the plug itself. Never pull the electrical cord to remove the plug from the socket.

• Never place this appliance on or near a gas or electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.

• Only use the appliance for the purpose for which it is intended.

• Before the rst use, remove all packaging materials and any promotional stickers.

• This appliance is heavy. Be careful when moving it.

• Do not make any adjustments to this appliance, this could be dangerous.

• If there is electrical work that needs to be carried out when installing the appliance, this should be done by a qualied electrician or skilled person.

• Only store edible foods into the freezer. PARTS

3. Thermostat knob (at the back)

INSTALLATION Caution:

• Make sure that the appliance does not stand on the electrical cord.

• Parts that become warm should not be exposed. If possible, place the back of the freezer close to a wall, but do keep the required distance for ventilation, as indicated with the pin at the back of the appliance.

• After installation, leave the freezer for 12 hours before turning it on. This way the refrigerant can settle. This appliance is designed to function in ambient temperatures between 16°C and 32°C. Should the room temperature exceed this reach, the appliance will not function correctly. The food may spoil. In order to obtain a correct operation, the appliance should be installed:

• out of direct sunlight

• away from extreme temperatures (this also means away from a stove or other heat sources)

• on a strong, stable oor VENTILATION Above the freezer, there should be a free, empty space of 50 mm. If it is not possible to keep a free space above the freezer, then keep a free, empty space of 25 mm at both sides of the freezer. LEVELLING The freezer needs to be placed completely upright and level, so that it will not rock. Check if the 2 adjustable legs are rmly on the ground when the freezer is completely upright and level. If not, adjust the legs by screwing or them in or out the freezer. Caution: This appliance is heave. Be careful.

The freezer is built with the door hinges on the right side. If you want to switch the direction in which the door opens, follow the following instructions:

1. Remove the cover of the upper hinge (6).

2. Remove the 2 screws (1) that attach the upper hinge (5) to the freezer. Remove the upper hinge.

3. Lift the door and place it on a soft surface so that it does not get damaged.

4. Remove the 2 screws (8) that attach the lower hinge (2) to the freezer. Remove the lower hinge.

5. Remove the left front leg (4) and move it to the right side of the freezer.

6. Replace the cover plate (7) to the right side.

7. Before placing the lower hinge (2), remove the bolt (the right leg) (9) en reverse the direction of the

lower hinge. Install the lower hinge at the bottom left of the freezer with the 2 screws (8).

8. Screw the bolt (9) back into the lower hinge (2).

9. Place the door in its place, on the lower hinge (2).

10. Close the door and hold it in position while you attach the upper hinge (5) to the upper left corner of

the freezer with the 2 screws (1). Make sure that the door is straight before fastening the screws.

11. Place the cover (6) onto the upper hinge.24

USE Remove all packaging materials and any promotional stickers before use. Clean the inside of the appliance with lukewarm water and some bicarbonate or soda (5ml for 0,5l water). Do not use any soap or detergent, as the smell may linger. Dry thoroughly. TEMPERATURE CONTROL The thermostat is located at the back of the freezer and can be set to MIN. (cold), NORMAL (colder) or MAX (coldest). The temperature can be inuenced by:

• The room temperature

• How often the door is opened

• How may food there is in the freezer

• The position of the appliance START-UP

1. Wait 12 hours after installation to turn on the freezer.

2. Put the plug into the socket.

3. Turn the thermostat to the desired temperature setting.

4. Wait approximately 4 hours until the desired temperature is reached, before putting food into the

freezer. Caution: Do not freeze food again after it has been defrosted already. Do not place carbonated liquids such as zzy drinks into the freezer. Be careful when consuming ice lollies straight from the freezer to avoid freeze burns. Do not take anything out of the freezer with wet hands. TIPS

• The freezer produces sounds when the compressor pumps the refrigerant around. This is normal.

• Make sure that all food in the freezer is covered.

• Do not press together the food. The air should be able to circulate around the food.

• Do not leave the door open for too long. Also make sure that the door is always properly closed.

• Label the food with the date to be able to check the expiration in the freezer.

CLEANING AND MAINTENANCE

Always unplug the freezer before cleaning it. INSIDE

• Clean the inside and the accessories with warm water and bicarbonate or soda. Rinse and dry thoroughly.

• Do not use detergents, abrasive powders, perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol. OUTSIDE

• Clean the outside with warm soapy water.

• Do not use any abrasive products.

• Be careful around the sharp edges at the bottom of the freezer.

• Once or twice a year, remove the dust from the compressor at the back using a brush or vacuum cleaner, as an accumulation of dust will aect the performance and the energy consumption of the appliance. DEFROST

1. Empty the freezer.

2. Unplug the appliance.

4. Place a suitable container to collect the defrost water.

After defrosting, thoroughly clean and dry the inside.

5. Plug in the appliance.

Caution: Do not use any sharp objects to scrape the ice from the freezer walls.

When the appliance is not used for a long period of time: unplug, empty the freezer, defrost and leave the door ajar to prevent unpleasant smells.26 Domo JG010V++

ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.27 Domo JG010V++ www.domo-elektro.be ENLINEA 2000 bvba - Dompel 9 - 2200 Herentals - Belgium - Tel: +32 14 21 71 91 - Fax: +32 14 21 54 63 BESTEL de originele Domo-accessoires en -onderdelen online via: of scan hier: COMMANDEZ d’authentiques accessoires et pièces Domo en ligne sur: ou scannez ici: BESTELLEN SIE die Domo Original-Zubehör und -Ersatzteile online über: oder hier scannen: ORDER the original Domo accessories and parts online at: or scan here: webshop.domo-elektro.be Webshop
