Product type	Refrigerator-freezer
Brand	LG
Model	GBB71NSDFN
Dimensions (W x H x D)	595 x 1860 x 675 mm
Weight	Approximately 75 kg
Power supply	220-240 V, 50 Hz
Climate class	SN to T (10 °C to 43 °C)
Refrigerator temperature	1 °C to 7 °C (adjustable)
Freezer temperature	-15 °C to -23 °C (adjustable)
Refrigerant	R600a (isobutane)
Main functions	Express Cool, Express Freeze, Energy Saver, Smart Diagnosis, Wi-Fi
Water dispenser	Yes, manual tank (2.3 L)
Ice cube tray	Yes, manual
Freshness converter	Yes, adjustable (meat/fish/vegetables)
Fresh vegetable drawer	Yes, with humidity control
Folding shelf	Yes
Lighting	LED
Defrost	Automatic
Open door alarm	Yes
Panel lock	Yes
Door reversal	Yes (reversible)
Spare parts	Available for 7 years (seals 10 years)
Repairability	By LG certified technician
Wi-Fi connection	Yes, 2.4 GHz via LG ThinQ

Frequently Asked Questions - GBB71NSDFN LG

How to adjust the temperature of the refrigerator and freezer?

Press the Fridge or Freezer button on the control panel to adjust the temperature. The refrigerator can be set from 1 °C to 7 °C, the freezer from -15 °C to -23 °C. The initial temperature is 3 °C for the refrigerator and -18 °C for the freezer.

What to do if the appliance is not cooling?

Check the power supply, fuse or circuit breaker. Make sure the plug is properly connected. If the problem persists, contact LG Electronics customer information center.

How to use the Express Freeze function?

Press and hold the Express Freeze button for 3 seconds. The icon lights up and the function activates, then automatically stops after a specific time. It allows quick freezing of large quantities of food.

Why is there frost in the freezer?

Frost can form if the door is not properly closed, if hot food is placed without cooling, or if the air inlet is blocked. Check the door closure and air circulation.

How to clean the water dispenser?

Regularly wipe the water outlet and dispenser tray with a damp cloth. To clean the circuit, let water run for about 5 minutes and discard the first ice cubes.

What to do if the door does not close properly?

Check that the appliance is level (adjust the front feet). Make sure the shelves are properly mounted and no food blocks the door. Avoid closing the door with too much force.

How to reverse the door?

Door reversal must be performed by a qualified LG technician. Contact customer service to avoid damaging the appliance.

What does the error code on the display mean?

An error code indicates a detected problem. Do not cut off the power and immediately contact LG Electronics customer information center for an accurate diagnosis.

How to connect the appliance to Wi-Fi via LG ThinQ?

Download the LG ThinQ app, disable mobile data, connect your smartphone to the 2.4 GHz Wi-Fi network, then follow the instructions in the app to register the appliance.

How to use Smart Diagnosis?

Use the LG ThinQ app for Smart Diagnosis feature or the sound method: press and hold the Freezer button for 3 seconds while placing the phone near the speaker. The service agent will explain the result.

USER MANUAL GBB71NSDFN LG

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

EN ENGLISH ES ESPANOL IT ITALIANO PL POLSKI SR SRPSKI

BG 5bJIAPCKN ET EESTI LT LIETUVIU PT PORTUGUES SV SVENSKA

CZ CESTINA FI SUOMI LV LATVIESU RO ROMAN

DA DANSK FR FRANCAIS MK MAKEJOHCKI SK SLOVENCINA

DE DEUTSCH HR HRVATSKI NL NEDERLANDS SL SLOVENSCINA

EL EAHNIKA HU MAGYAR NO NORSK SQ SHQIP

TABLE OF CONTENTS

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETYINSTRUCTIONS 3

IMPORTANT SAFETY INSTRUCTIONS 3

Disposal of Your Old Appliance 10

INSTALLATION 11

Dimensions and Clearances 11

Ambient Temperature 11

Accessories 12

Reversing Doors 12

Leveling the Appliance 12

Connecting the Appliance 12

Moving the Appliance 12

OPERATION 13

Parts and Functions 13

Notes for Operation 15

Control Panel 17

Water Dispenser (^*) 19

Water Dispenser Tank 19

Ice Tray 20

Fresh Converter (^*) 20

Fresh Vegetable Printer (^*) 21

Folding Shelf 21

Other Functions 22

SMART FUNCTIONS 23

LG ThinQ Application 23

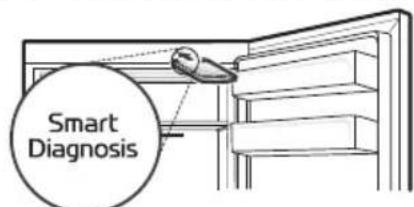

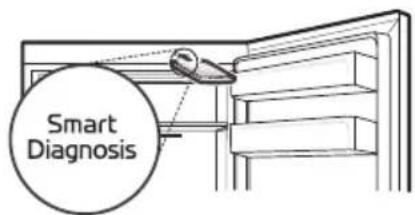

Using Smart DiagnosisTM 25

MAINTENANCE 26

Notes for Cleaning 26

Cleaning the Door Basket 26

Cleaning the Shelf 27

Cleaning the VegetableDrawer 27

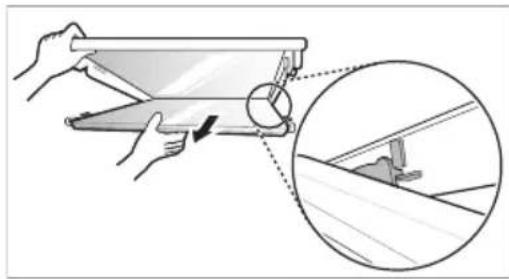

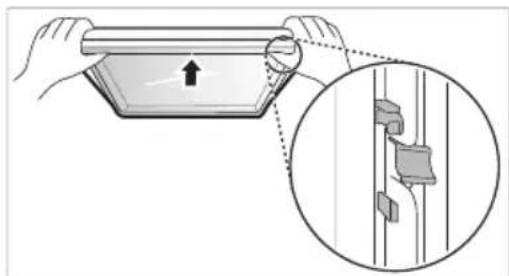

Cleaning the Crisper Cover 27

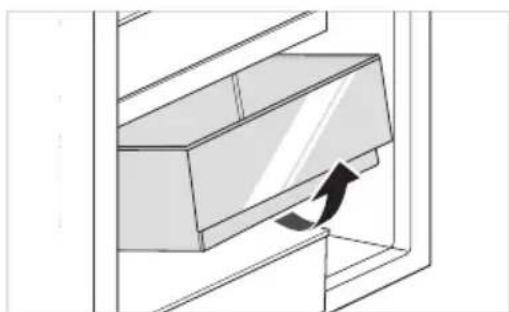

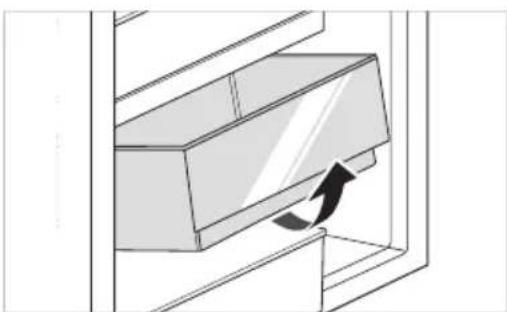

Cleaning the Freezer Drawer 28

Cleaning the Water Dispenser 28

TROUBLESHOOTING 29

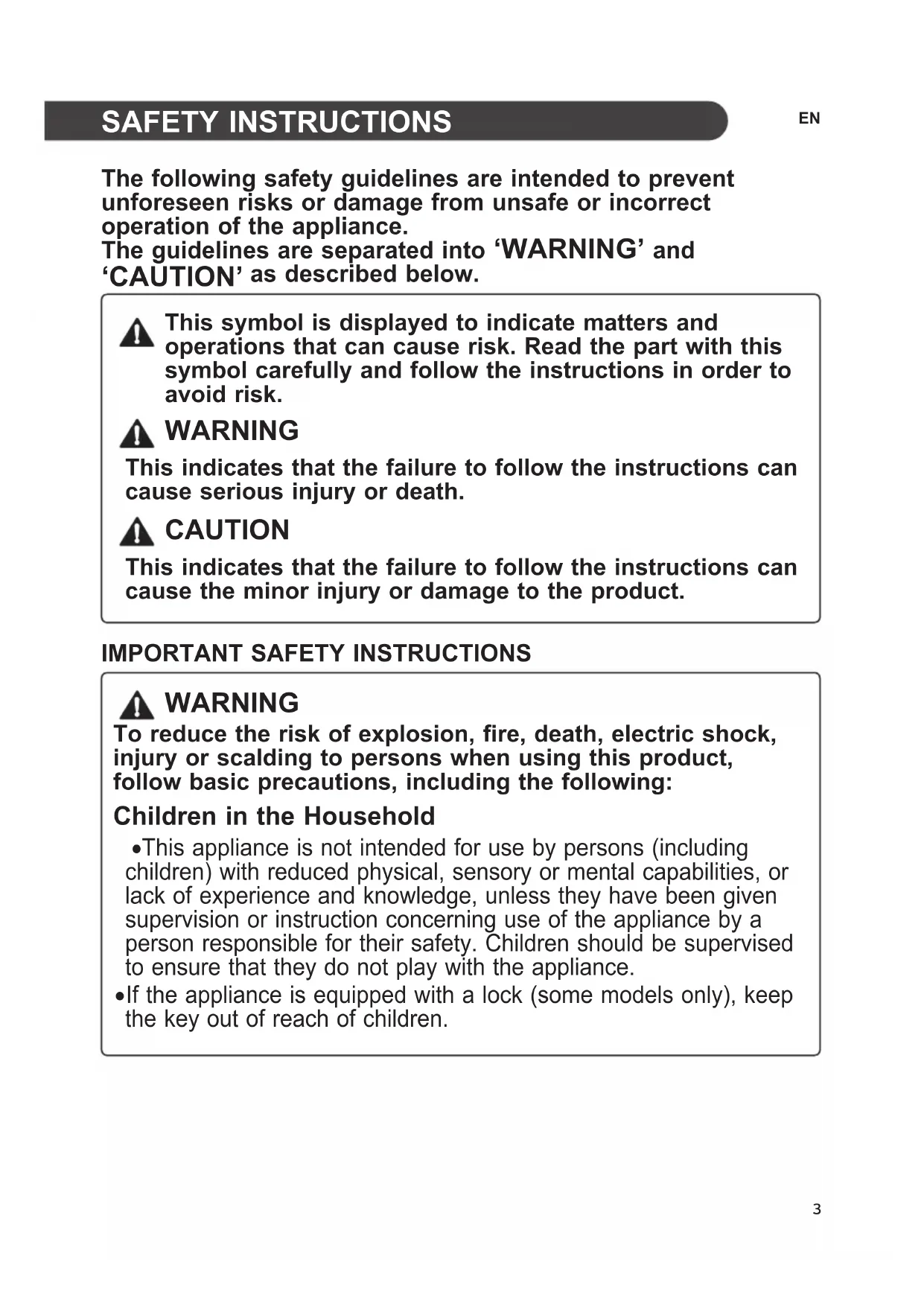

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Children in the Household

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• If the appliance is equipped with a lock (some models only), keep the key out of reach of children.

For use in Europe:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Installation

• This appliance should only be transported by two or more people holding the appliance securely.

• Ensure that the socket outlet is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.

• This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.
• If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.

• Do not plug the appliance into a multi socket adapter which does not have a power cable (mounted).

• Do not modify or extend the power cable.

• The appliance should be connected to a dedicated power line which is separately fused.

• Do not use a multi socket outlet which is not properly grounded (portable). In case of using a properly-grounded multi socket outlet (portable), use the multi socket outlet with the current capacity of the power code rating or higher and use the multi socket outlet only for the appliance.

• Install the appliance in a place where is easy to unplug the power plug of the appliance.

• Be careful not to point the power plug up or let the appliance lean against the power plug.

Install the appliance on a firm and level floor.

• Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, rain, or temperatures below freezing.

• Do not place the appliance in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.

• Be careful not to expose the rear of the appliance when installing.
• Be careful not to let the appliance door fall during assembly or disassembly.

• Be careful not to pinch, crush, or damage the power cable during assembly or disassembly of the appliance door.

• Do not connect a plug adapter or other accessories to the power plug.

Operation

• Do not use the appliance for any purpose (storage of medical or experimental materials or shipping) other than any domestic household food storage use.

• Unplug the power plug during a severe thunderstorm or lightening or when not in use for a long period of time.

• Do not touch the power plug or the appliance controls with wet hands.

• Do not bend the power cable excessively or place a heavy object on it.

• If water penetrates electrical parts of the appliance, disconnect power plug and contact an LG Electronics customer information centre.

• Do not place hands or metallic objects inside the area emitting the cold air, cover or heat releasing grille on the back.

• Do not apply excessive force or impact to the back cover of the appliance.

• Do not put animals, such as pets into the appliance.

• Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury.

• Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation.

• Do not place heavy or fragile objects, containers filled with liquid, combustible substances, flammable objects (such candles, lamps, etc.), or heating devices (such as stoves, heaters, etc.) on the appliance.

• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a refrigerant gas (isobutane,R600a). Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.

• Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics, etc.) near the appliance.

• Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.
• Fill with potable water only into icemaker or dispenser water tank.
• Do not damage the refrigerant circuit.
• Do not place any electronic appliance (such as heater and mobile phone) inside the appliance.

Maintenance

• Disconnect the power cord before cleaning the appliance or replacing the inside lamp (where fitted).
• Securely plug the power plug in the socket outlet after completely removing any moisture and dust.
• Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet.
• Do not spray water or inflammable substances (toothpaste, alcohol, thinner, benzene, flammable liquid, abrasive, etc.) over the interior or exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material.
• Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance.

Contact an LG Electronics customer information cent move and install the appliance in a different location.

• Do not use a hair drier to dry the inside of the appliance or place a candle inside to remove the odours.
• Do not use mechanical devices or other means to accelerate the defrosting process.

Disposal

• When discarding the appliance, remove the door gasket while leaving the shelves and baskets in place and keep children away from the appliance.
• Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.

Technical Safety

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use electrical appliances inside the refrigerator.
• The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. Consult with service agent or a similarly qualified person before disposing of them.
• Refrigerant leaking out of the pipes could ignite or cause an explosion.
• The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.
• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
• This appliance is intended to be used in household and similar applications only. It should not be used for commercial, or catering purposes, or in any mobile application such as a caravan or boat.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• This refrigerating appliance is not intended to be used as a built-in appliance.

Risk of Fire and Flammable Materials

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

• This appliance contains a small amount of isobutane refrigerant (R600a), but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

• If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1m² in size for every 8 g of R600a refrigerant inside the appliance.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

• Do not tilt the appliance to pull or push it when transporting.
• Make sure not to get a body part such as a hand or foot stuck while moving the appliance.

Operation

• Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing.
• The tempered glass on the front side of the appliance door or the shelves can be damaged by an impact. If it is broken, do not touch it with hands.

• Do not hang from the appliance doors, storage room, shelf or climb up into it.

• Do not store an excessive amount of water bottles or containers for side dishes on the door baskets.

• Prevent animals from nibbling on the power cable or water hose.

• Do not open or close the appliance door with excessive force.

• If the hinge of the appliance door is damaged or operates improperly, stop using the appliance and contact an authorized service centre.

• Do not clean glass shelves or covers with warm water when they are cold.

• Never eat frozen foods immediately after they have been taken out in the freezer compartment.

• Make sure not to get a hand or foot stuck upon opening or closing the appliance door.

Maintenance

• Do not insert the shelves upside down. The shelves may fall.
• To remove frost from the appliance, contact an LG Electronics customer information centre.

Disposal of Your Old Appliance

• This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
• You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www/lg.com/global/recycling.

Dimensions and Clearances

Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 50mm of clearance from each adjacent wall when installing the appliance.

Type A

Type B

	Type A Type B
	Pocket Handle Bar		Handle Pocket Handle Bar Handle
	Size [mm]
A	595 595 5	95 595 595	595 595 595
B	1860	2030	1860	2030	1860	2030	1860	2030
C	675 675 7	12 712 682	682 718 718
D	9	9	9	9	15	15	15	15
E	667 667 6	67 667 667	667 667 667
F	-	-	703	703	-	-	703	703
G	1124	1124	1124	1124	1130	1130	1130	1130
H	995 995 9	95 995 995	995 995 995

Ambient Temperature

• The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone.
• The internal temperature could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and so on.
• The climate class can be found on the rating label.

Climate Class	Ambient Temperature Range °C
SN (Extended Temperate)	+10 - +32
N (Temperate)	+16 - +32
ST (Subtropical)	+16 - +38
T (Tropical)	+16 - +43 / +10 - +43*

*Australia, India, Kenya

NOTE

The appliances rated from SN to T are intended to be used at an ambient temperature between 10°C and 43°C .

Accessories

1

2

3

1
Hinge cover
2
Lower hinge
3
Sticker

Reversing Doors

Your appliance is designed with reversible doors, do that they may open from either the left of right hand side to suit your kitchen design.

NOTE

• Reversing the doors must be performed by the qualified personnel of LG Electronics. If not, the doors will not be covered by the warranty.

Leveling the Appliance

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise to raise the unit, clockwise to lower it.

Connecting the Appliance

After installing the appliance, connect the power plug into a socket outlet.

NOTE

• After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Moving the Appliance

1 Remove all food from inside the appliance.
2 Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3 Tape parts such as shelves and the door handle to prevent from falling off while moving the appliance.
4 Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.
5 After installing the appliance, connect the power plug into a socket out to switch on the appliance.

Parts and Functions

Smart Diagnosis Unit (^*)

This function is used when contacting LG Electronics customer information centre to help make an accurate diagnosis when the appliance operates abnormally or a failure occurs.

LED Lamp

The LED lamps inside the appliance light up when you open the door.

Fridge Shelf

This is where refrigerated foods and other items are stored.

• The shelf height can be adjusted by inserting the shelf in another groove of different height.
• Store the foods with higher moisture content at the front of the shelf.
  The actual number of shelves will differ from model to model.

Bottle Rack (^*)

This is where drinks tall bottles or containers are stored.

Folding Shelf (^*)

This is where refrigerated foods and high items are stored.

Fresh Vegetable Painter (^*)

This is where fruits and vegetables are stored to help maintain freshness by adjusting the humidity controller.

• The appearance or components of the appliance may differ from model to model.

7 Fresh Converter (^*)

As a chill compartment, this is where meat, fish and vegetables are stored. Help maintain freshness by adjusting the humidity controller located in the back of the fridge compartment.

• For more space, you can use chill area without chill compartment drawer.

Ice Tray

This is where ice is produced and stored.

• For more space, you can remove the ice tray or ice cubes bucket.

Movable Egg Tray

This is where eggs are stored.

• You can move it to and use it at a desired position as needed. However, do not use it as the ice bin or place it on the shelf on top of the fridge or the vegetables drawer.

Fridge Door Basket

This is where small packages of refrigerated foods, drinks and sauce containers are stored.

Water Dispenser Tank (^*)

This is where water to supply the dispenser or the automatic icemaker is stored. It requires manual filling. (Non plumbed models only)

Top drawer

To freeze food items quickly, store the food in the top drawer. Food items will freeze most quickly in the drawer.

3 Freezer Drawer

This is for long-term storage of frozen items.

CAUTION

• Do not store short bottles or containers on the bottle rack. The items may fall and cause an injury or appliance damage.

NOTE

• (^*) : This feature varies depending on the model purchased.

Notes for Operation

• Users should keep in mind that frost can form. If the door is not closed completely, if the humidity is high during the summer, or if the freezer door is opened frequently.
• Ensure there is sufficient space between food stored on the shelf or door basket to allow the door to close completely.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Suggestion for Energy Saving

• Ensure there is sufficient space between stored foods. This allows cold air to be circulated evenly and lowers electricity bills.

• Store hot food only after it has cooled in order to prevent dew or frost.

• When storing food in the freezer compartment, set the freezer temperature lower than the temperature indicated on the food.

• Do not put food near the temperature sensor of the fridge compartment. Keep a distance of at least 3cm from the sensor.

• Note that a temperature rise after defrosting has a permissible range in the appliance specifications. If you wish to minimise the impact this may have on the food storage due to a temperature rise, seal or wrap the stored food in several layers.
• The automatic defrosting system in the appliance ensures that the compartment remains free of ice buildup under normal operating conditions.
• For the most efficient use of energy, make sure that door bins, drawers and shelves are assembled properly.

Storing Foods Effectively

• Store frozen food or refrigerated food inside sealed containers.
• Check the expiration date and label (storage instructions) before storing food in the appliance.
• Do not store food for a long period of time (more than four weeks) if it spoils easily at a low temperature.
• Place the refrigerated food or frozen food in each fridge or freezer compartment immediately after purchasing.
• Place the refrigerated food or frozen food in each fridge or freezer compartment immediately after purchasing.
• Avoid refreezing any food which has been completely thawed. Freezing any food which has been completely thawed again will lower its taste and nutrition.
• Do not wrap and store vegetables with newspaper. Printing material of newspaper or other foreign substances may smear and contaminate food.
• Do not overfill the appliance. Cold air can not circulate properly if the appliance is overfilled.
• If you set an excessively low temperature for food, it may become frozen. Do not set a temperature lower than the required temperature for the food to be stored correctly.
• For more space, you can remove bottle rack, egg tray, ice tray and fresh converter drawer.
• Store raw meat and and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Max Freezing Capacity

• The Express Freeze function will set the freezer to its maximum freezing capacity. This generally takes up to 24 hours and automatically switches off.
  Express freeze must be switched on for 7 hours before fresh products are placed in the freezer compartment.

Maximum Storage

• To get better air circulation, insert all drawers.
• If large quantities of food are to be stored, all the freezer drawers shall be taken out of the appliance and the food shall be stacked directly on the freezer shelves in the freezer compartment.

NOTE

• To remove the drawers, first pick the food out of drawers. Then use the handle of drawers, pull out the drawers carefully. It may cause injury.
• The shape of each drawer may be different, insert in the right position.

Control Panel

Units and Functions

On the Refrigerator Door Inside the Refrigerator

Fridge Temperature

• This sets the fridge target temperature.

^ 念 Express Cool

This sets the Express Cool Functions.

3 Freezer Temperature

• This sets the freezer target temperature.

4 *Express Freeze

• This sets the Express Freeze Functions.

Eco Friendly

• This controls the Power Save mode for lowering energy consumption.

*Wi-Fi

• This sets the refrigerator to connect to your home's Wi-Fi network.

*Lock

• This locks the buttons on the control panel.

NOTE

The actual control panel may differ from model to model.
- The control panel will turn off automatically for energy saving.
- If there is any finger or skin contacts to the control panel while cleaning it, the button function may operate.

Setting the Temperature

This sets the fridge temperature or freezer temperature.

• Press the Fridge button or Freezer button to adjust the temperature.

The temperature can be adjusted.

• Fridge: from 1°C to 7°C
• Freezer: from -15 °C to -23 °C

The initial temperature is set.

• Fridge: 3° C
• Freezer: -18 °C

The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within the appliance.

NOTE

• The default temperature setting may vary depending on the appliance.
• Wait until 2 or 3 hours have passed after connecting the appliance to the outlet before storing food in the appliance.
• For ice making in normal climates, the freezer temperatures should be set to -18°C or colder.

Setting Express Freeze

The function can quickly freeze a large amount of ice or frozen foods.

• When you press and hold the Express Freeze button for three seconds, the Express Freeze icon lights on the control panel.
• The function is enabled and disabled in turn each time you press the button.
  The Express Freeze function automatically terminates after a specific period has passed.

NOTE

• When Express Freeze is switched on, noise may occur and energy consumption may increase.

Setting Express Cool

The function can quickly cool a large amount of foods such as vegetable, fruit and so on.

• When you press and hold the Express Cool button for three seconds, the Express Cool icon lights on the control panel.

• The function is enabled and disabled in turn each time you press the button.
  The Express Cool function automatically terminates after a specific period has passed.

NOTE

• When Express Cool is switched on, noise may occur and energy consumption may increase.

Setting Eco Friendly

• The function makes the fridge-freezer work in the power saving mode which is useful when you are away on a holiday as it reduces energy consumption.
• Pressing the Eco Friendly button starts the operation with the lamp on, and pressing it again stops the operation.
• When the Eco Friendly mode is on, the other buttons will not operate. When you finish using the Eco Friendly mode, turn it off so that other buttons work and the refrigerator returns to its previous temperature setting.

Setting and Resetting Lock

This locks the buttons on the control panel.
- Press and hold the Lock button for three seconds. When the Lock function is set, all buttons are locked.

NOTE

• You must deactivate Lock function before you can access any other functions.

High Temperature Alarm

When the freezer temperature goes too high due to power failure, the freezer temperature LED lamp blinks and an alarm sounds.

• Press the Freezer button to stop.

• If the temperature is sufficiently cold, the blinking and alarm will automatically stop.
  This function operates:

• When the refrigerator is turned on.

• When the freezer compartment gets too warm.
• When there is a power outage that lasts for a long period of time.
• When large amounts of warm food are placed in the freezer compartment.
• When the freezer door is left open for too long or too frequently.

Water Dispenser (^*)

Press the lever 1 of the water dispenser to get cold water.

CAUTION

• Keep children away from the dispenser to prevent children playing with or damaging the controls.
• To clean the water dispensing system, flush the water through the dispenser about 5 minutes and throw away the first few batches of ice.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

NOTE

• (*): This feature varies depending on the model purchased.
  If you open the freezer door while water is being dispensed, the water supply will stop.

• If you open the fridge door while water is being dispensed, dispensing will be paused.

• If the cup rim is small, water may splash out of the glass or miss it completely.
• Use a cup with a rim of over 68 mm in diameter when dispensing water.

Water Dispenser Tank

1 Open the cap (small cover) on the top of the water tank.

2 Fill the water tank with potable water and close the cap (small cover).
- The water tank can hold up to 2.3 L.

CAUTION

• Children should not be allowed near the dispenser tank. If the child drops the water dispenser tank while it is completely filled with water, injury may occur. Do not fill the water tank with drinks other than water or fill with hot water.
• Do not apply excessive force or impact when removing or assembling the water dispenser tank. Doing so can cause appliance damage or injury.

NOTE

• Before using the water dispenser tank after installing the appliance, it should be washed before filling it with water.

• Check if the water dispenser tank has been placed on the appliance correctly. If it is not assembled correctly, water may leak from the tank into the appliance.

• If there is no water in the water dispenser tank, the cold water function of the dispenser cannot be used. Check if there is water in the water dispenser tank and then fill it with water if there is not.

• Wait at least 15 seconds before removing the water tank after having dispensed water.

Sound from the water tank will be normal when supplying water to the dispenser. It is not a sign of malfunction.

Ice Tray

Fill the ice tray with water.

WARNING

• Fill with potable water only.

CAUTION

• Check whether there is any ice remaining in theice tray before putting water into it.

• Do not slam the freezer door after filling the ice tray with water.

If you open and close the freezer door frequently, it may take longer for the water to freeze.

The time it takes for the water to freeze may vary according to the season.

• The temperature inside the appliance can take up to 24 hours to stabilize after initial installation. Water may take longer to freeze because of this.

• Be careful when handling the ice as the edges of the ice may be sharp.

NOTE

• If the ice tray is overfilled, the ice may stick together and be difficult to remove.

• Press the Express Freeze button on the control panel to make ice quickly.

• Do not store ice that has not frozen completely. Unfrozen water could cause the ice to clump together.

• Be careful not to use excessive force when twisting the ice tray. Doing so could break the ice tray.

• To easily remove ice, fill water up the tray in advance.

Fresh Converter (^*)

As a chill compartment, the temperature in the fresh converter can be controlled by sliding the lever 1, where located in front of compartment, in either direction.

When keeping vegetables after setting up Meat or Fish, the cold injury may occur.

For storing vegetables.(Recommended)
For storing fish.
4 For storing meat.

NOTE

• (*): This feature varies depending on the model purchased.

Fresh Vegetable Printer ( * )

Vegetable compartment can adjust the humidity by moving the knob 1.

For storing vegetables.(Recommended)
For storing fruit.

NOTE

• (^*) : This feature varies depending on the model purchased.

Folding Shelf

Store taller items, such as a gallon container or bottles, by pushing the front half of the shelf underneath the back half the shelf. Pull the front of the shelf forward to return to a full shelf.

1 Lift the front side of the shelf and shift it on its back side.

2 Lift the front side of the shelf and shift it under its back side. From this position, both sides of the shelf can be lifted up to free more space.

Other Functions

Door Open Alarm

The alarm sounds 3 times in a 30 seconds interval if the door (fridge compartment) is left open or not completely closed for one minute.

• Contact an LG Electronics customer information centre if the alarm sound continues even after closing the door.

Failure Detection

The appliance can automatically detect problems during the operation.

• If a problem is detected, the appliance does not operate and an error code is displayed even when any button is pressed.
• When this occurs, do not turn off the power and immediately contact an LG Electronics customer information centre. If you turn off the power, the repair technician from an LG Electronics customer information center may have difficulty finding the problem.

LG ThinQ Application

This feature is only available on models with Wi-Fi

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Communicate with the appliance from a smartphone using the convenient smart features.

Smart Diagnosis

If you experience a problem while using the appliance, this smart diagnosis feature will help you diagnose the problem.

Settings

• Allows you to set various options on the appliance and in the application.

NOTE

If you change your wireless router, internet service provider, or password, delete the registered appliance from the LG ThinQ application and register it again.
- The application is subject to change for appliance improvement purposes without notice to users.
- Functions may vary by model.

Before Using LG ThinQ Application

1 Check the distance between the appliance and the wireless router (Wi-Fi network).

• If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail.

2 Turn off the Mobile data or Cellular Data on your smartphone.

3 Connect your smartphone to the wireless router.

NOTE

To verify the Wi-Fi connection, check that the icon on the control panel is lit.
- The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
- If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
- The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
- The network connection may not work properly depending on the Internet service provider.
- The surrounding wireless environment can make the wireless network service run slowly.
- The appliance cannot be registered due to problems with the wireless signal transmission. Unplug the appliance and wait about a minute before trying again.
- If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.
- The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)

• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smart phone.

• Follow instructions to download and install the application.

Connecting to Wi-Fi

The Wi-Fi button, when used with the LG ThinQ application, allows the appliance to connect to a home Wi-Fi network. The icon shows the status of the appliance's network connection. The icon illuminates when the appliance is connected to the Wi-Fi network.

Initial Appliance Registration

• Run the LG ThinQ application and follow the instructions in the application to register the appliance.

Re-registering the Appliance or Registering Another User

• Press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the LG ThinQ application and follow the instructions in the application to register the appliance.

NOTE

• To disable the Wi-Fi function, press and hold the Wi-Fi button for 3 seconds. If con will be turned off.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge. com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Smart Diagnosis

This feature is only available on models with the @ or @logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

Display panel is on the Fridge door.

1 Close the freezer and fridge doors, then press and hold the Lock button to activate the lock function.

• If the display has been locked for over 5 minutes, you must deactivate the lock and then reactivate it.

2 Press and hold the Freezer button for 3 seconds or longer.

• The control panel will be turned off, and then '3' will be displayed on the fridge temperature display part.

3 Open the fridge door and then hold the phone near the speaker hole.

4 After the data transfer is complete, the diagnosis will be displayed in the application.

Display panel is inside the Fridge door

1 Open the fridge door.

2 Press the Eco Friendly button.

• If the door has been open for longer than 60 seconds, close the door and repeat steps 1 and 2.

3 Hold the phone near the speaker hole.

4 Press and hold the Freezer button for 3 seconds while holding your phone in front of the speaker.
5 After the data transfer is complete, the diagnosis will be displayed in the application.

NOTE

• For best results, do not move the phone while the tones are being transmitted.

Notes for Cleaning

• When removing a shelf or drawer from inside the appliance, remove all stored foods from the shelf or drawer to prevent injury or damage to the appliance.

• Otherwise, injury may occur due to the weight of stored foods.

• If cleaning the outside air vents of the appliance by means of vacuuming, then the power cord should be unplugged from the outlet to avoid any static discharge that can damage the electronics or cause an electric shock.

• Detach the shelves and drawers and clean them with water, and then dry them sufficiently, before replacing them.
• Regularly wipe the door gaskets with a wet soft towel.
• Door basket spills and stains should be cleaned as they can compromise storage ability of the basket and could even be damaged.
  After cleaning, check if the power cable is damaged, warm or improperly plugged.

• Keep the air vents on the exterior of the appliance clean.

• Restricted air vents can cause fire or appliance damage.

• When cleaning inside or outside of the appliance, do not wipe it with a rough brush, toothpaste, or flammable materials. Do not use cleaning agents containing flammable substances.

• This may cause discoloration or damage to the appliance.

• Flammable substances: alcohol (ethanol, methanol, isopropyl alcohol, isobutyl alcohol, etc.), thinner, bleach, benzene, flammable liquid, abrasive, etc.

• For the appliance exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.

• Never clean the shelves or containers in the dishwasher.
  The parts may become deformed due to the heat.

• If the appliance is equipped with an LED lamp, do not remove lamp cover and LED lamp in any attempt to repair or service it. Please, contact an LG Electronics customer information centre.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

Cleaning the Door Basket

Removing the Fridge Door Basket

Hold both edges of the basket and remove it by lifting it upward.

Refitting the Fridge Door Basket

1 Hold both edges of the door basket, gently push one edge to assemble, and then in the same manner assemble the other edge.

2 After assembling, tap the door basket gently to fix it horizontally.

Cleaning the Shelf Removing the Fridge Shelf

Lift the rear edge of the fridge shelf and then pull it out.

Refitting the Fridge Shelf

Refit the shelf in the reverse order of the removal process.

Cleaning the Vegetable. Drawer

Removing the Vegetable Printer

1 Remove the contents of the drawer. Hold the handle of the vegetable drawer and pull it out completely until it stops.

2 Lift the vegetable drawer up and remove it by pulling it out.

CAUTION

Note that injuries can be caused by the weight of stored foods when removing the vegetable drawer.

Refitting the Vegetable Printer

Refit the vegetable drawer in the reverse order of the removal process.

Cleaning the Crisper Cover Removing the Crisper Cover

1 After removing the vegetable drawer cover, pull the top section of the crisper cover down.

2 Remove the crisper cover by pulling it out.

Refitting the Crisper Cover

1 Place the protrusions inside the risper cover on the grooves inside the shelf.

2 Insert the protrusions in front of the crisper cover into the grooves in front of the shelf and push the crisper cover up to assemble.

Cleaning the Freezer Drawer

1 Remove the contents of the drawer. Hold the handle of the freezer drawer and pull it out completely until it stops.

2 Lift the freezer drawer up and remove it by pulling it out.

Refitting the Freezer Drawer

Refit the freezer drawer in the reverse order of the removal process.

Cleaning the Water Dispenser Cleaning the Dispenser Tray

The dispenser tray may become wet easily due to spilled ice or water. Wipe the entire area with a damp cloth.

Cleaning the Water and Ice Outlet

Wipe the water or ice outlet frequently with a clean cloth as it may get dirty easily. Please note that lint from a cloth may adhere to the outlet.

Symptoms Reason	n&Solution
There is no refrigeration or freezing.	Is there a power interruption?Check the power of other appliances.
	If the power plug unplugged from the outlet?Plug the power plug in the outlet properly.
	A fuse in your homeOr the appliance is connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit breaker has tripped.Check the main electrical box and replace the fuse or reset the circuit breaker. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.Set the circuit breaker on the GFCI. If the problem persists, contact an electrician.
There is poor refrigeration or freezing.	Is the fridge or freezer temperature set to its warmest setting?Set the fridge or freezer temperature to 'Medium'.
	Is the appliance in direct sunlight, or is it near a heat generating object such as cooking oven or heater?Check the installation area and reinstall it away from heat generating objects.
	Did you store hot food without cooling it first?Cool the hot food first before putting it in the fridge or freezer compartment.
	Did you put in too much food?Maintain an appropriate space between food.
	Are the appliance doors completely closed?Completely close the door and make sure that stored food is not obstructing in the door.
	Is there enough space around the appliance?Adjust the installation position to make enough space around the appliance.
The appliance contains a bad smell.	Is the fridge or freezer temperature set to 'Warm'?Set the fridge or freezer temperature to 'Medium'.
	Did you put in food with a strong smell?Store foods with strong smells in a sealed containers.
	Vegetables or fruit may have spoiled in the drawer?Throw away rotten vegetables and clean the vegetable drawer. Do not store vegetables too long in the vegetable drawer.
The inside lamp in the appliance does not turn on.	Does the inside lamp in the appliance turn off?It is hard for customers to replace the inside lamp in the appliance as they are not serviceable. If the inside lamp does not turn on, please contact the LG Electronics customer information centre.
The appliance door is not closed tightly.	Is the appliance leaning forward?Adjust the front feet to raise the front side slightly.
	Were the shelves properly assembled?Refit the shelves if needed.
	Did you close the door with excessive force?If you apply too much force or speed when closing the door, it may remain briefly open before closing. Make sure that you do not slam the door closed. Close without force.
Вразата на уреда нее пьлты за ворега.	Уреът наklонен ли e habред?Коригирaite превно ли са сглобени?Ако e hyжно, поставete отоною радкове.
	Верочато стЕ за вороги Вразата с пекомерна сILA?Ако за воряпЕ вразата Тьрдев симно ли рязко, тя може до OCTанец за мостент, пroduдда се за вори. Уberеши се, че не SFьскате вразата пи за воряп. Затварайtenбелся сILA.
It is difficult to open the appliance door.	Did you open the door right after you closed it?If you try to open the appliance door within one minute after you closed it, you may have difficulties because of the pressure inside the appliance. Try to open the appliance door again in a few minutes so that the internal pressure stabilizes.
There is condensation inside the appliance or on the bottom of the vegetable drawer cover.	Did you store hot food without cooling it first?Cool the hot food first before putting it in the fridge or freezer compartment.
	Did you leave the appliance door open?Although the condensation will disappear soon after you close the appliance door, you can wipe it with a dry cloth.
	Do you open and close the appliance door too frequently?Condensation can form due to the temperature difference from the outside. Wipe out the dampness with a dry cloth.
	Did you put warm or moist food inside without sealing it in a container?Store food in a covered or sealed container.
Frost has formed in the freezer compartment.	Doors may not be closed properly?Check if the food item inside the appliance is blocking the door and make sure that the door is tightly closed.
	Did you store hot food without cooling it first?Cool the hot food first before putting it in the fridge or freezer compartment.
Frost has formed in the freezer compartment.	Is the air entry or exit of the freezer compartment blocked?Make sure that air entry or exit is not blocked so that the air can circulate inside.
	Is the freezer compartment overfilled?Maintain an appropriate space between items.
Frost or condensation has formed inside or outside the appliance.	Did you open and close the appliance door frequently or is the appliance door improperly closed?Frost or condensation can form if the outside air penetrates inside the appliance.
	Is the installation environment humid?Condensation can appear on the exterior of the appliance if the installation area is too humid or on a humid day such as a rainy day. Wipe off any moisture with a dry cloth.
The appliance is noisy and generates abnormal sounds.	Is the appliance installed on a weak floor or improperly leveled? • Install the appliance on a solid and flat area.
	Does the rear of the appliance touch the wall? • Adjust the installation position to allow enough clearance around the appliance.
	Are objects scattered behind the appliance? • Remove the scattered objects from behind the appliance.
	Is there an object on top of the appliance? • Remove the object on top of the appliance.
The side or front of the appliance is warm.	There are anti condensation pipes fitted to these areas of the appliance to reduce condensation forming from around the door area. • The heat releasing pipe to prevent condensation is installed on the front and side of the appliance. You may feel it particularly hot right after the appliance is installed or during the summer. You can be assured that this is not a problem and is quite normal.
There is water inside or outside of the appliance.	Is there water leakage around the appliance? • Check if the water has leaked from a sink or another place.
	Is there water on the bottom of the appliance? • Check if the water is from the thawed frozen food or a broken or dropped container.
Clicking noises	The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or appliance control on some models) will also click when cycling on and off. • Normal Operation
Rattling noises	Rattling noises may come from the flow of appliance, the water line on the back of the unit (for plumbed models only), or items stored on top of or around the appliance. • Normal Operation
	Appliance is not resting evenly on the floor. • Floor is weak or uneven or leveling legs need to be adjusted. See the Door Alignment section.
	Appliance with linear compressor was moved while operating. • Normal operation. If the compressor does not stop rattling after three minutes, turn the power to the appliance off and then on again.
Whooshing noises	Evaporator fan motor is circulating air through the fridge and freezer compartments. ·Normal Operation
	Air is being forced over the condenser by the condenser fan. ·Normal Operation
Gurgling noises	Appliance flowing through the cooling system ·Normal Operation
Popping noises	Contraction and expansion of the inside walls due to changes in temperature. ·Normal Operation
Vibrating	If the side or back of the appliance is touching a cabinet or wall, some of the normal vibrations may make an audible sound. ·To eliminate the noise, make sure that the sides and back do not make any contact with any wall or cabinet.
Your home appliance and smartphone is not connected to the Wi-Fi network.	The password for the Wi-Fi that you are trying to connect to is incorrect. ·Find the Wi-Fi network connected to your smartphone and remove it, then register your appliance on LG ThinQ
	Mobile data for your smartphone is turned on. ·Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
	The wireless network name (SSID) is set incorrectly. ·The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz. ·OAI2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The distance between the appliance and the router is too far. ·If the distance between the appliance and the router is too far, the signal may be weak and the connection may not be configured correctly. Move the location of the router so that it is closer to the appliance.

Customer Care and Service

Contact an LG Electronics customer information centre.

To find information on LG authorized service centre, visit our website at www.lg.com.
- Only qualified service personnel from LG authorized service centre should disassemble, repair, or modify the appliance.
- To purchase spare parts, contact an LG Electronics customer information centre or our website at www/lg.com.
- Spare parts referenced in Regulation EU 2019/2019 are available for 7 years (only door gaskets are available for 10 years).

NOTE

• For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name (valid from 1st March 2021).
• Regulation EU 2019/2019, valid from 1st March 2021, is related to the Energy Efficiency classes by Regulation EU 2019/2016.
• Scan the QR code on the energy label supplied with the appliance, which provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference and all other documents supplied with the appliance (valid from 1st March 2021).
• The model name can be found on the rating label of the appliance.

Memo

PьКОВОДСТВО 3A ЕКСПЛОATAЦИА

XIIADINJIHNI ΦРИ3EP

IpooyetepebKOBOCTBOTO 3a ekCnloataunnoDpo6Ho, npEi da pa6oTne Cypeda, nTo cBxpaHraBaTe Ha ydo6Ho mAcTO 3a cnpaBkn no BcAko BpeMe.

CbДьРЖAHNE

Toba pBKOBOCTBO MOKe Da CbDbpKa H3o6paXeHnI NnCbDbPkaHne, pa3NnHO OT MoDeJa, KOHTO CTe 3aKynnn.

PbKOBOIDCTBOTO noJIeKn Ha peaKzna O T npOn3BOIDNTeJI.

MHCTPYKUN 3A BE3OJACHOCT. 3

BaxHN INCTpyKcnn 3a 6e3oNaChocT 3

I3XbBpJIHe Ha cTapn ypei 10

MOHTUNPAHE 11

Pa3mepn n OTCToHnna 11

OkoHa TempepaTypa 11

Akecoapu 12

PebepcnBn BpaTn 12

HnBenaunHa ypea 12

Cbbp3BaHe Ha ypeHa 12

IpeMeCTBaHe Ha ypeHa 12

EKCPILOATAU 13

Uactn u yHKun 13

Beneckn no ekcnloataaeta 15

KoHTpOJIeH nAnen 17

I3xBbprJHe Ha cTapn ypeD

CmbbT cbc 3aepTaHnKaTeHep noka3Ba, ye OTnaDbuNTe OT eJeKtpnuecknte n eEeKtpoHHte npOdykTN (WEEE) Tp6Ba da ce n3XbPjrt OTdEnHO OT bHTOBtE OTnAbu.
- Ctapnte eIektpnueckn npodyktn MOraT da cbdbpkaT onacn BeuecTba n npabunHTo n3xBbPnHe Ha Bauny ypeI ue nomorhe 3a npedotbpaTbaHe Ha HeratNBHTe NocneDCTBn 3a OKoNHaTa cpea N OBeWkoTO 3dpaBe. Baunr T cTap ypeM MoKe Da CbDbpxKa Yactn 3a MHOROKpaTHa ynotpe6a, KOtO bxa MoJIn Da 6bDat n3PON3BaHn 3a peMOHT Ha dpyrn npodykTn, KaKTo n dpyrn ceHHMaTePnaJI, KOtO Morat Da 6bDat peuNKnpaHn C cen 3ana3BaHe Ha orpaHnueHnte pecypcn.
- Mojete Da 3aHeceTe Baunypei nnB mara3nHa, ot KoITo cTe ro 3akynnnn mojete da ce CbpxeTe C MeCTHnA DpbXaBeH oOnc 3a OTnaDbuTte, 3a da nolnytte HOpmaun 3a Han-6n3kn PA3PEUHEWEEE nyKt 3a cb6npahe Ha OTnadbu. 3a Han-akTuAnHa HOpmaun O T Baata Dpbxaba, Mon, norneDhe Te tyk: www.lg.com/global/recycling

Pa3mepn n OTCTOHHN

Tbbpde MaNKOTO pa3cToHne Do cBceHN IppeMeTN MOKe Da IOBeDe DO HAMaJIbaHe Ha 3ampa3HTeHHata CnOCo6HocN yBEnuHcNoIOTpe6NeHne Ha eHepn. OctabeTe NOBuee ot 50 MM pa3CTOHaHE Do BcRAKa OT cbceHNte CTeH, KOrato INHCTaIInpaTe ypeDa.

TnA

TnB

	Тип A Тип B
	Джобна дрьжka Лостова дрьжka				Джобна дрьжka		Лостова дрьжka
	Размер [mm]
A	595 595 5	95 595 595	595 595 595
В	1860 2030	1860 2030	1860			2030 18	60 2030
C	675 675 7	12 712 682	682 718 718
D	9	9	9	9	15	15	15	15
E	667 667 6	67 667 667	667 667 667
F	-	-	703	703	-	-	703	703
G	1124	1124	1124	1124	1130	1130	1130	1130
H	995 995 9	95 995 995	995 995 995

OkoJa TeMnepaTypa

• YpeT e npEHa3HaueH 3a pa6Ota B OrpaHueH TemnepaTypeH dnaIa3OH B 3aBNCIMOCT OT KINMATNHTA 30Ha.
• Temnepaypata Bypeda MoKe da 6bJe NOBmHa OT MecTONOIOKeHHeTo My, OKoJIHaTa TEMnpaypata, YecTOTATA Ha OTBaprHe Ha BpaTATA N T.H.
• KlnmuTnHnT Knac MoKe Da ce BnDn Ha eTNKeTa C daHHN.

PeaJIHaTbBTpESha TempeHApTa Bapnpa B 3aBncmOcT OT CbCToRHeTo Ha XpHaTa, TbI KaTO nocOeHaTa TempeHApTa 3a 3aDaBaHe e ueBeTa, a He DeiCtBnteJIHaTa TempeHApTa b ypeJa.

3ABEJIENKKA

3aandaehata TemnepaTypa no npda36upahe MoKe Da e pa3NvHa B 3aBNCIMoCT OT ypeJa.
- ⅢyakaTe Da n3MnHaT 2 nnn 3 yaca cnei KaTO CTe CBbp3aJIn ypeJa KbM KOHTaKTa, npedn Da cbxpaHbAte xpHa B Hero.
3a npon3Bexdahe Ha JieB HOpMaJeH KInmat TemnepaTpynte Ha φpna3epa Tp86Ba da ce 3aDaBat Ha-18°C nnn no-ctydeHo.

3aandahe Ha ekcnpecho 3aMpa3BaHe

Ta3nФункцmaMOke 6bP3O da reHepnpa roJMAKOJIuYeCTBOJeIeNJIIN da 3aMpa3n xpaHa.

Korato HaTnCHTe n 3aDbpxKeTe 6yToHa Express Freeze 3a TpN CEkyHn, INKoHaTa Express Freeze CBETBa Bbpxy KOHTpoJHnnaHeI.
BceKN nT, KOrato HATnCHeTe 6yToHa, Ta3N cyHKcua CE BkIIOvBa nn N3KIIIOvBa.
- Φункцята „Екпесно замразаьанe" ce npekpatяba abTomatuho cneД n3TuHaheTo Ha onpeДelenпериOD otВрeme.

3ABEJIEXKKA

KoratoФункцЯtaExpressFreezee BKNUOyeHaMOKe Da Ce NOBuMn Da ce yBeNn pa3XoDbT Ha eHepnIa.

3aandaheHaekcnpecho oxlaKaHe

3aKJIIOUbaHe Ha HacTpoIKn HynipaHe

OTyK ce 3akIIOUbAT 6yTOHInTe Ha KOHTPOJHH naHeI.

• HatncheTe n 3aDpBxTe 6yToHa Lock 3a Tpu CekyHn. KoraTo e 3aJaDeHa yHKuYra Ta Lock, BCnKn 6yToHn ca 3aknOueHn.

3ABEJIEXKA

Tp6Ba Da DeakTnBnPaTe yHKuNg Lock npedn da moKeTe da n3noJ3BaTe npyRn yHKuN.

Anapma 3a BncoKa TeMnepaTypa

Korato TemnepaTypata Ha pnp3epa ctahe TBbpde BncoKa npaN cnpaHe Ha eNeKTpo3axpaHbAHeTo,JaMnata LED 3a TemnepaTypata npmIrBa n IpO3ByaBa anapma.

• Hatnche 6yToHa Freezer 3a cnnpaHe.
• Ako TemnepaTpyata e DocTaBHyO CTyHeHa, npMmRbaHTo n aIapMaTa ABTomAtNuHO Ue cnpaT.

-Функцятapa60tN:

-Korato xnaaHnKbTe BKnIOueH.
-Korato OTdeneHneTo Ha φpnsepa cTaHe TBbpe TOnNo.
-Korato mma npekbcaHe Ha eNeKtpo3axpaHbHeTo 3a npOdbJxKtTeH nepnoD OT BpeMe.
-Korato B OTeJeHHeTo Ha cPn3epa Ce NOCTABrT rOJIeM KOnIYeCTBa TOnJa XpaHa.
-Korato BpaTata Ha φpns3epa e ocTaBeHa OTBopeHa 3a TBbpDe IbJiro BpeMe ININ TBbpDe YecTo.

Диспенецьвога（*）

HaTncheteNocta 1 Ha nucnHecep a 3a BODaTa,3a Da nOnyuTe cTydeHa BOJa.

BHUMAHNE

• Na3ete Deuata DaJneu OT DnCneHcepa, 3a Da He cn IrgaT C Hero NIn Da He nobpejrt KOHTpOJIHNTe KOnHeta.

3a Da Nouchnte CnCTemata 3a Cha6dyaHe C BODa, PpOMnTe C BODa B IpOdbJIxKeHne Ha OKoNo 5 MNHyTN.

3ABEJIENKKA

() :Ta3nФункцьВарпаВЗвснмocT OТ 3akypeHnMoDEJ.
- Ako OTbOpnte BpaTata Ha φpns3epa DOKaTO ce nOdaBA BOda, BOdocha6dJaBaHeto ue cnpe.

Ako OTBOpHTe BpTaTaHa XnAaHnHnKa DOKaTO Ce IOnaBa BOa, BOOCha6JaBaHeTo Ⅲe HnPaBn Na3a.
AKOOTBOpbTHaYaaataeMaJIbK，BOdaTAMoKe Da ce pa3nNcKa OT YaWata NINBbo6ue Da He yuelen.
-ИЗпОЛЗВаΙеЧааСДиАмЕТБРНаOTВОРа над 68mm пи подаBAHe Ha BODa.

Pe3epBoap c dncnpeHcep 3a Boda

1 OToBopTe KaNaUkata (MaKnA Kanak) B TropHata Yact Ha pe3epBoapa 3a Boda.

2 HanbJIHHe pe3epBoapac nIteHa BODa m 3aTbOpTe KanaKata (MaNka KaNaYka).

• Pe3epBoapbT 3a BOda MoKe Da CbIbPka do 2,3 nItpa.

BHUMAHNE

• He trp6Ba da ce no3B0n8Ba Ha deuca da ce do6nKabat do pe3epBoapac dncneHcepa. Ako Deteto n3nyche BoDnra pe3epBoap c DnCneHcepa DOkato Toe u3qAno PbJeH C BOda,TO MOKe Da ce HapaH.
  He npinaraTe npekomepHa cna nn Bb3deIcTBne, KOraTO OTCTpaHraBate nn crno6BaTe pe3epBoapa 3a BOda. ToBa moKe Da npuHHn NobpeDa Ha ypeDa nn HapaHraBaHe.

3ABEJIEXKA

• Ppei Da n3non3BaTe pe3epBOap 3a B0da Cnei HnctaHnpaHe Ha ypeDa, Tp6Ba Da ro N3MnTe, Ppei Da rHO HanbJHnTe C B0da.
• PpOBepTe dAnn pe3epBoapbT 3a B0da e nocTaben npabuHNO Bbpx ypeDa. Ako He e crIIO6e H npabuHNO, BOdTa MoKe Da IpoteHe ot pe3epBoapa BypeDa.

AkoBpe3epBoapa 3a BOda Hma Boda, cyHKnraTa Ha dncneHcep a 3a CTydeHa Boda He MoKe da ce nIOJI3Ba. IpOBepTe daIN mMa BOda B pe3epBoapa I Go HanbIHeTe C BOda,ako Hma.
-Изчakайтпонe 15 cekyнnpeДида CBaNTe pe3epBOapac BOda cneД kaTo cTe OCBO6OJIN BOJa.
3ByKbT OT pe3epBoapa c B0da, KOrato DnCneHcepBc Ce Cha6JaBa C B0da, e HopMaJIeH. He e npn3HaK 3a HEn3npaBHOCT.

Ta6nueka 3a nei

HanbJIHeTe Ta6NnKata 3a JeD C B0Da.

I P E D U N P E X K D E H N E

• PbHHeTa cMo C nTeHa Boga.

BHUMAHNE

• PpOBepeTe DaJIIMa OCTaHaJI NeI B Ta6JNcKata 3a JeI npeIN da NoCTaBNTe BOda B HeJ.
  He xnonBaIte BpaTata Ha qpu3epa, cneKaTo HAnbHnHTe C BODa Ta6NnuKata 3a NeD.
  AkoOTbaprTe 3aTbaprTe BpTaTa Ha oepa YecTo, 3amp3BaHTo Ha BOdaTa MOKe Da OTHE MIO-DJNTO BpeMe.
  BpeMeTo 3a 3ampb3BaHe Ha BOdaTa MoKe Da Bapnpa cnopei ce30Ha.
• Cta6nH3npaHTo Ha TeMnepaTypaTa BbB BbTpewHOCTTa Ha ypeDa MOKe Da OTHeme Do 24 Yaca Cnei NpBBOHaayHnHO To HcTaNipaHe. Iopadn TOBa, 3ampb3BaHTo Ha BOdaTa MOKe Da OTHeme No-DbNro BpeMe.
  -Бдete BHMateHn, KOrato 6opabnte c IeDa, TbN KaTo p6oBeTe Ha NeDa MoKe da ca octpn.

3ABEJIEXKA

Ako TaBnukata 3a neJa e npenbHeHa, JeBt MoKe Da 3aJIeHHe 3aeDHO n Da e TpydHO da ce n3BaDi.
HaTnCHHe 6yToHa Express Freeze Bbpxy KOHTpOHHa NaHJI, 3a da ce o6pa3yBa 6bp30 JeI.
He cbxpaHraBaIteJe, KOITo He e 3ampb3HaJI HanbIHO. Pa3mpa3eHaTa BOda 6n MORna Da npuHH cIenBaHe Ha JeDa.
BHMaBaIe Da He n3nON3BaTe npeKoMEpa cnna, KOrato n3BbATE Ta6JNcKaTa 3a Jei. Toba 6n Morno da a cyyn.
3a da npemaxhe Te necho nega, HanbneTe Ta6nukata C BODa PpeBapntenHO.

KoHBeptOp 3a npecn npOdykTN (^*)

Kato oxnaqdaa oTdeeneHne, Temnepaypata B KOHBepTopa 3a npesChi npoDyKTN MOKe da ce KOHTponpa qpe3 nIb3raHe Ha Nocta 1, HAMnpauch Ce B npedHaTa Yact Ha OTdeeneHneTo BB BCsKa Nocoka.

Korato cxbpaaBate 3eneHcyu cned kaTO cTe hactponn Meco nn Pu6a, moKe da hactbnn yBpeXdahe OT CTyda.

3a cbxpaHHe Hn 3eHcyu (PpenopbUba ce)
3a cbxpaHeHne Ha pna.
3a cbxpaheHne Ha Meco.

3ABEJIEXKA

(^*) Ta3nФункцьВарupaB3abuCmOcTOT 3akynehnmoJen.

YeKeMeJxke 3a CBeXn 3eJeHcyu (^*)

BnaKHOCTa B OTdeneHneTo 3a 3eHeuM OMOKe Da ce perylnupa Ype3 3aBbPtaHe Ha KOnHTo 1.

3a cbxpaHHeH He 3eJHcyu (PpenopbUba ce)

3a cbxpaHHeHa nIOdoBe.

3ABeJIeXKKA

(^*) Ta3nФyHKuB BapupaB 3aBNCMOCT O3aKynHmMoDen.

CrbBaem paT

CbxpaaBaTe NO-BnCOKn IppeMEn KaTo raIHOHe KOnTeHep HnN 6yTnIKn, KaTO HaTNCHe TnpdHaTa NIOBnHa Ha paTa nO3aHaTa NIOBnHa Ha paTa. DpbHete npdHaTa CtpaHa Ha paTa HAnpeD, 3a Da BbPHeTe KbM NIOXeHne Ha NbNeH paT.

1 IOBnHHeTe npedHaTa cTpaHa Ha paΦTa n I3MeCTe Bbpxy 3aHaTa My cTpaHa.

2 NOBdHHeTe npedHaTa cTpaHa Ha paΦTa n IIN3MeCTe IOI 3aHaTa My cTpaHa. OT TOBa IIOJKeHne, DBeTe CTPaHn Ha paΦTa MORaT Da Ce NOBdHrHaT, 3a Da ce OCBO6Ou INOBeYe IpocTpaHCTBO.

Дрги Функции

AnapMa 3a OTBopeHa BpaTa

AnapMaTa npo3ByuBa 3 nTn B INTEpeBan OT 30 cekyn, ako Bpata (XnaDnHo OTdienHe) octane OTbOeHa nn He e HanbJHO 3aTbOeHa 3a eHa MNHyTa.

Cbpxte ce c ceHTbpa HOpmaun 3a KnneHn Ha LG Electronics, ako anapmeHnT cnHa npOdbJnxaba cJeD 3aTbaprHe Ha Bpata.

OTkpNbAHe Ha noBpeDa

UpeBt Moke cam da oKpNb a npo6n m no BpeMe Ha eKnloaTaun.

Ako 6bnde oTKpnt npo6nem, ypeBt Hma da pa60tn uIe ce noka3Ba kOd 3a rpeuka dopn npn HaTnCKaHe Ha HkOJ OT 6yToHInTe.
Korato TOBa Ce Cnyu, He N3KnHouBaIte 3aXpaHbAHeTo n He3a6abHc Ce CBpKeTe C ceHTbpa 3a INHOpMaunr 3a KIneHTn Ha LG Electronics. Ako N3KnUoyHe 3axpaHbAHeTo, TEXNkBT OT cEHTbPa 3a INHOpMaunr 3a KIneHTn Ha LG Electronics Moke da ce 3aTpydHn pnp OTKpNbAHe Ha npo6nema.

Приложенeto LG ThinQ

Tazn xapaKTepeNCTnKa e HaNuHa cMoB MoJeIN C Wi-Fi.

PnnoKeHneTo LG ThinQ Bn no3Bolra Da KOMyHKnPaTe CypeDa NocpeDCTBOM CMapTFOH.

XapakTepncTnKn Ha npInJoxKeHneTo Ha LG ThinQ

Komyнкраite c ypeda ot cmapTpoH c nomoTuHa ydo6hnte yMHN xapaKtepncTNKn.

Smart Diagnosis

AkoBb3HnKHe npo6Jem DOkATO n3NOJ3BaTe npuIOKeHHeTO, Ta3n XapaKTepNCtNka 3a yMHa DnaHocCTNka (smart diagnosis) ue BN NOMORHe da DnaHocTnucnPate npo6Jema.

Hactpoyn

-ДаВвВьзМохнocT 3a 3aДaВaHe Ha pa3NnHn ОпцИ BуpeДи В ПиLOXeHneTO.

3ABEJIENKKA

Ako CMeHnTe CBo 6e3xKuHe npTep,
IOCTaBnK Ha nHTepHe Tnn NapOJa, n3TpniTe
peRnCTpnpaHny yPeD OT npNIOKeHneTO
LG ThinQ n ro peRnCTpnpaTe OTHOB.
- PpInIOKeHHeTo e npEaMeT Ha npOMeHc cen IpoIob6paBaHe Ha ypeHa, 6e3 npEaBapuTeHNO YBeDOMBaHe Ha nOTpebTeNITe.
- ΦyHKUInTe MoKe Ja ca pa3NnHn npu pa3NnHnTe MoDeJI.

Ipei Da n3noJ3BaTe npJIOxHeNeTo LG ThinQ

TbPBOHaayHapereNCTpaunHa ypeDa

• CтартураиTe npиложенеTo LG ThinQи сддайTe ИнструкшиTe, 3a Да ретистрпаTe урда.

Iobtopno pernctppnaHe Ha ypea nnHa dpyr notpe6nte

• HaTnchTe n 3aApbXTe Wi-Fi 6yToHa 3a 3 ceKyuHn, 3a Da rO u3KnIOuHTe BpeMeHHo. CTaptnpaIte npINOxKeHneTo LG ThinQ n cNeDbaiTe yka3aHnraTa B npINOxKeHneTo, 3a da pernctpnpate ypeda.

3ABEJIENKKA

3a da n3KIOUHTe cyHKUraTa Wi-Fi,HaTnCHte
H 3aIpbXTe 6yToHa Wi-Fi 3a 3cekyHn.
IKoHKata ce ne 3KIOUH.

HOpMaun 3a coTyepe c OTBOpEN KO

3a da noJyHTe n3xOdHnKoD cBflacHo GPL, LGPL, MPL n dpyrI nnueH3n C OTbopeH KoD, cbdbpkaun Ce B To3n npOdyKT, nocetete ye6 caTt http://opensource.lge.com.

BdoIbIHeHHe KbM 3XoDnHn KoD MoKeTe Da n3TeJIInTe N BCNU CNOMeHaT N IuueH3N0HHN ycIOBn,OTKa3N OT rapaHcnn N 3BecTn BbB Bpb3Ka C aBTOpCKn npaba.

LG Electronics cbyo ue Bn npedoctabn OTbopen n3xoeden kod ha CD-ROM cpeuy 3aapanlaune, nokpnbauo pa3xodnte 3a n3Bbpwbahe Ha taKaba dNCTpr6bucny (kato hAnpimep ceHaTa Ha HocnteJIte, pa3xodnte ITO TpaHcnpTa), cnei KaTo pOnyu npbUka 3a TOBa IIO NMeIHa aDpec: [e-mail]. Ta3n opepta e BaIndha 3a nepnoD ot Tpr rOdiHn CneI nocJeHaTAt Hi DoctabKa Ha To3n IpOdyKT. Ta3n opepta e BaIndHa 3a BCEKN, noyunl Ta3n INHOpMaunr.

Smart Diagnosis

Tasn xapaKTepeNTnKa e HaNuHa cAmo B MoJeN C JIOROTMNI .

I3noJI3BaIte Ta3nФyHKUa, 3a Da IinaHocTnucpate n pa3peuHTe npo6JIemc BaIwIypeI.

3ABEJIEXKA

• ПО пчини, КОТо He ce Дьлжат Ha nponyckn Ha LGE, усугара може д He e aktnвна поради Вьншни Фakтори, кato Hanример, Ho He само, Heналуност Ha Wi-Fi, npeкьсна Врьзka c Wi-Fi, мectha полтука Ha app store, Или НЕашичост Ha пиюхенeto.
  XapakTepeNCTnKaTa MoKe Da noJleKHa npomHa 6e3 npeBapuTeHNo yBeOMneHne N MoKe Da mpa3JInuHa fOpMa B 3aBNCmOcT OT MeCToHaxoKDeHHeTo BN.

I3noJ3BaHe Ha LG ThinQ 3a DnarHocTnCupaHe Ha npo6JeMn

AkoBb3HnKHe npo6nem C Baunr Cha6denn C Wi-Fiype,ToM MoKe Da PpeJaDe DaHHN 3a OTkpNbAHe NOTCTpaHraBaHe Ha npo6nema KbM cMapTfoh NocpeDCTBOM npuJIOxEHNeTO LG ThinQ.

• CtaptnpaIte npnIOxKeHneTo LG ThinQ n36bepTe xapaKTepeNCTnKaTaN Smart Diagnosis B MeHIOTo. CneBaIte NHCTpyKuNTe, PpeOCTaBeHN B pnpIOxKeHneTo LG ThinQ.

Диспей панелт e Вьрху ВраТаТа нахладинka.

1 HaTnchTe 6yToHa Lock 3a aKtNbupaHe Ha cyHKunraTa 3a 3akNouBaHe.

• Ako dincnneert e 6n 3aknoueh 3a noBceye ot 5 MNHTN, Tp6Ba da deakTNbnpate 3aknOVAHeto nocne da ro akTNbnpate OTHOBO.

2 HaTnchete n 3aApbXTe 6yToHa Freezer 3a TpN CeKHyN INI NIO-DbJIro KATO IpoIbJxabate Da Dbpxnte TeJefoHa Cn Do BnCOKOrOBOpNTe.

3 OTbopete BpataHa XnaIINHnKa n CneTToBa 3aDpBkTe TepeOHa 6Jn30 Do OTbopa Ha BnCOKOrOBOpnte.

4 CneI KaTo npeHocbT Ha daHHn e npNKJIOUHJI, cepBn3HnT npEcdTaBnTeI Ie Bn o6aChn pe3yIITaTnte ot Smart DiagnosisTM.

Диспел naHeIbTe BbB BpaTata Ha XlaAnHnka.

OTbOpTe BpaTata Ha XJaAnHnHaKa.
2 HaTnchTe 6yToH Eco Friendly.
3 Ako BpaTata e 6nla OTBopeHa 3a NOBeue ot 60 cekyHn, 3aTBopeTe BpaTata n NobTopeTe CTbIKN 1 n 2.
4 3aDpBxTe TelefoHa 6n3o Do OTbopa Ha BnCOKOrOBOpnteHa. HATncHete n 3aDpBxTe 6yToH Freezer 3a 3cekyHn, KaTO DbpxTe TelefoHa cn nped BnCOKOrOBOpnteHa.

5 CneI KaTo 3aBbPn IpeDaBaHeTo Ha DaHHNTe, DnaHHO3aTa Ue Ce NOKaKe B PnIOKeHNrTO.

3ABEJIEXKA

3a Han-do6pn pe3yntaTn, He MeCTeTe TenefoHa DOKaTO ce N3NbYbAT ToHOBe.

3a6eJexKn OTHoCHO nOuHCTBaHeTo

Korato cBaIaTe paTnIyueKeMdxKeOT BbTpewHOCCTHa hypeTa,IN3BaJeTe CraJaTa CbXpaHReBaHa XpaHa OT paTaNII YeKMeJKeTo,3a Da npedeOTBpaTHTe HapaHReBaHe NII NOBpeHa Ha ypeA.
-B npoTnBeH cnyaM MoKe Da ce noNyH HapaHbAHe NopaN TeIIOTo Ha CbxpaHbAHHTe XpaH.
AkoNoHnCTBaTe BbHUnHInTe OTBOpn 3a Bb3DyX Ha ypeJa c NOMOuTa Ha npaxOCMyKaHa, eNektpnuecknT Ka6e Tp6Ba Da Ce OTkaun OT KOHTaTa, 3a Da ce n36erHe CTatUeH pa3paHa eNektpnueCTBO, KOITo MoKe Da NobpeiN eNektpoHnKaTa nn da npnuHn eJektpnueckn ydap.
CbaIepepaTOBeTe NyeKMeJKeTaTaNrNoHCTeTe CBoa, cNeD KoETo rN 3CyUeTeDo6pe, npEn Da rN NoCTabNTe o6paTHo.
- PeIOBHO n36bpcBaIte yIJIbTHHeHnraHa bpaTata c MOKpa MeKa Kbpna.
-Nethata n pa3nVBaHraTn NO K0uHnUcaTa 3a Bpata Tpr6Ba Da ce NouchTbA, Tb' KaTo Te HapyuBaTcNooc6HoCTTa 3a CbXpaHeHne Ha KOuHnUcaTa N MORaT DOpn Da a NOBpeJr.
CneK KaTo NoHCTnTe, npOBepTe DaJIIN 3axpaHbAunrKa6eI He e NOBpeJeH, daJI IN He e TOnbl IJIN He npabUNHO BKNIOUeH.
-Плдьржайтчистп OTBOPNTe 3a Bb3dYx OT bHnHaTcTpaHa Ha ypeJa.

-3anyueneHOTBOpn3aBb3dyxMOratda npnuHHTnoXapnnIOBpeHa ypeJa.

Korato noHCTBaTe ypeDa OTBbTpE nJIn OTBbH, He ro n36bpCbaIte C rpy6a YETka, nacta 3a 3b6n nn 3anaNIM BeUeCTBa. He n3noJI3BaIte NoHCTBaIu npenapatn, CbIbPkaIu 3anaJIIMM BeUeCTBa.

ToBa MoKeHpaHH OBe3cBETraHe nnIOBpeHa Ha ypeHa.

-3anaJIMMBeueCTBa:anKoxon (etahoJ, MeaHOn, n3OpPONn anKoxon, n3O6ytnn anKoxon n T.H.)，pa3peiHTen, 6eHHa, 6eH30J, 3anaJIMN TeHOCn, a6pa3NBn np.T.

3a BbHnHaTa YacT Ha ypeDa n3noJ3BaIte YnCTa Tb6a nn MeKa KbpNa m MeK noHcTbaU npenapat, pa3peDen C tonla Boda. He n3noJ3BaIte a6pa3nBn nn rpy6n noHcTbaU n cpeDCTBa. PocSyWe Te Do6pe C MeKa KbPna.

• Hnkora He nouchBaIte paTobete nn CbdoBETe B MnaJIHa MaunHa.
• Yactnte Morat da ce deopmnpat npaTTOJIINHATA.
• Ako ypeBt e cha6dEn c LED lamna, He cBaIaIte kanaKa ha LED lamnata n camata lamna B ONIT da r peMOHTnpate nn 06cnyknte. CbpxTe ce c ceHTbpa 3a INHΦopMaunra 3a KIneHTn Ha LG Electronics.
• Почиствашие рedingовноьрхон'tи, конт можеда влязатВ контakтсханс дocьнITE сnteMu 3a Дpeнж.

I3BaJdaHe Ha K0uHnUcaTa Ha BpaTaTa Ha XJaDnHnka

XBaHete DbTa Kpa Ha KoUHnUcaTa nЯ n3BaTe KeTo nOBdInrHeTe Harope.

Noctabraye Ha KooshncaTaHa BpaTaTa Ha XlaadnHnka

1 XbaheTe Dbata KaPra Ha KoUHnuaTaHa BpaTata,JeKO 6yTHeTe eDINnHa Kpa,3a Da crIIO6nte,a NocLe No Cbunr Haunr CrIIO6Te dpytna Kpa.

2 CneI kaTo crNoBnte, notynaiTe neko KOuHnUcaTa, 3a Da a 3akpenTe XOpN3OHTaJIHO.

IocTaBHe Ha YekMeJxKeTo Ha 6pn3epa

IocTabraHTo Ha YekMeJKeTo Ha φpns3epa ce n3BbPwBa B o6paTeH peD Ha npoueca Ha cBaJIHe.

Tryk pa knappen Fridge erer Freezer for at justere temperature.

• Temperaturek an justeres.

Installation of LG ThinQ-application

Sog after LG ThinQ-appen fra Google Play Store, eller Apple's App Store pa en smartphone.

MnV xTUTATE TNY TIOPTA TOU KAATUOKTN, apou YEUIAETE TOV DIAKO TAYOU ME VEPo.

Eav avoiyete kai kLeivete ouxva TnV TnOpta Tou katayuktn, mTopei va xpeiaotei TEPIOOTepoc Xpovoc YIA VA TAYWoei To Vepo.

O xpovoc Tou xpeiaZeTai yia va Taywoei To vepo mTopei va diaqepei avaloya u Tnv ETOXn.

MTOpei va xpeiaotouv EwC kai 24 wpec yia va otahepoTointheta i n thepuokpaoia mea a tno oukeun e ta nvy apxikn totoetnon. Ia tov loyo auto mTOpei va xpeiaotei TepiooTepos cxpvoc ia va tanaywoeI TO vepo.

• PooEgEoTav xeiPiEeToTov TAYo KaOwC oI akpcTou mTpei va eivai aixmnpEc.

ZHMEIΩ

Eav o biokoc panyou evai napayemievoc, O
Tayoc mtopei va koanoei kai va eivai
duokolo va aqapiee.

• Patnote To Koupti Express Freeze oTov Tivaka eLeyxou yia va 8nmuOpynoTe ypnyopa Tayo.

Mny aTOoNKeUeTe TAYO TOU DEV EXI KATAuuxTe EVTEALwC.EAV TO VEPo DEVEXI TAYWoei Ta TAYAKIA MTOpei va KOANnouv MEtQToUc.

• PpooEeTE va uny xpnoiouoieu utepboikn duvaun otav oTpiBETe Tov biKO npou. KATI TEIO 0a mTPOUoe va OTAOEI Tov biKO npou.

Tia va aapaipoeote eukoataov Trayo, ymuote µ vepo tov bioko ek twv Tpotepwv.

Eco-Friendly (Modo Eco)

OLULISED OHUTUSJUHISED 3

Teie vana seadme havitamine 10

PAIGALDAMINE 11

OLULISED OHUTUSJUHISED

OHT

Plateau a oeufs mobile

Application LG ThinQ

VAZNE SIGURNOSNE UPUTE 3

Zbrinjavanje starog ureda 10

POSTAVLJANJE 11

Dimenzije i slobodan prostor 11

Temperatura okoline 11

Pribor 12

Preokretanjevrata 12

VAŽNE SIGURNOSNE UPUTE

UPOZORENJE

Kako biste smanjili opasnost od eksplozije, požara, smrti, strujnog udara, ozljede ili opekotina osoba prilikom upotrebe ovog proizvoda, slijedite osnovne mjere opreza, uključujuci sljedeće:

Djeca u kućanstvu

• Ovim se uredağem ne bi trebale koristiti osobe (uključujuci djecu) smanjenih tjelesnih, osjetilnih ili mentalnih sposobnosti, ili s manjkom iskustva i znanja, osim ako ih osoba koja je odgovorna za njihovu sigurnost ne nadzire ili im daje upute u vezi s upotrebam uredağaj. Djecu treba nadgledati kako bi se osiguralo da se ne igraju s uredağem.

• Ako je urejad opremljen bravom (samo kod nekih modela), držite ključ izvan dosega djece.

Za uporabu u Europi:

HnBeIipaHe Ha ypeDoT

YpeoT Mopa da e HnBepnPan 3a da HeMa Bn6paun.

ДOKOLKY e NOTpe6Ho, OdBpTeTe ИИЗ 3aBpTeTe Ги 3aBpTKuTe 3a ИИБeПира№ Б ДOKOLKY ypeIOT ro NOCTaByBaTe Ha HepaMeH NOД.

IpeHnOT dEHa ypeoT Tpe6a da e nocTaBeH MaIKy NOBcOKO OJ 3aDHnOT 3a NOECHO 3aTBopaHe Ha BpaTaTa.

Habane ro anapatot 3a necho da npuctannte do 3aBPTKte 3a HNBenipahe.

BpTe Tn 3aBPTKITe CnpOTUBHO Ha HAcOKaTa Ha CTpeJIKITE Ha YacOBHKnOT 3a Da ro NODIrHETe ypeIoT, a o6paTHo 3a Da ro cnYuSTNTe NOHNCKO.

Pobp3yBaHe Ha ypeDoT

IIO nHCTaJaujata Ha ypeIoT, npNKnyeTe ro Bo WTekep npNKlyOkoT 3a HanojyBaHe.

HANOMEHA

• IIO NOBp3yBaHbETo Ha Ka6eIOT 3a HanojyBaHe (nnn npNKnyuOkOT) co uTekePOT, npuekajTe 2 nnn 3 yaca nped Da cTabNTe xpaHa BO ypeDTo. DOKONky cTabNTe xpaHa BO ypeDTo npd ToJ ceNoCHO da Ce n3JaDi, XpaHaTa MOKe Da ce pacIne.

PpeMeCTyBaHbe

1 OtctpaHeTe ja ceTa xpaHa.
2 3BaTeTo npKnyOKOT 3a ctpya, BMeTHeTe To nΦHKcapajTe To BO KyKaTa 3a npKnyOKOT Ha 3aHaTcTaHa NJIHa roPHNOT DeI OJ anapaTOT.
3 Co nomou Ha Jennna Ba JeHt, 3aeneTe r n noiunte npaKaTa Ha BpaTata 3a da He naHaT npn npemecTyBaHbETo Ha ypeDTo.
4 IpnemecTyBaJTe caMo aKO cTe NOBeKeMnHa. Kora ro npehecyBaTe Ha noDOnrnpactoJaHnja, dpxTe ro nCnpaBeH.
5 OTKaKO ke ce noCTaBn, NOBp3eTe ro co cTpyja co npNKnyyBaHbe BO wTeKepe n BKnyteTe ro.

MoNaTcIyKx3a npaBeHcN yBaHc Mpa3.

KapakTepncTnKn Ha anIIkaunjaTa LG ThinQ

Komyu npajTe co anapatot od namteH TelefoH co nomow Ha npakTuHnTe nameTHn yHKun.

Pametha DnjarHoctnka

Ako nckycnte npo6nem dokeka ja Kopucntte annkaunjata, onnjaata 3a naMeTHa DnjarHOCTNkKe Bn NOMORHe da ro DnjarHOCTuNPate npo6nemOT.

NoDecyBaHa

• Bn obo3moxyBa da noodeCte pa3nHn onuKaj anapaTOn BO annkaunjata.

HANOMEHA

Ako ro npomeHnte cbojoT 6e3Kuueh pyTepeBabByBaOT Ha nHTepHET ycnyr nnIIO3nHKata, n36pniweTe ro perncTpupaHnot anapat od anNkaujata LG ThinQ n nobTopho pernctpapajre.
Annkaunjata noJnxHa npomeH 3apan noobpyBaHe Ha anapaToT,6e3 da im ce dae npedynpeDyBaBe Ha KOpNCnUTe.
- KapakTePncTnKnte MoKe Da BapuPaat Bo 3aBnCHOCT OJ MOJeNOT.

IpeД користelve на anлкauцида LG ThinQ

1 IpoBepete ro pactojaHneTo nomery anapatot n 6e3KmHnOpyTe (Wi-Fi mpeXkata).

Ako e nperoIeMo pactoJHnETo nomery anapatot n 6e3xNHyNt pyTe,doar do cna6eeHe ha cnHaIOT. MoKe da 6nDe notpe6en noD0JIr BpemeHcN nepno3a perncTpaunja,nn MoKe da DOBeJe Do HeycneuHa Hnctalaunja.

2 Ncknyte rMo6nHnTe nOaTouN nn KeHnCKnTe nOaToUHa BaUNOT NaMeTeH TeNeoH.

3 Iobp3eTe ro Baunot nAmTeH TeJefoH co 6e3KnHnOpyTeP.

HANOMEHA

3a da ja notbprnte Wi-Fi KOHeKunjata, npoBepe DaJIncBETN IKOHATA Ha KOHTPOJHNO T NaHEn.
AnapaTOn noDpKyBa eHnCTBeHo 2,4 GHz WiFiMpexn.3a da ja npOBepnte ppeKBeHunjataHa BaUATA Mpexka,KoHTaKTnpajTe ro BaUNOT Ch6dyBauch CO HHTepHet ycIyr, INN NOrJeHHeBO yNaTcBTO 3a BaUnOT 63Kuueh pyTeP.
LG ThinQ He oOroBopeH 3a 6nIO KaKBN npo6IeMn OKOJy KOHeKTnpaHbETo Ha MPeXaTa Nn KaKBN n da 6nIO rpeuKN, DepeKTN Nn rpeuKn npedN3BnKaHN OD KOHeKTnpaHbETo Ha MPeXaTa.
- Ako anapaTOT nma npo6Iemn Okony KOHeKTIpaHBeTo Ha Wi-Fi mpeXaTa, MoKe6u e npedaleky od pyTePoT. Ha6abete Wi-Fi 3acnnyBauch (3acnnyBauch Ha doCTpeNOT) 3a da ja na noDobpnte jaunHaT ha Wi-Fi cnHaNOT.
Wi-Fi KOHeKunjata MoXe6n He ce NOBp3yBa HJMOx6n e IpeKnHaTa nopadn ONkpyKvBaHbeto Ha Domaushata MpeKa.
MpexHTo NOBp3yBaHe MoXe6n Hema da pa60TN IpaBnIHO BO 3aBnCHOCT O npOBajdepot Ha INHTepHet ycnyrnte.
- OkonHTo 6e3xuHNo NOBp3yBaHe MoKe6n npDoHecyBa 6e3xuHNoT MpeXeH cepBnc da pa60Tu 6aHo.
AnapatOT He moke da ce peRnCTpnpa, npaPi npo6IeMn co npeHocot Ha 6e3KuHnOt cnHaI. N3Bneye To Ka6eNoT od anapatot n noyekajte OKOly eHa MNHyTa, ppei NobTOpHO da ce oNndeTe.
Ako e OBO3MOXKeH 3aUHTTHNOT SnHa BaUNOT 6e3KHeH pyTeP, OHeBO3MOXKeTe rO nIIN DOJaTeE NCKJlYOK BO Hero.

• ImeTo Ha 6e3xuHaTa MpeXa (SSID) Tpe6a da 6nde KOMbHaCuJa oJ aHrnnckn 6yKbN n 6poEBn. (He KopucTeTe rncneunjannHte kapaTepn)
  KopnchNCHKNOT INHTeppejc (UI) Ha naMeTHNOT TepeOH MoKe Da Bapnpa, BO 3abuChOCT Od MObHNOt OnepaTHeh CnCTeM (OS) n npou3BODNTeNoT.
  Ako 6e36eHOCnOT npOTOKoHa pyTePOte noCTaBeH Ha WEP,MOKe Da He ycneete BO noDecyBaHeTo Ha MpeXata. Be monime npomHeTe ro Ha dpyrN 6e36eHocn npOTOKo (Ce npenopayBa WPA2) n NOBTOpHO pernctpnpajTe ro npOn3BOIoT.

Инсталарые наапликагида LG ThinQ

Побapajte ja anпикauида LG ThinQ Ha Google Play Store & Apple App Store п配电у ванnot namete6 телфон.

CneTe Tn HNCTpyKUInTE 3a npEeMaHe INHCTaINpaHBe Ha anNIkauNJata.

Pobp3yBaHe co Wi-Fi

Kora ro Kopunctte koncheTo Wi-Fi co annilkaunjaT a LG ThinQ, anapaTOT MOKe da ce noBp3e co domaunata Wi-Fi mpeka. IkoHata 念 ro nokayba cTaTycot Ha mpeXhata KoHeKUnja Ha anapaTOT. IkoHata CBetn Kora anapatot e nobp3an co Wi-Fi mpekata.

PpBnuHa pernctpaunja Ha anapaTOT

• CtapTybajTe ja LG ThinQ annkaunjata n cneDeTe rHnCTpykunite BO annkaunjata, 3a da ro pernctpnpate anapatot.

Iobtopho pernctpnpaHe Ha anapaTOnnnpeurncptpnpaHe Ha dpyr KopncnK

-ПиТИСНЕТI ИДРЖЕТI GOKONЧETO WI-Fi BO TpaeHbe od 3 cekyHdN, 3a npINBpeMeHO NCKIpyBaHbe. CtrapTybajTe ja LG ThinQ aIINaKaujataI nCneDeTe rN INHCTpyKcUNTe BO Hea 3a dIra ng PERnCTPnPaTe anapaTOT.

HANOMEHA

3a da ja ncknyuHTe yHKunjata 3a Wi-Fi, npTnCHete u dpKteTo KOHTo Wi-Fi BO TpaHe be o3 cekyn. Ikonata ce ncknyu.

N3BecTyBaHbe 3a coΦTBe p Co OTBopeH KOD

3a da ro do6neTe n3BOpHnOT KoD cnopeGPL, LGPL, MPL u npynte Jnuehnc 3a otBopen n3BOpEn K0d KoJ ce KopnCTn kaj OoJ npOn3BOd, nocetete ja ctpaHnUata http://opensource.lge.com.

Iokpaj n3BOPHNOt KOd,doCTaHn 3a Ipe3emaBe ce n CITE HabeDeHn Onde6n Ha NInceHua, OndeKyBaHa oD OndROBOPHOCT N IN3BecTyBaHa 3a aBTopcN npaba.

LGE nCTO taka Ke Bn OBO3MOxN CNo6oDen KOD Ha CD-ROM 3a ueHa koJa rN NOKpINA TPOoUHTe 3a TaKBOTo IOCTaByBaHBe (kako Ha np. TPOoOn 3a MeDyMOT, PpaTKaTa N MaHInyJnatNBHN TPOoOn) No bapaHe npeky e-noTHa opensource@lge. com. OBaa noHyda e BaJIuHa BO nepNOd od TpN roDHH NO nocneHaTata Hsa Icnpoka Ha OBOJ npON3BOD. OBaa noHyda Baxn 3a cekoj npimateJn Ha OBne INOpMaun.

PametHa DnjarHocTnka

ObaaФункиjaeДOCtanHa cMoCo moJeNITe co JIOrOTO 1JIN

YnoTpe6eTe ja Obaa onuja 3a da njuarHocntunpate nn peunte npo6JeMn co Baunot anapat.

HANOMEHA

• OД пчнишTO He може да ce npeniшат кадо hemapnoct Ha LGE, усугата може дa He pa6OTn nopadn HaDBopeшн Фaktopи, кадошTO ce, Ho HeorpaHnybajкn ce Ha HeDocTaHOCtHa Wi-Fi, ry6eHe Ha Wi-Fi KOHEKUjata, NOIITNkata Ha npOdaBnUcaT a 3a anIIkaCmN INI HEDocTaNHOCTa Ha anIIkaCunjata.
  Obaa cyHKunja moKe da e npedMeT ha npomeHa 6e3 npetXoJHa Hajaba N MOKe Da mA npa3nUHa cOpMa BO 3aBnCHoCT Od Toa KaDe cTe loupaHn.

KopncTeHe LG ThinQ 3a DnjarHocTnucpaHe npo6JIeMn

Ako nckcnte npoblemn co Baunot anapat onpemencoWi-Fi,Toj moKe da rncnpaTn noaTOUte 3a np6leMOT Ha naMeTe TeneoH npeky anikaunjata LG ThinQ.

Bknyte ja annkaunjata LG ThinQ n36epete ja onnjata 3a naMeTHa nnjarHocnka oM MeHTo. CneTe rU ynatCTBaT aDaeHN BO annkaunjata LG ThinQ.

KopncTeHe 3ByuHa DnjarHo3a 3a DnjarHocTnucpaIbe npo6Jemn

CnepeTe rynatcbata dony 3a da ro KopnCTnte MeTOoT Ha 3ByHa DjaarHO3a.

Bknyte ja annkaunjata LG ThinQ n 36epete ja onujaT a 3a naMeTHa nnjarHOCTnKa oM MeHTo. CneTe r yNaTcTBata 3a 3ByHa dnjarHO3a daeHN BO annkaunjata LG ThinQ.

Panael co dincnpje Ha BpaTaTa Ha cpnxndepot.

1 PnTnCTHe ro konyeTo Lock 3a da ja aKTNBnpaTe cyHKunjata Bpaba 3a 3aKnuyBaHbe.

Ako ekpahot e 3aknyueh NOBeke od 5 MNHyTN, Mopate da ro DeaKTNBupate 3aknyuBaHeTo n Notoa NOBTOPO da ro aKTHBnpate.

2 IpnTnCHTe ro konHeTo Freezer n npKeTe ro Tpr cekyHnn noDOnro DoKeKa ro dpKnte Baunot Telepon Ha 3ByuHnKOT.
3 OTbOpTe ja BpaTata od φpnxNepoT nДpxKeTe ro TeNeΦOHOt 6n3y OTbOpOT Ha 3ByHnKOT.

4 IIO 3aBpyBaHe Ha TpaHcpepOT Ha NOdaTOU, INPeTCTaBHnK Od CepBnCOT Ke BN rN o6jacn pe3yIITaTnTe od Smart DiagnosisTM.

PanaHNot Ha dncnJeJc Ce haora BO BpaTata Ha pnnKepeoT.

1 OToBopeTe ja BpaTaTa Ha pPnKnepoT.
2 PnTncHeHa konyeTo Eco Friendly.
3 Ako Bpaata 6nna OTbopeha noDOnro od 60 cekyHn, 3aTbopTe ja n nobTopeTe rN YekOpTe 1 n 2.
4 DpxkTe ro TepeHOT 6n3y OTBOPOT Ha 3ByuHKnOT. PnTncHete n DpxkTe ro KOnHeTo Freezer 3ceKHydI DoKeKa ro DpxkTe TepoHOT npEi 3ByuHKnOT.

5 OTKaKO Ke 3aBpHn IpEHOCOT Ha nOdaTOU, DnjaH03aTa ce npKaJyBa BO anNkaunjata.

HANOMEHA

3a Hajdo6pn pe3yntatn, He nompndHybajTe ro TepehoHOT doNeKa ce npehecyBaat 3ByuTe.

Hanomehn 3a YncTeHe

Kora BaIndte noJnua nn oNOKa Od anapatOT, n3BaJeTe ja ceNaTa XpaHa uTo e cKnJaHpaHa Ha noJncaTa nn oNOKaTa, 3a da cnpeuNTe NOBpeDa nn OwTeYBaHe Ha anapatOT.
-Bo cnpotnbHO, MoKe Ja Dojde Do NOBpeDa nopaDi TeXHaTa Ha CKNaDnpaHaTa XpaHa.
AkoTnYnCTnTe HaBOpewHnTe OTBopn 3a BeHTnlaucjHa anapaTOT CO npaBOcMykaJIka, TOraTpe6a DaTo NCKIyUnte Od CTpyja 3a Da n36erHete CtaTnKo Ppa3HeBe KOeWTO MOKe Da ja OWTeTne EJNeKTPOHnKaTa UIN Da IpeDn3BnKa CTpyeH yap.
- N3BaTeTe rN pONuNTe nΦnOKnTE n NcYnCTeTe rN CO TOnJa BOJa, a NToTa N36pNiSeTe rN u BpaTeTe rN Ha3aJ.
- PeioBHO 6pniweTe ja 3aNTnBkata Ha BpaTaTa co BnaXHa Me Ka Kpna.
- NCTeHeHata XpHaN DAMKn Ha KOpNTe OD BpaTata TpeBa Da ce YnCTaT 3aToa WTO rO HAmanyBaaT KanaUHTetOT Ha CyBaHbE Ha KOpNaT, Na Dypn MoKe n da ja oWTeTaT.
- Ito YnCTeHBeTo, npOBepTe daJIu Ka6eIOT 3a cTpyja e OHTeH, TOnOJI nn HEnpaBUNHO BknyeuH.
OdpKyBajTe rHnCHTN OTBOpNTe 3a BEHTnlauJa Ha HAnBOpEshHOCTa Ha anapaTOT.

-3aTHaTN OTBOpN 3a BEHTnlaUJia MoKe Da npEiUN3BnKaat NOXap INI Da rO OWTetAnapaTOT.

Kora ke ja uctte BHaTpeHocTa Hn HaBopeuHocTa Ha anapaT, He 6pniweTe ja co rpyba Yetka, nacta 3a 3a6n, nn He kon 3anaJIINbMaTepnjaJn. He KopncTe cpeCTBa 3a uCTeHe Kon CoDpxkat 3anaJIINbMaTePnN.
-Toa MoKe Da npeiN3BnKa npomeHa Ha 6ojata nn OwTeTyBaHe Ha anapaTOT.
-3anaanBnMaTeepn: anKoxon (etahon, MeTaHOJ, n3Opponn aIKOXON, n3Obytna anKoxon nTH.), pa3peDyBauchcpeCTBO 3a 6eHebe, 6eh3eH, 3anaanBnBa TeuHocT, abpa3NBn nTH.
3a HauBopeuHocTa Ha anapaTOT, KopnCTe Tc cyHep uN MeKa Kpna n 6nar DeTepeHT BO TOIb BODa. He KopnCTe a6pa3NBn CpeiCTBa NIN CNHN CpeiCTBa 3a YnCTeHe. TemenHO n36pnWete ro co MeKa Kpna.

HnHe MjTe rN noNtte nn caOBe BO MaUNHa 3a MneHe caOBN.
-ДeJOBNTe MoKe Da ce DeΦopMnPaat nopadn TOnJIHa.
- PeioBHO YnCTeTe rN NOBpHnHnTe 3a Da He Dojat BO KOHTaKT CO XpaHaTaN CnCTeMnTe 3a DpeHaxa.
- Ako anapatot e onpeMeH co LED cBeTno, He BaIaTe ro KaIakOT Ha cBeTnOTo HHTy LED CBeTnOTo, Bo 6bI Da ro nonpaBATE uIN cepBucnPate. Be MoIIme CTanTe BO KOHTaKT co LcHTapOT 3a INΦopMaun 3a KIneHTN Ha LG Electronics.

YncTeHbe Ha Kopnata Ha BpaTaTa

BaideHe Ha Kopnata Ha Φριχινεροτ

Држete Г рабовиTe Ha KOPnata N NOДИrHete ja HAnIpeD 3a Да ja ИЗВадиTe.

IobtopHO MeTeHe Ha Kopnata Ha φρnxndepot

1Држete ja Koprata OJ DBete cTpaHn, HeKHO npITncHEte OJ eHaTa cTpaHa Da BJIe3e Ha CBOeTO MeCTO,a Notoa I OJ dpyrata.

2 OTKako cTe ja noCTaBnIe, HeXHo nOTyKHeTe ja Kopnata 3a da JereHc XOpN3OHTaJHo.

YncteHe Ha noIucaTa

Baede neiua od pnxndepot

IOnnHte ro 3aHnot pa6 Ha noJIucaTa Ha ΦpIXnDEpot n N3BaTe ja.

NoBtOpho nocTaByBaHbe Ha noJIuCaTHa φpIXnIepOT

UncTeHbe Ha 3aWTNTHOTOCTaKNo

BaedeHa 3aWHTHOTO cTaKNO

1 OTKako Ke ro n3BaIte KaIakOT Ha 0nOKata 3a 3eNeHcyK, HADOny NOBneHTe Ro rOpHnot dN od 3aWHTHTOcTakNo.

2 NOBJIeHTe rO 3aWTnTHOTo CTAKIO 3a Da rO n3BaJNTe.

Повторно мостеные на 3аштITHOTO CTaKIO

1 Ctabete rN nCnakHaTne DeIOBn Ha 3aHTnTHOTo CTAKNO BO XJIe6OBnTe Ha nOJIucaTa.

2 NocTaBete rN nCnakHaTnte DeNoBN npE3aHTHTOTo cTakNO BO XNe6oBnTe npEINuCaTa I TpyHeTe Ro 3aHTHTOTo cTakNO 3a Da rnoCTaBnTe Ha MecTO.

UncTeHbe HaΦnOKaTa Ha 3amp3HyBaQOT

1 3BaTe ja codpxnHaTa od fnoKaTa. DpKeTe ja paKaTa Ha fnoKaTa Ha 3aMp3HyBaOT n NOleKa, cIeNoCHO 3BNeueTe ja HAnBOp, ce IOneKa He 3anpe.
2 IOnnHHeTe ja 0nOKaTa Ha 3amp3HyBaOHaIrope n 3BaJeTe ja NOBNeKyBajKn Ja HAdBOp.

Verbinding makes met Wi-Fi

Anbefalinger for strømsparing

• Start - temperatureer innstilt.

Kjoleskap: 3°C
Fryser: -18 °C

Den faktiske innvendige temperaturen varierer, avhengig av matstatus, selv om den angitte innstilte temperaturen er en mältemperatur, er det/DDke den virkelige temperaturen i Produktet.

MERK

Reverter as Portas 12

Para Inverter as portas

Limar as saidas de agua e gelo

Eco Friendly (Ecologic)

RIESENIE PROBLEMOV 29

VAŽNA BEZBEDNOSNA UPUTSTVA

UPOZORENJE

Fridge Temperature (Kyltemperatur)

• Medenna knapp stalls kylskapstemperaturen in.

^ 念 Express Cool (Snabbkylning)

Stalla in temperature

Medenna knapp stalls kylskaps-ller frystemperaturen in.

Tryck pa knappen Fridge erer knappen Freezer for att justera temperatures.

• Temperaturen kan justeras.

Kylskap: frän 1°C till 7°C
- Frys: fran -15 °C till -23 °C

Den initiala temperaturen ar installd.

Kylskap: 3°C
- Frys: -18 °C
