Brand	Bosch
Model	Serie 4 GSV29VW31N
Product type	Freezer
Installation type	Freestanding appliance
Height	85 cm (approx.)
Width	60 cm (approx.)
Depth	65 cm (approx.)
Net weight	42 kg (approx.)
Rated voltage	220-240 V, 50 Hz
Rated current	10 A
Energy class	A+ (estimated)
Net freezing capacity	Approx. 100 L
Freezing capacity in 24h	10 kg (estimated)
Power failure autonomy	Up to 24 h (estimated)
Super freeze function	Yes
Temperature alarm	Yes
Defrost	Manual
Door hinge side	Reversible (right or left)
Recommended wall clearance	Min 3 cm from heat sources
Noise level	39 dB (estimated)
Care and cleaning	Clean with a soft cloth and warm water
Spare parts	Available through Bosch after-sales service
After-sales service	Bosch, see website or retailer

Frequently Asked Questions - Serie 4 GSV29VW31N BOSCH

What is the required installation type for this freezer?

The Bosch Serie 4 GSV29VW31N is a freestanding appliance that must be installed in a dry, well-ventilated room, away from direct sunlight and heat sources.

How to reverse the door opening direction?

Reversing the door opening direction is possible. It is recommended to have this operation done by the after-sales service. Otherwise, follow the steps illustrated in the manual (Fig. 1) after unplugging the appliance.

What are the minimum clearances to respect from heat sources?

Respect a minimum clearance of at least 3 cm from electric or gas cookers, and 30 cm from an oil or coal heater. Use an insulating panel if necessary.

How to adjust the appliance to be level?

Use a spirit level and adjust the two front screw feet using a fork wrench to compensate for floor unevenness.

What should I do if I want to install a refrigerator next to this freezer?

Place the refrigerator to the left of the freezer. Stick spacers at the four corners, 5 cm from the side edges, to guarantee a minimum gap.

How to clean the inside of the freezer?

Unplug the appliance and remove the food. Clean with a soft cloth and warm water mixed with a mild detergent. Dry thoroughly before restarting.

What to do in case of a power failure?

The appliance offers several hours of storage autonomy. Avoid opening the door unnecessarily. The temperature alarm warns you if the internal temperature exceeds the critical threshold.

Can I use non-original spare parts?

To guarantee safety and performance, use only original Bosch spare parts available through the after-sales service.

How to activate the Super Freeze function?

The Super Freeze function is usually activated via a dedicated button on the control panel. It quickly lowers the temperature to freeze large quantities of fresh food.

What is the noise level of this appliance?

The noise level is approximately 39 dB, making it quiet. It may vary slightly depending on the installation.

USER MANUAL Serie 4 GSV29VW31N BOSCH

Free-standing appliance

Using the installation instructions

Please fold out the illustrated last page. These installation instructions refer to several models.

The diagrams may differ.

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

3 cm to electric or gas cookers.
30 cm to an oil or coal-fired cooker.

The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.

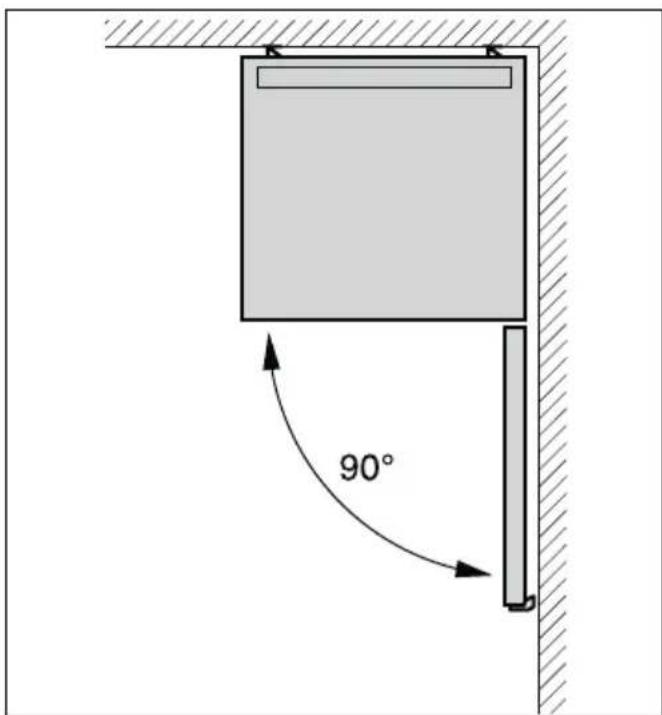

Distance from wall

When installing the appliance, ensure that the door can be opened by 90^ .

Installing appliances next to each other

Fig. 3

When installing two appliances, ensure that the refrigerator is on the left and the freezer is on the right.

The right side panel of the refrigerator is heated slightly. This prevents condensation from forming between the appliances.

Attaching spacers

Fig. 4

1. On the right side of the refrigerator, degrease the adhesive areas with petroleum ether or spirit.
2. Stick spacers in all four corners at a distance of 5cm from the side edges to ensure a minimum gap between the appliances.

Note

You can purchase a connection set from your dealer.

Changing over the door hinges

(if required)

We recommend that you have the door hinges changed over by our customer service. You can find out the costs for changing over the door hinges from your appropriate customer service.

Warning

While changing over the door hinges, ensure that the appliance is not connected to the power supply. Pull out the mains plug beforehand. To prevent damaging the back of the appliance, place adequate padding underneath. Carefully place the appliance on its back.

Change over the door hinges in numerical sequence. Fig. 1

Note

If the appliance is placed on its back, ensure that the wall spacer is not fitted.

Changing the door handle

(if required)

Fig. 2 A/B

Change the door handle in numerical sequence.

Fitting the wall spacer

Fig. 5

If available:

Fit wall spacers to obtain the indicated energy absorption of the appliance. A reduced wall gap will not restrict the function of the appliance. The energy absorption may then change slightly.

Aligning the appliance

Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench.

Note

The appliance must be upright. Please align it with a spirit level.
