Zippi - Fan Vornado - Free user manual and instructions

USER MANUAL Zippi Vornado

Owner's Guide READ AND SAVE THESE IMPORTANT INSTRUCTIONS

Designed, engineered and supported in Andover, Kansas.

Questions or comments?

Prequantas o commentarios?

Questions ou commentaires?

www.vornado.com

[e-mail]

800.234.0604

Contents

Important Instructions 4
How To Use 8
Features 9
Care and Maintenance. 9
Warranty. 10

Espanol p. 12

Francais p. 21

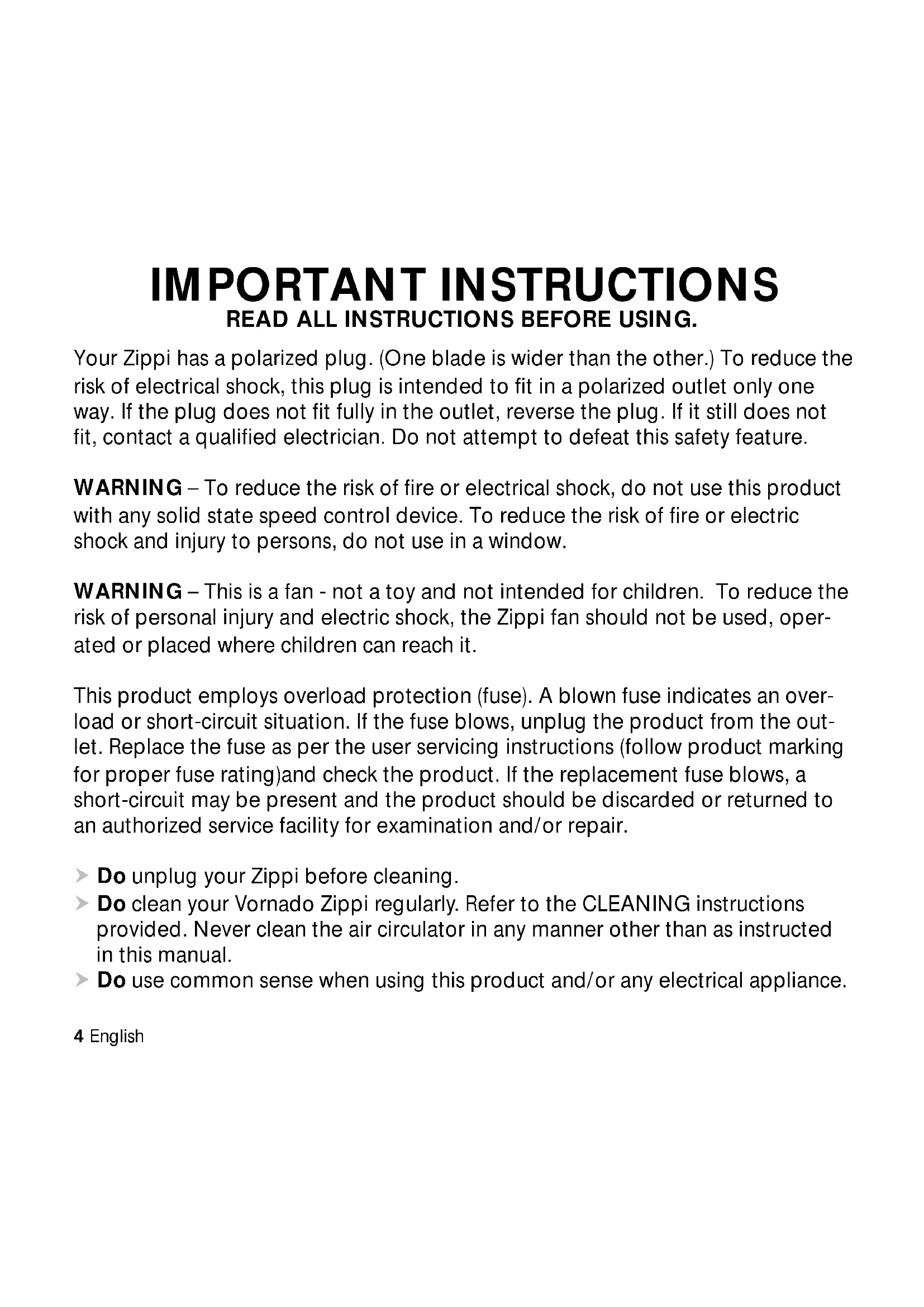

IMPORTANT INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING.

Your Zippi has a polarized plug. (One blade is wider than the other.) To reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

WARNING - To reduce the risk of fire or electrical shock, do not use this product with any solid state speed control device. To reduce the risk of fire or electric shock and injury to persons, do not use in a window.

WARNING - This is a fan - not a toy and not intended for children. To reduce the risk of personal injury and electric shock, the Zippi fan should not be used, operated or placed where children can reach it.

This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

Do unplug your Zippi before cleaning.
Do clean your Vornado Zippi regularly. Refer to the CLEANING instructions provided. Never clean the air circulator in any manner other than as instructed in this manual.
Do use common sense when using this product and/or any electrical appliance.

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING.

Do use caution when positioning this product on an elevated surface, as vibrations or accidental bumping may cause the fan to unexpectedly fall.
Do Not use gasoline, thinners, solvents, ammonias or other chemicals for cleaning.
Do Not immerse this product in water or allow water to drip into the motor housing.
Do Not use near furnaces, fireplaces, stoves or other high-temperature heat sources.
Do Not position this product too close to draperies because they may be drawn into the rear grill, cutting off airflow.
Do Not use this product outdoors.
Do Not use this product on wet surfaces.
Do Not use this product in a bathtub or shower.
Do Not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
Do Not carry this product by the cord, or use the cord as a handle.
Do Not attempt to repair or replace parts.
Do Not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
Do Not position too close to other objects or allow the blades to continually come in contact with other objects.
Do Not operate this product in close proximity to long, loose items like tassels or long hair.

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING.

User Servicing Instructions

Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. Open fuse cover (A.) by sliding access cover on top of attachment plug towards blades. Remove fuse carefully (B.) by gently prying out the ends of the fuse from the receptacle.

Risk of fire. Replace fuse only with 2.5 Amp, 125 Volt fuse.

Contact Vornado customer service for replacement fuse.

Phone: [phone], email: [e-mail]

Install replacement fuse (C.) by first placing the end of the fuse into the fuse receptacle which is opposite of the blades of the plug, then carefully push in the other end. Only push against the metal end of the fuse, not the glass center portion. Close the fuse access cover (D.) by sliding the cover back into the plug until it is completely closed, latches and is flush with the face of the plug. Risk of fire. Do not replace attachment plug. Contains a safety device (fuse, AFCI, LCDI) that should not be removed. Discard product if the attachment plug is damaged.

A

C. D.

SAVE THESE INSTRUCTIONS

6 English

Trust.

It is said that trust isn't given, but earned. For decades Vornado has been earning the trust of our customers by offering them only the best. Vornado provides the highest level of performance, coupled with the highest level of support available. Complete satisfaction with no exceptions – this is Vornado's promise to you. If you are not satisfied for any reason, please contact us. Knowledgeable representatives are available at 1-800-234-0604 from 7:00 AM to 6:00 PM CST. A wealth of additional support is also available online at www.vornado.com. On behalf of myself and the entire staff at our Andover, Kansas headquarters – thank you for selecting Vornado.

Sincerely,

Bill Phillips

CEO, Vornado Air

Find our complete product line at www.vornado.com

How To Use

Your Zippi fan is completely assembled and ready for immediate use. Simply plug in Zippi and enjoy its cooling effect. Thanks to Zippi's small size and easy portability, it can be used to provide a cool breeze in almost any space. Since Zippi is designed for personal cooling, the airflow pattern and angled blades are specifically engineered to drive maximum air to the person positioned directly in front of the fan.

Fan Speed

Zippi allows speed control with the control knob at the back of the fan. Speed "I" is the lowest setting, "II" is the highest setting and "O" is the off position. At either speed, the soft, pleasing sound created by Zippi is the perfect blend of quietness along with the soothing sound of whooshing air.

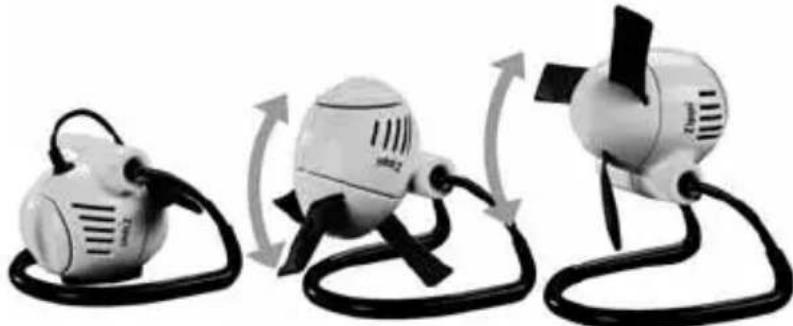

Directable Airflow

The adjustable fan head gives you the freedom to customize the direction of the airflow. Simply position the fan head at an angle that provides you with the ideal amount of cooling.

8 English

Features

Compact

Zippi is designed to fold to a convenient, compact size when not in use, providing easy storage or travel.

Soft Cloth Blades

The blades are soft when they come into contact with any objects yet provide ample air movement when put into operation. It is intended that the blades will not regularly come into contact with objects, but they are designed to not cause injury if they accidentally do contact objects or individuals. Should a blade become loose or tattered, DO NOT operate the fan. Contact Vornado. If your Zippi operates with excessive

vibration, check that all three blades are fully extended when in operation.

Care and Maintenance

The motor is permanently lubricated and requires no oiling. Because your Zippi moves air it will require regular cleaning. Be sure to unplug the unit prior to cleaning. To clean just unplug and wipe off the fan with a soft cloth.

It is possible to remove the front hub should something accidentally wrap around the motor shaft. Pull the hub straight off the shaft. To put the hub back on the shaft, push the hub onto the shaft until it is in near proximity to the body, but allows free rotation. Do not use a hammer as this could result in bearing damage.

Warranty

Vornado Air LLC • 3 Year Limited Warranty

Vornado Air LLC ("Vornado") warrants to the original consumer or purchaser this Vornado® Zippi™ ("Product") is free from defects in material or workmanship for a period of three (3) years from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost. Repairs not covered by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor, handling and shipping.

This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, repair or service of the Product by anyone other than Vornado, mishandling, improper maintenance, commercial use of the Product, damages which occur in shipment or are attributed to acts of God.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state.

Warranty

For warranty or repair service, call 1-800-234-0604 or email

[e-mail] to obtain a Return Authorization ("RA") form.

Please have or include your Product's model number and serial number, as well as your name, address, city, state, zip code and phone number when contacting Vornado for warranty service.

After receiving the RA form, ship your Product to:

Vornado Air LLC

Attn: Warranty & Repair

415 East 13th Street

Andover, KS 67002

For your convenience, please have your model number and serial number when contacting Vornado with service inquiries. To assure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product after the Product is received. For your records: Staple or attach your original sales receipt to this Owner's Guide. Please also write your products's serial number below (located on product specs decal).

Serial No.

Product registration available online at www.vornado.com

©2013 Vornado Air LLC Andover, KS 67002

Patent Pending. Specifications subject to change without notice.

Vornado® and Zippi™ are trademarks owned by Vornado Air LLC.

www.vornado.com 1-800-234-0604 [e-mail]
