USER MANUAL MD 16322 MEDION

• Directive CEM 2004/108/CE

1.1. Warning symbols and key words used in these instructions ................72

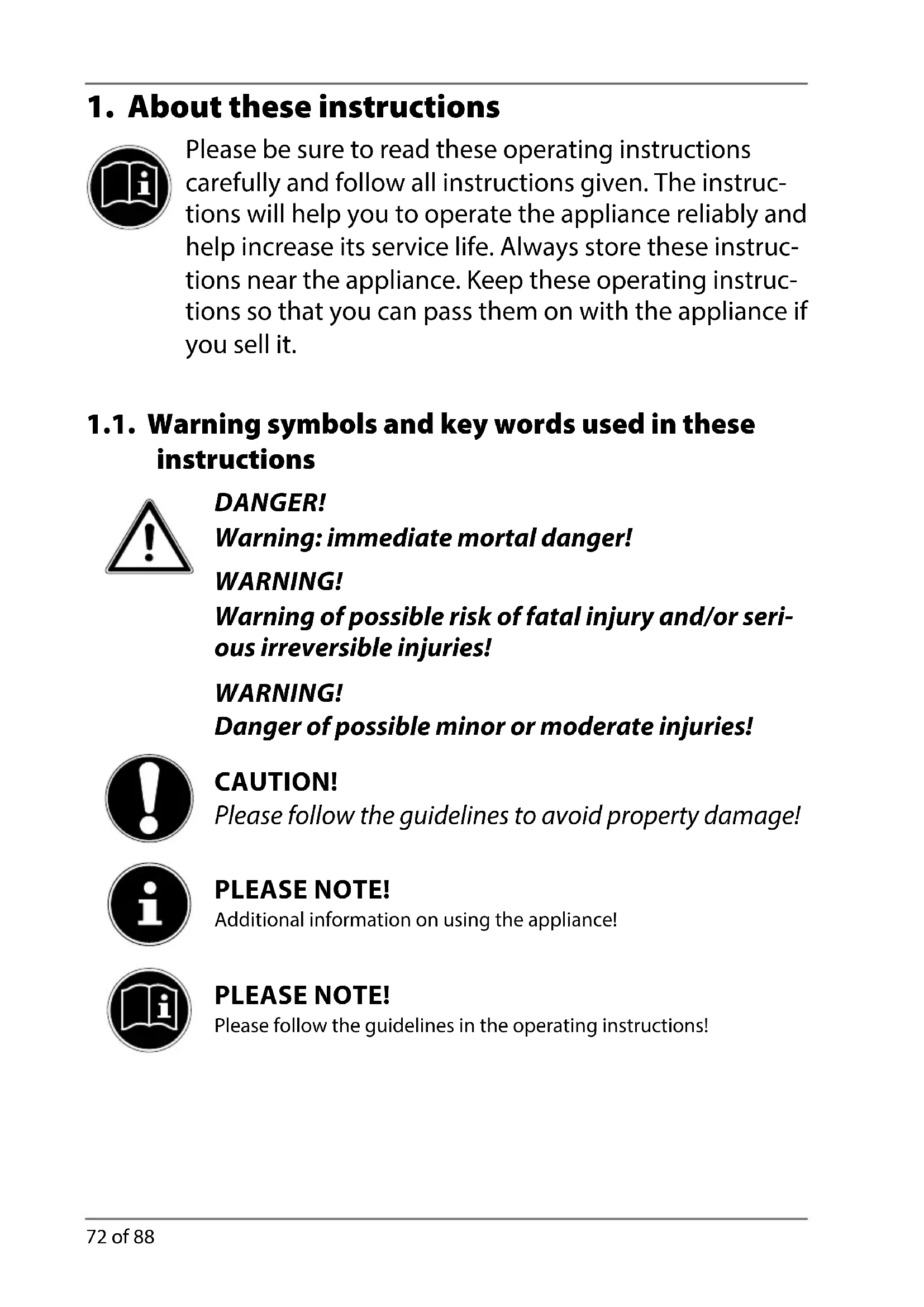

1. About these instructions

Please be sure to read these operating instructions carefully and follow all instructions given. The instruc- tions will help you to operate the appliance reliably and help increase its service life. Always store these instruc- tions near the appliance. Keep these operating instruc- tions so that you can pass them on with the appliance if you sell it. 1.1. Warning symbols and key words used in these instructions DANGER!

WARNING! Warning of risk of electric shock!

• Bullet point/information on operating steps and results Tasks to be performed

Ensure that the following parts are included: − Vacuum cleaner − Crevice nozzle − Nozzle for liquids − Mains adapter GQ05-096030-CG − Car charger adapter BE24L-030-096 − Wall mounting set − Operating instructions and warranty documents

The vacuum cleaner is designed for sucking up dry dirt like dust, crumbs or lint inside the house or the car. It is also suitable for sucking up small volumes of liquid.

• The appliance is intended for private use only and not for in- dustrial/commercial use. Please note that we shall not be liable in cases of improper use:

• Do not modify the appliance without our consent and do not use any auxiliary equipment which we have not approved or supplied.

• Use only spare parts and accessories which we have supplied or approved.

• Heed all the information in these operating instructions, es- pecially the safety information. Any other use is deemed im- proper and can cause personal injury or property damage.

4.1. People not permitted to use this appliance

• Keep the appliance and its accessories out of reach of chil- dren.

• This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the ap- pliance and have understood the dangers that result from it. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children, unless they are aged 8 or over and are supervised.

• Children younger than 8 should be kept away from the appli- ance and the mains cable. WARNING! Keep plastic packaging out of the reach of children. There is a risk of suffocation! 4.2. Safe operation

• Only use the supplied mains adapter GQ05-096030-CG or the car charger adapter BE24L-030-096 to charge the vacuum cleaner.

• The appliance must not be connected to the mains adapter or the car charger adapter during use.

• Only connect the mains adapter GQ05-096030-CG to a freely accessible, properly installed power socket with a power sup- ply of 220-240V~50Hz.

• Do not use an extension cable.

• Connect the car charger adapter BE24L-030-096 to the 12V socket in your car.

• The mains adapter and car charger adapter may only be used in dry rooms.

• RISK OF EXPLOSION! Never use the appliance near flammable materials. Do not use it to vacuum sharp-edged or flammable objects or liquids, e.g. matches or hot ashes. When vacuuming combustible liquids there is the risk of fire or explosion!

• Keep hair and items of clothing away from the suction open- ing.

• Only ever use the vacuum cleaner with the filters and dust container inserted.

• Do not cover the suction and outlet openings.

• Never pull on the cable to remove the plug from the mains socket or the car charger adapter from the vehicle socket.

• Always switch off the vacuum cleaner before changing the ac- cessories, emptying the dust container or cleaning the filter. Never use the appliance without any filter elements. 4.3. Use of rechargeable batteries This appliance contains a lithium-ion battery. WARNING! Please note the following when using lithium-ion re- chargeable batteries:

• Charge the battery regularly and as fully as possible. Do not leave the battery discharged for long periods.

• Keep rechargeable batteries away from heat sources such as radiators or open flames, e.g. candles. There is a risk of explo- sion!

• If the appliance cannot be switched on although it is connect- ed to a power source, please contact your service centre.

• Do not use charging devices that are damaged in any way.

• Do not dismantle or deform the batteries. You could injure your hands or fingers, or battery fluid could come into con- tact with your eyes or skin. If this happens, rinse the affected areas with plenty of clean water and contact your doctor im- mediately.

• Do not leave the battery in hot or cold locations, e.g. in a car 16322 MULI eCommerce Content Final REV1.indb 7516322 MULI eCommerce Content Final REV1.indb 75 08.04.2015 08:01:2208.04.2015 08:01:2276 of 88 in summer or winter. Extremes of temperature adversely af- fect the battery’s capability to charge correctly. 4.4. Faults WARNING! Live components. There is a risk of electric shock. Therefore, follow the instructions below:

• If the plug, cable or appliance itself is damaged, disconnect the appliance from the mains immediately.

• CAUTION! To avoid risks, never try to open and/or repair the appliance yourself. There is a risk of electric shock. In the event of a fault, contact our Service Centre or another suitable professional repair workshop.

• If the mains cable on the appliance is damaged it must be re- placed by the manufacturer, its customer service agent or other suitably qualified person. This is to avoid hazards. 4.5. Cleaning

• Never immerse the vacuum cleaner in water for cleaning.

• Empty the dust container regularly.

• Clean the dust filter regularly. CAUTION! Breathing in the dust when emptying the dust contain- er can pose health risks or trigger allergies. Empty the dust container outside directly into a waste bin. 4.6. Wall mounting WARNING! There is a risk of electric shock. Select a suitable loca- tion for installing the appliance and take care not to damage any hidden electrical or installation cables when drilling the holes. 16322 MULI eCommerce Content Final REV1.indb 7616322 MULI eCommerce Content Final REV1.indb 76 08.04.2015 08:01:2208.04.2015 08:01:2277 of 88

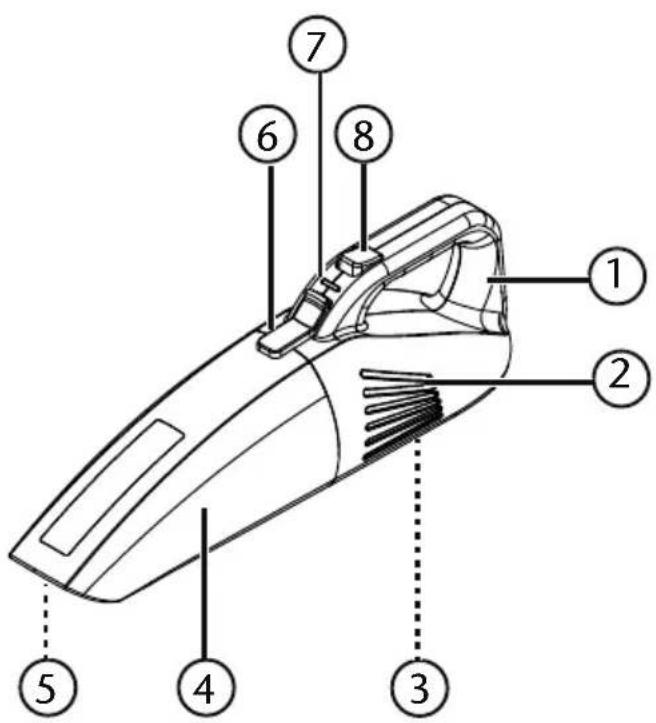

5. Overview of the appliance

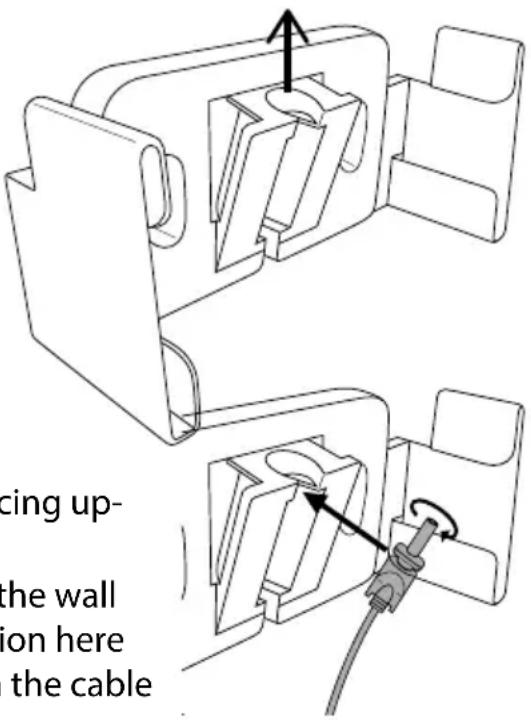

6. Installing the wall mount

The supplied wall mount provides you with the option of securely storing the vacuum cleaner on the wall. Select a space near a mains plug. Hold the wall mount against the installation location and mark the positions for the two drill holes with a pen. Drill 2 suitable holes in the marked positions in order to fix the screws. Insert the wall plugs into the drill holes. Fix the wall mount to the wall using the two screws supplied with the recess for the plug facing up- wards. Insert the jack plug into the cable holder on the wall mount as illustrated in the diagram. Pay attention here to the recess on the plug and the guide slot on the cable holder. Lock the plug in place by twisting it a quarter turn.

7. Preparing the appliance

Remove all packaging materials from the appliance and the accessories. Firstly connect the cyclone insert and the dust filter together. Ensure that the tabs on the cyclone insert fit into the recess on the dust filter. Fit the cyclone insert with the dust filter into the dust container so that the seal on the dust filter closes off the dust container. Place the dust container onto the motor block by firstly inserting it into the catch at the bottom of the motor block and then folding it shut until the unlock- ing button clicks audibly into place. 7.1. Charging the battery You can charge your vacuum cleaner using the supplied mains adapter GQ05- 096030-CG or the car charger adapter BE24L-030-096; please observe the following steps: NOTE! Switch off the appliance before charging it (On/Off switch set to posi- tion 0). Attach the mains adapter or the car charger adapter to the power connection on the bottom of the vacuum cleaner. Connect the mains plug to the mains socket or the car charger adapter 16322 MULI eCommerce Content Final REV1.indb 7816322 MULI eCommerce Content Final REV1.indb 78 08.04.2015 08:01:2208.04.2015 08:01:2279 of 88

BE24L-030-096 to the 12 V socket in your car. The appliance will charge; the operating light flashes red. Once the battery is charged, the operating light will light up green. After charging, remove the plug on the mains adapter from the mains socket or the car charger adapter from the socket in the car and remove the jack plug from the appliance. NOTE! Charge the battery for at least 24 hours before using the vacuum clean- er for the first time. Always charge the battery when the suction power drops significantly and the operating light flashes green.

7.1.1. Charging in the wall mount

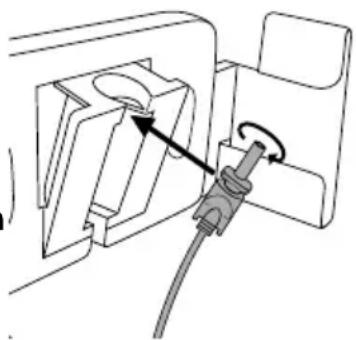

If you want to charge the vacuum cleaner in the wall mount, proceed as follows: Install the wall mount and the mains cable as described above. Connect the mains adapter to a mains socket for charging the battery. Hold the vacuum cleaner by the handle and insert it into the wall mount with the dust container facing upwards. When the operating light flashes red, the vacuum cleaner is correctly mounted and the battery is being charged. Once the battery is charged, the operating light will flash green. After charging or when the appliance is not in use, pull the plug on the mains adapter out of the mains socket again.

8. Using the vacuum cleaner

Ensure that the filter housing and the dust filter are precisely fitted in the dust container and that the dust container has been securely mounted on the motor block. Connect a suitable suction nozzle: − The crevice nozzle for vacuuming difficult-to-reach areas. − The nozzle for liquids for vacuuming up small amounts of liquid (e.g. spilt drinks or similar). Switch on the vacuum cleaner by setting the On/Off switch to position I . NOTE! For reasons of hygiene, clean the dust container and the filter immedi- ately after you have vacuumed up liquids. Allow the parts to dry com- pletely before using the appliance again. Switch off the vacuum cleaner by setting the On/Off switch to position 0. 16322 MULI eCommerce Content Final REV1.indb 7916322 MULI eCommerce Content Final REV1.indb 79 08.04.2015 08:01:2308.04.2015 08:01:2380 of 88

9. Cleaning and care

Empty the dust container and clean the filter and cyclone insert ideally after every use. Clean the suction opening as required.

• Do not use solvents or caustic/gaseous cleaning agents to clean the surfaces of the appliance and the accessories. Wipe the surface with a damp cloth. 9.1. Cleaning the dust container We recommend emptying the dust container and cleaning the filter after every use. Carry out the following steps: The appliance is switched off. Press the unlocking button above the handle. Remove the dust container from the motor block. Remove the dust filter by pulling on the ribbed flap. Remove the cyclone insert by taking hold of it inside the opening and pulling it out. Empty the dust container over a dustbin. Rinse the dust container and the cyclone filter with water and clean the dust fil- ter regularly under running water. Rinsing is not necessary every time. Never put the dust container in the dishwasher! When the dust container, cyclone insert and filter are dry again, fit the filter housing and the cyclone insert with the dust filter into the dust container so that the seal on the filter closes off the dust container. Place the dust container onto the motor block by firstly inserting it into the catch at the bottom of the motor block and then folding it shut until the unlock- ing button clicks audibly into place. CAUTION! Before using the appliance for the first time, please ensure that the dust filter in the dust container has been inserted correctly. If this is not the case, it can lead to the vacuum cleaner being damaged. 9.2. Cleaning the suction opening After a while, dirt and dust can collect around the suction opening and can reduce the suction power. To avoid this, the suction opening should be cleaned regularly. Switch off the appliance. Remove dirt and dust from around and inside the suction opening.

Twist off the fuse cover as illustrated. NOTE! When replacing the fuse for the first time, it is possible that the fuse cov- er will be very difficult to unscrew. Replace the faulty fuse with a new F 3A/ 250V fuse and screw the fuse cover back in place.

If the appliance malfunctions, please check first if you can eliminate the error your- self with the help of the following overview. Never try to repair the appliances yourself. Contact our Service Centre or other qual- ified personnel if a repair is necessary. Problem Rectification The vacuum cleaner is not working The rechargeable battery is not sufficiently charged The suction capacity is reduced The suction nozzle is blocked. Switch off the appli- ance. Remove the blockage. Dust filter/cyclone insert is dirty. Clean the dust filter/ cyclone insert. The vacuum cleaner makes unusual nois- es during operation Switch off the vacuum cleaner immediately. The suction nozzle is blocked. Remove the blockage.

Packaging Your appliance has been packaged to protect it against transportation damage. Packaging is raw material and can be re-used or added to the recycling system. Correct disposal of this product The appliance is fitted with a built-in high-performance lithium battery. Within the EU this symbol indicates that this product may not be thrown away with the household refuse. Old appliances contain valuable recy- clable materials which should be disposed of through the proper chan- nels in the interests of the environment and human health. Therefore please use the collection systems provided or send the product back to the place where you bought it so that it can be disposed of correctly. and recycled as appropriate. 16322 MULI eCommerce Content Final REV1.indb 8116322 MULI eCommerce Content Final REV1.indb 81 08.04.2015 08:01:2408.04.2015 08:01:2482 of 88

Power output 45W Voltage: DC 7.4V Input: DC 9.6V Mains adapter Model GQ05-096030-CG Manufacturer Dong Guan City GangQi Electronic Co., Ltd, China Input: 100-240 V ~ 50/60 Hz, 0.3A max. Output DC 9.6 V 300 mA Car charger adapter Model BE24L-030-096 Manufacturer Dong Guan City GangQi Electronic Co., Ltd, China Input: 12 V / 2 A Output DC 9.6V 300mA Fuse: F 3A/250V (6.3 x 32 mm, flink, US standard, 3A) Integrated rechargeable battery Type Li-Ion, 1300 mAh Charging time approx. 6 hours Operating time approx. 15min Dust capacity: 0.4 l Liquid capacity 0.15 l Dimensions: approx. 406 x 104 x 130 mm

14. Declaration of conformity

Medion AG hereby declares that the product MD 16322 conforms to the following European requirements:

• EMC Directive 2004/108/EC

• Low Voltage Directive 2006/95/EC

• Ecodesign Directive 2009/125/EC

Copyright © 2015 All rights reserved. This operating manual is protected by copyright. Mechanical, electronic and any other form of reproduction is prohibited without the written permission of the manufacturer Copyright is owned by the company: Medion AG Am Zehnthof 77 45307 Essen Germany The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/. You can also scan the QR code above and download the operating manual onto your mobile device via the service portal. 16322 MULI eCommerce Content Final REV1.indb 8316322 MULI eCommerce Content Final REV1.indb 83 08.04.2015 08:01:2508.04.2015 08:01:2584 of 88

16. Restricted Warranty (United Kingdom)

16.1. General Conditions of Warranty

This warranty covers defects relating to workmanship and manufacture in MEDION products. The period during which this warranty is valid and during which claims against the warranty can be made to MEDION must be in accordance with the fol- lowing terms in order to be considered eligible:

• Is effective from the date of purchase or receipt of the MEDION product from an authorised seller of MEDION products; and

• expires at the end of the warranty period. For the warranty to be valid, you must:

• provide suitable evidence of purchase, a copy of the original purchase receipt from an authorised seller of MEDION products is preferred;

• register your product within 28 days of purchase online at www.MEDION.co.uk. Please keep the original purchase receipt in a safe place. MEDION and its authorised sellers reserve the right to refuse a repair under warranty or a warranty confirmation if a proof of purchase [or registration of purchase] cannot be established, or has not been, submitted. When it is necessary to return your product for repair please ensure that your pro- duct is suitably packed for transportation. Provided that your product is still within warranty (please check the duration of the warranty period as described above) and is eligible for repair or replacement under the terms of the warranty, to return your product, please telephone MEDION on the service hotline number. You will be sent a pre-paid transportation box suitable for returning your product to MEDION or a voucher. PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY OF ALL DATA ON THE PRO DUCT BEFORE RETURNING THE PRODUCT TO MEDION. MEDION shall bear the costs of postage and packaging for returning the product and the transportation risk. However, if following examination of the defective pro- duct in question, MEDION, in its reasonable opinion, considers that the defect has been caused by:

• your operating and/or using the product other than as instructed in the accom- panying documentation;

• damage caused in transit as a result of your negligence in packaging of the pro- duct; and/or

• otherwise than in accordance with the terms of this warranty; This warranty shall be void and you may be required by MEDION to reimburse ME- DION for the reasonable costs of postage and packaging before MEDION will return the product to you. If so and you would still like MEDION to repair or replace the 16322 MULI eCommerce Content Final REV1.indb 8416322 MULI eCommerce Content Final REV1.indb 84 08.04.2015 08:01:2508.04.2015 08:01:2585 of 88

product, MEDION may do so but you will be charged MEDION’s standard rates for repair and replacement for this service. Before returning the product, please contact MEDION via the service hotline or via the internet www.MEDION.co.uk. You will receive a reference number (RMA No.). Please mark the outside of your package to ensure that this reference number is clearly visible. Please submit a letter containing as much detailed information as possible and, a full description of the defect or fault. This should include:

• a description of the fault;

• when it occurred, how long it has been evident and how frequently it occurs;

• any errors message(s) displayed when using the product;

• a description of the circumstance(s) and conditions in which the fault occurs; and

• whether it is an intermittent or persistent fault. This will greatly assist MEDION in identifying the defect, when submitted together with the defective product. Unless otherwise instructed by a MEDION representative in all cases, the product must be returned complete with all parts which were included with the original pro- duct. Incomplete contents of the returned package may lead to a delay in the repair or replacement. MEDION does not accept any liability for any additionally submitted material(s) which were not supplied with the original MEDION product. This warranty does not affect your statutory rights in any way and is subject to the applicable legal statutes of the country where the product was sold to you by an au- thorised MEDION seller.

Subject to any exclusions set out within this warranty, where there is a defect in your MEDION product covered by this warranty, MEDION will repair or replace the MEDION product. The decision whether to repair or replace the product will be made solely at the discretion of MEDION. MEDION may, in its own discretion, repla- ce the product returned for repair under warranty with a replacement product that is either identical or, in the event that such product(s) are no longer available, a pro- duct of equal or superior specification and quality. No warranty is given for batteries or rechargeable batteries or for consumable ma- terials subject to wear and tear, i.e. for parts which have to be replaced periodically during the normal use of the product, such as video-projector lamp. Non critical failures that fall within industry specified tolerances e.g. noise, LCD pi- xels are not covered by this warranty. Please consult the appropriate section in your user or instruction manual for this product for exact specifications and tolerances. To the extent which is permitted under law, MEDION will accept no liability for burnt-in images on plasma or LCD products as a result of normal wear and tear du- ring the operation of the product. Please refer to your user or instruction manual for this product for detailed operating instructions for your plasma or LCD product. 16322 MULI eCommerce Content Final REV1.indb 8516322 MULI eCommerce Content Final REV1.indb 85 08.04.2015 08:01:2508.04.2015 08:01:2586 of 88 The warranty does not cover errors relating to the playback of data media in an in- compatible format or created with unsuitable software. If it is found during repair or assessment that the defect concerned is not covered under warranty, MEDION reserves the right to invoice you for all reasonable costs in- curred by MEDION. These costs will be in relation to the return of the product, inclu- ding reasonable administration costs, plus reasonable costs for materials used and labour provided when repairing or replacing the product. This is subject to MEDION providing you with an estimate for carrying out such work prior to costs being in- curred and that you have accepted the estimate. You are entitled to seek independent advice or consultation relating to your pro- duct or any of MEDION’s findings. MEDION will not be liable for any costs incurred to you when doing so.

16.1.3. Exclusion from warranty

To the extent permitted by law, this warranty shall be void in the event that defects or loss caused by:

• failure and damage resulting from the operation of the product in an environ- ment other than that recommended in the accompanying user or instruction manual (e.g. in direct sunlight or in a damp room);

• use other than in accordance with the accompanying user or instruction manual;

• modifications, conversions, expansions, maintenance and/or repairs made to the MEDION product by unauthorised repairers or use of unauthorised third party parts;

• virus attack or software errors;

• improper transportation or packaging during return of the product.

• This warranty will also be considered void if labels or serial numbers of the pro- duct or of a component of the product are modified or made illegible.

• To the extent permitted by law, MEDION shall; only be responsible for losses which are a reasonably foreseeable consequence of the relevant defect in the product; MEDION will not be responsible for any costs incurred in relation to software configuration; economic loss; loss of opportunity; loss of income; or loss of data or software arising out of its repair or replacement of a MEDION pro- duct under this warranty

16.1.4. Service Hotline

Before returning the product to MEDION you must contact us using the service hot- line or via the internet (www.MEDION.co.uk). You will receive further instructions for making your claim under warranty when you call. The price of your call will be stated at the beginning of the call. 16322 MULI eCommerce Content Final REV1.indb 8616322 MULI eCommerce Content Final REV1.indb 86 08.04.2015 08:01:2508.04.2015 08:01:2587 of 88

16.2. Special warranty conditions for MEDION PC, notebook, pocket PC (PDA) and navigation devices (PNA) The following terms apply to MEDION PC, notebook, desktop, pocket PC and laptop products and optional items included with such products. If one of these items has a fault, you also have a warranty claim for its repair or replacement, from MEDION. The warranty covers the costs of materials and labour for repairing or replacing the defective MEDION product or the optional item in question. Hardware connected to your product that was not produced or marketed by MEDI- ON can invalidate the warranty if MEDION can reasonably demonstrate that dama- ge to the MEDION product or of the optional item included with the delivery was caused by such hardware. You are entitled to seek independent advice or consulta- tion relating to your product or any of MEDION’s findings. MEDION will not be liable for any costs incurred to you when doing so. This warranty is restricted in relation to any pre-installed operating system as well as to application programme software that is included with the MEDION product in question. This warranty is restricted as follows: For pre-installed operating system as well as to application programme software in- cluded in the MEDION product, MEDION only guarantees the data media (e.g. the diskettes and CD-ROMs) upon which this software is delivered and warrants that such data media shall be free from material and processing defects for a period of 90 days from the date of purchase of the MEDION product from an authorised seller of MEDION. MEDION will replace defective data media free of charge. Any claims in respect of defective pre-installed operating system as well as to ap- plication programme software are hereby expressly excluded and you should con- tact the relevant licensor or copyright owner of the defective software in questi- on. MEDION does not guarantee that any software supplied with MEDION products will function without interruption, will be free from errors or that it will fulfil your re- quirements. MEDION does not guarantee the 100% accuracy of the maps provided with the Navigation device. It may be necessary to delete all data in the product in order to repair the MEDI- ON product. PLEASE MAKE SURE THAT YOU HAVE A BACKUP COPY OF ALL DATA ON THE PRODUCT BEFORE RETURNING THE PRODUCT TO MEDION. To the extent permitted by law, MEDION excludes all liability for loss of data and MEDION recom- mends in all cases that you back up all data on your MEDION product before retur- ning the product to MEDION. 16322 MULI eCommerce Content Final REV1.indb 8716322 MULI eCommerce Content Final REV1.indb 87 08.04.2015 08:01:2508.04.2015 08:01:2588 of 88 16.3. Special warranty conditions for repair on site or replacement on site If a claim for repair or replacement on site is included with the product, the special warranty conditions for repair or replacement of your MEDION product on site ap- ply. The following provisions must be made by you for carrying out repairs or replace- ments on site:

• MEDION or its authorised personnel must have unrestricted, safe and immediate access to the products.

• Telecommunication facilities required by MEDION or its authorised personnel for proper execution of your order, for testing and diagnostic purposes and for re- medying faults are provided by you at your own expense.

• You are responsible yourself for restoring the application software after the re- pair services have been carried out by MEDION or its authorised personnel.

• You must take all other necessary steps to enable MEDION or its authorised per- sonnel to carry out your order properly.

• You are responsible yourself for connecting and configuring any existing exter- nal peripheral products after MEDION or its authorised personnel have carried out their repairs.

• The free cancellation period for repairs or replacements on site is 24hours, the- reafter our reasonable costs resulting from late or missing cancellation shall be invoiced at your expense.
