Product type	Universal remote control
Brand	Philips
Model	SRU5130
Power supply	2 AAA batteries (1.5 V)
Number of controllable devices	Up to 3 (TV, STB, DVD)
Dimensions (L x W x H)	Approximately 20 x 5 x 2 cm
Weight (with batteries)	Approximately 100 g
Infrared range	Up to 10 meters
Main functions	Volume control, channels, menu, teletext, standby, numeric keys, color keys, cursor navigation
Configuration methods	By brand code, automatic search, online setup
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture, extreme temperatures. Observe battery polarity.
Spare parts and repairability	Standard AAA batteries. No user-serviceable parts.
General information	Manual available in multiple languages. Telephone support. Registration possible at www.philips.com/welcome

Frequently Asked Questions - SRU5130 PHILIPS

How to install the batteries in the SRU5130 remote control?

Slide the battery compartment cover by pressing inward in the direction of the arrow. Insert two AAA batteries following the indicated polarities (+/-). Replace the cover until you hear a click.

The remote does not work with my TV, what should I do?

First check that the batteries are correctly installed and that the TV mode button lights up when you press it. If the device does not respond, perform manual setup using the brand code (see code list on the back of the manual) or carry out an automatic search by holding down the standby button until the device switches off.

How to set up the remote for a satellite decoder?

Turn on your decoder. Press the STB button until it blinks twice. Enter the 4-digit code corresponding to your decoder's brand (see code table). Hold down the standby button until the decoder turns off. Release immediately.

What does the flashing of the mode button mean?

A double flash means the remote is in setup mode and awaiting an action. A prolonged single flash indicates an error (incorrect code or wrong handling). If the button stays lit solid, the remote is ready to be used for that device.

How to restore the remote control to factory settings?

Hold down the 1 and 6 buttons simultaneously for three seconds until a mode button blinks twice. Then press the 9, 8, and 1 buttons in order. The mode button blinks twice to confirm restoration.

The remote works but some buttons do not respond, what should I do?

Hold down the non-working button until the device responds, then release immediately. If the problem persists, check that there is no obstacle between the remote and the device, or reprogram the remote with another code from the same brand.

Can I use the remote with a combination device (TV/DVD)?

Yes. For a TV/DVD combo, set up the TV button for the TV part and the DVD button for the DVD player part. Use the appropriate codes for each function.

How to switch between external inputs (HDMI, AV)?

Press the A/V button on the remote. This button allows you to switch between the different external sources connected to your TV or decoder.

Teletext does not work on my TV, why?

Check that your TV supports teletext. Make sure you press the teletext button (usually labeled TX or text). If the problem persists, your TV's code may not support this function. Contact Philips support.

Where to find the code list to set up the remote?

The code list is on the back of the user manual, on pages 80 to 93. You can also visit the website www.philips.com/urc for online setup or to find additional codes.

USER MANUAL SRU5130 PHILIPS

1 Your universal remote control 3 2 Installing the remote control 3-6

2.1 Inserting the batteries 3 2.2 Testing the remote control 4 2.3 Setting the remote control 4-6

3 Keys and functions 7-8 4 Extra possibilities 8-9

4.1 Adjusting device selection (Mode keys) 8-9 4.2 Restoring the original remote control settings 9

5 Frequently asked questions 10 6 Need help? 11

Code list of all brands / equipment 80-93

Information to the Consumer 97

1 Your universal remote control

Congratulations on your purchase and welcome to Philips.

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

For quick, clean and easy setup go to: www.philips.com/urc

After installing the universal remote control SRU 5130 you can operate a maximum of 3 different devices with it:

TV, Set Top Box (satellite or cable decoder, digital terrestrial television),

DVD player/HDD/ recorder or VCR.

2 Installing the remote control

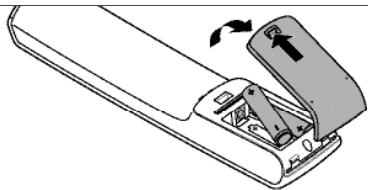

2.1 Inserting the batteries

Press the cover inwards and slide it in the direction of the arrow. ①

2 Place two AAA type batteries into the battery compartment, as shown. 3 Replace the cover and click it firmly into place.

2.2 Testing the remote control

The remote control has been programmed to operate most Philips devices. Because the SRU 5130 may use different signals for each brand and even for different models of the same brand, it is advisable to test whether your device responds to the SRU 5130. The example below (TV) instructs you how to do this. You can repeat the same steps for other devices (Set Top Box, DVD player/ recorder or VCR) which you want to operate using the SRU 5130.

Example of TV:

1 Turn your TV on manually or use the original remote control. Tune to channel 1. Press the TV key to select TV.

• The key lights up. (2)
• If the key does not light up, check whether the batteries are properly inserted (see '2.1 Inserting the batteries').

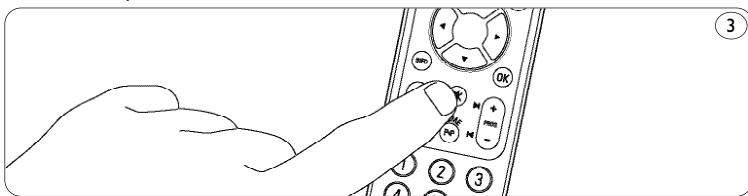

3 Check whether all the keys are working. (3)

For an overview of the keys and their functions see

1. Keys and functions'.
2. If the TV responds as it should to all of the key commands the SRU 5130 is ready for use.

Tip

If the device does not respond at all or not to all of the key commands, follow the instructions under '2.3 Setting the remote control', or for online setup go to: www.philips.com/urc.

2.3 Setting the remote control

This is only necessary if your device does not respond to the SRU 5130. If that is the case, the SRU 5130 does not recognize the brand and/or model of your device and you need to program the remote control to do so. The example below (TV) instructs you how to do this.

You can repeat the same steps for other devices (Set Top Box, DVD player/ recorder or VCR) which you want to operate using the SRU 5130.

Example of TV:

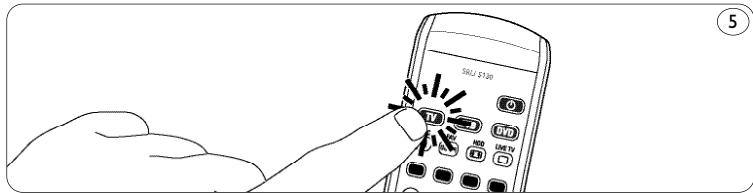

1 Turn on the TV manually or use the original remote control. Tune in to channel 1. 2 Look up the brand of your TV in the code list at the back of this manual. A four-figure code is shown for each brand.

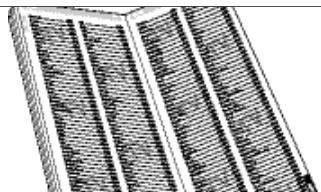

Note the code for your brand. 4

4

Be careful! There are separate tables for TV, STB, DVD and VCR. Make sure you use the codes from the correct table. Press the TV key until it flashes twice and then remains lit.

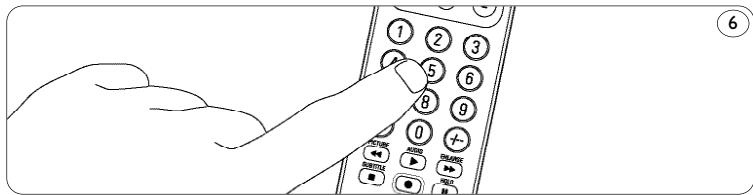

4 Then enter the code noted in step 2 using the numeric keys. 6

• The TV key now flashes twice.
• If the key flashes once for an extended period, the code has not been entered properly or the wrong code has been entered. Start again from step 2.

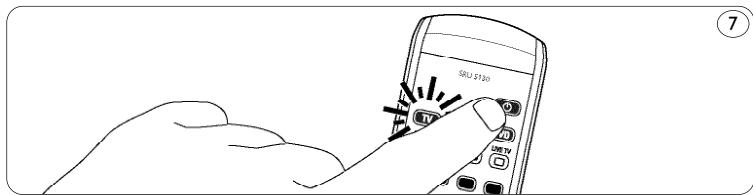

Press and hold the Stand-by key of the SRU 5130 until your TV switches off (stand-by).

Then release the key immediately.

• The SRU 5130 is now set to operate your TV.

6 Check if you can operate all functions on your TV with the SRU 5130.

• If a key does not function properly, keep it pressed until it works. Then release the key immediately. Repeat this for every key that does not work.
• If the TV responds to all of the key commands, the SRU 5130 is ready for use. Do not forget to note your code. 7 Keep the TV key pressed for 5 seconds to exit setup mode. (8)
• When no key is pressed for 2 minutes or more the remote control will exit setup mode automatically.

When setting the remote control for other devices, be sure to enter and exit setup mode with the appropriate mode key. STB for Set Top Box, satellite or cable decoder and digital terrestrial television and DVD for DVD player/ recorder and VCR.

Full search setup

If your code does not work or if the brand of your device is not mentioned in the code list, you can try setting the remote control with full search setup.

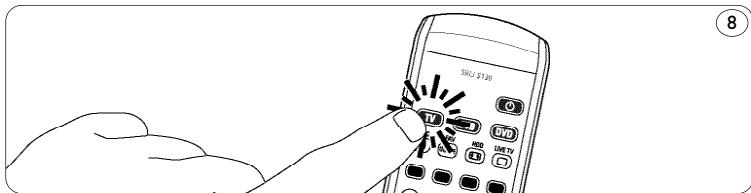

Press the mode key of the device you wish to set up the remote control for. E.g. the TV key.

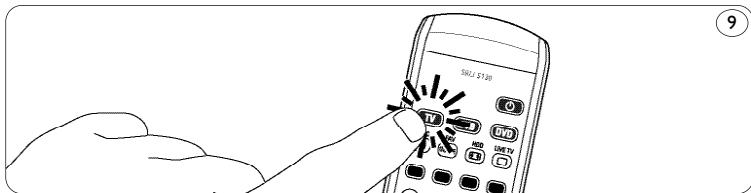

Press the key until it flashes twice and then remains lit. ⑨

Press and hold the Stand-by key of the SRU 5130 until your TV switches off (stand-by).

Then release the key immediately.

• The SRU 5130 is now set to operate your TV.

Full search setup takes about 5 minutes.

3 Keys and functions

The illustration on page 2 gives an overview of all keys and their functions.

1 Stand-by switches TV, STB or DVD on or off. 2 DISC - Text TV on/off (TV). - disc menu (DVD). Electronic Program Guide (TV, STB). - list of favorite channels (STB). - wide screen TV (TV). - Hard Disk Drive menu (DVD-R). - Text TV off (TV). - live program on currently selected channel (TV, Radio). 3 Text TV color keys. Used in text mode and in some on-screen menus. 4 MENU turns the menu on and off. 5 Cursor keys cursor up, down, left, right in a menu. 6 INFO displays on-screen channel information (TV, STB). 7 mutes the TV sound. 8 -VOL + adjusts the TV volume. 9 Numeric keys direct choice of channels and other functions. 10 A/V switches between external inputs of your equipment. 11 /PICTURE ·rewind(DVD/VCR). - changes picture/screen settings (TV). play (DVD/VCR). changes audio settings (TV). wind (DVD/VCR). - enlarges Text TV picture (TV). stop (DVD/VCR). changes subtitle settings (TV). recordDVD/VCR). pause (DVD/VCR). holds current Text TV page (TV). 12 --- selects between one- and two-figure channel numbers (TV, STB). 13 P-P / HOME selects previous programme / channel (TV, STB). home (STB). title, chapter (DVD). - selects a previous or following channel (TV, STB). - selects a previous or following track (DVD). 15 OK confirms your selection.

16 BACK

jumps back one level in the menu or turns off the menu.

17 TV / STB / DVD

device mode selection keys:

• select TV, STB or DVD mode.
• blink when the remote control is set up for the selected device.
• light up when a remote control command is sent to the selected device.

Note

If the device does not respond at all, or not to all of the key commands, follow the instructions under '2.3 Setting the remote control'.

4 Extra possibilities

4.1 Adjusting device selection (Mode keys)

The SRU 5130 is default set for operating TV, STB or DVD. You can select the device you wish to operate with the TV, STB and DVD keys. Each mode key allows operation of one device only. If desired, you can program the keys to select a different kind of device. For example, if you want to operate a second TV. In the following example you will see how to configure the DVD key for a second TV.

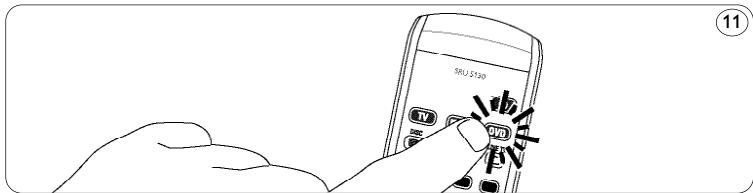

Switch on the second TV. Press the DVD key to select DVD.

The key lights up.

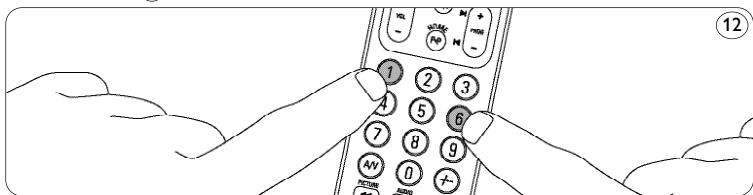

3 Then keep keys 1 and 6 on the SRU 5130 pressed simultaneously for three seconds, until the DVD key lights up.

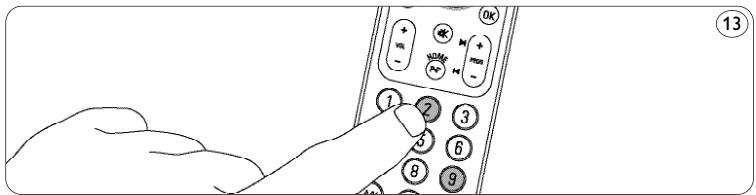

4 Press keys 9, 9 and 2 in that order.

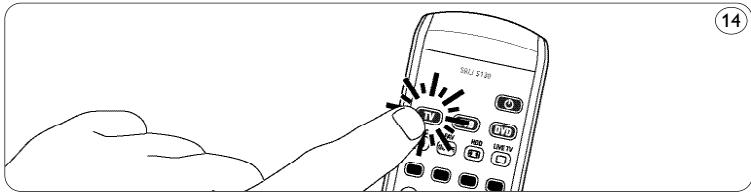

Press the TV key to select TV. Press the key until it flashes twice and then remains lit.

• The DVD key flashes twice.

The DVD key will now allow you to operate your second TV.

6 Program the SRU 5130 to operate the second TV.

See 2.3 Setting the remote control.

4.2 Restoring the original functions of your remote control

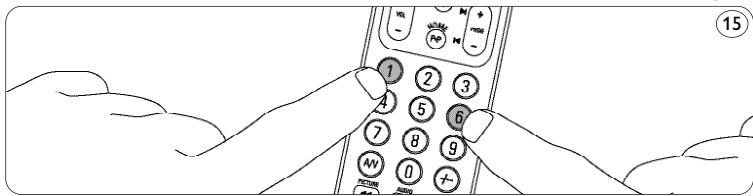

1 Keep keys 1 and 6 on the SRU 5130 pressed simultaneously for three seconds, until one of the mode keys (TV, STB or DVD) flashes twice and then remains lit.

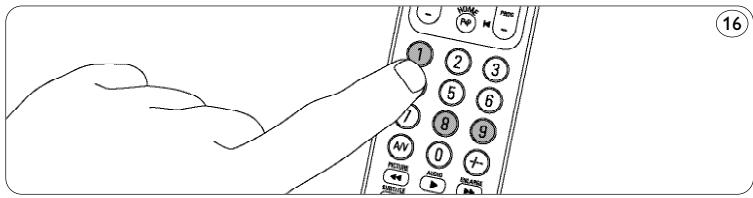

2 Press keys 9, 8 and 1, in that order.

• The mode key (TV, STB or DVD) flashes twice. All original functions have now been restored and any extra functions have been deleted.

5 Frequently asked questions

In this chapter you find answers to the most frequently asked questions about your universal remote control.

How do I set the remote control for combo devices (TV/VCR, TV/DVD, DVD/VCR, etc)?

Some combo devices require you to set up two different source selection keys to control both parts of the combo device. For example, if you have a TV/DVD combo, you might need to set up one code under the TV key to control the TV and a separate code under the DVD key to control the DVD.

The device I want to operate does not respond and the mode key (TV, STB or DVD) does not flash when I press a key.

Replace the old batteries with two new AAA batteries.

The device I want to operate does not respond but the mode key (TV, STB or DVD) does flash when a key is pressed.

Point the SRU 5130 at the device and make sure that there are no obstructions between the SRU 5130 and the device.

The SRU 5130 does not respond properly to commands.

Try programming the SRU 5130 again.

If the device still does not respond, call our helpline.

The Text TV keys do not work.

Find out whether your TV is equipped with Text TV. - Maybe the SRU 5130 has to be adapted to the model of the device. Call our helpline for details.

6 Need help?

If you have any questions about the SRU 5130, you can always contact us. You will find our contact details after the code list at the back of this manual.

Read this manual carefully before you make a call.

You can solve most of the problems yourself. If you cannot find any answers to your problems, write down the details of your device in the code list at the back of this manual.

This will help our operators to assist you better and more quickly. Look up the numbers of the models in the instructions accompanying the device or on the back of your device. When you call our helpline, make sure the device is to hand so that our operators can help you determine whether your remote control is working properly.

The model number of your Philips universal remote control is SRU 5130/86.

Date of purchase: ..../....

(day/month/year)

Table of contents

AUDIO ENLARGE SUBTITLE HOLD

12 --- 13 P-P/HOME

Acoustic Solutions .0032

Adcom. 0041

ADL 0045

Admiral. 0046

Advent. 0054

Adyson. 0058

AEA 3606

AEG 0059

Aftron. 3470

Agashi. 0063

AGB 0064

Agef 0065

Aiko .0069

Aim. 0070

Aiwa. 0072

Akai. 0074

Akashi .0075

Akiba. 0078

Akira. 0079

Akito. 0082

Akura 0083

Alaron. 0085

Alba. 0086

AlfaView. 3607

Alkos. 3523

Allorgan 0105

Allstar. 0108

All-Tel 0101

Ambassador. 0120

Amitech 0130

Amplivision 0138

Amstrad. 0140

Anam .0146

Anam National .0147

Andersson. .0148

Anex. 0150

Anglo 0151

Anitech. 0154

Ansonic 0156

AOC. 0165

Apollo. 0171

Arc en Ciel 0178

Arcam. 0179

Ardem 0184

Arena 3375

Aristona 0192

Arthur Martin. 0200

ASA 0202

Asberg 0205

Asora 0213

Astra. 0221

Asuka 0227

ATD 0229

Atlantic. 0233

Atori. 0237

Auchan. 0240

Audiosonic. 0264

Audioton 0266

Audioworld. 0269

Aumark 0271

Autovox. 0280

AVP. 0295

AWA 0296

Axxent. 0302

Axxon. 0303

B&D 3609

Baier 0308

Baird 0311

Bang & Olufsen. 0314

Barco. 0319

Baseline. 0323

Basic Line. 0325

Bastide 0327

Bauer 0329

Baumann Meyer. 0330

Baur. 0331

Bazin. 0335

Beaumark. 0340

Beko 0346

Belson. 0355

Bennett. 3612

BenQ 0359

Beon. 0361

Berthen 0363

Best. 0364

Bestar 0368

Bestar-Daewoo. 0369

Binatone. 0378

Black Diamond 0384

Black Star. 0386

Black Strip 3613

Blackway. 0388

Blaupunkt. 0390

Blue Sky 0395

Blue Star. 0396

Bondstec 0403

Boots 0405

Bork 3615

Bosch 0406

BPL .0413

Brandt. 0416

Brandt Electronique....0417

Brinkmann 0423

Brionvega. 0424

Britannia. 0425

Brother. 0433

Bruns. 0435

BSR. 0437

BTC. 0439

Bush 0445

Canton. 0482

Capsonic 0486

Carad 0488

Carena 0489

Carrefour. 0492

Carver 0494

Cascade 0496

Casio. 0499

Cathay 0501

CCE 0504

Centrex .0516

Centrum 0519

Centurion. 0520

Century .0521

CGE 0523

Cimline. 0552

Cinex . 0563

Citizen. 0567

City. 0569

Clarivox .0576

Clatronic. 0581

Clayton. 0582

CMS 0590

CMS hightec .0591

Cobolt 0595

Combitech. 0608

Concorde. 0626

Condor. 0627

Conrac. 0632

Conrad. 0633

Contec. 0635

Continental Edison. .0637

Cosmel. 0647

Crosley. 0655

Crown 0658

Crystal 0662

CS Electronics 0663

CTC 0664

CTX 0665

Curtis Mathes 0667

Cybertron 0675

Cytronix 0681

D.Boss 3619

Daewoo 0692

Dainichi 0694

Daitsu 3387

Dansai 0699

Dansette 0701

Dantax 0702

Datsura. 0703

Dawa 0707

Daytek 0708

Dayton. 0709

Daytron 0710

de Graaf. 0716

DEC. 0717

Decca. 0718

Deitron. 0722

Dell. 0725

Denko. 0730

Denver. 0733

Desmet .0738

Diamant. 0746

Diamond .0747

DiBoss 0749

Digatron. 0751

Digihome. 0758

Digline 0759

DigiLogic. 0760

Digitor 0781

Digivision 3621

DigiX. 3520

DiK .0787

Dixi. 0807

DL. 0810

DMTECH. 0813

Domeos. 0817

Domland .0818

Doric 0822

Dream Vision. 0829

DSE. 0833

DTS. 0837

Dual 0838

Dumont. 0840

Dunai 3622

Durabrand. 0842

Dux. 0843

D-Vision. 0684

DVX. 0847

Dynatron 0855

e:max 0856

Easy Living .0860

Ecco . 0864

Edison-Minerva. 0871

Elbe. 0880

Elbe-Sharp 3529

Elcit. 0883

Elekta 0895

Elfunk 0899

ELG. 0900

Elin. 0902

Elite. 0903

Elta 0910

Emco. 0914

Emerson. 0917

Emperor. 0921

Enzer. 0934

Erres. 0942

ESC. 0945

Estele 3627

Etron. 0949

Eurofeel 0954

EuroLine. 0955

Euroman. 0956

Europa . 0957

Europhon. 0959

Evesham 0972

Evolution 0973

Excel 3628

Expert. 0976

Exquisit. 0978

Fagor. 0983

FairTec 3629

Family Life 3630

Fenner 0994

Ferguson. 0996

Fidelity. 0998

Filsai. 1000

Finlandia. 1003

Finlux 1004

Fintec 1006

Firstline. 1008

Fisher 1009

Flint 1014

Force. 1021

Formenti. 1023

Formenti-Phoenix. 1024

Fortress 1027

Fraba. 1030

Friac 1040

Frontech. 1042

Fujimaro 1050

Fujitsu 1052

Fujitsu General 1053

Fujitsu Siemens 1054

Funai 1056

Furichi 1058

Futronic 1061

Future. 3632

Galaxi 1068

Galaxis 1069

Galeria 3633

GBC 1078

GE. 1081

Geant Casino 1082

GEC 1083

Geloso 1087

General. 1090

General Electric 1091

General Technic. 1095

Genesis. 1096

Genexxa. 1097

Gericom. 1103

Giant. 1113

Goldfunk 1135

Goldhand. 1136

GoldStar. 1140

Gooding. 1141

Goodmans. 1142

Gorenje 1144

GP. 1147

GPM 1149

Gradiente 1151

Graetz. 1152

GranPrix. 1153

Granada. 1154

Grandin 1156

Gronic. 1160

Grundig 1162

Grunkel 1164

H&B 3635

Haaz 1172

Haier. 1175

Halifax. 1179

Hammerstein. 3636

Hampton 1183

Hanimex. 1187

Hanseatic 1190

Hantarex 1192

Hantor 1193

Harsper 1200

Harwa. 1203

Harwood 1204

Hauppauge 1206

HCM. 1210

Hedzon. 3637

Hema 1222

Hemmermann. 1223

Hicon 1232

Hifivox 1233

Higashi 1234

Highline 1236

Hikona 1237

Hinari 1243

Hisawa 1247

HIsense 1249

Hit. 1250

Hitachi 1251

Hitachi Fujian. 1252

Hitsu 1257

HMV. 1259

Hoeher. 1262

Home Electronics. 1265

Homyphon 1277

Hoshai 1278

Hanyu. 1292

Hugoson. 1297

Humax. 1298

Hygashi. 1308

Hyper 1309

Hypersonic 1310

Hypson. 1312

Hyundai 1315

Iberia. 1320

ICE 1324

Ices 1325

Icos 3640

Ict 1328

iDEAL. 3641

IlSonic. 1334

liyama 1335

Imperial. 1346

Indiana 1350

InFocus. 1353

Ingelen 1354

Ingersoll 3642

Inno Hit 1358

Innovation 11360

Innowert 1362

Inotech. 1364

Interactive 3534

Interbuy 1376

Interfunk. 1377

Internal 1379

International. 1380

Intervention 1386

Irradio. 1396

Isukai 1402

ITC 1404

ITS. 1405

ITT. 1406

ITT Nokia. 1407

ITV 1408

JDV 1423

Jean 1424

JEC 1426

JMB 1445

JNC. 1446

Jocel 1448

JTV 3645

Jubilee. 1460

JVC. 1464

Kaisui. 1471

Kambrook 1473

Kamp. 1475

Kapsch 1483

Karcher. 1484

Kathrein 1486

Kawa. 1487

Kawasho. 1489

KB Aristocrat. 1492

Kendo. 1500

Kennedy. 1504

Kennex. 1505

Kenwood 1507

KIC 1512

Kingsley 1520

Kiota 1522

Kiton 1525

Kneissel 1535

Kobra 1537

Kolster 1543

Konichi 1546

Konka 1548

Kontakt 1549

Korpel 1552

Korting 1554

Kosmos 1557

Kotron 1560

Koyoda. 1561

Kriesler 1570

KTV. 1572

Kuba 1575

Kuba Electronic. 1576

Kyoshu 1583

Kyoto 1585

L&S Electronic. 1588

LaSAT. 1597

Lavis 1602

Leader. 1604

Lecson 1606

Legend 1609

Lemair. 1613

Lenco 1615

Lenoir. 1617

Lenoxx. 1618

Lesa. 1622

Levis Austria 3648

Lexor. 1626

Leyco 1627

LG. 1628

Liesenk & Tter. 1630

Liesenkotter. 1631

Lifetec. 1633

Lloyd's. 1648

LME. 1650

Lodos 1659

Loewe. 1660

Logik. 1661

Logix. 1663

Luker. 1673

Luma. 1674

Lumatron 1676

Lux May. 1680

Luxor 1683

LXI 1686

Madison 1698

Magnadyne. 1702

Magnafon 1703

Magnavox. 1706

Magnum 1709

Mandor. 1717

Manesth 1718

Manhattan 1719

Maqma. 1722

Marantz 1724

Marelli 1729

Mark. 1731

Mascom 1738

Master's 1742

Masuda. 1744

Matsui 1750

Matsushita 1751

Matsuviana 1752

Maxam. 3651

Maxdorf 1756

Maxim. 1759

MCE 1766

Medialine 3653

Mediator. 1784

Medion. 1787

Megas 1792

Megatron. 1795

MEI 1796

Melectronic 3654

Memorex. 1800

Memphis 1802

Mercury 1804

Merritt 3655

Metz 1810

MGA. 1811

Micromaxx. 1822

Microstar 1827

MicroTEK. 1829

Mikomi. 1833

Minato 1835

Minerva 1838

Minoka. 1840

Mirai 1849

Mirror. 1851

Mitsubishi. 1855

Mitsuri General. 3658

Mivar. 1857

Monaco 1868

Morgan's 1875

Motorola 1878

MTC. 1889

MTlogic. 1892

Multitec 1906

Multitech 1907

Murphy. 1911

Musikland. 1915

MyCom 3659

Myryad. 1922

NAD. 1926

Naiko 1930

Nakimura. 1933

Naonis 1936

Narita. 1939

NAT 1941

National 1942

NEC 1950

Neckermann 1951

NEI 1952

Neovia 1958

Nesco 1960

Netsat 1966

Neufunk 1970

New Tech 1979

NewWorld 1980

Nicamagic 1994

Nikkai 1998

Nikkei 1999

Nikko 2000

Nintaus 2006

Nobliko 2014

Nogamatic 2016

Nokia 2017

Nordic 2021

Nordmende. 2022

Norfolk. 3661

Normerel. 2024

Northern Star. 3501

Novak. 2033

Novatronic. 2035

Novita. 2037

Numberg. 3662

NU-TEC. 2048

Oceanic 2061

Odeon 2064

Okano 2065

Omega. 2072

Omni 2074

Onn 3663

Onwa. 2087

Opera. 2090

Optimus. 2095

Optonica 2099

Orbit. 2103

Orion 2111

Online. 2113

Ormond. 2114

Orsowe 2116

Osaki. 2118

Osio 2121

Oso. 2122

Osume. 2123

Otto Versand. 2126

Pace 2134

Pacific 2135

Pael 2140

Palladium 2145

Palsonic. 2147

Panama. 2149

Panashiba 2152

Panasonic. 2153

Panavision. 2154

Papouw 3664

Pathe Cinema 2168

Pathe Marconi. 2169

Pausa. 2171

Perdio. 2185

Perfekt. 2186

Philco 2192

Philex 2193

Philharmonic 2194

Philips 2195

Phocus 2198

Phoenix 2199

Phonola 2201

Pilot 2207

Pioneer 2212

Pionier 2213

Plantron 2219

Playsonic 2224

Policom 2231

Polytron 2235

Poppy 2236

Portland 2238

Powerpoint 2241

Prandoni-Prince 2242

Precision. 2244

Premier. 2248

President 2250

Prima 2253

Princess. 3514

Prinston 2259

Prinz 2260

Profex. 2269

Profi. 2270

Profitronic 2273

Proline 2274

Prosonic 2282

Protech. 2284

Proton 2288

Provision. 2291

PVision 2300

Pye 2302

Pymi 2304

Quadral 2314

Quasar 2320

Quelle. 2322

Questa 2324

Radialva 2329

Radiola 2330

Radiomarelli. 2331

RadioShack. 2333

Radiotone 2334

Rank 2345

Rank Arena 2346

RBM 2350

RCA 2351

Realistic. 2354

RealiTV. 3427

Reality. 3428

Recor 2359

Rectiligne 2362

Red Star. 3669

Rediffusion. 2364 Redstar. 2366 Reflex 2368 Relisys. 2374 Reoc 2379 Revox 2383 Rex 2385 RFT. 2386 Rhapsody. 2387 Ricoh. 2390 Rinex. 2392 R-Line 2327 Roadstar. 2398 Robotron. 2401 Rodex. 3671 Rover 2415 Rowa 2416 Royal. 2419 Royal Lux. 2420 Rukopir. 3672 Saba 2429 Sagem. 2434 Saisho 2437 Saivod. 2439 Sakai 2440 Sakyno 2442 Salora 2443 Salsa 2444 Sambers. 2445 Samsung. 2448 Sandra. 2454 Sansui 2458 Santon 2459 Sanyo 2462 Save. 3673 Saville 2491 SBR. 2492 Schaub Lorenz 2500 Schneider. 2501 Scotland 2507 Scott. 2508 Sears. 2514 Seaway. 2515 Seelver 2520 SEG. 2522 SEI. 2524 Sei-Sinudyne 2525 Seitech 3433 Seleco. 2528 Sencora 2531 Sentra. 2534 Serino 2539

Sharp 2550 Shintoshi. 2564 Shivaki. 2567 Show. 2570 Siarem. 2573 Siemens 2574 Siera 2576 Siesta. 2577 Silva. 2591 Silva Schneider 2592 Silver. 2594 SilverCrest 2595 Singer 2599 Sinotec 2600 Sinudyne. 2601 Skantic 2605 Sky. 2610 Skymaster. 2621 Skysonic 2627 Sliding 2635 SLX 2638 Smaragd. 2641 S-Media 3515 Soemtron. 2647 Sogera 2649 Solavox. 2654 Sonawa. 2663 Soniko. 2669 Soniq. 2670 Sonitron 2671 Sonneclair. 2673 Sonoko. 2675 Sonolor. 2676 Sontec 2677 Sony 2679 Sound & Vision 2680 Soundesign. 2684 Soundwave 2689 Soyea 2692 Spectra. 2697 Sangyong. 2706 Staksonic 2712 Standard. 2713 Starlite 2728 Stenway 2739 Stem 2741 Stevison 2742 Strato 2745 Strong. 2748 Stylandia. 2752 Sunic Line. 3677 Sunkai 2762

Sunny 2764 Sunstar 2768 Sunwatt 2771 Sunwood 2772 Superla. 2782 Supersonic. 2787 SuperTech 2789 Superton 2790 Supervision 2791 Supra 2792 Susumu. 2797 Sutron. 2798 SVA. 2800 Svasa. 2801 Swissline. 3678 Swisstec 2806 Sydney 2808 Symphonic. 2810 Systline. 2815 Sytong. 2820 T+A 2821 Tandberg 2842 Tandy 2843 Tashiko 2850 Tatung. 2852 TCL. 2856 TCM. 2857 Teac. 2860 TEC. 2861 Tech Line 2863 Tech Lux. 2864 Technica 2865 Technema. 2866 Technica 2868 Technics 2869 TechniSat 2873 Technisson 2874 Technol Ace. 2875 Technosonic. 2878 Techwood 2884 TecnImagen 2885 Tedelex. 2889 Teiron 2891 Tek. 2892 Teknika 2895 TELE System 3551 Teleavia. 2901 Telecor 2910 Telefunken 2914 Telefusion. 2915 Telegazi 2917 Telemeister 2924

Telesonic 2930, Videoseven 3130, Telestar 2931, Vestel 3148, Teletech 2934, Vexa 3149, Teleton 2935, Victor 3155, Televideon 2938, Videologic 3165, Teleview 2939, Videologique 3166, Tempest 2948, Videosat 3170, Tennessee 2952, VideoSystem 3172, Tensai 2954, Videotechnic 3173, Tenson 2955, Videoton 3174, Tesla 3680, Vidtech 3179, Tevion 2962, Viewpia 3184, Texet 2963, ViewSonic 3186, Thomas 2971, Visiola 3197, Thomson 2972, Vision 3198, Thorn 2974, Vistar 3207, Thorn-Ferguson 2976, Vivax 3601, Tiny 2986, Vortec 3217, TMK 2994, Voxson 3220, Tobishi 2998, Waltham 3230, Tokai 3001, Watson 3233, Tokaido 3002, Watt Radio 3234, Tokyo 3004, Wega 3238, Tomashi 3006, Wegavox 3239, Tongtel 3010, Welttech 3244, Top Show 3681, Weltblick 3245, Topline 3016, Weltstar 3247, Toshiba 3021, Weston 3251, Tosumi 3023, Wharfedale 3255, Towada 3028, White Westinghouse 3258, Toyoda 3030, Windsor 3265, Trakton 3036, Windstar 3266, TRANS-continents 3039, Windy Sam 3267, Transonic 3041, Wintel 3271, Transtec 3042, World-of-Vision 3282, Triad 3049, Worldview 3284, Trical 3052, Xenius 3297, Trident 3054, XLogic 3310, Trio 3056, Xoro 3315, Tristar 3057, Xrypton 3317, Triumph 3058, X-View 3289, Tsoschi 3066, Yamaha 3326, TVTEXT 95 3082, Yamishi 3328, Uher 3089, Yokan 3335, Ultravox 3095, Yoko 3336, UMC 3099, Yorx 3340, Unic Line 3100, YU-MA-TU 3603, United 3106, Zanussi 3349, Universal 3113, Zenith 3356, Universum 3115, Zenor 3359, Univox 3116, ZX 3372, Utax 3684

Setup Codes For Video - VCR and DVD

3 Plus 3604

3D LAB .0003

4Kus .0005

Accent 0019

Acoustic Solutions .0032

Adyson. 0058

AEG 0059

AFK. 0061

Aim. 0070

Airis. 0071

Aiwa 0072

Akai. 0074

Akashi. 0075

AKI 0077

Akiba. 0078

Akira. 0079

Akura 0083

Alba. 0086

Albatros 0088

Alize 0100

Allorgan .0105

Allstar. 0108

All-Tel. 0101

Amitech. 0130

Amoi. 0132

Amstrad. 0140

AMW. 0143

Anitech. 0154

Ansonic 0156

Apex Digital 0170

Arena 3375

Aria 0185

Arianet 0186

Aristona 0192

ASA 0202

ASCOMTEC 0207

Asono 0212

Asuka 0227

ATACOM 0228

A-Trend 0011

Audiosonic 0264

Audioworld 0269

Audix 0270

Autovox. 0280

Auvio 0282

Avious. 0291

AVP. 0295

AWA 0296

Axion 0299

Baird. 0311

Base. 0322

Basic Line. 0325

Baze 0334

BBK. 0337

Beko 0346

Bellagio 0354

Bellwood 3611

Belson. 0355

Bestar. 0368

Binatone. 0378

Biostek 3377

Black Diamond .0384

Black Panther. 0385

Blaupunkt. 0390

Blusens. 0392

Blue Sky 0395

BNI 3614

Boghe 0400

Boman 0402

Bondstec .0403

Bose 0407

Brainwave. 0415

Brandt. 0416

Brinkmann .0423

Brionvega. 0424

Bush .0445

Cambridge Audio. 0470

Campomatic Digital . .0472

Carena .0489

Carrefour. .0492

Casio. 0499

CAT .0500

Cathay .0501

Celestial 0511

cello. 0514

Centrex .0516

Centrum .0519

CGE 0523

CGV .0524

Cimline. 0552

Cinea 0553

Cinetec. 0560

cineULTRA .0561

Classic. 0580

Clatronic. 0581

Clayton. 0582

Coby. 0597

Codex. 0598

Combitech. 0608

Compacks .0619

Condor. 0627

Conia .0628

Contel. 0636

Continental Edison....0637

CrossWood. .0657

Crown .0658

Crypto 0660

C-Tech 0449

Cybercom .0671

CyberHome .0672

Cyrus .0679

Cytron .0680

Daenyx. 0690

Daewoo. 0692

Dalton. 0696

Dansai. 0699

Dantax .0702

Daytek .0708

Dayton 0709

Daytron .0710

DCE .0713

de Graaf. 0716

DEC. 0717

Decca 0718

Deitron. 0722

Denko. 0730

Denon 0731

Denver. 0733

Denzel 0734

Diamant. 0746

Diamond 0747

Digihome. 0758

DigiLogic. 0760

digiRED. 0764

Digital i .0771

Digitech 0778

Digitor 0781

Digitrex. 0782

Digix Media. 0785

DiK .0787

Dinamic . 0790

Disney. 0803

DiViDo. 0806

DK digital 0808

DMTECH. 0813

Dragon. 0824

DSE. 0833

Dual 0838

Dumont. 0840

Durabrand. 0842

D-Vision. 0684

DVX 0847

e:max 0856

EagleTec. 0858

eBench .0862

E-Boda 3623

Eclipse. 0867

Ecron 0868

E-Dem 3624

Elbe. 0880

Elcatech .0882

Electrohome 0890

Elenberg. 3625

Elfunk .0899

Elin. 0902

Ellion. 0906

Elsay 0909

Elta 0910

Eltax 0911

Emerson. 0917

Enzer. 0934

ESC. 0945

EuroLine. 0955 Ferguson. 0996 Fidelity 0998 Finlandia. 1003 Finlux 1004 Fintec 1006 Firstline. 1008 Fisher 1009 Flint. 1014 Frontech. 1042 Fujitsu 1052 Fujitsu General 1053 Funai. 1056 Futronic 1061 Galaxi 1068 Galaxis 1069 GE. 1081 GEC 1083 General Technic. 1095 Genexxa. 1097 Germatic 1105 Giec 1115 Global Link. 1119 Global Solutions. 1120 GlobalSphere. 1121 Go Video 1126 Goldhand. 1136 GoldStar. 1140 Goodmans. 1142 GPX 1150 Graetz. 1152 GranPrix. 1153 Granada. 1154 Grandin 1156 Grundig 1162 Grunkel 1164 H&B 3635 Haaz 1172 Haier. 1175 Hanimex. 1187 Hanseatic 1190 Harman/Kardon 1198 Harwood 1204 HCM. 1210 HDT. 1211 HE. 1212 Henss 1224 Hicon 1232 HiMAX. 1241 Hinari 1243 Hisawa 1247 Hischito 1248 Hitachi 1251 Hiteker. 1255 Hoeher. 1262 Home Electronics. 1265 Home Tech Industries . . 1266 Homyphon 1277

Hypson. 1312 Hyundai 1315 ICP 1327 lekei. 1332 Imperial. 1346 Ingelen 1354 Ingersoll 3642 Inno Hit 1358 Interbuy 1376 Interfunk. 1377 Internal. 1379 International. 1380 Intervention 1386 Irradio. 1396 ISP. 1401 it's 3644 ITT. 1406 ITT Nokia. 1407 ITV 1408 Jamo 1413 JBL. 1420 JDB 1422 JDV. 1423 Jeken 1428 Jepssen. 1430 IMB. 1445 JNC. 1446 Joyce 1455 JVC. 1464 jWIN. 1465 Kaisui. 1471 Kambrook 1473 Kansai 1480 Kansas Technologies 1481 Karcher. 1484 Kendo. 1500 Kennex. 1505 Kenwood 1507 KeyPlug. 3646 KIC 1512 Kiiro. 1513 King D'Home 3404 Kingavon. 1519 Kiss 1524 Kneissel. 1535 Koda. 1539 Kolster 1543 Korpel. 1552 Koss. 1558 Kotron 1560 KXD 1581 Kyoto 1585 Lawson. 1603 Leiker 1611 Lenco 1615 Lenoir. 1617 Lenoxx. 1618 Lexia 1624

Lexicon. 1625 Leyco 1627 LG. 1628 Lifetec. 1633 Limit 1637 LiteOn 1645 Lodos 1659 Loewe. 1660 LogicLab. 3650 Logik. 1661 Logix. 1663 Luker. 1673 Lumatron 1676 Lux May. 1680 Luxman. 1682 Luxor 1683 Magnavox. 1706 Magnex. 1707 Magnum 1709 Majestic. 1713 Manesth 1718 Manhattan 1719 Marantz 1724 Mark 1731 Marquant. 1734 Mastec 1741 Master's 1742 Matsui 1750 Maxdorf 1756 Maxim. 1759 Maya 1764 Maytag 3652 MBO. 1765 MDS 1772 Mecotec. 1776 Medialine 3653 Mediator. 1784 Mediencom 1786 Medion. 1787 MEI 1796 Melectronic 3654 Memorex. 1800 Memory. 1801 Memphis. 1802 Metronic. 1809 Metz 1810 MiCO. 1813 Micormay. 1814 Micromaxx. 1822 Micromedia 1823 Micromega. 1824 Microsoft 1826 Microstar 1827 Migros. 1832 Minax 1836 Minerva 1838 Minoka 1840 Minowa. 1843

Mirror. 1851

Mitsubishi 1855

Mizuda 1860

Monyka. 1873

MPX 1885

Multitec 1906

Multitech 1907

Murphy. 1911

Mustek 1916

Mx Onda. 1919

Myryad. 1922

Mystral 1925

NAD. 1926

Naiko 1930

Narita. 1939

National. 1942

NEC. 1950

Neckermann 1951

Neovia 1958

NeoXeo 3500

Nesco 1960

Neufunk 1970

Nevir 1977

Nexus 3660

Next Base 1983

Nfren 1991

Nikkai 1998

Nikkei 1999

Nintaus 2006

Nokia 2017

Nordmende 2022

Nowa 2040

NU-TEC 2048

Oceanic 2061

Okano 2065

Omni 2074

Onkyo 2085

Oopla. 2088

Optim. 2094

Optimus. 2095

Orava. 2101

Orbit. 2103

Orion 2111

Oritron. 2112

Orson. 2115

Osaki. 2118

Osume. 2123

OTIC. 2125

Otto Versand. 2126

P&B. 2132

Pace 2134

Pacific 2135

Packard Bell. 2138

Palladium 2145

Palsonic. 2147

Panasonic. 2153

Panda 2155

Papouw 3664

Paramount Pictures 2162

Pathe Cinema 2168

peeKTON 2178

Perdio. 2185

Philco 2192

Philips 2195

Philo 2196

Phoenix 2199

Phonola 2201

Phonotrend 2202

Pioneer 2212

Plu2 2225

Pointer 2229

Portland 2238

Powerpoint 2241

Prima 2253

Prinz 2260

Prism 2261

Pro2 2265

ProCaster 2266

Profitronic 2273

Proline 2274

Proscan 2279

Prosco 2280

Proson 2281

Prosonic 2282

Protech 2284

Provision 2291

Pye 2302

QONIX 2311

Quasar 2320

Quelle 2322

Radialva 2329

Radiola 2330

Radionette 2332

Radiotone 2334

Raite 2340

RCA 2351

REC. 2357

Red Star 3669

Redpoint 2365

Relisys 2374

Reoc 2379

Revoy 2384

RFT 2386

Richmond. 2389

Rimax 2391

Roadstar. 2398

Rocksonic. 2404

Ronin 2412

Rotel. 2414

Rowa. 2416

Rownsonic. 2417

Royal 2419

S&V. 2426

Saba 2429

Sabaki 2430

Saisho 2437

Saivod. 2439

Salora 2443

Sampo 2446

Samsung. 2448

Sansui 2458

Sanyo 2462

Saville 2491

SBR. 2492

Scan. 2493

ScanMagic 2496

ScanSonic 2497

SCE. 3674

Schaub Lorenz 2500

Schneider 2501

Schoentech 3504

Scientific Labs 2504

Scott 2508

Seaway. 2515

Seeltech 2519

SEG. 2522

SEI 2524

Sei-Sinudyne 2525

Seleco. 2528

Sentra. 2534

Setron. 2544

Shanghai. 2547

Sharp 2550

Sherwood 2557

Shinco. 2560

Shintom 2563

Shivaki. 2567

Siemens 2574

Siemssen. 2575

Siera 2576

Sigmatek. 2580

Silva. 2591

Silva Schneider 2592

Silver 2594

SilverCrest 2595

Singer 2599

Sinotec. 2600

Sinudyne. 2601

Sistemas 2603

Skymaster. 2621

Skyworth 2631

Sliding 2635

Slim Art 2636

Slim Devices 2637

SM Electronic 2639

Smaragd. 2641

Smart 2642

Sonashi 2661

Soniko. 2669

Sonneclair 2673

Sonoko. 2675

Sonolor. 2676

Sontec 2677

Sony 2679

Sound Color. 2681

Soundmaster. 2685

Soundmax 2687

Soundwave 2689

Spectra. 2697

Sangyong. 2706

Standard. 2713

Star Clusters. 2717

Starlite 2728

StarLogic. 2729

Starmedia. 2730

Stern. 2741

Stevison 2742

Strato 2745

Strong. 2748

Sunkai 2762

Sunstar 2768

Sunstech. 2769

Suntronic 2770

Sunwood 2772

Supervision 2791

Supra 2792

Supratech. 2793

SVA. 2800

Symphonic. 2810

Synn 2813

T+A 2821

Tandberg 2842

Tangent. 2844

Targa. 2847

Tashiko 2850

Tatung. 2852

Tchibo 2855

TCM. 2857

Teac. 2860

TEC. 2861

Tech Line 2863

Technica 2868

Technics 2869

Technika 2870

TechniSat 2873

Technosonic 2878

Techwood 2884

Tecnimagen 2885

Tedelex 2889

Teleavia 2901

Telefunken 2914

Telestar 2931

Teletech 2934

Tenosal 2953

Tensai 2954

Tesco 3439

Tevion 2962

Texet 2963

Theta Digital 2970

Thomson 2972

Thorn 2974

Thorn-Ferguson 2976

Tokai 3001

Tokiwa 3003

Tom-Tec. 3005

Top Suxess. 3013

Topline 3016

Toshiba. 3021

Tosumi 3023

Towada. 3028

Tradex 3034

TRANS-continents. 3039

Transonic 3041

Tregex 3045

Trevi 3682

Triad 3049

Trio 3056

TruVision 3061

TSM 3065

Uher 3089

Ultravox 3095

Umax 3098

Unitech 3105

United 3106

Universal Multimedia 3683

Universum 3115

Uptek 3119

upXus 3120

Venturer. 3143

Vestel 3148

Victor 3155

Video Technic 3161

Vieta 3180

Viewmaster 3182

Voxson. 3220

VTrek 3224

Waitec 3227

Walkvision 3228

Waltham 3230

Watson. 3233

Welkin 3242

Wellington. 3243

Welltech. 3244

Weltblick 3245

Weltstar. 3247

Wesder. 3248

Wharfedale 3255

Wilson 3260

Windy Sam 3267

World. 3281

Woxter. 3286

XBox. 3295

Xenon 3686

XLogic 3310

XMS 3312

Xoro. 3315

Yakumo 3324

Yamada. 3325

Yamaha. 3326

Yamakawa 3327

Yamishi 3328

Yokan 3335

Yoko 3336

Yoshita 3341

Yukai 3346

Zenith. 3356

ZX. 3372

Setup Codes For STB, SAT, Cable and DVB-T

@sat 0008

ABsat 0017

Acoustic Solutions. .0032

ADB. 0039

Adcom. 0041

Akai. 0074

Alba. 0086

Allsat. 0106

Allsonic. 0107

Alltech 0109

Allvision 0110

Alpha 0112

Amino. 0128

Amitronica. 0131

Ampere 0134

Amstrad. 0140

Anglo 0151

Ankaro. 0155

AntSat. 0161

Apollo. 0171

Apro. 3374

Archos 0181

Arcon. 0182

Armstrong. 0195

Arnion 0196

ASA 0202

Asat. 0204

ASCI. 0206

ASLF. 0211

AssCom. 0215

Aston 0220

Astra. 0221

Astratec. 0223

Astro. 0224

Audioline 0258

Auna. 0272

Aurora 0274

Austar. 0277

Axil .0298

Axis. 0300

Axitronic 3608

B@ytronic. 0306

Balmet 3610

Base. 0322

Bauckhage 0328

Beko 0346

Belson. 0355

Bentley Walker .0360

Best. 0364

Big Sat. 0377

Black Diamond 0384

Blaupunkt 0390

Blue Sky 0395

Blue Star 0396

Boca 0399

Boston 0410

Brainwave 0415

British Sky Broadcasting 0426

Broco 0431

BSkyB 0436

BT 0438

Bubu Sat 0440

Bush 0445

Canal Digital 0476

Canal Plus 3616

Canal+ .0478

CanalSatellite. 3617

Centrex .0516

CGV .0524

Cherokee. 0536

Chesley. 0537

Chess 0538

Chili. 0540

CityCom. 0570

Clatronic. 0581

Colombia. 0599

Columbia. 0604

Comag. 0606

Comcor. 0609

Comcrypt .0610

Comsat. 3618

Condor. 0627

Conia. 0628

Connexions. 0631

Conrad. 0633

Contec. 0635

Continental Edison....0637

Coship 0646

Crown 0658

Cryptovision .0661

CS. 3386

Cyrus 0679

Daewoo. 0692

Dalvi. 0697

D-box. 0682

Deltasat 0728

DGTEC .0745

Digatron. 0751

Digenius. 0752

DigiFusion .0757

Digihome. 0758

Diginet .0761

DigiQuest. 0763

DigiSat 0765

Digisky 0766

Digital+ 3620

DigitAlb 3390

DigitAllWorld.0775

DigiTurk .0783

Dilog. 0788

DiPro 0792

Distratel .0804

Distrisat .0805

D-Link. 0683

DMT. 0812

DNT. 0816

Dream Multimedia. .0827

DSE. 0833

DStv .0835

Dune. 0841

Durabrand. 0842

Echostar 0866

Edison 3392

Einhell. 0875

Elap. 0877

Electron 0891

Elsat. 0908

Elta 0910

Emme Esse .0919

eMTech. 3626

EnergySistem. 0926

Engel .0929

EP Sat. 0935

Eurieult. 0950

Eurocrypt. 0952

EuroLine. 0955

Europa 0957

Europhon. 0959

Eurosat. 0962

Eurosky. 0963

Eurostar .0965

Eutelsat. 0967

Eycos. 0981

Fast 0988

Fastweb .0989

Fenner 0994

Ferguson. 0996

Filmnet .0999

Finepass 1002

Finlandia 1003

Finlux 1004

Flair Mate. 1010

FMD 1015

FoneStar. 3631

Force. 1021

Fortec Star. 1026

Foxtel 1029

Fracarro 1032

France Telecom. 1033

freebox. 1036

Freecom. 1037

Freesat 1038

FTEmaximal. 1044

Fuba 1045

Fugionkyo. 1046

Fujitsu Siemens 1054

Galaxis 1069

Gardiner. 1073

Gamet 1074

GbsAT 1079

Gecco. 1084

General Instrument .1093

GeneralSatellite. 1094

GF. 3634

Globo. 1122

GOD Digital 1128

Gold Box. 1131

Gold Vision 1132

Golden Channel. 1133

Golden Interstar. 1134

GoldStar. 1140

Goodmans. 1142

Granada 1154

Grundig 1162

H&B 3635

Haensel & Gretel. 1173

Hama 1181

Handan. 1184

Hanseatic 1190

Hauppauge 1206

HB. 1209

HDT. 1211

HE@D 1213

Hewlett Packard. 1229

Hills. 1239

Hirschmann. 1246

Hitachi 1251

HNE 1260

Homecast. 1268

HOT 3638

Humax. 1298

Huth. 1305

Hyundai 1315

i-CAN. 3639

ID Digital 1329

ILLUSION sat 1340

Imperial. 1346

Ingelen 1354

International. 1380

Interstar 1383

Inverto 1387

Inves 3643

iotronic. 1389

Irradio. 1396

ITT Nokia. 1407

Koscom 1556

Kosmos 1557

Kreatel 1565

Kreiling 1566

Kreiselmeyer 1567

Kross 1571

K-SAT 1467

Kyostar 1584

L&S Electronic 1588

Labgear 1589

LaSAT 1597

Legend 1609

Legend Digital 3647

Lemon 1614

Lenco 1615

Lennox. 1616

Lenoxx. 1618

Lexus 3649

LG. 1628

Lifesat 1632

Lifetec. 1633

Listo 3406

Lodos 1659

Logik 1661

Logix. 1663

Lorenzen 1666

Lupus 1678

Luxor 1683

Luxorit 1684

M vision 1690

Macab. 1692

Madritel 1699

Manata. 1716

Manhattan 1719

Marantz 1724

Mascom 1738

Maspro. 1739

Master's 1742

Matav 1745

Matsui. 1750

Maximum. 1760

MDS. 1772

Mediabox. 1779

Mediacom 1780

MediaSat. 1782

Medion. 1787

Medison 1788

Mega. 1789

Melectronic 3654

Melita 3414

Metronic. 1809

Metz 1810

MiCO. 1813

Micro 1815

Micro electronic 3656

Micro Technology .1820

Micromaxx. 1822

Micronik. 1825

Microsoft 3657

Microsoft 1826

Microstar 1827

Microtec. 1828

Mitsubishi 1855

MNet 1862

Mood 1874

Morgan's 1875

Motorola 1878

Muller. 1897

Multichoice. 1900

Mx Onda. 1919

Myryad. 1922

Mysat 1923

MySky. 1924

Netgem 1965

NeufTV. 1969

Neuhaus. 1971

Neuling. 1972

Neusat 1974

Neveling. 1976

Nevir. 1977

NextWave. 1988

Nikko 2000

Noda Electronic 2015

Nokia 2017

Noos. 2019

Nordmende. 2022

Nova. 2031

NTL 2047

OctalTV 2063

Okano 2065

Ono 2086

Opentel 2089

Optex. 2093

Optus 2100

Orbis. 2102

Orbitech. 2104

P/Sat 2133

Pace 2134

Pacific 2135

Packard Bell. 2138

Palcom 2144

Panasat 2151

Panasonic. 2153

Panda 2155

Patriot. 2170

peeKTON 2178

Philips 2195

Phoenix 2199

Phonotrend 2202

Pilotime 2208

Pinnacle Systems. 2210

Pioneer. 2212

Platinum 3665

Polytron 2235

Portland 2238

Power Sky 2239

Preisner 2246

Premier. 2248

Premiere. 3666

PremiumX. 2249

Primacom. 2255

Proline 2274

Promax. 2275

PVP Stereo Visual 3667

PYROD 3668

Pyxis 2305

QNS. 2310

Quadral 2314

Quelle. 2322

Radiola 2330

Radix. 2335

RCA. 2351

Rebox. 2356

Red Star. 3669

Redline 3670

Regal. 2370

RFT 2386

Roadstar. 2398

Rollmaster 2409

Rover 2415

Rownsonic. 2417

SAB. 2428

Sabre. 2431

Sagem. 2434

Samsung. 2448

Sansui 2458

Sat Control 2471

Sat Team. 2474

SAT+ 2475

Satec. 2479

Satelco 2481

Satplus 2486

Satstation 2489

SatyCon 3430

Schaub Lorenz 2500

Schneider 2501

Schwaiger 2502

Scientific Atlanta 2503

SCS 2510

Sedea Electronique 2518

SEG 2522

Serino 2539

Servimat 2540

ServiSat 2541

Sherwood 2557

Siemens 2574

Silva. 2591

Skantin 2606

Skardin 2607

SKR. 2608

SKT. 2609

Sky. 2610

SKY Italia 2612

Sky XL 2614

SKY+ 2615

Skymaster. 2621

Skymax. 2622

Skypex. 2623

skyplus 2624 SkySat. 2625

SL 2632

SM Electronic 2639

Smart 2642

Soniq 2670

Sony 2679

SR 2704

Star Sat 2718

Starcom 2722

Starland 2726

Stream 2746

Stream System 3675

Streamzap 2747

Strong 2748

Sumin 3676

Sunny 2764

Sunny Sound 2765

Sunsat. 2767

Sunstar. 2768

Supermax. 2783

Supratech. 2793

Systec. 2816

S-ZWO 2427

Tahnon 3679

Tantec. 2845

Tarbs. 2846

Tatung. 2852

TBoston 2853

Teac. 2860

Tecatel 2862

TechniSat 2873

Technomate. 2876

Technosat. 2877

Technosonic. 2878

Technotrend 2879

Technowelt 2881

Techsan. 2882

Techwood 2884

tekComm 2893

Tele Danmark. 2898

TELE System 3551

Tele+1 2900

Teleciel 2903

TeleClub 2904

Telecom 2906

Telefonica. 2913

Teleka 2919

Telenet 2925

Telepiu 2926

Telestar. 2931

Teletech 2934

Televes 2937

Telewest. 2942

Telewire 2943

Telsey 2945

Tesla 3680

Tevebox 2961

Tevel. 3441

Tevion. 2962

Thomson 2972

Thorn 2974

Tiny. 2986

Tioko 2989

Tividi 3443

Tokai 3001

Tonna 3011

Topfield 3014

Toshiba 3021

TPS 3032

Transact 3040

Triax 3051

Trio 3056

TT-micro 3067

Turnsat 3071

Twinner 3083

UEC 3088

Unimax 3103

Unisat. 3104

United. 3106

United Cable. 3108

Univers. 3112

Universum 3115

UPC 3118

Van Hunen. 3132

Variosat. 3134

Vega 3138

Ventana. 3142

Versatel. 3147

Vestel 3148

VH Sat. 3151

Viasat 3153

Virgin Media 3685

Vision 3198

Visionic 3200

VisionNet 3201

Visiopass 3203

Visiosat 3204

VTech 3222

Wavelength 3235

Wewa 3254

Wharfedale 3255

Winbox 3262

Wisi 3273

Worldsat 3283

XMS 3312

Xrypton 3317

XSat 3318

Xtreme. 3319

XTV 3448

Yakumo 3324

Yamada. 3325

Yess. 3333

Zehnder. 3353

Zeta Technology 3362

Zinwell 3365

Zodiac 3366

STB

STB

STB

STB

STB

TV

Equipment

Brand

Model number

Number of original remote

Code

DVD

Equipment

Brand

Model number

Number of original remote

Code

VCR

Equipment

Brand

Model number

Number of original remote

Code

STB

Equipment

Brand

Model number

Number of original remote

Code

Helpline

Country	Phone number	Tariff
Australia	1300 363 391	Local tariff
België/Belgique	070 253 011	€ 0,17
Danmark	35258758	Local tariff
France	08 9165 0007	€ 0,23
Deutschland	0180 5 007 533	€ 0,12
Espana	902 889 343	€ 0,15
'Éλnvaç	00800 3122 1219	Local tariff
Ireland	01 6011158	Local tariff
Italia	199 404 043	€ 0.25
Luxemburg	40 6661 5645	Local tariff
Nederland	0900 0400 062	€ 0,20
New Zealand	0800 625 224	Local tariff
Norge	22 70 82 58	Local tariff
Östereich	0820 901116	Local tariff
Portugal	2 1359 1441	Local tariff
Suisse/die Schweiz/Svizzera	044 212 0045	Local tariff
Suomi	09 2294 8258	Local tariff
Sverige	08 7505196	Local tariff
United Kingdom	0906 1010 018	€ 0.15

EN Information to the consumer

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 1902/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old

product will help prevent potential negative consequences for the environment and human health.

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice.

No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

Document order number: 3128 145 21931

November 2007

www.philips.com

Printed in Portugal

C

N'MW/RR/RD/4407
