Ambient 04.1540.0011 - Bottle cooler WMF - Free user manual and instructions

Brand	WMF
Model	Ambient 04.1540.0011
Product type	Bottle cooler
Power supply	USB adapter 220-240 V~, 50-60 Hz, 2.5 W; batteries/rechargeable batteries (not included)
Body material	Stainless steel
Capacity	Bottles up to 92 mm in diameter
Cooling	Removable cooling element (freeze at -18°C for at least 4 hours)
LED lighting	LED light ring with Easy Touch function: 3 brightness levels (10%, 50%, 100%)
Functions	Passive cooling, ambient lighting, on/off by touching the body
Weight	Approximately 1.0 kg
Dimensions (estimated)	Height: 350 mm, Diameter: 120 mm
Battery life	Approximately 4 hours at maximum brightness (non-rechargeable batteries)
Cleaning	Do not immerse in water; clean the exterior with a damp cloth
Safety	Do not let children play with the device; unplug before cleaning; do not use if damaged
Spare parts	Cooling element, LED light ring, USB adapter (available from the manufacturer)
Repairability	Replaceable power supply; repair by manufacturer or customer service
Use	Indoor domestic use only
Standards	Compliant with European directives 2014/35/EU, 2014/30/EU, 2009/125/EC

Frequently Asked Questions - Ambient 04.1540.0011 WMF

How to use the WMF Ambient bottle cooler?

Place the cooling element in the freezer at -18°C for at least 4 hours. Insert it into the cooler, then place the bottle (up to 92 mm in diameter). Plug in the USB adapter or insert batteries/rechargeable batteries for lighting. Use the Easy Touch function by touching the stainless steel body to turn on/off and adjust brightness.

What type of batteries to use?

The device works with AA batteries or rechargeable batteries (not included). Use batteries of the same capacity and age. Do not plug the USB cable without batteries/rechargeable batteries inserted.

How to recharge the rechargeable batteries?

Plug in the USB adapter and set the switch to position I. A flashing green light indicates charging. It turns off when charging is complete.

How to clean the cooler?

Unplug the device and remove the cable. Clean the exterior with a damp cloth. Never immerse the LED module or steel body in water.

What is the cooling time?

The cooling element must be frozen for at least 4 hours. Once in place, cooling is passive and depends on ambient temperature and the bottle. For best results, use a well-frozen element.

Can I use champagne bottles?

Yes, the cooler accepts wine, champagne, and water bottles up to 92 mm in diameter, which includes most standard sizes.

How to replace the LED light ring?

Remove the light ring by unclipping it. To put it back, align the printed triangle on the ring with the one on top of the body, then snap it in until you hear a click.

What to do if the lighting does not work?

Check that the on/off switch is in position I. Make sure the batteries/rechargeable batteries are correctly inserted and charged, or that the USB adapter is plugged in. Test the Easy Touch function by touching the steel base.

Is the cooling element removable?

Yes, the cooling element is easily removed after taking off the light ring. Let it cool in the freezer as instructed.

Where to find spare parts?

Spare parts (cooling element, LED ring, USB adapter) are available from the manufacturer WMF or its customer service. Contact them to order.

USER MANUAL Ambient 04.1540.0011 WMF

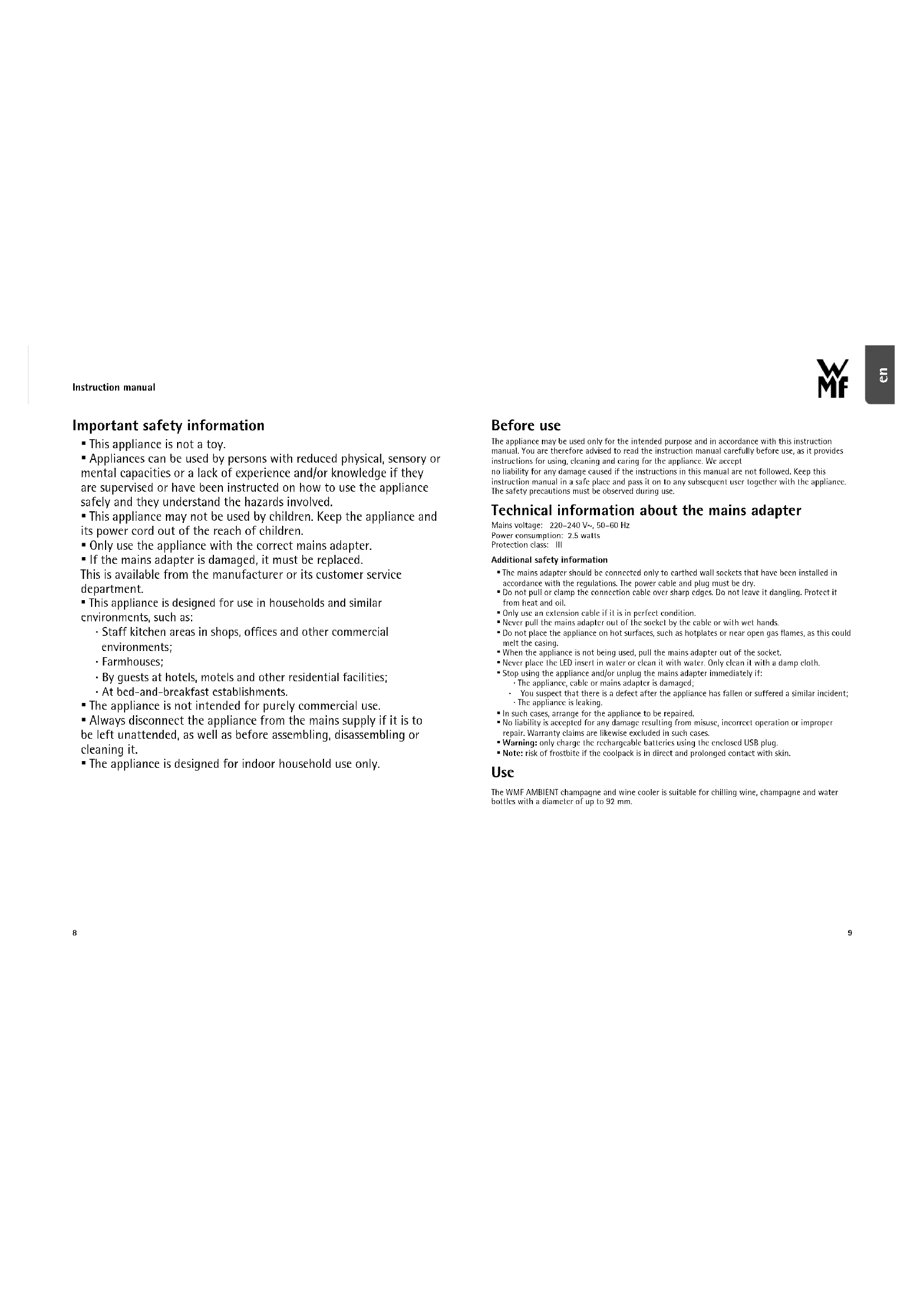

Important safety information

This appliance is not a toy.
- Appliances can be used by persons with reduced physical, sensory or mental capacities or a lack of experience and/or knowledge if they are supervised or have been instructed on how to use the appliance safely and they understand the hazards involved.
- This appliance may not be used by children. Keep the appliance and its power cord out of the reach of children.
- Only use the appliance with the correct mains adapter.
- If the mains adapter is damaged, it must be replaced. This is available from the manufacturer or its customer service department.
- This appliance is designed for use in households and similar environments, such as:

• Staff kitchen areas in shops, offices and other commercial environments;
  Farmhouses;
• By guests at hotels, motels and other residential facilities;
• At bcd-and-brackfast establishments.

The appliance is not intended for purely commercial use.
- Always disconnect the appliance from the mains supply if it is to be left unattended, as well as before assembling, disassembling or cleaning it.
The appliance is designed for indoor household use only.

Before use

The appliance may be used only for the intended purpose and in accordance with this instruction manual. You are therefore advised to read the instruction manual carefully before use, as it provides instructions for using, cleaning and caring for the appliance. We accept

no liability for any damage caused if the instructions in this manual are not followed. Keep this instruction manual in a safe place and pass it on to any subsequent user together with the appliance. The safety precautions must be observed during use.

Technical information about the mains adapter

Mains voltage: 220-240 V, 50-60 Hz

Power consumption: 2.5 watts

Protection class: III

Additional safety information

• The mains adapter should be connected only to earthed wall sockets that have been installed in accordance with the regulations. The power cable and plug must be dry.
• Do not pull or clamp the connection cable over sharp edges. Do not leave it dangling. Protect it from heat and oil.
• Only use an extension cable if it is in perfect condition.
• Never pull the mains adapter out of the socket by the cable or with wet hands.
• Do not place the appliance on hot surfaces, such as hotplates or near open gas flames, as this could melt the casing.
• When the appliance is not being used, pull the mains adapter out of the socket.
• Never place the LED insert in water or clean it with water. Only clean it with a damp cloth.

• Stop using the appliance and/or unplug the mains adapter immediately if:

• The appliance, cable or mains adapter is damaged;

• You suspect that there is a defect after the appliance has fallen or suffered a similar incident;

• The appliance is leaking.

In such cases, arrange for the appliance to be repaired.
- No liability is accepted for any damage resulting from misuse, incorrect operation or improper repair. Warranty claims are likewise excluded in such cases.
- Warning: only charge the rechargeable batteries using the
Note: risk of frostbite if the coolpack is in direct and prolonged contact with skin.

Use

The WMF AMBIENT champagne and wine cooler is suitable for chilling wine, champagne and water bottles with a diameter of up to 92mm .

Initial operation

Please note that no electrically conductive objects should be placed near the device, and ensure that the cable is not twisted to guarantee trouble-free use of the WMF Easy Touch function.

Coolpack

The coolpack is included in the box of the WMF AMBIENT champagne and wine cooler. This should be chilled in the freezer at a temperature of -18^ for at least four hours before use in the champagne and wine cooler to achieve the maximum cooling.

USB adapter

The box includes a USB adapter. This power to the LED light or recharges the rechargeable batteries, if being used.

Batteries/rechargeable batteries

Batteries/rechargeable batteries are not included.

Either batteries (AA) or rechargeable batteries can be used in this cooler. All batteries must have the same capacity and should ideally be the same

WARNING: do not connect the USB cable if non-rechargeable batteries are being used. There is a risk that the batteries might leak and this could cause considerable damage to health or personal injury.

Removing/inserting upper LED light ring

The upper LED light ring can be removed so the coolpack can be easily taken out for cleaning. When putting in the LED light ring, please note that it can only be inserted in one position. The triangles printed on the top of the light ring and in the casing of the wine cooler provide guidance for inserting the upper LED light ring. A click will confirm that the light ring has been correctly positioned. The LED light ring will only work if the ring has been placed correctly.

Initial operation of LED light

Once the coolpack and upper LED light ring have been inserted in the wine cooler from the top, the ON/OFF switch on the bottom of the wine cooler should be in Position 1 to switch on the light. It must be switched on for the LED to work. Then, simply touch the base of the stainless steel casing and the wine cooler will be illuminated

This appliance features decorative LED illumination at the top and bottom of the stainless steel casing. The individually controllable ambient light has three different brightness settings.

Three ways in which the LED lights on this appliance work:

Example 1: the wine cooler is connected to the power socket via the USB adaptor. Once the ON/OFF switch on the wine cooler is in Position 1, the LED light can be switched on via the Easy Touch function on the base of the wine cooler:

1st Touch: 10% brightness 2nd Touch: 50% brightness 3rd Touch: 100% brightness

4th Touch: off

• Example 2: the wine cooler is connected to the power socket via the USB adapter and rechargeable batteries are also inserted. The same as example 1. In addition, a green LED will blink at the bottom of the light ring (approx. every 2 seconds) to indicate that the rechargeable batteries are not fully charged. The green LED will switch off once the rechargeable batteries are fully charged.

• Example 3: only batteries/rechargeable batteries are being used If the ON/OFF switch is in Position I, a green LED on the bottom of the ring will be continuously illuminated. This indicates that the energy being used is supplied by the rechargeable batteries. At the top brightness level (100%), standard non-rechargeable batteries will last around 4 hours.

Tip: reduce the level of brightness to prolong battery life and illumination.

Switching WMF Ambient light on and off using the WMF Easy Touch function

The WMF Easy Touch function allows for easy operation of the LED light.
- Touch the stainless steel casing on the base to switch the illumination on and off.

Repeatedly touching the casing cycles through the three brightness settings and then switches the light off.

1st Touch: 10 % brightness

2nd Touch: 50% brightness
3rd Touch: 100% brightness
4th Touch: off

Cleaning and care

Unplug the mains plug before cleaning.

Unplug the mains plug and remove the cable from the stainless steel casing.

Under no circumstances should you immerse the LED insert and stainless steel casing in water. If necessary, simply wipe the outside with a damp cloth.

Never use abrasive cleaning agents.

The appliance complies with European directives 2014/35/EU, 2014/30/EU and 2009/125/EU.

At the end of its life, this product must not be disposed of in normal household waste but must instead be delivered to a collection point for recycling electrical and electronic appliances.

The materials are recyclable in accordance with their labelling. Reuse, recycling and other ways of reusing old appliances make an important contribution to protecting

our environment.

Please ask your local authorities for information about the appropriate disposal point.

Subject to change.

Sous reserve de modifications.
