Product Type	Wireless baby monitor
Brand	Philips
Model	SBCSC368
Parent unit power supply	Rechargeable NiMH batteries (included) + 9V DC 200mA mains adapter
Baby unit power supply	4 x 1.5V AA alkaline batteries (not included) or 9V DC 200mA mains adapter
Parent unit battery life	Up to 12 hours after full charge (14 hours initial charging required)
Baby unit battery life	More than 30 hours with new batteries
Maximum range	250 meters outdoors without obstacles
Transmission channels	Channel A and Channel B (selectable)
Frequencies	Not specified (likely free band)
Microphone	Highly sensitive microphone with sensitivity adjustment (1 to 9)
Indicator lights	Power, transmission, link, charge
Audible alarm function	Yes, can be activated via internal switch in parent unit battery compartment
Belt clip	Yes, on parent unit
Charging base	Yes, for parent unit
Safety	Keep baby unit at least 1 meter away from child; do not cover baby unit
Maintenance	Clean with a soft, dry cloth; do not immerse in water
Spare parts	Mains adapters included; rechargeable batteries for parent unit included; batteries for baby unit not included
Repairability	Contact Philips service for any repairs

Frequently Asked Questions - SBCSC368 PHILIPS

How to turn on the baby unit?

Press the Power button (A-4) on the baby unit. The red power indicator (A-2) lights up. To turn off, press again.

How to charge the parent unit?

Place the parent unit in the charging base (B-6) connected to the mains adapter. The red charge indicator (B-13) flashes during charging. A full charge takes at least 14 hours for first use.

What is the maximum range?

The range can reach 250 meters outdoors without obstacles. Walls and ceilings reduce this distance.

What to do in case of interference?

Try changing the channel on both units (switches A-7 and B-8). Make sure they are on the same channel. Also move mobile phones away from the units.

How to activate the audible alarm?

Open the battery compartment of the parent unit (B-9) and set the internal switch (B-12) to the On position. This will trigger an audible alarm if the link is lost.

What does the flashing LINK indicator mean?

The green LINK indicator (B-1) flashes if the baby unit is out of range for more than 30 seconds or if the signal is blocked. Move the units closer or change the channel.

How long does the baby unit battery last?

With new alkaline batteries, the baby unit operates for more than 30 hours wirelessly. The Power indicator flashes when batteries are low.

Can I use rechargeable batteries in the baby unit?

The manual recommends non-rechargeable alkaline batteries for the baby unit. The use of rechargeable batteries is not mentioned as possible.

How to adjust the microphone sensitivity?

Turn the Sensitivity control (A-5) on the baby unit. Setting 9 is the most sensitive, picking up faint sounds. Adjust as needed.

What to do if no sound is heard?

Check that the volume on the parent unit (B-5) is high enough. Make sure the units are powered on and on the same channel. Move them closer if necessary.

USER MANUAL SBCSC368 PHILIPS

This document is printed on chlorine free produced paper Data subject to change without notice Printed in China

C€0682①

baby monitor

SBC SC368

Instructions for use

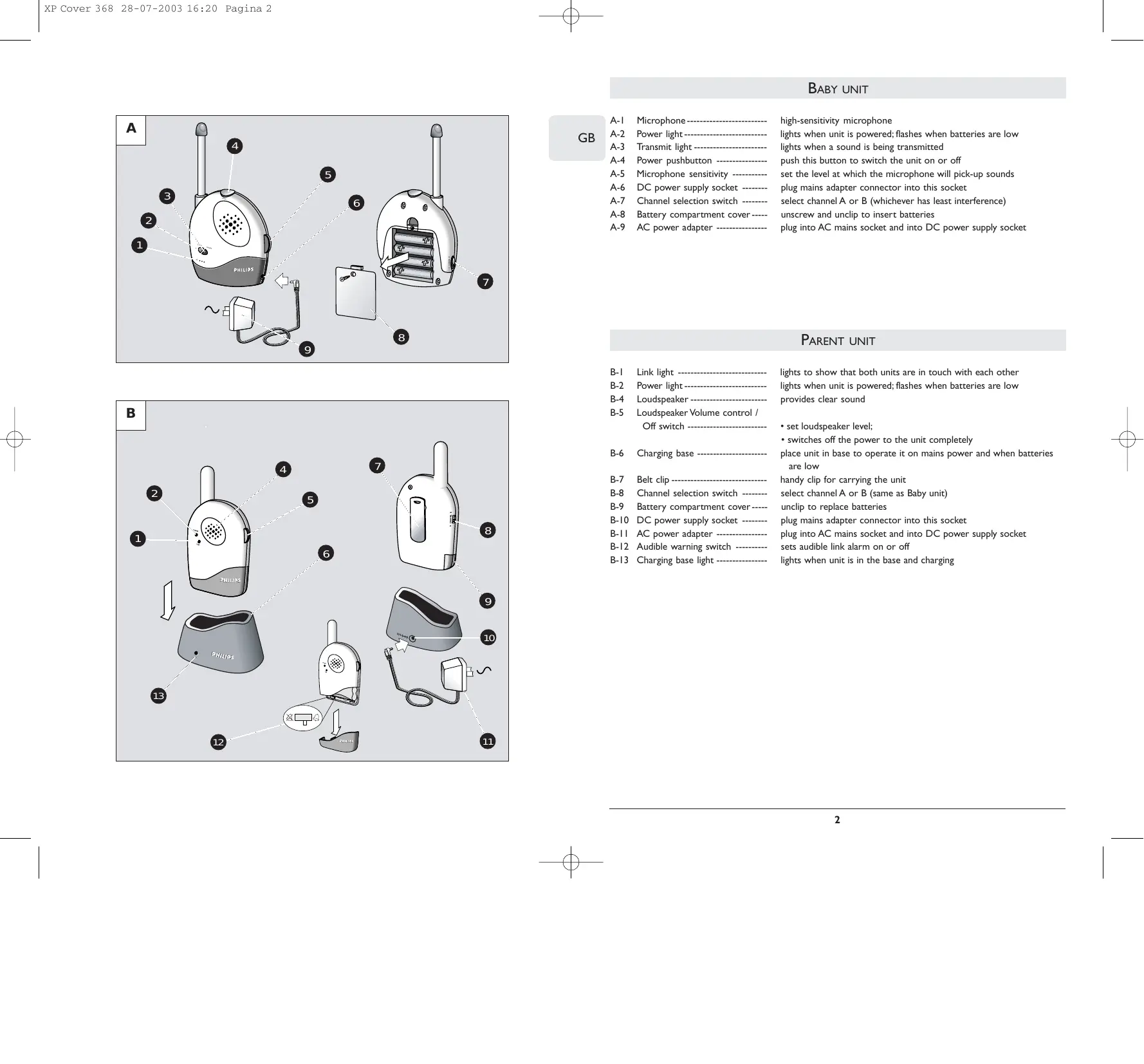

A-1 Microphone high-sensitivity microphone
A-2 Power light - lights when unit is powered; flashes when batteries are low
A-3 Transmit light - lights when a sound is being transmitted
A-4 Power pushbutton push this button to switch the unit on or off
A-5 Microphone sensitivity set the level at which the microphone will pick-up sounds
A-6 DC power supply socket ---- plug mains adapter connector into this socket
A-7 Channel selection switch --- select channel A or B (whichever has least interference)
A-8 Battery compartment cover---- unscrew and unclip to insert batteries
A-9 AC power adapter plug into AC mains socket and into DC power supply socket

PARENT UNIT

B-1 Link light - lights to show that both units are in touch with each other
B-2 Power light - lights when unit is powered; flashes when batteries are low
B-4 Loudspeaker provides clear sound
B-5 Loudspeaker Volume control /

Off switch set loudspeaker level;
- switches off the power to the unit completely
B-6 Charging base place unit in base to operate it on mains power and when batteries are low
B-7 Belt clip handy clip for carrying the unit
B-8 Channel selection switch select channel A or B (same as Baby unit)
B-9 Battery compartment cover----- unclip to replace batteries
B-10 DC power supply socket ---- plug mains adapter connector into this socket
B-11 AC power adapter plug into AC mains socket and into DC power supply socket
B-12 Audible warning switch sets audible link alarm on or off
B-13 Charging base light - lights when unit is in the base and charging

CONGRATULATIONS

You have just purchased a high-performance, cordless Baby Monitor that lets you listen to your child from wherever you are in and around the house. Please read this guide carefully before using the monitor, and keep it for future reference.

IMPORTANT!

This Baby Monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.

Make sure the Baby unit and adapter cable are always out of reach of the baby, at least I metre away.

Never place the Baby unit inside the baby's bed or playpen!

The antennas on the Parent and Baby units are fixed; do not try to extend them.

Never cover the Baby unit (with a towel, blanket, etc.)

GETTING THE UNITS READY FOR USE

Baby unit

Connect the AC power adapter (A-9) to an AC mains socket, and then connect the cord to the DC power supply socket (A-6) of the Baby unit.

If you want to use batteries, remove the battery compartment cover (A-8) using a screwdriver. Insert four 1.5V, AA batteries (not included; we recommend non-chargeable Philips Alkaline batteries), noting the + and - configuration inside the battery compartment. Put the cover back in place and tighten screw.

The Baby unit operates cordlessly for up to 30 hours on fresh batteries. The red POWER light (A-2) flashes when battery power is low. If this happens install new batteries.

Note: To switch off the Baby unit completely push the POWER button (A-4).

Parent unit

The Parent unit uses a rechargeable battery pack. This is already installed, but first it must be charged for at least 14 hours as follows before using the unit outside the charging base:

• Connect the AC power adapter (B-11) to an AC mains socket, and then connect the cord to the DC power supply socket (B-10) of the charging base (B-6).
• Place the Parent unit inside the charging base. The red charging light (B-13) lights.

The Parent unit can be operated now but you should leave it in the charging base until the batteries are fully charged (at least 14 hours). When the batteries are fully charged, take the Parent unit out of the charging base and use cordlessly for up to 12 hours.

When the red POWER light (B-2) on the Parent unit flashes, the battery power is low. Place the Parent unit inside the charging base to recharge the batteries.

Monitoring baby's sounds

To use the units to listen to your baby:

• Position the Baby unit at least 1 metre away from the baby so that the microphone (A-1) can pick up baby's sounds.
• Set the channel switch to the same position on both units.
• Push the POWER switch on the baby unit (A-4) to switch it on.
• Set the SENSITIVITY control (A-5) on the Baby unit to about mid-range (5).
• The green TRANSMIT light (A-3) lights when a sound is picked up.
• Move away from the Baby unit with the Parent unit.
• Switch on the Parent unit using the Volume control/Off (B-5) and adjust the volume to the level you prefer.
• If required, re-adjust the SENSITIVITY control (A-5) on the Baby unit to set the level at which the microphone will start to pick up sounds.

When the SENSITIVITY control (A-5) is set to 9, the microphone picks up even the softest sounds. Experiment with different levels until you find the setting that suits you and your baby best.

The green LINK light (B-1) lights continuously when the Parent unit and the Baby unit are in touch with each other.

Avoiding interference

Both units use anti-interference technology to reduce the chance of interference from other signals. If interference does occur or if sound reception is poor, try switching both units to the other channel to improve the sound quality.

Note: Always make sure that the channel selection switches (A-7, B-8) on both units are set to the same position.

Checking that the units are in touch

The green LINK light (B-1) of the Parent unit lights continuously to show that the Parent unit and the Baby unit are in touch with each other. This light flashes if the Baby unit is out of range for more than 30 seconds or if the signal is blocked.

When the units are no longer in touch, try one of the following:

• Move the Parent unit closer to the Baby unit. (The maximum operating distance is 250m in ideal conditions. Walls and floors can limit this distance.)
• Switch both units to the other channel.
• Check that both units are powered correctly (low batteries?).

Switching on the audible warning

If you wish, you can switch on a special feature that lets you hear an audible warning on the Parent unit when the units are not in touch. The Parent unit is delivered with this beep switched off to avoid intermittent disturbances that can occur when the connection is interrupted for a short period.

To switch on the audible warning, open the Parent unit's battery compartment cover (B-9) and set the switch (B-12) inside to the On position ( ).

Note: The LINK light (B-1) continues to operate even if the audible warning is switched off.

Belt clip

When the batteries of the Parent unit are charged, the unit can be carried around giving you freedom of movement while still monitoring your baby. Use the belt clip (B-7) to attach the unit to your clothing and so keep your hands free.

PROBLEM SOLVING

Problem	Possible Cause	Solution
Power light does not light (Parent unit).	Unit is not turned on.	Turn Volume control/Off switch clockwise (B-5).
	Batteries are low.	Recharge batteries.
Power light does not light (Baby unit).	Unit is not turned on.	Push the Power switch (A-4) to switch on the unit.
	AC adapter is not plugged in or Batteries are exhausted.	Plug in AC adapter or replace batteries.
	AC adapter plugged into an outlet that is not working.	If the power socket has a switch, turn it on.
High pitched noise.	Units are too close together.	Move Parent unit away from Baby unit.
	Volume too high.	Turn volume control on Parent unit counter-clockwise.
No sound.	Volume control on Parent unit is set too low.	Turn volume control/Off switch clockwise (B-5).
	Units are out of range.	Move Parent unit closer to Baby unit.
Power light blinking.	Batteries are low or empty.	Parent unit:- recharge batteries. Baby unit:- replace batteries or connect to mains power.
Interference or poor reception.	Mobile or cordless phones too close to the baby monitor can cause interference.	Move the phones away from the units.

TECHNICAL SPECIFICATIONS

Power supply

• Battery pack; rechargeable NiMH for Parent Unit (included);
• Optional batteries 4 × 1.5V ; AA alkaline for Baby Unit (not included);
• AC power adapter 230V AC, 50Hz (two included): - Output voltage 9V DC, 200mA .

Only use the AC power adapter included or a type that complies with safety standard EN60950 and that has the following specification: 9 Volt DC / 200mA.

Operating range

• up to 250 metres in ideal conditions
• 10^ to 40^

Pilot tone

• Continuous communication link (hidden signal ensures a continuous link between both units so you only hear your baby's sounds).

Transmission frequencies

Channel A Channel B

SBC SC368/00Y：40.695 MHz 40.675 MHz

UNITE BÉBÉ

SBC SC368/00Y 40.695 MHz 40.675 MHz

UNIDAD DEL BEBÉ

SBC SC368/00Y: 40.695 MHz 40.675 MHz

BABYGERAT

A-1 Mikrophon

SBC SC368/00Y: 40.695 MHz 40.675 MHz

GARANTIE

A-8 Deksel batterijcompartment

B-9 Deksel batterijcompartment

SBC SC368/00Y: 40.695 MHz 40.675 MHz

UNITA BAMBINO

SBC SC368/00Y: 40.695 MHz 40.675 MHz

UNIDADE DO BEBÉ

SBC SC368/00Y: 40.695 MHz 40.675 MHz

MONAΔAMΩPOY

A-1 Mkrp0oov mkrpo0oovvynlnc evaio
A-2 1oXoos -avabot otav n ovaia tropoodotieta; avaaboivt otav ou a a e ivai
A-3 -avaeotavekπεμπeαiEvasno
A-4 Koupi o0n6 evpeiaa - 10 nto koupi yva avaye i na 6h
A-5 Evaiognoia Mkpoovou -pOoio to epiEso oTo oio to kpoov oTopei va oAaaetov npx0
A-6 Ipica tropopoobosiaoc 1oxboc DC-- baltro souvdeltaa tov npoosapoyea tov nEeKtpikou diktoov ^ autn tnv pica
A-7 1aikoTn8 eiooync kavlaioB-- euiEeKauVAl A n B (ekivno oov exTa laiyotepa npapətata)
A-8 KaTakai duaepipsoaos paataipov- 1 0 te kai aooovoeTe yia va baleuatapiies
A-9 Ipoosapmuoyeaic AC --aalte stnv npica tou nlektpkoov duktbov AC kai stnv npica tropoooiaac DC

MONAΔA ΓONIOY

B-1 - avaia va dεiδι oι oδo movadε επιονovovu vεταδο tou
B-2 10xioos -avabot avn y movad a tropoodoteiata; avaboosnv tav oit aataie civaaunna
B-4 Meyapovoo -aepexka0aopn
B-5 州 /
B-6 Bao npoprtiog
B-7 Suovdtipac iavta -paktokoc suvdtnpa ia va kovbaatae a i sa tmovdaa
B-8 i k o KavaaioB-- KavalaA n B (idios eov avtiox o diakotn tn Mopou)
B-9 Kaiaki diuapeipsoaoc mataapov-anosovdeote yva avtikataohtoe tic mataapiies
B-10 Ipica tropofoosoiac 1oxoC DC-- baltet o suvdetna tov npoosapuoyea tov nEeKtpiokou diktroou ^ autn tn ypica
B-11 Ipoosapmuoyeaic 1oXooc AC -aalte stnv npia tou nektpikov diktov AC kai stnv npia tpoosodiosiac 1oXooc DC
B-12 ⅡaKóπης ακονστικής

Iapakokovtheta touc youc tou wpo

SBC SC368/00Y: 40.695 MHz

40.675 MHz

BABYENHET

SBC SC368/00Y: 40.695 MHz 40.675 MHz

BABY- ENHED

SBC SC368/00Y: 40.695 MHz

40.675 MHz

BABY-ENHET

A-1 Mikrofon meget folsom mikrofon
A-2 På-lampe (POWER) lyser när encheten er pä; blinker när batteriene er svake
A-3 Send-lampe (TRANSMIT) lyser nár en lyd sendes
A-4 På/av-trykknapp (POWER) ----- trykk på dette knappen for Å slå encheten på eller av
A-5 Folsomhet mikrofon -innstilling av nivæt for när mikrofonen registerrer lyder
A-6 Batterieliminator-inngang for tlikoping av batterieliminator
A-7 Kanalvelger valg av kanal A eller B (kanalen med minst stoy)
A-8 Batterilokk skrus 1s og tas av for a sette i batterier
A-9 Batterieliminator - settes i stikkontakten og kuples til enhetens inntak

FORELDRE-ENHET

SBC SC368/00Y: 40.695 MHz

40.675 MHz

LAPSEN YKSIKKO

SBC SC368/00Y: 40.695 MHz 40.675 MHz

Helpline

BELGIE & LUXEMBURG/ BELGIEN & LUXEMBURG / BELGIQUE & LUXEMBOURG Tel: [phone]

DANMARK

Tlf: 32 88 32 00

FRANCE

Phone: [phone]

DEUTSCHLAND

Phone:[phone]

GREECE

Phone:[phone]

IRELAND

Phone:[phone]

ITALIA

Phone:[phone]

NEDERLAND

Phone:[phone]

NORGE

Phone:[phone]

ÖSTERREICH

Phone:[phone]

PORTUGAL

Phone:[phone]

ESPANA

Phone: [phone]

SCHWEIZ/SUISSE/SVIZZERA

Tel.:[phone]

SUOMI

puh. 0961580250

SVERIGE

Phone:[phone]

UK

Phone:[phone]

SBC SC368/00Y

R&TTE Directive 1999/5/EC

BE	✓	DK	✓	GR	✓	ES	✓	FR	✓
IRE		IT	✓	LU	✓	NL	✓	AT	✓
PT	✓	FI	✓	SE	✓	UK		NO	✓
DE	✓	CH	✓

English	Hereby, Philips Consumer Electronics, B.U. Peripherals & Accessories, declares that this SBC SC368 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
François	Par la présente, Philips Consumer Electronics, B.U. Peripherals & Accessories, déclare que l'appareil SBC SC368 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE
Espanol	Por medio de la presente, Philips Consumer Electronics, B.U. Peripherals & Accessories, Declare que el SBC SC368 compte con los requisitos esencias y cualesquiera除外as disposiciones aplicables o exigibles de la Directiva 1999/5/CE
Deutsch	Hiermit erklärrt Philips Consumer Electronics, B.U. Peripherals & Accessories die Übereinstimmung des Gerätes SBC SC368 mit den grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG.
Nederlands	Hierbij verklaart, Philips Consumer Electronics, B.U. Peripherals & Accessories dat het toestel SBC SC368 in overeenstemming is met de essentièle eisen en de andere relevante bepalingen vanrichtlijn 1999/5/EG.
Italiano	Con la presente Philips Consumer Electronics, B.U. Peripherals & Accessories dichiarare che dato SBC SC368 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Portugués	Philips Consumer Electronics, B.U. Peripherals & Accessories declara que este SBC SC368 está conforme com os requisitos essenciais e autres disposções da Directiva 1999/5/CE.
Éλληνία	ME THN ΠΑρΟΥΣA Philips Consumer Electronics, B.U. Peripherals & Accessories ΔΗλΩNEI OTI SBC SC368 ΣΥΜΜΟΦΩNETAI ΠΙΝΟ ΠΙΥΣΟΙΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ KAI TΙΣ ΑΟΙΝΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΘΗ ΕΔΗΓΙΑΣ 1999/5/ΕK
Svenska	Härmed intygar, Philips Consumer Electronics, B.U. Peripherals & Accessories, attenna SBC SC368/Står I överensstämmele med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Dansk	Undertegnede Philips Consumer Electronics, B.U. Peripherals & Accessories erklærer herved, at følgende udstyr SBC SC368 overholder de væsentlige krav og øvridge relevante krav i direktiv 1999/5/EF
Norsk	Philips Consumer Electronics, B.U. Peripherals & Accessories erklærer at SBC SC368 apparatene tilfredsstiller de vesentligste kravene og andre relevante standarder i henhold til direktivet 1995/5/EC.
Suomi	Philips Consumer Electronics, B.U. Peripherals & Accessories vakuuttaa t Athenetta SBC SC368 typpinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
