USER MANUAL SRU740 PHILIPS

GB Instructions for use 4

F Mode d'emploi 12

1. Introduction 4
2. Installing the remote control 4-7

Replacing the battery 4

Testing the remote control 5

Setting the remote control 5-7

1. Keys and functions 8
2. Extra possibilities 9-10

Adjusting device selection (Mode-selector) 9

Adding a remote control function 9

Assigning the volume control to another mode 10

Restoring the original remote control settings 10

1. Troubleshooting 11
2. Need help? 11

Code list of all brands / equipment 92-113

1. Introduction

Congratulations on your purchase of the Philips SRU740 universal remote control. After installing the remote control you can operate a maximum of 4 different devices with it: TV, SAT (settop box, satellite or cable decoder), DVD player/recorder or video recorder and amplifier/receiver. You can find information about how to prepare this remote control for use in the chapter 'Installing the remote control'.

2. Installing the remote control

• A battery is already placed in the battery compartment of the SRU740. Just remove the protective foil from the battery and the SRU740 is ready for use.
• If the indicator LEDs (TV, SAT, DVD/VCR and AMP) blink four times after every key press, the remote control is indicating that its battery is running low. Replace the old battery with a new CR2025 Lithium battery. See 'Replacing the battery'.

Replacing the battery

The SRU740 comes with one spare battery in the packaging.

1 Press the edge of the battery compartment as shown. Keep the edge pressed and slide the compartment outwards.

Illustration of a hand holding a small electronic component with a circular button, next to a separate device (no text or symbols present)

2 Place the spare CR2025 Lithium battery into the battery compartment, as shown. Make sure to place the text side of the battery upwards.

+ CR2025

3 Slide the compartment back and click it firmly into place.

Testing the remote control

The remote control has been programmed to operate most Philips devices. Because the SRU740 may use different signals for each brand and even for different models of the same brand, it is advisable to test whether your device responds to the SRU740. The example below (TV) instructs you how to do this. You can repeat the same steps for other devices (DVD, video recorder, etc.) which you want to operate using the SRU740.

Example of TV:

1 Turn your TV on manually or use the original remote control. Tune to channel 1.

2 Press the SELECT key to select TV. Press the key until the TV LED lights up. If the LED does not light up, check whether the battery is properly inserted (see 'Replacing the battery').

3 Check whether all keys are working. For an overview of the keys and their functions see '3. Keys and functions'.

- If the TV responds as it should to all of the key commands the SRU740 is ready for use.

Hand pointing at a mobile phone control panel with labeled buttons and icons

Hand interacting with a remote control panel showing directional icons for VEN, MOV, OK, and PON.

- If the device does not respond at all or not to all of the key commands, follow the instructions under 'Setting the remote control', or for online setup go to: www.philips.com/urc

Setting the remote control

This is only necessary if your device does not respond to the SRU740. If that is the case, the SRU740 does not recognize the brand and/or model of your device and you need to program the remote control to do so. The example below (TV) instructs you how to do this. You can repeat the same steps for other devices (DVD, video recorder, etc.) which you want to operate using the SRU740.

Note: The third mode (DVD/VCR) can be used either for operating your DVD player/recorder or your VCR (videorecorder).

Instructions for use

Automatically setting the remote control

The remote control will now automatically search for the right code for your device.

Example of TV:

1 Make sure the TV is switched on and select a channel using the original remote control or the keys on the TV (for example channel 1). The SRU740 emits the 'switch off TV' signal for all models of TV that are stored in the memory.
- If the device is a DVD player/recorder or video recorder, insert a disk or tape and start playback.
2 Press the SELECT key to select TV. Press the key until the TV LED lights up.

Hand interacting with a mobile phone control panel showing status LEDs and function buttons

3 Then keep keys 1 and 3 pressed simultaneously for three seconds until the TV LED flashes twice and then remains lit.

1 2 3 4 5 6 7 8 9 0 10 NUU 740

4 Press and hold the Standby key of the SRU740.

Hand interacting with a remote control interface, showing labeled buttons like RESET, USB, and BACK

• The SRU740 now starts emitting all known 'TV off' signals, one by one. Each time a code is sent, the TV LED lights up.
  5 When your TV switches off (stand-by), release the Standby key of the SRU740 immediately. The SRU740 has now found a code that works on your TV.
  6 Check if you can operate all functions on your TV with the SRU740.

Diagram of a hand holding a remote control with labeled buttons including 'OK', 'Cancel', and various function icons.

• If this is not the case, you can redo the automatic setting. The SRU740 will then search for a code that works better.

• After the SRU740 has run through all the known codes, the search will stop automatically and the TV LED will stop flashing.
• Automatic programming of a TV takes a maximum of 5 minutes. For SAT, DVD/VCR and AMP this time is 2 minutes.

Manually setting the remote control

Example of TV:

1 Turn on the TV manually or use the original remote control. Tune in to channel 1.

2 Look up the brand of your TV in the code list at the back of this manual. One or more four-figure codes are shown for each brand. Note the first code. Be careful! There are separate tables for TV, video, DVD, etc.

Scanned image of an open notebook with dense text pages, likely a historical or technical document.

On our website www.philips.com/urc you can directly select your device typenumber to find the tight code.

Make sure you use the codes from the correct table.

3 Press the SELECT key to select TV. Press the key until the TV LED lights up.

Hand holding a mobile phone control panel with labeled buttons and a flower icon, likely for navigation or app selection.

4 Keep keys 1 and 3 pressed simultaneously for three seconds until the TV LED flashes twice and then remains lit.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

5 Then enter the code noted in step 2 using the digit keys.

- The TV LED key will now flash twice. If the LED flashes once for an extended period, the code has not been entered properly or the wrong code has been entered. Start again from step 2.

6 Point the SRU740 at the TV and check that it responds as it should.

- If the TV responds to all of the key commands, the SRU740 is ready for use. Do not forget to note your code.

- If the device does not respond at all, or not to all of the key commands, start again from step 2 and try the next code from the list.

3. Keys and functions

The illustration on page 3 gives an overview of all keys and their functions.

① Standby . . . . . . switches TV, SAT, DVD, VCR or AMP on or off.
② Indicator LEDs
③ - teletext on/off (disc menu)

- text off

- index

- play (VCR/DVD)

- text hold

- record (VCR/DVD)

- wide screen TV

- red teletext key

- rewind (VCR/DVD)

- green teletext key

- stop (VCR/DVD)

- yellow teletext key

- pause (VCR/DVD)

- blue teletext key

- wind (VCR/DVD)

④ MENU . . . . . . . turns the menu on and off.
⑤ Cursor keys ..... cursor up, down, left, right in a menu.
⑥ AV ...... switches between external inputs of your equipment.
⑦ INFO ...... turns menu info on and off.
⑧ -VOL +..... adjusts the TV or AMP volume.
⑨ Digit keys ..... - direct choice of channels and other functions.

- source selection keys in amplifier mode (together with SHIFT).

Try out other combinations with the Shift-key on your device in order to find out which functions are available.

Only functions featured on the original remote control are available.

⑩ SHIFT ....for extra functions. When pressed at the same time as a second key, the second key will get another function. For example:

SHIFT + 📋 ..... installs your TV.

SHIFT + 📋 ..... stores TV settings.

⑪ -/-- ....... selects between one- and two-figure channel numbers.
⑫ P&P / SURROUND. selects previous programme/channel. selects surround modes.
⑬ - PROG + . . . . . . . selects a previous or following channel.
⑭ 📄 mutes the sound of the TV or DVD.
⑮ OK. . . . . . . . . . . . confirms your selection.
⑯ BACK....jumps back one level in the menu or turns off the menu.
⑰ SELECT...... selects TV, VCR/DVD, SAT or AMP mode.

If you use the (⇨) 'memory off' key to get to the next teletext page on your Philips TV, you can press the Subtitle key for this. See also 'Troubleshooting'.

If the device does not respond at all, or not to all of the key commands, follow the instructions under 'Setting the remote control'. It is possible that you must enter another code for the device.

4. Extra possibilities

Adjusting device selection (Mode selector)

The SRU740 is default set for operating TV, SAT (settop box, satellite or cable decoder), DVD (or VCR) and AMP (amplifier). You can select the device you wish to operate with the SELECT key (mode selector). Each option allows operation of one device only. If desired, you can program the SELECT key (mode selector) to select a different kind of device. For example, if you want to operate a second TV. In the following example you will see how to configure the SAT mode for a second TV.

1 Switch on the second TV.

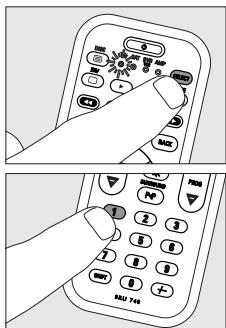

2 Press the SELECT key to select SAT. Press the key until the SAT LED lights up.

3 Then keep keys 1 and 6 on the SRU740 pressed simultaneously for three seconds, until the SAT LED lights up.

4 Press keys 9, 9 and 2 in that order.

5 Press the SELECT key to select TV. Press the key until the TV LED lights up.

6 Press the 1 key. – The SAT LED flashes twice. SAT will now allow you to operate your second TV.

7 Program the SRU740 to operate the second TV. See 'Setting the remote control'.

Hand interacting with a remote control panel showing buttons labeled 'OK', 'Cancel', and 'Add' with icons for weather, humidity, and noise.

1 2 3 4 5 6 7 8 9 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 2 3 4 5 6 7 8 9 0 0 0 0 0 0 0 0

1 2 3 4 5 6 7 8 9 10 AU 740

Hand holding a mobile phone control panel with labeled buttons and icons, showing navigation and function keys.

1 2 3 5 6 7 8 9 0 + BASU 740

Adding a function to the remote control

If you want to add a function to the SRU740, you can contact the Philips service line for Universal Remote Control to ask for the 5-figure code for the extra function.

Instructions for use

English

Assigning the volume control to another mode

The volume controls (Vol +, Vol - and ⚪) on the SRU740 are assigned to either your TV or your amplifier/receiver, depending on the device you have selected:

MODE VOLUME CONTROLS

TV mode selected....Volume controls work with TV

DVD (VCR) mode selected.....Volume controls work with TV

SAT mode selected....Volume controls work with TV

AMP mode selected....Volume controls work with amplifier/ receiver

If you want a different setup, the volume control assignment can be changed. Example: In SAT mode you want to operate the amplifier/receiver volume control

1 Press the SELECT key to select SAT. Press the key until the SAT LED lights up.
2 Then keep keys 1 and 6 on the SRU740 pressed simultaneously for three seconds, until the SAT LED flashes twice and then remains lit.
3 Press keys 9, 9 and 3 in that order.
4 Press the SELECT key to select SAT. Press the key until the SAT LED lights up in the selector window.

Diagram of a hand pressing down on a remote control panel with labeled buttons and navigation arrows

1 2 3 4 5 6 7 8 9 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 2 3 4 5 6 7 8 9 0 0 0 0 0 0

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Hand holding a remote control panel with labeled buttons and navigation arrows

Restoring the original functions of your remote control

1 Keep keys 1 and 6 on the SRU740 pressed simultaneously for three seconds, until one of the LEDs (TV, SAT, DVD/VCR, AMP) lights up.
2 Press keys 9, 8 and 1, in that order. – The LED flashes twice. All original functions have now been restored and any extra functions have been deleted.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 SNU 748

1 2 3 5 6 8 9 0 + 88U 740

5. Troubleshooting

• Problem
  — Solution
• The indicator LEDs (TV, SAT, DVD/VCR and AMP) blink four times after every key press.
• The remote control is indicating that its battery is running low. Replace the old battery with a new CR2025 Lithium battery.
• The device you want to operate does not respond and it's LED (TV, SAT, DVD/VCR, AMP) does not flash when you press a key.
  — Replace the old battery with a new CR2025 battery.
• The device you want to operate does not respond but it's LED (TV, SAT, DVD/VCR, AMP) does flash when a key is pressed.
• Point the SRU740 at the device and make sure that there are no obstructions between the SRU740 and the device.
  • The SRU740 does not respond properly to commands.
• Maybe you are using the wrong code. Try programming the SRU740 again using another code, which is mentioned under the brand of your device, or reset for automatic search to find the right code. If the device still does not respond, call our helpline.
  — Press the subtitling-key to get Teletext pages on your screen.
  • The Teletext keys do not work.
  — Find out whether your TV is equipped with Teletext.
  • You have difficulties operating all of the functions on your device.
• Maybe the SRU740 has to be adapted to the model of the device. Call our helpline for details.
• Your brand of device is not in the code list.
• Try to set the SRU740 automatically. See 'Automatically setting the remote control'.
  • None of the codes works during manual setting of the remote control.
• If that is the case, follow the instructions under 'Automatically setting the remote control'.

6. Need help?

If you have any questions about the SRU740/10, you can always contact us. You will find our contact details after the code list at the back of this manual.

Read this manual carefully before you make a call. You can solve most of the problems yourself. If you cannot find any answers to your problems, write down the details of your device shown in the code list at the back of this manual. This will help our operators to assist you better and more quickly. Look up the numbers of the models in the instructions accompanying the device or on the back of your device. When you call our helpline, make sure the device is to hand so that our operators can help you determine whether your remote control is working properly.

The model number of your Philips universal remote control is SRU740/10.

Date of purchase: ....../...../....../day/month/year)

Sommaire

Illustration of a hand holding a small electronic component with a circular button, next to a separate device (no text or symbols present)

+ CR2025

Hand interacting with a mobile phone control panel showing icons for settings, navigation, and access buttons

Hand interacting with a remote control panel showing directional buttons and navigation arrows

Diagram of a mobile phone control panel with labeled buttons and a hand pointing to the screen

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Hand interacting with a remote control panel showing function keys like RESET, USB, and GPIO

Diagram of a hand holding a remote control with labeled buttons including 'OK', 'Cancel', and various function icons.

Open book with printed text and diagrams, likely a historical or technical document

Hand interacting with a mobile phone control panel showing icons for settings, navigation, and buttons

VOL * PP PPO 1 2 3 4 5 6 7 8 9 0 BAU 740

Three-step diagram showing hand positioning of a remote control via keyboard keys, labeled with icons and numbers.

Illustration showing a hand using a remote control with labeled buttons and icons, including 'NEW' and 'NEW 740' labels.

Diagram of a remote control interface with labeled buttons and a hand pointing to the function dial

Diagram of a hand pressing a button on a remote control panel with labeled buttons and icons

Illustration of a hand holding a small electronic component with a circular button, next to a separate device (no text or symbols present)

Hand holding a mobile phone control panel with labeled buttons and icons, showing navigation and function keys.

Hand interacting with a remote control panel showing directional buttons and navigation arrows

Diagram of a mobile phone control panel with labeled buttons and icons, showing hand interacting with the screen.

1 2 3 4 5 6 7 8 9 0 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Hand interacting with a remote control panel showing function keys like RESET, USB, and USB tray

Open book with printed text and diagrams, likely a historical or literary document

Hand holding a mobile phone control panel with labeled buttons and icons

Diagram of a hand interacting with a remote control panel showing labeled buttons and navigation arrows

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

1 2 3 4 5 6 7 8 9 TU 740

Diagram of a hand pressing down on a remote control panel with labeled buttons and navigation arrows

Illustration of a hand holding a small electronic component with a circular button, next to a smaller device (no text or symbols present)

Hand interacting with a mobile phone control panel showing function buttons and navigation icons

Hand interacting with a remote control panel showing directional icons and labels like 'OK', 'Cancel', and 'Change'.

Diagram of a mobile phone control panel with labeled buttons and a hand pointing to the screen

Hand interacting with a remote control interface showing function keys like RESET, USB, and MAX

Diagram of a hand holding a remote control with labeled buttons including 'OK', 'Cancel', and various function icons.

Scanned image of an open notebook with dense text pages, likely a historical or technical document.

Hand interacting with a mobile phone control panel showing icons for settings, navigation, and buttons

Hand holding a remote control interface with labeled buttons and icons, showing navigation and function keys

Hand holding a mobile phone control panel with labeled buttons and icons

Diagram of a remote control interface with labeled buttons and a hand pointing to the function.

1 2 3 4 5 6 7 8 9 0 + SOU 748

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Hand holding a remote control panel with labeled buttons and icons, showing navigation and function keys

Illustration of a hand holding a small electronic device with a button, next to a separate device (no text or symbols visible)

2 Sæt det ekstra CR2025 lithiumbatteri i batterirummet, som vist. Sørg for at batteriets tekstside vender opad.

+ CR2025

Diagram of a hand pressing down on a control panel with labeled buttons and icons

Hand interacting with a remote control panel showing directional buttons and navigation arrows

Diagram of a mobile phone control panel with labeled buttons and a hand pointing to the screen

Hand interacting with a remote control interface showing labeled buttons and a hand pointing to the button.

Diagram of a hand holding a remote control with labeled buttons including 'NEW', 'CHANGE', and 'BACK'

Open book with printed text and diagrams, likely a historical or literary document

Hand holding a mobile phone control panel with labeled buttons and icons

Diagram of a remote control interface with labeled buttons and a hand pointing to the function

1 2 3 4 5 6 7 8 9 0 + SNU 744

1 2 3 4 5 6 7 8 9 10 Au 146

Hand interacting with a mobile phone control panel showing icons for battery, keyboard, and function buttons

MAU 740

Diagram of a hand pressing down on a remote control panel with labeled buttons and icons

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

1 2 3 4 5 6 7 8 9 TU 740

Diagram of a handheld remote control with labeled buttons and a hand pointing to the function

Illustration of a hand holding a small electronic component with a circular button, next to a separate device (no text or symbols present)

2 Lägg i det extra litiumbatteriet CR2025 i batterifacket, se bilden.

Hand pointing at a mobile phone control panel with labeled buttons and icons

Hand interacting with a remote control panel showing directional icons for VEN, MOV, OK, and PON.

Hand holding a mobile phone control panel with labeled buttons and icons

Hand interacting with a remote control panel showing function keys like RESET, USB, and BACK

Diagram of a hand holding a remote control with labeled buttons including 'OK', 'Cancel', and 'Back'

Open book with printed text and diagrams, likely a historical or technical document

Hand interacting with a mobile phone control panel showing navigation buttons and a flower icon

Hand interacting with a remote control panel showing icons for 'OK', 'Cancel', and 'OK/Cancel' buttons

1 2 3 4 5 6 7 8 9 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9

1 2 3 4 5 6 7 8 9 10 AU 740

Hand pointing at a mobile phone control panel with labeled buttons and icons

1 2 3 5 6 7 8 9 0 + BASU 740

Diagram showing two steps of a mobile phone control with labeled buttons and function keys

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Diagram of a hand pressing down on a remote control panel with labeled buttons and navigation arrows

Illustration of a hand holding a small electronic device with a button, next to a separate device (no text or symbols visible)

Hand pointing at a mobile phone control panel with labeled buttons and icons

Hand interacting with a remote control panel showing directional buttons and navigation icons

Hand interacting with a mobile phone control panel showing status LEDs and function buttons

Diagram of a mobile phone keypad with labeled buttons and function keys, showing hand positioning and navigation controls.

Hand interacting with a remote control panel showing labeled buttons like RESET, USB, and BACK

Diagram of a hand holding a remote control with labeled buttons including 'OK', 'Cancel', and various function icons.

Stille inn fjernkontrollen manuelt

TV-eksempel:

Scanned image of an open notebook with dense text pages, likely a historical or technical document.

På nettsiden vår www.philips.com/urc kan du velge apparatets typenummer direkte for å finne den rette koden.

Hand interacting with a mobile phone control panel showing status LEDs and buttons

Hand interacting with a remote control panel showing buttons labeled 'OK', 'Cancel', and 'OK/Cancel' with icons for function keys.

1 2 3 4 5 6 7 8 9 0 + SNU 744

1 2 3 4 5 6 7 8 9 10 Au 146

Hand interacting with a mobile phone control panel showing status LEDs and navigation buttons

MAU 740

Legge til en fjernkontrollfunksjon

Hand interacting with a device control panel showing buttons labeled 'OK', 'Cancel', and 'MIX'

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

1 2 3 4 5 6 7 8 9 TU 740 TWO

Diagram of a handheld device with labeled buttons and a hand pointing to the left side of the screen.

Illustration of a hand holding a small electronic device with a button, next to a separate device (no text or symbols present)

Hand holding a mobile phone control panel with labeled buttons and icons

Hand interacting with a remote control panel showing directional buttons and labels like 'OK', 'Cancel', and 'Increase'.

Hand pointing at a control panel with labeled buttons and icons, showing text 'OK', 'Cancel', and 'OK/Cancel' in Chinese.

Hand interacting with a remote control interface, showing navigation buttons like CLK, USB, and USB1

Diagram of a remote control interface with labeled buttons and icons, showing navigation and function keys

Scanned image of an open notebook with dense text pages, likely a historical or technical document.

Hand holding a mobile phone control panel with labeled buttons and icons

Hand interacting with a remote control interface showing navigation buttons and a 'OK' button

Diagram of a hand interacting with a mobile phone control panel showing icons for settings, function, and access.

Diagram of a hand pressing a button on a mobile phone control panel with icons and labels

Hand interacting with a mobile phone control panel showing function buttons and navigation icons

Illustration of a hand holding a small electronic component with a circular button, next to a separate device (no text or symbols present)

Hand holding a mobile phone control panel with labeled buttons and icons, showing navigation and function keys.

Hand interacting with a remote control panel showing directional buttons and navigation icons

Diagram of a mobile phone control panel with labeled buttons and a hand pointing to the screen

Hand interacting with a remote control interface, showing labeled buttons like RESET, USB, and BACK

Diagram of a hand holding a remote control with labeled buttons including 'OK', 'Cancel', and various function icons.

Scanned image of an open notebook with dense text pages, likely a historical or technical document.

Hand holding a mobile phone control panel with labeled buttons and icons

Hand interacting with a remote control panel showing buttons labeled 'OK', 'Cancel', and 'OK/Cancel' with Chinese text.

Hand interacting with a mobile phone control panel showing icons for battery, keyboard, and function buttons

Diagram of a remote control interface with labeled buttons and a hand pointing to the function

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75

1 2 3 4 5 6 7 8 9 AU Tss

Diagram of a handheld device with labeled buttons and a hand pointing to the control panel

Illustration of a hand holding a switch and two separate parts (no text or symbols)

Hand holding a mobile phone control panel with labeled buttons and icons, showing navigation and function keys.

Hand interacting with a remote control panel showing directional buttons and navigation arrows

Diagram of a mobile phone control panel with labeled buttons and a hand pointing to the screen

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Hand interacting with a remote control panel showing navigation buttons and function keys

Diagram of a hand holding a remote control with labeled buttons including 'NEW', 'CHANGE', and 'BACK'.

Scanned image of an open notebook with dense text pages, likely a historical or technical document.

Hand holding a mobile phone control panel with labeled buttons and a flower icon, likely for navigation or app selection.

Diagram of a hand interacting with a remote control panel showing labeled buttons and navigation arrows

Hand holding a mobile phone control panel with labeled buttons and icons

Diagram of a hand pressing a button on a mobile phone control panel with icons and labels

Hand holding a remote control panel with labeled buttons and icons, showing navigation and function keys.

Illustration of a hand holding a small electronic component with a circular button, next to a separate device (no text or symbols present)

Hand holding a mobile phone control panel with labeled buttons and icons, showing navigation and function keys.

Hand interacting with a remote control panel showing directional buttons and labels like 'OK', 'Cancel', and 'Increase'.

Hand interacting with a mobile phone control panel showing status LEDs and function buttons

Hand interacting with a remote control interface, showing labeled buttons like RESET, USB, and BACK

Diagram of a hand holding a remote control with labeled buttons including 'OK', 'Cancel', and 'Back'

Programar manualmente o telecomando

Exemplo de TV:

Scanned image of an open notebook with dense text pages, likely a historical or technical document.

Hand interacting with a mobile phone control panel showing function buttons and navigation icons

Hand interacting with a remote control panel showing navigation buttons and a 'OK' button

Hand interacting with a mobile phone control panel showing function buttons and navigation icons

Diagram of a remote control interface with labeled buttons and a hand pointing to the function

1 2 3 4 5 6 7 8 9 AU Tss

Diagram of a handheld device with labeled buttons and a hand pointing to the control panel

Awa....0633, 0063, 0135, 0038,

.0244, 0036

Axxent 0036

Baird 0220, 0099, 0370, 0244

Bang & Olufsen......0114, 0592

Barco 0579, 0190

Basic Line ......0583, 0064, 0695,

.1064, 0245, 0482, 0309,

.0036, 0401, 0244, 0366

Bastide....0244

Baur 0064, 0388, 0562, 0376,

.0539, 0532, 0581, 0037

Bazin 0244

Beko 0064, 0741, 1064, 0513,

0742, 0633, 0397, 0445

Beon 0064, 0445

Berthen....0695

Best......0448, 0364

Bestar 0064, 0397, 0401

Bestar-Daewoo 0401

Binatone....0244

Black Diamond....1064

Black Panther 0129

Black Star 0274

Blacktron 0309

Blackway 0245, 0309

.0245, 0063, 0579, 0321,

.0036, 0244, 0309, 0382,

.0401, 0262, 0376, 0398

Candle 0057

Canton 0245

Carad....0695, 1064, 0637

Carena....0064, 0482

Carrefour 0063, 0097

Carver 0197

Cascade 0064, 0036

Casio 0064

Cathay 0064

CCE 0064

Centrum....1064

Centurion....0064

Century ......0114, 0274, 0265, 0240

CGE....0397, 0101, 0333, 0579, ....0274, 0445, 0103

Cimline....0245, 0036

Citizen....0057

City 0036

Clarivox 0064, 0097

Clatronic....0064, 0741, 0397, 0245, ....0244, 0347, 0036, 0129, ....0274, 0398, 0103

Clayton....1064

CMS 0243

CMS Hightec 0244

Concorde 0036

Condor....0064, 0397, 0274, 0347, ....0036, 0309, 0445

Conrac 0835

Contec......0064, 0063, 0036, 0243

Continental Edison .0514, 0360, 0528, ....0136, 0314, 0264, 0426, ....0595, 0223

Cosmel....0064, 0036, 0364

Crezar 0240

Crosley ....0103, 0274, 0101, 0240, ....0579, 0114, 0374

Crown....0064, 0741, 0513, 0742, ....0514, 0633, 0397, 0386, ....0448, 0036, 0366, 0445, 0103

Crystal....0458

CS Electronics......0245, 0243, 0274

CTC0274

Curtis Mathes......0057

Cybertron 0245

D-Vision....0583, 0064

Daewoo....0583, 0064, 06611936, .....0245, 0244, 0401, 0036

Dainichi....0245, 0243

Dansai ...0064, 0063, 0244, 0036, 0243

Dantax 0741, 0742

Dawa 0064

Dayton 0036

Daytron....0064, 0036, 0401

De Graaf....0575

Decca 0064, 0244, 0099

Denver 0064

DER 0220

Desmet......0064, 0036, 0347, 0114

Diamant 0064

Digatron....0064

Digiline 0695, 0132

Dixi 0064, 0036, 0114

Domeos 0695

DTS....0036

Dual....0064, 1164, 0658, 0244, ....0579, 0379, 0286

Dual Tec 0244

Dumont....0374, 0097, 0240, 0129, ....0114

Dux....0064

Dynatron 0064

E-Elite 0245

Edison-Minerva 0514

Elbe....0637, 0462, 0265, ....0389, 0244, 0319, 0286

Elekta....0309

ELG 0064

Elin....0064, 0575, 0388, .....0131, 0475, 0036, 0376

Elite....0245, 0347

Elman 0129

Elta 0458,0036

Emco....0274

Emerson....0064, 0741, 1936, 0513, ....0388, 0397, 0398, 0204, 0309, ....0114, 0274, 0097, 0240, 0347

Emperor....0309

Envision....0057

Erres 0064

ESC 0064, 0244

Etron....0190, 0036

Eurofeel....0244

Euroman....0064, 0397, .....0243, 0448, 0244

Europa 0064

Europhon....0244, 0240, .....0579, 0129, 0458

Expert 0190, 0427, 0286, 0233

Exquisit 0064, 0274

Fenner 0401,0036

Ferguson....0064, 0652, 0575, 0587, ....0370, 0220, 0362, 0136, ....0314, 0265, 0135, 0131, 0388

Fidelity....0064, 0388, 0539, .....0220, 0398, 0190, 0243

Filsai 0244

Finlandia....0575, 0190, ....0099, 0386, 0373

Finlux....0064, 0741, 0742, 0500, ....0114, 0579, 0132, 0374, ....0099, 0519, 0131, 0373, ....0097, 0507, 0129, 0658, 0244

Firstline....0583, 0064, 0741, 0695, ....1064, 0388, 0243, 0265, ....0376, 0099, 0579, 0262, ....0321, 0401, 0244, 0274, 0036

Fisher....0397, 0063, 0131, 0579, ....0114, 0099, 0244, 0582

Flint......0064, 0637, 0245, 0482, 0099

Forgestone 0220

Formenti....0064, 0240, 0374, .....0114,0347, 0243, 0579

Formenti-Phoenix.....0579, 0347, 0243

Fortress 0120, 0114

Fraba....0064, 0397

Friac....0064, 0637, 0397, ....0448, 0036, 0129

Frontech....0244, 0475, 0190, ....0458, 0036, 0274

Fujitsu....0036, 0244, 0233, 0099, 0286

Fujitsu General......0233, 0036, 0244

Funai 0695, 0321

Galaxi 0064

Galaxis....0064, 0397

GBC .....0245, 0036, 0401, 0240, 0579

GE 0652, 0309, 0120

Geant Casino 0427

GEC......0064, 0388, 0099, 0244, 0190

Geloso ..0036, 0401, 0374, 0240, 0579

General Technic 0036

Genesis 0036

Genexxa......0064, 0245, 0190, 0036

Germanvox 0240

Goldfunk......0695

GoldHand....0243

GoldStar ......0064, 0741, 0742, 0633,

0388, 0274, 0458, 0136,

.0244, 0243, 0317, 0057, 0190

Gooding....0514

Goodmans .....0583, 0064, 0741, 0587,

0695, 0661, 1936, 1064,

0514, 0245, 0063, 0370,

.0507, 0362, 0401, 0244, 0344,

.0036, 0398, 0099, 0262, 0317

Gorenje....0397, 0448

GPM....0245

Gradiente 0197

Graetz....0514, 0388, 0374,

.0366, 0398, 0190

Granada......0064, 0575, 0587, 0135,

0253, 0383, 0500, 0378,

0103, 0427, 0244, 0370,

.0099, 0386, 0190, 0366

Grandin......0064, 0741, 0695, 1064,

0742, 0637, 0482, 0347,

.0036, 0309, 0190, 0401

Grundig......0222, 0514, 0063, 0614,

.0581, 0562, 0218, 0036, 0097,

.0264, 0097, 0103, 0064, 0583

Haier....0725

Halifax 0244, 0243

Hampton 0244, 0243

Hanimex 0245, 0321

Hanseatic......0583, 0064, 0741, 0661,

.0388, 0347, 0036, 0458, 0244,

0321, 0455, 0114, 0309, 0303, 0835

Hantarex....0064, 0129,

.0265, 0036, 0240

Hantor....0064

Harwood ......0064, 0514, 0344, 0036

Hauppauge 0064

Havermy....0120

HCM....0064, 0245, 0036,

.0244, 0445, 0309

Hema....0244, 0036

Hemmermann 0376

Hifivox...0223, 0595, 0136, 0528, 0426

Higashi....0243

Highline 0064

Hikona....0245

Hinari 0064, 0245, 0063,

.0036, 0382, 0321, 0262

Hisawa....0741, 0637, 0245,

0482, 0427, 0309

Hisense 0535

Hit....0114

Hitachi......0064, 0575, 0661, 1064,

.1164, 0063, 0135, 0252,

.0099, 0370, 0136, 0383,

.0240, 0519, 0333, 0376,

.1252, 0223, 0507, 0579,

.0132, 0374, 0190, 0500, 0244

Hitachi Fujian....0135

Hitsu....0637, 0245, 0482, 0036

HMV 0114

Home Electronics......0633

Hornyphon....0064

Hoshai 0309

Huanyu....0401, 0243

Hygashi....0244, 0243

Hyper 0243, 0036, 0274, 0244

Hypson......0064, 0741, 0695, 1064,

.0742, 0482, 0427, 0309

H\~her....0741

Iberia....0064

ICE 0245, 0243, 0398, 0244

ICeS 0245, 0243

Imperial......0064, 0397, 0579, 0101,

.0274, 0458, 0223, 0445, 0103

Indesit....0264, 0240

Indiana 0064

Ingelen......0741, 0637, 0514, 0190

Ingersoll 0036

Inno Hit 0099, 0274, 0036,

0244, 0317, 0129, 0309

Interbuy 0064, 0274

Interfunk......0064, 0388, 0190, 0595,

.0114, 0376, 0539, 0274, 0528

Internal....0064

Intervision .....0064, 0513, 0514, 0245,

.0482, 0129, 0274, 0475,

.0458, 0036, 0244, 0309

IR....0583, 0064, 0222,

.0388, 0397, 0063, 0135,

.0252, 0253, 0319, 0114, 0386,

.0580, 0265, 0037, 0344, 0131,

.0401, 0240, 0301, 0376, 0136,

.0532, 0318, 0103, 0384, 0220,

.0579, 0264, 0333, 0129, 0233,

.0274, 0370, 0528, 0244, 0317,

.0099, 0383, 0218, 0562, 0262,

.0321, 0120, 0223, 0581, 0270,

.0038, 0347, 0132, 0475, 0243,

..0314, 0097, 0378, 0190, 0539

Irradio 0064, 0245, 0274,

.0036, 0398, 0103, 0317

Isukai ....0064, 0245, 0482, 0309

ITC....0579, 0347, 0244

ITS......0064, 0245, 0309, 0243, 0398

ITT 0575, 0637, 0388, 0376,

.0500, 0220, 0374, 0190,

..0373, 0378, 0507, 0366

ITT Nokia .....0575, 0637, 0633, 0388,

0190, 0374, 0507, 0373,

0378, 0500, 0366, 0376, 0458

ITV 0064, 0401, 0274

Jean 0063

JMB....0583, 0661

Jubilee 0583

JVC....0633, 0245, 0063, 0680,

0220, 0445, 0120, 0398

Kaisui....0064, 0245, 0482,

0243, 0309, 0036, 0244

Kamp 0243

Kapsch ......0388, 0190, 0131, 0233

Karcher......0741, 0637, 0309, 0448

Kathrein....0583

Kawa 0398

KB Aristocrat 0374, 0190

Kendo......0064, 0637, 0262, 0389,

.0129, 0321, 0274, 0455

Kennedy....0233, 0579,

.0190, 0462, 0240

Kenwood 0057

Kingsley 0243

Kiton....0064, 0695

Kneissel.....0583, 0064, 0637, 0286,

.0401, 0265, 0389, 0319, 0462

Kolster 0129, 0376, 0274

Konka 0064, 0741, 0245,

.0614, 0445, 0398

Kontakt 0514

Korpel 0064

Korting......0448, 0347, 0114

Koyoda 0036

Kraking....0265

KTV 0057,0244

Kuba....0376

Kyoshu....0445

Kyoto....0190, 0244, 0243

L&S Electronic....0741, 0835

LaSAT 0513

Leader 0036

Lecson....0064

Lenco 0064, 0401, 0131, 0190

Lenoir 0036

Lesa....0274

Leyco....0064, 0099, 0321

LG 0583, 0064, 0741, 0742,

0725, 0136, 0244, 0274,

0317, 0388, 0397, 0458

Liesenk & Tter......0064

Liesenkotter....0064

Lifetec ......0064, 0741, 0695, 1064,

1164, 0245, 0036, 0401

Lloyd's 0036

LME....0458

Loewe....0064, 0114, 0817,

.0539, 0319, 0397

Logik....0398, 0220, 0038

Logix 0695

Luma....0389, 0286, 0233

Lumatron....0064, 0233,

.0190, 0286, 0244

Lux May 0064, 0036

Luxor......0575, 1064, 0388, 0264,

.0383, 0500, 0244, 0658,

.0376, 0190, 0317, 0384, 0507

M Electronic .....0064, 0244, 0401,

.0131, 0190, 0373, 0136,

..0314, 0036, 0507, 0132

Madison....0064

Magnadyne 0579, 0114,

.0374, 0274, 0129

Magnafon .....0240, 0129, 0103, 0243

Magnavox....0063, 0057, 0038

Magnum 0064, 0741, 0742

Manesth 0064, 0262,

.0244, 0347, 0321

Manhattan 0064, 0695, 1064

Marantz....0583, 0064

Marelli....0114

Mark 0064, 0741, 0742,

.0401, 0036, 0244, 0243

Masuda....0245, 0036

Matsui......0583, 0064, 0741, 0222,

.1064, 0514, 0063, 0482,

.0204, 0244, 0362, 0190,

.0458, 0038, 0321, 0099,

.0398, 0218, 0036, 0262, 0382

Mediator 0064

Medion......0583, 0064, 0741, 0695,

.1064, 0725, 1164, 0539, 0835

Megas....0637

MEI 1064

Melectronic....0064, 0741, 0661, 0036,

.0401, 0132, 0539, 0244,

.0376, 0131, 0519, 0243,

.0373, 0507, 0190, 0274

Melvox....0427

Memorex....1064, 0036

Memphis 0364

Mercury 0064, 0036

Metronic 0652

Metz......0064, 0695, 0614, 0474,

.0394, 0581, 0240, 0562, 0114

Micromaxx.....0064, 0695, 1064, 0835

Microstar 0835

Minato 0064

Minerva......0514, 0135, 0264, 0581,

.0562, 0097

Minoka 0064, 0386

Mistral Electronics......0220

Mitsubishi ....0583, 0064, 1064,

0063, 0135, 0562,

.0120, 0539, 0114, 0264

Mivar 0103, 0317, 0636,

.0244, 0319, 0243, 0318

Monaco 0036

Morgan's 0064

Motion....0103

MTC.....0397, 0057, 0376, 0243, 0539

MTlogic 0741

Multibroadcast....0220

Multistandard....0129

Multitec......0064, 0695, 1064, 0513

Multitech .....0064, 0513, 0103, 0244, .....0243, 0036, 0129, 0274

Murphy....0190, 0243

Musikland......0245, 0274

Myryad 0583

NAD 0388

Naiko....0064, 0633

NAT 0253

National 0253, 0264, 0267

NEC.....0063, 0482, 0057, 0244, 0038, .....0197, 0401, 0036, 0347, 1731

Neckermann....0583, 0064, 0397, ....0532, 0218, 0347, 0445, ....0114, 0274, 0581, 0240, 0376

NEI....0064, 0458, 0398, 0364

Nesco 0274

Netsat 0064

Network 0364

Neufunk....0583, 0064, 0741, ....0637, 0245, 0036

New Tech 0583, 0064, 0475, 0036, 0370, 0244

New World 0245

Nicamagic....0243

Nikkai....0064, 0245, 0063, 0099, .....0244, 0243, 0364, 0036

Nikko....0344

Nobliko......0097, 0243, 0129, 0103

Nogamatic.....0136, 0426, 0360, 0595, .....0223, 0528

Nokia ....0575, 0637, 0633, 0388, ....0374, 0507, 0190, 0386, ....0373, 0500, 0378, 0366, ....0401, 0376, 0658, 0347

Nordic....0244

Nordmende...0064, 0741, 0587, 0222, ....0136, 0240, 0426, 0595, ....0223, 0370, 0314, 0528

Normerel 0064

Novatronic......0064, 0132, 0401

Oceanic....0575, 0388, 0374, ....0500, 0190, 0427

Okano 0064, 0397, 0036

Onimax 0741

Onwa....0245, 0398, 0129

Opera 0064

Orbit....0064

Orion....0583, 0064, 0741, ....0347, 0038, 0204, 0344, ....0129, 0321, 0382, 0262

Orline....0064, 0245

Ormond....0695, 1064

Osaki....0583, 0064, 0245, 0244, ....0382, 0099, 0303, 0401

Osio....0064, 0317

Oso....0245

Osume 0064, 0245, 0063, 0099

Otake 0344

Otto Versand ......0583, 0064, 0388,

0063, 0253, 0579, 0120,

0370, 0240, 0262, 0562,

0347, 0218, 0376, 0539,

0321, 0581, 0136, 0374,

0244, 0532, 0037, 0274

Pacific 0583, 0741, 1064, 1164

Pael 0243

Palladium 0064, 0741, 0397,

1164, 0376, 0274, 0445

Palsonic......0064, 0725, 0244, 0445

Panama....0064, 0244, 0274

Panasonic....0575, 0677, 0388, 0064, ....0253, 0378, 0190, 0264, ....0374, 0394, 0301, 0240, 0267

Panavision....0064

Pathe Cinema....0240, 0347, ....0579, 0190, 0265, ....0458, 0243, 0427

Pathe Marconi....0426, 0360, 0595, ....0264, 0528, 0223

Pausa....0036

Penney 0057

Perdio....0064, 0347, 0099, ....0309, 0243, 0190

Perfekt....0064

Pershin 0427

Philco....0064, 0397, 0240, 0445, .....0114, 0103, 0274, 0579, 0101

Philex....0378, 0220

Philharmonic....0244

Philips....0583, 0064, 0388, 0114, ....0359, 0401, 0632, 0265, ....0036, 0220, 0370, 0581, 0883

Phoenix....0064, 0513, 0347, .....0243, 0579, 0114

Phonola......0064, 0243, 0220, 0114

Pilot....0057

Pioneer .....0064, 0513, 0388, 0190, .....0455, 0136, 0539, 0314, 0397

Pionier 0513, 0397

Plantron 0064, 0036

Playsonic....0064, 0741, .....0742, 0366, 0244

Policom 0595, 0528

Poppy 0036

Portland 0401

Powerpoint 0064, 0514

Prandoni-Prince 0388, 0240

Prinston 1064

Prinz 0388, 0099, 0376

Profex......0388, 0036, 0190, 0103

Profi 0036

Profitronic 0064, 0129

Proline....0064, 0652, 0661, 0099

Prosonic....0064, 0741, 0695, 0397, .....0244, 0401, 0243, 0398

Protech....0064, 0695, 1064, 0513, ....0364, 0274, 0458, 0036, ....0244, 0445, 0579, 0129

ProVision....0583, 0064, 0741

Pye 0583, 0064, 0401, 0376, 0114, 0581

Pymi 0036

Quadra Vision 0427

Quadral....0245

Quasar 0274, 0036

Quelle ....0064, 0695, 0388, 0240, ....0532, 0579, 0131, 0038, 0562, ....0101, 0333, 0037, 0539, 0097, 0581

Questa 0063

R-Line 0064

Radialva....0245, 0458, 0364

Radiola 0583, 0064, 0244

Radiomarelli 0064, 0114

RadioShack......0064, 0057

Radiotone....0064, 0695, .....1064, 0455, 0036

Rank 0097

Rank Arena....0063

RBM 0097

RCA....0652, 0120

Realistic....0057

Recor....0064

Rectiligne 0064

Rediffusion ....0575, 0388, ....0063, 0378, 0373

Reflex 0064, 0695, 1064

Reoc 0741

Revox 0064

Rex....0286, 0233, 0190

RFT 0064, 0455, 0114, 0099

Roadstar....0064, 0695, 1064, .....0245, 0309, 0445, 0036

Robotron....0114

Rowa 0725

Roxy 0475

Royal Lux 0397, 0448, 0362

Saba ....0652, 0575, 0741, 0587, ....0388, 0114, 0426, 0223, ....0362, 0190, 0528, 0314, 0595, ....0374, 0136, 0525, 0240, 0370

Saccs 0265

Sagem 0637, 0482

Saisho....0204, 0458, 0038, ....0262, 0036, 0244

Saivod....0064, 0695, 1064

Sakan 0190

Salora ....0575, 0388, 0507, 0658, .....0376, 0579, 0317, 0386, 0190, 0383

Salsa 0362

Sambers 0129, 0103, 0240

Samsung....0671, 0729, 0397, 0614, ....0475, 0671, 0243, 0057, ....0190, 0841, 0317, 0036, ....0099, 0839, 0244, 0064, 0583

Sandra 0243, 0244

Sansui....0064

Santon 0036

Sanyo ....0397, 0063, 0135, 0038, 0582, .....0131, 0243, 0099, 0240, 0366, 0244

SBR 0583,0064,0220

Schaub Lorenz....0575, 0741, 0513, ....0633, 0388, 0401, 0374

Schneider.....0583, 0064, 0741, 0695, .....1064, 0388, 1164, 0245, .....0286, 0190, 0274, 0379, .....0097, 0376, 0398, 0244

Scotland 0190

Seaway 0661

Seelver....1064

SEG....0064, 0695, 0661, 1064, ....0245, 0063, 0036, 0579, 0103, ....0244, 0389, 0243, 0376, 0129

SEI....0064, 0037, 0376, 0129, ....0233, 0374, 0114, 0204, ....0321, 0579, 0190, 0240

Sei-Sinudyne...0064, 0579, 0233, 0374, ....0037, 0129, 0321, 0114, 0240

Seleco....0398, 0286, 0389, 0233, ....0374, 0462, 0190, 0373

Sencora 0036

Serino 0637, 0482, 0120

Sharp .....0063, 1220, 0321, 0220, 0120

Shintoshi 0064

Shivaki 0064

Shorai 0321

Siarem ...0240, 0129, 0579, 0114, 0374

Siemens....0064, 0222, 0218, ....0374, 0240, 0581, 0562

Siesta 0397

Silva....0064, 0388, 0243

Silva Schneider 0064

Silver 0742, 0388, 0063

Singer 0064, 0129, 0114, 0462, 0362, 0036

Sinudyne .....0064, 0388, 0240, 0037, .....0374, 0129, 0579, 0233, 0321, .....0114, 0204, 0262, 0376, 0190

Skantic....0384, 0383

SKY 0064

SLX 0695

Smaragd 0514

Solavox....0064, 0575, 0388, ....0099, 0378, 0190

Sonawa....0245

Soniko 0064

Sonitron....0397, 0244, 0366

Sonneclair 0064

Sonoko......0064, 0309, 0244, 0036

Sonolor....0575, 0388, 0309, 0427, ....0190, 0037, 0374, 0532

Sontec....0064, 0397, 0036, 0321

Sony....0064, 1532, 0063, ....0532, 0037, 1678, 0197, ....0129, 1037, 0038, 0120

Sound & Vision......0245, 0401, 0129

Soundwave .....0064, 0742, 0445, 0347

Spectra 0036

Ssangyong 0036

Standard....0064, 1064, 0245, ....0347, 0036, 0244, 0401

Starlite....0064, 0036, 0579

Stenway....0245, 0309

Stern....0286, 0233, 0190

Strato 0064, 0036

Sunkai....0637, 0514, ....0482, 0321, 0382

Sunstar 0064, 0398, 0036

Sunwood....0064

SuperTech....0583, 0064, .....0245, 0036,0243

Supra....0036

Susumu....0245, 0362, 0314

Sutron....0036

SVA 0614

Swissline....0274

Sydney 0244, 0243

Sysline....0064

Sytong....0243

T+A 0474

Tandberg....0394

Tandy....0245, 0190, 0303, ....0120, 0099, 0244

Targa 0729

Tashiko....0063, 0243, ....0190, 0386, 0244

Tatung......0064, 0038, 0244, 0099

TCM 0741,0835

Teac....0064, 0695, 0725, 0482, .....0458, 0036, 0376, 0539, 0197

Tec ....0064, 0498, 0244, 0364, ....0286, 0579, 0036, 0274

Tech Line 0064, 0695

Techica 0245

Technema 0347

Technics 0583, 0677

TechniSat....0583

Tecnimagen......0583

Tedelex....0036, 0458, 0244

Teleavia....0517, 0223, 0426, .....0595, 0370, 0528, 0360

Telecor....0064, 0245, 0244, 0190, ....0286

Telefunken .....0064, 0652, 0587, 0513,

0136, 0289, 0528, 0362,

0595, 0101, 0498, 0240,

0525, 0333, 0593, 0373,

0223, 0517, 0314, 0370

Telefusion....0064

Telegazi ......0064, 0245, 0190, 0286

Telemeister....0347

Telesonic....0064

Telestar 0583, 0064

Teletech....0064, 0695, 1064, ....0036, 0364, 0274

Teleton....0063, 0233, ....0376, 0286, 0244

Televideon .....0347, 0243, 0190, 0579

Teleview 0064

Televiso 0427

Temco....0321

Tempest 0036

Tennessee....0064

Tensai ....0064, 0742, 0245, 0244,

0321, 0036, 0398, 0132,

.0274, 0347, 0131, 0344, 0401

Tenson....0347, 0036

Tevion....0064, 0741, 0695, 1064, 1164

Texet.....0245, 0401, 0036, 0244, 0243

Thomson......0652, 0587, 1474, 0426,

0223, 0528, 0360, 0376,

0136, 0517, 0064, 0314,

.0595, 0370, 0498, 0264, 0362

Thorn......0064, 0388, 0063, 0370,

0099, 0532, 0136, 0580,

0362, 0131, 0562, 0265,

0386, 0101, 0539, 0220

Thorn-Ferguson......0370, 0265, 0220

Tokai.....0064, 0695, 1064, 0475, 0036,

.0190, 0401, 0099, 0364, 0244

Tokaido 1064

Tokyo....0475, 0243

Tomashi....0245, 0309

Toshiba......0741, 0222, 0063, 0677,

Towada....0244, 0579

Toyoda....0036

Trans Continens ....0064, 0695,

1064,0244

Transonic....0064, 0614, 0036

Transtec 0243

Trident....0244

Tristar 0245, 0220

Triumph .....0583, 0373, 0270, 0204

Tsoschi....0309

TVTEXT 0095, 0583

Uher 0064, 0513, 0347, 0507,

0233, 0445, 0103, 0401

Ultravox......0064, 0129, 0274, 0114,

0243, 0579, 0240, 0378

Unic Line 0064, 0482

United 0064, 0741, 0742

Universal....0064

Universum.....0064, 0695, 1064, 0388,

0397, 0063, 0038, 0240,

0445, 0581, 0097, 0317,

0507, 0131, 0373, 0532,

0037, 0204, 0579, 0274,

0500, 0103, 0333, 0528,

0036, 0197, 0389, 0562,

0244, 0448, 0658, 0101,

0321, 0519, 0132, 0539

Univox....0064, 0364, 0190, 0114

Vestel....0583, 0064, 0695,

1064, 0579, 0244

Vexa 0064, 0036

Videologic....0245, 0243

Videologique....0245

Videosat....0274

VideoSystem 0064

Videotechnic....0347, 0244

Videoton....0383

Visiola....0243

Codes

TV

Vision 0064, 0347, 0244

Vistar 0303, 0233

Vortec....0064

Voxson 0445, 0190, 0114

Waltham....0064, 0695, 1064, 0244, ....0445, 0190, 0383, 0517, ....0136, 0303, 0458

Wards....0057

Watson....0064, 0695, 1064, 0245, ....0036, 0240, 0190, 0347

Watt Radio .....0129, 0579, 0243, 0240

Wega 0064, 0063, 0114

Weltblick 0347, 0244

Wharfedale 0583, 0064

White Westinghouse .....0064, 0347, .....0243, 0364

Windsor 0695, 1064

Windstar 0309, 0364

Windy Sam....0583

Xenius 0661

Xrypton 0064

Yamaha 0677,0057

Yamishi....0064, 0245, 0482, 0309, ....0244

Yokan....0064

Yoko....0064, 0245, 0448, 0036, ....0244, 0366, 0243, 0274, ....0458

Yorx 0245

Zanela....0265

Zanussi....0233

Zenor 0366

TV

SETUP CODES FOR DVD (DIGITAL VERSATILE DISC)

3DLAB 0566

A-Trend....0741

Acoustic Solutions 0757

AEG 0797, 0817, 0815

Aiwa....0560

Akai....0817, 0815, 0743

Alba 0566, 0722, 0757, 0744, 0699, 0740, 0810, 0726

Amitech 0797

Amstrad 0740

Ansonic 0801

Apex Digital......1031, 0699

Arianet 0845

Audiosonic 0717

Audiovox 0744

Axion 0757

Baze 0699

Bellagio....1031

Black Diamond....0740

Blue Sky......0722, 0678, 0699, 0740

Boghe 1031

Boman 0810

Brainwave 0797

Brandt 0530, 0578, 0678

Broksonic 0722

Bush....0722, 0757, 0717, 0740, ....0716, 0726, 0699, 0744

Cat 0726

CCE 0757

Centrum 0740

Cinetec....0740

cineULTRA....0726

Classic 0757

Clatronic....0815, 0699, 0845

Clayton....0740

Coby 0757

Contel 0815

Crown 0797, 0717

CyberHome 0741, 0843

Cytron 0801, 0678, 0732, 0743

Daewoo 0797, 0741, 0732

Dansai....0797, 0810

Dantax 0817, 0750

Decca 0797

Denon 0517, 0661

Denver 0726, 0699, 0815

Denzel 0692

Diamond 0678

Digihome 0740

Dinamic....0815

DiViDo....0732

DMTECH 0810

Dual....0757, 0678, 0817, ....0740, 0692, 0810

Durabrand....0740

Eclipse 0750

Elin 0797

Elta....0797, 0699, 0815, 0717

Emerson....0618, 0732

Enterprise......0618

EuroLine 0815

Fenner 0678

Ferguson 0678

Finlux.....0768, 0618, 0797, 0699, 0810

Firstline 0740

Fisher 0697

Funai 0722

GE 0744

Global Solutions 0795

Global Sphere....0795

Go Video....0810

GoldStar 0768, 0618

Goodmans .....0757, 0678, 0817, 0740, .....0810, 0717, 1031, 0750

GPX 0726

Graetz 0692

Grandin 0743, 0740

Greenhill....0744

Grundig....0566, 0578, 0722, 0678, ....0817, 1031, 0697, 0740, ....0732, 0802, 0750

Grunkel 0797

H&B 0740,0845

Hanseatic....0768, 0810

HCM....0815

HDT 0732

HE 0757

Hen 0740

Hitachi....0600

Hiteker 0699

Home Electronics......0757

Humax....0673

Hüher 0678, 0740

Ingelen....0815

IRT....0810

ISP 0722

Jaton....0692

JDB....0757

Jeken 0726

JMB0722

JVC....0650, 0566, 0530, 1967

Karcher 0810

Kendo 0740, 0726

Kennex 0797

Kenwood 0517, 0764, 0561

Kiiro....0797

Kingavon 0845

Kiss 0692

Koda 0845

Lawson 0795, 0743

Lenco....0797, 0801, 0678, ....0740, 0726, 0699

Lexia 0795, 0726

LG 0768, 06181933

Lifetec....0678

Limit....0795, 0743

Loewe....0566

Logix....0810, 0732

Lumatron 0732

Luxman 0600

Luxor....1031

Magnavox....0530

Magnex....0750

Manhattan....0740, 0732

Marantz....0566

Mark 0740

Marquant 0797

Matsui.....0722, 0678, 0740, 0699, 1031

Maxim....0740

MBO 0757,0717

Mecotek....0797

Medion....0657, 0801, ....0678, 0810, 0743

Metronic 0717

Metz......0598, 0740

MiCO 0750

Microboss....0745

Micromedia 0566, 0530

Micromega....0566

Microsoft 0549

Minax....0740

Minerva 0732

Minoka 0797

Mitsubishi 0740

Mizuda....0845

Monyka....0692

Mustek 0757

Mx Onda 0678

NAD 0768

Naiko 07971031

Neufunk 0692

Nevir 0797

Nordmende 0801

Olidata 0699

Onkyo 0530, 0654

Orava....0845

Orion....0722

Oritron 0678

Ormond....0740

P&B 0845

Pacific 0795, 0817, 0740

Palladium....0722

Panasonic....0517, 1935

Panda 0744

Philco....0815, 0717

Philips 0566, 0530, 0673, 1698

Phonotrend......0726

Pioneer....0598, 1929

Prism....0732

Proline......0713, 0678, 0699, 1031

Proscan 0549

Prosonic....0726

ProVision 0726

Radionette....0768

Raite....0692

RCA 0549

REC 0517,0716

Red Star....0797, 0815

Reoc 0795

Revoy....0726

Roadstar....0757, 0845, 0717, ....0716, 0740, 0699, 0726

Rotel 0650

Rowa 0744

Saba....0578, 0678

Salora....0768

Samsung 0517, 0600

Sansui....0722, 0795

Sanyo 0697

Scan....0732

ScanMagic 0757

Schaub Lorenz......0797, 0815

Schneider....0566, 0801, 0678, ....0817, 0815, 0810, 0732

Scientific Labs 0795

Scott 0678, 0745, 0699

SEG 0795, 0692, 0740

Shanghai 0699

Sharp......0657

Sherwood 0768, 0744

Shinco....0744

Silva....0815

Skymaster 0757, 0795

Slim Devices 0560

SM Electronic 0757, 0795, 0717

Smart....0745, 0740, 0732

Sonic Blue....0810

Sony......0560, 0600, 089119311930

Soundmaster 0795

Soundwave 0810

Standard....0795, 0678, 0815

Starmedia....0845

Sunkai 0797

Sunwood....0815

Supervision......0795

SVA 0699

Synn 0795

Tandberg....0740

Tatung....0797

Teac....0768, 0795, 0817, 0744

Technics 0517

Technika 0797

Techwood....0740

Teletech 0795, 0740

Tensai....0797, 0678, 0717

Tevion 0678

Theta Digital 0598

Thomson 0578, 0549

Tokai 0817, 0815, 0692

Tokiwa....0743

Toshiba 0530

Umax....0717

United 0757, 0815, 0699

Universum....0768, 0618, 0740

Venturer....0817

Vestel 0740

Vieta....0732

Voxson 0757

Walkvision....0744

Wellington 0740

Wesder 0726

Wharfedale 0713, 0817

Windy Sam....0600

Xbox 0549

Xenius 0817

XLogic 0795

Yakumo 1031

Yamada....1031

Yamaha....0517, 0566, 0673

Yamakawa 0692

Yukai 0757

Zenith....0530, 0618

SETUP CODES FOR VCR

Accent....0099

Admiral 0236

Adyson....0099

Aiwa....0064, 0375, 0027,

.0334, 0379, 0236

Akai....0375, 0379, 0342, 0133,

.0080, 0312, 0068, 0267

Akiba 0099

Akitan 0322

Akura....0099

Alba .....0108, 0305, 0375, 0027, 0099,

.0379, 0342, 0360, 0236, 0322, 0361

Allorgan 0267

Allstar....0108, 0349

America Action 0305

Amstrad....0305, 0027,

.0099, 0352, 0359

Anam....0064, 0253, 0189, 0267

Anam National......0253, 0189,

......1189,0481

Anitech....0099, 0349

Ansonic 0027

Aristona....0108, 0173

ASA....0108, 0064

Asuka....0064, 0065

Audiosonic 0305

AVP 0027,0379

Awa....0070

Baird 0027, 0131, 0133, 0068

Basic Line .....0305, 0099, 0131, 0073

Beko....0131

Bell & Howell 0131

Bestar 0305

Black Panther 0305

Dansai....0305, 0099

Dantax....0379

De Graaf....0108, 0131, 0075,

.0069, 0193, 0073

Decca 0108, 0027, 0379,

.0094, 0068, 0236

Deitron 0305

Denko 0099

Denon 0069

Diamant 0064

Domland 0236

Dual......0108, 0305, 0375, 0027, 0068

Dumont......0108, 0027, 0131, 0132

Elbe 0305, 0065

Elcatech....0099

Elin 0267

Elsay 0099

Elta 0305,0099

Emerson .....0305, 0064, 0027, 0099,

.0072, 0070, 0236, 0235

ESC 0305,0267

Etzuko 0099

Ferguson....0305, 0027, 0347,

.0080, 0348, 0068, 0520

Fidelity....0027, 0099, 0379,

.0459, 0352, 0267

Finlandia......0108, 0064, 0027, 0411,

0131, 0075, 0070, 0069,

.0133, 0253, 0193, 0073

Finlux.....0108, 0027, 0131, 0069, 0132

Firstline......0305, 0064, 0375, 0099,

.0072, 0070, 0236, 0115

Fisher....0131, 0074, 0073

Flint....0375, 0236

Frontech 0099, 0349

Funai 0027

Galaxi 0027

Galaxis....0305

Garrard....0027

GE......0347, 0075, 0062, 0267, 0087

GEC 0108

General Technic 0375

Genexxa 0131

Go Video....0459

GoldHand....0099

GoldStar 0064, 0252

Goodmans .....0108, 0305, 0064, 0375,

.0027, 0099, 0379, 0430, 0236

GPX 0064

Gradiente 0027

Graetz......0131, 0068, 0371, 0267

Granada......0108, 0064, 0027, 0131,

.0075, 0069, 0253, 0073, 0312, 0267

Grandin....0305, 0064,

0027, 0099, 0236

Grundig......0108, 0375, 0099, 0347,

.0379, 0253, 0374, 0376, 0430, 0222

Hanimex 0379, 0322

Hanseatic......0108, 0064, 0236, 0065

Harley Davidson 0027

Harman/Kardon....0065

Harwood 0099

HCM....0099, 0349

nari ......0305, 0099, 0379, 0236,

.0349, 0068, 0235, 0115, 0267

Hisawa....0379, 0236

Hischito....0072

Hitachi......0108, 0027, 0069, 0193,

.0430, 0132, 0312, 0068, 0267, 0073

Hornyphon....0108

Hughes Network Syst......0069

Hypson....0305, 0064, 0027,

0099, 0379, 0236

Hüher 0305

Imperial 0027

Ingersoll 0267, 0236

Inno Hit 0099, 0349

Interbuy 0064, 0099

Interfunk....0108, 0131

Internal....0305

International 0305, 0064

Intervision 0305, 0027, 0236

IR......0108, 0375, 0099, 0131,

.0072, 0069, 0133, 0253, 0181,

.0236, 0322, 0235, 0080, 0267,

..0371, 0068, 0214, 0074, 0349

Irradio 0108, 0064, 0099

ITT 0411, 0131, 0133,

.0068, 0371, 0073, 0267

ITV 0305,0064

JBL0305

Jensen 0068

JMB....0375, 0379, 0236

Joyce 0027

JVC....0411, 0094, 0233, 0068

Kaisui....0099

Kambrook 0064

Karcher 0108, 0305

KEC 0305,0064

Kendo....0305, 0375, 0099,

.0342, 0133, 0236

Kenwood....0094, 0068, 0065

Kimari....0074

Kneissel....0305, 0064,

0375, 0379, 0236

Kolster 0236

Korpel 0099

Kuba....0074

Kuba Electronic....0074

Kuwa....0253

Kyoto....0099

Lenco....0305

Leyco 0099

LG 0064

Lifetec....0375, 0236

Lloyd's 0027

Loewe....0108, 0064, .....0132, 0481, 0189

Logik......0099, 0133, 0267, 0236

Lux May 0099

Luxor....0131, 0075, 0070, .....0342, 0133, 0074, 0073

LXI 0064

M Electronic 0027, 0065

Magnasonic....0305

Magnavox......0108, 0027, 0062, 0430

Magnin 0267

Manesth ......0108, 0099, 0072, 0236

Marantz....0108, 0173, 0322, ....0065, 0236, 0062

Mark 0305,0027

Marquant 0349

Master's....0305

Matsui....0375, 0379, 0267, 0236, ....0359, 0235, 0322, 0115

Matsushita 1189,0062

Mediator 0108

Medion 0375, 0379, 0236

Melectronic......0064, 0027, 0065

Memorex.....0064, 0375, 0027, 0131, .....0075, 0073, 0189, 0481, .....0062, 0267, 1189

Memphis 0099

Metronic 0108

Metz....0108, 0064, 0253, 0481, .....0222, 0374, 0189, 0254, 1189

MGA0070,0267

Micormay....0375

Micromaxx 0236

Migros 0027

Minerva 0222

Minolta....0069, 0132

Mitsubishi .....0108, 0094, 0075, 0070

MTC 0027, 0267

Multitec....0064

Multitech....0027, 0099

Murphy 0027

Myryad 0108

NAD 0131

National 0253

Nebula Electronics 0060

NEC....0305, 0064, 0131, ....0094, 0068, 0065

Neckermann....0108, 0371

Nesco....0027, 0099

Neufunk 0236

Nikkai 0305,0099

Nikko....0064

Nokia ...0108, 0305, 0131, 0075, 0069, .....0342, 0133, 0073, 0267, 0068, 0371

Nordmende...0347, 0411, 0094, 0555, ....0068, 0348, 0521, 0520

Oceanic....0108, 0027, 0131,

.0075, 0133, 0073, 0068

Okano...0305, 0375, 0099, 0342, 0236

Optimus....0064, 0131, 0075, .....0459, 0481, 0189, 1189

Orbit....0099

Orion ....0375, 0379, 0376, 0115, ....0322, 0236, 0361, 0235, 0360

Orson....0027

Osaki 0064, 0027, 0099

Osume 0099

Otake 0361, 0360, 0236

Otto Versand 0108

Pace 0379

Pacific 0375,0027

Palladium....0064, 0375, ....0099, 0236, 0068

Palsonic 0027, 0099

Panasonic....0253, 1189, 0189, ....0481, 0062, 0254

Pathe Cinema....0070

Pathe Marconi 0068

Penney....0064, 0069, .....0267, 0062, 0065

Pentax 0069, 0132

Perdio 0027, 0236

Philco....0099, 0065, 0062, 0236

Philips....0108, 0411, 0173, ....0494, 0430, 0062, 1367

Phoenix 0305

Phonola....0108

Pilot....0064

Pioneer .....0108, 0094, 0069, 0189

Portland 0305

Prinz....0027, 0115

Profex....0349

Profitronic 0108, 0267

Proline......0305, 0027, 0347, 0348

Prosc0 0305

Prosonic....0305, 0236

Protech 0108

ProVision 0305

Pye....0108

Quartz....0073

Quasar 0305, 0189, 00621189

Quelle 0108, 0371

Radialva......0108, 0064, 0099, 0075

Radiola 0108

Radionette....0064

RadioShack......0064, 0027

Rank......0068

Rank Arena......0068

RCA....0347, 0075, 0069, ....0087, 0267, 0132, 0062

Realistic....0064, 0027, 0131, ....0075, 0062, 0074, 0073

Reoc 0375

Rex....0411, 0068

RFT 0099,0430

Roadstar 0108, 0305, 0064, 0099, 0267

Royal....0099, 0349

Saba ....0305, 0347, 0411, 0521, ....0068, 0233, 0348, 0214

Saisho 0375, 0236, 0235, 0115

Salora 0131, 0070, 0133, 0073

Samsung....0072, 0459, 0267

Sansei....0075

Sansui ....0027, 0099, 0094, ....0133, 0349, 0068

Sanyo....0131, 0094, 0075, .....0267, 0074, 0073

Saville....0305, 0379, 0267

SBR 0108,0173

Schaub Lorenz....0375, 0027, 0131, ....0342, 0133, 0371, 0068

Schneider....0108, 0305, 0064, ....0375, 0027, 0099, ....0379, 0069, 0267, 0173

Scott 0070

Sears....0064, 0027, 0131, 0069, ....0074, 0062, 0073, 0132

Seaway 0305

SEG .....0108, 0305, 0099, 0349, 0267

SEI 0108

Sei-Sinudyne....0108

Seleco....0064, 0411, 0068

Semp 0072

Sentra 0099

Setron....0099

Sharp 0064, 0075, 0834

Shintom....0099, 0131

Shivaki 0064

Shorai 0115

Siemens....0108, 0064, 0347, 0131, ....0173, 0374, 0222, 0073

Siera 0108

Silva....0064

Silver 0305

Singer....0072

Sinudyne 0108, 0379, 0236

Smaragd 0375

Sonneclair 0099

Sonolor 0073

Sontec 0064

Sony......0027, 0059, 0133, 0060, 1059

Soundwave....0064, 0375, 0236

Ssangyong 0099

Standard....0305

Stern 0305

Sunkai....0305, 0375, 0236, 0322

Sunstar 0027

Suntronic 0027

Sunwood....0099

Supra....0064

Sylvania......0108, 0070, 0062

Symphonic....0027

T+A 0189

Taisho 0236,0115

Tandberg....0305

Tandy 0027, 0131

Tashiko..0108, 0064, 0027, 0075, 0267

Tatung....0108, 0375, 0027, 0379, ....0075, 0070, 0068, 0080, 0236

Tchibo 0375

TCM 0375

Teac .....0305, 0064, 0027, 0334, 0068

Tec....0099

Tech Line 0099

Technics 0108, 0253, 1189, 0062, 0189

TechniSat....0375

Teknika....0064, 0027, 0062

Teleavia....0214, 0068, 0520

Telefunken .....0305, 0347, 0411, 0233, .....0348, 0521, 0214, 0520, 0068

Teletech......0305, 0027, 0099, 0349

Tenosal 0099

Tensai 0305, 0027, 0099, 0349

Tevion....0375, 0236

Texet....0305

Thomas 0027

Thomson......0305, 0347, 0411, 0094, ....0520, 0068, 0555, 0348, 0521, 0087

Thorn 0064, 0131, 0068

Tokai....0064, 0099, 0131, 0068

Topline....0375

Toshiba....0108, 0411, 0379, 0072, ....0070, 0459, 0068

Totevision 0064

Towada....0099, 0349

Tradex 0108

Triumph....0235

Uher 0267, 0371

Ultravox....0305, 0371

Unitech 0267

United 0375

United Quick Star....0305

Universum.....0108, 0064, 0375, 0027, .....0131, 0133, 0267, 0236, .....0352, 0222, 0349, 0430

Victor 0094

Video Concepts 0072

Video Technic 0027

Videomagic....0064

Videosonic....0267

Villain....0027

Wards ....0108, 0027, 0099, 0072, ....0075, 0069, 0073, 0087, ....0062, 0267, 0060, 0074, 0065

Watson 0108, 0379

Weltblick 0064

Wewa 0520

White Westinghouse ....0305, 0099, ....0236, 0371

World 0375

Yamaha 0065

Yamishi 0305,0099

Yokan....0099

Yoko....0064, 0099, 0267

Zenith....0027, 0060

ZX....0375, 0379, 0236

SETUP CODES FOR SATELLITE RECEIVERS

ABsat......0695, 0150, 0859, 0740

Aegir 0547

AGS....0737, 0695

Akai....0227, 0542

Akena 0695

Alba....0448, 0546, 0389, .....0542, 0761, 0482, 0740

Aldes .....0389, 0761, 0315, 0547, 0546

Allsat....0227, 0761, 0391

Allsonic 0396, 0315

Alltech 0740

Alpha 0695

Altai 0423

Amitronica 0740

Ampere....0395, 0856, 0423

Amstrad....08741202, 0372, 0912, ....0528, 0822, 0270, 0909, 0488, ....0769, 0890, 0423, 1075, 0740

Anglo 0740

Ankaro 0546, 0396, 0315, 0740

AntSat....1110

Anttron 0448

Apollo 0448, 0482

Arcon 0400, 03951102, 0861

Armstrong....0270

ASA....0424

Asat....0227, 0400

ASLF 0740

AssCom 0880

AST 0378

Astacom....0695, 0737

Aston....0485

Astra....0270, 0540, 0634, 0135, .....0400, 0566, 0373, 0545, 0740

Astro....0528, 0685, 0396, 0634, .....1127, 0385, 0547, 1126

Athena....0695

Audioton 0391

Aura....0566

Aurora....0906

Austar....0906, 0890

Avalon 0423

Axiel 0695, 0737

Axis......1138, 0861, 0396, 0393, 0907

Bell ExpressVu....1194

Beko....0482

Best......0485, 0396, 0393

Bestar 0270

Big Brother 0908

Blue Sky 0740

Boca....0270, 0821, 0740, .....1130, 0540, 0856

Boston....0695, 0737

British Sky Broadcasting ....0874, 1202

Broadcast....0373

Broco....0740

BskyB....0874, 1202

BT 0695, 0542, 1323, 0737

Bubu Sat....0740

Bush 0389

Cambridge....0542, 0528

Canal Digital 0880

Canal 0880,1366

Canal+....0880

CanalSatellite....0880, 1366

Carat.Som 0393

CERT 0135

Channel Master......0389

Cherokee....0737, 0150

Chess....0740

CityCom....0634, 1102, 0421, ....0845, 0825, 1203

Conrad....0528, 0396, 0634

Conrad Electronic....0634

Contec 0421, 0393

Cosat....0619

Crown 0545,0270

Cryptovision......0822, 0482

Cyrus 0227

D-box.....1154, 0750, 0900, 1141

Daewoo....1138, 0400, .....0740, 0448, 1323

Daumling....0821

DDC 0389

Delfa 0890

Deltasat....1102

Dew 0400, 0393

Digatron....1321

Digena....1127

Digiality 0634

DigiQuest....0890

Digiturk......1103

DirecTV 0126, 1169

Discovery 0695, 0737

Diseqc 0737

Distratel....0912

Distrisat 0619

DMT 1102

DNT 0227, 0485, 0423

DST 0448

Dual 0400

Dune....0396

Echostar....0880, 0637, 0423, .....0740, 1032, 0695, 0898

EIF 0444

Einhell....0545, 0315, 0540, 0821, .....0270, 0528, 0740, 0448

Elap 0740

Elekta....0547

Elsat 0740

Elta....0227, 0448, 0396, 0391

Emanon 0448

Emme Esse......0898, 0529, 0396

eMTech....1241

Engel 1130, 0740

EP Sat 0482

Eurieult 0912, 0909, 0444

Eurocrypt 0482, 0135

Europa......0528, 0890, 0634

European 0821

Europhon....0634

Eurosat....0270

Eurosky......0396, 0270, 0634, 0528

Eurostar....0925, 0566, 0907, ....1053, 0845, 1052, 0634

Eutelsat 0740

Eutra 0825

Exator....0542, 0448

Extra Sat....0546

Fagor....0619, 0391

Fenner 0396, 0740, 0695

Ferguson 0482, 1318

Fidelity 0488, 0395, 0528

Finlandia 0482, 0135

Finlux.....0441, 0424, 0600, 0135, 0482

Flair Mate 0740

Fortec Star....1110

Foxtel 0906

Fracarro 0695, 0448, 0898

Freecom....0528, 0448, 0761

Freesat 0909

FTEmaximal ....0396, 0890, ....0395, 0740, 0683

Fuba....0448, 0421, 0444, 1241, ....0396, 0441, 0600, 0135, 0423

Fugionkyo 1132

Galaxis ....0880, 1138, 0396, 0840, ....0393, 0683, 0861, 0391, ....0619, 0860, 0315, 0890

Gardiner 0845

Garnet....1102

GbSAT 1241

GF 0861

GOD Digital 0227

Gold Box 0880

Goldbox....0880, 0319

GoldStar 0421

Gooding....0598

Goodmans....0482

Gradiente 0914

Granada 0482, 0135

Grandin....0444, 0872

Grundig....0874, 0880, 0906, 1357, ....0598, 1318, 0372, 0832, 0777

Hanseatic....1127, 1126

Hantor....0448

Hanuri 0547

Sat Team....0740, 0395

Satcom 0373,0634

Satec 0861, 0740

Satelco....0396

Satford....0373

Satline 0655

Satmaster....0373

SatPartner .....0547, 0529, 0448, 0761

Satplus 1127

Satstation....1110

Schneider......0695, 0832, 0737

Schwaiger .....1138, 1110, 0421, 0634, .....1102, 0579, 0912, 1130, 0531, 0890

Sedea Electronique .....0448, 1132

Seemann 0542, 0423, 0270

SEG 0545, 0769, 0448, 0566, 0396, 0546, 1102

Seleco....0898, 0619, 0391

Septimo 0912

Serino 0637

Servi Sat....0619, 0740

Skantin....0740

SKR 0740

SKY......0874, 0883, 0914, 1202, 0126

SKY+ 1202

Skymaster....0907, 0315, 0740, ....0655, 1102, 0546

Skymax....0227, 0566

SkySat....0740, 0634, 0528

Skyvision....0391

SL 1321,0769,0270

SM Electronic 0740, 0546

Smart....0423, 0856, 0821, .....1130, 0740, 0909

Sony 0874, 0880, 0319

SR 0540

Starion....0566

Starlite 0227

Strong.....0880, 0906, 0899, 0400, .....1132, 0396, 0547, 0448

STVI 0444

Sunkai 0150

Sunny Sound 0396

Sunsat 0740

Sunstar....0270, 0821, 0540, ....1130, 0396, 0856

Supernova....0914

Tantec....0482

Tatung....0482

Techniland 0391, 0373, 0619

TechniSat .....0227, 1127, 0423, 0528, .....1126, 0485, 0890, 1349, 0482, 0545

Technowelt....0634

Teco 0270, 0540, 0400

Telasat....0634

Teleciel 0395, 0761

Telefunken 0737, 0448

Teleka....0861, 0528, 0825, .....0423, 0777, 0270, 0634

Telemaster 0547

Telestar 1126, 0528, 1127

Teleste 0441

Telesystem....0423

Teletech....0907

Televes....0579, 1241, 0528, ....0908, 0482, 0761

Televisa....0914

Telewire 0619, 0391, 0683

Tensai....0400

Tevion 0740

Thomson......0874, 0880, 0847, 0319, .....0695, 1073, 0634, 0740, 0482, 0737

Thorn 0482

Tioko 0270

Tokai 0227

Tonna....0528, 0740, 0482, 0695, ....0391, 0619, 0861, 0373

Toshiba 0482

TPS....0847,1280

Triad....0378

Triasat....0528, 0441

Triax....0880, 0227, 1126, .....0441, 0423, 0740, 0528

Turnsat 0740

Twinner 0740

UEC 0906

Uniden 0819, 0861, 0858

Unisat....0227, 0270, 0393

Universum....0488, 0683, 0424, ....0634, 1126, 0598, 0769

Vector 0545

Vega....0396

Ventana 0227

Vestel 0769

Visionic....1132

Visiosat....0740, 0737, 0579

Viva 0883

Vortec....0448

VTech....0845, 0378

Wetekom....0856, 0528

Wewa 0482

Wibo 0270

Wintergarten....0315

Wisi 0423, 0634, 0378, 0528, 1377, 0482, 0665

Woorisat....0547

Worldsat ......0150, 1350, 0737, 0695

Xanadu....0579

XCOM....0695, 0150, 0859

Xcom Multimedia......0916, 0695

Xrypton 0396

Xsat 0874, 0740, 1241, 0695, 0916, 0150, 1350

Yes....0914

Zehnder....1102, 0421, 0547, 0845, ....0396, 0545, 0769, 0531, 0579

Zenith....0883

Zodiac 0423

British Telecom....0030

Cable & Wireless......1095

Cabletime....0298

Comtec....0046

Contec 0046

Decsat....0450

Filmnet 0470

France Telecom 0844, 0478

Galaxi 0035

General Instruments ......0303, 0030

HyperVision....0646

Jerrold 0303,0030

Kabelvision....0030

Luxor....0708

Macab 0844

Melita....0030

MNET0046,0470

Motorola 0303

Mr Zapp....0844

Multichoice 0046, 0470

Nokia....0708

Noos 0844

NTL......1095, 1087, 0303, 0030, 0304

Oak 0046

Ono 1095

Optus 0303

Pace 10951087

Philips....0646, 1647, 1646, 0844, 0313

Philips TV link....1175

PVP Stereo Visual Matrix......0030

Sagem 0844

Salora 0708

Samsung....1087

Scientific Atlanta ......1095, 0304, 0035

Starcom 0030

Supercable....0303

Tele Danmark......0646

Tele+1 0470

Teledanmark 0646

Telepiu....0470

Telewest....1095

Torx 0030

Tudi 0313

United Cable 0030

US Electronics....0303

Visiopass 0844, 0478

SETUP CODES FOR AMPLIFIERS

Aiwa....0433

Arcam....0296

Audio Agile 0296

Audiolab 0296

BAT 0296

Carver....0296

Copland 0296

Denon 0299

Goldmund 0296

Goodmans....0296

Grundig....0296

Harman/Kardon....0296

JBL....1030

Limit....1408

Linn 0296

Loewe....0296

Magnavox....0296

Marantz....0296

Mark 0296,1030

MaXmann Electro 1357

Meridian....0296

Micromega 0296

Minowa 1156

Myryad 0296

Naim....0296

Panasonic....0335

Philips 0296, 1805, 1798

Pioneer 0296

Quad 0296

Radiola 0296

Red Star....1408

Redstar 1408

Reoc 1408

Revox 0296

Schneider....1156

TCM 1156

Technics 0335

Tevion....1156

Thomson 1156

Thorens 0296

Universum....0296

Victor 0358

Yamaha....0381

SETUP CODES FOR TERRESTIAL DIGITAL TV BOXES

Daewoo....1323

Digatron 1321

Echostar....1350, 1504

eMTech 1241

Ferguson....1318

Grundig....1357, 1318

Hauppauge 1325, 1321

HB....1241

Humax 1595, 1203

ID Digital....1203

Interstar....1241

Labgear 1323

Lorenzen 1321

Kathrein....1350

Micro 1321

Netgem....1349

Nokia 1750, 1365, 1338, 1337

Pace 1202, 1350

Panasonic....1331

Philips......1560, 1226, 1169, 1103

Pilotime....1366

Rebox....1241

SL 1321

Technisat....1349

Thomson 1318

Triax 1323, 1318

Wisi 1377

Worldsat....1350

Xsat 1350,1241

Zehnder 1102

SETUP CODES FOR TUNERS, RECEIVERS AND HOME THEATRE SETS

AEG 1417

Aiwa 0148, 1432

Akai 0142, 1417, 0636

All-Tel 1417

Amstrad....0771

Anam 0636

Arcam....0216

Bang & Olufsen......0826

Basic Line 1581

Bose....1256

Bush....0824

Cairn....0216

Cambridge....0216

Cambridge Audio 0216

Carver....0069, 0387, 0216

Clatronic....0824

Cosmotron 0824

Daewoo....1205

Dantax 1417

Denon......1387, 1487, 1131, 0300

DiK 0824

Dual 1417

eBench 0771, 0824

Elta....0824, 07711417

Ferguson....1181

Fisher 0246, 0069, 0387

Genexxa 0213

Goldmund 0216

Goodmans ....1205, 0824, ....0771, 1417, 0636

Grundig....0246, 1219, ....0216, 1116, 0824

Grunkel....0771

Harman/Kardon......1031, 0235, 0216

Harwood 0771

HCM....1417

Hitachi....1581

Hitech 0771

Inkel 0054

Intersound......0771

JVC....0101, 1401, 0491

Kenwood....1054, 1340, 1596, ....0054, 1597, 0213, 0069

Kioto 0824

Lifetec....0824

Linn....0216

Loewe....0216

LXI 0771

Magnavox....1116, 0216

Marantz......1316, 1116, 0246, 0216

Matsui....0824, 0771

Medion 0824

MEI....1417

Micromega 0216

Microstar 0824

Musicmagic....1116

Mx Onda 0824, 0771

Myryad....0216

NAD 0636

Nikkei....0771

NTDE....0771

Onkyo......0162, 1347, 0869, 1602

Optimus....1050, 0246,

0213,0069,0771

Palladium 0824,1417

Panasonic .....1790, 1545, 1335, 1336,

0545, 1343, 0394, 0336

Philips....1809, 0216, 1807,

1316, 1811, 1116

Pioneer 0316, 1050, 0271,

1211,0213,1411

Prima Electronic 0824

Proline....1417,0824

Quelle 1205

Radiola 0216

RCA....1181, 1281

Recco 0824

Restek 0216

Revox 0213, 1116, 0216

Roadstar 0824

Sansui 1116,0636,0216

Sanyo......0771, 0387, 0246, 0069

Schneider .....1417, 1205, 0771

Sharp 0213

Siemens....0636

Silva Schneider 1417

Sony......1185, 1085, 1285, 1685, 1785

Soundwave 0636

Stereophonics 1050

Sumida....0771

Sunfire 1340

Tandberg....1581

TCM 0824

Teac 1417,0636

Technics....1790, 1545, 1335, ....1336, 0235, 0545, 0336

Tevion....1452

Thomson....1381, 1281, 1181

Thorens 0216

Thorn 0771

Tokai....1417

United 1417

Universum....0771, 1417, 0636, ....1205, 0216, 0824, 1452

Venturer 1417,0824

Victor 0101

Wards 0216,0069

Watson 0824

Welltech 0824

Wharfedale 1417

Xenius....1417

Yamaha....0203, 1303,

Note your codes!

TV

Equipment

Brand

Model number

Number of original remote

Code

DVD

Equipment

Brand

Model number

Number of original remote

Code

VCR

Equipment

Brand

Model number

Number of original remote

Code

SAT

Equipment

Brand

Model number

Number of original remote

Code

CABLE

Equipment

Brand

Model number

Number of original remote

Code

AMPLIFIER

Equipment

Brand

Model number

Number of original remote

Code

TV BOX

Equipment

Brand

Model number

Number of original remote

Code

TUNER/RECEIVER/HOME THEATRE

Equipment

Brand

Model number

Number of original remote

Code

HELPLINE

Country	Phone number	Tariff
België/Belgique	070 253 011	€ 0,17
Danmark	35258758	Local tariff
France	08 9165 0007	€ 0,23
Deutschland	0180 5 007 533	€ 0,12
España	902 889 343	€ 0,15
'Ελληνας	00800 3122 1219	Local tariff
Ireland	01 6011158	Local tariff
Italia	199 404 043	€ 0.25
Luxemburg	40 6661 5645	Local tariff
Nederland	0900 0400 062	€ 0,20
Norge	22 70 82 58	Local tariff
Östereich	0820 901116	Local tariff
Portugal	2 1359 1441	Local tariff
Suomi	09 2294 8258	Local tariff
Sverige	08 7505196	Local tariff
Suisse/die Schweiz	01 212 0045	Local tariff
United Kingdom	0906 1010 018	£ 0.15

Guarantee certificate

Certificat de garantie

Dealer's name, address and signature
