Product Type	AC1200 Dual-Band Wi-Fi Router
Brand	TP-Link
Model	Archer A7
Dimensions (approx.)	230 x 144 x 35 mm
Weight	Approximately 300 g
Power Supply	12V DC 1.5A Power Adapter
Interfaces	1 WAN Port, 4 LAN Ethernet Ports (10/100/1000 Mbps)
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac (Simultaneous 2.4 GHz and 5 GHz)
Wi-Fi Speed	Up to 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
Antennas	3 Fixed External Antennas
Key Features	Internet Sharing, Firewall, Parental Controls, Guest Network, QoS
Security	WPA/WPA2, NAT Firewall, MAC Filtering
Configuration	Via web browser http://tplinkwifi.net or Tether app
Management	TP-Link Tether App (iOS/Android)
Power Consumption	Maximum 10W (estimated)
Operating Temperature	0°C to 40°C (estimated)
Humidity	10% to 90% non-condensing (estimated)
Maintenance	Clean with a dry cloth, avoid water and humidity
Usage Safety	Do not expose to water, fire, do not disassemble, use provided adapter
Spare Parts	Not provided, use only recommended adapter
Repairability	Not user-serviceable, contact support
Warranty	3 years (limited)
Box Contents	Archer A7 Router, Power Adapter, Ethernet Cable, Quick Installation Guide

Frequently Asked Questions - Archer A7 TP-LINK

What to do if the authentication window does not appear?

Verify that the computer is set to obtain an IP address automatically. Enter the address http://tplinkwifi.net or http://192.168.0.1 correctly in the address bar. Try another browser or restart the router. If the problem persists, disable and then re-enable the network adapter.

What to do if I cannot access the Internet?

First check the connection by connecting a computer directly to the modem. If it works, access the router's administration interface via http://tplinkwifi.net and run the Quick Setup again. Restart the router, and for cable modem users, enable MAC Address Cloning if necessary.

How to reset the router to factory defaults?

With the router powered on, press and hold the Reset button on the back until the LEDs flash briefly. Release. Factory defaults are restored. You can also do this from the administration interface.

What to do if I forgot the administration interface password?

Reset the router to factory defaults (see Q3). Then log in with the username admin and create a new password.

What to do if I forgot the Wi-Fi network password?

If you have not changed the default password, it is on the label under the router. Otherwise, log in to the administration interface via http://tplinkwifi.net to view or change the Wi-Fi password.

How to configure parental controls?

Log in to the administration interface (http://tplinkwifi.net) or use the Tether app. Go to the Parental Controls section, add devices to monitor and set access schedules or content blockers.

How to update the router firmware?

Access the administration interface via http://tplinkwifi.net, go to System Tools > Firmware Upgrade. Check for updates online or download the file from TP-Link's website and follow the instructions.

The router does not power on, what to do?

Ensure the power adapter is properly connected and the outlet works. Try a different power cable if possible. If the router still does not power on, contact TP-Link technical support.

How to connect a USB device to the router?

Connect the USB device (flash drive, hard drive) to the USB 2.0 port on the back of the router. Access the administration interface to configure file or media sharing via the Media Server or Network Storage.

How to enable the guest network?

Log in to the administration interface (http://tplinkwifi.net) or the Tether app. Go to Guest Wi-Fi, enable it, set a separate network name (SSID) and password for guests. You can limit access to the local network.

USER MANUAL Archer A7 TP-LINK

TP-Link Technologies Co., Ltd.

South Building (floors 1, 3, 4, 5) and 28 (floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited, Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading RG1 8EW

TP-Link Italia Srl, Via G. Brodolini 2/A, 20053 Cernusco sul Naviglio (MI)

Vélizy-Villacoublay, France

TP-Link Bilgi Teknolojileri Tic. Ltd. Şti. Şerifali Mevkii, Barbaros Cad. Sıfıngi Sokak. No:15/2 Kat:3/4

34775 Ümraniye/İstanbul

TP-Link IBERIA, S.L. Calle Quintanavides 17, 3° E. 28050 Madrid, Spain

TP-Link Netherlands B.V. Archimedesbaan 18, 3439 ME Nieuwegein

TP-Link (Nordic) AB, Forumvägen 14, Plan 13, 131 53, Nacka, Sweden

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2019 TP-Link Technologies Co., Ltd. All rights reserved.

www.tp-link.com

For technical support, the user guide and more information, please visit https://www.tp-link.com/support.

7106508267 REV2.1.2

tp-link

Quick Installation Guide

Wireless Router

* Image may differ from your actual product.

CONTENTS

01 / Deutsch 05 / English 09 / Español 13 / Ελληνικά 17 / Français 21 / Italiano 25 / Português 29 / Suomi 33 / Nederlands 37 / Svenska 41 / Norsk 45 / Dansk

Deutsch

Hardware installation

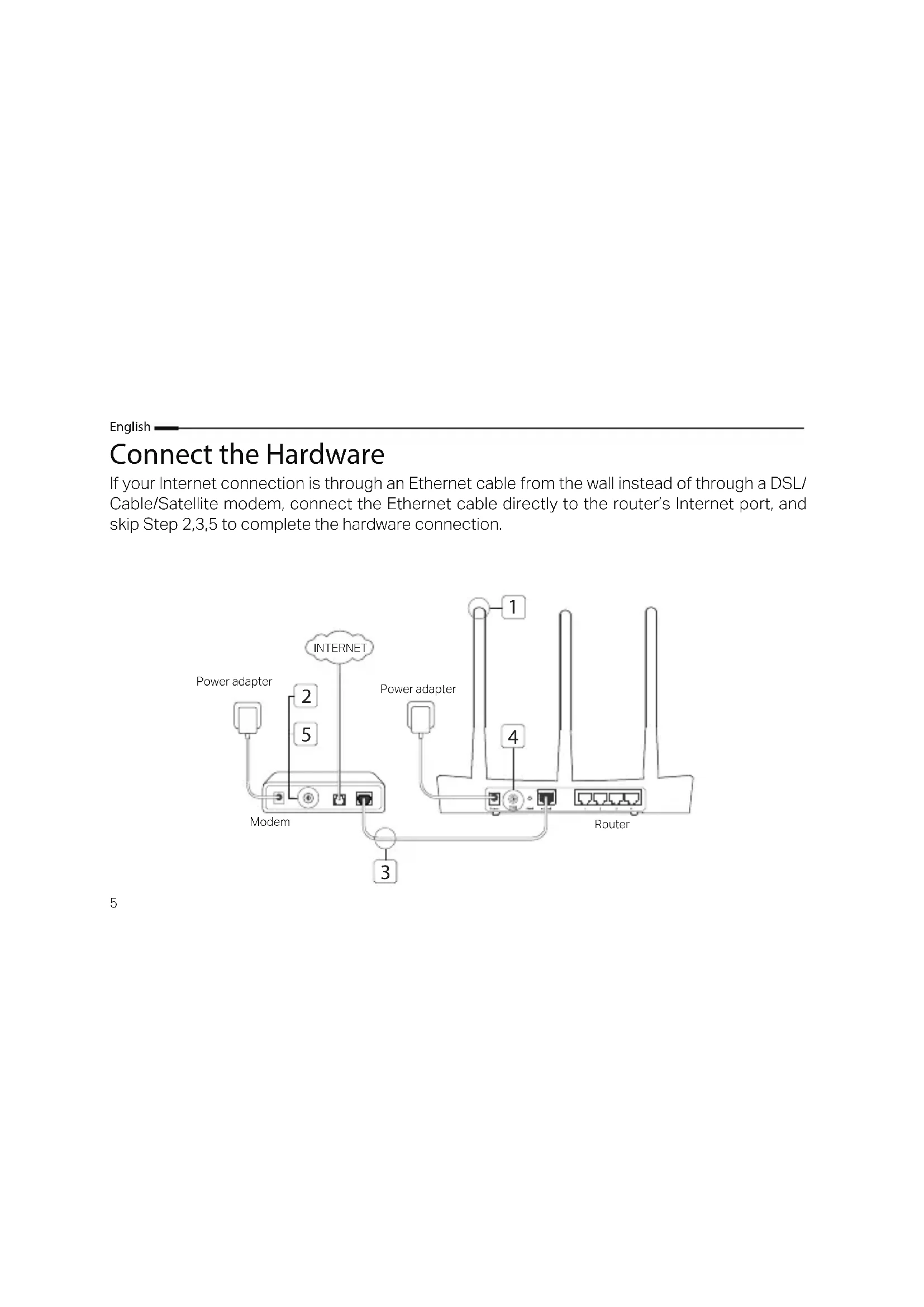

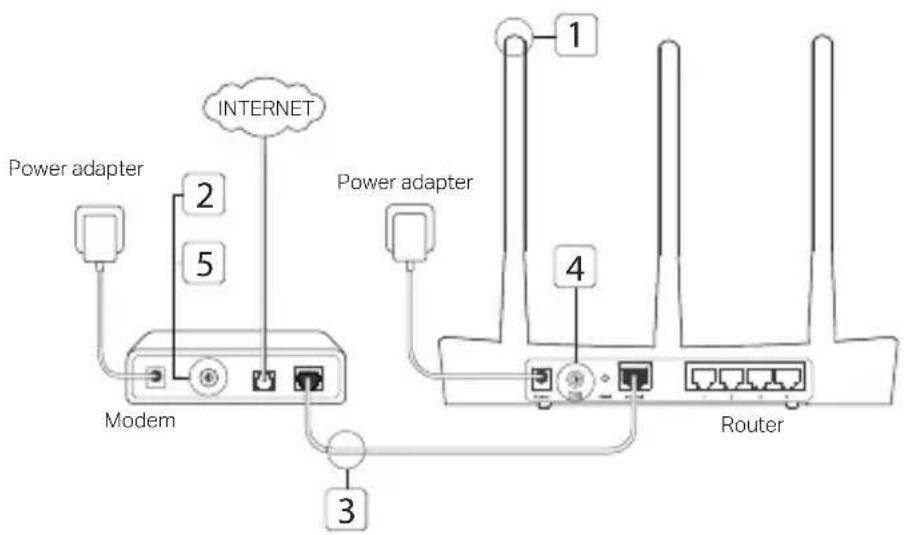

Connect the Hardware

If your Internet connection is through an Ethernet cable from the wall instead of through a DSL/Cable/Satellite modem, connect the Ethernet cable directly to the router's Internet port, and skip Step 2,3,5 to complete the hardware connection.

1 Install the antennas. If the antennas are already fixed, move to the next step. 2 Turn off the modem, and remove the backup battery if it has one. 3 Connect the modem to the Internet (or WAN) port on your router with an Ethernet cable. 4 Turn on the router, and wait for it to start. 5 Turn on the modem.

Configure via Web Browser

1 Connect your computer to the router (Wired or Wireless).

Wired:

Turn off the Wi-Fi on your computer and connect your computer to the router's LAN (1/2/3/4) port using an Ethernet cable.

Wireless:

Connect your computer to the router wirelessly. The SSID and Wireless Password are on the router's label.

2 Enter http://tplinkwifi.net or http://192.168.0.1 in the address bar of a web browser. Create a password for future login attempts, or use admin for both username and password for some routers. Note: If the login window does not appear, please refer to FAQ > Q1.

3 Go to Quick Setup page, and follow the step-by-step instructions to complete the initial configuration.

Enjoy!

Now your wired and wireless devices can connect to the internet!

Note: If you have changed the SSID and wireless password during the configuration, use the new SSID and wireless password to join the wireless network.

Tether App

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, configure your wireless settings and more.

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.

* TL-WR820N is not supported on Tether app currently. Please configure your router via a web browser at http://tplinkwifi.net or http://192.168.0.1.

FAQ (Frequently Asked Questions)

Q1. What can I do if the login window does not appear?

• If the computer is set to a static or fixed IP address, change the setting to obtain an IP address automatically. - Verify that http://tplinkwifi.net or http://192.168.0.1 is correctly entered in the web browser. Alternatively, enter http://192.168.1.1 in the web browser. - Use another web browser and try again. - Reboot your router and try again. - Disable and enable the network adapter in use again.

Q2. What can I do if I cannot access the internet?

- Check if the Internet is working properly by connecting a computer directly to the modem via an Ethernet cable. If it is

not, contact your Internet Service Provider.

• Open a web browser, enter http://tplinkwifi.net or http://192.168.0.1 and run the Quick Setup again.
• Reboot your router and try again.
• For cable modem users, reboot the modem first. If the problem still exists, log into the Web Management page of the router to clone the MAC address.

Q3. How do I restore the router to its factory default settings?

• With the router powered on, press and hold the Reset button on the router until all the LEDs turn on momentarily.
• Log in to the web management page of the router to restore the router to factory settings.

Q4. What can I do if I forgot my web management password?

- Refer to FAQ > Q3 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.

Q5. What can I do if I forgot my wireless network password?

• If you have not changed the default Wireless Password, it can be found on the product label of the router.
• Log in to the web management page of the router to retrieve or reset your wireless password.

Note: To learn more about the router, please go to the website https://www.tp-link.com to download the user guide of your router.

• Keep the device away from water, fire, humidity, or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use a damaged charger or USB cable to charge the device.
• Do not use any chargers other than those recommended.
• Do not use the device where wireless devices are not allowed.
• The adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three-Year Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in accordance with TP-Link's guidelines for a period of THREE YEARS from the date of original retail purchase by the end-user purchaser.

ALL OTHER WARRANTIES, REPRESENTATIONS AND CONDITIONS.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
