Product Type	Bluetooth Wireless Earphones
Brand	Krüger & Matz
Model	KMPM7
Connection Technology	Bluetooth 4.1
Supported Bluetooth Profiles	HSP, HFP, A2DP, AVRCP
Maximum Range	Up to 10 meters
Frequency Band	20 Hz - 20 kHz
Impedance	16 Ohms
Battery Capacity	380 mAh
Standby Time	Up to 30 hours
Built-in Microphone	Yes
Controls	Multifunction button (MFB), volume +/-, playback control
LED Indicators	Yes (charging, pairing, low battery)
Charging	Via micro USB cable (charging base included)
iOS Compatibility	Battery level display on screen
Care and Cleaning	Clean with a soft, slightly damp cloth; do not use chemicals
Safety	Do not use at high volume; do not use while driving; keep away from children
Repairability	Do not repair yourself; contact authorized service
Included Accessories	Earphones, charging base, micro USB cable
Manufacturer	Lechpol (made in China)

Frequently Asked Questions - KMPM7 Krüger&Matz

How do I put the earphones into pairing mode?

Press and hold the MFB button on both earphones for about 6 seconds until the LED flashes. Turn on Bluetooth on your device and select 'KM M7'.

How do I charge the earphones?

Place both earphones in the charging base, aligning the contacts. Connect the micro USB cable to the base and a power source. The red light turns on during charging and turns off when complete.

Can I use a single earphone?

Yes, you can use a single earphone. Take one earphone out of the case and press MFB to turn it on. It will automatically connect to your device.

What if the earphones do not connect automatically?

Make sure the earphones are charged and Bluetooth on your device is on. If necessary, forget the device 'KM M7' in your Bluetooth settings and repeat the pairing procedure.

How do I reset the earphones?

Place both earphones in the charging base, press and hold the MFB button on each earphone for about 10 seconds until the LED flashes red and blue. Then repeat pairing.

Are the earphones water-resistant?

No, the earphones are not water-resistant. Protect them from moisture, rain, and splashes.

What is the battery life?

Standby time can reach 30 hours. Listening time depends on volume and usage. The 380 mAh battery typically provides several hours of playback.

How do I clean the earphones?

Use a soft, slightly damp cloth to wipe the earphones. Do not use chemicals or detergents. Avoid moisture in the charging ports.

Is it safe to use the earphones while driving?

No, it is prohibited to use earphones while driving a motor vehicle as it may block important environmental sounds and cause a hazard.

Are the earphones compatible with Android and iOS?

Yes, they are compatible with any Bluetooth device. On iOS, the battery charge status is displayed on the screen.

USER MANUAL KMPM7 Krüger&Matz

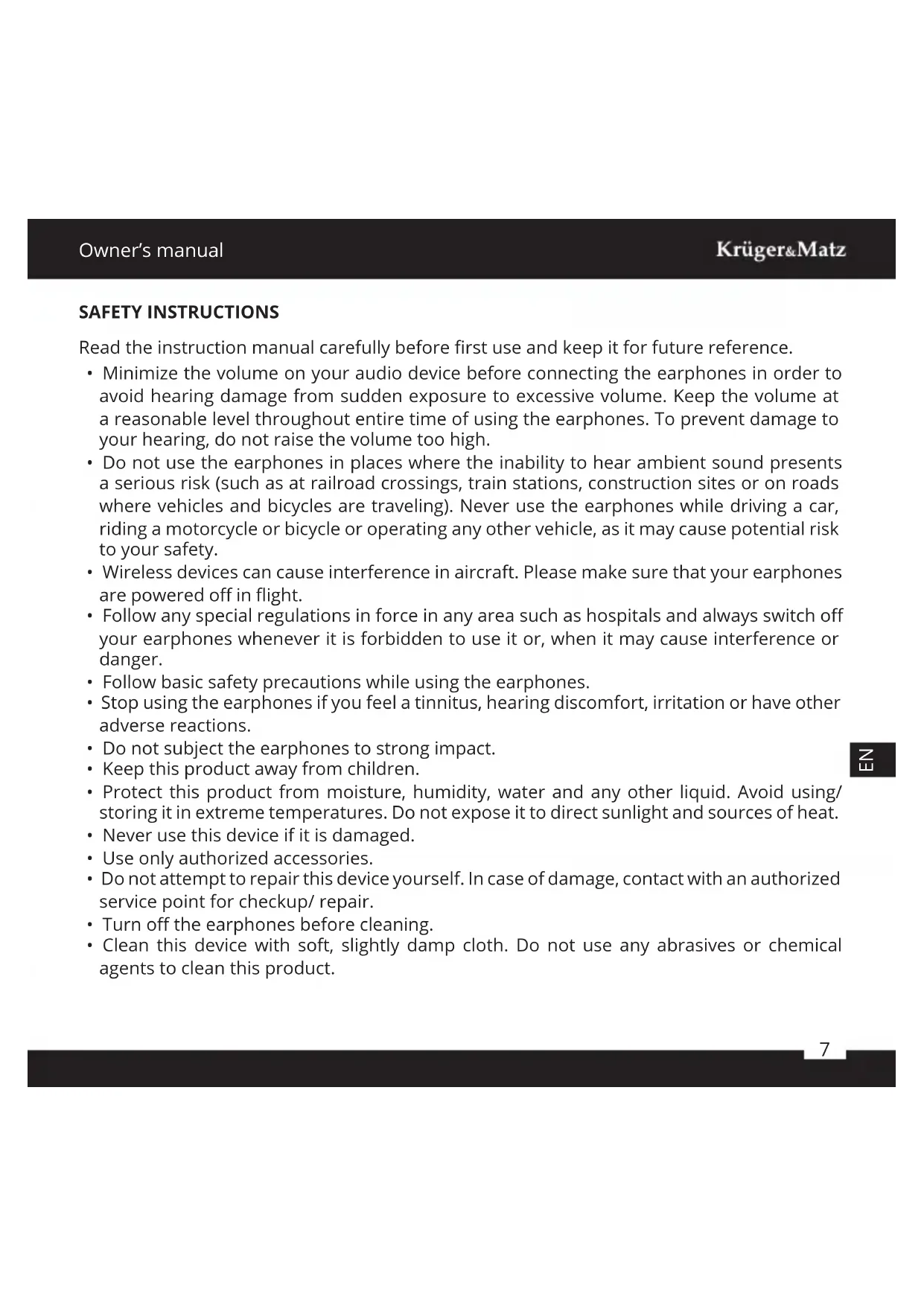

Read the instruction manual carefully before first use and keep it for future reference.

• Minimize the volume on your audio device before connecting the earphones in order to avoid hearing damage from sudden exposure to excessive volume. Keep the volume at a reasonable level throughout entire time of using the earphones. To prevent damage to your hearing, do not raise the volume too high.
• Do not use the earphones in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, construction sites or on roads where vehicles and bicycles are traveling). Never use the earphones while driving a car, riding a motorcycle or bicycle or operating any other vehicle, as it may cause potential risk to your safety.
• Wireless devices can cause interference in aircraft. Please make sure that your earphones are powered off in flight.
• Follow any special regulations in force in any area such as hospitals and always switch off your earphones whenever it is forbidden to use it or, when it may cause interference or danger.
• Follow basic safety precautions while using the earphones.
• Stop using the earphones if you feel a tinnitus, hearing discomfort, irritation or have other adverse reactions.
• Do not subject the earphones to strong impact.
• Keep this product away from children.
• Protect this product from moisture, humidity, water and any other liquid. Avoid using/ storing it in extreme temperatures. Do not expose it to direct sunlight and sources of heat.
• Never use this device if it is damaged.
• Use only authorized accessories.
• Do not attempt to repair this device yourself. In case of damage, contact with an authorized service point for checkup/ repair.
• Turn off the earphones before cleaning.
• Clean this device with soft, slightly damp cloth. Do not use any abrasives or chemical agents to clean this product.

PRODUCT DESCRIPTION

1. Built-in microphone
2. Volume down (-)
3. LED indicator
4. Volume up (+)
5. Multifunctional button (MFB)
6. Charging contacts
7. microUSB charging port
8. Charging station LED indicator

OPERATION

Function Button
Power on Press and hold MFB on both earphones for about 6 seconds
Power off Press and hold MFB on one of the earphones for about 4 seconds
Answer/end an incoming call Press MFB
Volume up Press + button
Volume down Press - button
Next track Press and hold + button
Previous track Press and hold - button

PAIRING MODE

1. Press and hold MFB on both earphones until you hear voice prompt announcing that the earphones are turned on and connected. The earphones will automatically enter Bluetooth mode (on the left channel earphone, LED indicator flashes blue and red alternatively).
2. Enable the Bluetooth function on the external device and search for new Bluetooth devices.
3. Select and connect with this device (KM M7).
4. After successful pairing, the earphones will issue a voice prompt. When the earphones are paired with an external device, the blue indicators blink alternatively on both earphones.

Notes:

• If pairing is not completed within 2 minutes, the earphones will turn off. In that case, repeat pairing process to pair the earphones with external device.
• Every time the earphones are switched on, they will connect to last connected device automatically. Please note, your device must be on with Bluetooth function turned on.

CHARGING

1. Place both earphones in the charging station. Make sure to align the charging contacts correctly on the earphones and the charging station.
2. Connect the USB charging cord to the microUSB charging port of the charging station and insert the other end into a port in a computer or AC/DC power adapter.
3. When battery is charging, red LED on the charging station is on. When battery is fully charged, red LED on the charging station is off. When the battery level is low, red LED flashes.

Notes:

• Please be sure the battery has been charged fully before first use.
• Charge the device regularly to keep its battery in good condition.
• The earphones battery indicator will be displayed when connected to iOS devices.

Krüger&Matz

Owner's manual

SPECIFICATION

Frequency response: 20Hz 20kHz
Impedance: 16 Ohm
Bluetooth: 4.1
- Bluetooth profiles: HSP, HFP, A2DP, AVRCP
- Bluetooth range: up to 10 m

• Standby time: up to 30 h
• Battery capacity: 380 mAh
• Battery level indicator (iOS only)
  Built-in microphone
  Voice call management

LEARN MORE

For more information on this device visit: www.krugermatz.com.

Visit www.krugermatz.com website for more products and accessories.

In case of any doubts or questions reach out to our Frequently Asked Questions section.

Producer reserves rights to change product overview and specifications without prior notice.

The Lechpol company declares that product KMPM7 is consistent with the essential requirements and other relevant provisions of directive 2014/53/UE. The proper declaration for download from www.lechpol.eu

乙

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL, Mietne, 1 Garwolinska Street, 08-400 Garwolin.
