USER MANUAL 480.028 CaterCool

Exterior view of a stainless steel double-wire refrigerator with wavy glass panels and small water bottles (no text or symbols visible)

Gebruiksaanwijzing

Inhoudsopgave

Technical diagram of a multi-chamber HVAC unit with numbered components and ventilation slots

1. Licht 2. Ventilatorrooster 3. Flessenrek
2. Voetje 5. Riemafdekkap 6. Deurrubber
3. Glazen deur

CaterCool® Professional Supplies

THERMOELECTIRC WINE COOLER

Modelnr.: *480.028

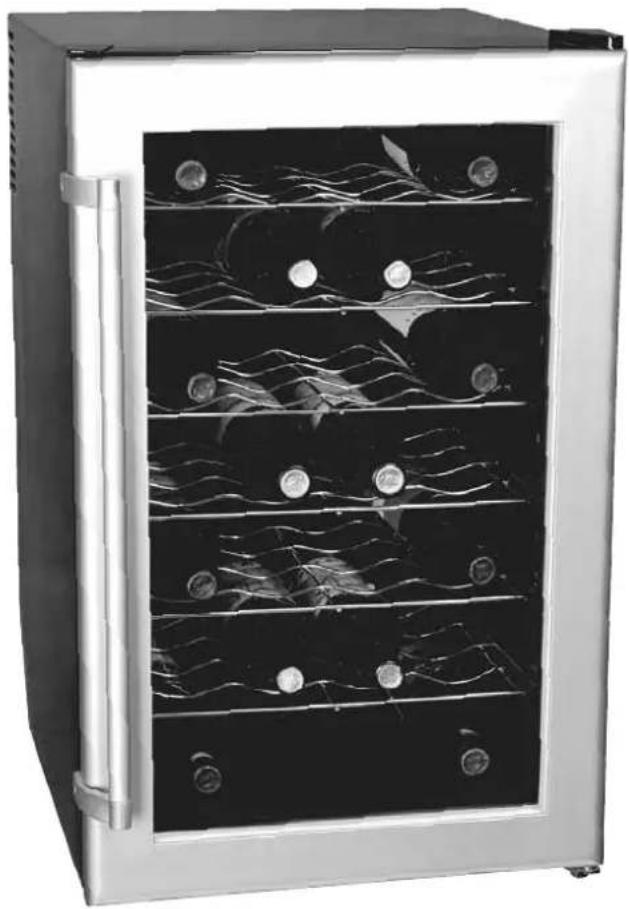

Front view of a stainless steel double-wire refrigerator with wavy glass panels and small circular components (no visible text or symbols)

Operation Manual

Index

I. General Safety Precautions.... 11
II. Technical Data 12
III. Illustrated Structure.... 13
IV. Electric Principle Diagram.... 13
V. Operation 14
VI. Particular Precautions ...... 15
VII. Maintenance.... 15
VIII. Troubleshooting....16

I. GENERAL SAFETY PRECAUTIONS

● After removing the refrigerator from the package, make sure it is in good condition. In case of doubt, do not use it and contact an authorized service center.
- Plastic bags, nails, etc. Should be kept out of the reach the operation manual carefully and check that the rating data on the rating nameplate corresponds to your power supply.
- This refrigerator can only be used in the use of which it was designed. The manufacturer will not respond for any damage due to improper use or repairs made by unqualified personnel.
● Before cleaning the refrigerator, make sure it is unplugged. Never clean the unit with an acid preparation, medical, dilution, gasoline, oil or any other kind of chemical substance that could damage the refrigerator.
● Repair should only be made by authorized service centers.

- Caution

1. To reduce the risk of fire, replace only with same type fuse.
2. Free standing installation only
3. Do not use extension cords.
4. Danger: Risk of child entrapment. Before throwing away your old wine cooler, take off the door and leave the shelves in place, so that children may not climb inside easily.
5. The wine cooler is fit for the environment temperature below 25^ C with its active efficiency

II. TECHNICAL DATA

Type		CW-80AB
Volume (liter)		80L
Material	Case Iron
	Door	Glass
Unit Dimension(W×H×D)(mm)		450x725x520
Packaging Dimension(W×H×D)(mm)		495x760x570
Net Weight (Kg)		20.3
Gross Weight (Kg) 23.3
Power Consumption(KW·h/24h)		1.5
Fitting ambient temperature range of working		<25°C
Temperature Range		11°C-18°C
Rated Voltage 220-240V AC
Rated Frequency		50HZ
Input power 130W

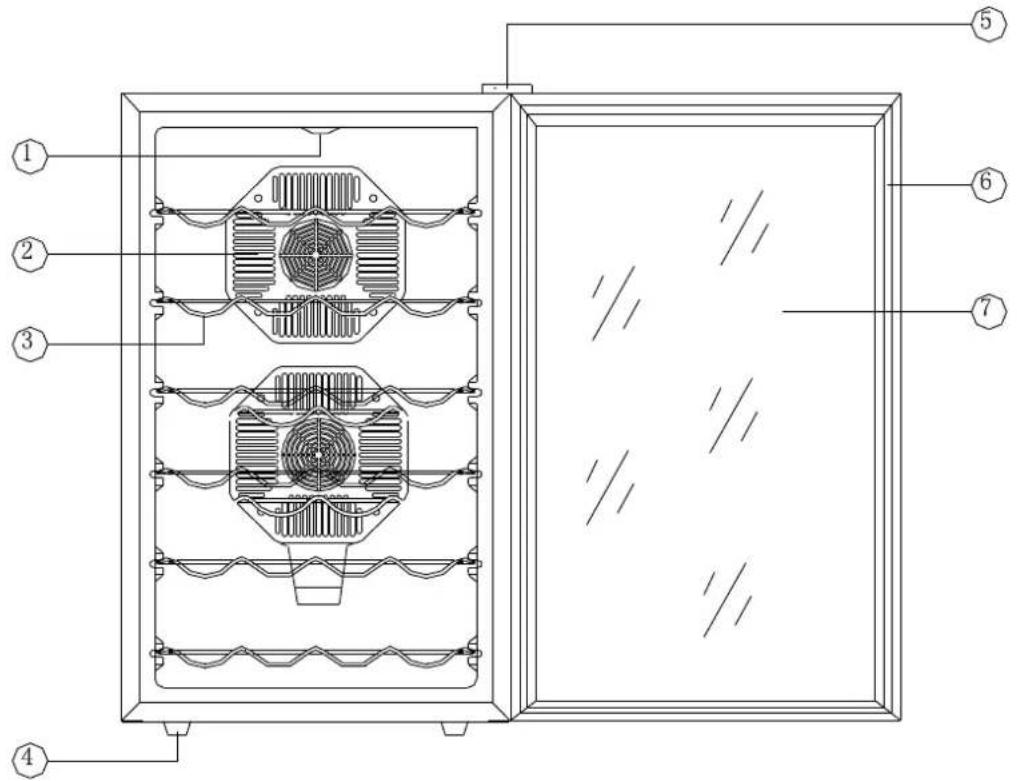

III.ILLUSTRATED STRUCTURE

Technical diagram of a multi-chamber HVAC unit with numbered components and ventilation slots

1. Light 2. Fan Mask 3. Shelf
2. Foot 5. Ream Cover 6. Door Seal
3. Glass Door

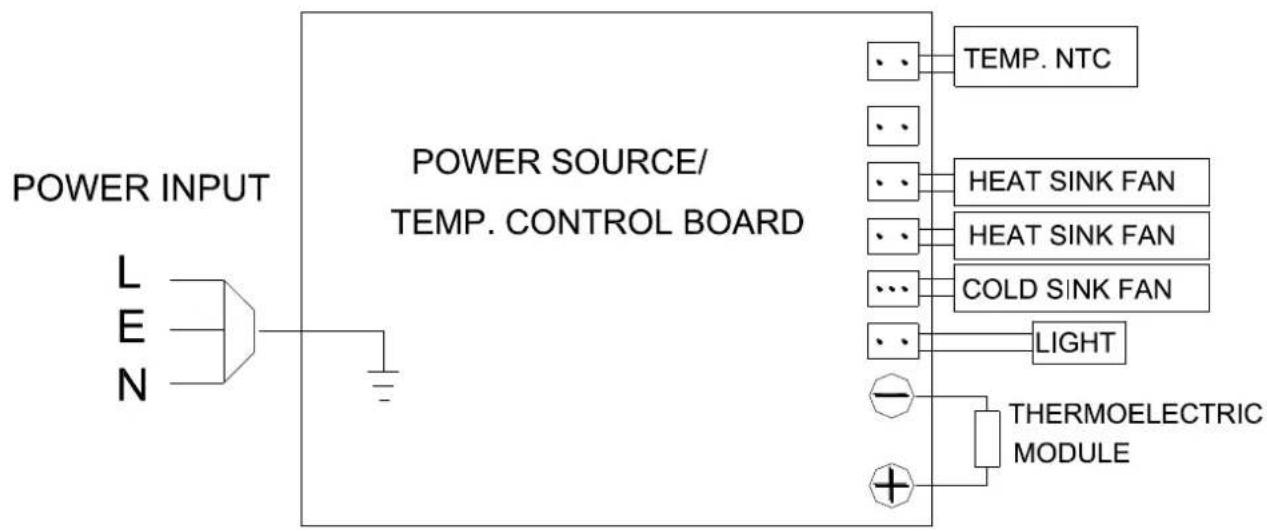

IV.ELECTRIC PRINCIPLE DIAGRAM

• Your refrigerator has only one control for regulating the temperature. The temperature control is located on the upper right hand corner of the compartment.
• To control the internal temperature, adjust the control knob according to the ambient temperature or purpose of use.
• The first time you turn the unit on, set the temperature control to “Max”.
• The range of the temperature control is from position “Min” to “Max”. After 2 hours, adjust the temperature control to the setting that best suites your needs. To set middle should be appropriate for home or office wine cooler use.
• This wine cooler is provided with a LED light located on the undersurface of the temperature control box. You can turn the interior light ON or OFF by pressing the light switch.

VI. PARTICULAR PRECAUTIONS

• In order to function at its potential, this wine cooler needs to be placed on flat floor, with 2cm spaces at each side and 10cm at the backside.
• Use the adjustable (iron case) to place the cellar fully horizontal.
  ● Avoid direct sunshine and carry high temperature.
• Do not place heavy articles on the top of the cellar.

VII.MAINTENANCE

● Shut off power supply before cleaning cabinet.
● Take out wine and shelves, and then clean the cabinet with soda water first and with clean water last.
- Do not use soap or detergent for the cabinet.
● Clean the cellar regularly.

VIII. TROUBLESHOOTING

Symptoms Possible cause Solutions
No cooling	Plug not put inLow voltageFuse broken	Put in the plugEnsure normal voltageChange fuse
Not cold enough temperature inside	The refrigerator is placed too near heat source;Bad ventilation;Fans don't work;The door is not closed tightly or opened too frequently or for too long time;	Keep the refrigerator away from sunshine or other heat source;Place the refrigerator in the area with good ventilation and keep things away from the fans;Check whether the plug is connected or change the fan;Close the door tightly and don't open the door too frequently or for too long time.
Peculiar smell inside refrigerator	Check whether there is any sour inside	Wrap the source or take it out
Inside light flash	Set temperature higher than inner temperature;The automatic defrost function start to work	Adjust the adjustorNormal function. No repair needed
Frost on the cold sink。	Too much humidity or too low temperature inside the case	Output the plug, stop the power, and defrost by hand, Connect power again when the ice thaws

Pls. Keep this manual for future reference.

CaterCool® Professional Supplies

CAVE À VIN RÉFRIGÉRÉE THERMO-ELECTRIQUE

Exterior view of a stainless steel refrigerator with wavy glass panels and small circular components (no text or symbols visible)

Mode d'emploi

Index

Technical diagram of a multi-chamber HVAC unit with numbered components and ventilation slots
