Precautions for safe use

36

Cautions during operation

37

Terms for parts

38

How to assemble

40

Disassemble and cleaning

4142

How to use When Squeezingice Cap

43

Screw stops during operation

4446

Before requesting for repair

How to trim the ingredients

47

Product Specifications/Warranty

Hurom Juicer Household Use (Warranty Included)

1. Read 'Precautions for safe use' (Page 2) and use the appliance properly.
2. After finish reading the manual, keep it in a convenient location for future reference.
3. Do not use it abroad which has different power supply and voltage.
4. Any quality improvements are subject to change without notice.

Warning When violating the labeling requirement, it may cause serious injury or death.

DO NOT PLUG OR UNPLUG WITH WET HANDS. It may cause electric shock or injury.
DO NOT USE OTHER THAN 230 - 240V AC. It may cause electric shock, fire or product failure. If the voltage is different, it may shorten the life of the motor or cause a failure.
- PLUG THE POWER CORD CORRECTLY AND PUSH IT TIGHT IN A WALL SOCKET. It may cause an electric shock or a fire.
- IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER OF ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZARD.

If the power cord is damaged, it may cause electric shock or fire.

• NEVER ALTER THE APPLIANCE. ALSO, DO NOT DISASSEMBLE OR REPAIR THE PRODUCT BY YOURSELF. DO NOT INSERT FINGERS, FOREIGN SUBSTANCES OR OBJECTS SUCH AS PINS INTO GAPS OR HOLES IN THE BODY. It may cause a fire, electric shock or product failure. For any technical support, contact the authorized local Customer Service Center.
• WHEN THE POWER CORD, WIRE IS BROKEN OR DAMAGED, OR THE PLUG-IN PART BECOME LOOSE, DO NOT OPERATE IT. It may cause electric shock, fire or injury.
  DO NOT MOISTEN BODY OR SPLASH WATER ON THE BASE.

Be careful not to let any liquids or other substances get into the switch of the appliance. DO NOT OPERATE THE SWITCH WITH WET HANDS. It may cause an electric shock or fire.

FOR SAFETY, MUST DO GROUNDING CONNECTION. ALSO, DO NOT DO THE GROUNDING ON GAS PIPE, PLASTIC WATER PIPE, TELEPHONE WIRE, ETC.

It could cause electric shock, fire, malfunction or explosion. Be sure to use the electrical outlet with ground connection.

• NEVER DISASSEMBLE THE CHAMBER SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS, ETC. INTO HOPPER CHUTE OR JUICE OUTLET. It may cause injury, accident or product failure.

• APPLIANCES CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN. THIS APPLIANCE SHALL NOT BE USED BY CHILDREN. KEEP THE APPLIANCE AND ITS CORD AWAY FROM CHILDREN.

Caution When violating the labeling requirement, it may cause serious injury or damage to the appliance.

DO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY. It may cause an injury or a failure.

• WHEN A GAS LEAK IS DETECTED, DO NOT INSERT THE POWER CORD INTO ITS SLOT. OPEN THE WINDOW IMMEDIATELY FOR AIR VENTILATION. It may cause injury or failure.
• NEVER PUT A FINGER, FORK OR SPOON, ETC. INTO JUICE OUTLET. It may cause injury or failure.
• IF SQUEEZING SCREW ROTATION IS STOPPED DURING NORMAL OPERATION, PRESS [REV] BUTTON AND HOLD FOR 3~5 SECONDS AND AFTER REVERSE OPERATION IS COMPLETELY STOPPED, PRESS [ON] BUTTON AGAIN. If stopping continues during the operation, the parts may be damaged and performance may be deteriorated due to overheating in a motor. When the problem continues, stop the appliance immediately and contact the local Customer Service Center.
  DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE BASE, DISASSEMBLE THE CHAMBER SET OR PARTS AND TRY TO LOCK THEM. It may cause an injury or a failure. If any act of event needed, switch off first and unplug the power cord.
• WHEN USING THE APPLIANCE, BE CAREFUL WITH A NECKTIE, LONG NECKLACE, SCARF, ETC. TO NOT BE BE ENTANGLED INTO HOPPER CHUTE. It may cause injury, failure or breakage.
• PLACE THE APPLIANCE ON A FLAT AND STABLE SURFACE. It may cause injury or failure.
  DO NOT OPERATE THE APPLIANCE FOR MORE THAN 30 MINUTES AT A TIME.
  It may cause a motor failure due to overheating. Cool it down sufficiently about 5 minutes and operate it again.
• WHEN PLACING INGREDIENTS INTO THE HOPPER CHUTE, USE ONLY THE PUSHER PROVIDED. It may cause injury or failure.
• DO NOT ALLOW A SEVERE SHOCK TO THE APPLIANCE OR DROP IT. It may cause electric shock, fire or damage.
• IF THE APPLIANCE GIVES OFF AN UNPLEASANT SMELL, EXCESSIVE HEATING, OR SMOKE, STOP USING IMMEDIATELY AND CONTACT THE LOCAL CUSTOMER SERVICE CENTER. When using a new appliance, it gives off a smell and the smell disappears naturally over time.
• ALWAYS UNPLUG THE APPLIANCE AFTER USE. ALWAYS DISCONNECT THE APPLIANCE FROM THE SUPPLY IF IT IS LEFT UNATTENDED AND BEFORE ASSEMBLING, DISASSEMBLING OR CLEANING. WHEN UNPLugging THE POWER CORD, MAKE SURE TO HOLD THE POWER CORD. Pulling the wire to unplug may cause electric shock or fire.
  DO NOT WASH AT HIGH TEMPERATURES OF 80^(176^) OR HIGHER. DO NOT PUT THE APPLIANCE IN A DISHWASHER, DRYER OR A MICROWAVE ETC. It may cause a failure or parts deformation.
• THE APPLIANCE WEIGHS ABOUT 4.5kg . WHEN MOVING THE APPLIANCE, ENSURE TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BOTTOM OF BODY WITH BOTH HANDS. By attempting to hold chamber or the edge of the body, the body may fall causing an injury or failure.

- Ingredients which needs caution

• Fruits with hard seeds such as persimmon, Japanese apricot, lemon, plum, peach etc. that are hard to chew with our teeth should be taken out before extraction.
• For stalk vegetables with strong fiber such as water parsley, celery etc. should be cut into small size about 3 4cm before putting into the hopper chute.
• Do not put in sesame, coffee beans, bark of the tree, Chinese pepper, etc. which cannot be extracted.
• Do not put in fruits preserved in alcohol, sugar, honey, etc. (grapes, apricot, berries, etc) and enzymes (glasswort, houseleek, etc.). It may cause damage or failure.
• We recommend you to drink green vegetable juice and fruit juice immediately after extraction rather than keeping them for long time.
• You may use for crushing spice (garlic, red pepper), but not for grinding grain. It may cause damage or failure.
• Do not re-squeeze residues expelled through the pulp outlet. Soft fruits can be re-squeezed.
• Do not operate the appliance before putting in the ingredients.

• Do not use the appliance for more than 30 minutes continuously.

• It may cause a failure due to overheating of the motor.
  When using continuously, stop it and give it 5 minutes of interval and then you may use it again.

- Never insert finger, fork or spoon etc. into juice outlet during the operation.

• Inserting such as chopsticks etc. into Juice outlet during operation may cause them to stuck into the spinning brush and cause damage to the parts.

- Do not press the ingredients with anything except the pusher.

• It may be stuck in the screw and cause injury and failure.

- Do not operate the switch with wet hands.

• It may cause electric shock or fire. Do not put foreign objects near the switch.

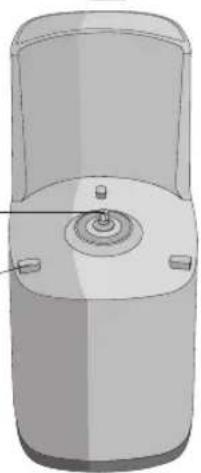

Terms for parts

1 Hopper 7 Pusher

2 Squeezing Screw
Screw axis

3 Strainer
4 Spinning Brush

Brush holder

silicone brush
5 Chamber

Pulp Outlet

Juice Cap

6 Body

Motor spin

Body bump.

Juice Outlet

8 Pulp Container

9 Juice Container

10 Cleaning Brush

11 Small Cleaning Brush

Operating switch

Power Cord

37

How to assemble

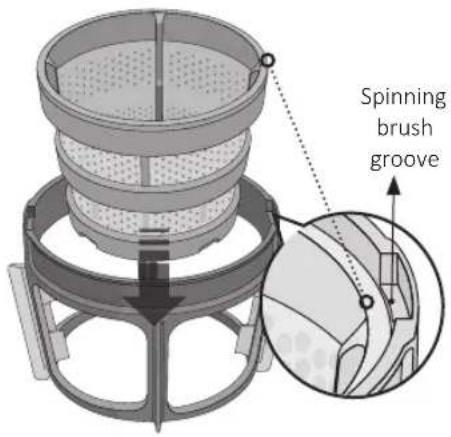

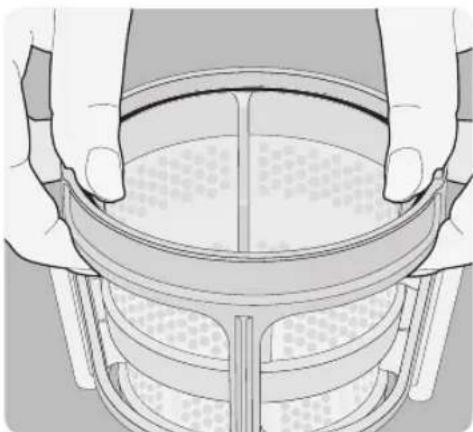

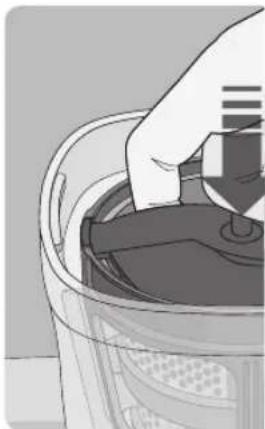

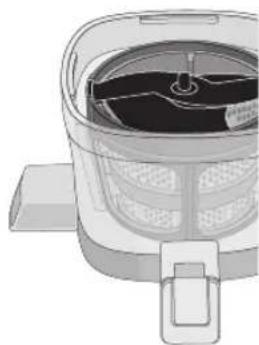

1 Assemble the strainer under the groove or spinning brush just like from the picture.

If they are not completely assembled, the chamber set will not be closed.

Put the assembled part in proper place by moving left and right in the chamber just like the picture no.1.

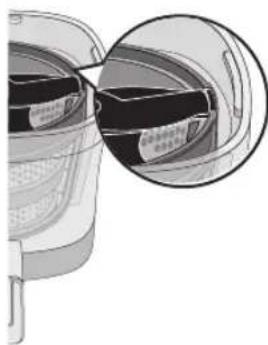

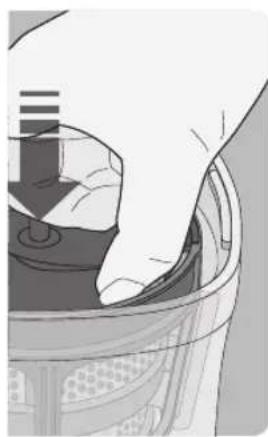

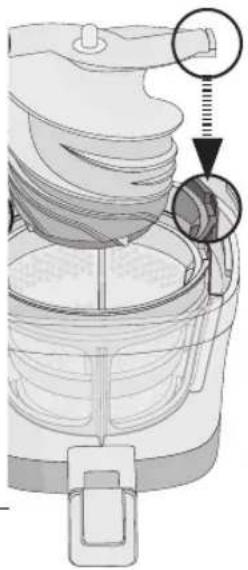

Assemble the screw like the

Put the augerto fit in the s

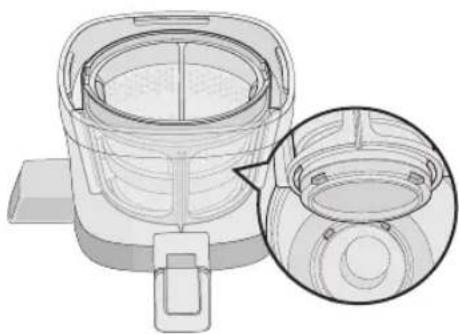

* If the strainer is not placed below the

Squeezing screw wings
Spinning brush grooves

the squeezing the picture.

uger by turning ithe spinning brush

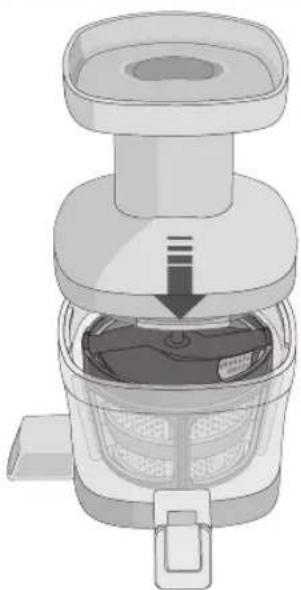

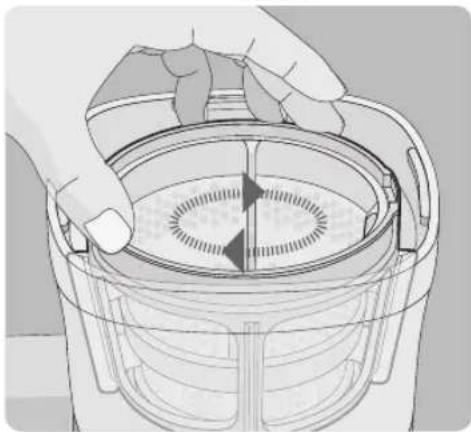

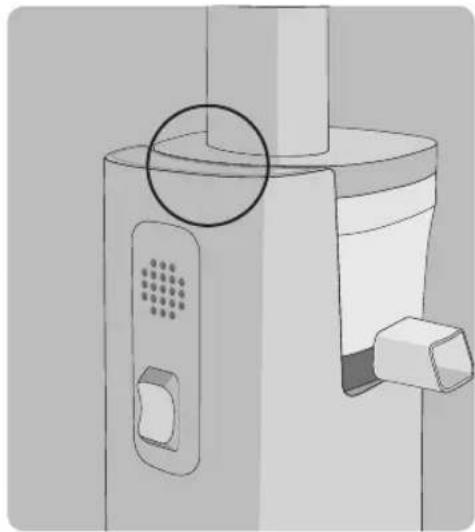

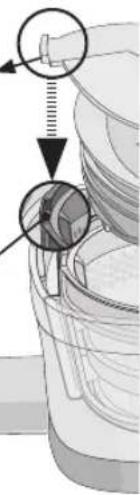

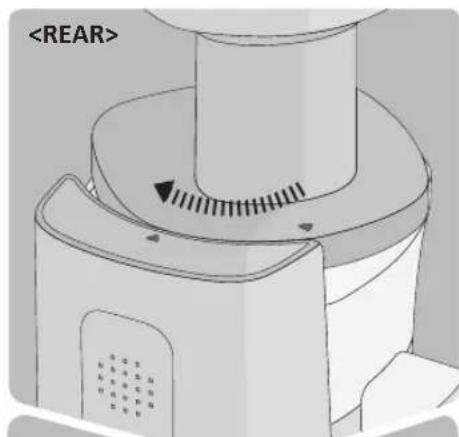

After putting the hopper on the chamber, turn it clockwise until it is locked completely.

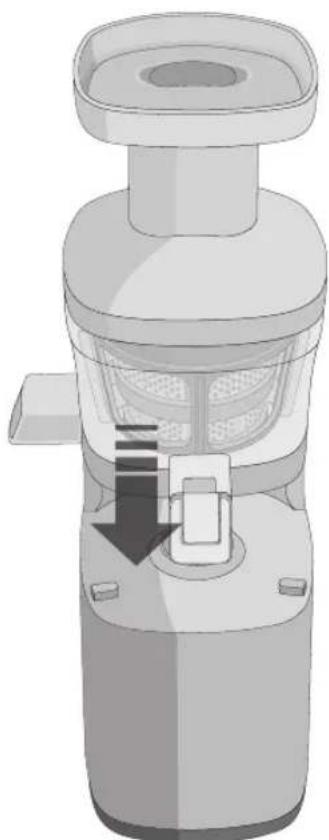

Mount the chamber set on the body.

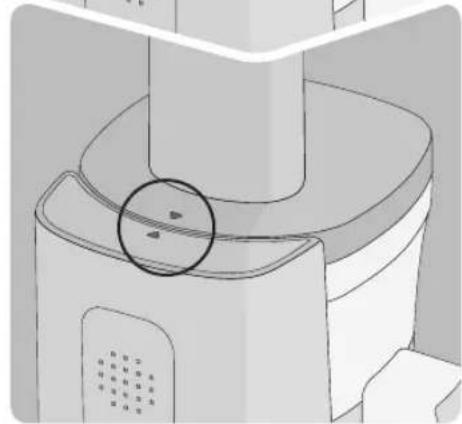

Align the mark on the back of the body to the mark on the chamber set for correct

Disassemble and cleaning

Cleaning for parts

1. Unplug the power cord with dry hands after the unit has been completely stopped.
2. Remove the chamber set from the main body. Twist the chamber cover to open and lift up the parts in order to disassemble the unit.
3. Use a cleaning brush and wash the chamber set under running water.
4. Wipe the main body with a damp towel or a soft cloth.

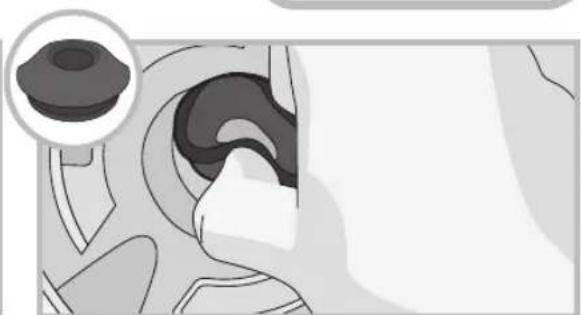

5. The silicone packing can be disassembled and washed. (Including juice cap packing, chamber packing, silicone brush)
6. Soak in water diluted with one or two drops of baking soda or natural bleach for dishes for about 30 minutes to sterilize and clean.

NOTE

1. If the unit is not cleaned immediately after use, a residue may dry and stick to the unit. This will make disassembling and cleaning difficult as well as lead to performance degradation.
2. Do not wash with hot or boiling water, an iron scrubber, abra sive material, sink solvents, or sharp cleaning tools. Do not put it in a dishwasher or dish dryer. After washing, thoroughly and naturally dry, and store in a clean area.

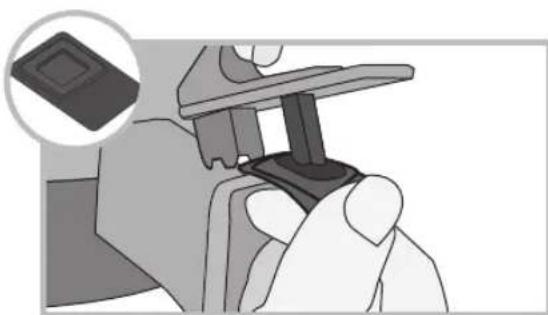

Juice Cap Packing

Open the juice cap, hold the chamber and juice cap with one hand, and remove the juice cap packing with your other hand to disassemble.

Please be careful not to drop or damage the juice cap and chamber when disassembling the unit.

Chamber Packing

Grab the chamber packing in the chamber shaft with both hands, and lift up to remove.

Identify the upper and lower part of the chamber packing and assemble. (Refer to image)

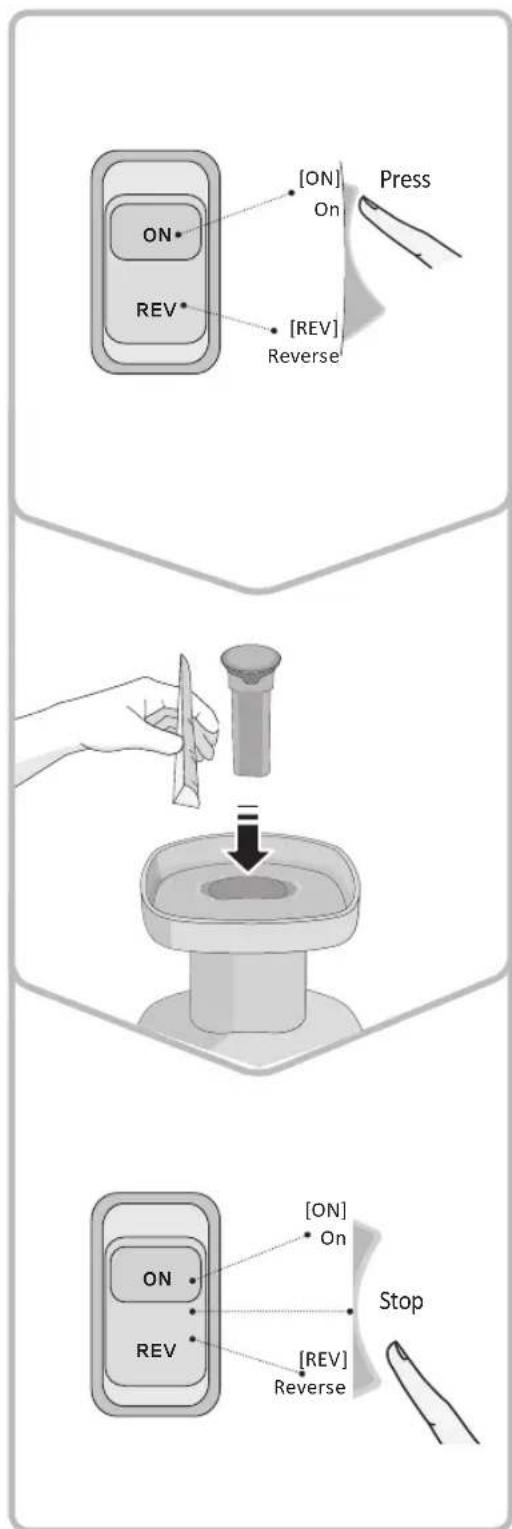

1 Press [ON] button to start.

*For your safety, this unit only works when it's correctly assembled with the chamber set.

Put ingredients gradually in the hopper chute and press with the pusher.

*Do not press the ingredients with anything except the pusher provided. Please put the ingredients as 3 4 cm sizes.

After extraction is completed, place the switch in stop position to stop.

When using [ON] or [REV] button, make sure that the auger stops completely.

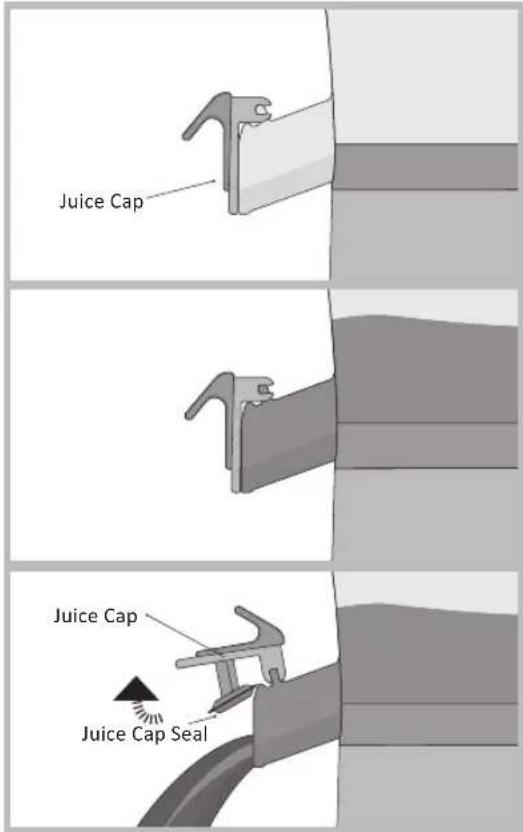

Juice Cap

Juice Cap

This is the cap of juice outlet from the chamber. If you close the juice cap and fill up the juice in the chamber, you can easily make mixed fruit juice or vegetable juice with various ingredients.

1 Close the juice cap and press [ON] button to start.

2 When juice starts filling up the bowl, you can mix beans, boiled sweet potato, banana, nuts etc. and liquid such as milk, etc. as well as vegetables and fruits

3 Open the juice cap to pour as much as you need and you can close it without any drops.

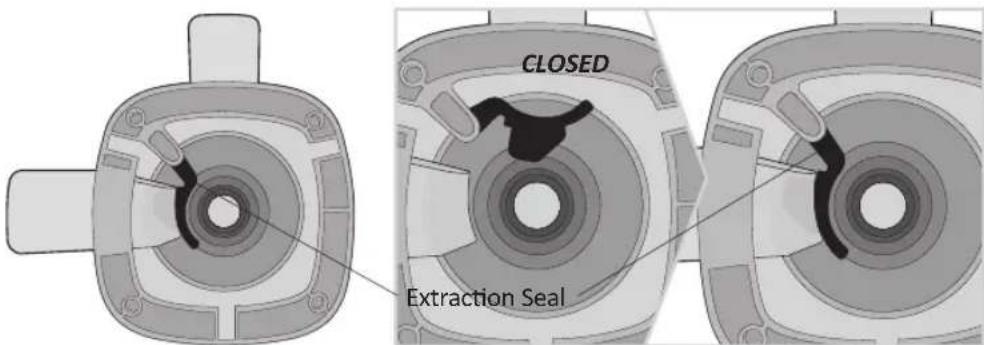

Extraction Seal

It is the pulp stopper made of silicone at the bottom of the chamber. Make sure to close the extraction seal always as shown below before use. For cleaning, open the extraction seal and start washing.

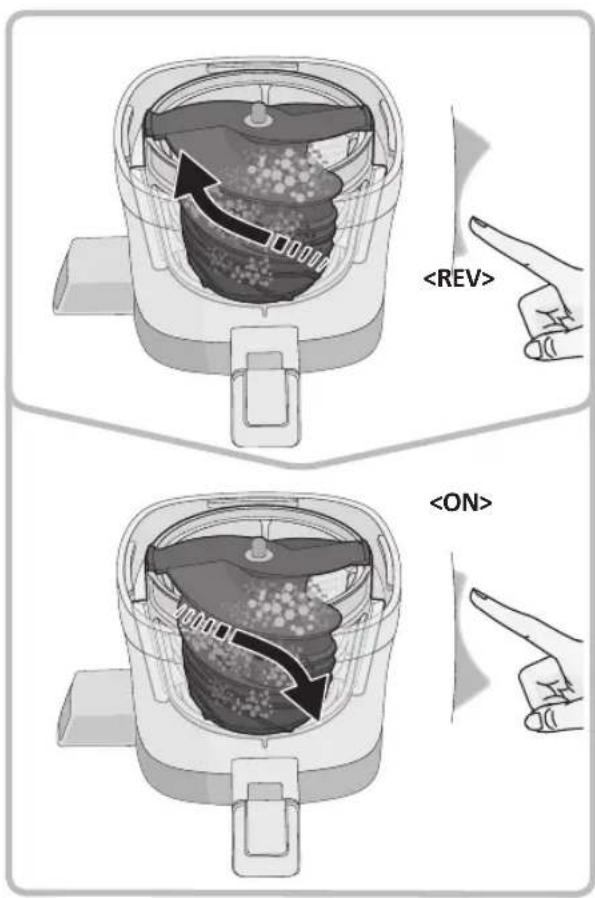

When the squeezing screw stops during the operation

1 Press [REV] button on the operating switch for about 3~5 seconds and stop it. Repeat this 2~3times.

[REV] is the button to push back the ingredients upward.

[REV] only works while pressing the button, and the rotation of the squeezing screw stops If you release the button.

2 Press [ON] button to operate after reverse operation is completely stopped.

When using [ON] or [REV] button, make sure that the squeezing screw stops completely.

Note

Even after following the directions above and still doesn't work, please unplug the power cord and disassemble chamber set, and clean it. And try it again.

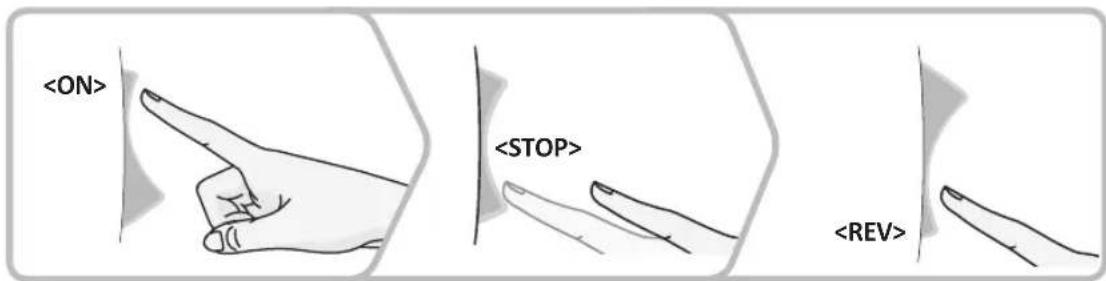

Caution when using operation button

NOTE

In case of reversing during operation, press [REV] button short, then press [REV] button for operation.

With the feature of the product, even though you stop the operation, it doesn't stop right away. It rotates slowly then stops. If the rotation stops completely, you may press the button to any direction you want. (Same as when pressing [ON] during reverse operation)

Please check the details below before contacting Technical Support for repair.

1. The main body itself will not work.

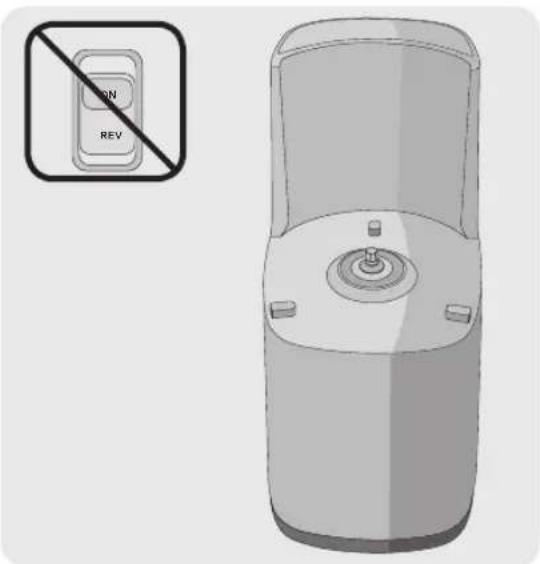

For your safety, this unit only works when it's correctly assembled with the chamber set.

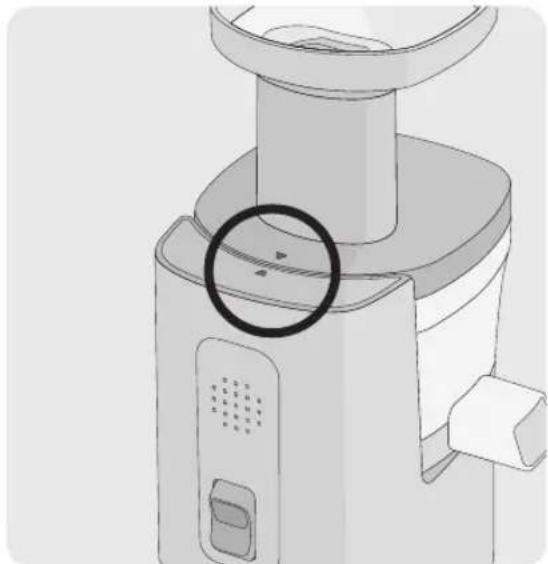

2. Please assemble according to the safety sensor.

For your safety, this unit only works when it's correctly assembled.

3. The Appliance does not work.

Make sure that the power cord is properly plugged in.

Check if the hopper is assembled properly.

If the hopper has not been locked into place, the appliance will not operate for safety reasons.

Check if the appliance is assembled according to the directions in the manual.

Refer to instructions for assembly in the manual or consult with your Customer Service Center for additional assistance.

4. The appliance stops during normal operation.

Have you in heavy loads or large pieces of ingredients into the appliance?

Refer to page 43 of the manual and follow the guideline for using [REV] button.

If the issue is not resolved after following the above process, please contact your local Customer Service Center.

5. There are fine lines or scratch marks around the squeezing screw.

These are molding marks resulting from the normal manufacturing process.

This is a normal product and there is no problem for use.

If you need additional information, please contact your local Customer Service Center or visit www.globalhurom.com. When applying for after-sales service, please have the manufacturer's serial number or bar code available.

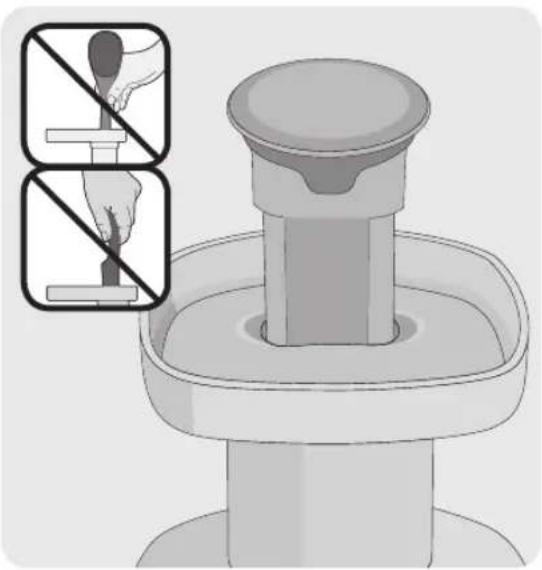

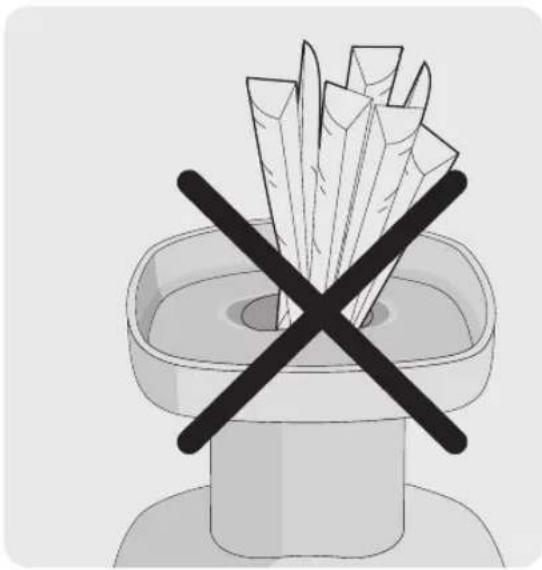

6. Do not insert too many ingredients at once.

If you insert an excessive amount of ingredients or thick ingredients, the unit may stop.

7. Do not use in ways other than pressing on the pusher in the inlet.

It may cause damage, injury, etc.

8. Juice leaks over the body.

Have you inserted a lot of ingredients into the hopper chute?

If you insert a large amount of ingredients compared to the pulp outlet, the packing is slightly pushed away, so the juice leaks out of the gap. Do not put too much ingredients by force and just put gradually for extraction.

9. The hopper does not open.

There might be a lot of residues inside.

Press [ON] button to release residues. Press [REV] button for 3 5 seconds and stop it. Repeat this process 2~3times.

Have you placed any foreign substances or solid objects (hard seed such as persimmon seed) in the juicer?

Press [REV] button and push the ingredients back up toward the hopper chute.

Do not attempt to open by force. Please contact your local Customer Service Center for assistance.

10. The Chamber shakes when squeezing.

Slight shaking may be caused by the motor.

Depending on the texture of the ingredient, there may be slight to more pronounced shaking of

This is a normal phenomenon as auger rotates and it is not a malfunction. Hard ingredients

(e.g carrot, potato, radish, beet, etc.) may cause more shaking than soft ingredients.

How to trim the ingredients!

- Apple, pear, kiwi, oriental melon

• Juice fruits like apple, pear, kiwi, oriental melon, etc. put them with seeds and peels. However, apple

seeds contain toxicity, so it better to remove them.

- Pomegranate, grapes

• Separate each grape from the cluster. Peel the pomegranate and use flesh only.

Watermelon, orange, grapefruit

• Peel off the skin of watermelon, orange, grapefruit and cut them into right size.

Mango, cherry, peach

• Fruits like mango, cherry, peach, or plum, etc. have hard seeds which are hard to swallow.
  Those seeds might cause stoppage or parts damage, so they must be removed before using it.

Wheat, chives

• Put a handful of wheat or chives in not to be scattered.

Water parses, angelica, celery, kale

• Cut fibrous ingredients into small sized less than 3cm

• This is a reference about how to trim the ingredients, so if you have allergy please choose your own proper ingredients which agrees with you.

• Please refer to the recipe book for the product usage of each ingredient.

Product Specifications

● Product Name	Hurom Slow Juicer	● Cord Length	1.4 m
● Model Name	HQ Series	● Motor	Single-phase induction motor
● Rated Voltage	230-240 V
● Rated Frequency	50 Hz	● Fuse	250 V 5 A
● Rated Power Consumption	150 W	● Weight	4.5 kg
		● Outward Dimension	Width 192 mm Length 176 mm Height 398 mm
● RPM	43 rpm
		● Rated Operating Hour	Less than 30 minutes

Warranty

Product name

• Customer name

Model name

• Date of purchase

• Supplier

Manufacture's serial number

Address

Important: For better protection of your purchase, fill out and mail this form to a local distributor where you purchased the appliance and keep the original receipt.

This certifies that the Hurom Slow juicer is covered under warranty by HUROM to be free from defects in material construction and workmanship.

Hurom provides warranty for one (2) year from the date of purchase by the original purchaser. Coverage is valid only with proof of purchase from an Authorized Local Distributor. (No international warranty available)

This warranty does not apply to damages caused by accident, misuse, abuse, commercial use, alteration, failure to follow operating instructions, or damage caused by parts or service unauthorized by HUROM. Damages caused by transportation must be claimed with carrier. HUROM disclaims all responsibilities for consequential damages from incidental losses caused by use of this appliance.

Please check the bottom of your Hurom product for a sticker with a barcode. This barcode sticker helps verify a genuine Hurom product and identify the product manufacturing date. Hurom's manufacturer's warranty does not cover products with missing or damaged barcode stickers. Products are to be inspected upon receipt.

For service and assistance with technical difficulty, please contact our local Customer Service Center.

HUROM

www.globalhurom.com / Made in Korea
