USER MANUAL OFR5A Mini Sonnenkönig

OIL RADIATOR User manual Article-Nr. OFR 5A MINI 208010002 This product is only suitable for well insulated spaces or occasional use.29

• OIL RADIATOR User manual INDEX 1 Safety p. 30
• 2 Placement p. 31
• 3 Electrical connection p. 31

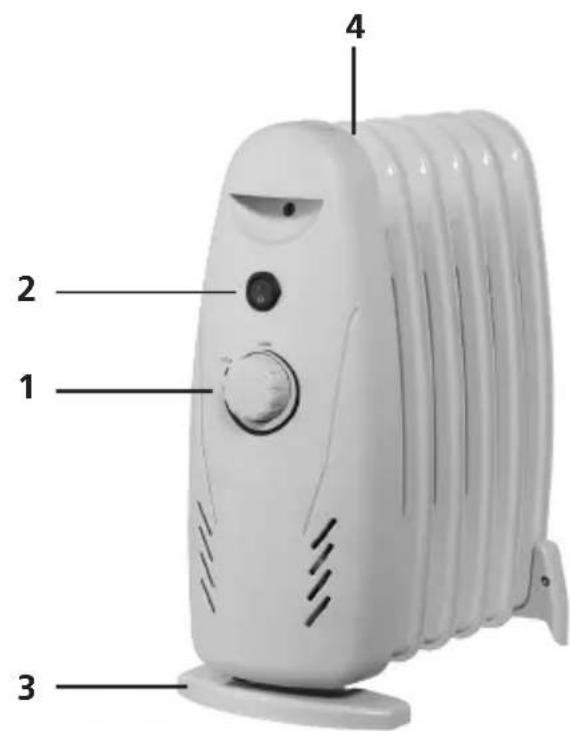

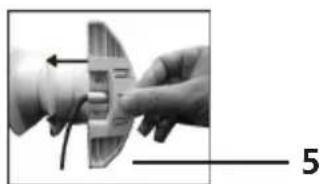

• 4 Description of parts p. 31
• 5 Operation p. 32
• 6 Maintenance and cleaning p. 32
• 7 Technical specifications p. 33

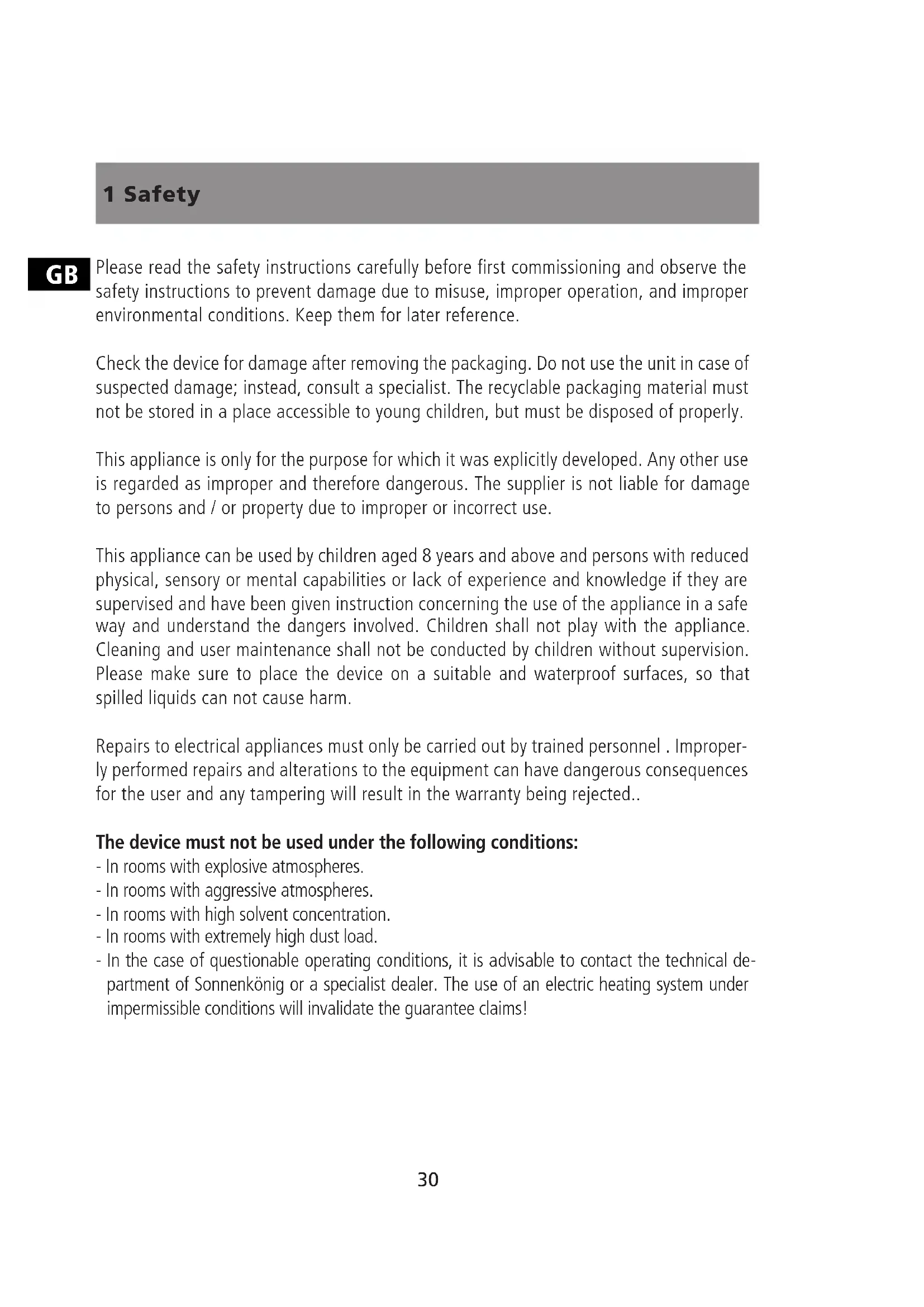

• 8 Warranty / Disposal / Technical change 1 Safety Please read the safety instructions carefully before first commissioning and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions. Keep them for later reference. Check the device for damage after removing the packaging. Do not use the unit in case of suspected damage; instead, consult a specialist. The recyclable packaging material must not be stored in a place accessible to young children, but must be disposed of properly. This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property due to improper or incorrect use. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised and have been given instruction concerning the use of the appliance in a safe way and understand the dangers involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be conducted by children without supervision. Please make sure to place the device on a suitable and waterproof surfaces, so that spilled liquids can not cause harm. Repairs to electrical appliances must only be carried out by trained personnel . Improper- ly performed repairs and alterations to the equipment can have dangerous consequences for the user and any tampering will result in the warranty being rejected The device must not be used under the following conditions: - In rooms with explosive atmospheres. - In rooms with aggressive atmospheres. - In rooms with high solvent concentration. - In rooms with extremely high dust load. - In the case of questionable operating conditions, it is advisable to contact the technical de- partment of Sonnenkönig or a specialist dealer. The use of an electric heating system under impermissible conditions will invalidate the guarantee claims! GB31 2 Placement This device does not impose any special installation requirements, but it is advisable to take a few simple precautions to ensure optimum operation with maximum safety. Please observe the general safety precautions. The appliance must be placed at a distance of at least 50 cm from walls or pieces of furniture. The following points should be checked before the electrical connection of the heater: - Does the mains voltage match the voltage of the unit? - Are the socket and the supply network adequately protected? - If a cable reel is used, is it fully unwound? - Is the appliance plug suitable for the building socket? - Is the used socket equipped with a faultless grounding? 3 Electrical connection 4 Description of parts 1 Thermostat 2 ON / OFF 3 Sturdy base 4 Ribs 5 Front support 6 Rear support p. 3330

GB32 6 Maintenance and cleaning Warning! For general maintenance and care, observe the general safety conditions. To ensure trouble-free operation of the heater, the unit must be cleaned regularly. Include the following procedure:

1. Turn off the heating.

2. Then pull the power cord out of the socket.

3. Clean the outside with a damp cloth. To clean the plastic parts do not use gasoline,

solvents or abrasive agents that can damage the plastic surface. 4.Insert the power cord into the socket.

5. Turn on the device.

To use the heater, proceed as follows: - Connect the mains cable to the power circuit. - Then operate the device according to the following description.

The thermostat works on all levels. You can set the desired temperature using the thermostat. To do this, turn the thermostat to the desired value. Maximum value: Position (HIGH) Minimum value: Position (LOW) The thermostat causes the heater to switch on when the ambient temperature is below the preset value. If the temperature rises above this value, the thermostat switches the appliance off. 5 Operation

The symbol on the device serves as a warning so that you never cover the device. Fire hazard!33 7 Technical specifications

Power 500 Watt Voltage / Frequency 220-240 Volt 50 Hz Thermostat Yes Timer 24 h Yes Ventilation Yes 8 Warranty / Disposal / Technical change Warranty The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warran- ty. The guarantee period is 24 months from date of purchase. Disposal The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer. Technical changes We reserve the right to modify the price, the design and the technical features. Please save the packaging materials of the unit. CE Declaration of Conformity This device complies with the following standards EN 55014-1:2017 EN 55014-2:2015 EN 60335-1:2012/AC:2014 EN 60335-2-30:2009 + Cor. :2010 + A11:2012 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 62233:2008 2014/30/EU 2014/35/EU GB34 DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT In accordance with Article 26 of the Decree-Law of 14 March 2014 implemen- ting Directive 2012/19/EC, and the Law of 4 March 2014 implementing Directive 2011/65/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management. The crossed-out dustbin symbol on the machine or packaging indicates that the waste ge- nerated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound dis- posal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste. Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal require- ments are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead. GB35 Item Symbol Value Unit HEAT OUTPUT Nominal heat output Pnom 1.0 kW Minimum heat output (indicative) Pmin 0 kW Maximum continuous heat output Pmax,c 1.0 kW

AUXILIARY ELECTRICITY CONSUMPTION

At nominal heat output elmax N.A. kW At minimum heat output elmin N.A. kW In standby mode elSB 0 kW Item Unit Type of heat input, for electric storage local space heaters only (select one) manual heat charge control, with integrated thermostat [no] manual heat charge control with room and/or outdoor temperature feedback [no] electronic heat charge control with room and/or outdoor temperature feedback [no] fan assisted heat output [no] Type of heat output/room temperature control (select one) single stage heat output and no room temperature control [no] Two or more manual stages, no room temperature control [no] with mechanic thermostat room temperature control [yes] with electronic room temperature control [no] electronic room temperature control plus day timer [no] electronic room temperature control plus week timer [no] Other control options (multiple selections possible) room temperature control, with presence detection [no] room temperature control, with open window detection [no] with distance control option [no] with adaptive start control [no] with working time limitation [no] with black bulb sensor [no] GBCompany Armin Schmid Olensbachstrasse 9-15 CH-9631 Ulisbach Tel. Int. +41 71 987 60 60 Tel. Nat. 0848870850 www.sonnenkoenig.ch Company Armin Schmid Peter-Henlein-Strasse 5 D-89331 Burgau Tel: 0180 500 64 35 info@ sonnenkoenig.ch www.sonnenkoenig.ch
